A ROBOTIC PLATFORM FOR AUTONOMY STUDIES

Sergio Ribeiro Augusto and Ademar Ferreira

Departamento de Engenharia de Telecomunicações e Controle, Escola Politécnica da Universidade de São Paulo

Av. Prof. Luciano Gualberto 3/380, 05508-900 Sao Paulo, Brazil

Keywords: Mobile robotics, supervised learning, radial basis function networks, teleoperation.

Abstract: This paper describes a mobile robotic platform and a software framework for applications and development

of robotic experiments integrating teleoperation and autonomy. An application using supervised learning is

developed in which the agent is trained by teleoperation. This allows the agent to learn the perception to

action mapping from the teleoperator in real time, such that the task can be repeated in an autonomous way,

with some generalization. A radial basis function network (RBF) trained by a sequential learning algorithm

is used to learn the mapping. Experimental results are shown.

1 INTRODUCTION

In robotics navigation problems, including learning

or not, navigation techniques must be tested in real

robots to be useful (DORIGO, 1996). This is due to

the uncertainties involved, non uniformity of sensors

measurements and real time requirements. To deal

with these severe characteristics, this paper proposes

a mobile robotics platform developed in a modular

and hierarchical way, to be used in real time

autonomy studies. The objective is to create a

flexible development environment for studies in

which teleoperation can be easily integrated with

autonomous operation. The idea is to join

teleoperation with supervised learning in a way that

innate or prior knowledge can be acquired, or that an

agent can be taught to realize specific navigation

tasks. Such possibility allows a robotic agent to learn

with its own operation. Kaelbling (1996) points out

that without prior knowledge an agent can not learn

with effectiveness. Unsupervised learning

techniques, as for example reinforcement learning,

have a long convergence time and do not provide

operational agents from the beginning. Therefore, it

is important to mix such methods with supervised

ones (Ye et al., 2003; Er and Deng, 2005).

Although miniature like robots, as for instance

the Khepe

ra (Mondada et al., 1993), have been used

in studies and papers related to autonomous robotics,

as in Er and Deng (2005), it is more realistic to

perform the same experiments using larger robots

due to the dynamic effects associated, which places

them closer to real service robots. For this reason,

we decide to build a mobile robotic platform with

dynamic characteristics that could be applied in a

flexible way to navigation and learning experiments.

In this sense, the platform allows sensory-motor data

to be stored and recovered during or after operation,

and new sensors to be added and configured

according to the application.

Differently from Ye et al. (2003) and Er and

eng (2005), in our work the supervised learning

takes place in a real environment, not in a simulated

one, and in real time. The objective is to teach the

agent to perform simple navigation tasks using

ultrasound sensors.

In order to have incremental learning with some

gene

ralization, a radial basis function neural network

(RBF) is developed. We adapted the resource

allocation algorithm proposed in Platt (1991) for the

function interpolation field, to obtain supervised

learning in real time, while the robot is teleoperated.

In this aspect, our work is also different from

Reignier et al. (1997), where the supervised learning

is off line, implemented in a GAL (“Grow and

Learn”) network, with results verified in simulation.

This paper is organized as follows. Section 2

descri

bes the platform and the software framework

developed. Section 3 introduces the supervised

learning application. Section 4 presents some

experimental results that we got until now. Finally,

conclusions are drawn in Section 5.

390

Ribeiro Augusto S. and Ferreira A. (2007).

A ROBOTIC PLATFORM FOR AUTONOMY STUDIES.

In Proceedings of the Fourth International Conference on Informatics in Control, Automation and Robotics, pages 390-395

DOI: 10.5220/0001622603900395

 SciTePress

2 THE ROBOTIC PLATFORM

The robotic platform in its present version is

designed for indoor experiments. It measures 50 cm

(diameter) by 80 cm (height) and weights 40 kg. In

the sequence we describe some aspects of its

hardware and software architectures.

2.1 Hardware Architecture

A block diagram of the robotic system is shown in

Figure 1. The control of the robot locomotion is

accomplished by two motor wheels, powered

independently by two DC motors, using differential

steering (Dudek and Jenkin, 2000) and a caster

wheel. The platform has an image module, and

seven ultrasound sensors distributed in its frontal

side. The sensors are allocated in a way that objects

on the floor can be detected. A digital compass and

an angular sensor connected to the caster allow

sensorial integration techniques to be exploited to

assist in the navigation. Two incremental encoders

are used for odometry and velocity control. Collision

sensors protect the robot lower perimeter. Other

sensors can be added to the platform using a

synchronous serial interface available in the system,

so that the user can configure it to different types of

studies and experiments.

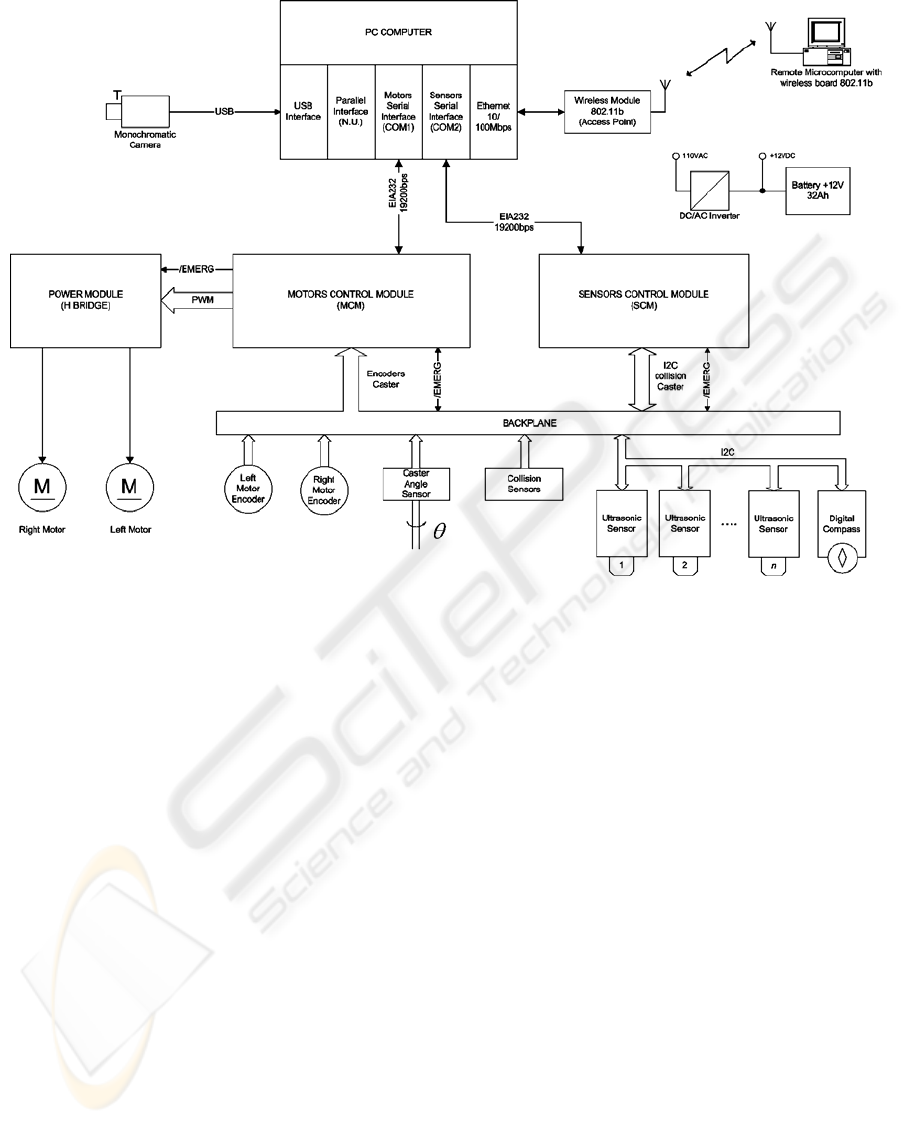

Figure 1: Block diagram of the robotic system.

The hardware architecture is arranged in

hierarchical processing modules, each one

responsible for some of the tasks involved in the

mobile robot control. There are four main modules:

the Management Module, the Motors Control

Module (MCM), the Power Module and the Sensors

Control Module (SCM). The Management Module is

responsible for the coordination of the robotic unit.

Currently a PC on board computer is used for this

function. It runs the software framework, described

in the section 2.2, for developing of user’s

applications. The Power Module is responsible for

the steering of the motor wheels under control of the

MCM. The Motors Control Module implements two

PID (proportional plus integral plus derivative)

controllers in parallel, allowing independent velocity

control of each wheel. The SCM module permits

acquiring data from the diverse sensors on the robot.

It has a synchronous serial interface (I2C) for

A ROBOTIC PLATFORM FOR AUTONOMY STUDIES

391

sensors expansion and it can also provide for

emergency stopping in case of collision.

The platform also has wireless TCP/IP

communication resources, allowing remote

monitoring, data exchange and teleoperation. The

energy system gives the robot at least one hour of

navigation’s autonomy.

2.2 Software Architecture

The software environment provides the robot with

autonomous navigation as well as teleoperation. The

software architecture is divided in two main

applications: The On Board Management Software

(OBMS), running in the Management Module of the

mobile platform, and the Remote Control and

Supervision Software (RCSS), executing in a remote

microcomputer. The communication between them

is made using the Client-Server paradigm (Andrews,

2000) and through the wireless network available in

the system.

A block diagram of the OBMS is shown in

Figure 2. The architecture is arranged in four main

levels: the Communication Level, the Management

and Supervision Level, the Execution Level and the

Software Interface.

The Communication Level implements a TCP/IP

server that is responsible for receiving commands

from the remote microcomputer and sending data

back to it. Simultaneous connections are possible

and data can be exchanged with more than one

remote microcomputer if desired. The Management

and Supervision Level deals with the commands

received at the TCP/IP server, interpreting and

executing them. This level also performs the

management of the mobile unit concerning its

operation mode, autonomous or teleoperated, which

is controlled through commands sent by the RCSS.

The effective control of the robot is made in the

Execution Level, which implements the operation

modes. This level is easily adapted to the application

required using a library of functions available to the

user. Each operation mode has a template which the

user can modify or adapt to his own necessities. In

the application described in this work, the learning

algorithm is added to the teleoperation mode and the

learned neural network is recovered and executed in

the autonomous mode. The Software Interface

isolates the hardware aspects of the robot creating an

application program interface (API). This permits

that hardware modifications can be made without

any change in the other levels of the architecture,

supplying modularity.

The software framework has a multithreaded

architecture (Andrews, 2000), which is adequate to

implement real time applications.

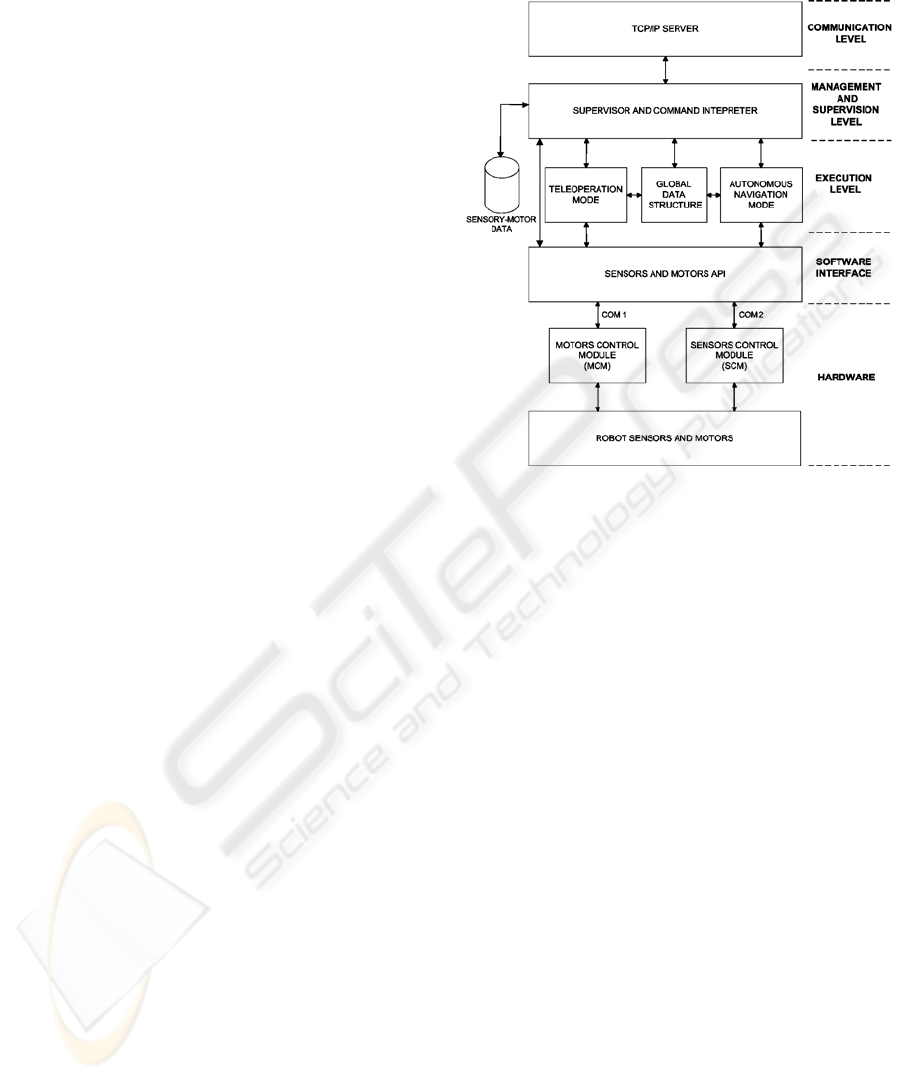

Figure 2: Block diagram of the OBMS.

Sensory-motor data are stored in a data base for

analysis and utilization. Sensory-motor coordination

aspects (Pfeifer and Scheier, 1997) can then be

exploited in the training and learning of autonomous

agents. A global data structure allows data exchange

among the several software modules in execution.

The RCSS has the main objective of informing

the OBMS concerning the operation mode requested

by the user. In the teleoperation mode, the robot is

controlled through a joystick connected to the

remote microcomputer. A TCP/IP client in the

RCSS communicates with the OBMS allowing

messages and commands exchange.

3 APPLICATION: LEARNING

EXPERIMENTS

Using the facilities of the platform, a supervised

learning application, assisted by teleoperation, was

developed. An RBF neural network was trained in a

sequential way appropriate to real time applications.

The network starts with no computational units and

grows by allocating units (hidden units), or centers,

based on the “novelty” of an observation. The

novelty is characterized by two joint criterions: the

ICINCO 2007 - International Conference on Informatics in Control, Automation and Robotics

392

distance criterion and the prediction error criterion.

The former is based on the distance between the

input pattern observed and the network units. The

latter uses the errors among the desired outputs and

the network ones due to the input pattern. The

network forms a compact representation and it has a

quick learning. Learning patterns do not have to be

repeated. The units only respond to a local region of

the space of the input values, making easy the

incremental learning. If a new pattern is presented to

the network and the joint criterion is satisfied, a new

unit is allocated. Else, the network parameters are

update using the LMS (Least Mean Square)

algorithm. Instead of using LMS, an algorithm based

on the extended Kalman filter (EKF) has been

proposed in the literature (Kadirkamanathan and

Niranjan, 1993) to speed up the convergence of the

network. Because of the computational complexity

involved in the EKF, requiring longer processing

time, we decided to use LMS in our real time

application. The experimental results in section 4

show that our choice was sufficient for the

navigation tests that were realized, allowing the

training of the robot to the tasks proposed. It is not

our objective in this work to minimize the number of

teleoperations for learning, so the speed of

convergence of the network is not our main

approach.

In our proposal, teleoperations are used for

training an RBF network that has the seven

ultrasound sensors of the platform as input pattern

and the angular velocities of the two motor wheels

as outputs. The network parameters are updated in

real time during the teleoperation and stored in the

end of the training. A new teleoperation can be made

with the network starting with the stored parameters.

The autonomous mode implements the learned

network in such a way that the robot can repeat the

task with some generalization. This means that the

robot produces coherent outputs for similar inputs,

although not equal to those encountered during

training. If the performance is not good, the platform

allows that new teleoperations can be made, starting

from the parameters that have already been learned.

The learning algorithm, adapting from Platt

(1991), Kadirkamanathan and Niranjan (1993), is

described mathematically as follows, where: x(n) is

the input pattern at the instant n; y

(n) is the angular

velocity desired for each wheel ( j=1,2); s

(n) are the

network outputs; u

is the unit k of the network; w

is the weight connecting the unit k to the output j;

ε(n) is the value of the distance threshold in the

iteration n that inserts a new unit; ε

max

and ε

min

are

respectively the maximum and minimum values of

ε(n);

min

is the threshold to the network prediction

error; k

is the overlap factor to the network units; γ

(0 < γ < 1) is a decay constant and u

is the nearest

center to the input x(n). ε

max

and ε

min

represent the

scale of resolution in the input space, respectively

the largest and the smallest scale of interest.

The network outputs are written as:

∑

Φ−=

kjkj

nnwns

))(()1()( x

(1)

where m is the number of units or centers of the

network, Ф

(x(n)) = 1 for k = 0 and

⎟

⎠

⎞

⎜

⎝

⎛

−−−

=Φ

||)1()(||

exp))((

(2)

for k ≠ 0.

Algorithm:

In the first iteration (n = 0):

ε(n) = ε

max

, w

(n) = y

(n) (k = 0)

For each observation (x(n); y

(n), y

(n))

{

(n) = y

(n) – s

(n)

If |e

(n)| (

}2,1{

∈

∀

) > e

min

and ||x

-u

|| > ε(n)

Allocate a new unit:

m+1

= x(n)

j(m+1)

= e

(n)

If it is the first unit

m+1

= k

ε(n)

Else

m+1

= k

||x(n)-u

Else execute LMS

ε(n) = max{ ε

max

, ε

min

}

The updating of the network parameters in

accordance with the LMS algorithm is given by

equations (3) and (4). The time index n was omitted

for clarity. Equation (3) is the correction term for the

component i of each center k. The dimension of each

unit is d, the same of the input pattern (i = 1, 2, …,

d). The correction to the weights is given by

equation (4). In both equations η is the learning rate.

()

(

∑

−Φ−=Δ

)(

jjjkkkii

sywuxu x

)

(3)

A ROBOTIC PLATFORM FOR AUTONOMY STUDIES

393

(

)

)(x

kjjjk

syw Φ−=Δ

(4)

4 EXPERIMENTAL RESULTS

Experiments were performed to verify the robot

ability to learn the perception to action mapping

from the teleoperator in real time, checking if the

mobile unit can repeat the navigation task

autonomously. The parameters values used in the

tests were: ε

min

= 0.03, ε

max

= 0.5, γ = 0.9, η = 0.3 and

= 0.5. The input and output data used to train the

network were normalized in the range [-1, 1].

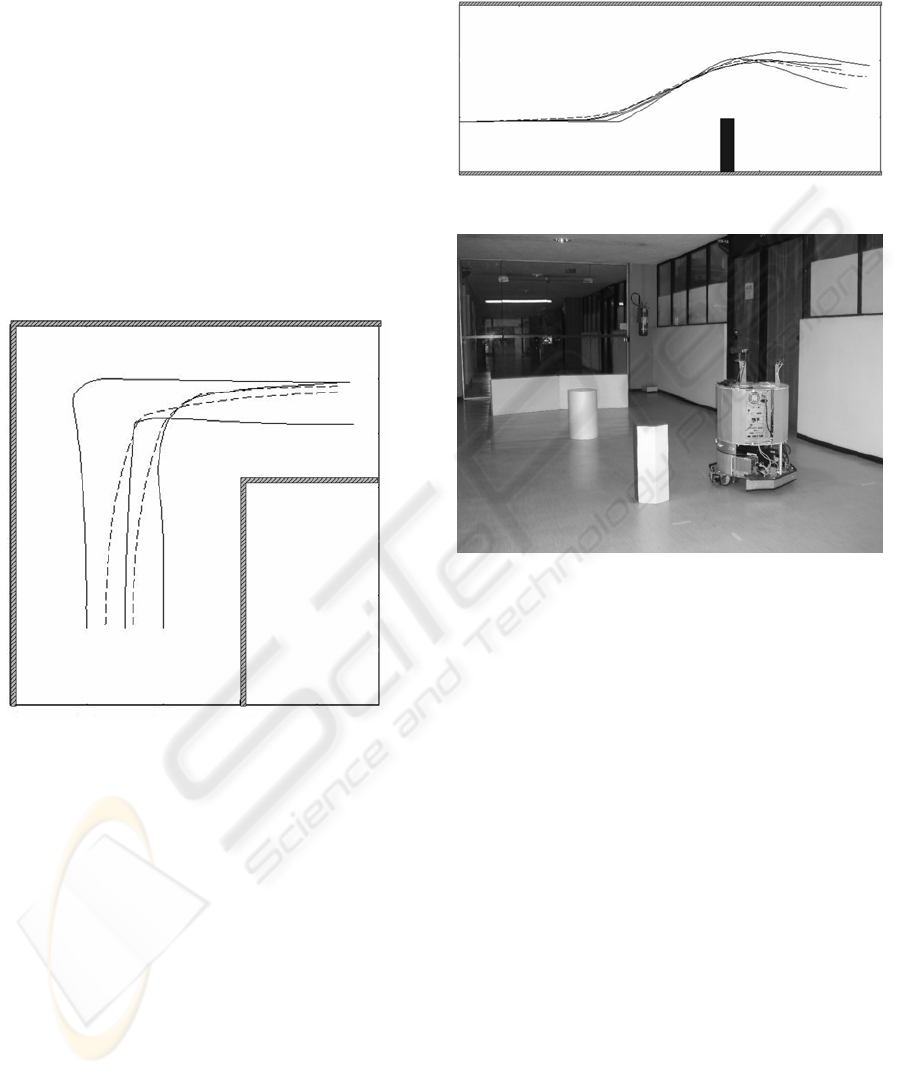

Figure 3 shows the results of teleoperating the robot

in a corridor with a turn to the right.

Figure 3: Navigating in a corridor with a turn to the right.

The training consisted of three teleoperations,

each one starting at a different initial position. In the

figure, the solid lines represent the trajectories

executed during the training and the dashed ones are

the routes performed autonomously by the robot.

The trajectory is the path traversed by the medium

point between the two motor wheels. It should be

remembered that the unit has a diameter of 50 cm.

The training resulted in a network with 121 units.

The idea of the experiments was to demonstrate

the capacity of the method in acquiring reactive

movements such as wall-following and obstacle

avoidance. In Figure 4 the robot goes around an

obstacle. Four teleoperations were realized for

training, resulting in a network with 119 centers.

After the learning phase the autonomous mode was

activated and the agent executed the task with

success.

The agent was also trained to make a path in the

shape of an 8 around two obstacles. Figure 5 shows

the test environment.

Figure 4: Robot avoiding an obstacle.

Figure 5: Robot in the test environment.

A few teleoperations were realized to train the

robot in this navigation task. In the autonomous

mode, it was observed that the robot continued

surrounding one of the obstacles instead of

completing the 8 when arriving at the trajectory

cross point. We then added the value of the digital

compass available in the robotic platform to the

network input pattern, in a way that the agent could

infer the direction of the movement during the

learning. Such alteration allowed the robot to

complete the task autonomously. The initial training

allocated 262 units in the network. Sometimes the

robot did not complete the navigation task by itself

with success. In those cases the autonomous mode

was finished and the agent was teleoperated,

completing the route. The incremental and local

learning characteristics of the neural network

allowed new units to be added to the network

encompassing such situations. In the end a neural

network with 935 units resulted.

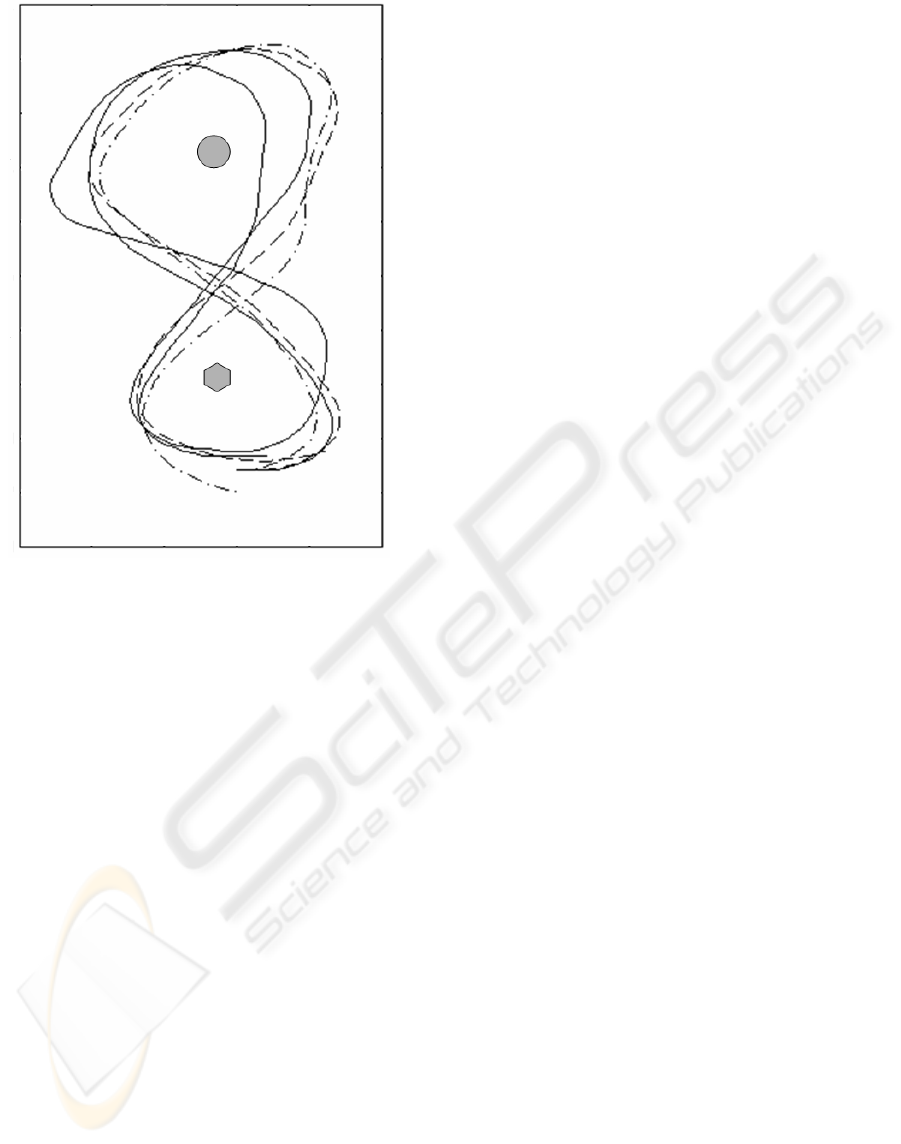

In Figure 6 we have some training trajectories

(solid lines) and some paths realized by the robot

when operating in the autonomous mode (dash and

dash-dot lines).

ICINCO 2007 - International Conference on Informatics in Control, Automation and Robotics

394

Figure 6: Robot making a path in the shape of an 8.

5 CONCLUSIONS

The mobile robotic platform proposed showed to be

efficient to the realization of teleoperated as well as

autonomous experiments and studies. The

navigation results obtained with the sequential and

local learning algorithm used are promising. The

results exhibited some generalization, although no

specific experiment has yet been made to verify that

more systematically. The technique can be applied,

for instance, to get prior learning in reactive robotic

applications, speeding up real time learning.

As future work, real time pruning techniques

should be developed and added to the algorithm to

minimize the number of units in the neural network.

REFERENCES

Andrews, G. R. (2000). Foundations of Multithreaded,

Parallel, and Distributed Programming, Addison-

Wesley. New York.

Dorigo, M. (1996). Introduction to the Special Issue on

Learning Autonomous Robots. IEEE Trans. on

Systems, Man, and Cybernetics, Part-B, vol. 26, no. 3,

pp. 361-364.

Dudek G. and Jenkin, M. (2000). Computational

Principles of Mobile Robotics, Cambridge University

Press. Cambridge.

Er, M. J. and Deng, C. (2005). Obstacle Avoidance of a

Mobile Robot Using Hybrid Learning Approach. IEEE

Trans. on Industrial Electronics, vol. 52, no. 3, pp.

898-905.

Kadirkamanathan, V. and Niranjan, M. (1993). A Function

Estimation Approach to Sequential Learning with

Neural Networks. Neural Computation, vol. 5, pp.

954–975.

Kaelbling, L. P. (1996). On Reinforcement Learning for

Robots. In Proc. of IEEE Int. Conf. on Intelligent

Robots and Systems, Osaka, Japan, pp. 1319-1320.

Mondada, R., Franzi, E. and Ienne, P. (1993). Mobile

Robot Miniaturization: A Tool for Investigation in

Control Algorithms. In Proc. of the Third

International Symposium on Experimental Robots,

Kyoto, Japan, pp. 501-513.

Pfeifer, R. and Scheier, C. (1997). Sensory-motor

coordination: The metaphor and beyond. Robotics and

Autonomous Systems, vol. 19, pp. 244-257.

Platt, J. C. (1991). A Resource-Allocating Network for

Function Interpolation. Neural Computation, vol. 3,

no. 2, pp. 213-225.

Reignier, P., Hanser, V. and Crowley, J. L. (1997).

Incremental Supervised Learning for Mobile Robot

Reactive Control. Robotics and Autonomous Systems,

vol. 20, pp. 157-178.

Ye C., Yung, N. H. C. and Wang, D. (2003). A Fuzzy

Controller with Supervised Learning Assisted

Reinforcement Learning Algorithm for Obstacle

Avoidance. IEEE Trans. on Systems, Man, and

Cybernetics, Part-B, vol. 33, no.1, pp. 17-27.

A ROBOTIC PLATFORM FOR AUTONOMY STUDIES

395
