HUMAN-SCALE VIRTUAL REALITY CATCHING

ROBOT SIMULATION

Ludovic Hamon, François-Xavier Inglese and Paul Richard

Laboratoire d’Ingénierie des Systèmes Automatisés, Université d’Angers

62 Avenue Notre Dame du Lac, 49000 Angers, France

Keywords: Virtual reality, large-scale virtual environment, human-robot interaction, catching.

Abstract: This paper presents a human-scale virtu

al reality catching robot simulation. The virtual robot catches a ball

that users throw in its workspace. User interacts with the virtual robot using a large-scale bimanual haptic

interface. This interface is used to track user’s hands movements and to display weight and inertia of the

virtual balls. Stereoscopic viewing, haptic and auditory feedbacks are provided to improve user’s immersion

and simulation realisms.

1 INTRODUCTION

Robotic researchers tried to solve the problem of

catching moving object (dynamic problem) while

basing themselves on the use a priori of the

trajectory of the object to limit the calculating time.

Most of the proposed methods generally rest on the

llowing stages:

1) the detection of the ball,

2) the determination since it is in flight,

3) the follow-up and the prediction of its trajectory

4) the economic planning and the execution of a

ovement of interception.

Indeed, the prediction of balls trajectories in a

cont

rolled environment (no wind, etc.) is based on a

priori knowledge of characteristics of this type of

movement and, on the collection of information

about the displacement of the ball, before beginning

to make a prediction on the trajectory followed by

the object.

Virtual Reality (VR) is a computer-generated

mersive environment with which users have real-

time interactions that may involve visual feedback,

3D sound, haptic feedback, and even smell and taste

(Burdea, 1996 ; Richard, 1999 ; Bohm, 1992 ;

Chapin, 1992 ; Burdea, 1993 ; Sundgren, 1992 ;

Papin, 2003). By providing both multi-modal

interaction techniques and multi-sensorial

immersion, VR presents an exciting tool for

simulation of (real) human – (virtual) robot

interaction or cooperation. However, this requires a

large-scale Virtual Environments (VEs) that provide

efficient and multi-modal interaction techniques

including multi-sensorial feedbacks.

2 HUMAN-SCALE VE

Our multi-modal VE is based on the SPIDAR

interface (Figure 1). In this system, a total of 8

motors for both hands are placed surrounding the

user (Sato, 2001). Motors mounted near the screen

and behind the user; drive the strings attachments.

One end of string attachment is wrapped around a

pulley driven by a DC motor and the other is

connected to the user’s hand.

By controlling the tension and length of each string,

he SPIDAR-H generates an appropriate force using

four string attachments connected to a hand

attachment. Since it is a string-based system, it has a

transparent property so that the user can easily see

the virtual world.

It also provides a space where the user can freely

ove around. The string attachments are soft, so

there is no risk of the user hurting himself if he

would get entangled in the strings. This human-scale

Hamon L., Inglese F. and Richard P. (2007).

HUMAN-SCALE VIRTUAL REALITY CATCHING ROBOT SIMULATION.

In Proceedings of the Fourth International Conference on Informatics in Control, Automation and Robotics, pages 33-38

DOI: 10.5220/0001626900330038

 SciTePress

haptic device allows the user to manipulate virtual

objects and to naturally convey object physical

properties to the user’s body. Stereoscopic images

are displayed on a back-projected large screen (2m x

2,5m) and viewed using polarized glasses. A 5.1

immersive sound system is used for simulation

realism, auditory feedback and sensorial immersion.

Olfactory information can be provided using a

battery of olfactory displays.

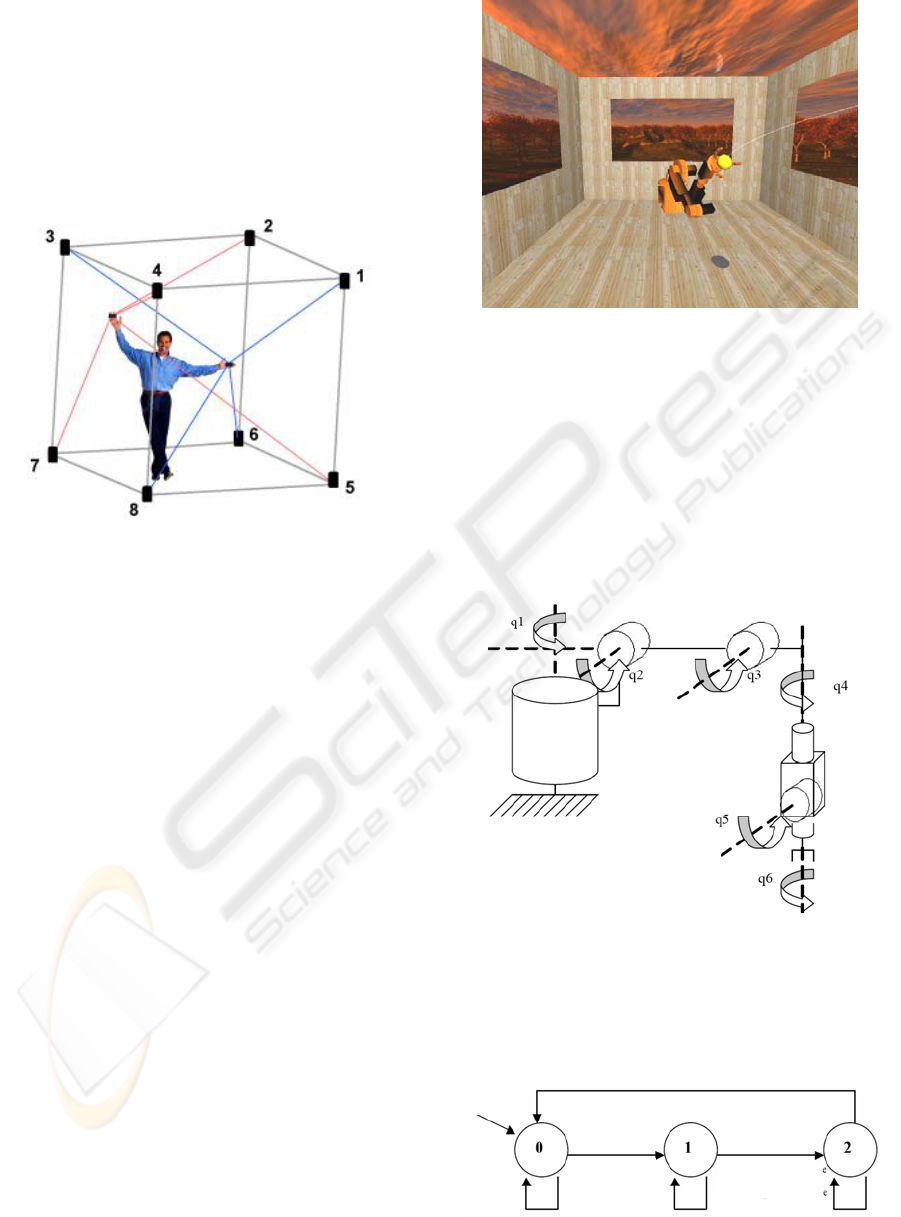

Figure 1: Workspace of the SPIDAR device.

3 CATCHING SIMULATION

3.1 Virtual Room

The virtual room in which simulation takes place is a

right-angled parallelepiped which consists of a

ground, a left wall and a right wall. The ceiling is

left open. A wood texture was added on each face to

increase the depth perception, as well as the ball

shadow.

This virtual room contains objects such as a

virtual ball, virtual hands (right and left), and a

virtual robot (a Kuka KR6).

All calculation are made in cartesian co-ordinates X,

Y, Z, according to an orthonormed reference frame

whose origin O is located at the middle of the floor.

The Z axis is directed towards the user. The Y axis

is directed upwards. The X axis is directed towards

the right compared to the user view.

Figure 2: Snapshot of the robot reaching for the ball.

3.2 Robot Modelling

The robot chosen here is Kuka KR6 model. It is an

arm manipulator with 6 degrees of freedom, having

only rotoids axes. It is placed at the bottom of the

virtual room. Each part of the model was modelled

in Discreet 3D Studio Max 7.0 and then imported

into OpenGL. The robot consists of 6 rotoïds axes

whose angles are respectively q1, q2, q3, q4, q5, q6.

Figure 3: Illustration of the parameters used for the

geometrical modelling of the Kuka KR6 robot.

To animate each robot part, elementary geometrical

operations such as translations and rotations around

the frame reference is used.

Ball

ras

ed b

human

Initial

state

Ball caught

robot

Ball released

by robot

Figure 4: Finite state machine of the robot.

ICINCO 2007 - International Conference on Informatics in Control, Automation and Robotics

The virtual robot is subjected to the finite state

machine given in figure 4. The various states are

defined as follows:

State 0: the robot tries to catch the ball if in its

workspace.

At the beginning of simulation, the robot waits until

the ball is seized by the human operator, via the

virtual hand, or till an external force is generated on

the ball, to return to state 0.

State 1: the robot catches the ball if in state 0.

State 2: the robot releases the ball automatically,

after a certain amount of time, and returns in its

initial configuration.

The robot waits until the ball is grasped by the user

(using one of the virtual hand) or till an external

force is generated on the ball to return to state 0.

Once the ball is caught, the robot automatically

drops the ball and the simulation is reinitialised in its

initial configuration.

The virtual ball is represented by a sphere and has a

given mass "m", a given radius "R" and a given

velocity "Vb" (or a Velocity Vector).

Assimilated to a single point which is the centre of

the sphere, the ball is animated according to the

fundamental law of dynamics: F=mA, i.e. the sum of

the external forces F applied to the ball, is equal to

the mass of the ball multiplied by acceleration.

Thus, the animation engine of the ball uses the

following formulas:

Force = truncate(Force, max_force)

Acceleration = Force/m

Velocity = Velocity + Acceleration

Velocity = truncate(Velocity, max_velocity)

Position = Position + Velocity

Or Force=(Fx,Fy,Fz) , Acceleration=(Ax,Ay,Az) ,

Velocity = (Vx , Vy , Vz) ,

Position (Px , Py , Pz)

"max_force" is defined by the developer. It

represents the maximum force that could be applied

to the ball. Similarly, "max_velocity" represents the

maximum velocity that could be set to the ball.

Thus one truncates the force by "max_force" and

velocity by "max_velocity" to avoid reaching a force

or velocity of oversized magnitudes.

In this way, a new position of the ball could be

calculated at any time (more precisely according to

the main loop of the simulation), when the ball is

free (not caught by the robot or grasped by the user).

The ball is subjected to the finite state machine

given in fig.5.

Left hand grasp

Ball

caught

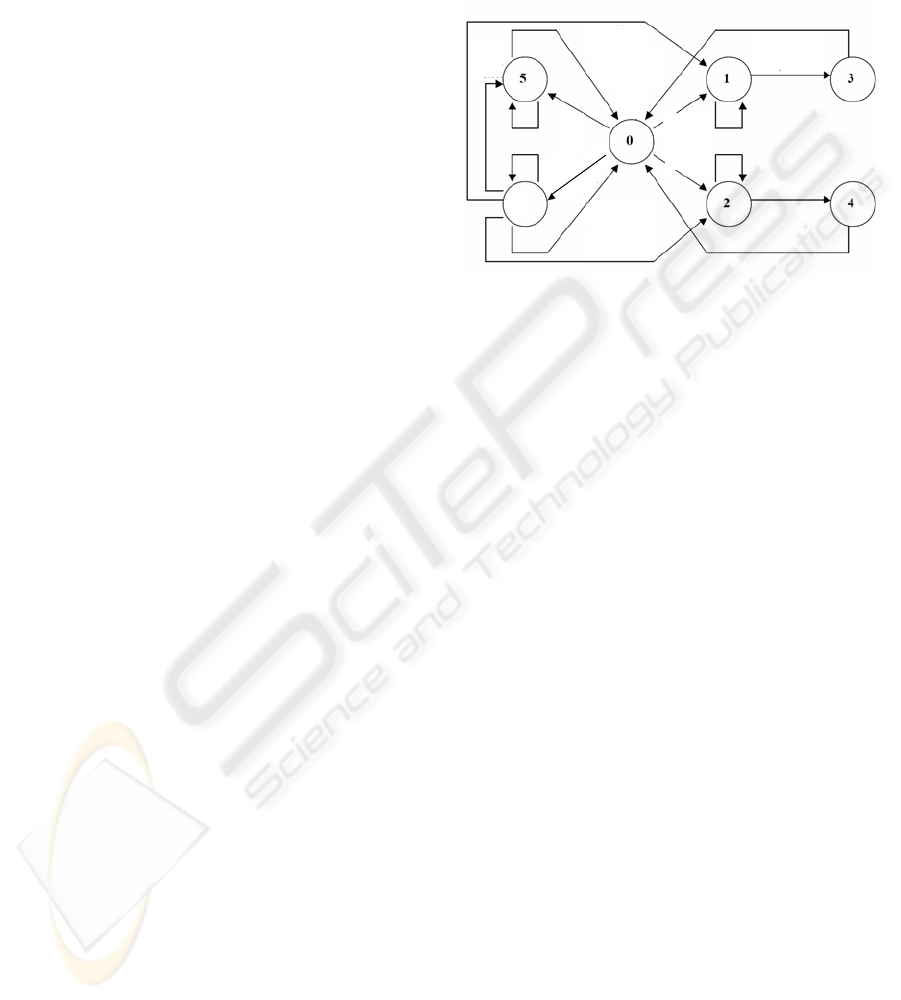

Figure 5: Finite state machine of the ball.

The various states are defined as follows:

State 0: the ball is free and is thus subjected to the

animation engine described before.

State 1: the ball is caught by the left hand. The

position of the ball is therefore directly linked to the

position of this hand.

State 2: the ball is caught by the right hand. The

position of the ball is therefore directly linked to the

position of this hand.

State 3: the ball is released by the left hand. The

position of the ball is no more established by the

hand, but rather by the animation engine. The

external Forces vector is equal, at this moment, to

the hand velocity vector Vmx, Vmy, Vmz.

State 4: the ball is released by the right hand. The

position of the ball is no more established by the

hand, but rather by the animation engine. The

external Forces vector is equal, at this moment, to

the hand velocity vector Vmx, Vmy, Vmz.

State 5: the ball is caught by the robot. The position

of the ball is no more established by the animation

engine, but rather is a function of the robot gripper

position.

State 6: the ball lies on the ground or closed to the

ground. The Velocity vector magnitude is close to

zero. The ball automatically moves to state 6, which

is the end state and is immobilized on the ground.

Gripper

Left hand

release

Left hand

grasp

Right hand

grasp

Right hand

release

External

force

Right hand grasp

HUMAN-SCALE VIRTUAL REALITY CATCHING ROBOT SIMULATION

User’s hands position is tracked using the SPIDAR

device.

A gain parameter between the user hand movements

and the virtual hands can be introduced in order to

enable him to increase his workspace. For example,

it can be tuned so that the user can reach any

location of the virtual room without moving too far

from the centre of the SPIDAR frame of reference.

The closing of the virtual hand is carried out by the

closing of a 5dt wireless data glove worn by the user

(http://www.5dt.com). This could also be achieved

using wireless mousses integrated to the SPIDAR

device.

Each virtual hand is subjected to the finite state

machine given in fig.6.

The different states are

defined as follows:

State 0: the left (respectively right) hand is open: it

cannot grasp the ball.

State 1: the left (respectively right) hand is closed:

it can grasp the ball if the latter is in state 0 or 6 or 1

(respectively 2).

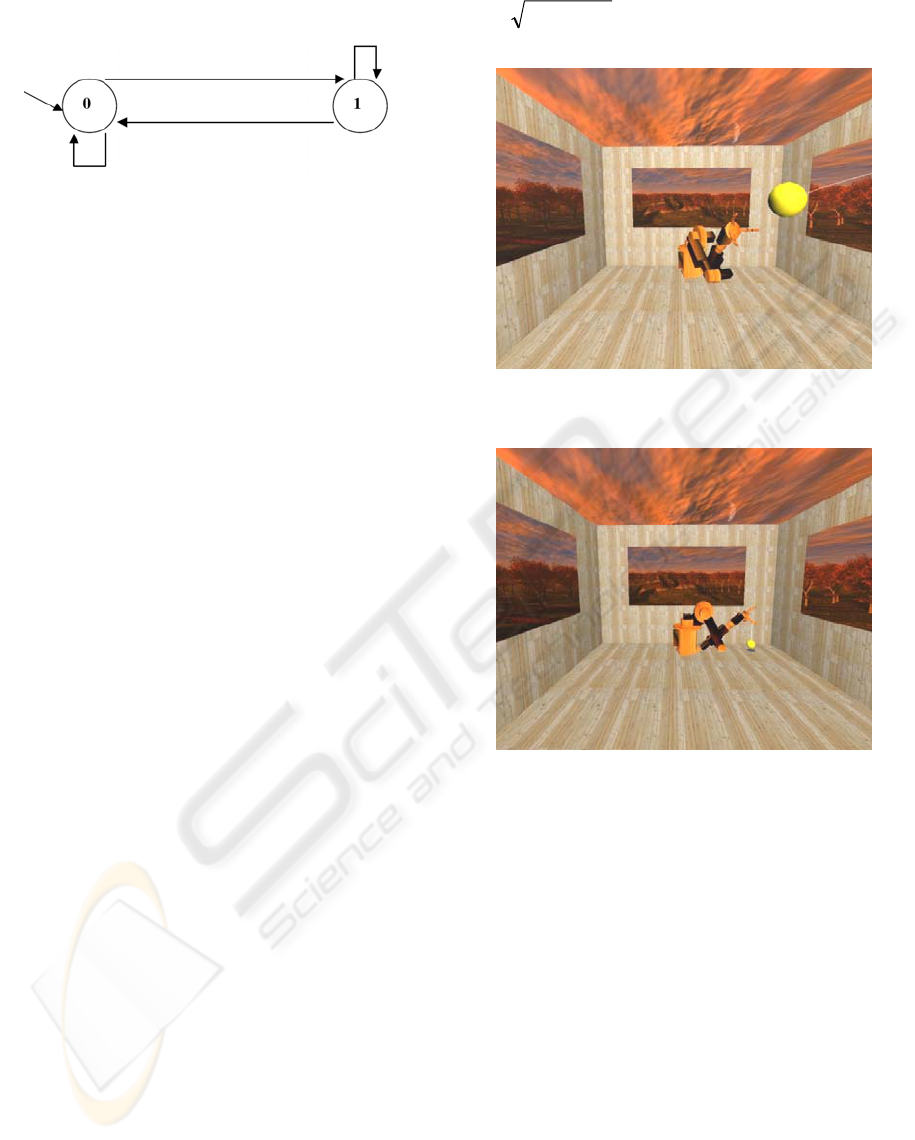

Figure 6: Finite state machine for both hands.

To do the ball grasping, a sphere of detection is

used. Its size is defined by the designer and it is

invisible during simulation. If the ball and the sphere

are in contact, it is considered that the ball is seized,

and the position of the ball is readjusted according to

the hand.

3.3 Ball Launching

The virtual ball is thrown by the human operator,

which can grasp and move it using the virtual hands.

Once the ball is grasped, a method to launch the ball,

corresponding to the animation engine, is proposed

and validated. This method allows efficient velocity

transfer of a user hand to the virtual ball.

To do this, hand velocity must be calculated. Thus

an array of size S (S being defined by the designer),

is created and is used to record the hand position at

each loop cycle of the main program loop.

Fig. 7 illustrates an example with an array of size S

= 4. At the initialisation, the array is empty.

This method is easy to implement and is not CPU-

time consuming. It gives good results to reproduce

realistic "launched balls". However, this requires an

optimisation of the size (S) of the array.

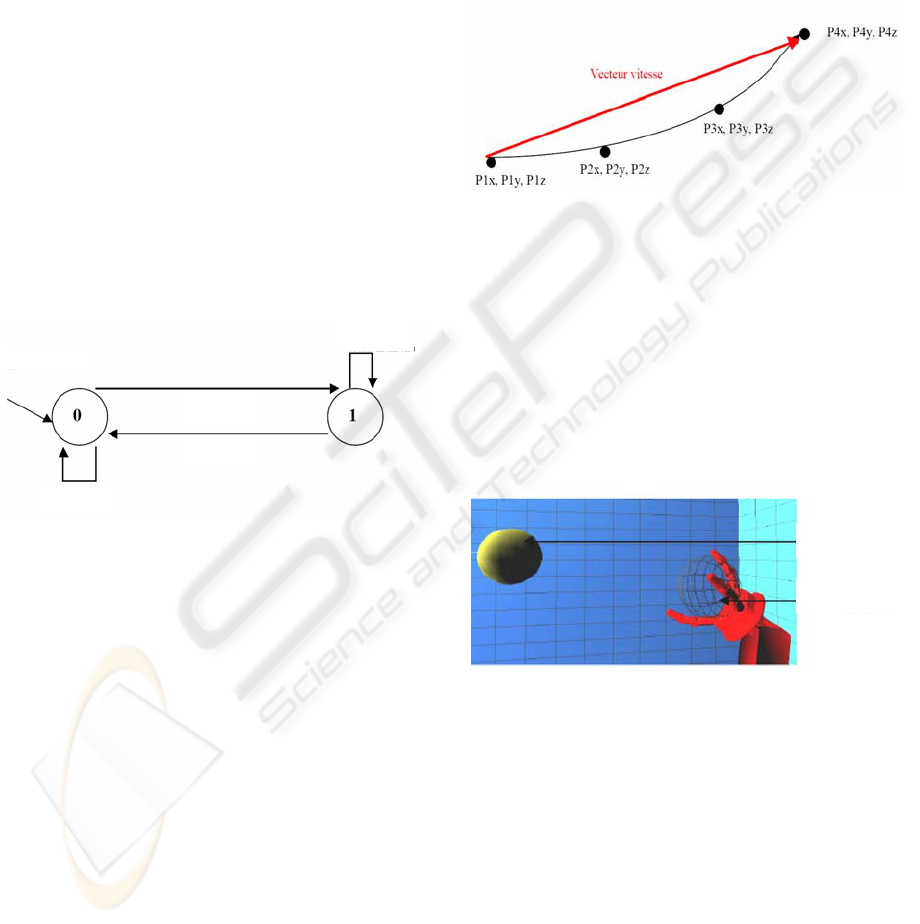

Figure 7: Illustration of the method proposed to efficiently

launch the virtual ball with an array size S=4.

3.4 Ball Catching

Ball catching is achieved using a detection sphere of

predefined size and invisible during the simulation.

If the ball and the sphere are in contact, it is

considered that the ball is caught. Then the ball

position is readjusted according to the robot gripper

position.

Mouse click on

Initial

state

Mouse click off

Virtual

ball

Detection

sphere

Figure 8: Illustration of the algorithm used for ball

catching by the robot gripper.

This requires knowing both the cartesian position of

the gripper according to the 6 angles q1, q2, q3, q4,

q5, q6 and the dimensions of each part of the robot.

The gripper is subjected to the finite state machine

illustrated on fig. 9.

ICINCO 2007 - International Conference on Informatics in Control, Automation and Robotics

Figure 9: Finite state machine for the gripper.

The states of the gripper are defined as follows:

State 0: the gripper is open; the grip is open when

the ball is not caught.

State 1: the gripper is closed; the grip is closed

when the ball is caught.

In order for the robot to catch the ball, it is

necessary to know: (1) the cartesian position of the

gripper at any time according to the 6 angles q1, q2,

q3, q4, q5, and q6 of the robot and, (2) the Cartesian

space reached by the robot (workspace). This is

given by the direct geometrical model defined by

X=f(Q), with X=(x,y,z) and Q=(q1,q2,q3,q4,q5,q6).

It is also necessary to know the value of the 6

angles of the robot, according to the Cartesian

position of the gripper (X, Y, Z). The inverse

geometrical model can obtain these.

Thus, it can be resolved by determining the joint

coordinates Q making it possible to obtain a desired

location for the gripper specified by the space

coordinates.

Here, we are confronted with a system of 3

equations with 6 unknown variables. To solve this

system, the method proposed by Paul (1981) was

used. This method allows obtaining the whole

solutions set, when they exist.

In our simulation, the robot always faces the

ball.

However, it will carry out a catching movement

towards the ball only if the latter is in its workspace,

defined by the whole set of points in the Cartesian

space that the robot gripper can reach.

Under the hypotheses that the robot can reach

all the points of its workspace at any time, and that

there is no constraint on the rotation angles of the

joint, the workspace of the robot is a TORE defined

by equation 3.

(

) z² x²( +

- A )² + y² = R

(3)

Ball catched

Initial

state

Ball catched

Ball released

Figure 10: Snapshot of the robot oriented towards the ball.

Figure 11: Snapshot of the robot realising the ball.

4 CONCLUSION

We presented a human-scale virtual reality catching

robot simulation.. The user interacts with a virtual

robot by throwing virtual balls towards it, using a

large-scale bimanual haptic interface. The interface

is used to track user’s hands movements and to

display various aspects of force feedback associated

mainly with contact, weight, and inertia. We

presented the robot modelling, as well as the ball

launching and catching procedures.

REFERENCES

Inglese, F.-X., Lucidarme, Ph., Richard, P., Ferrier, J.-L.,

2005. PREVISE : A Human-Scale Virtual

HUMAN-SCALE VIRTUAL REALITY CATCHING ROBOT SIMULATION

Environment with Haptic Feedback. In Proceedings of

ICINCO 2005. Barcelona, Spain, pp. 140-145.

Burdea, G. , Coiffet, Ph.., Richard, P., 1996. Integration of

multi-modal I/Os for Virtual Environments. In

International Journal of Human-Computer Interaction

(IJHCI), Special Issue on Human-Virtual Environment

Interaction. March, (1), pp. 5-24.

Richard, P., Coiffet, Ph., 1999. Dextrous haptic interaction

in Virtual Environments: human performance

evaluation. In Proceedings of the 8th IEEE

International Workshop on Robot and Human

Interaction. October 27-29, Pisa, Italy, pp. 315-320.

Bohm, K., Hubner, K., Vaanaen, W., 1992. GIVEN:

Gesture driven Interactions in Virtual Environments.

A Toolkit Approach to 3D Interactions. In

Proceedings of Interfaces to Real and Virtual Worlds.

Montpellier, France, March, pp. 243-254.

Chapin, W., Foster, S., 1992. Virtual Environment Display

for a 3D Audio Room Simulation. In Proceedings of

SPIE Stereoscopic Display and Applications. Vol.12.

Burdea, G., Gomez, D., Langrana, N., 1993. Distributed

Virtual Force Feedback. In Proceedings of IEEE

Workshop on Force Display in Virtual Environments

and its Application to Robotic Teleoperation. Atlanta,

May 2.

Sundgren, H., Winquist, F., Lundstrom, I., 1992. Artificial

Olfactory System Based on Field Effect Devices. In

Proceedings of Interfaces to Real and Virtual World.

Montpellier, France, pp. 463-472, March.

Papin, J.-P., Bouallagui, M., Ouali, A., Richard, P., Tijou,

A., Poisson, P., Bartoli, W., 2003. DIODE: Smell-

diffusion in real and virtual environments. In

Proceedings of the 5th International Conference on

Virtual Reality. Laval, France, pp.113-117, May 14-

17.

Bowman, D.A., Kruijff, E., LaViola, J.J., Poupyrev, I.,

2004. 3D User Interfaces: Theory and Practice.

Addison Wesley / Pearson Education.

Richard, P., Birebent, G., Burdea, G., Gomez, D.,

Langrana, N., Coiffet, Ph., 1996. Effect of frame rate

and force feedback on virtual objects manipulation. In

Presence - Teleoperators and Virtual Environments.

MIT Press, 15, pp. 95-108.

Bouguila, L., Ishii, M., Sato, M. , 2000. A Large

Workspace Haptic Device For Human-Scale Virtual

Environments. In Proceedings of the Workshop on

Haptic Human-Computer Interaction. Scotland.

Sato, M., 2001. Evolution of SPIDAR, In Proceedings of

the 3rd International Virtual Reality Conference.

Laval, May, France.

Richard, P., 1981. Robot Manipulators--Mathematics,

Programming, and Control, MIT Press.

ICINCO 2007 - International Conference on Informatics in Control, Automation and Robotics
