ADAPTIVE PREDICTIVE CONTROLLER APPLIED TO AN

OPEN WATER CANAL

ıs Rato, Pedro Salgueiro

CITI-UE, Universidade de

Evora, R. Rom

ao Ramalho 59, 7000-671

Evora, Portugal

ao Miranda Lemos

INESC-ID/IST, R. Alves Redol, 9, 1000-029 Lisboa, Portugal

Manuel Rijo

NuHCC, Universidade de

Evora, R. Rom

ao Ramalho 59, 7000

Evora, Portugal

Keywords:

Water canal, SCADA system, PLC, data acquisition, adaptive control, predictive control.

Abstract:

This paper concerns to the application of adaptive control to a large scale water canal experimental plant.

Water canals are complex spatially distributed systems which aim at distributing water either for irrigating, or

domestic, or industrial purposes. In this paper a predictive adaptive control algorithm (MUSMAR) is applied to

a large scale experimental water canal prototype. The experimental facilities with a fully instrumented canal,

a PLC network and a SCADA system, are brieﬂy described. This paper describes the developed software

module and the MUSMAR control algorithm. Finaly, Some experimental results obtained in the experimental

water canal, are presented.

1 INTRODUCTION

Water distributing systems are increasingly impor-

tant as fresh water scarcity is becoming a critical is-

sue in many places worldwide. In this increasing

water scarcity situation an efﬁcient management of

water canals, minimising water losses, is an obvi-

ously important issue. Nevertheless, this management

task brings conﬂicting goals - minimise water loss

vs. Quality of Service. On one side, users demand

more and more ﬂexibility on water withdrawing from

canals. On the other side, the use of the traditional

pre-scheduled water turns may attain a very low level

of water losses but at cost of users QoS. Thus, modern

water canals with advanced control techniques may

have and an important role on the management of

these conﬂicting goals.

Two strategies of upstream automatic control are

applied: local upstream control and distant upstream

control. Local control is the most practical way to

introduce automatic control on existing canals, since

every equipment can be concentrated an one place.

Nevertheless, distance upstream control as well as re-

mote supervision are promising approaches.

Adaptive control techniques are most suited to sit-

uations where the dynamic behaviour is unknown or

slowly changing. Nevertheless, the adaptive predic-

tive algorithm MUSMAR has also shown to cope well

with incomplete order modelling and minor nonlin-

earities. Thus MUSMAR has been tested and suc-

cessfully applied in several experimental processes

ranging from distributed solar power plants (Coito

et al., 1997)(Rato et al., 1997) to Internet trafﬁc con-

trol (Costa et al., 2002).

This control approach is implemented through a

developed software package that communicates to the

supervisory control and data acquisition (SCADA)

system which is connected to a programmable logic

controller(PLC) network.

2 WATER CANAL DESCRIPTION

The experimental water canal used in this work is

at the NuHCC (N

ucleo de Hidr

aulica e Controlo de

Canais) of the University of

Evora, Fig. 1.

The canal has a trapezoidal cross section geom-

etry, and is constituted by four pools of roughly

40 m each, resulting in a 145 m long instrumented

canal, plus a traditional water canal which completes

a closed water circuit. The canal inlet water ﬂow is

deﬁned by an electrical controlled MONOVAR valve.

The ﬂow along the four pools may be controlled by

three sluice gates and there is a water off-take up-

357

Rato L., Salgueiro P., Miranda Lemos J. and Rijo M. (2007).

ADAPTIVE PREDICTIVE CONTROLLER APPLIED TO AN OPEN WATER CANAL.

In Proceedings of the Fourth International Conference on Informatics in Control, Automation and Robotics, pages 357-360

DOI: 10.5220/0001628603570360

 SciTePress

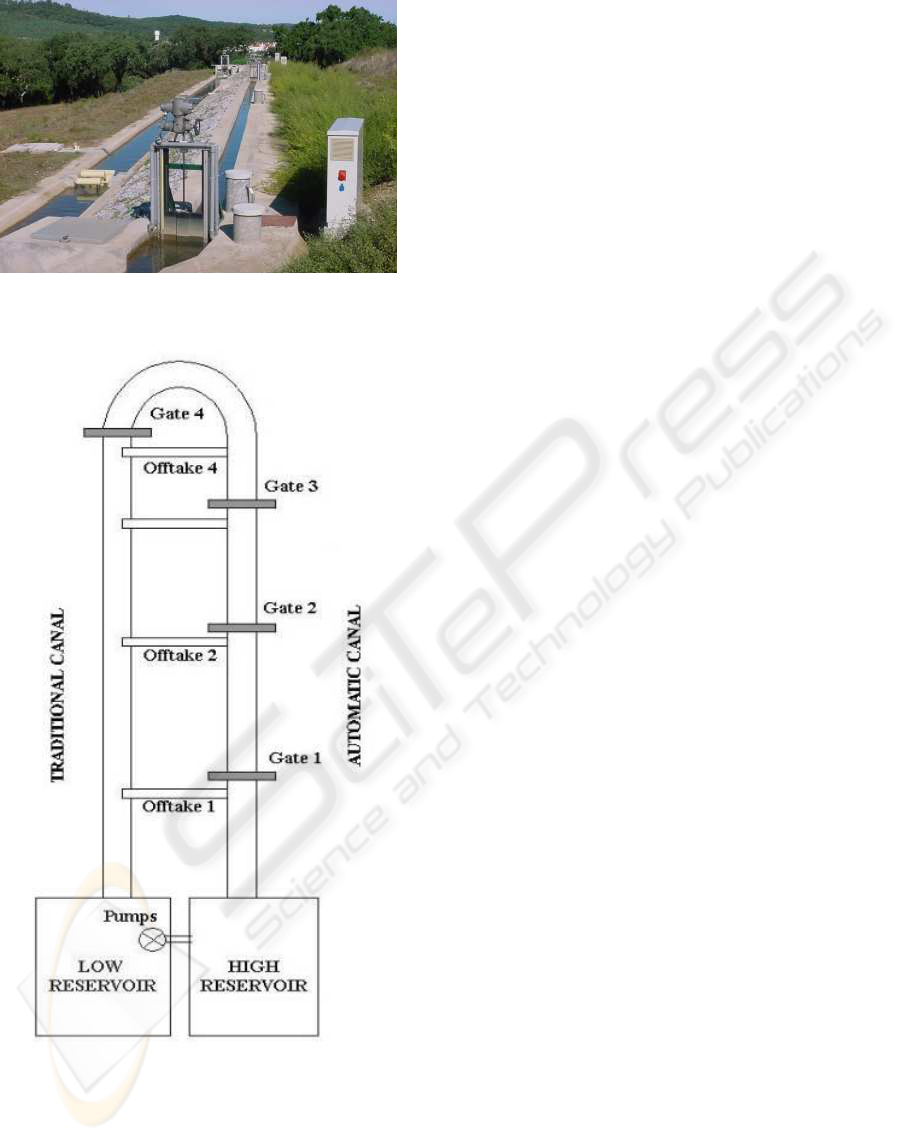

Figure 1: Experimental water canal at the University of

Evora.

Figure 2: Schematic diagram of the experimental water

canal at the University of

Evora.

stream of each gate. This off-take is equipped with

a ﬂow meter and an electrical butterﬂy valve and dis-

charges into the traditional return canal. Concerning

sensors, there are three ﬂoat and counter-weight level

sensors in stilling wells for each pool - one at each

end and one in the middle of the pool. Figure 2 shows

a schematic diagram of the experimental plant. This

facility is described in more detail in (Ratinho et al.,

2002).

It should be noted that the dynamic behaviour

of this type of plant is modelled by the Saint-

Venant equations which are nonlinear partial differen-

tial equations which can be linearised for small vari-

ations around stationary values. Thus, this plant be-

longs to a class of distributed parameter plants with

transport phenomena, such as highway trafﬁc, dis-

tributed solar plants, and boiler circuits of thermal

power plants that have been studied with success in

the scope of advanced control algorithms, as adaptive

and predictive control techniques(Silva et al., 2003;

Marques and Silva, 2005).

2.1 Data Acquisition and Supervision

System

The experimental plant is equipped with a network of

6 PLCs. Five local PLCs (one for each sluice gate

or inlet valve) and one central master PLC. The data

acquisition and analog-to-digital conversion are per-

formed locally at each PLC. These are interconnected

by a MODBUS network to the master PLC, which

communicates to the SCADA computer by a serial

port RS232 interface.

The SCADA system is build over the WIZCON

environment, and presents a user friendly graphical

interface to command the process as well as to ob-

serve the evolution of measured variables over time.

The SCADA also has a DDE interface which allows

the communications between the SCADA and exter-

nal applications.

This system is described in more detail in

(Almeida et al., 2002).

2.2 Control Algorithm Software

Package

Due to the complexity of MUSMAR algorithm, it is

impracticable to implement local control directly in

the local PLCs. Moreover, although the SCADA may

implement a predeﬁned set of controllers, it has little

support to develop general algorithms. Thus a soft-

ware package was developed in C language in order

to extend the control capabilities of the SCADA sys-

tem and implement the MUSMAR algorithm has an

external process.

Once the SCADA system has a Dynamic Data Ex-

change(DDE) communication interface, this was the

chosen process of interaction between the external

process (the controller) and the SCADA system.

ICINCO 2007 - International Conference on Informatics in Control, Automation and Robotics

358

The initialisation, reading and writing of the vari-

ables which deﬁne the state of the process can be per-

formed through the following functions

DDEInit("WIZCON", "GATE")

DDERequest(char var[])

DDEPoke(char []var, char []valor)

These functions deﬁne the basic application program-

ming interface (API).

However, while the reading needs usually just one

call to DDERequest(), to deﬁne a command into the

actuators, several calls of DDEPoke(...) are usually

necessary, stating the control mode of one or more

(cascade) loops, and deﬁning the variable value.

Thus, we have deﬁned a two layer API: the base

API (dde-base.c) which communicates to the SCADA

through DDE and deﬁnes DDERequest(...) and DDE-

Poke(...); and a second layer with a more user friendly

API (scada-api.c).

This second layer deﬁnes a set of 55 functions to

read and write in or from each of the plant sensors and

actuators. The API implementation for the case of a

sluice gate is presented above.

Sluice Gates Api Implementation

We consider in the following, the case of gate API

to gate number 1, which is connected to PLC2.

The sluice gate control mode is deﬁned by the tag

”MODE

MATIC A2”, which can take values from 1

to 4 corresponding to direct control of the actuator;

local control of sluice gate position; local control of

upstream level; and local control of downstream level.

When MODE

MATIC A2 is set to 1 it is possible

to command the gate directly with three commands:

open, close, and stop.

If the gate is closing and the desired option

is to completely open the gate it is necessary to

set MODE

MATIC A2=1 to set the direct con-

trol mode; then an order to inhibit the closing

command, MATIC CLOSE OUT A2=0, and only

then should be sent the order to open the gate

MATIC

OPEN OUT A2=1, as shown below.

void open_gate_1(){

DDEPoke("MODE_MATIC_A2", "1");

DDEPoke("MATIC_CLOSE_OUT_A2", "0");

DDEPoke("MATIC_OPEN_OUT_A2", "1");

}

Similar procedures are developed to interact with

other actuators.

Api Deﬁnition

In the API deﬁnition is listed below, ”N” stands for

the number of the PLC that controls the device.

void open_gate_N()

void close_gate_N()

float level_gate_N()

void set_level_gate_N(int level)

void close_monovar()

void open_monovar()

void set_in_flow(int flow)

void set_monovar_level(float level)

float flow_monovar_in()

float level_monovar()

float flow_valve_gN()

float level_valve_gN()

void close_valve_gN()

void open_valve_gN()

void set_valve_flow_gn(float flow)

void set_valve_level_g1(float level)

int level_upstream_canal()

int level_middle_gN()

int level_upstream_gN()

int level_downstream_gN()

Other Package Functions

Along with the API, the developed package provides

also: a simple command line; a text oriented output

interface; data logging; and a timing function. These

are functions that may be naturally adapted to the ex-

periment to be performed.

Development Environment

This package was developed in a MinGw environ-

ment. This is a set of free open-source tools for the

Windows operating system, and includes among oth-

ers: a port of the GCC compiler, a bourne shell com-

patible environment (MSYS) and a makefile utility.

3 MUSMAR ADAPTIVE

PREDICTIVE CONTROLLER

In this paper, experimental results are presented on

the application of MUSMAR, a predictive adaptive

control algorithm for which there is evidence of ro-

bustness against plant unmodelled dynamics(Mosca

et al., 1989), and have been tested in large number of

experimental plants.

At the beginning of each sampling interval, recur-

sively perform the following steps: 1. Sample the

process output at time t, compute the tracking error.

2. Using Recursive Least Squares, update the esti-

mates of the parameters in a set of predictive models.

3. Apply to the plant the control given by

u(t) = F

′

s(t) + η(t) (1)

ADAPTIVE PREDICTIVE CONTROLLER APPLIED TO AN OPEN WATER CANAL

359

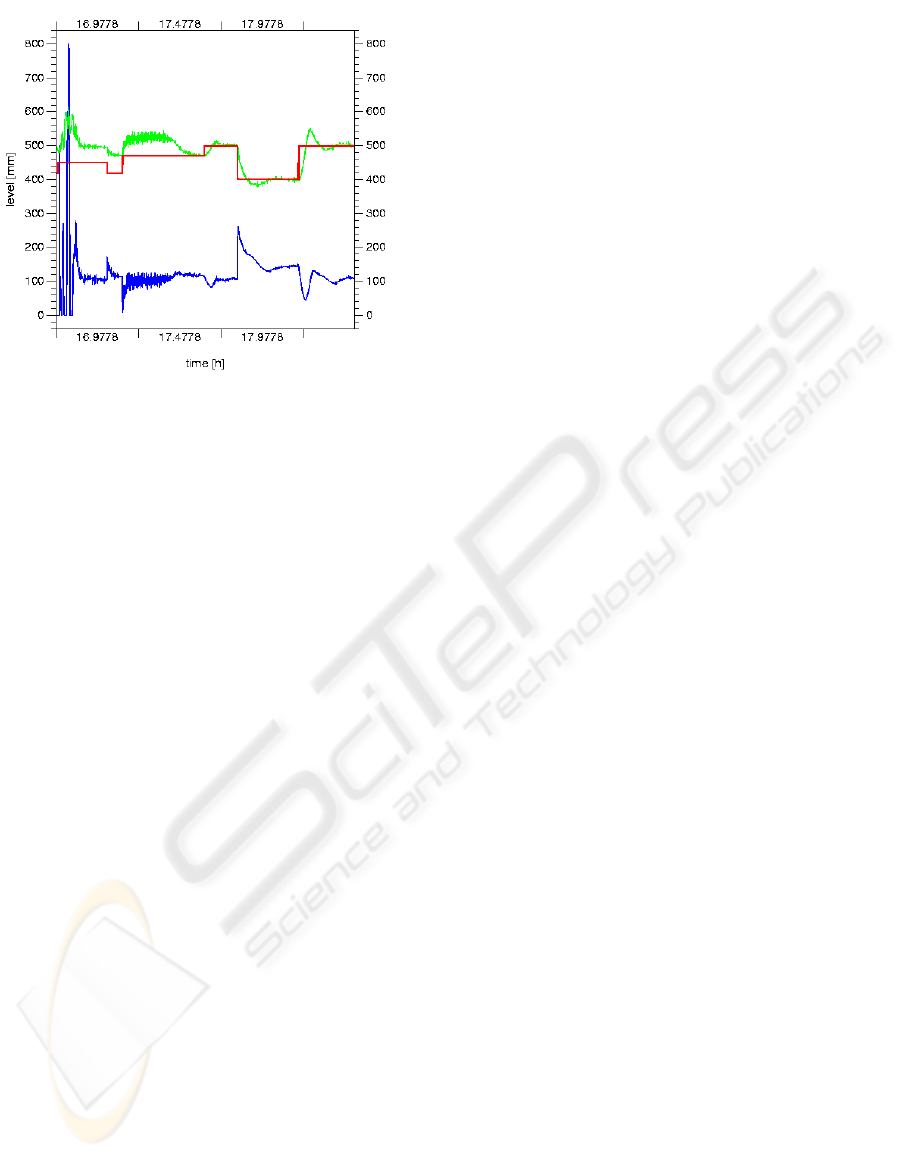

Figure 3: Experimental results. Local upstream control.

Water level (mm), reference (mm), gate position (mm), time

(h).

where η is a white dither noise of small amplitude,

such that and F is the vector of controller gains, com-

puted from the estimates of the corresponding pre-

dictive models by the optimization of a cost function

across a predeﬁned horizon T.

An integral effect has been also considered in par-

allel with MUSMAR. This algorithm has been im-

plemented in C and linked with the software package

presented above. A detailed description of MUSMAR

is presented in (Mosca et al., 1989).

4 EXPERIMENTAL RESULTS

The following results were obtained at the experimen-

tal canal with MUSMAR controller in January 2007.

In the experiment the control structure is a local

upstream one. The sampling time was set to 5 s, the

controlled variable is the level upstream of gate 2, the

manipulated variable is the position of gate 2. The

inlet ﬂow of the canal was locally controlled to 35 l/s,

off-take valves were closed and gate 1, 3, and 4 were

opened.

Experimental results are shown in Fig.3. After the

startup the gains converge and the algorithm follows

the reference, although with a signiﬁcant static error.

At instant 17,2 the integral gain was set to 0.05 elim-

inating the static error.

5 CONCLUSIONS

An adaptive predictive control algorithm and an API

software package were implemented, and tested in an

experimental process plant. The results show the ap-

plicability of advanced control algorithms in the con-

text of water canal systems. Instrumented canal plants

with centralised control and supervision are essen-

tial to the application of complex control algorithms,

which are impractical to implement on local PLCs.

As future work the inclusion of a priori information

(loading initial gains and initial covariance matrix) is

a promising step as it has been observed in other ap-

plications to be an important issue in order to apply

the MUSMAR algorithm in production environment.

ACKNOWLEDGEMENTS

This work has been supported under project FLOW -

POSC/EEA-SRI/61188/2004.

REFERENCES

Almeida, M., Figueiredo, J., and Rijo, M. (2002). Scada

conﬁguration and control modes implementation on

an experimental water supply canal. In MED’2002,

10th Mediterranean Conference on Control and Au-

tomation, Lisbon, Portugal.

Coito, F., Lemos, J., Silva, R. N., and Mosca, E. (1997).

Adaptive control of a solar energy plant: exploit-

ing accessible disturbances. In Int. Journal of Adap-

tive Control and Signal Processing, volume 11, pages

327–342.

Costa, B., Nunes, M. S., and Lemos, J. (2002). Adaptive

predictive control of ip trafﬁc. In MED’2002, 10th

Mediterranean Conference on Control and Automa-

tion, Lisbon, Portugal.

Marques, M. C. and Silva, R. N. (2005). Trafﬁc simu-

lation for intelligent transportation systems develop-

ment. In IEEE Intelligent Transport Systems Confer-

ence, Viena, Austria.

Mosca, E., Zappa, G., and Lemos, J. M. (1989). Robustness

of multipredictive adaptive regulators: Musmar. In

Automatica, volume 25, pages 521–529.

Ratinho, T., Figueiredo, J., and Rijo, M. (2002). Modelling,

control and ﬁeld tests on an experimental irrigation

canal. In MED’2002, 10th Mediterranean Conference

on Control and Automation, Lisbon, Portugal.

Rato, L., R. N. Silva, J. L., and Coito, F. (1997). Multirate

musmar cascade control of a distributed collector so-

lar ﬁeld. In ECC’97, European Control Conference,

Brussels, Belgium.

Silva, R. N., Lemos, J., and Rato, L. (2003). Variable sam-

pling adaptive control of a distributed collector solar

ﬁeld. In IEEE Trans. Control Systems Technology,

volume 11(5), pages 765–772.

ICINCO 2007 - International Conference on Informatics in Control, Automation and Robotics

360
