An Experiment in Distributed Visual Attention

P. Bachiller

, P. Bustos

, J. M. Cañas

and R. Royo

University of Extremadura, 10071, Cáceres, Spain

University Rey Juan Carlos, 28933, Móstoles, Spain

Abstract. Attention mechanisms of biological vision have been applied to ma-

chine vision for several applications, like visual search and object detection.

Most of the proposed models are centred on a unique way of attention, mainly

stimulus-driven or bottom-up attention. We propose a visual attention system

that integrates several attentional behaviours. To get a real-time implementa-

tion, we have designed a distributed software architecture that exhibits an effi-

cient and flexible structure. We describe some implementation details and real

experiments performed in a mobile robot endowed with a stereo vision head.

1 Introduction

The visual attention system in a mobile robot acts as a dynamical device that interacts

with the environment to select what might be relevant to current active tasks. At the

same time, it should maintain responsiveness to unforeseen events. More specifically,

it should enclose the following functions [12]: selection of regions of interest in the

visual field; selection of feature dimensions and values of interest; control of informa-

tion flowing through the visual system; and shifting from one selected region to the

next in time or the “where to look next” task.

Attention can be classified according to various aspects. In psychology, the terms

generally used are active (voluntary) and passive (involuntary) attention [3]. From a

stimulus point of view, there is overt or covert attention depending on the way the

stimulus is attended [10]. Overt attention is the act of directing our eyes towards a

stimulus source. Covert attention is the act of mentally focusing on a particular stimu-

lus without any motor action. Attending to the mechanism that drives attentional

control, there are two kinds of execution methods: one is bottom-up or stimulus-

driven, which shifts attention to regions with visual features of potential importance;

another is top-down or goal-directed, which uses knowledge of the visual features of

the desired target to bias the search process.

In recent years, visual attention has taken an important place in robotics research.

Most of the proposed models have focused on pure bottom-up [2][12] and some on

This work was supported by the Department of Science and Technology of the Extremadura Government

(grant 3PR05A044), by the Madrid Government (grant S-0505/DPI/0176) and, also, by the Spanish Min-

istry of Education and Science (grant DPI2004-07993-C03-01).

Bachiller P., Bustos P., M. Cañas J. and Royo R. (2007).

An Experiment in Distributed Visual Attention.

In Proceedings of the 3rd International Workshop on Multi-Agent Robotic Systems, pages 106-112

 SciTePress

top-down [9] attention. There have been some efforts on combining both forms of

attention by weighting bottom-up saliency maps with top-down information [8,11].

The approach proposed in this paper is mainly characterized by the integration of

different attention categories at a single system endowed with a flexible and adapt-

able architecture. The proposed system is modelled as a collection of processes col-

laborating to fix a visual target and to choose the next one. The complexity of the

resulting global system requires the use of distributed software engineering tech-

niques. We use the Internet Communication Engine (Ice) middleware platform [1]

and a custom component model specifically tailored to build distributed vision archi-

tectures.

2 Architecture of the Proposed System

The visual attention system proposed in this paper integrates several ways of attention

to work successfully at different situations. It has been designed and tested on a mo-

bile robot with a stereo vision head. The net of processes that compose the system are

a set of Ice components collaborating to fix a visual target. As shown in figure 1, the

elements in the architecture are roughly organized in two branches that converge in

the lower part of the graph. From this point a closed-loop connection feeds back to

the upper initial part. The two branches divide the visual function in a manner analo-

gous to the “what” and “where” pathways proposed in neuroscience [7]. This division

allows for a specialization of functions, dedicating specific resources to each branch

and sharing what is common from lower-level processes. The “what” branch tries to

find and track a specific target in the image using bottom-up computed regions of

interest (ROI) and top-down specification of targets. The “where” branch extracts

geometric information from stabilized ROI's and selects those regions that meet cer-

tain requirements, such as being on the floor plane, being too close or being in the

current heading direction. The information from both branches has to be integrated

solving an action selection problem. Given a current task or set of tasks, where to

look next? This is accomplished by the lower component in the graph which outputs

commands to the underlying motor system. In our system “looking to something”

implies a 3D positioning of the robot with respect to the target, which we call a 3D

saccadic movement. Following this reasoning, solving a generic navigation task such

as going some-where following a predetermined set of (remembered) landmarks,

amounts to generating the “correct” set of saccadic movements that will approach the

current target while avoiding potential obstacles. This set cannot be computed a priori

as long as it is the result of extended dynamical interactions between the robot and its

environment. It is partially defined in the programmed code and partially selected

from finding out how the outside world is. The whole system works as a complex

mechanical device that is attracted towards some features and rejected from others.

The specific interleaving between approaching and avoiding is given by an implicit

time relation that links internal parameters and external geometry.

107

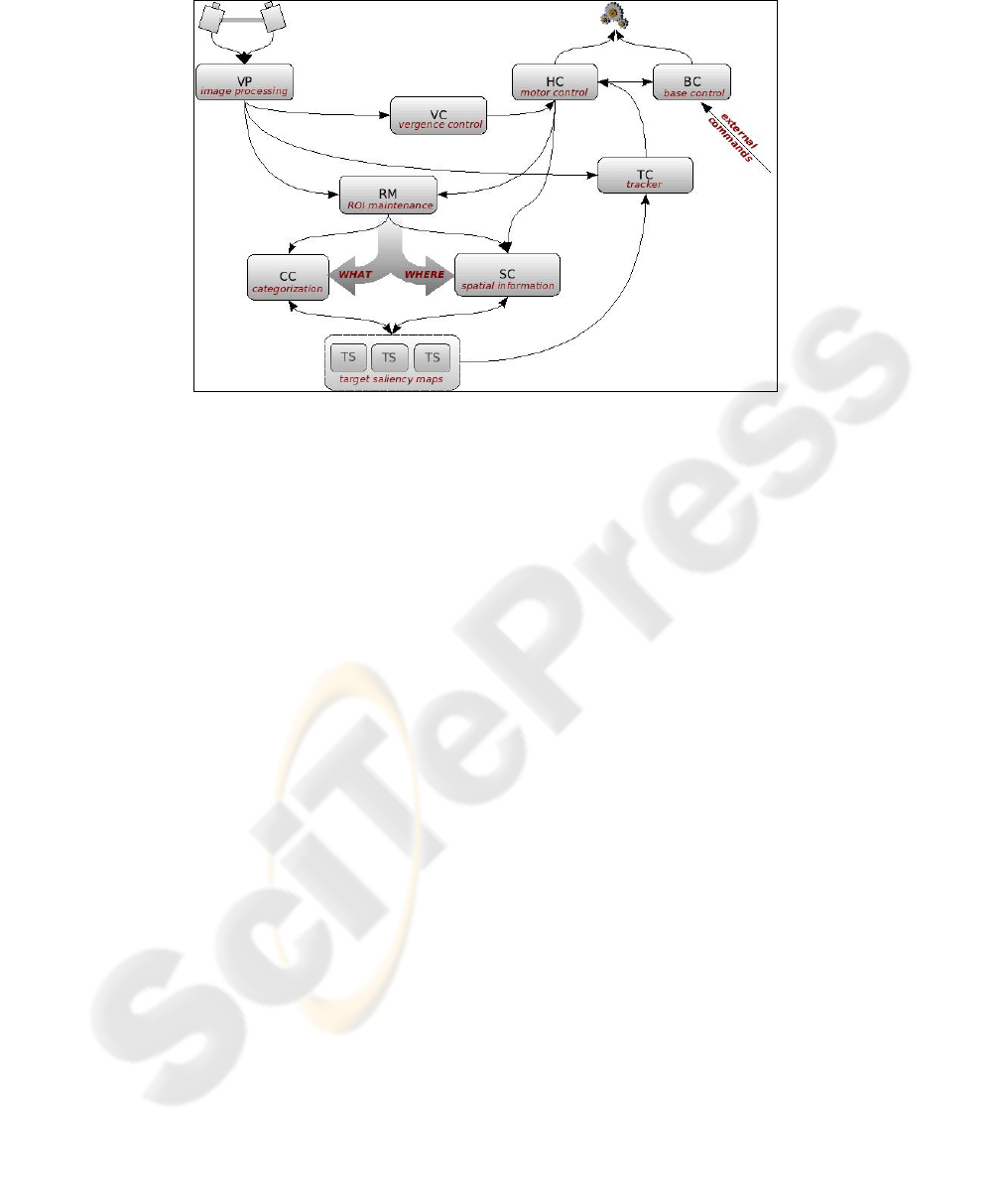

Fig. 1. Architecture of the visual attention system.

3 Components and Connections

Each component in the architecture is a C++ coded UNIX process using the Ice mid-

dleware. Similar to CORBA, each component supplies a public interface that can be

used by other participants to call its methods remotely. We now describe the compo-

nents depicted in figure 1 and its connections:

• Visual processor (VP): Acts as a vision server capturing images from the cameras

and computing Harris-Laplace regions of interest at multiple spatial scales as de-

scribed in Lowe[4]. For each set of ROI's, it fills a shared double buffer to supply

quick responses to client requests.

• Head controller (HC): Head motor controller. Computes direct and inverse kine-

matics of the binocular head. It waits for client commands and passes them to a

dedicated microcontroller that executes the PID loops. It keeps a copy of the state

of the motors and of the head and can answer queries about them directly.

• Base controller (BC): Base motor controller. Computes direct and inverse base

kinematics and waits for client commands that are passed to a dedicated micro-

controller that executes the PID loops. It keeps a copy of the state of the motors

and of the mobile base and can answer queries about them directly.

• Vergence controller (VC): Works independently to ensure the convergence of

both cameras to the same spatial point. Vergence control is done by a multi scale

cross correlation between the centre of the dominant camera and the epipolar ho-

mologous window in the other one. It looks for the maximum of the resulting

structure (maximum of the image window at the whole scale-space) and performs

the shift in the slave camera that leads to the convergence of both. To optimize re-

sources the search is done in an increasingly wider window triggered by a failure

in the direct matching of foveas. Vergence controller is a client of VP and HC.

108

• ROI Maintenance component (RM): Maintains a stable representation in time of

recently perceived regions of interest. It provides a map of regions built in the

camera reference system. It works as a short-term memory maintaining informa-

tion about each region such as: raw image window, permanence time, attention

time and update time. As VP does, this component always maintains an available

ROI list that can be sent to its clients on demand.

• Categorization component (CC): Classifies regions of interest into known cate-

gories that can be used as landmarks. The current implementation uses Euclidian

distance to compare SIFT[5] and RIFT[6] descriptors of candidate ROI's with pre-

viously stored examples. It accepts a target category so it tries to find a region

compatible with the target and returns a list of candidates.

• Spatial component (SC): Compute spatial and geometric features of the last re-

ceived ROI list and organize them in a head reference system. Properties computed

by this component are: 3D position of the region using vergence and disparity; and

planarity and plane orientation of the overall region by estimating the best homo-

graphy. More useful properties will be implemented in near future to determine lo-

cal shape with greater precision so more sophisticated hierarchical categorization

can be accomplished in collaboration with CC.

• Target selectors (TS): Integrate local representations from CC and SC according

to some criteria. Attending to their functionality, they request for specific patterns

and features to CC and SC, respectively. CC provides a list of classified regions

that are integrated with spatial information from SC to construct a final saliency

map. This map is used to select a focus of attention that can be sent to the tracker

component. This last action only takes place when the component is active. TS are

specialized on a specific action. They are in communication with other components

outside the attention system that activate them to take the attention control in order

to carry out an action. An example of target selector component is the landmark se-

lector, which is linked to a follow-landmark action. Another one is the obstacle se-

lector, related to an action of avoiding-obstacles. The attention-action relationship

is not a mandatory condition. A target selector can be linked to an idle behaviour

that allows the system to maintain a pure bottom-up attention.

• Tracker component (TC): Receives the location of a region from the active TS

and maintains the focus of attention on such region until another position is re-

ceived. To achieve this goal, the TC implements a predictive tracking algorithm

that combines the distance among RIFT descriptors of the regions and normalized

correlation in YRGB space.

4 Interaction Dynamics

The architecture just described provides an attentional mechanism that can be incor-

porated in a wider network of components adding behaviour-based control, task se-

lection, planning, topological maps and other abilities. In the experiment shown here,

we use a couple of coordinating behaviours -approach and avoid- that activate the

target selectors (TS's) of the attentional system. Together, they can be seen as a vis-

ual-goto-point (VGP) compound behaviour which is the basic serializing constituent

109

of most complex navigation tasks. The attentional mechanism provided to VGP en-

dows it with inner dynamic loops that take care of target detection, recognition,

searching and tracking, lost target recovery and unexpected obstacle detection. In

addition, these features are the result of parallel activities that get serialized to gain

access to the orientable cameras.

When VGP activates, two activities take place simultaneously: a target landmark

is downloaded to the attentional system through a TS, and another TS is activated to

detect potential obstacles in front of the robot. Both TS's are coordinated in a very

basic way by the VGP to achieve the current goal. The law to follow is hierarchical:

“if there is free way, approach the target”. First, the landmark TS activates to search

the target. Once it is fixated, the obstacle TS activates to locate potential hazards in

the course towards the detected landmark. If the near space is free of obstacles, the

cameras will search again the landmark and the base of the robot will reorient to-

wards the gaze direction and start moving forward. Then again, the obstacle TS will

use its short term spatial memory representation and covert attention capabilities to

gaze towards any close enough obstacle in the way. If it happens, the base will reori-

ent in a direction perpendicular to the pan angle in order to avoid the nearest obstacle.

Once the danger is over, the landmark TS will regain control to relocate the target and

establish a new heading direction. This alternating dynamics keeps going on until the

goal landmark is within some specified distance and orientation.

Several kinds of attention can be observed in the last example. When the obstacle

TS chooses a target to attend to, it performs overt attention on the obstacle so avoid-

ance based on pan angle can take place. But when the landmark TS is waiting, it per-

forms covert attention on the target so it can be quickly fixated again when it gets

activated. In a similar way, we can speak about bottom-up and top-down attention.

ROI's detected by the VP drive attention in a bottom-up way selecting those areas of

the image most informative. From this set, a few are chosen attending to task de-

pendent constraints such as target landmark or specific known geometric properties of

obstacles.

5 Experiments

The visual attention system has been tested in a threaded mobile robot endowed with

a stereo vision head. It encloses five degrees of freedom with digital PID controlled

servos and two ISight Firewire cameras (figure 2). This type of robots has been de-

veloped in our Laboratory and is widely used in prototyping and algorithm testing.

The architecture of components just described runs on a local cluster of com-

puters. Each process is an independent C++ application, which includes Ice objects

and proxies to communicate with other processes. An Ice object is an entity used by a

server to respond to client requests. An Ice proxy represents an Ice object local to the

client that can communicate remotely to the server. Ice provides a remote method

invocation capability that can use both TCP and UDP as the underlying protocol. In

our current implementation, the network of processes is distributed among four

physical processors – dual Opteron board for VP, HC and BC; 3GH-HT P4 for VC,

TC and RM; and AMD64 dual core for CC, SC and TS- as seen by the Linux operat-

110

ing systems. The computers are locally linked by a 1 Gb ethernet switch providing

enough bandwidth for real time communication among components.

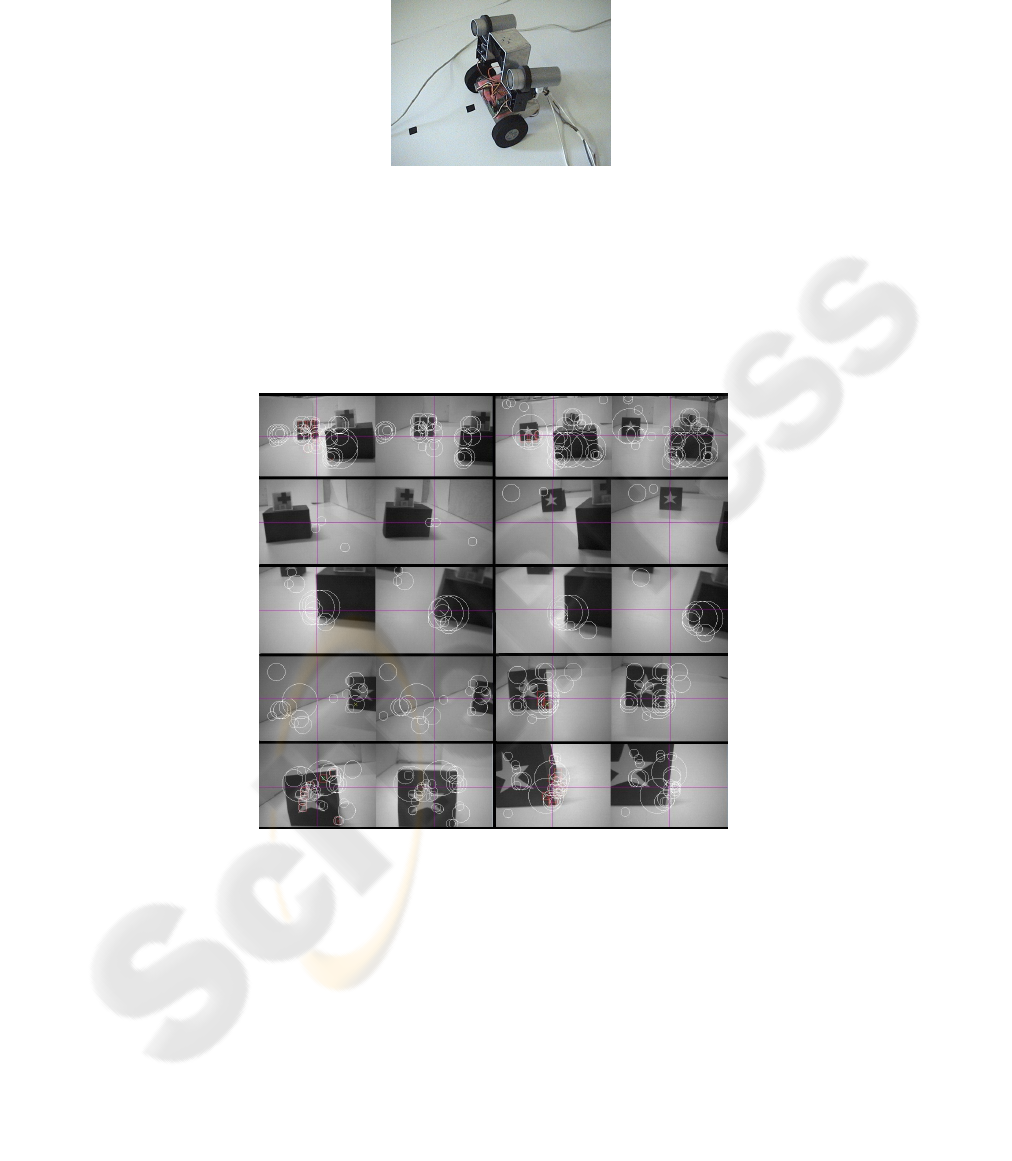

Fig. 2. Robot used in the experiments.

We have designed a simple experiment for initial testing and validation of the pro-

posed architecture. The robot has to localize and approach a landmark (star) in its

near space avoiding an obstacle that blocks its heading direction. The running system

incorporates all the components described before. As target selectors (TS's) we use

landmark and obstacle selectors working in cooperation. Actions linked to selectors

are approach and avoid, configuring a sort of visual goto-point.

Fig. 3. Experiment of visual navigation avoiding obstacles.

Changes of attention alternating these two kinds of targets can be appreciated in

the sequence above (figure 3). Initially, a) attention is fixated on the landmark and an

action of approaching begins. Then, b) and c) frames, obstacles gain control of atten-

tion guiding the robot to avoid them. After several frames - d) - landmark is fixated

again providing a new goal heading. To keep up with the new situation, the obstacle

selector changes its focus of attention, e) and f). Once all the obstacles have been

111

avoided g), attention is again centred on the landmark making the robot to approach it

and finally reach the goal position, j).

6 Summary and Conclusions

In this paper, we have shown an experiment in distributed visual attention on a mo-

bile robot with a stereoscopic head. Our goal has been to test the potential of combin-

ing ideas from visual neuroscience, distributed software engineering and robotics. We

think that the proposed architecture will ease the way to model and implement more

perceptual and cognitive capabilities in our robots. This first result shows that the

complexity of distributed bottom-up and top-down attention can be integrated in a

visual navigation framework to solve what we have called the visual-goto-point prob-

lem. Much work remains in this multidisciplinary area, but the possibilities offered by

new multicore processors in conjunction with communications middleware will open

new spaces for bio-inspired robotics modelling and building.

References

1. Internet Communication Engine. http://www.zeroc.com/ice.html

2. L. Itti and C. Koch. A saliency-based search mechanism for overt and covert shifts of vis-

ual attention. Vision Research, 40(10-12):1489–1506, May 2000.

3. W. James, The principles of psychology, New York: Holt, 1890, pp. 403-404

4. D. G. Lowe. Object recognition from local scale-invariant features. In ICCV, pages 1150–

1157, 1999.

5. D. G. Lowe, Distinctive image features from scale-invariant keypoints, International Jour-

nal of Computer Vision, vol. 60, no. 2, pp. 91–110, 2004.

6. K. Mikolajczyk and C. Schmid. Indexing based on scale invariant interest points. In

ICCV01, pages 525–531, Vancouver, Canada, July 2001.

7. A.D. Milner and M.A. Goodale. The visual brain in action. Oxford UniversityPress. Oxford

1995

8. V. Navalpakkam, L. Itti, An Integrated Model of Top-down and Bottom-up Attention for

Optimal Object Detection, In: Proc. IEEE Conference on Computer Vision and Pattern

Recognition (CVPR), pp. 1-7, Jun 2006

9. R. P. Rao, G. Zelinsky, M. Hayhoe, and D. H. Ballard. Eye movements in iconic visual

search. Vision Research, 42(11):1447–1463, Nov 2002.

10. A. Treisman and R. Paterson, Emergent features, attention and object perception, J. Exp.

Psychol: Human Perception and Performance, 1984, 10:12-31.

11. A. Torralba et al. Contextual guidance of attention in natural scenes: The role of global

features on object search. Psycological Review, October 2006

12. J.K. Tsotsos, et.al., Modeling visual attention via selective tuning, Arti. Intell., 1995,

78:507-545.

112
