DISTRIBUTED CONTROL ARCHITECTURE FOR AUTOMATED

NANOHANDLING

Christian Stolle

Division of Microrobotics and Control Engineering, University of Oldenburg, 26111 Oldenburg, Germany

Keywords: Automation, nanohandling, robot control.

Abstract: New distributed control architecture for micro- and nanohandling cells is presented. As a modular system it

is designed to handle micro- and nanorobotic automation tasks at semi- up to full automation level. The

architecture includes different visual sensors as there are scanning electron microscopes (SEM) and CCD

cameras for position tracking as well as non-optical force, temperature, etc. sensors for environmental

control. It allows usage of multiple nanorobots in parallel for combined autonomous fabrication tasks. The

system provides a unified framework for mobile platforms and linear actors.

1 INTRODUCTION

Handling of micro- and nanoscaled objects is an

important research field in micro system technology

(MST) and nanotechnology. While most MST

techniques are concerned with bottom-up batch

procedures for massive parallel production of micro

systems (Menz, et al., 2001) micro- and nano-

robotics tackles the nanoassebly task top-down by

applying adapted macro scale manufacturing and

control methods (Fatikow and Rembold, 1997).

This paper introduces general purpose control

architecture for automated robot-based handling.

1.1 Microrobot Automation

Automation in microrobotics encounters many of the

problems, which have been well studied in the do-

mains of industrial robotics and autonomous service

robotics for decades. Some of the problems are e.g.

collision avoidance in path planning, error handling

due to uncertainty of operations (Bennewitz and

Burgard, 2000), or timing constraints which need to

be met for successful automation.

However, there are some environmental

challenges while operating in the vacuum chamber

of an SEM. It takes several minutes to generate a

high vacuum (10

-3

- 10

-7

hPa) which is a serious time

constraint. Therefore, all cell parts of a

nanofabrication unit need to be inside of the SEM

before operation starts, including tools and objects to

be handled.

All tools, sensors and objects have to be vacuum

compliant. Depending on the kind of manipulation,

the materials need to be selected such that no conta-

mination of the workpieces can occur. E.g. actors

need to have low or even no abrasion.

For real-time position tracking of nanoobjects

like carbon nanotubes (CNTs, typical diameter about

0.4 – 100 nm) only SEM images are available due to

their high scanning rate and resolution. High

scanning rates are crucial for image acquisition in

closed-loop control, but they can only be archived

with the tradeoff of noisy image data. All this makes

real-time SEM tracking a challenging two

dimensional problem (Sievers and Fatikow, 2005).

Another challenge is that there is only limited

depth information available due to SEM by now. As

a result approaching and depth alignment of objects

and tools need to done in a try an error manner.

Automation chain planning also needs to take the

different environment and object scale into account.

In contrast to large scale objects it is harder to

release an object than to grip it. The reason for this

“sticky finger” effect (Fearing 1995) is that adhesive

forces are stronger at the scale of the gripper jaws

and samples than gravity. Therefore pick and place

operations need to be carefully planned.

One possible solution to overcome this problem

is to use electron beam induced deposition (EBiD).

One end of the gripped CNT gets fixated to the

specimen holder by the deposited material of the

127

Stolle C. (2007).

DISTRIBUTED CONTROL ARCHITECTURE FOR AUTOMATED NANOHANDLING.

In Proceedings of the Fourth International Conference on Informatics in Control, Automation and Robotics, pages 127-132

DOI: 10.5220/0001642301270132

 SciTePress

EBiD process just before releasing it from the

gripper (Wich, et al., 2006).

2 CONTROL OF MICROROBOTS

Several microrobots have been developed for coarse

and fine positioning to carry tools and objects. The

major categories are mobile platforms and fixed

platforms. Mobile robots are more flexible than

fixed ones due to their working range, but they are

harder to control (Ritter, et al., 1992; Hülsen and

Fatikow, 2005). Linear actors are most often

combined to a Cartesian microrobot for (x,y,z)-

coarse positioning and additional fine positioning

axes.

The control system of the nanohandling cell in

the SEM is split into two parts: high-level control

and low-level control. Low-level control

continuously compares set-point and actual value

and calculates parameters for actor steering signals.

Low-level controllers are therefore responsible for

the control of states and can process tasks as “grip

object” or “move actor from point A to point B”.

Two types of controllers are used: open- and

closed-loop controllers. Closed-loop controllers have

continuous feedback of the current system state

through sensor data while open-loop controllers just

execute a command due to their internal knowledge

of the current state.

High-level control is responsible for planning

and execution of automation tasks and for

supporting user input for tele-operation. Error

handling of low-level tasks, parallelization of

automation tasks and path planning are also part of

high-level control.

The user interacts with the control system via a

graphical user interface (GUI), which is displaying

the current system state and is forwarding user input

to high-level control.

Several different sensors measure continuously

data within the vacuum chamber (e.g. cameras,

pressure sensors, etc.). These measurements are

collected and provided to low- and high-level

control. Low-level control directly derives set values

(e.g. actuation signals) from the sensor data, which

are applied to the actuators. The update rate of the

sensor data has direct influence on positioning speed

and accuracy of the robot. High-level control sets

configuration values to sensors and actor signal

generators according to the task that needs to be

performed. It also provides input for low-level

control as position data values which are used as

goal positions for low-level closed-loop control (Fig.

1).

The reliability of closed-loop low-level control

nowadays has increased up to a level where single

tasks can be done semi-automatically, and even full

automation of various handling steps can be taken

into account. The latter is a hierarchical process

which takes place at the high-level control layer,

where the sensors for tracking can be selected, and

the sequence of process primitives is controlled.

Execution and reliability of single process primitives

is the responsibility of the low-level control layer

(Fatikow, et al., 2006).

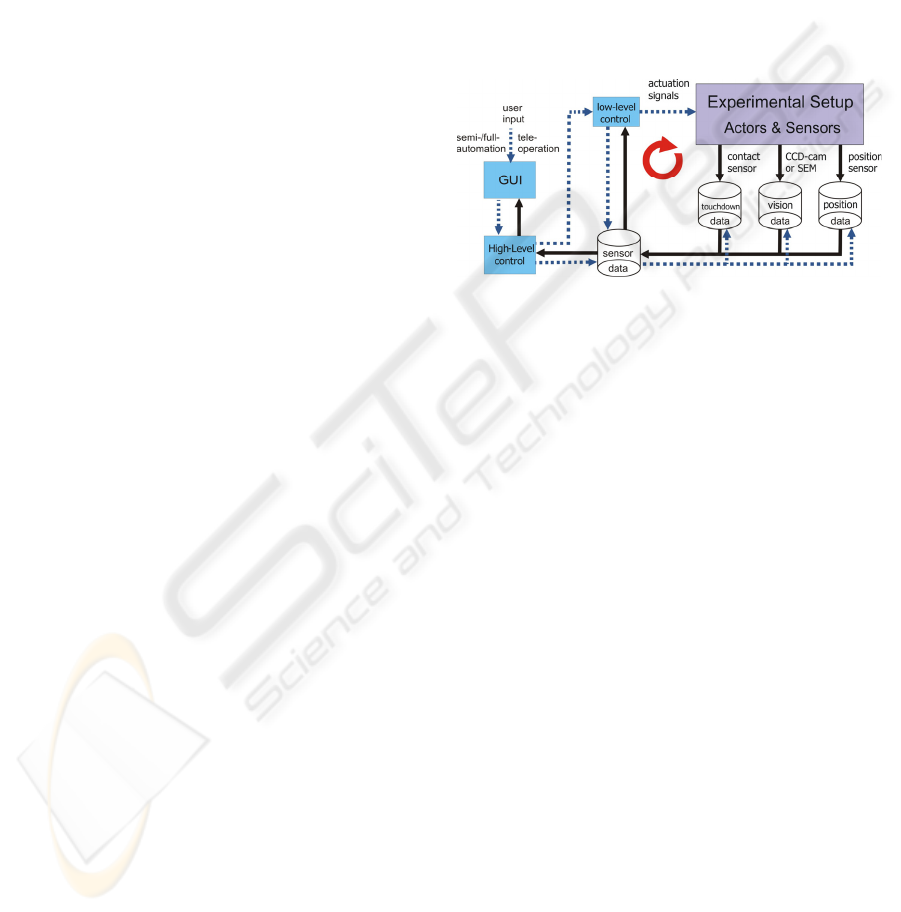

Figure 1: Control dataflow with different sensors for

continuous feedback of the current system state. Actuation

signals are generated by low-level control from sensor

input, high-level control processes user input and sends

steering signals to all components.

3 CONTROL ARCHITECTURE

3.1 Control Architecture Requirements

The rough dataflow schema for experimental setups

in figure 1 needs to be met by any control

architecture. All the actuators and sensors of the cell

need to be included into a modular control system

for successful automation. In order to be

independent of a particular experimental setup this

control system architecture needs to fulfill certain

requirements:

 New actors can be integrated with low effort,

independent of the low-level control algorithm

of the actor.

 New sensors can be integrated with low effort,

without the need of restructuring other parts of

the architecture.

 Sensors and actors can be accessed through a

common interface to prevent changes in high-

level control.

ICINCO 2007 - International Conference on Informatics in Control, Automation and Robotics

128

 The time from data acquisition till actuation

needs to be sufficiently low to be able to

archive the required low-level control results.

 Communication between units needs to be

done asynchronous in order not to block parts

of the systems while waiting for others.

 All commands issued by high-level control

have to be executed providing feedback about

the operation result for reliable error handling.

 The architecture is able to be scaled up, such

that enough actors and sensors can be

integrated for any automation sequence.

 The architecture has to allow parallel

execution of several automation tasks.

 Depending on the process’ power

requirements parts of the architecture may be

distributed throughout several PCs.

This set of requirements leads to a distributed

system on a common client server basis, described

below.

3.2 Distributed Control Architecture

The system architecture applied consists of high-

level control, sensor, vision and several low-level

control server (Fig. 2) following a “Black Box

Design” (Fatikow, et al. 2006). Every server offers

an individual service which is defined by a public

interface. Therefore every component in this

modular control system can be easily replaced or

updated independently of the other components.

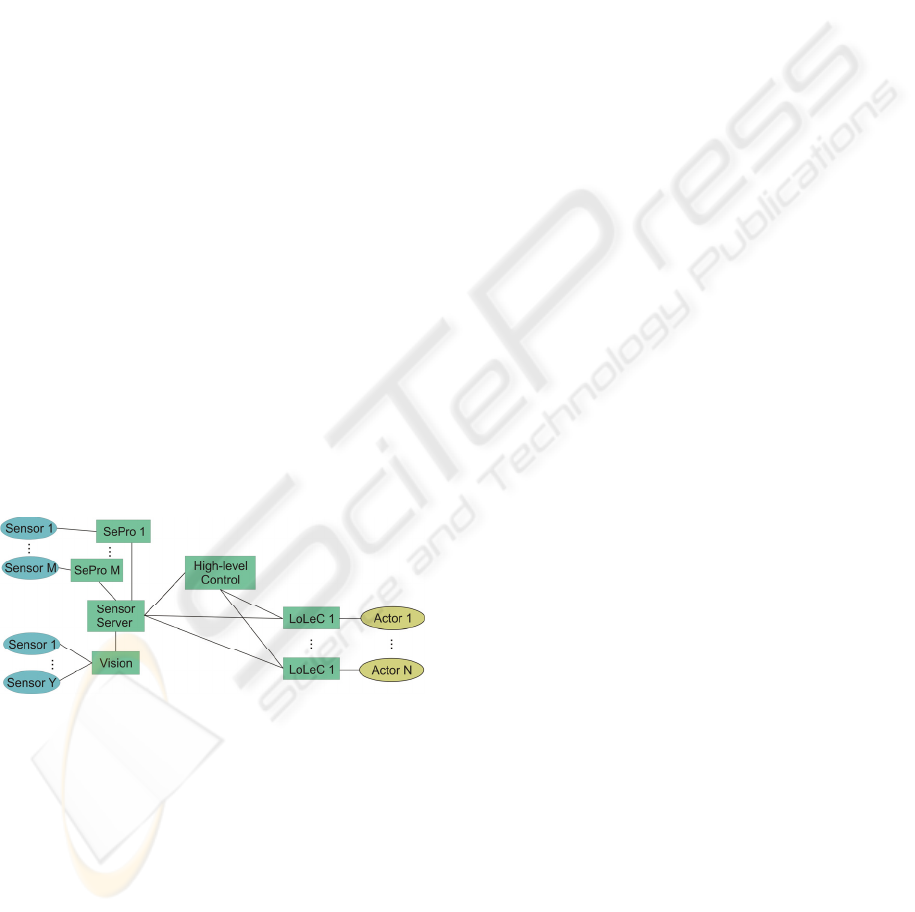

Figure 2: Software architecture connection chart.

Rectangles are servers (e.g. sensor programs SePro, low-

level controller LoLeC, etc.) and circles are hardware

components. Automation module is part of the high-level

control server.

Visual feedback is provided by the vision server. It

is responsible for collecting images from different

sources and extracts position and orientation data

(poses) of tracked objects in real-time. These poses

are transmitted to the sensor server. All sensor data

(e.g. pose, touchdown, force, temperature, etc.) are

collected by the sensor server which is supplied by

different sensor service programs (e.g. vision

server). This data is provided to low- or high-level

control, which act as client of the sensor server. It

represents therefore an abstraction layer for sensors

and builds a common interface for further process-

ing. The different sensors may acquire their data at

different update rates.

In contrast to the previous architecture (Fatikow,

et al. 2006) the newly developed one has one low-

level control server for every single actor. Each of

the low-level control server requests the data needed

for closed-loop control from the sensor server. There

is a uniform interface for commands from high-level

control. The advantage of this lean low-level control

server approach is that single servers can be easily

distributed among several PCs.

Their good maintainability is another important

feature. Furthermore, it is easy to include different –

e.g. fixed and mobile – robot platforms, because

only the internal structure of the low-level controller

has to be changed.

On the high-level control level still only poses

have to be submitted through the command

interface. Actors with internal sensors are included

into this architecture in a way that the low-level

control server provides the internal sensor readings

to the sensor server and receives high-level

commands.

In order not to adapt the high-level control server

to every change in an automation sequence, a script

language has been developed, which is described in

more detail in section 4.2. These scripts get inter-

preted by the high-level control server and then

mapped to low-level control tasks and steering

signals (Fig. 1). Low-level control tasks can either

be closed-loop for positioning or open-loop (e.g.

gripping objects) tasks. The latter have to be

monitored to check the operation results.

The proposed system architecture uses the

Common Object Request Broker Architecture

(CORBA) as communication framework, which is

an object oriented middleware defined by the Object

Management Group (OMG), and which is platform-

and language-independent. There are several

implementations of the CORBA standard, including

some for real-time applications.

CORBA’s Interface Definition Language (IDL)

is used as common language for all communication

interfaces between different network components.

Therefore the servers and clients in the system

architecture only need to implement the required

IDL interfaces to be able to communicate to each

other via simple method calls.

A major advantage of IDLs is that they can be

translated into different programming languages,

DISTRIBUTED CONTROL ARCHITECTURE FOR AUTOMATED NANOHANDLING

129

which enables heterogeneous software design. The

communication overhead in a closed loop cycle has

been evaluated to be sufficient low (< 5 µs) in a

local full switched Ethernet network. Therefore the

limiting time factor still remains to be the image

acquisition time.

The interfaces of the client server architecture

are designed to provide asynchronous

communication. All control commands return

unique process IDs so that delayed control feedback

can be matched with the corresponding command.

This part of the control feedback is crucial for

successful, reliable automation. The automation

scheduler will wait at synchronization points for this

feedback (Section 4.1). To avoid dead-locks a time-

out is issued after a sufficient time. The system has

also a common time base enabling low-level control

servers to decide whether sensor data is outdated or

not. The clock synchronization is periodically

triggered by a master clock.

Every network component is designed in a way

that it can be run on different PCs, which makes the

system fairly flexible. The distribution of low-level

control servers is especially useful for control cycles

that run in parallel because the distributed

controllers do not compete for the same PC

hardware resources. The control architecture may

contain several sensor servers for different data, to

overcome possible data acquisition bottle necks. It is

possible to organize the sensor data traffic shaping a

minimum update interval so that the inbound traffic

of any single sensor server can be controlled.

The problem of keeping several low-level control

programs maintainable is tackled by common low-

level server templates which are available for

different actor types. This also enables rapid design

and integration of new actors. Similar templates will

also be provided to sensor data acquisition server.

4 HIGH-LEVEL CONTROL

The purpose of high-level control is to processes an

automation sequence or to receive tele-operation

commands from a user via graphical user interface

(GUI). Input information is translated into low-level

command tokens called tasks and steering signals for

the selection of certain sensors.

4.1 High-Level Control Design

Based on the description above the high-level

controller provides tele-operation, automation, path

planning, error handling and parallel execution of

tasks. These different tasks are addressed in different

units in our high-level control design (Fig. 3).

Main trigger for high-level control is a human

controller, who inputs a tele-operation, semi- or full-

automation command using the GUI.

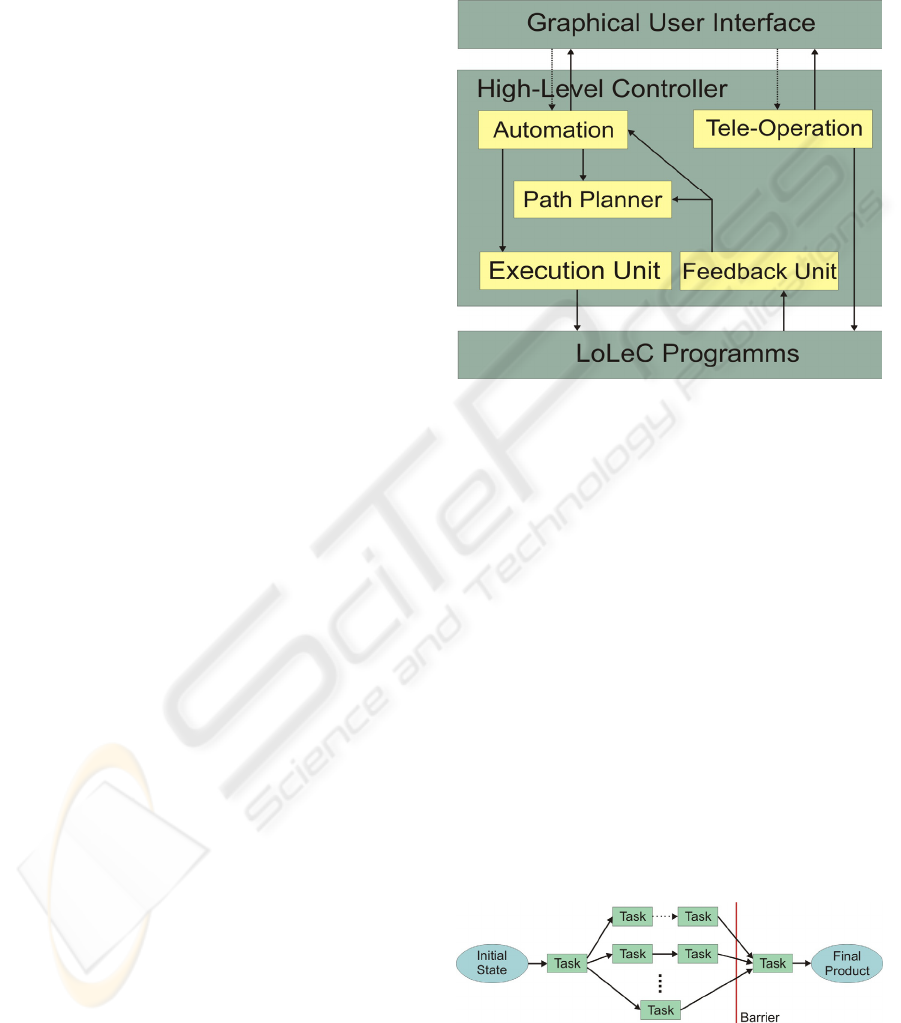

Figure 3: Components of a high-level controller.

If an automation command is received by the

automation units of the high-level controller e.g.

start or stop automation, a preloaded automation

sequence is processed. The sequence of automation

tasks is executed one by one or in parallel.

Every task has a defined set of pre- and post-

conditions (Section 4.2). The automation unit

decides based on required resources (e.g. sensors

and actors) and pre- and postconditions, whether two

consecutive tasks can run in parallel. These

postconditions should not be contradictive. If

resource conflicts arise, a barrier approach is taken

so that all parallel tasks are finished before

automation of the resource critical task starts (Fig.

4).

For SEM automation these resource-critical tasks

are often tasks which use the SEM as tracking sensor

for two objects on different heights or if the SEM

acts as sensor and actor at the same time (e.g. EBiD

and a concurrent positioning task).

Figure 4: Schematic view on an arbitrary automation task.

Parallel tasks are finished before resource critical tasks get

started.

ICINCO 2007 - International Conference on Informatics in Control, Automation and Robotics

130

At the automation unit level only goal positions are

visible. The main task of the path planning unit is to

break down goal positions into a discrete set of

intermediate positions that approximate the

trajectory of the robots. This trajectory should be

time efficient since bad trajectories may lead to poor

automation cycle times (e.g. rotating to the left

might be slower that moving in x, y direction.).

Another goal of path planning is to avoid collisions

with objects or other robots. For collision avoidance

an environmental model is required. Path planning

can be performed during the automation sequence

design phase or online.

On the current development state of the system

only offline path planning is supported, which is

sufficient in most cases but delegates more

responsibility to the designer of the automation

sequence.

Subgoal positions calculated by the planning unit

are sent to the execution unit as well as steering

commands of the automation unit. The execution

unit is responsible for execution of single actuation

commands.

First for every command received, all necessary

steering signals are sent to the involved programs.

These steering signals prepare all components in the

system for the low-level control command that

follows. For example the right camera is selected or

actor subcomponents are turned on or off.

After receiving an acknowledgment for every the

steering signal the low-level control command is

issued to the corresponding LoLeC.

One of the major problems in micro- and

nanorobotic is the high error rate of single

automation tasks. Due to environmental and scale

effects operations that are simple in macro

automation as positioning do have a high error rate.

E.g. there might well be endless positioning tries

because of a too low low-level control error

threshold, which was correct at a different humidity

or temperature level.

∏

∈

−−=

taskst

tseq

)1(1

εε

(1)

As in macro automation the error of a sequence is

the multiplied error rate of every single automation

task (Eq. 1). E.g. for a sequence consisting of 7 task

each having an complimentary error rate of 10% the

error rate of the automation sequence is higher then

50%.

The first step to deal with these high error rates is

a reliable error detection which is the task of the

feedback unit in the high-level controller. This unit

receives all error conditions which occurred in the

components of the system (e.g. a LoLeC) and

presents them to the right abstraction level.

Another yet not implemented task for the

feedback unit would be the observation of certain

environmental states. E.g. a carbon nanotube (CNT)

escaping from a gripper needs to be detected through

visual feedback since there is no other sensorial

information for this event. To cover this kind of

errors the feedback unit could track the CNT

through a vision sensor and rise an error condition if

the CNT gets lost.

Error conditions get handled by different units in

a different manner. If a collision is detected the

planning unit might generate a new trajectory.

On automation unit level the error handling is

performed by sweeping backwards in the automation

sequence and looking for the first task with pre-

conditions that meet the current system status.

If there is no possible way of handling an error

automatically the automation sequence is interrupted

and needs to be handled by a human controller.

The lowest level of automation i.e. tele-operation

is provided by the tele-operation unit, which directly

receives commands from a human controller. These

commands are directly provided to the

corresponding LoLeC servers. It is in the

responsibility of the human controller to avoid

collisions and move the robots to certain positions

using “save” trajectories.

4.2 Script Language for Automation

Sequences

Modeling a suitable automation sequence for a given

handling task can be performed in three steps. First,

the hardware setup has to be defined according to

the requirement analysis. Then robot-based process

primitives and their pre- and post-conditions have to

be defined (e.g. move robot to target position if it is

in range of the vision sensor). Finally, an automation

sequence is to be found, which meets all pre- and

post-conditions of the process primitives, avoids

collisions and eventually accomplishes the auto-

mation task. Additional constraints as e.g. executing

time can be taken into account as well.

The differences in process primitives between

different nanohandling robot cells (hardware setups)

impose the problems of how to avoid

reimplementation and hard coding of process

primitives and how to change the automation

sequence without changing the program code.

A flexible script language has been developed,

following the script based approach of Thompson

and Fearing (2001). The different commands of the

DISTRIBUTED CONTROL ARCHITECTURE FOR AUTOMATED NANOHANDLING

131

language are the process primitives itself. They are

implemented as sub-classes of a common task base

class. This avoids reimplementation of common

concepts as error handling or message protocols.

Composition and iteration are provided as

general language constructs. Positions as e.g.

parking or working positions for different actors can

be defined as constants and later on be used in all

commands.

Based on this script language arbitrary

automation sequences on the predefined operators

can be defined as plain text files (Fig. 5).

These sequence files gets interpreted and

executed by the high-level controller automation

unit. This way the automation sequences can take

advantage of the underlying closed-loop control. The

concept enables rapid development of different

automation sequences for the same set of process

primitives, while the high-level control program

keeps unchanged.

Figure 5: Automation sequence that lifts the specimen

holder, moves the robot into the focus of the electron

beam an grips an object.

The language design has been chosen with regard to

future application of a planning algorithm like

Metric-FF (Hoffmann, 2003) to find the optimal

automation sequence for given automation task.

5 CONCLUSIONS AND

FUTUREWORK

This paper has presented a new distributed system

architecture for controlling micro- and nanorobotic

cells competitive to the system of Fatikow et al.

(2006). However it scales up easier due to the lean

low-level control design.

In contrast to the micro handing setup in

Thompson and Fearing (2005) this system

architecture is designed for micro- and nanohandling

and full automation inside and outside a SEM

chamber.

Aside of all positive design aspects the full

capabilities of the system needs to be evaluated

carefully and applied to different kind of nano-

handling cells. So far only partial tests of

components and component interaction have been

performed.

Nevertheless subcomponents as there are the

high-level controller automation unit, the sensorial

parts and two low-level controllers for linear actors

have shown decent control behavior.

More attention also needs to be paid to

automation tasks reliability and detection of error

conditions apart from positioning tasks as described

in 4.1.

REFERENCES

Bennewitz, M., Burgard, W., 2000. A Probabilistic

Method for Planning Collision-free Trajectories of

Multiple Mobile Robots. ECAI’00. Proc. of the

workshop Service Robotics - Applications and Safety

Issues in an Emerging Market at the 14th European

Conference on Artificial Intelligence

Fatikow, S., Rembold, U., 1997. Microsystem Technology

and Microrobotics, Springer-Verlag

Fatikow, S., Wich, T., Hülsen, H., Sievers, T., and

Jähnisch, M. 2006. Microrobot system for automatic

nanohandling inside a scanning electron microscope.

ICRA’06. Proc. of Int. Conference on Robotics and

Automation, Orlando, FL, USA

Fearing, R.S., 1995. Survey of Sticking Effects for Micro-

Parts, IROS’95. Proc. of IEEE Int. Conf. on Robotics

and Intelligent Systems, Pittsburg, USA

Hoffmann, J., 2003. The Metric-FF Planning System:

Translating ``Ignoring Delete Lists'' to Numeric State

Variables. Journal of Artificial Intelligence Research

Vol. 20, pp. 291-341

Hülsen, H., Fatikow, S., 2005. Extrapolation with a self-

organising locally interpolating map. ICINCO’05.

Proc. of Int. Conference on Informatics in Control,

Automation and Robotics, Barcelona, Spain, pp. 173-

178

Menz, W., Mohr J., Paul O., 2001. Microsystem

Technology, Wiley-VCH.

Ritter, H., Martinetz, T., Schulten, K., 1992. Neural

computation and selforganizing maps. Addison

Wesley, Reading, Mass.

Sievers, T., Fatikow, S., 2005. Visual Servoing of a

Mobile Microrobot inside a Scanning Electron

Microscope, IROS’05. Proc. of IEEE Int. Conference

of Intelligent Robots and Systems, pp. 1682-1686

Thompson, J. A., Fearing, R. S., 2001. Automating

microassembly with ortho-tweezers and force sensing.

IROS’01. Proceedings IEEE/RSJ International

Conference on Intelligent Robots and Systems), Maui,

HI, pp. 1327-1334

Wich, T., Sievers, T., and Fatikow, S., 2006, Assembly

inside a Scanning Electron Microscope using Electron

Beam induced Deposition, IROS’06. Proc. of IEEE

Int. Conference on Intelligent Robots and Systems, pp.

294-299

lift(TOUCHDOWN_DIST);

move(EC,WORKING_POS);

grip(TRUE);

lift(SECURITY_DIST);

move(DROP_POS);

ICINCO 2007 - International Conference on Informatics in Control, Automation and Robotics

132
