THE PROTOTYPE OF HUMAN – ROBOT INTERACTIVE VOICE

CONTROL SYSTEM

Miroslav Holada, Igor Kopetschke, Pavel Pirkl, Martin Pelc, Lukáš Matela, Jiří Horčička

and Jakub Štilec

Faculty of Mechatronics and Interdisciplinary Engineering Studies, Technical University of Liberec

Hálkova 6, Liberec, Czech Republic

Keywords: Distributed speech recognition, robot control, image processing.

Abstract: This contribution shows our recent activities of human – robot voice-control system. The keynote lays in

design of a system that allows easy control and programming of various robots by a uniform interactive

interface. Generally the robots are actuated by sets of control commands, sometimes by a manual control

interface (touchpad, joystick). The operator has to know the control commands, syntax rules and other

properties necessary for successful robot control. Our system offers commands like “move left” or “elevate

arm” that are translated and sent into the corresponding device (robot). Speech recognition is based on an

isolated-word HMM engine with distributed recognition system (DSR). The vocabulary may contain

thousands of word and short phrases. It allows us to design an easy dialogue scenario for the robot control

system. The system allows direct robot control like moving or programming short sequences. A video

camera is included for displaying the working place and employed algorithms of image processing allow the

system to detect the position of objects in the working area and facilitate robot’s navigation.

1 INTRODUCTION

The goal of this project is a PC-software-based

interactive system for general-purpose robot voice-

control. This paper describes the designed prototype,

its structure and the dialogue strategy in particular.

The interactive control of robots could be used in

ecial situations, when a robot is working in

dangerous areas and no programming beforehand is

possible. It could also be used in a situation when

supervised learning for robot’s later autonomous

operation has to be done, without knowledge about

the robot’s programming language. The presented

paper follows on this reality.

2 PROJECT FEATURES

The project is based on a former research. The

research involved a voice-control dialog system,

speech recognition vocabulary design and speech

synthesis feedback for user command confirmation.

Together with a scene manager and a digital image

processing module, it forms the core of the control

system as shown in figure 1. The components are

described below.

2.1 Scene Manager

The scene manager forms a connection between the

main program (engine) and the image processing

part. It actually controls the image processing

module and initiates image acquisition and

processing. Using the processed image data, it

updates the scene database, keeps track of objects

exposed on the scene and provides the scene object

and image data to the main engine. It is also aware

of the robot's coordinate system and plans the

robot’s movement when requested by the engine.

The database itself consists of two types of data.

It contains the

list of parametrized objects detected

on the scene as well as the robot calibration data.

The latter allows mutual image-space to robot-space

coordinate translation which is used in robot

navigation. Each object detected on the scene is

internally represented as a data object (class

instance), all the objects are stored in a dynamic list.

Some of the attributes are: a unique object identifier,

object's shape descriptor, central point coordinates,

307

Holada M., Kopetschke I., Pirkl P., Pelc M., Matela L., Hor

cka J. and Štilec J. (2007).

THE PROTOTYPE OF HUMAN – ROBOT INTERACTIVE VOICE CONTROL SYSTEM.

In Proceedings of the Fourth International Conference on Informatics in Control, Automation and Robotics, pages 307-310

DOI: 10.5220/0001652603070310

 SciTePress

Sensors

Robot 1

Robot 2

Cameras

ital ima

processing module

- calibration

- image

enhancement

- segmentation

- object detection

- ...

RS232

TCP/IP

CAN

Robotic Control

Module

Events mana

Main project engine

with GUI

Scene mana

- collision detection

- trajectory

- object tracking

DB scene

objects, working area

robot’s range

Scene image

output

Repositor

(Solved tasks,

commands, program,

dialogue log)

Voice

control

Dialogue

manager

Micro

hone

Head

hones

Reco

niser

(HMM)

TTS

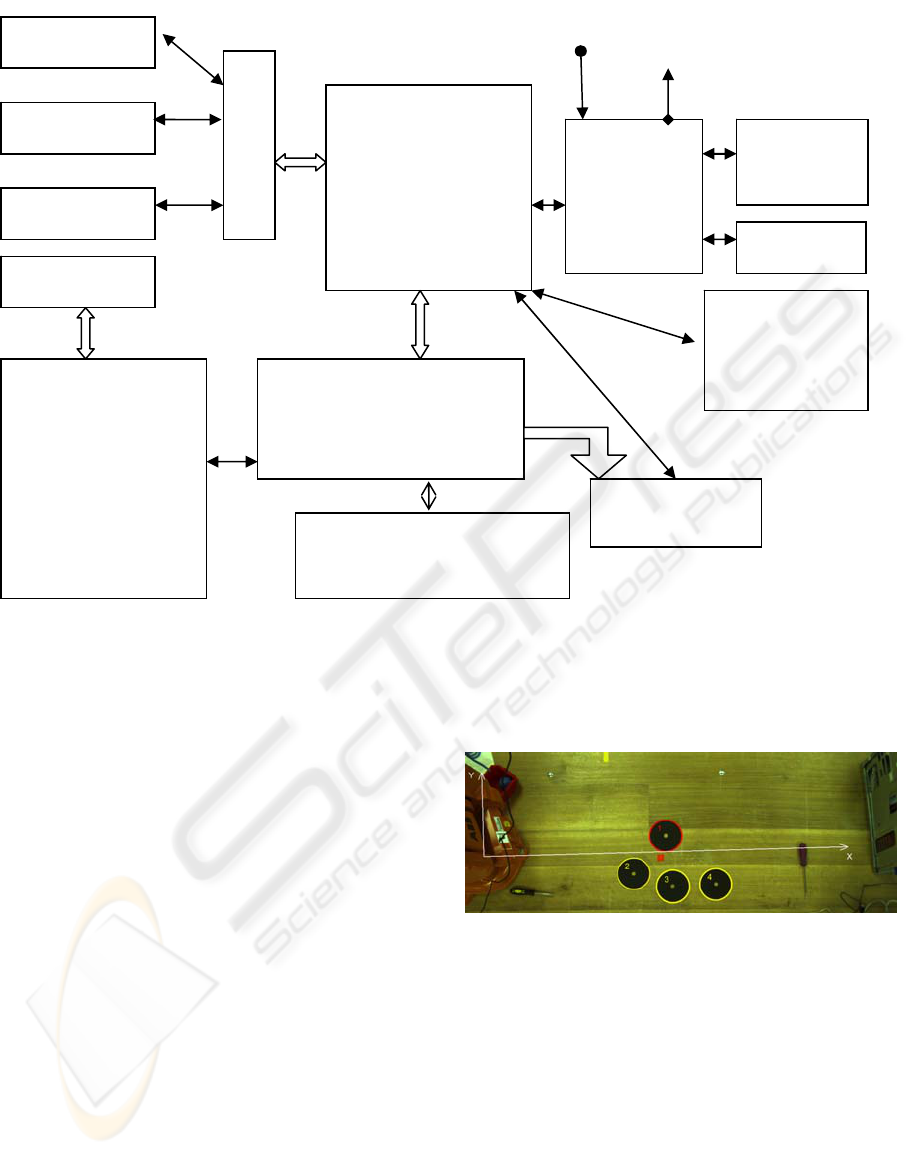

ure 1: Sche

eof the desi

ned s

ste

bounding rectangle etc. Such data allows smooth

object manipulation and serves as a base for object

collision avoidance along the manipulation

trajectory.

The scene manager also combines unprocessed

camera image with scene data to highlight detected

objects and to present them to the user via a GUI as

shown in figure 2. The user has a view of the

computer's scene understanding and may correctly

designate objects of interest in his or her commands.

Being in its early stages, the project currently

works only with 2D data and relies on the user's z-

axis navigation aid. The system is expected to

incorporate a second camera and 3D computer

vision in the future to become fully 3D aware.

2.2 Image Recognition

The robot’s working area is captured by a colour

high-resolution digital camera (AVT Marlin F-146C,

1/2’’ CCD sensor). The camera is placed directly

above the scene in a fixed position. We implemented

a simple interactive method to synchronize the

robot’s coordinate system (XY) and the camera’s

one using pixel units. We prepare modifications to

compensate geometric distortions introduced by a

camera lens.

Figure 2: Working scene with highlighted objects of

circular shape and robot’s coordinate system.

Digital image processing methods are placed in a

DIP library which is served by the scene manager

with the object database. Figure 2 shows the circular

object detection using the reliable Hough transform

(HT). HT is commonly used for line or circle

detection but could be extended to identify positions

of arbitrary parametrizable shapes. Such edge-based

object detection is not too sensitive to imperfect

input data or noise. Using a touch-display or verbal

commands it is possible to focus the robot onto a

chosen object (differentiated by its color or

numbering) and than tell the robot what to do.

ICINCO 2007 - International Conference on Informatics in Control, Automation and Robotics

308

2.3 Robots Description

The prototype system uses a compact industrial

general-purpose robotic arm (ABB IRB 140). The

robot is a 6-axes machine with fast acceleration,

wide working area and high payload. It is driven by

a high performance industrial motion control unit

(S4Cplus) which employs the RAPID programming

language. The control unit offers extensive

communication capabilities - FieldBus, two Ehternet

channels and two RS-232 channels. The serial

channel was chosen for communication between the

robot and the developed control system running on a

PC.

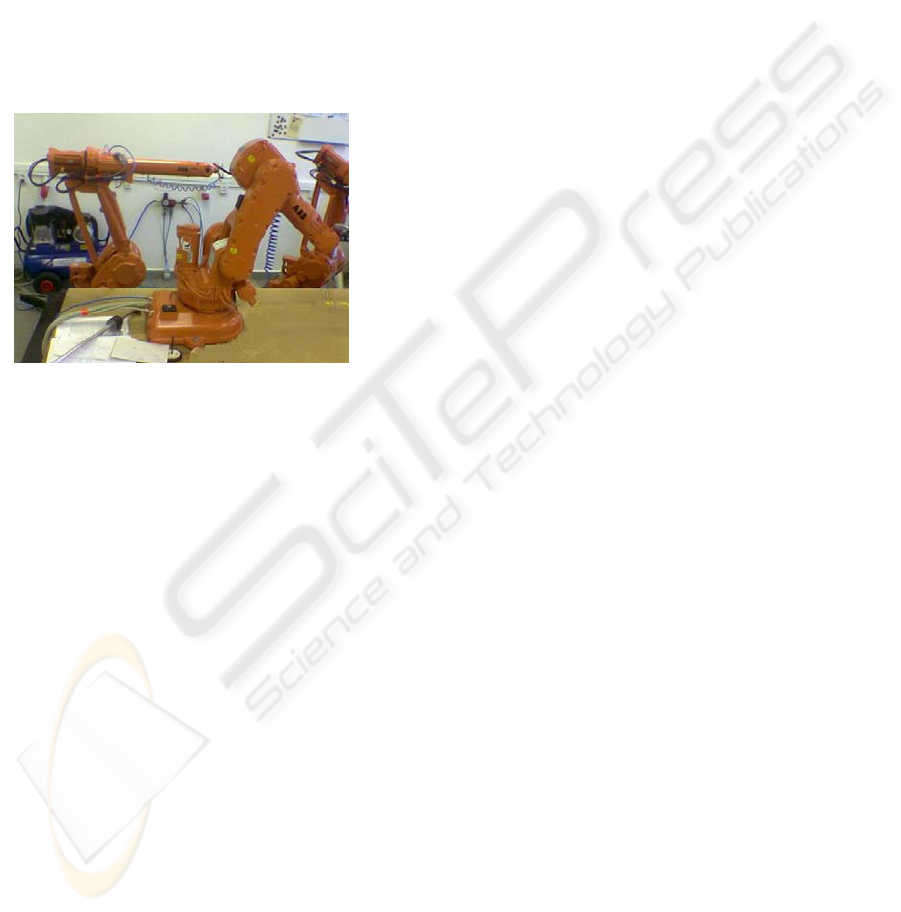

Figure 3: Robots used.

The robotic control SW module simplifies the

robot use from the main engine's point of view. It

abstracts from the aspects of physical

communication and robot's programming interface.

It either accepts or refuses movement commands

issued by the core engine (depending on command's

feasibility). When a command is accepted, it is

carried out asynchronously, only notifying the

engine once the command is completed.

2.4 Distributed Computation

Most of the system's modules are developed and run

on a standard PC to which the robot is connected.

Since some of the software modules require

significant computational power, the system's

response time was far from satisfactory when the

whole system ran on a single computer. Therefore,

the most demanding computations (namely the

object recognition and the voice recognition) were

distributed to other (high performance) computers

via network (TCP connections).

3 DIALOGUE STRATEGY

The voice interface between an operator and the

controlled process is provided by a speech

recogniser and a text-to-speech synthesis (TTS)

system (both for Czech language). The TTS

synthesis system named EPOS was developed by

URE AV Prague. It allows various male or female

voices with many options of setting.

The speech recognition is based on a proprietary

isolated word engine that was developed in previous

projects. The recogniser is speaker independent,

noise robust, phoneme based with 3-state HMM

(Hidden Markov Models) and 32 Gaussians. It is

suitable for large vocabularies (up 10k words or

short phrases) and allows us to apply various

commands and their synonyms.

The dialog system is event-driven. We can

categorize the events into three fundamental

branches: operator events, scene manager events and

device events.

3.1 Operator Events

Operator events usually occur in response to

operator’s requests. For example commands which

are supposed to cause robot’s movement, object

detection, new command definition or detection of a

new object. This kind of event can occur at any time,

but the dialog manager has to resolve if it was a

relevant and feasible request or if it was just a

random speech recognition error.

Although the acoustic conditions in robotic

applications usually involve high background noises

(servos, air-pump), the speech recogniser works

commonly with 98% recognition score. If the

operator says a wrong command or a command out

of context (for example, the operator says “drop” but

the robot doesn’t hold anything) then the manager

asks him or her for a feasible command in the stead

of the nonsensical one.

3.2 Scene Manager Events

This sort of event occurs when the scene manager

detects a discrepancy in the scene. For example

when the operator says “move up” and the robot’s

arm moves all the way up until the maximum range

is reached. When this happens a scene event is

generated and the system indicates that the top

position was reached.

Other scene event occurs when the operator

wants to take up an object, but the system does not

know which one because of multiple objects

THE PROTOTYPE OF HUMAN – ROBOT INTERACTIVE VOICE CONTROL SYSTEM

309

detected on the scene. This event generates a query

to the operator for proper object specification.

3.3 Device Events

These events are produced by external sensors and

other components and devices connected to the

system. They are processed in the event manager

where corresponding action is taken. The response

manifests itself in the form of a request for the

operator, or more often causes a change in robot’s

behaviour.

The difference between scene manager events

and device events is that scene events are generated

by the system itself (based on a known scenario,

robot geometry, object shape and position). They are

computed and predictable. On the other hand, device

events’ time cannot be exactly predicted before they

actually happen.

3.4 Example of Dialog

For a simpler robot orientation and navigation the

positions on the scene are virtualized. They are

named by Greek letters like “Position α” or

“Position β”. These virtual positions may be

redefined to suit the operator’s needs. A blind-area

may also be defined and it is completely omitted

from any image processing and anything in this area

is completely ignored.

We can gather up black disks (see figure 2.) and

put them to some other place on the scene. This

place is defined like “Position α” and we setup the

“blind area” on the same coordinates. After that the

operator starts a dialog, for example:

“Start recording new command.”

“I’m recording” ...robot says

“Search objects”

“I’m searching ... Four objects were

found”

“Move on first”

“I’m moving ... Done”

“Take it.”

“Ok”

“Move on position alph

“I’m moving ... Done”

a.”

“Put it”

“Ok”

“Stop recording.”

“I stop the recording. Please, say

new command”

“Search” “Disks” “Done”

“New command is entered and named:

Search disks. Is it right.”

“Yes”

“Repeat command”

“Enter command”

“Sear

“OK”

ch disks”

....

“No object found. Repeating done.”

The robot finds the remaining three disks and

puts them in the selected area. If any disk cannot be

found then the robot interrupts executing the given

command and waits for next action.

4 CONCLUSIONS

The system is especially usable as an accessory

robot control interface for assistant and second-rate

operations. The presented prototype now cooperates

only with one industry robot (ABB) but the robotic

control module may easily be extended to support

other robots (Katana, mobile robots, etc.) as well.

The designed system offers robot control and

robot task programming even to people without

explicit programming language knowledge. It is

sufficient for the operator to know the Czech voice

interface of the presented system.

ACKNOWLEDGEMENTS

This work was supported by the internal grant IG

FM 2007/002.

REFERENCES

Nouza, J., Nouza, T.: A Voice Dictation System for a

Million-Word Czech Vocabulary. In: Proc. of ICCCT

2004, August 2004, Austin, USA, pp. 149-152,

Holada, M.: The experiences and usability of distributed

speech recognition system DUNDIS. In: Proc. of 14th

Czech-German Workshop „Speech Processing",

September 2004, Prague, Czech Republic, pp. 159-

162,

Hanika, J, Horak, P.: Text to Speech Control Protocol. In:

Proc of the Int. Conf. Eurospeech'99, Budapest,

Hungary, September 5-9, 1999, Vol. 5, pp. 2143-2146.

Šonka, M., Hlaváč, V., Boyle, R. D., Image Processing,

Analysis and Machine Vision. PWS, Boston, USA,

second edition, 1998.

ICINCO 2007 - International Conference on Informatics in Control, Automation and Robotics

310
