CAMERA BASED HEAD-MOUSE

Optimization of Template-Based Cross-Correlation Matching

Tatiana V. Evreinova, Grigori Evreinov and Roope Raisamo

Department of Computer Sciences

FIN-33014 University of Tampere, Finland

Keywords: Video-as-input, Camera-mouse, Cross-correlation matching, Reduced spiral search, Text entry.

Abstract: There is a challenge to employ video-based input in mobile applications for access control, games and

entertainment computing. However, by virtue of computational complexity, most of algorithms have a low

performance and high CPU usage. This paper presents the experimental results of testing the reduced spiral

search with the sparse angular sampling and adaptive search radius. We demonstrated that a reliable

tracking could be provided in a wide range of lighting conditions with the relative brightness of only 16

pixels composing the grid-like template (the grid step of 10-15 pixels). Cross-correlation matching of the

template was implemented in eight directions with a shift of one pixel and adaptive search radius. The

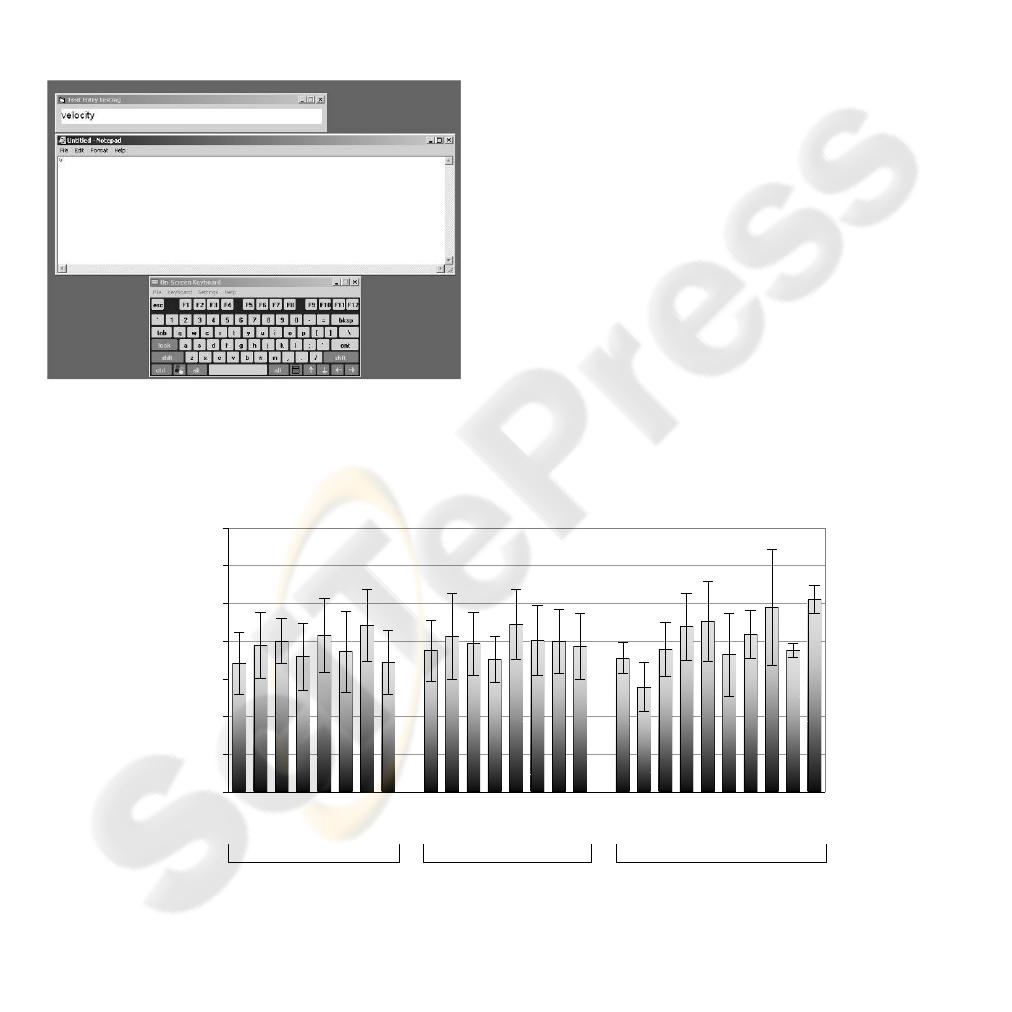

algorithm was thoroughly tested and after that used in a text entry application. The mean typing speed

achieved with the head tracker and on-screen keyboard was of about 6.2 wpm without prediction after 2

hours practice.

1 INTRODUCTION

The latest mobile phones, PDAs and ultra-mobile

PCs are equipped with digital cameras. There is a

great challenge to employ video-based input in

mobile applications for access control (Face

Recognition, 2005), games and entertainment

computing (Ballagas, 2005), (Cantzler, 2003),

(YongBo, 2005), (EyeTwig, 2005), (TrackIR, 2006).

There are also multi-input techniques when video

input can be combined with touch and

tilt/acceleration sensors served by ultra-mobile PC.

To ascertain and recognize the tracked features,

most of the known algorithms are executed by

employing a lot of system resources being allocated

for video stream pre-processing (Comaniciu, 2002),

(Bérard, 1999), (Betke, 2002), (Brunelli, 1993),

(Crowley, 1995), (FaceMOUSE, 2005), (Jilin,

2005), (Kamenick, 2005), (Gorodnichy, 2004). Only

a few projects (Lewis, 1995), (EyeTwig, 2005),

(Kjeldsen, 2001), (Si-Cheng, 2005) have been

implemented to improve the input method and

optimise the algorithm to make the tracking

techniques more accessible and cheap. For instance,

EyeTwig head tracker has a good balance of

accuracy, CPU usage and a price (EyeTwig, 2005).

It was realized with the Intel Open Source Computer

Vision library (Intel “OpenCV”, 2006). To detect the

head position, a low CPU usage was achieved by

using minimal and non-specific criteria such as fast

ellipse fitting. Therefore, EyeTwig tracker has low

filtering efficiency to discriminate head movements

against an emergence and motion of another object

having a similar region and brightness in a capture

window.

Nowadays, the prices of web cameras are the

same as those of optical mice. The requirements for

video-based input techniques are not as high as, for

instance, for security applications (access control

and person identification). Video input may be

implemented by using various or combined

algorithms such as template- (or feature-),

knowledge-, and appearance-based methods. The

main goal is to provide smooth tracking of the body

features (e.g., a particular skin region). The

coordinates of the feature location in a capture

window might be transformed into a cursor position,

while the tracking algorithm should support

sufficient accuracy in pointing and selection of icons

and other widgets in the interface independently of

the lighting conditions and cluttered background.

Cross-correlation (CC) algorithm has been a

conventional approach in feature detection by

template matching in computer vision since the

507

V. Evreinova T., Evreinov G. and Raisamo R. (2007).

CAMERA BASED HEAD-MOUSE - Optimization of Template-Based Cross-Correlation Matching.

In Proceedings of the Second International Conference on Computer Vision Theory and Applications - IU/MTSV, pages 507-514

 SciTePress

1960’s. Several schemes to simplify and accelerate

computation of the cross-correlation for image

processing have been proposed, e.g., (Crowley,

1995), (Lewis, 1995). Nowadays, the method has

been used in machine vision for industrial inspection

(defect detection) as well as for real-time tracking of

the facial landmarks (Bérard, 1999), (Betke, 2002),

(Crowley, 1995), (FaceMOUSE, 2005), (Jilin,

2005). However, for real-time image feature

tracking there is not an agreement on which specific

parameters and a way of processing are better

concerning the balance of the computational costs

and a reasonable reliability. It can be shown that

there is a potential to optimise CC to perform video

tracking with reasonable efficiency for a variety of

interaction tasks. Below we will present further

improvements in the CC algorithm that can speed up

template matching and free CPU resources.

2 DESIGNING THE CC METHOD

Facial landmarks can be considered as a relatively

rigid surface having near-equal brightness within a

small field as 0.2-0.5% of the entire face image.

That is, a surface area of 12×12 pixels may not have

a significant brightness gradient in many regions

within a frame of 320×280 pixels. A template having

a size of about 1.5-2.5% of the entire face image,

that is, composed of about 1600-2300 pixels, might

have many dissimilar spots.

Guided by this reasoning, we have considered

optimising the size of the skin region and the

number of dots (pixels) which compose the template

that has to be matched and tracked. These dots have

two basic parameters: the coordinates and

brightness. Brightness is a more general parameter

than colour that may vary significantly depending on

the type of the lighting and reflection conditions. As

a signature of the image region, these dots should

compose an array having unique features, if it is

possible. They can be selected, for instance, as a

rectangular grid with a fixed step along X-axis and

Y-axis presenting the unique gradient of brightness,

or vice versa, the template can present a particular

layout of dots with near-equal brightness. The

connected dots having a similar brightness and being

localized in some distances can present the unique

pattern as well. On the other hand, the higher are

requirements to the template detection and matching,

the greater are demands to the lighting conditions.

The absolute brightness of each dot (pixel) for 8-

bit grey level images can vary in a range of 0-255.

While a phase of varying the brightness of the

connected dots in rows and columns of the grid-like

template remains almost the same at the head

movements within a small area, for example, yaw at

less than ±20 degrees and pitch at about ±15

degrees. It can be shown that correlation between

two samples calculated on the relative brightness of

their dots is the same as that which is being

calculated with the absolute brightness. By the

relative brightness, we assign a difference between

brightness of any pixel minus the mean brightness

over all pixels in the template (B

− B

ave

). Still, the

correlation calculated on the relative brightness is

less sensitive to changes in image intensity with

different lighting conditions (Lewis, 1995).

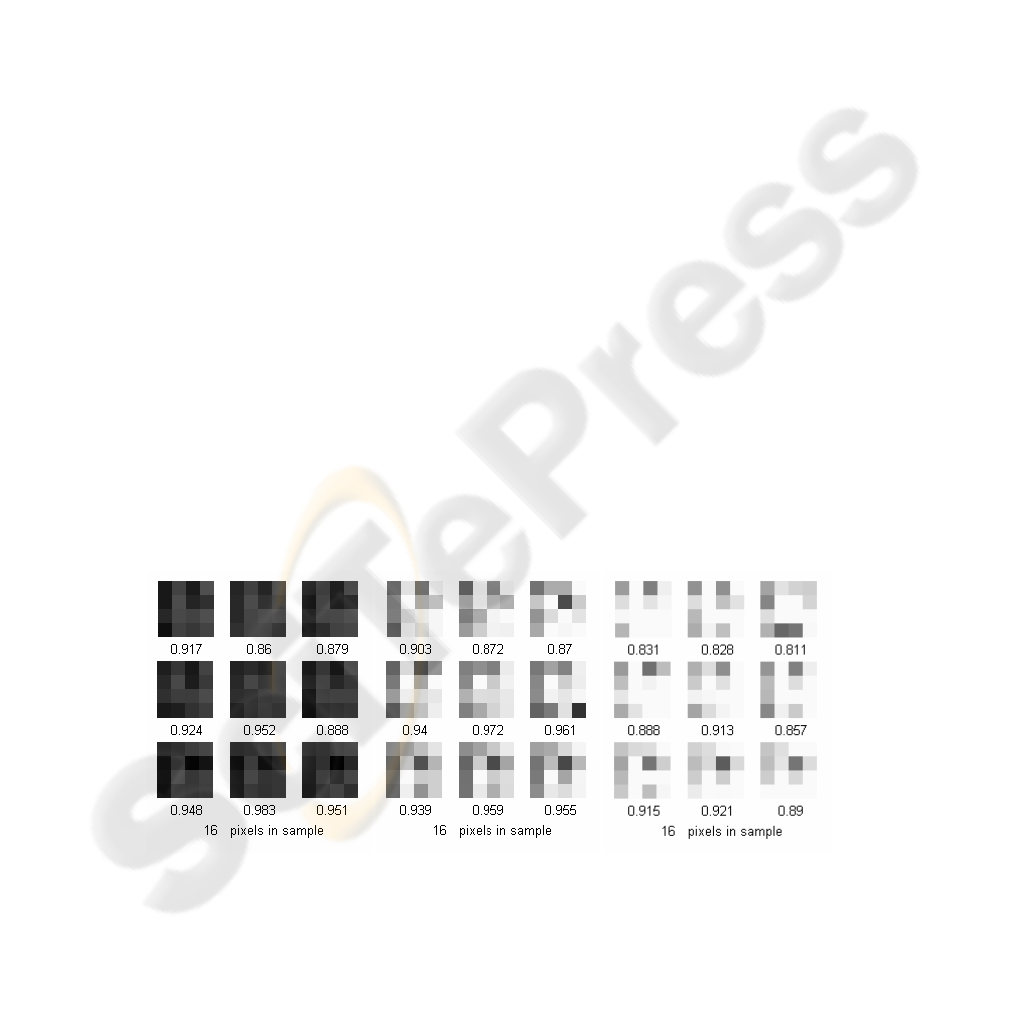

We carried out a study with different sizes of the

template (from 10×10 to 50×50 pixels) composed of

different numbers of pixels (from 225 to 12). We

found that the 16-pixel array being arranged as a

rectangular grid within the image region with a side

of 40-48 pixels gives us an opportunity to choose

relatively unique areas in the human face. Such a

template can be tracked efficiently, that is, template

matching can occur with a correlation of about 95%

with a minimum number of failed records.

Next, we have proposed to reduce the full

computation of correlation (Bérard, 1999), (Betke,

2002), (Lewis, 1995) over the particular search area

to the restricted field through reduced spiral search

with the sparse angular sampling starting from the

initial location where the template was stored. We

did an extensive evaluation of all variables of the

proposed algorithm, which might be minimized

without performance degradation (Evreinova, 2006).

As a criterion of the algorithm performance (and the

best values), we used the radius of a search area and

the time of computation needed to detect a sample

which resembles the template with the maximum

correlation. An assessment was made for 3, 4, 6, 8

and 16 directions (with an angular step of 120-22.5

degrees) and the different radius of a search area that

varied from 1 to 40 pixels.

In particular, we found that the search area might

be processed only in eight directions with the

angular step of 45 degrees around the starting point

and the radius of a search area can be less than 20

pixels. Thus, the search area presented the rectangle

each side of which was by 40 pixels greater than a

side of the template. When the sample captured

regarding the starting point, for instance the top left

pixel, had the highest correlation coefficient among

all samples recorded within the search area,

coordinates of such a point were selected as the new

starting point for the next search in the new capture

window.

VISAPP 2007 - International Conference on Computer Vision Theory and Applications

508

to the initial location where the

template was initialised; GoTo (1).

Throughout the tracking, matching is always

performed regarding the same template (the relative

brightness of 16 pixels). Still we cannot exclude the

previous location from computation as it is

impossible to predict a new position of the template

even within 10 ms. When all of the sample

candidates within the maximum capture radius failed

(step 7 in the algorithm), for instance, when the

correlation coefficient was less than the predefined

threshold 0.8, the search started again from the

starting point where the template was stored

initially. To facilitate a spatial synchronization of the

tracking process the user has to follow the initial

head position. In general, the failed records occur

when a sample crosses the borders of the working

area or/and it is impossible to calculate the

correlation beyond the range of the predefined

parameters. Nevertheless, a reset of the template

(recalibration) was never required.

The region between or near eyebrows is

considered as the best facial landmark for video

tracking having a sufficient brightness gradient

(Bérard, 1999). The movements of the facial

landmark were recorded with the Logitech

QuickCam camera from the distance of about 75 cm.

Normally, the template had a size of 48×48 pixels

and it was always comprised of only 16 pixels

(layout 4×4, the grid step of 15 pixels). The part of

160×120 pixels of the image format 320×240 pixels

was centered and zoomed accordingly. In

comparison to the raster-like matching carried out

throughout the overall search area with the shift of 1

pixel, the reduced spiral search with the sparse

angular sampling can decrease by 8.9-2.2 times

redundant data. When R=20, a ratio of a number of

computations is (40×40)/(20×9)≈8.9, when R=5, a

ratio is (10×10)/(5×9)≈2.2.

Finally, employing Microsoft Video for

Windows (VfW) and API functions that enable an

application to process video data take different time

and affect the tracking performance. To grab an

image from the hidden capture window we used an

intermediate DIB (Device Independent Bitmap) file

of the capture window 320×240 pixels stored by

sending WM_CAP_FILE_SAVEDIB message. It

takes of about 1.2 – 2.5ms for Intel Pentium 4

3201.0 MHz Cache 2MB and AMD Athlon

Processor 858.8 MHz, Cache 256kB accordingly,

and the same time is needed to convert DIB to BMP

format (76kB, 320×240 pixels, black and white with

8-bit greyscale) and to load the image from the file.

The template-based tracking performance depends

on how the algorithm and methods are integrated

with other procedures. In this case, a number of

computations can be optimised as well (Lewis,

1995).

As a lighting source, we have used luminescent

lamps. Besides other features, the minimum

correlation threshold 0.8 makes the input technique

tolerant to head rolls (tilts) in a range of about ±18

degrees. It was sufficient to support head tracking

when lighting conditions varied in a wide range of

brightness with a minimum of failed records.

Figure 2: The variation of correlation in the target acquisition in nine locations within the working area of 80×60

pixels when brightness of the lighting source was changed gradually. The bottom figures correspond to the

average brightness of the sample, the template was stored at the middle level of lighting.

35 of 255 147 of 255 228 of 255, where 255 is white

VISAPP 2007 - International Conference on Computer Vision Theory and Applications

510

Fig. 2 illustrates the algorithm tolerance to the

lighting at the target (12×12 pixels) acquisition

(direct pointing) in nine locations within the working

area of 80×60pixels when brightness of the lighting

source was changed gradually by more than six

times (with the help of an electronic regulator). Each

dot of the sample in Fig. 2 is shown as a square

having the width and the height which are

proportional to the grid step of 15 pixels in the

template layout.

To support head tracking in full screen size we

did a preliminary study of possible instability of the

system. In particular, correlation coefficient may

change due to sparse angular sampling, errors in

computation (rounding), lighting and other non-

controlling factors. The system noise had a random

variation of correlation within a range of about 0.035

(STD=0.006) and an area with a radius of about one

pixel (STD=0.00). The mean of Corr.max recorded

was of about 0.999 (STD = 1.24). The drifting of the

maximum correlation was also recorded (on 1000

counts) at neutral head position. It was of about 1.08

pixels (with a minimum of 1 pixel, a maximum of 7

pixels, STD=0.48). It can be considered as a

physiological noise (tremor-like micromovements).

Displacements of the start point may occur with

equal probability in any of eight directions when no

involuntary movements were produced.

Drifting of the output coordinates can be

decreased through moving average procedure to

stabilize displacements of the starting point

(⎯Dst.pt.) that should be converted into the location

of the cursor (⎯Pcurs.) in the application program.

However, an averaging on five and more pixels

(including tremor and spastic movements) has a

negative impact on cursor movements (“sticky” or

delayed cursor etc.). To make the cursor movements

smooth and to avoid the problem of the sample

drifting the coordinates of the referent point were

averaged on three-four locations and translated into

the cursor relative displacement using power

function with index K

=2.0-2.4 (acceleration factor).

The higher cursor acceleration is used the smaller

head movements are needed to access any location

within a screen. At a small cursor displacement, we

used a threshold index K

=0-0.35 to block

acceleration of small involuntary movements (noise

reduction). That demands less accuracy for the

acquisition of small targets. Speed of cursor

movements can also be adjusted as index K

=1.7-

2.5. Thus, cursor displacement transfer function is

calculated as a vector ⎯Pcurs.:

⎯Pcurs. =⎯P’curs. − (K

×⎯Dst.pt. +K

)^K

(1)

where ⎯P’curs. is previous cursor position.

Such a function (1) with moving average of

displacements (⎯Dst.pt.) on 3-4 points requires few

computations. For instance, Kjeldsen (2001) had

explored application of head gestures for cursor

positioning, continuous control of sound, spatial

selection and symbolic selection (by yaw/no and

pitch/yes). The author described a hybrid algorithm

for facial pointing which take into account sensing

constraints and computational efficiency. One of the

key features was a sigmoid-based transfer function

which combined head velocity and position to

improve cursor control. Earlier Bérard (1999) also

used exponential function to better adjust scrolling

speed depending on head displacements.

3 EVALUATING TEXT ENTRY

WITH HEAD-MOUSE

Seven volunteers from staff and students at the local

university were recruited for this study. This group,

which consisted of 4 females and 3 males, covered

an age range from 27 to 50 years. None of the

participants had any previous experience with head-

mouse text entry, and three of them participated in

the experiments with eye typing. Three of the

subjects wore prescription glasses.

The critical parameters of software were

preliminarily tested with a different CPU as

mentioned in Section 2. The text entry tests were

carried out on a PC with Intel Pentium 4 CPU. The

monitor used 19” AL1931 ACER had a resolution of

1024 × 768 pixels. Logitech QuickCam Pro 3000

had a frame rate of 30 fps. The test program was

written in Microsoft Visual Basic 6.0.

The head-mouse testing of text entry method was

performed with the Standard 101-key Microsoft On-

Screen Keyboard (OSK_QW) having the regular

QWERTY layout. Fig. 3 illustrates a snapshot of the

setup. The data were recorded after the preliminary

training phase. The subjects were trained in the use

of the head-mouse and text entry techniques during

4 days, but no more than (6) trials per day, 2 hours

(4368 characters) in a total.

Each trial consisted of entering twenty words,

randomly selected from a set of 150 words, and

displayed one at a time in the test window located

above the notepad (Fig. 3). The test words were 7 to

13 characters in length, with a mean of about 9, and

every letter of the alphabet was included at least

several times during the trial.

CAMERA BASED HEAD-MOUSE - Optimization of Template-Based Cross-Correlation Matching

511

In order to record the time per character equally,

a timer was started when the virtual space bar was

pressed and stopped when a correct character was

entered. When the last character of the word was

entered, the test was stopped, and the next word to

be entered appeared in the test window after a delay

of 3 seconds. Each of the subjects accomplished

eleven trials in a one-hour session.

A physical button, the Control key was used to

make a selection of any software button instead of

dwell-time. When the cursor position was outside of

the onscreen keyboard the same key was used to

start and stop the camera control.

Figure 3: A snapshot of the software used in the

experimental setup: test window (top), Notepad (middle)

and OSK_QW (bottom).

4 RESULTS OF EVALUATING

TEXT ENTRY

Statistical data were obtained for 7 subjects entering

20 words in 11 trials, for an estimated 14014

characters in total. The key figures such as the

number of errors per trial, the entry time per

character and per word, and the number of

keystrokes per word were stored for each trial in a

data array and saved in a log file.

Fig. 4 illustrates the grand mean and standard

deviation of the entry time needed to point and select

any character (software button) using the head-

mouse built on the improved algorithm described in

Section 2 and a single physical key to make a

selection.

The total summarized relative frequency of the

characters used during the test is shown in the

bottom of the Fig. 4. The correlation of relative

frequency of the characters used during the test with

English letter frequency was of about 0.985.

Fig. 5 shows the total error rate as a percentage

of errors committed. It illustrates that the average

error was of about 4.53% (STD = 3.57) without any

prediction or text entry optimisation while making

use of Microsoft on-screen keyboard. The entry of

some often-used characters was less erroneous than

others because the probability of their occurrences

was higher, and rarely used characters have lower

frequency of emerging. Therefore, the percent of

error was higher due to a small number of such

events.

0.5

1.5

2.5

3.5

ETNR I OAS DLCFPUMG HYWVBXKQJZ

Entry time per char., s

Figure 4: The grand mean for typing speed per character (and STD) with Microsoft OSK. The total summarized relative

frequency of the characters used is shown in the bottom (%).

67.7% 26.1% 6.2%

VISAPP 2007 - International Conference on Computer Vision Theory and Applications

512

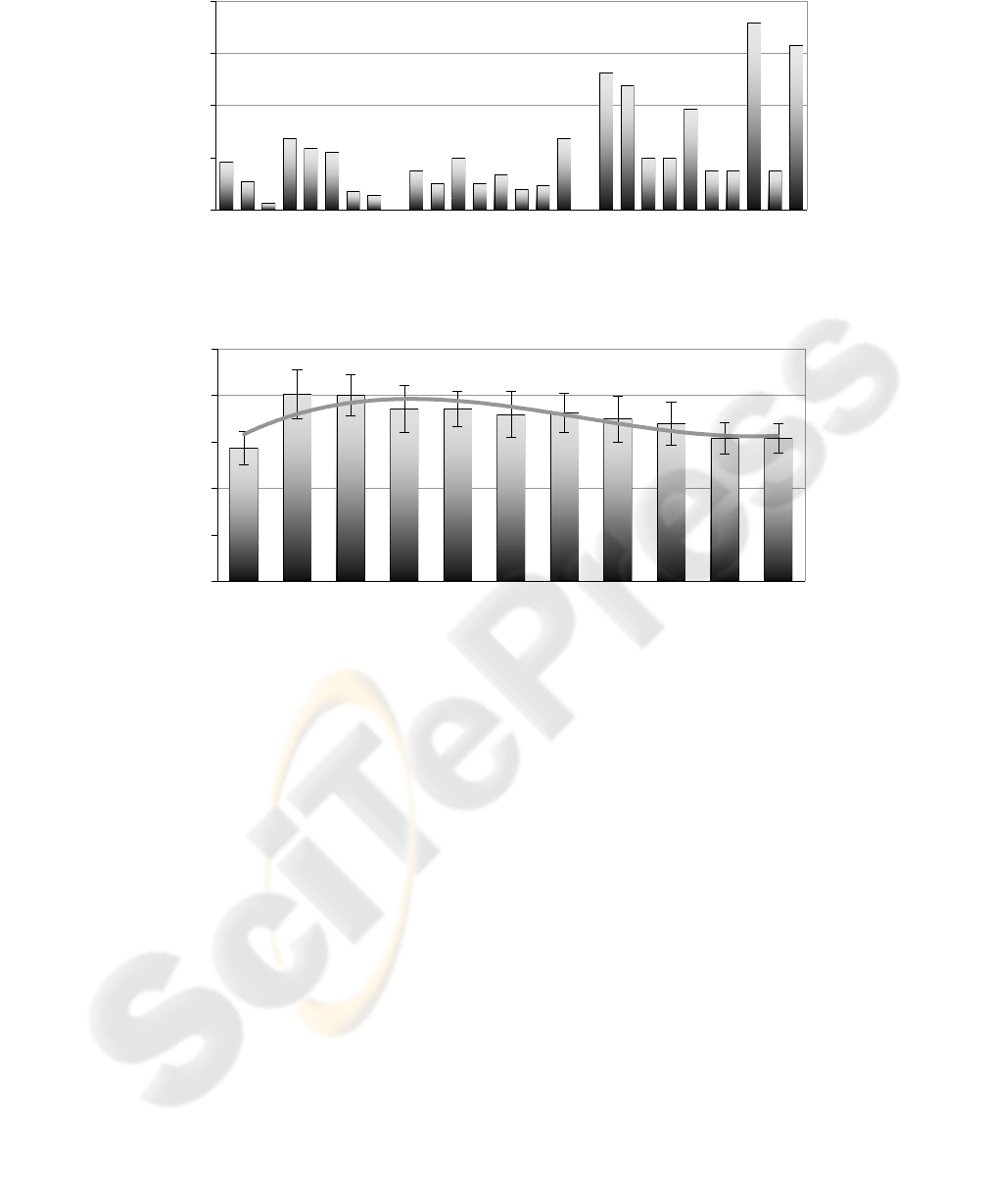

Figure 5: The total error rate summarized over 1540 words and committed by all the participants.

Figure 6: The grand mean for entry time of the whole words (and STD).

The average performance of the subjects can be

measured as the mean time of the word entry (Fig.6).

The average typing speed was of about 17.6 s

(STD=9.1 s) per word (at the mean of 9.1 characters

per word) that translates into 6.2 wpm (STD=3.21

wpm) based on the average length of 5 characters

per word in English. The trend line indicates a

normal performance variation during the test which

took about one hour. In spite of the fact that nobody

reported any problems with neck muscles, extreme

fatigue or pain, the subjects had a rest of about 2

minutes after each trial (20 words) which could be

completed in about 3 minutes. For instance, Hansen

(2004) reported a typing speed of about 6.22 wpm,

with the error rate of 14%, on the data being

averaged on 30762 characters. The “Smart-Nav™”

hands free mouse (from “Natural Point”) and a

dynamical Danish on-screen keyboard with word

prediction/completion mode were used for testing.

Nevertheless, the size of software buttons

OSK_QW keyboard was 9mm × 9mm, while the

Danish keyboard occupied full screen, and the size

of each button was 8×8 cm. The size of the software

buttons has an impact on the usability factor such as

the user satisfaction. The higher demands to head

movement accuracy is the higher tension of the neck

muscles could occur during voluntary head tracking.

On-screen keyboard is just an input interface which

should take a minimum space of the desktop.

5 CONCLUSION

We demonstrated that the information provided by

the grid-like template through relative brightness of

16 pixels (layout 4×4, grid step 15 pixels) is

sufficient for tracking a facial landmark in various

positions at the correlation threshold more or equal

to 0.8. After completing a series of extensive

ETNR I OAS DLCFPUMG HYWVBXKQJZ

Errors per char., %

1234567891011

Trial, n

Time per word, s

CAMERA BASED HEAD-MOUSE - Optimization of Template-Based Cross-Correlation Matching

513

experiments, we concluded that when the

rectangular template has a side of 40-48 pixels, a

capture radius of 20 pixels is enough to hold failed

records at a minimum. Moreover, we proposed the

enhanced cross-correlation algorithm with the

adaptive search radius which provides the maximum

degree of similarity, more than 0.95, between

tracked region and the template. The matching

procedure was improved and it is implemented in

eight directions based on the reduced spiral search

with the sparse angular sampling and shift of one

pixel. Such an improvement of cross-correlation

algorithm decreased the number of computations by

8.9-2.2 times in a comparison to raster-like matching

when the sample candidate has to be checked

throughout the overall search area with a minimum

consequent displacement. The improved algorithm

has a good performance employing the minimum PC

resources for computation, 8-15% with Intel

Pentium 4 CPU. Finally, the head-mouse application

was tested with processor Pentium II 351.5MHz,

Cache 512Kb, RAM 130Mb running under

Windows 2000. It took of about 40-65% of the PC

resources at the frame rate of 30 fps.

The tests with able-bodied participants showed

the average typing speed of about 6.2 wpm with text

entry technique after two-hour practice of the use of

head-mouse. In the further development, we plan to

increase the number of applications and features

which could be adaptive.

ACKNOWLEDGEMENTS

This work was financially supported by the

Academy of Finland (grant 200761 and 107278),

and as a part of the project SKILLS (FP6-035005)

funded by the EU Commission.

REFERENCES

Ballagas, R., Rohs, M., Sheridan J.G., 2005. Mobile

Phones as Pointing Devices. In Proc. of the Workshop

on Pervasive Mobile Interaction Devices (PERMID) at

PERVASIVE 2005, Munich, Germany, 27-30.

Bérard, F., 1999. The perceptual window: Head motion as

a new input stream. In IFIP Conference on Human-

Computer Interaction (INTERACT99). IOS Press.

Betke, M., Gips, J. and Fleming, P., 2002. The Camera

Mouse: Visual Tracking of Body Features to Provide

Computer Access For People with Severe Disabilities.

IEEE Transactions on Neural Systems and

Rehabilitation Engineering 10:1, (2002) 1-10.

Brunelli, R., Poggio, T., 1993. Face recognition: features

versus templates. IEEE Trans. Pattern Analysis and

Machine Intelligence, Vol. 15, No. 10, 1042-1052.

Cantzler, H. and Hoile, C. 2003. A novel form of a

pointing device. In Vision, Video, and Graphics, 1-6.

Comaniciu, D., Ramesh, V., Meer P., 2002. Real-Time

Tracking of Non-Rigid Objects using Mean Shift.

IEEE Conf. Computer Vision and Pattern Recognition

(CVPR'00). Vol. 2, 142-149.

Crowley, J.L., Berard, F. and Coutaz J., 1995. Finger

Tracking as an Input Device for Augmented Reality.

Int. Workshop on Face and Gesture Recognition.

(IWAFGR'95), Zurich, Switzerland.

Evreinova, T.V., Evreinov G., Raisamo, R., 2006. Video

as Input: Spiral Search with the Sparse Angular

Sampling. In Proc. of ISCIS 2006. LNCS 4263,

Springer-Verlag Berlin Heidelberg, 542 – 552.

Face Recognition comes to Mobile Devices, 2005, at:

http://www.mobilemag.com/content/100/102/C3799/

FaceMOUSE. Product information, 2005, at:

http://www.aidalabs.com/

Gorodnichy, D.O., Roth, G., 2004. Nouse ‘use your nose

as a mouse’ perceptual vision technology for hands-

free games and interfaces. Elsevier B.V. Image and

Vision Computing 22, 931–942.

Hansen, J.P., Johansen, A.S., Torning, K., Kenji Itoh and

Hirotaka Aoki, 2004. Gaze typing compared with

input by head and hand. In Proc. of ETRA ‘04, Eye

Tracking and Research Applications Symposium,

ACM Press, 131-138.

Jilin Tu, T. Huang, T, Hai Tao, 2005. Face As Mouse

Through Visual Face Tracking. In Proc. of the 2nd

Canadian Conf. Computer and Robot Vision, IEEE

Computer Society, 339-346.

Kamenick, T., Koenadi, A., Zhi Jun Qiu, Sze Yeung

Wong, 2005. Webcam Face Tracking. CS540 Project

Report, Available at:

http://www.cs.wisc.edu/~jerryzhu/cs540.html

Kjeldsen, R., 2001. Head Gestures for Computer Control.

In Proc. of IEEE ICCV Workshop on Recognition,

Analysis, and Tracking of Faces and Gestures in Real-

Time Systems, IEEE Computer Society, 61–68.

Lewis, J. P., 1995. Fast Template Matching. J. Vision

Interface. 120-123.

Intel Image Processing library “Open CV”. Website 2005

http://www.intel.com/technology/computing/opencv/o

verview.htm

Product information on EyeTwig.com. Website 2005.

http://www.eyetwig.com

Product information on TrackIR. Website 2006.

http://www.naturalpoint.com/

Si-Cheng Zhang, Zhi-Qiang Liu, 2005. A robust, real-time

ellipse detector. J. Pattern Recognition 38, 273 – 287.

YongBo Gai, Hao Wang, KongQiao Wang. 2005. A

Virtual Mouse System for Mobile Device. In Proc. of

the 4th international conference on Mobile and

ubiquitous multimedia. ACM Int. Conference

Proceeding Series; Vol. 154 MUM, 127-131.

VISAPP 2007 - International Conference on Computer Vision Theory and Applications

514
