FULLY-AUTOMATIC IMPROVEMENT OF THE GEOMETRY OF A

VESSEL GRAPH

J. Bruijns, F. J. Peters, R. P. M. Berretty and B. Barenbrug

Philips Research, High Tech Campus 36, 5656 AE, Eindhoven, The Netherlands

Keywords:

Medical Image Analysis, 3D Rotational Angiography, Computer Assisted Diagnosis, Vessel Analysis.

Abstract:

Volume representations of blood vessels acquired by 3D rotational angiography are very suitable for diagnos-

ing a stenosis or an aneurysm. For optimal treatment, physicians need to know the shape parameters of the

diseased vessel parts. Therefore, we developed a method for semi-automatic extraction of these parameters

from a surface model of the vessel boundaries. To facilitate fully-automatic shape extraction along the ves-

sels, we developed a method to generate a vessel graph. This vessel graph represents the topology faithfully.

However, the nodes and the branches are not always located close to the center lines of the vessels. Nodes and

branches outside the center region decrease the accuracy of the extracted shape parameters. In this paper we

present a method to improve the geometry of a vessel graph.

1 INTRODUCTION

Volume representations of blood vessels acquired by

3D rotational angiography after injection with a con-

trast agent (Moret et al., 1998) have a clear distinc-

tion in gray values between tissue and vessel vox-

els. Therefore, these volume representations are very

suitable for diagnosing a stenosis, a local narrowing

of a vessel caused for example by cholesterol, or an

aneurysm, a local widening of a vessel caused by a

weak vessel wall.

For optimal treatment of a stenosis or an

aneurysm, physicians need to know the cross-

sectional shape parameters in the neighborhood of the

diseased vessel parts. We developed a method for

semi-automatic extraction of these parameters from

a surface model of the vessel boundaries (Bruijns,

2000). However, if two vessel branches are close to-

gether, it is possible that vertices of the neighbor ves-

sel branch are included in the set of selected vertices

which are used to estimate the local shape parameters

of the vessel branch investigated. To exclude surface

vertices of neighbor vessel branches, we developed a

method for fully-automatic branch labelling (Bruijns,

2001) to give the vessel voxels (and from these the

surface vertices) a unique label per vessel branch.

This method results also in a set of directed graphs

(one for each component of the voxel vessel struc-

tures) with nodes (one for each vessel bifurcation and

one for each vessel extremity) and edges (one for each

vessel branch). An edge (called “skeleton branch”)

consists of a set of face connected vessel voxels,

called “skeleton voxels”, between the begin and end

node of the skeleton branch. The ﬁrst skeleton voxel

is located at the begin node. The last skeleton voxel at

the end node. Each node and each skeleton voxel has

a radius derived from the local cross-section. Each

skeleton voxel has also a plane. The plane position is

initialized to the position of the skeleton voxel. These

initial plane positions form a staircase curve (one for

each skeleton branch). Since the plane normals are

derived from the plane positions, each curve with

plane positions is smoothed by a constrained relax-

ation algorithm (van Overveld, 1995). The resulting

curve of plane positions is a piecewise cubic curve.

The plane normal is equal to the normalized direction

from the plane position of the lower neighbor to the

plane position of the higher neighbor of the skeleton

voxel.

The generated graphs facilitate fully-automatic

vessel tracing along the skeleton branches of the same

graph. After the user has selected a begin and end po-

243

Bruijns J., J. Peters F., P. M. Berretty R. and Barenbrug B. (2007).

FULLY-AUTOMATIC IMPROVEMENT OF THE GEOMETRY OF A VESSEL GRAPH.

In Proceedings of the Second International Conference on Computer Vision Theory and Applications - IFP/IA, pages 243-252

 SciTePress

sition, a minimum path between the two correspond-

ing skeleton voxels is generated. Next, for each skele-

ton voxel of this minimum path the shape parameters

of the local cross-section (e.g. an orthogonal plane

with an ellipse) are computed (Bruijns, 2000; Brui-

jns, 2001), using the plane position and the plane nor-

mal of the skeleton voxel as initial estimate for the

ellipse center respectively the normal of the orthogo-

nal plane.

The generated graphs represent the topology of

the vessels faithfully. However, the nodes and the

skeleton voxels are not always located close to the

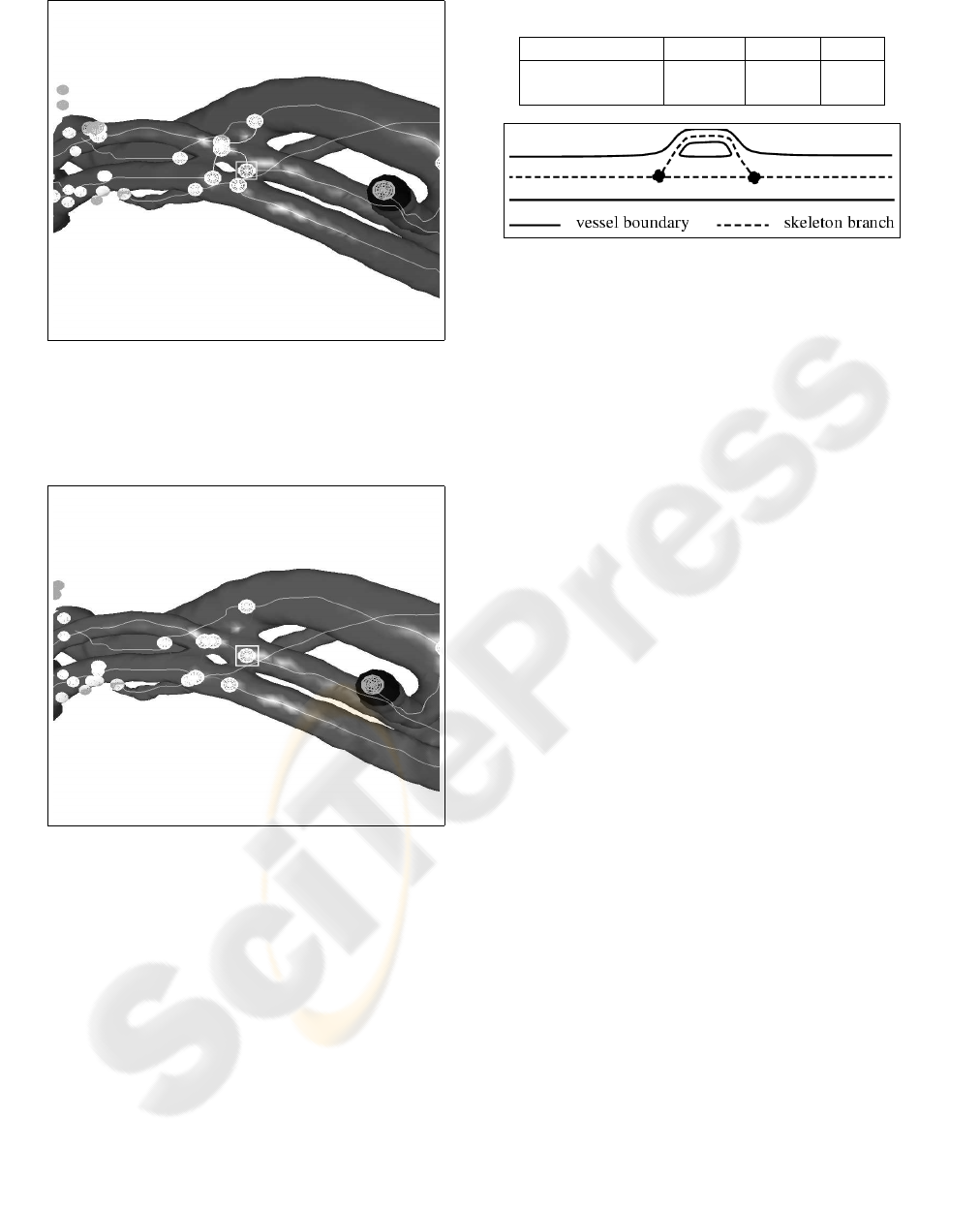

center lines of the vessels. A very clear example of

an incorrectly located node is shown in Figure 9 in

Section 6, namely the node with the square around the

wire frame sphere. Nodes and skeleton voxels outside

the center region of the vessel not only decrease the

accuracy of the extracted shape parameters but also

hamper the optimal functioning of other algorithms

((Bruijns et al., 2005b; Bruijns et al., 2005a)). In this

paper we present a method to detect such incorrectly

located nodes and skeleton voxels and to move them

to the center lines as close as possible.

We use the Manhattan distance transform (Borge-

fors, 1984) (faster to compute than the Euclidian dis-

tance transform) with regard to the vessel boundaries

to improve the geometry of a vessel graph. We call

this distance transform the primary distance trans-

form, abbreviated to PDT. We use the PDT because

for each orthogonal cross-section the PDT is greater

for vessel voxels closer to the vessel center.

In summary our method is as follows. First, the

location of the nodes is improved (see Section 3).

Next, the location of the skeleton voxels is checked

(see Section 4). After all, only if the skeleton voxels

of a branch are not close enough to the center line,

the location of the skeleton branch can be improved.

Finally, the location of the skeleton branches is im-

proved (see Section 5). The branches are processed

after the nodes because even if the original skeleton

voxels of a branch are perfectly located, new skele-

ton voxels for a branch have to be generated if one or

both nodes of this branch are moved. The results for

53 clinical volume datasets are presented in Section

Remark:

The displaced skeleton voxels should be closer to

(but do not represent) the center lines of the vessels!

The new plane positions and the new plane normals of

the skeleton voxels, used as initial estimates, should

result in more accurate shape parameters so that the

positions of the estimated ellipses represent the center

lines better but that is not yet investigated.

2 RELATED WORK

The graph structure which represents the topology of

the vessels, can be generated by various skeletoniza-

tion algorithms. Skeletonization algorithms based

on topological thinning are presented in (Bertrand

and Malandain, 1994; Dokldal et al., 1999; Dokldal,

2000; Marion-Poty and Miguet, 1994). Skeletoniza-

tion algorithms based on morphological thinning are

presented in (Eiho and Qian, 1997; Maglaveras et al.,

2001). Skeletonization algorithms based on distance

transformations are described in (Chen et al., 2000;

Bitter et al., 2001). Skeletonization algorithms based

on thinning and distance maps are presented in (Selle

et al., 2002; Boskamp et al., 2004). Skeletoniza-

tion algorithms based on propagation are described

in (Langs et al., 2004; Quek and Kirbas, 2001; Yim

et al., 2000; Zahlten et al., 1994; Zahlten et al., 1995a;

Zahlten et al., 1995b). A skeletonization algorithm

based on path tracking is presented in (Kanitsar et al.,

2001; Kanitsar et al., 2002; Kanitsar et al., 2003). A

skeletonization algorithm based on ridge extraction is

described in (Lobregt et al., 1980).

Algorithms for correction of the generated graph

structure are presented in (Yim et al., 2000; Selle

et al., 2002; Boskamp et al., 2004):

Yim et al. described a method for gray-scale

skeletonization of small vessels in MRA. First, an

acyclic connectivity graph is generated with the vox-

els as nodes and some of the pairs of neighbor vox-

els as edges. Starting at one or more seed voxels,

the region and the boundary of the graph grows by

including the neighbor voxels of the boundary voxel

with the highest intensity. By storing also the par-

ent voxel of the included neighbor voxels, the path

from an endpoint voxel back to a seed voxel can be

traced and highlighted. A more clearly visible skele-

ton can be created by removing short side branches.

Erroneous junctions and occlusions are repaired us-

ing local shape properties.

Selle et al. reported a system for the analysis

of the vasculature for liver surgical planning. First,

the vessels are segmented. Next, the skeleton of the

segmented vessels is computed and a graph of the

branching structure augmented with local shape pa-

rameters (e.g. vessel radius) is generated. Using the

shape information the graph is split in sub graphs for

the different vessel systems. Finally, the liver is seg-

mented and the vascular territories are computed.

Boskamp et al. described a interactive tool for

morphometric quantiﬁcation and visualization of ves-

sels in CT and MR volumes. First, the vessels are

segmented with user controlled thresholds. Next, a

watershed transform of the gray value image is used

to create separate regions for connected bright struc-

tures (for example bones touching vessels). The user

selects the vessel regions by placing markers in these

regions. After that, the vessel skeleton is computed by

thinning based on the distance transform. The skele-

ton is reﬁned (i.e. small side branches removed) using

the gradient of the distance transform. Next, cross-

sectional MPR (mutliplanar reformation) images and

a stretched MPR image of the vessel between two

user selected vessel points are presented. A watershed

transform of the gradient of a cross-sectional MPR

image and the masks compute during vessel segmen-

tation are used for a more accurate vessel segmen-

tation of the 2D image. Finally, the cross-sectional

area and diameters are extracted from each segmented

cross-sectional MPR image.

3 IMPROVE LOCATION OF THE

NODES

To prevent that extremity nodes (i.e. a node at the end

of a vessel part) and nodes at the neck of an aneurysm,

which have at most two branches, are moved, only

nodes with more than two skeleton branches (i.e. the

nodes at a bifurcation) are moved.

3.1 First Displacement

The location of the nodes is improved in two steps.

First, the nodes with more than two skeleton branches

are moved closer to the center of the bifurcation along

a growing path of face connected vessel voxels. Two

voxels v

and v

are face connected if and only if

|ix(v

) − ix(v

)|+

|iy(v

) − iy(v

)|+

|iz(v

) − iz(v

)| = 1

(1)

with ix(v

) the ﬁrst index, iy(v

) the second index

and iz(v

) the third index of voxel v

Given the current last voxel v

of this growing path

of face connected vessel voxels for node n

, a face

neighbor vessel voxel v

i+1

of this last voxel is selected

for movement of this node if this face neighbor vessel

voxel fulﬁlls the following conditions:

1. The PDT of the face neighbor vessel voxel v

i+1

is greater than the PDT of the current last vessel

voxel v

2. The distance between the original position of node

and the face neighbor vessel voxel v

i+1

is less

than or equal to the original radius of node n

This condition prevents that the node moves away

from the original bifurcation (for example in case

of a tapering vessel as shown in Figure 1).

Figure 1: Bifurcation in a tapering vessel.

3. The distance between the face neighbor vessel

voxel v

i+1

and the position of all other nodes is

greater than or equal to two times the size of a

voxel.

This condition prevents that the moved node co-

incides with one of these other nodes (for exam-

ple in case of a number of closely spaced side

branches).

If there are more face neighbor vessel voxels of

the current last voxel v

which fulﬁll these conditions,

we select the face neighbor vessel voxel v

i+1

closest

to the original node position:

k p(v

i+1

) − p(v

) k≤k p(v

) − p(v

) k (2)

with v

any other face neighbor vessel voxel of v

fulﬁlling the three afore mentioned conditions.

If there are still more face neighbor vessel vox-

els which are now equally suitable, we select the ﬁrst

one discovered during testing (the order of the six face

neighbors is implicitly deﬁned in the software).

3.2 Second Displacement

If the original node is located at the beginning of a

small side branch of a continuous main branch, the

node may be still far away from the center line of the

main branch. A schematic example is shown in Fig-

ure 2.

If in this case the original node is located in the

small side branch below the lowest PDT 2 voxel,

the ﬁrst displacement algorithm (see Section 3.1) will

move the node to this lowest PDT 2 voxel. A bet-

ter, because closer to the center line of the continuous

main branch, PDT 2 voxel for the node is given by

the center PDT 2 voxel of the horizontal line of the T

shape formed by the PDT 2 voxels. Next we use the

observation that this voxel is also closest to the cen-

ter position of the PDT 2 voxels face connected to the

lowest PDT 2 voxel.

0 0 0 0 0 0 0 0 0 0 0

1 1 1 1 1 1 1 1 1 1 1

1 1 1 1 2 2 2 1 1 1 1

0 0 0 0 1 2 1 0 0 0 0

0 1 0

Figure 2: Small side branch. Empty squares are tissue vox-

els. Squares with a PDT 0 are boundary vessel voxels.

Squares with a PDT 1 are face neighbor vessel voxels of

the boundary vessel voxels. And so on. The square with

the bold digit 2 is the ﬁnal voxel of the ﬁrst displacement

algorithm.

In general, if the bifurcation contains a cluster of

maximum PDT voxels, a better voxel for the node

is given by the maximum PDT voxel closest to the

center of this cluster. So, after all nodes are possi-

bly moved by the ﬁrst displacement algorithm (as de-

scribed in Section 3.1), the following algorithm is ap-

plied to ﬁnd a better voxel for the nodes with more

than two skeleton branches:

1. Compute the center position of the cluster of max-

imum PDT voxels:

c =

∑

i=1

p(v

) (3)

A vessel voxel v

is member of this cluster if and

only if:

(a) The vessel voxel v

has a PDT greater than or

equal to the PDT of the vessel voxel v

of the

moved node n

(b) The distance between the vessel voxel v

and

the position of the moved node n

is less than

or equal to the original radius of the node.

2. Select the vessel voxel v

closest to this center po-

sition c:

k p(v

) − c k≤k p(v

) − c k (4)

with v

any other vessel voxel.

If the distance between the selected vessel voxel

and the positions of all other nodes is greater than

or equal to two times the size of a voxel, we move the

node n

to the selected vessel voxel v

3.2.1 Replacement of a Lesser Center Voxel

In case of a local cavity at the bifurcation, the PDT

of the selected center voxel v

may be less than the

PDT of the vessel voxel v

of the moved node n

. An

example is shown in Figure 3 (the bold digit 1 in the

center column of the third row is the selected center

voxel).

0 0 0 0 0 0

1 1 1 0 1 1 1

2 2 2 1 2 2 2

1 1 1 2 1 1 1

0 0 0 1 0 0 0

Figure 3: Bifurcation with a local cavity. Empty squares are

tissue voxels. Squares with a PDT 0 are boundary vessel

voxels. Squares with a PDT 1 are face neighbor vessel vox-

els of the boundary vessel voxels. And so on. The square

with the bold digit 1 is the lesser center voxel.

In such a case, we select the vessel voxel v

clos-

est to this center voxel v

which fulﬁlls the following

conditions:

1. The vessel voxel v

has a PDT greater than or

equal to the PDT of the vessel voxel v

of the

moved node n

2. The distance between the vessel voxel v

and the

position of the moved node n

is less than or equal

to the original radius of the node.

If there are more vessel voxels fulﬁlling these con-

ditions, we select the vessel voxel closest to the posi-

tion of the moved node:

k p(v

) − p(n

) k≤k p(v

) − p(n

) k (5)

with v

any other vessel voxel fulﬁlling the two

afore mentioned conditions.

If there are still more vessel voxels which are now

equally suitable, we select the ﬁrst one discovered

during testing (the order is implicitly deﬁned in the

software).

4 CHECK LOCATION OF THE

SKELETON VOXELS

Nodes are not connected to other nodes. Therefore, if

one of the face neighbor vessel voxels of a node has a

higher PDT, the node can be moved in principle closer

to the center line. So, we have a very simple test to

identify “incorrectly” located nodes.

Such a simple test is not possible for “incorrectly”

located skeleton voxels. First, in case of a vessel with

a changing radius two face connected skeleton voxels

located on the center line can have different PDT val-

ues (for example in case of a tapering vessel as shown

in Figure 1). So, we do not compare skeleton vox-

els with face neighbor skeleton voxels. Secondly, the

skeleton voxels form a face connected set of vessel

voxels in 3D voxel space.

Taking the complexity of the 3D conﬁguration of

the vessel voxels into account, a skeleton voxel is

marked as “incorrectly” located if the following con-

ditions are fulﬁlled:

1. The skeleton voxel itself has at least one face

neighbor vessel voxel (not a skeleton voxel) with

a higher PDT.

This kind of face neighbor vessel voxels are col-

lected in set S1.

2. The next two skeleton voxels of the skeleton

branch have each at least one face neighbor vessel

voxel (not a skeleton voxel) with a higher PDT.

This kind of face neighbor vessel voxels are col-

lected in set S2 respectively set S3.

3. Three different face neighbor vessel voxels (one

of set S1, one of set S2 and one of set S3) should

form a face connected path.

Note that a face neighbor vessel voxel with a

higher PDT can be member of more than one set!

A simple example of an “incorrectly” located

skeleton voxel is shown in the 2D conﬁguration of

Figure 4 with the skeleton voxels of the skeleton

branch given by the bold digits 1 and the direction

of the skeleton branch going from the bottom row to

the top row. In this case, the skeleton voxel at the bot-

tom row will be counted as an “incorrectly” located

skeleton voxel.

0 1 2 1 0

Figure 4: “Incorrectly” located skeleton voxel. Empty

squares are tissue voxels. Squares with a PDT 0 are bound-

ary vessel voxels. Squares with a PDT 1 are face neighbor

vessel voxels of the boundary vessel voxels. And so on. The

squares with the bold digit 1 are the skeleton voxels.

Remark:

Since the begin node of a self loop branch is also

the end node of this branch, and since our method to

improve the location of a skeleton branch requires that

the begin and end node are separated, the locations of

the skeleton voxels of a self loop branch cannot be

improved. Therefore, a self loop branch is skipped

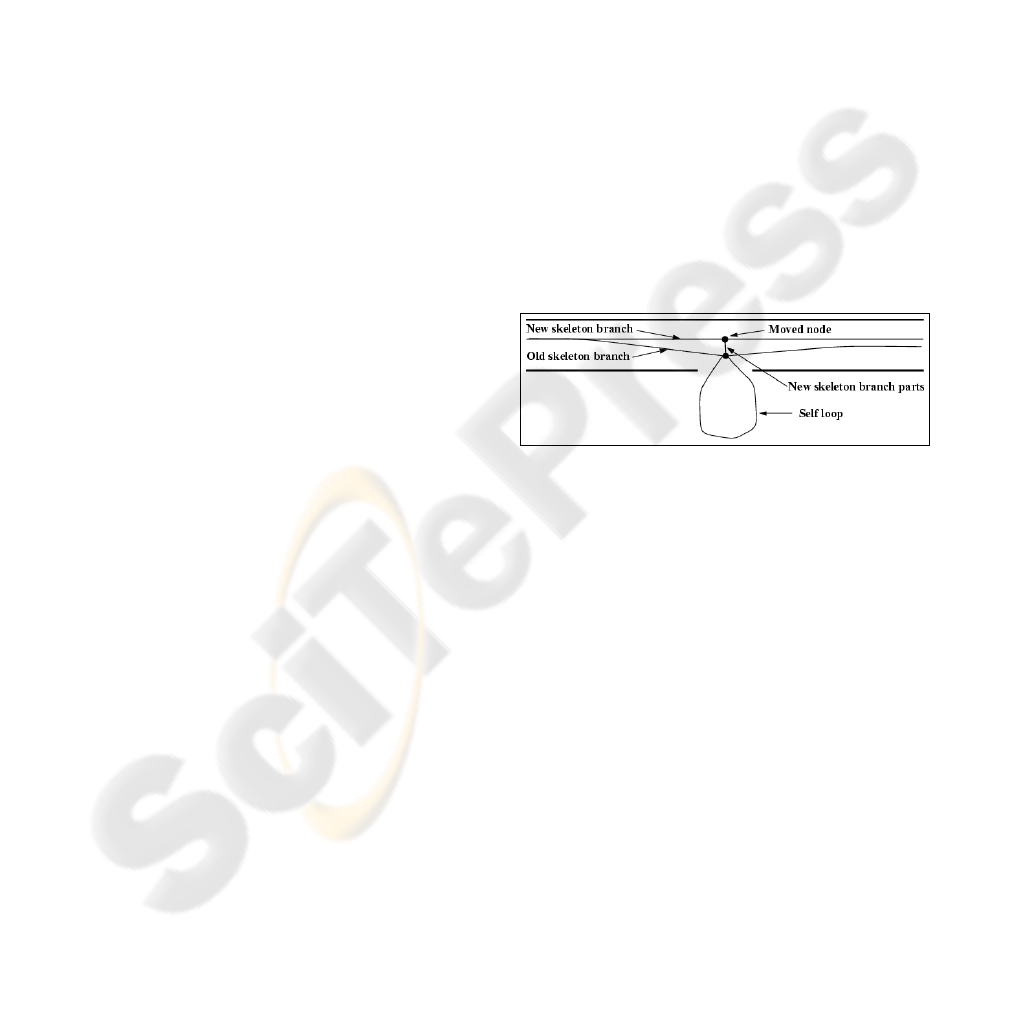

during this test. The special adjustment of a self loop

branch for the possibly moved node is described in

Section 5.3.

5 IMPROVE LOCATION OF THE

SKELETON BRANCHES

If one or both nodes of a skeleton branch are moved

(see Section 3), or if at least one skeleton voxel of this

branch is “incorrectly” located (see Section 4), the lo-

cation of the skeleton branches must be improved. In-

stead of moving the current skeleton branch (i.e. re-

placing skeleton voxels by neighbor vessel voxels)

and adjusting the begin and/or end of this branch

for a moved begin and/or end node (i.e. removing

and/or adding skeleton voxels at the extremities of the

branch), a new skeleton branch of face connected ves-

sel voxels between the begin and end node is gener-

ated to replace the old skeleton branch.

Starting with a new skeleton voxel at the possibly

moved begin node, a new skeleton branch is gener-

ated by a growing algorithm: given the current last

skeleton voxel, the new skeleton branch is extended

by adding the “best neighbor” vessel voxel (given fur-

ther detail in Section 5.2) of the current last skeleton

voxel. This “best neighbor” vessel voxel should be

“closer” to the possibly moved end node and as close

as possible to the center line (i.e. select a vessel voxel

from the set of the neighbor vessel voxels with the

highest PDT).

If the vessel branch between the begin and end

node is approximately a rectilinear tube, the Eu-

clidean distance can be used to select a vessel voxel

“closer” the end node. But if the vessel branch is

curved, “closer” means that the new skeleton branch

should form an onwards path inside the curving vessel

branch between the begin and end node. To guarantee

that the skeleton voxels of the new skeleton branch

form an onwards path, a guide moving along the old

skeleton branch is used to indicate in which direction

the new skeleton voxel should be selected. A snapshot

of such a growing process is shown in Figure 5.

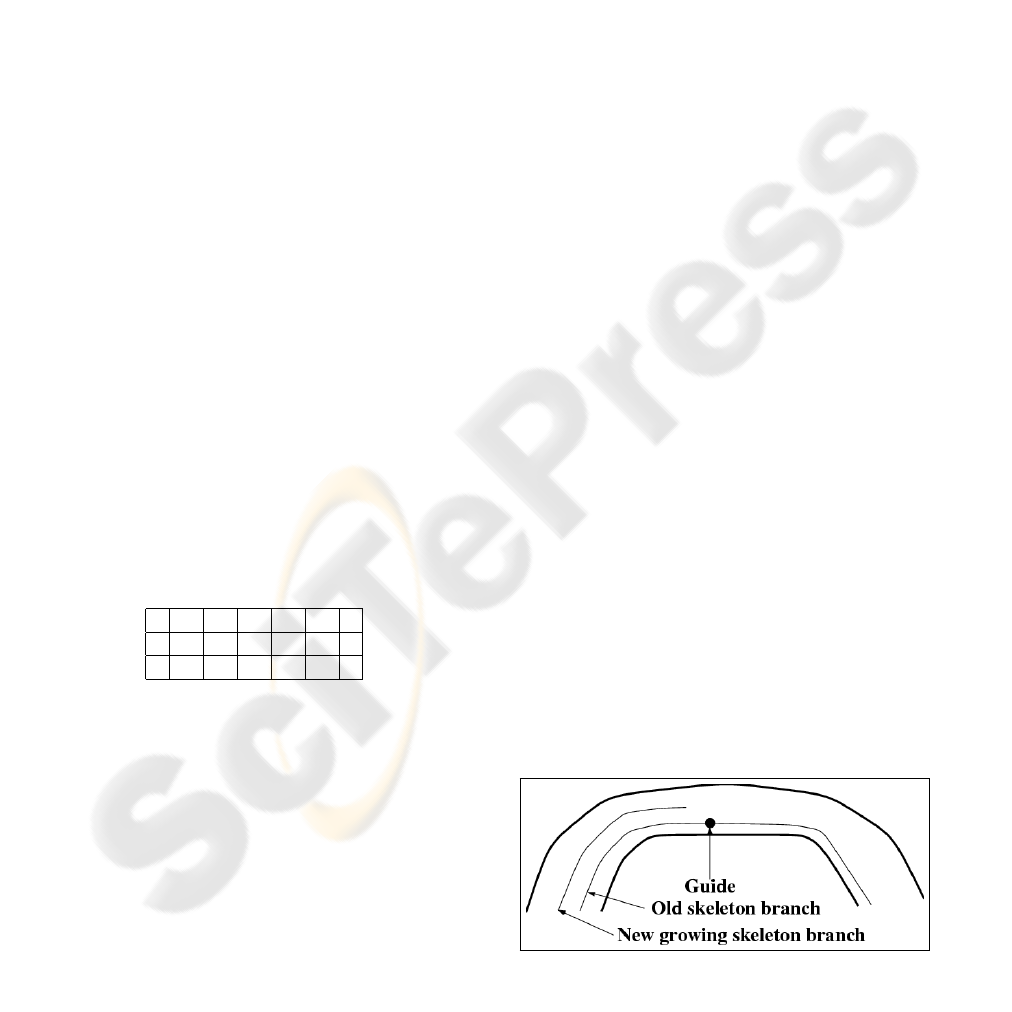

Figure 5: A snapshot of a growing process.

5.1 Moving the Guide

The guide can be followed only if the guide remains

in front of the growing new skeleton branch, and if

the guide is not hidden behind a vessel bend. There-

fore, before a new skeleton voxel for the new skele-

ton branch is selected, the guide, starting at the ﬁrst

skeleton voxel of the old skeleton branch, is moved

from its current position along the skeleton voxels of

the old skeleton branch as long as one of the following

conditions is fulﬁlled:

1. The old skeleton voxel is also member of the new

growing skeleton branch.

2. The old skeleton voxel is located behind the plane

of the new skeleton voxel.

If a vessel is very small, the new growing skele-

ton branch, possibly following a piece of the old

skeleton branch, may catch up with the moving

guide. Without these ﬁrst two conditions this sit-

uation may lead to a premature end or an inﬁnite

new skeleton branch generation.

3. The old skeleton voxel is located inside the sphere

of the new skeleton voxel or the new skeleton

voxel is located inside the sphere of the old skele-

ton voxel.

As already mentioned, each skeleton voxel has a

radius derived from the local cross-section (i.e.

from the Manhattan distance to the closest ves-

sel boundary). The radius deﬁnes together with

the position of the skeleton voxel a sphere around

each skeleton voxel.

Since the guide stops moving along the skeleton

voxels of the old skeleton branch when this con-

dition is violated, the guide is never too far away

from the new skeleton voxel as illustrated in Fig-

ure 6.

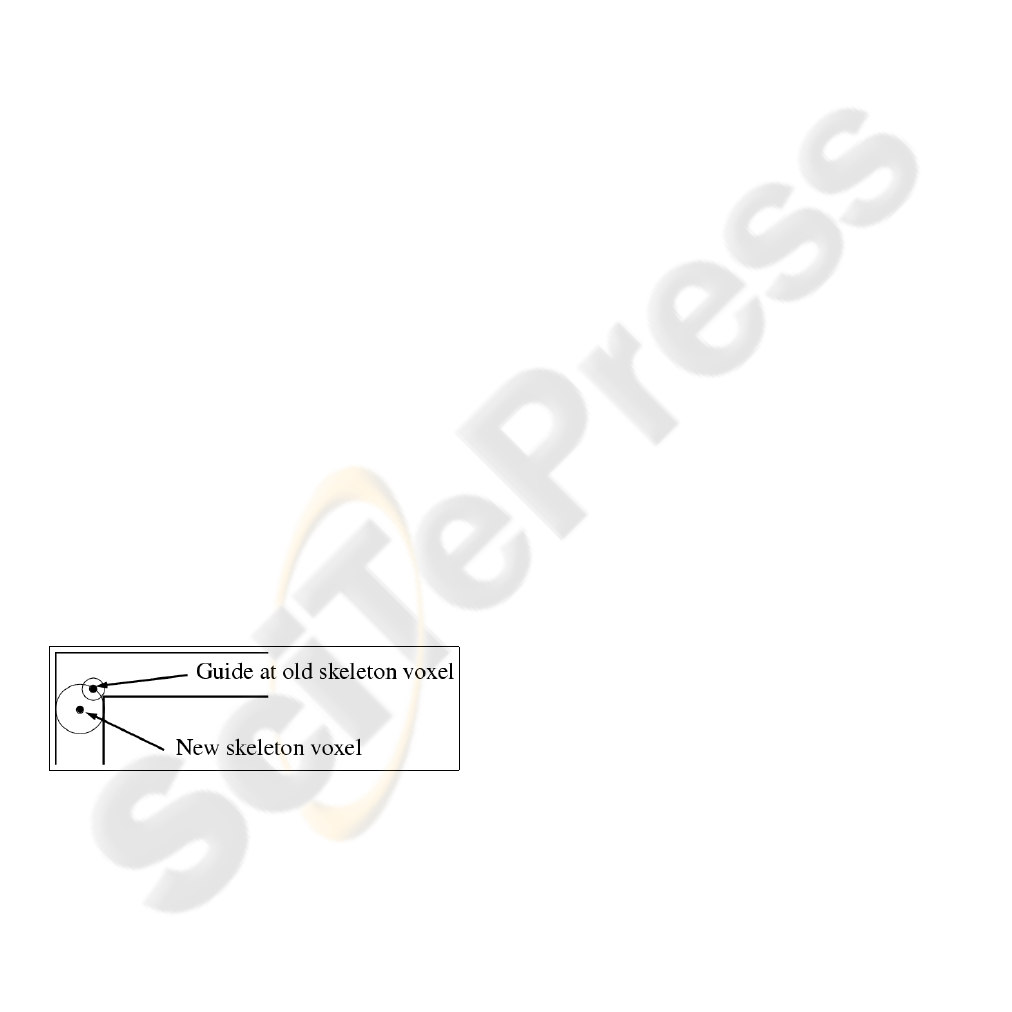

Figure 6: Guide at a vessel bend (right angle for easy

sketching).

When the guide has reached the last skeleton voxel

of the old skeleton branch, or when the new skele-

ton voxel is located inside the sphere of the possibly

moved end node, the guide is set at the position of this

end node.

5.2 Selecting the “Best Neighbor”

Given the current position of the guide and the current

skeleton voxel of the new skeleton branch, it is tempt-

ing to extend the new skeleton branch by selecting

the “best face neighbor” of the current skeleton voxel

to guarantee that the new skeleton branch consists of

face connected vessel voxels. But, because the “best

face neighbor” should be as close to the guide as the

current skeleton voxel to guarantee an onwards path,

the new skeleton branch is not always located on the

vessel voxels with the highest PDT value. Suppose

we have the 2D conﬁguration shown in Figure 4 with

the skeleton voxels of the old skeleton branch given

by the bold digits 1, the current skeleton voxel of the

new skeleton branch given by the bold digit 1 in the

bottom row and the guide given by the bold digit 1 in

the top row.

In this case, the face neighbor given by the bold

digit 1 in the middle row will be selected as the next

skeleton voxel of the new skeleton branch because the

face neighbor given by the digit 2 in the bottom row is

farther away from the guide than the current skeleton

voxel. So, the new skeleton branch will be located at

the same position as the old skeleton branch instead

of closer to the center line of the vessel.

Therefore the new skeleton branch is extended

by selecting the “best corner neighbor” of the cur-

rent skeleton voxel. Two voxels v

and v

are corner

neighbors (see also Figure 7) if and only if

1 ≤|ix(v

) − ix(v

)|+

|iy(v

) − iy(v

)|+

|iz(v

) − iz(v

)| ≤ 3

(6)

Since the new skeleton branch must consist of face

connected vessel voxels, not only the “best corner

neighbor” but also zero, one or two intermediate ves-

sel voxels have to be selected so that the “best corner

neighbor” is connected via a face connected path of

vessel voxels to the current skeleton voxel.

Such an intermediate face path depends on the

type of the “best corner neighbor”: the 26 corner

neighbors of the current skeleton voxel can be subdi-

vided into 6 face neighbors (see Equation 1), 12 edge

neighbors and 8 vertex neighbors. Two voxels v

and

are edge neighbors if and only if

|ix(v

) − ix(v

)|+

|iy(v

) − iy(v

)|+

|iz(v

) − iz(v

)| = 2

(7)

Two voxels v

and v

are vertex neighbors if and

only if

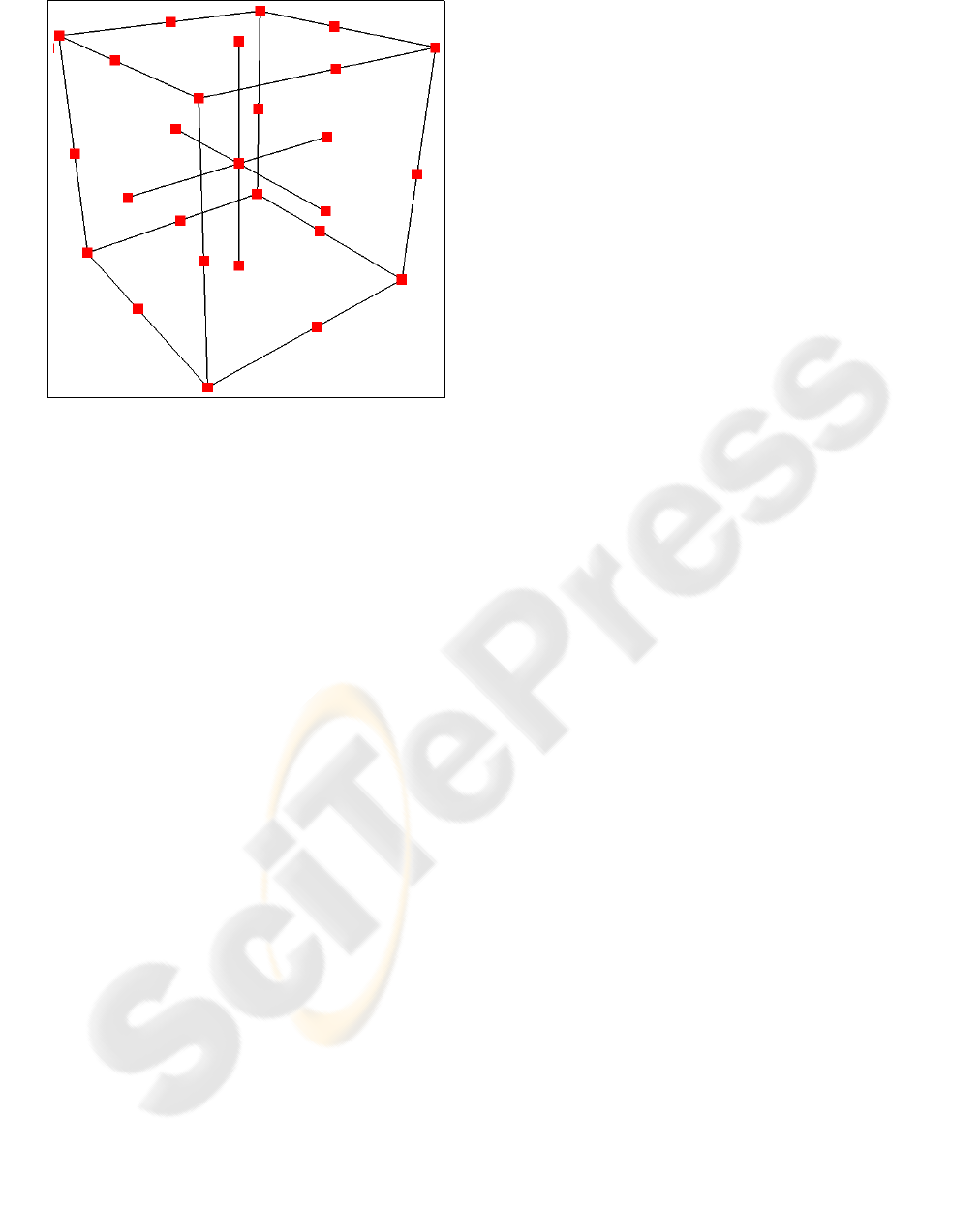

Figure 7: The corner neighbors. The current skeleton voxel

is the square in the center of the cube. Its face neighbors

are the squares at the centers of the cube faces. Its edge

neighbors are the squares at the centers of the cube edges.

Its vertex neighbors are the squares at the cube corners.

|ix(v

) − ix(v

)|+

|iy(v

) − iy(v

)|+

|iz(v

) − iz(v

)| = 3

(8)

For face neighbors of the current skeleton voxel no

intermediate voxels are needed. So, their intermediate

face paths are empty.

For edge neighbors of the current skeleton voxel

one intermediate voxel is needed. Each edge neighbor

can be face connected via two different intermediate

voxels with the current skeleton voxel. So each edge

neighbor has two different intermediate face paths.

Each intermediate face path consists of one voxel,

face connected both to the edge neighbor and the cur-

rent skeleton voxel.

For vertex neighbors of the current skeleton voxel

two intermediate voxels are needed. Each vertex

neighbor can be face connected to three different edge

neighbors. So each vertex neighbor has six different

intermediate face paths. Each intermediate face path

consists of two face connected voxels. The ﬁrst voxel

of this intermediate face path is face connected to the

vertex neighbor, the second voxel to the current skele-

ton voxel.

So, the total number of combinations (i.e. a corner

neighbor and a possibly empty intermediate face path)

is 6 + 12 * 2 + 8 * 6 = 78. The best combination of

the set S

of all combinations is selected as follows:

First the valid combinations are selected (and thus

the invalid combinations eliminated):

1. The set S

are those combinations of the set S

for

which the distance between the guide g and the

corner neighbor c

is less than or equal to the dis-

tance between this guide and the current skeleton

voxel v

k p(g) − p(c

) k≤k p(g) − p(v

) k (9)

2. The set S

are those combinations of the set S

for

which the corner neighbor and the intermediate

voxels are inside the volume.

3. The set S

are those combinations of the set S

for which the corner neighbor and the intermedi-

ate voxels are neither a tissue voxel nor already a

member of the new skeleton branch.

Next, the better combinations are selected (and

thus the lesser combinations eliminated):

1. The set S

are those combinations of the set S

for

which the PDT of the corner neighbor c

is equal

to the maximum PDT of the corner neighbors of

the set S

PDT(c

) =

max(PDT(c

) | c

∈ S

)

(10)

2. The set S

are those combinations of the set S

for which the distance between the guide and the

corner neighbor c

is equal to the shortest distance

between the guide and the corner neighbors of the

set S

k p(g) − p(c

) k=

min( k p(g) − p(c

) k| c

∈ S

)

(11)

3. The set S

are those combinations of the set S

for

which the number of intermediate voxels nv(if p

)

(e.g. 0, 1 or 2) of the intermediate face path if p

is equal to the minimum number of intermediate

voxels of the intermediate face paths in the set S

nv(if p

) =

min(nv(if p

) | i f p

∈ S

)

(12)

So, we prefer face neighbors. If there are no

face neighbors anymore, we prefer edge neigh-

bors. After this step we have either only face

neighbors or only edge neighbors or only vertex

neighbors.

4. If we have face neighbors, the set S

is a copy

of the set S

. Else, the set S

are those combina-

tions of the set S

for which the sum sp(if p

) of

the PDT values of the intermediate voxels of the

intermediate face path if p

is equal to the maxi-

mum sum of the PDT values of the intermediate

voxels of the intermediate face paths in the set S

sp(if p

) =

max(sp(if p

) | i f p

∈ S

)

(13)

with

sp(if p

) =

∑

∈if p

PDT(v

) (14)

Give the 2D conﬁguration example at the begin-

ning of this section, the “best corner neighbor” is

the vessel voxel with PDT 2 in the middle row

and the best intermediate face path consists of the

face neighbor vessel voxel with PDT 2 in the bot-

tom row, not the face neighbor vessel voxel with

PDT 1 in the middle row.

5. The set S

are those combinations of the set S

for which the corner neighbor c

has a “best face

neighbor”. A best face neighbor f

is a face neigh-

bor (see equation 1) with the greatest PDT:

PDT( f

) ≥ PDT( f

) (15)

and in case of equal PDT values the shortest dis-

tance to the guide g:

k p(g) − p( f

) k≤k p(g) − p( f

) k (16)

with both f

and f

face neighbors of possibly dif-

ferent corner neighbors of the combinations of the

set S

If there are still more corner neighbors which are

now equally suitable, we select the ﬁrst one discov-

ered during testing (the order of the corner neighbors

is implicitly deﬁned in the software).

If the “best corner neighbor” is an edge neigh-

bor or a vertex neighbor, there may be still more than

one “best intermediate face path” for the “best corner

neighbor”. In that case, we select the ﬁrst one discov-

ered during testing (the order of the intermediate face

paths is implicitly deﬁned in the software).

After the “best corner neighbor” with the “best

intermediate face path” is selected, the intermediate

voxels and the corner neighbor are used to extend

the new skeleton branch. If one of these new skele-

ton voxels is located at the moved end node, the new

skeleton branch is complete.

Remark:

Only the distance between the guide and the “best

corner neighbor” needs to be less than or equal to the

distance between the guide and the current skeleton

voxel. The distance between the guide and an inter-

mediate voxel may be greater than the distance be-

tween the guide and the current skeleton voxel!

5.3 A Self Loop

Since the begin node of a self loop branch is also the

end node of this branch, a self loop branch is treated

differently. If the node of the self loop branch is

moved, the new skeleton branch of the self loop (see

Figure 8) consists of a new skeleton branch part from

the moved node to the begin skeleton voxel of the old

skeleton branch, followed by a copy of the old skele-

ton branch, followed by a new skeleton branch part

from the end skeleton voxel of the old skeleton branch

to the moved node. Such a new skeleton branch part

consists of the set of face connected vessel voxels

which form an approximate straight-lined connection

between the begin and end of this branch part.

Figure 8: Moved self loop.

6 RESULTS AND CONCLUSIONS

We have applied the method to improve the geome-

try of a vessel graph to 53 clinical volume datasets

(14 of them with a resolution of 256x256x256 voxels,

the rest 128x128x128 voxels), acquired with the 3D

Integris system (Philips-Medical-Systems-Nederland,

2001). The voxel size varies between 0.2 and 1.2 mil-

limeter.

The effect of the method can be perceived by com-

paring Figure 9 with Figure 10.

The total number of nodes and skeleton voxels are

given in the ﬁrst column of Table 1. The relative num-

ber of “incorrectly” located nodes and skeleton voxels

(see Section 4) before and after the method is applied,

are given in the second respectively third column of

Table 1.

The remaining “incorrectly” located nodes are due

to nodes which cannot be moved to a better loca-

tion because of nearby nodes. The remaining “in-

Figure 9: An original graph drawn on the vessel surface.

The wire-frame spheres are the nodes. The polylines be-

tween the nodes are the piecewise cubic curves derived from

the skeleton voxels. The square indicates the incorrectly lo-

cated node.

Figure 10: The improved graph drawn on the vessel surface.

The square indicates the “incorrectly located” node at its

new position.

correctly” located skeleton voxels are due to skeleton

branches through very small and very short secondary

vessel parts as shown in Figure 11. The skeleton vox-

els of this branch which are located in the main vessel

part, have face neighbor vessel voxels with a higher

PDT.

The relative number of face neighbors used as

“best corner neighbor” is 37%. The relative number

of edge neighbors is 47% and the relative number of

vertex neighbors is 16%. So, trying to ﬁnd the “best

corner neighbor” instead of only the “best face neigh-

bor” is indeed a useful approach.

Table 1: The number of nodes and skeleton voxels.

Total Before After

Nodes 7267 19.2% 6.1%

Skeleton voxels 184318 1.1% 0.1%

Figure 11: A secondary vessel part.

The time to improve the geometry of a ves-

sel graph is a small fraction (≤ 1 %) of the time

for fully-automatic branch labelling. The average

elapsed time for fully-automatic branch labelling of

an 128x128x128 volume is 1.2 seconds on a Linux

PC (2.8GHz Pentium 4). The average elapsed time

for an 256x256x256 volume is 15.7 seconds on the

Linux PC.

Concluding, our method to improve the geometry

of a vessel graph makes fully-automatic extraction of

the cross-sectional shape parameters in the neighbor-

hood of the diseased vessel parts more reliable and the

extracted shape parameters more accurate but a clini-

cal validation has yet to be done.

REFERENCES

Bertrand, G. and Malandain, G. (1994). A new character-

ization of three-dimensional simple points. Pattern

Recognition Letters, 2(15):169–175.

Bitter, I., Kaufman, A. E., and Sato, M. (2001). Penalized-

distance volumetric skeleton algorithm. IEEE Trans.

Visual. Comput. Graphics, 7(3):195–206.

Borgefors, G. (1984). Distance transformations in arbitrary

dimensions. Computer Vision, Graphics and Image

Processing, 27(3):321–345.

Boskamp, T., Rinck, D., Link, F., Kuemmerlen, B., Stamm,

G., and Mildenberger, P. (2004). New vessel analysis

tool for morphometric quantiﬁcation and visualization

of vessels in ct and mr imaging data sets. Radiograph-

ics, 24(1):287–297.

Bruijns, J. (2000). Semi-automatic shape extraction from

tube-like geometry. In Proc. VMV, pages 347–355,

Saarbruecken, Germany.

Bruijns, J. (2001). Fully-automatic branch labelling of

voxel vessel structures. In Proc. VMV, pages 341–350,

Stuttgart, Germany.

Bruijns, J., Peters, F., Berretty, R., van Overveld, C., and ter

Haar Romeny, B. (2005a). Computer-aided treatment

planning of an aneurysm: The connection tube and the

neck outline. In Proc. VMV, pages 265–272, Erlangen,

Germany.

Bruijns, J., Peters, F., Berretty, R., van Overveld, C., and ter

Haar Romeny, B. (2005b). Fully-automatic computa-

tion of the shape of a micro-catheter. In Proc. CAR,

pages 401–406, Berlin, Germany.

Chen, D., Li, B., Liang, Z., Wan, M., Kaufman, A., and

Wax, M. (2000). A tree-branch searching, multires-

olution approach to skeletonization for virtual en-

doscopy. In Proc. SPIE: Medical Imaging, volume

3979, pages 726–734, San Diego, CA, USA.

Dokldal, P. (2000). Grey-Scale Image Segmentation: A

Topological Approach. PhD thesis, University Marne

La Vallee, France.

Dokldal, P., Lohou, C., Perroton, L., and Bertrand, G.

(1999). A new thinning algorithm and its application

to extraction of blood vessels. In Proc. BioMedSim,

pages 32–37, ESIEE Noisy-le

Grand, France.

Eiho, S. and Qian, Y. (1997). Detection of coronary artery

tree using morphological operator. In Proc. IEEE

Computers in Cardiology, Vol. 24, pages 525–528,

Lund, Sweden.

Kanitsar, A., Fleischmann, D., Wegenkittl, R., Felkel, P.,

and Groeller, E. (2002). Cpr - curved planar refor-

mation. In Proc. IEEE Visualization, pages 37–44,

Boston, MA, USA.

Kanitsar, A., Fleischmann, D., Wegenkittl, R., Felkel, P.,

and Groeller, E. (2003). Advanced curved planar ref-

ormation: Flattening of vascular structures. In Proc.

IEEE Visualization, pages 43–50, Seattle, WA, USA.

Kanitsar, A., Wegenkittl, R., Felkel, P., Fleischmann, D.,

Sandner, D., and Groeller, E. (2001). Computed to-

mography angiography: A case study of peripheral

vessel investigation. In Proc. IEEE Visualization,

pages 477–480, San Diego, CA, USA.

Langs, G., Radeva, P., Rotger, D., and Carreras, F. (2004).

Explorative building of 3d vessel tree models. In

Proc. of 28th annual workshop of the Austrian Associ-

ation for Pattern Recognition (OAGM/AAPR): Digital

Imaging in Media and Education, pages 117–124, Ha-

genberg, Austria.

Lobregt, S., Verbeek, P., and Groen, F. (1980). Three-

dimensional skeletonization: Principle and algorithm.

IEEE Trans. Pattern Anal. Machine Intell., 2(1):75–

77.

Maglaveras, N., Haris, K., Efstratiadis, S., Gourassas, J.,

and Louridas, G. (2001). Artery skeleton extraction

using topographic and connected component label-

ing. In Proc. IEEE Computers in Cardiology, Vol. 28,

pages 265–268, Rotterdam, The Netherlands.

Marion-Poty, V. and Miguet, S. (1994). A new 2-d and 3-d

thinning algorithm based on successive border gener-

ations. In Proc. 4th Conference on Discrete Geome-

try in Computer Imagery, pages 195–206, Grenoble,

France.

Moret, J., Kemkers, R., de Beek, J. O., Koppe, R., Klotz,

E., and Grass, M. (1998). 3d rotational angiography:

Clinical value in endovascular treatment. Medica-

mundi, 42(3):8–14.

Philips-Medical-Systems-Nederland (2001). Integris 3d-ra.

instructions for use. release 2.2. Technical Report

9896 001 32943, Philips Medical Systems Nederland,

Best, The Netherlands.

Quek, F. K. H. and Kirbas, C. (2001). Vessel extraction in

medical images by wave-propagation and traceback.

IEEE Trans. Med. Imag., 20(2):117–131.

Selle, D., Preim, B., Schenk, A., and Peitgen, H. (2002).

Analysis of vasculature for liver surgery planning.

IEEE Trans. Med. Imag., 21(11):1344–1357.

van Overveld, C. (1995). Pondering on discrete smooth in-

terpolation. Computer-aided Design, 27(5):377–384.

Yim, P., Choyke, P., and Summers, R. (2000). Gray-scale

skeletonization of small vessels in magnetic resonance

angiography. IEEE Trans. Med. Imag., 19(6):568–

576.

Zahlten, C., Juergens, H., Evertsz, C., Leppek, R., Peitgen,

H., and Klose, K. (1995a). Portal vein reconstruction

based on topology. Eur J Radiol, 19(2):96–100.

Zahlten, C., Juergens, H., and Peitgen, H. (1994). Recon-

struction of branching blood vessels from ct-data. In

Proc. Visualization in Scientiﬁc Computing, pages 41–

53, Rostock, Germany.

Zahlten, C., Juergens, H., and Peitgen, H. (1995b). Recon-

struction of Branching Blood Vessels From CT-Data,

pages 41–52. Springer-Verlag, Wien. In Goebel, M.,

Mueller, H., Urban, B. (Hrsg): Visualization in Scien-

tiﬁc Computing.
