SIMULTANEOUS ROBUST FITTING OF MULTIPLE CURVES

Jean-Philippe Tarel

ESE, Laboratoire Central des Ponts et Chauss

ees, 58 Bd Lefebvre, 75015 Paris, France

Pierre Charbonnier

ERA 27 LCPC, Laboratoire des Ponts et Chauss

ees, 11 rue Jean Mentelin, B.P. 9, 67035 Strasbourg, France

Sio-Song Ieng

ERA 17 LCPC, Laboratoire des Ponts et Chauss

ees, 23 avenue de l’amiral Chauvin, B.P. 69, 49136 Les Ponts de C

e, France

Keywords:

Image Analysis, Statistical Approach, Robust Fitting, Multiple Fitting, Image Grouping and Segmentation.

Abstract:

In this paper, we address the problem of robustly recovering several instances of a curve model from a single

noisy data set with outliers. Using M-estimators revisited in a Lagrangian formalism, we derive an algorithm

that we call SMRF, which extends the classical Iterative Reweighted Least Squares algorithm (IRLS). Com-

pared to the IRLS, it features an extra probability ratio, which is classical in clustering algorithms, in the

expression of the weights. Potential numerical issues are tackled by banning zero probabilities in the com-

putation of the weights and by introducing a Gaussian prior on curves coefﬁcients. Applications to camera

calibration and lane-markings tracking show the effectiveness of the SMRF algorithm, which outperforms

classical Gaussian mixture model algorithms in the presence of outliers.

1 INTRODUCTION

In this paper, we propose a method for robustly re-

covering several instances of a curve model from a

single noisy data set with severe perturbations (out-

liers). It is based on an extension of the work re-

ported in (Tarel et al., 2002), in which M-estimators

are revisited in an Lagrangian formalism which leads

to a new derivation and convergence proof of the well-

known Iterative Reweighted Least Squares (IRLS) al-

gorithm. Following the same approach based on the

Lagrangian framework, we derive, in a natural way,

a deterministic, alternate minimization algorithm, for

Simultaneous Multiple Robust Fitting (SMRF) which

extends the IRLS algorithm. Compared to the IRLS,

the SMRF features an extra probability ratio, which

is classical in clustering algorithms, in the expression

of the weights. Potential numerical issues are tack-

led by banning zero probabilities in the computation

of the weights and by introducing a Gaussian prior

on the curves coefﬁcients. Such a prior is, moreover,

well-suited to sequential image processing and pro-

vides control on the curves. Applications to camera

calibration and lane-markings tracking illustrate the

effectiveness of the SMRF algorithm. In particular, it

outperforms classical Gaussian mixture model algo-

rithms in the presence of outliers.

The paper is organized as follows. In Sec. 2, we

present the robust multiple curves estimation problem

and introduce our algorithmic strategy. The resulting

algorithm is given in Sec. 3. Technical details on its

derivation and convergence proof are given in the Ap-

pendix. In Sec. 4, connections are made with other

approaches in the domain. Finally, we apply the al-

gorithm to road tracking and to camera calibration, in

Sec. 5.

2 MULTIPLE ROBUST

MAXIMUM LIKELIHOOD

ESTIMATION (MLE)

In this section, we model the problem of simultane-

ously ﬁtting m curves in a robust way. Each individual

curve is explicitly described by a vector parameter

1 ≤ j ≤ m. The observations, y, are given by a linear

generative model:

y = X(x)

+ b (1)

where (x,y) are the image coordinates of a data point,

= ( ˜a

)

0≤i≤d

is the vector of curve parameters and

175

Tarel J., Charbonnier P. and Ieng S. (2007).

SIMULTANEOUS ROBUST FITTING OF MULTIPLE CURVES.

In Proceedings of the Second International Conference on Computer Vision Theory and Applications - IFP/IA, pages 175-182

 SciTePress

X(x) = ( f

(x))

0≤i≤d

is the vector of basis functions at

the image coordinate x, which will be denoted as X for

the sake of simplicity. These vectors are of size d+ 1.

Example of basis functions will be given in Sec. 5.2.

Note that we consider the ﬁxed design case, i.e. in (1),

x is assumed non-random. In that case, it is shown

that certain M-estimators attain the maximum possi-

ble breakdown point of approximately 50% (Mizera

and M

uller, 1999). In all that follows, the measure-

ment noise b is assumed independent and identically

distributed (iid) and centered. In order to render the

estimates robust to non-Gaussian noise (outliers), we

formulate the noise distribution as:

(b) ∝

−

φ((

)

(2)

where ∝ denotes the equality up to a factor, and s

is the scale of the pdf. As stated in (Huber, 1981),

the role of φ is to saturate the error in case of a large

noise |b| = |X

− y|, and thus to lower the impor-

tance of outliers. The scale parameter, s, controls

the distance from which noisy measurements have a

good chance of being considered as outliers. As in the

half-quadratic approach (Geman and Reynolds, 1992;

Charbonnier et al., 1997; Tarel et al., 2002), φ(t) must

fulﬁll the following hypotheses:

• H0: deﬁned and continuous on [0,+∞[ as well as

its ﬁrst and second derivatives,

• H1: φ

′

(t) > 0 (thus φ is increasing),

• H2: φ

′′

(t) < 0 (thus φ is concave).

Note that these assumptions are very different from

those used in (Huber, 1981), where the convergence

proof required that the potential function ρ(b) =

φ(b

) be convex. In the present case, the concav-

ity and monotonicity requirements imply that φ

′

(t) is

bounded, but φ(b

) is not necessarily convex w.r.t. b.

Our goal is to simultaneously estimate the m curve

parameter vectors A

j=1,··· ,m

from the whole set of n

data points (x

), i = 1,··· ,n. The probability of a

measurement point (x

), given the m curves is the

sum of the probabilities over each curve:

((x

)|A

j=1,··· ,m

) ∝

j=m

∑

j=1

−

φ((

−y

)

Concatening all curve parameters into a single vector

A = (A

), j = 1,··· , m of size m(d + 1), we can write

the probability of the whole set of points as the prod-

uct of the individual probabilities:

p((x

)

i=1,···,n

|A) ∝

i=n

∏

i=1

j=m

∑

j=1

−

φ((

−y

)

(3)

Maximizing the likelihood p((x

)

i=1,···,n

|A) is

equivalent to minimizing the negative of its logarithm:

MLE

(A) =

i=n

∑

i=1

−ln(

j=m

∑

j=1

−

φ((

−y

)

) + nln(s)

(4)

Using the same trick as the one described in (Tarel

et al., 2002) for robust ﬁtting of a single curve, we

introduce the auxiliary variables w

= (

−y

)

, as

explained in the Appendix. We then rewrite the value

MLE

(A) as the value achieved at the unique saddle

point of the following Lagrange function:

i=n

∑

i=1

j=m

∑

j=1

− (

− y

)

i=n

∑

i=1

ln(

j=m

∑

j=1

−

φ(w

)

) − nln(s) (5)

Then, the algorithm obtained by alternated minimiza-

tions of the dual function w.r.t. λ

and A is globally

convergent, towards a local minimum of e

MLE

(A), as

shown in the Appendix.

3 SIMULTANEOUS MULTIPLE

ROBUST FITTING

ALGORITHM

As detailed in the Appendix, minimizing (5) leads to

alternate between the three sets of equations:

= (

− y

)

,1 ≤ i ≤ n,1 ≤ j ≤ m, (6)

−

φ(w

)

∑

k=m

k=1

−

φ(w

)

′

),1 ≤ i ≤ n,1 ≤ j ≤ m,

(7)

(

i=n

∑

i=1

i=n

∑

i=1

,1 ≤ j ≤ m (8)

In practice, some care must be taken, to avoid nu-

merical problems and singularities. First, it is impor-

tant that the denominator in (7) be numerically non-

zero, which might occur for a data point located far

from all curves. Zero probabilities are banned by

adding a small value ε (equal to the machine preci-

sion) to the exponential in the probability p

of a mea-

surement point. As a consequence, when a point with

index i is far from all curves, φ

′

) is weighted by a

constant factor, 1/m , in (7).

Second, the linear system in (8) can be singular.

To avoid this, it is necessary to enforce a Gaussian

prior on the whole curves parameters with bias A

and covariance matrix C

. Note that the reason for

introducing such a prior is not purely technical: it is

indeed a very simple and useful way of taking into

account application-speciﬁc a priori knowledge, as

shown in Sec. 5.3 and 5.4. A default prior can be

used. In practice, we found very useful the following

default prior: the bias is zero, i.e A

= 0, and the in-

verse covariance matrix is block diagonal where each

diagonal block equals:

−1

= r

−1

X(x)X(x)

dx (9)

assuming that [−1, 1] is the range where x varies. The

regularization term (A−A

−1

(A− A

) is added

to (4) and (5). Therefore, the parameter r allows us to

balance between the data ﬁdelity term and the prior.

The advantage of the default prior described above is

that it is a model of the perturbations due to the image

sampling.

Finally, the Simultaneous Multiple Robust Fitting

algorithm (SMRF) is:

1. Initialize the number of curves m, the vector A

), 1 ≤ j ≤ m, which gathers all curves param-

eters and set the iteration index to k = 1.

2. For all indexes i, 1 ≤ i ≤ n, and j, 1 ≤ j ≤ m,

compute the auxiliary variables w

= (

k−1

−y

)

and the weights λ

ε+e

−

φ(w

)

mε+

∑

j=m

j=1

−

φ(w

)

′

3. Solve the linear system:

D+C

−1







∑

i=n

i=1

∑

i=n

i=1







−1

4. If kA

−A

k−1

k > ε

′

, increment k, and go to 2, else

the solution is A = A

In the above algorithm, D is the block-diagonal

matrix whose m diagonal blocks are the matrices

∑

i=n

i=1

of size (d+1)×(d+1), with 1 ≤ j ≤ m.

The prior covariance matrix C

is of size m(d +

1) × m(d + 1). The prior bias A

is a vector of size

m(d + 1), as well as A and A

. The complexity is

O(nm) for the step 2, and O(m

(d + 1)

) for the step

3 of the algorithm.

4 CONNECTIONS WITH OTHER

APPROACHES

The proposed algorithm has important connections

with previous works in the ﬁeld of regression and

clustering and we would like to highlight a few of

them.

In the single curve case, m = 1, the SMRF algo-

rithm is reduced to the so-called Iterative Reweighted

Least Squares extensively used in M-estimators (Hu-

ber, 1981) and half-quadratic theory (Charbonnier

et al., 1997; Geman and Reynolds, 1992). The SMRF

and IRLS algorithms share very similar structures and

it is important to notice that the main difference is

within the Lagrange multipliers λ

, see (7). Com-

pared to the IRLS, the λ

are just weighted by an ex-

tra probability ratio, which is classical in clustering

algorithms.

To make the connection with clustering clearer, let

us substitute Y = A

+ b to the generative model (1),

where Y and A

are vectors of same size and respec-

tively denote a data points and a cluster centroid. The

derivation described in Sec. 3 is still valid and the

obtained algorithm turns to be a clustering algorithm

with m clusters, each cluster being represented by a

vector, its centroid. The probability distribution of a

cluster around its centroid is directly speciﬁed by the

function φ. The obtained algorithm is thus able of

modeling the Y

’s by a mixture of pdfs which are not

necessarily Gaussian. The mixture problem is usually

solved by the well-known Expectation-Minimization

(EM) approach (Dempster et al., 1977). In the non-

Gaussian case, the minimization (M) step implements

robust estimation, which is an iterative process in it-

self. Hence, the resulting EM algorithm involves two

nested loops, while the proposed algorithm features

only one. An alternative to the EM approach is the

Generalized EM (GEM) approach which consists in

performing an approximate M-step: typically, only

one iteration rather than the full minimization. The re-

sulting algorithm in the robust case is identical to the

one we derived in the Lagrangian framework (apart

from the regularization of the singular cases). In our

formalism however, no approximation is made in the

derivation of the algorithm, in contrast with the GEM

approach.

We also found that the SMRF algorithm is very

close to an earlier work in the context of cluster-

ing (Cambell, 1984). However, to our knowledge, the

latter was just introduced as an extra ad-hoc weight-

ing over M-estimators without statistical interpreta-

tion and, moreover, singular conﬁgurations were not

dealt with.

The SMRF algorithm is subject to the initializa-

tion problem since it only converges towards a lo-

cal minimum. To tackle this problem, the Graduated

Non Convexity approach (GNC) (Blake and Zisser-

man, 1987) is used to improve the chances of converg-

ing towards the global minimum. Details are given

in Sec. 5.4. The SMRF can be also used as a ﬁtting

process within the RANSAC (Hartley and Zisserman,

2004) approach to improve the convergence towards

the global minimum.

5 EXPERIMENTAL RESULTS

The proposed approach being based on a linear gen-

erative model, many applications could potentially be

addressed using the SMRF algorithm. In this paper,

we focus on two speciﬁc applications, namely simul-

taneous lane-markings tracking and camera calibra-

tion from a regular lattice of lines with geometric dis-

tortions.

5.1 Noise Model

Among the suitable functions for robust estimation,

we use a simple parametric family of probability dis-

tribution functions, that was introduced in (Tarel et al.,

2002) under the name of smooth exponential family

(SEF), S

α,s

(b) ∝

−

((

)

(10)

where, with t = (

)

, φ

(t) =

((1+t)

− 1).

−10 −8 −6 −4 −2 0 2 4 6 8 10

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

α,s

distribution

α = 1

α = 0.5

α = 0.1

α = −0.1

α = −0.5

Figure 1: Noise models in the SEF S

α,s

. Notice how the

tails become heavier as α decreases.

These laws are shown in Figure 1 for different val-

ues of α. The smaller the value of α, the higher the

probability of observing large, not to say very large,

errors (outliers). This parameter allows a continuous

transition between well-known statistical laws such as

Gauss (α = 1), smooth Laplace (α =

) and T-Student

(α → 0). This can be exploited to get better conver-

gence of the SMRF algorithm by using the GNC ap-

proach, i.e. by progressively decreasing α towards 0.

5.2 Road Shape Model

The road shape features (x, y) are given by the lane-

marking centers extracted using the local feature ex-

tractor described in (Ieng et al., 2004). An exam-

ple of extraction is shown in Figure 6(b). In prac-

tice, we model road lane markings by polynomials

y =

∑

i=0

. Moreover, in the ﬂat world approxi-

mation, the image of a polynomial on the road un-

der perspective projection is a hyperbolic polynomial

with equation y = c

x+ c

∑

i=2

(x−x

)

, where c

linearly related to a

. Therefore, the hyperbolic poly-

nomial model is well suited to the case of road scene

analysis. To avoid numerical problems, a whitening

of the data is performed by scaling the image in a

[−1,1] × [−1, 1] box for polynomial curves and in a

[0,1] × [−1,1] box for hyperbolic polynomials, prior

to the ﬁtting.

5.3 Geometric Priors

As noticed in Sec. 3, the use of a Gaussian prior al-

lows introducing useful application-speciﬁc knowl-

edge. For example, using (9) for the diagonal blocks

of the inverse prior covariance matrix, we take into

account perturbations due to image sampling.

Tuning the diagonal elements of C

provides con-

trol on the curve degree. For polynomials, the diago-

nal components of the covariance matrix correspond

to monomials of different degrees. The components

of degree higher than one are thus set to smaller val-

ues than those of degree zero and one.

Geometric smooth constraints between curves can

be enforced by using also non-zero off-diagonal

blocks, in particular it is a way of maintaining paral-

lelism between curves. As an illustration, to smoothly

enforce parallelism between two lines y = a

+ a

and y = a

′

+ a

′

x, the prior covariance matrix is ob-

tained by rewriting (a

− a

′

)

in matrix notations:







′













0 0 0 0

0 1 0 −1

0 0 0 0

0 −1 0 1













′







The above matrix, multiplied by an overall factor can

be used as an inverse prior covariance C

−1

. The

factor controls the balance between the data ﬁdelity

term and the other priors. Other kinds of geomet-

ric smooth constraints can be handled in a similar

way, such as intersection at a given point, or symmet-

ric orientations. These geometric priors can be com-

bined by adding the associated regularization term

(A− A

−1

(A− A

) to (4).

5.4 Lane-Markings Tracking

We shall now describe the application of the SMRF

algorithm to the problem of tracking lane markings.

In addition to the previous section, another inter-

esting feature of using a Gaussian prior is that the

SMRF is naturally suitable for being included in a

Kalman ﬁltering. However, this raises the question

of the deﬁnition of the posterior covariance matrix

of the estimate. Under the Gaussian noise assump-

tion, the estimate of the posterior covariance matrix

is well-known for each curve: C

= s



∑

i=n

i=1



−1

Unfortunately, in the context of robust estimation, the

estimation of C

for each curve A

is a difﬁcult issue

and only approximate matrices are available. In (Ieng

et al., 2004), several approximates were compared.

The underlying assumption for deﬁning all these ap-

proximates is that the noise is independent. How-

ever, we found out that in practice, the noise is cor-

related from one image line to another. Therefore,

all these approximates can be improved by introduc-

ing an had-hoc correction factor which accounts for

data noise correlations in the inverse covariance ma-

trix. We found experimentally that the following fac-

tor is appropriate, for each curve j:

1−

∑

i=n−1

i=1

i+1, j

∑

i=n

i=1

The approximate posterior covariance matrix for the

whole set of curve parameters, A, is simply built as

a block-diagonal matrix made of the individual pos-

terior covariance matrices for each curve, C

. This

temporal prior can be easily combined with geometric

priors to allow tracking of parallel curves for instance.

Figure 2: Detected lane-markings (in green) and uncer-

tainty about curve position (in red).

Figure 2 shows the three curves simultaneously

ﬁtted on the lane-marking centers (in green) and the

associated uncertainty curves of the horizontal posi-

tion of each ﬁtted curve (±

X(x)

−1

X(x), in red).

Notice that the uncertainty on the right sparse lane-

marking is higher than for the continuous one on

the center. Moreover, the higher the distance to the

camera, the higher the uncertainty, since the curve

gets closer to possible outliers. In all these exper-

iments, and following, the parameters used for the

noise model are α = 0.1 and s = 4.

(a)

(b)

(c)

(d)

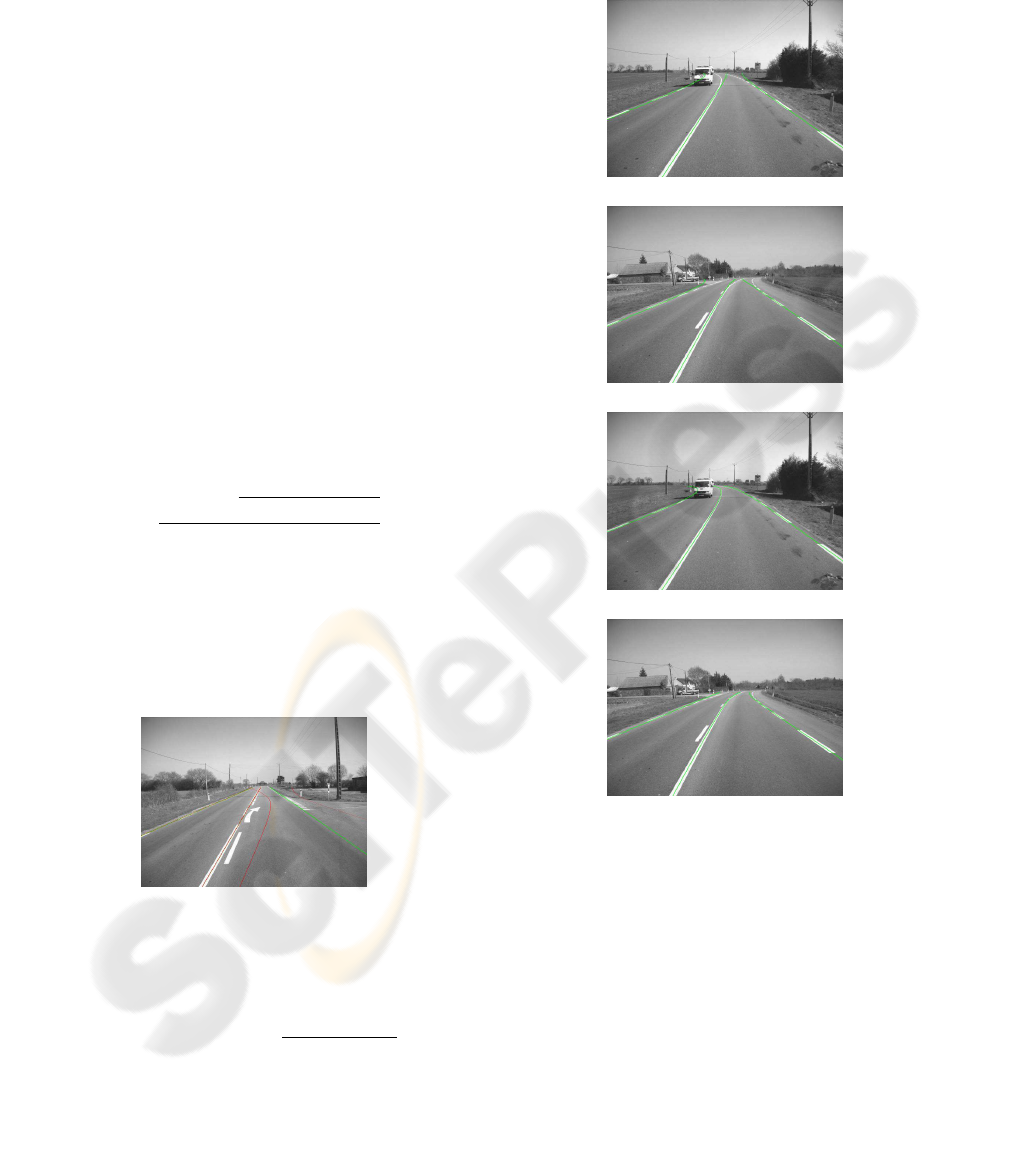

Figure 3: Two images extracted from a sequence of 240 im-

ages processed with, on (a)(b), separate Kalman ﬁlters and,

on (c)(d), simultaneous Kalman ﬁlter. The three detected

lane-markings of degree two are in green.

For the tracking itself, we experimented both sep-

arate Kalman ﬁlters on individual curves, and a si-

multaneous Kalman ﬁlter. The former can be seen

as a particular case of the latter, in which the inverse

prior covariance matrix C

is block-diagonal so the

linear system of size m(d+ 1) in the SMRF algorithm

can be decomposed as m linear independent systems

of size d + 1. Figure 3 compares the results obtained

with separate and simultaneous Kalman ﬁlters. No-

tice how the parallelism between curves is better pre-

served within the simultaneous Kalman ﬁlter, thanks

to an adequate choice of the off-diagonal blocks of

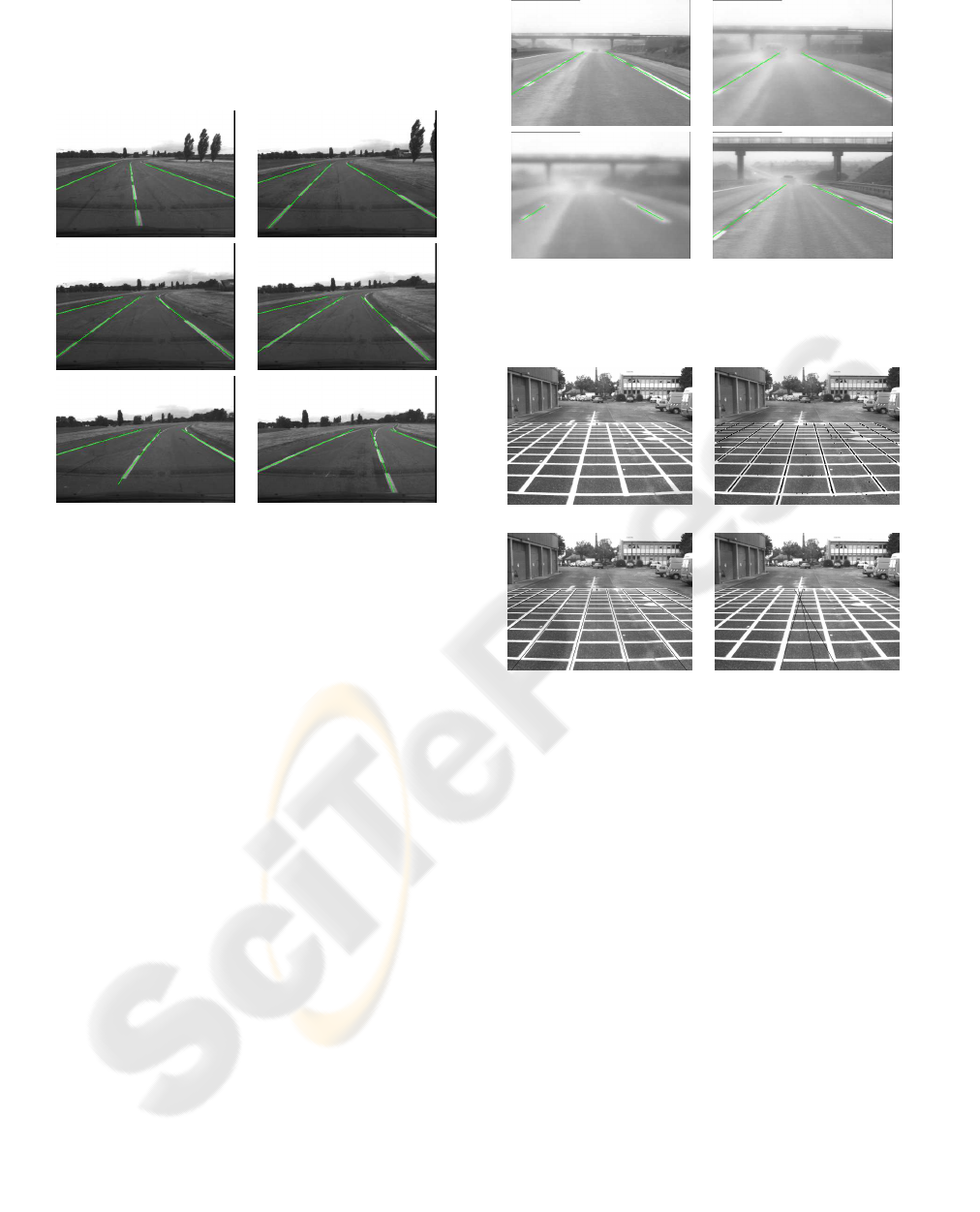

Figure 4: Six of a 150-image sequence, featuring lane

changes. Green lines show the three ﬁtted lane-markings

centers.

Figure 4 illustrates the ability of the SMRF-based

Kalman ﬁlter to ﬁt and track several curves in an

image sequence. In that case, three lane-markings

are simultaneously ﬁtted and correctly tracked, even

though the vehicle performs several lane changes

during the 150-image sequence. Notice that, while

Kalman ﬁltering can incorporate a dynamic model of

the vehicle, we only used a static model in these ex-

periments, since only the images were available. We

observed that it is better to initialize the SMRF algo-

rithm with the parameters resulting from the ﬁtting

on the previous image, rather than with the ﬁltered

parameters: ﬁltering indeed introduces a delay in the

case of fast displacements or variations of the tracked

curves.

Moreover, we obtained interesting results on dif-

ﬁcult road sequences. For instance, Figure 5 shows

a short sequence of poor quality images, due to rain.

The left lane-marking is mostly hidden on two con-

secutive images. Thanks to the simultaneous Kalman

ﬁlter, the SMRF algorithm is able to interpolate cor-

rectly the hidden lane-marking.

5.5 Camera Calibration

We now present another application of the SMRF al-

gorithm, in the context of camera calibration. The

Figure 5: Fitting in adverse conditions: in this excerpt,

the left lane-marking is mostly hidden on two successive

images.

(a) (b)

Figure 6: (a) Original image of the calibration grid. (b) Ex-

tracted lane-marking centers (outliers are due to puddles).

Fitted lines on the vertical markings under Gaussian noise

assumption.

goal is to estimate accurately the position and orien-

tation of the camera with respect to the road and its

intrinsic parameters. A calibration setup made of two

sets of perpendicular lines painted on the road is thus

observed by a camera mounted on a vehicle, as shown

in Figure 6(a). The SMRF algorithm can be used to

provide accurate data to the calibration algorithm by

estimating the grid intersections. Even though the

markings are clearly visible in the image, some of

them are quite short, and there are outliers due to the

presence of water puddles. Figure 6(b) shows the ex-

tracted lane-marking centers. When a Gaussian mix-

ture model is used, the obtained ﬁt is severely trou-

bled by the outliers, as displayed in Figure 6(d), even

though the curves are initialized very close to the ex-

pected solution, see Figure 6(c).

On the contrary, with the same extracted lane-

(a) (b)

Figure 7: (a) 12 initial lines for the ﬁtting on the vertical

markings. (b) The ﬁtting yields 11 different lines. (c) 12

second degree polynomials ﬁtted on the horizontal mark-

ings. (d) Results of the horizontal and vertical ﬁtting super-

imposed.

marking centers, the SMRF algorithm, with noise

model parameters α = 0.1 and s = 4, leads to nice

results, as shown in Figure 7(b) for the vertical lines,

and in Figure 7(c) for the horizontal curves. 11 dif-

ferent lines were obtained for the vertical markings,

and 12 different second degree polynomials were ob-

tained for the horizontal markings. Figure 7(d) shows

the two sets of curves superimposed.

We also use these calibration images to investigate

the issue of initialization. We typically take a num-

ber of curve prototypes higher than the real number

of curves in the image, see e.g. Figure 7(a). We ob-

served that the extra prototypes may be either ﬁtted on

outliers groups or identical to another ﬁtted prototype

(e.g. in Figure 7(b), two resulting curves are identi-

cal). Detecting identical curves is easy, for instance

by performing a Bayesian recognition test on every

pair (A

), i.e. comparing (A

− A

)

−1

− A

)

to a small threshold, where C

is the posterior covari-

ance matrix of the curve A

. To detect prototypes ﬁt-

ted to only a few points such as outliers, we exploit

the uncertainty measure provided by the posterior co-

variance matrix and simply threshold −log(det(C

)).

Finally, notice that the SMRF algorithm does not re-

quire to be initialized very close to the expected solu-

tion, as illustrated by Figure 7(a)(b).

6 CONCLUSION

In the continuing quest for achieving robustness in

detection and tracking curves in images, this pa-

per makes two contributions. The ﬁrst one is the

derivation, in a MLE approach and using Kuhn and

Tucker’s classical theorem, of the so-called SMRF al-

gorithm. This algorithm extends mixture model algo-

rithm, such as the one derived using EM, to robust

curve ﬁtting. It is also an extended version of the

IRLS, in which the weights incorporate an extra prob-

ability ratio. The second contribution is the regular-

ization of the SMRF algorithm by introducing Gaus-

sian priors on curve parameters and the handling of

potential numerical issues by banning zero probabil-

ities in the computation of weights. From our exper-

iments, banning zero probabilities seems to have im-

portant positive consequences in pushing the curves

to spread out all the data, and thus in providing im-

proved robustness to the initialization, as shown in

the context of camera calibration. The introduction

of the Gaussian prior is also beneﬁcial in particu-

lar in the context of image sequence processing, as

illustrated with an application of simultaneous lane-

markings tracking on-board a vehicle in adverse con-

ditions. The approach being based on a linear gener-

ative model, it is quite generic and we believe that it

can be used with beneﬁts in many other ﬁelds, such

as clustering or appearance modeling.

REFERENCES

Blake, A. and Zisserman, A. (1987). Visual Reconstruction.

MIT Press, Cambridge, MA.

Boyd, S. and Vandenberghe, L. (2004). Convex Optimiza-

tion. Cambridge University Press.

Cambell, N. A. (1984). Mixture models and atypycal val-

ues. Mathematical Geology, 16(5):465–477.

Charbonnier, P., Blanc-F

eraud, L., Aubert, G., and Barlaud,

M. (1997). Deterministic edge-preserving regulariza-

tion in computed imaging. IEEE Transactions on Im-

age Processing, 6(2):298–311.

Dempster, A., Laird, N., and Rubin, D. (1977). Maxi-

mum likelihood from incomplete data via the EM al-

gorithm. Journal of the Royal Statistical Society, Se-

ries B (Methodological), 39(1):1–38.

Geman, D. and Reynolds, G. (1992). Constrained restora-

tion and the recovery of discontinuities. IEEE Trans-

actions on Pattern Analysis and Machine Intelligence,

14(3):367–383.

Hartley, R. I. and Zisserman, A. (2004). Multiple View Ge-

ometry in Computer Vision. Cambridge University

Press, ISBN: 0521540518, second edition.

Huber, P. J. (1981). Robust Statistics. John Wiley and Sons,

New York, New York.

Ieng, S.-S., Tarel, J.-P., and Charbonnier, P. (2004). Eval-

uation of robust ﬁtting based detection. In Proceed-

ings of European Conference on Computer Vision

(ECCV’04), pages 341–352, Prague, Czech Republic.

Luenberger, D. G. (1973). Introduction to linear and non-

linear programming. Addison Wesley.

Minoux, M. (1986). Mathematical Programming: Theory

and Algorithms. Chichester: John Wiley and Sons.

Mizera, I. and M

uller, C. (1999). Breakdown points and

variation exponents of robust m-estimators in linear

models. The Annals of Statistics, 27(4):1164–1177.

Tarel, J.-P., Ieng, S.-S., and Charbonnier, P. (2002). Us-

ing robust estimation algorithms for tracking explicit

curves. In European Conference on Computer Vision

(ECCV’02), volume 1, pages 492–507, Copenhagen,

Danmark.

APPENDIX

We shall ﬁrst rewrite the value −e

MLE

(A) for any

given A = (A

), j = 1,··· ,m as the value achieved

at the minimum of a convex problem under convex

constraints. This is obtained by introducing the aux-

iliary variables w

= (

−y

)

. This apparent com-

plication is in fact valuable since it allows us to in-

troduce Lagrange multipliers, and thus to decompose

the original problem in simpler problems. The value

−e

MLE

(A) can be seen as the minimum value, w.r.t.

W = (w

)

1≤i≤n,1≤ j≤m

, of:

E(A,W) =

i=n

∑

i=1

ln(

j=m

∑

j=1

−

φ(w

)

subject to nm constraints h

(A,W) = w

−

(

−y

)

≤ 0. This is proved by showing that

the bound on each w

is always achieved. Indeed

E(A,W) is decreasing w.r.t. each w

, since its ﬁrst

derivative:

∂E

∂w

= −

−

φ(w

)

∑

k=m

k=1

−

φ(w

)

′

)

is always negative, due to (H1).

To prove the local convergence of the SMRF algo-

rithm in Sec. 3, we now focus on the minimization of

E(A,W) w.r.t. W only, subject to the nm constraints

(A,W) ≤ 0, w.r.t. W, for any A. We now introduce

a classical result of convex analysis (Boyd and Van-

denberghe, 2004): the function g(Z) = log(

∑

j=m

j=1

)

is convex. Due to (H1) and (H2), −φ(w) is convex and

decreasing. Therefore, E(A,W) w.r.t. W is convex as

a sum of functions g composed with −φ, see (Boyd

and Vandenberghe, 2004). As a consequence, the

minimization of E(A,W) w.r.t. W is well-posed be-

cause it is a minimization of a convex function subject

to convex (linear) constraints. We are thus allowed

to apply Kuhn and Tucker’s classical theorem (Mi-

noux, 1986): if a solution exists, the minimization of

E(A,W) w.r.t. W is equivalent to searching from the

unique saddle point of the Lagrange function of the

problem:

(A,W,Λ) =

i=n

∑

i=1

ln(

j=m

∑

j=1

−

φ(w

)

i=n

∑

i=1

∑

j=1

− (

− y

)

where Λ = (λ

),1 ≤ i ≤ n, 1 ≤ j ≤ m are Kuhn and

Tucker multipliers (λ

≥ 0). More formally, we have

proved for any A:

−e

MLE

(A) = min

max

(A,W,Λ) (11)

Notice that the Lagrange function L

is quadratic

w.r.t. A, unlike the original error e

MLE

. Using the sad-

dle point property, we can change the order of vari-

ables W and Λ in (11). We now introduce the dual

function

E (A, Λ) = min

(A,W,Λ), and rewrite the

original problem as the equivalent following problem:

min

MLE

(A) = min

A,Λ

−

E (A, Λ)

The algorithm consists in minimizing −

E (A, Λ) w.r.t.

A and Λ alternately. min

−

E (A, Λ) leads to Kuhn

and Tucker’s conditions:

−

φ(w

)

∑

k=m

k=1

−

φ(w

)

′

) (12)

= (

− y

)

(13)

and min

−

E (A, Λ) leads to:

(

i=n

∑

i=1

i=n

∑

i=1

, 1 ≤ j ≤ m (14)

Using classical results, see e.g. (Minoux, 1986),

−

E (A, Λ) is proved to be convex w.r.t. Λ. The dual

function is clearly quadratic and convex w.r.t. A. As

a consequence, this implies that such an algorithm al-

ways strictly decreases the dual function if the current

point is not a stationary point (i.e a point where the

ﬁrst derivatives are all zero) of the dual function (Lu-

enberger, 1973). The problem of stationary points is

easy to solve by checking the positiveness of the Hes-

sian matrix of

E (A, Λ). If this matrix is not positive,

we disturb the solution so that it converges to a local

minimum. This proves that the algorithm is globally

convergent, i.e, it converges toward a local minimum

of e

MLE

(A) for all initial A

’s which are neither a max-

imum nor a saddle point.
