SKEW CORRECTION IN DOCUMENTS WITH SEVERAL

DIFFERENTLY SKEWED TEXT AREAS

P. Saragiotis and N. Papamarkos

Electric Circuits Analysis Laboratory

Department of Electrical and Computer Engineering

Democritus University of Thrace, 67100 Xanthi, Greece

Keywords: Skew Correction, Text Area Localization, Connected Component Analysis, Linear Regression, Optical

Character Recognition.

Abstract: In this paper we propose a technique for detecting and correcting the skew of text areas in a document. The

documents we work with may contain several areas of text with different skew angles. In the first stage, a

text localization procedure is applied based on connected components analysis. Specifically, the connected

components of the document are extracted and filtered according to their size and geometric characteristics.

Next, the candidate characters are grouped using a nearest neighbour approach to form words, in a first step,

and then text lines of any skew, in a second step. Using linear regression, two lines are estimated for each

text line representing its top and bottom boundaries. The text lines in near locations with similar skew

angles are grown to form text areas. These text areas are rotated independently to a horizontal or vertical

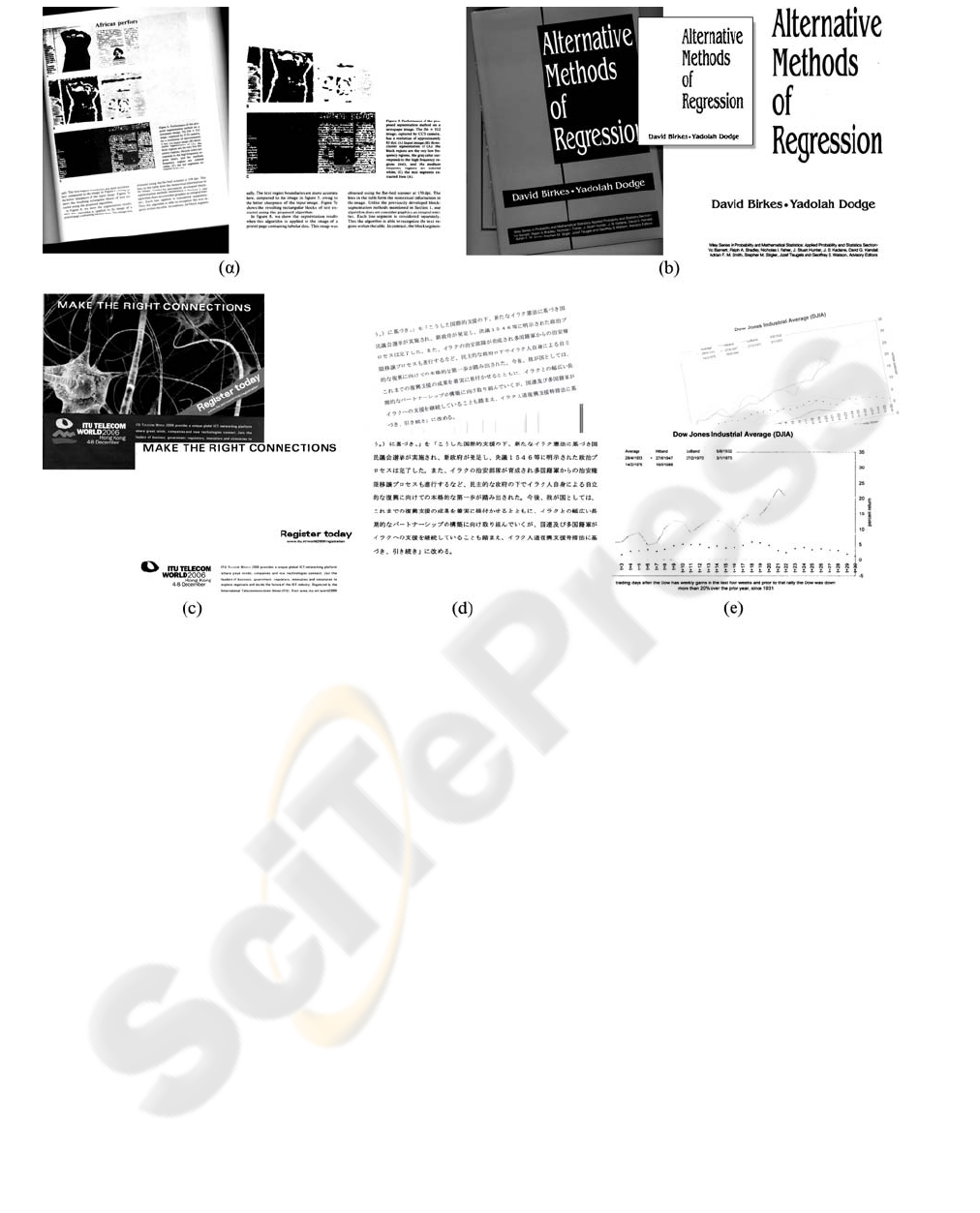

plane. This technique has been tested and proved efficient and robust on a wide variety of documents

including spreadsheets, book and magazine covers and advertisements.

1 INTRODUCTION

Optical Character Recognition has become an

increasingly important technology in the office

automation software and lots of commercial

document analysis systems are available to the end

users. Document layout analysis is used in such

systems to improve their capabilities in dealing with

complicated document layouts and diverse scripts.

An efficient and accurate method for determining

document image skew is an essential need, which

can simplify layout analysis and improve character

recognition. Most document analysis systems

require a prior skew detection before the images are

forwarded for processing by the subsequent layout

analysis and character recognition stages.

Document skew is a distortion that often occurs

during scanning or copying of a document or as a

design feature in the document's layout. This mainly

concerns the orientation of text lines, where a zero

skew occurs when the lines are horizontal or

vertical, depending on the language and page layout.

Skew estimation and correction are therefore

required before the actual document analysis is

done. Inaccurate de-skew will significantly

deteriorate the subsequent processing stages and

may lead to incorrect layout analysis, erroneous

word or character segmentation, and misrecognition.

The overall performance of a document analysis

system will thereby be severely decreased due to the

skew.

In addition, automatic skew detection and

correction also have practical value in improving the

visual appearance for facsimile machines and

duplicating machines. Ideally, a skewed input could

be automatically corrected to produce a desirable

output in the machines for more pleasant reading.

In general, there can be three types of skew

within a page: a global skew, when all text areas

have the same orientation; a multiple skew, when

certain text areas have a different slant than the

others; and a nonuniform text line skew, when the

orientation fluctuates within a line, e.g., a line is bent

at one or both of its ends, or a line has a wave-like

shape. In this work we focus on documents with

multiple skew, which is also the novelty of the

proposed technique.

This work is co-

unded by the European Social Fund and Nationa

esources - (EPEAEK-II) ARXIMHDHS 1, TEI Serron.

Saragiotis P. and Papamarkos N. (2007).

SKEW CORRECTION IN DOCUMENTS WITH SEVERAL DIFFERENTLY SKEWED TEXT AREAS.

In Proceedings of the Second International Conference on Computer Vision Theory and Applications - IFP/IA, pages 85-92

 SciTePress

1.1 Related Work

A number of methods have previously been

proposed for identifying document image skew

angles. A survey was reported by Hull (1998) and an

extended reference is made by O. Okun et al. (1999).

The main methods proposed in the literature may

be categorized into the following groups: methods

based on projection profile analysis, methods based

on nearest-neighbor clustering, methods based on

Hough transform, methods based on cross-

correlation and methods based on morphological

transform.

The projection profile is a histogram of text

index pixels or representative (fiducial) points of

characters such as centers of connected components

bounding boxes, for example, along a given

direction. The points are projected in multiple

directions and the variation in the obtained

projection profile is calculated for each direction.

The angle corresponding to the maximum variation

is the desired skew.

The Hough transform is another popular

technique for skew detection. This transform is often

applied to a number of representative points of

characters such as the lowermost pixels or centres of

gravity. Each representative point (x,y) is mapped

from the Cartesian space to the points (ρ,θ) in the

Hough space by forming a set of lines coming

through (x,y) with a slope θ and distance ρ from the

origin. The skew corresponds to the angle associated

with a peak in the Hough space.

Most of the above methods have their inherent

weakness, because most of them actually are tailor-

made algorithms that are applicable to a particular

document layout. As a result, some of them may fail

to estimate skew angles of documents containing

complicated layouts with multiple font styles and

sizes, arbitrary text orientation and script, or high

proportion of non-text regions such as graphics and

tables. Moreover, they estimate a single or the

dominant skew angle of the document and fail to

recognize multiple skew angles.

Messelodi S. and Modena (1999) showed that

projection profiles in combination with a clustering

procedure based on simple heuristics may overcome

the problem of the limited angle range. Although

this method can detect multiple skew and small

interline spacing, it was only tested on small-sized

(512x512 pixels) images of book covers containing a

few text lines. Gatos et al. (1997), uses an interline

cross-correlation for two or more vertical lines

located at a fixed distance d for skew estimation.

The cross-correlation function is computed for an

entire image to obtain the documents skew angle.

This can, however, be time consuming and the

presence of graphics degrades the accuracy. Y. Lu,

and C. L. Tan (2003) folowed a nearest-neighbor

chain based approach developing a skew estimation

method with a high accuracy and with language-

independent capability. Their approach detects only

a dominant skew for the document.

2 PROPOSED TECHNIQUE

The proposed technique aims in correcting the skew

in documents that contain several areas with text

bend in different slopes and be robust enough to

handle a great variety of printed documents,

including book and magazine covers, spreadsheets

among with regularly layout documents in any

language. This assumes that the text is supposed to

be correctly oriented in either vertical or horizontal

alignment. It is also assumed that the document can

contain from several down to a single text area

slopes.

To achieve this goal a bottom-up approach is

applied which is better suited to the specific

problem. First, the document is prepossessed to

identify the text colour index. Then, the connected

components of the document are retrieved using a

simple serial labelling algorithm and their bounded

rectangles are constructed. A filtering procedure is

applied to the connected components to discard non-

text connected elements according to their

geometrical characteristics and indicate the

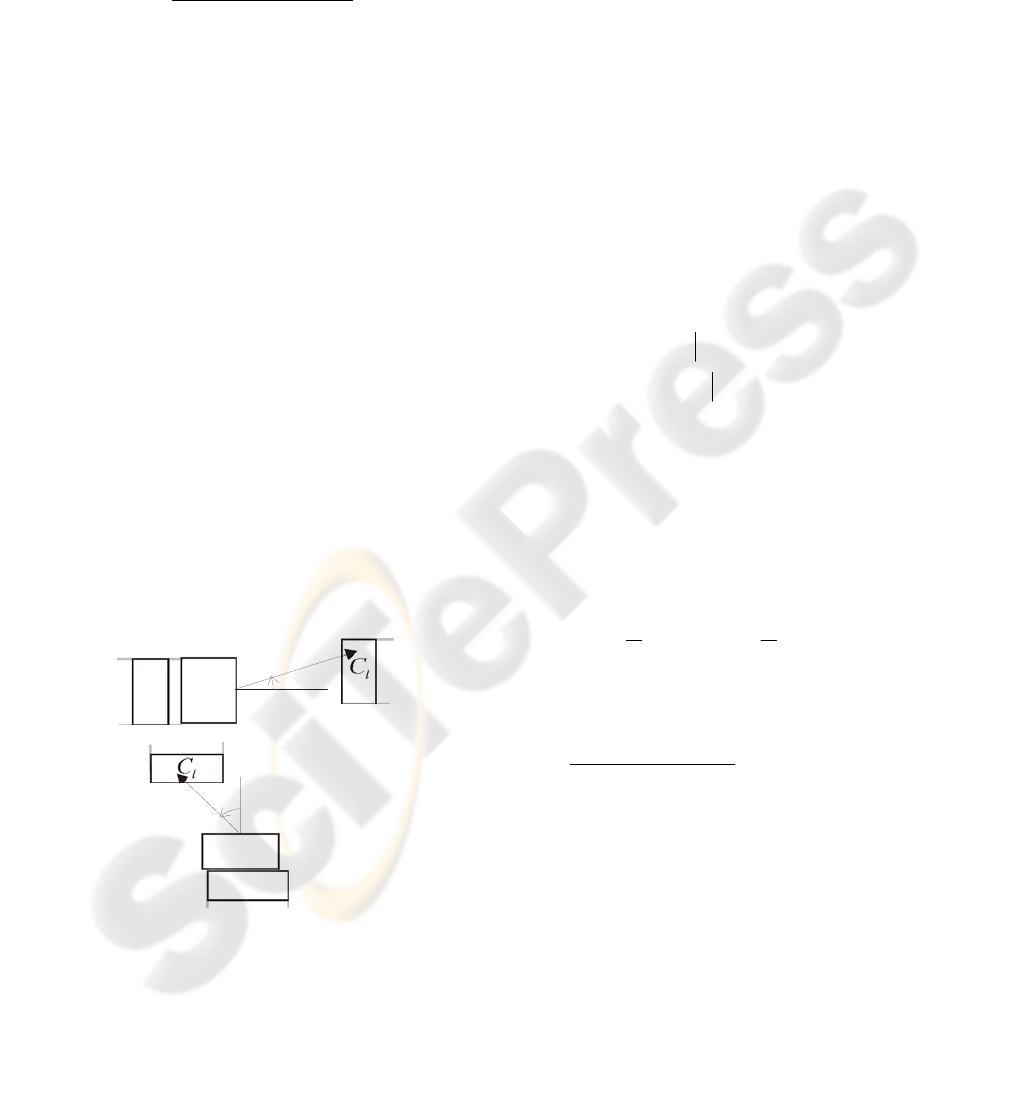

candidate characters. These candidate characters are

grouped using a nearest neighbour approach to form

words. The words are grouped, based on a rough

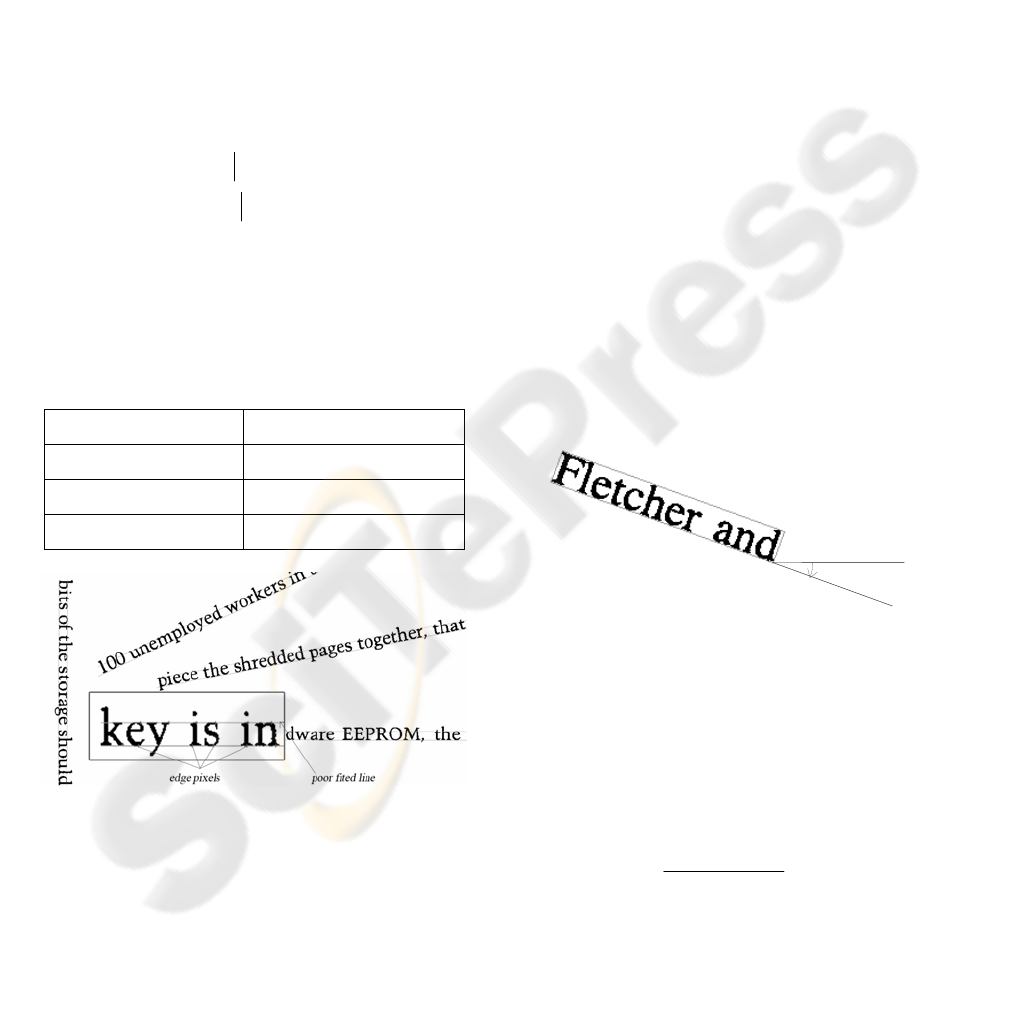

slope calculation, to form lines of text. Using linear

regression on the edge pixels of the connected

components bounding rectangles, a set of straight

lines is estimated for each text line representing its

top and bottom boundaries. The text lines in near

locations with similar skew angles are grown to

form text areas and their slope is defined according

to the slope of the text line boundary lines. The

connected components that have been filtered or

failed to construct words, included in a text area are

supposed to be part of that text area. Finally, each

text area is rotated to a horizontal or vertical plane

taking measures to avoid the possibility of

overlapping.

The result of the technique is a single binary

image ready to be processed by the layout analysis

module of an OCR system. Next, analysis of the

main stages of the proposed technique is given.

VISAPP 2007 - International Conference on Computer Vision Theory and Applications

2.1 Preprocessing

The proposed technique is applied to grey scale

document images that have a resolution high enough

to retain separated elements. For example, the

scanning resolution of book cover could be as low as

50dpi but a dense written document must be scanned

with 300dpi. The document is filtered with a

Gaussian filter to remove noise and strengthen the

connectivity of its elements. The document is

binarized using the well known Otsu’s threshold

selection method (Otsu N., 1979).

2.2 Connected Component Analysis

After preprocessing, the index colour of the binary

image that represents text is chosen and a simple

serial algorithm is used to label the elements of the

document based on its 4-th neighbourhood

connectivity. Each document image line is scanned

looking for text index pixels. When found its upper

and left pixels are checked for labels. If they are

labelled with the same label the current pixel gets

that label. Otherwise the equality of the labels is

marked on an equality array. A second scan of the

document image lines is preformed and the equal

labels are replaced with a single one.

For each connected element a bounding rectangle

is constructed. We have no knowledge for the nature

of the connected element; it could be a character,

connected characters or even images from the

document. These bounding rectangles form the

skeleton for all future analysis on the page. The

position and dimensions of the bounding rectangle

are marked as well as the points where the text index

pixels touches its edges, called now on boundary

rectangle edge pixels.

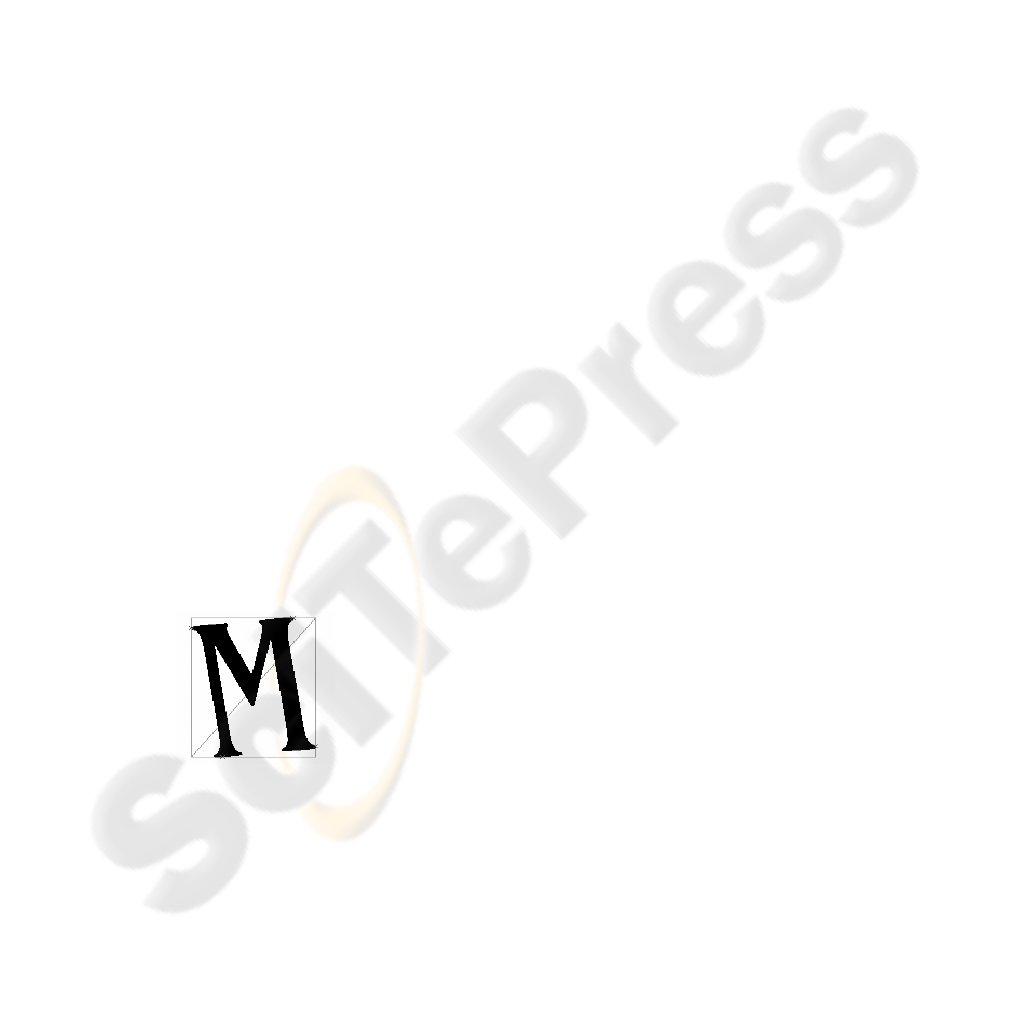

Figure 1: Bounding rectangle with its edge pixel marked.

2.3 Filtering

At this stage each connected component

accompanied by its bounding rectangle represents a

region of text index pixels without any further

knowledge of its contents. We assume that the set of

connected components will contain all text

components mixed with several non-text ones. We

will try to identify the non-text or unreadable text

components by analyzing their geometrical structure

(Y. Zhong et al., 1995; W.Y. Chen, S.Y. Chen,

1998) and discard them. We specify some size and

geometrical filters in order to discard components

which are likely to correspond to non-textual

objects. Filters selection is based on the analysis of

some internal features, i.e. inherent to the single

connected component, and possibly to its

neighbourhood. The internal features that are used in

order to eliminate connected components that have

low probability to be text objects are

 Area. The area of a component is defined as

the number of its bounding rectangle pixels

divided by the scanning resolution of the

document. Connected components with area

less than 2 mm

are suppressed in the

proposed technique, as we supposed they

correspond to noisy connected components.

The punctuation marks are removed at this

stage. This fact is acknowledged and used

later on the processing. Connected

Components with area larger than 100 mm

are removed also as they probably represent

large non-text objects.

 Density. It is defined as the ratio between the

component area and the area of its convex

hull. It permits to detect sparsely filled or

compact connected components. In the

proposed technique we remove connected

components with density less than 10%, as we

suppose they are line art, or greater than 70%

as they are probably images or frames.

 Width to Height Ratio. The width to height

ration permits to detect long components or

narrow components. Width to height ratio is a

filter that regards the orientation of text. Thus,

width to height ration in horizontal aligned

text is height to width ratio in vertical aligned

text. In the proposed technique we prevent

connected components with width to height

ration more than 150% or less than 30% to

form horizontal text lines, as most characters

proportions are between those limits.

In all three filter rules the proposed technique

uses, a small probability exists of classifying text

connected components as non-text. This possibility

is being acknowledged and connected components

that have been removed will be included in the text

area growing step of the proposed technique.

The connected components that remain after the

filtering stage are considered candidate characters

that will form words and text lines.

SKEW CORRECTION IN DOCUMENTS WITH SEVERAL DIFFERENTLY SKEWED TEXT AREAS

2.4 Word Grouping

At this stage of the proposed technique, the

candidate characters are grouped to form words

aligned either horizontally or vertically. The

grouping is based on the Euclidean distance of the

candidate characters bounding rectangles (C.

Strouthopoulos et al, 1997). First we group the

horizontal aligned candidate characters. Let

WH be

an ordered group of connected components:

{}

CCCWH ,,,:

(1)

And

thaverageWid

WH is the average width of its

members bounding rectangles:

Width

thaverageWid

∑

(2)

For each candidate character

C that is not a

member of any ordered group or it is the first

member of an ordered group

WH the Euclidean

distance

lnl

CCd −=

→

between its middle

left BR edge point and the middle right BR edge

point of the

C is calculated. If this distance is less

than the maximum of

thaverageWid

and

Width

multiplied by a factor f chosen to be equal to 1.0:

(

)

fCWHd

Width

lthaverageWidnl

⋅<

→

,max

(3)

C is candidate next character of the ordered group

WH . A list with all candidate members

C of

WH is formed and the

C with the smallest

Euclidean distance

→

will be the next character

of the ordered group

WH . If the chosen candidate

character

C is the first member of the ordered

group

WH then the two groups are merged to

create the new group

′

WHWHHW ∪=

′

(4)

This procedure is repeated until no candidate

next character can be found for any ordered group

WH . The algorithm ensures that all possible

grouping has been done in the less possible

repetitions.

To group the vertically aligned candidate

characters in

WV ordered groups, we use the same

reparative algorithm considering the widths in the

vertical direction and calculating and comparing the

Euclidean distance

lnl

CCd −=

→

between

the middle BR top edge point of

C and the middle

bottom BR edge point of the

C .



Figure 2: Construction of the Horizontal and Vertical

Words using the distance between the connected

components.

Either horizontal or vertical groups with less than

5 members are discarded. This may seem that these

words won’t be aligned at the result of this

technique, but that is not the case. It has been

observed that small groups create problems in the

text line identification stage. Furthermore, small

words like those are most often part of a greater text

area with the some alignment. So, the proposed

technique includes those words in the text area

growing stage.

The next step of the word grouping stage is the

revocation of the ambiguity of a candidate character

C belonging to both a horizontal WH and a

vertical

WV word. This is achieved efficiently with

a simple rule. If the members of

WV are more than

those of

WH then the WH word is destructed and

C remains a member of WV , else the WV word

is destructed.

2.5 Text Line Identification

To identify text lines in a document we must merge

sets of identified words and candidate characters that

failed to construct words in the previous steps. These

words and candidate characters are separated by

large gaps (otherwise they would have been merged

in the previous stage of the proposed technique). The

first step in doing so is to calculate a rough angle

VISAPP 2007 - International Conference on Computer Vision Theory and Applications

for each horizontal and vertical word (

) as

the average slope between the central points of the

BR edges of consecutive characters

C :

()

∑

−

→

tan

(5)

Then a line is extended from each side of a word

with length

wordthaverageWid

fWH ⋅ and angle

, for

the horizontal words first. The angle

is measured

from the x axis and the right side of the word. At the

left side of the word the angle is

− . This line may

cross the vertical edges of several candidate

characters. The candidate character

C that is

crossed by the line with the smaller distance

→

will be the last character or first, depending on the

line, of the ordered group

. Again, if the

chosen candidate character

C is the first or last

member of the ordered group

WH and the rough

calculated angles of the two groups

differ

less than a predefined

then the two groups are

merged to create the new group

′

. The value of

has been calculated to ensure both that errors in

the rough calculation of the angle will not restrict

two adjacent words to create a new group and

unaligned words won’t be grouped. The value used

is 20



Figure 3: Construction of the Horizontal and Vertical

Words using the distance between the connected

components.

Next, the same step is repeated for the vertical

aligned words. The angle

is measured from the

y axis and the top side of the word. At the bottom

side of the word the angle is

WV−

At the end of this stage, the text lines have been

identified and are represented as ordered groups of

characters

WH and WV .

2.6 Text Line Skew Calculation

In order to determine the skew angle of a text line,

we first estimate its lower and top base line. This

approach is similar to the procedure used by U.-V.

Marti and H. Bunke (2000). Specifically, the

position of the bottom edge pixel from the characters

C of each identified horizontal text line WH is

used to construct the set

P of pixels. The set

P of

pixels is constructed from the position of the top

edge pixels. The sets

P ,

P of pixels approximate

the lower and upper contour of the text lines.

Formally, it can be represented as follows:

(

)

{

iii

yxpP ,

== bottom edge of

}

(6)

(

)

{

iii

yxpP ,

== top edge of

}

(7)

Assume that each set

P ,

P has k

entries. On this set of points a linear regression can

be applied. The final goal of skew detection is to

find the parameters a and b of a straight line

expressed by the following equation:

baxx

(8)

For this purpose the mean values of the two

variables x and y have to be computed:

∑

(9)

Then, the line parameters a and b can be obtained

using the following two formulas:

∑

−

yxii

kyx

μμ

−=

(10)

Linear regression minimizes the error between the

line and the given set of points. A problem with this

approximation is, however, that outliers and

punctuation marks in the set Ρ may influence the

result disturbing the calculated line. The punctuation

marks have been removed by filtering. For the task

of baseline estimation, descender characters can be

regarded as outliers. The same will be considered for

capital characters in a line of lowercase characters or

ascender characters in top line estimation. To reduce

their influence on the regression line, the summed

SKEW CORRECTION IN DOCUMENTS WITH SEVERAL DIFFERENTLY SKEWED TEXT AREAS

square error between the line and the set Ρ is

computed by:

()

∑

−+=

ybaxe

(11)

If the total error

e is larger than a predefined

threshold

t , the point

p with the largest amount in

the sum is eliminated from set

. This procedure is

repeated until the error

e is smaller than threshold

t . The procedure is also stopped if

removed

max

percentage of points has been removed from the set.

This is an indication of a poor result and it is taken

into account in the area growing stage.

To estimate the top and baseline of the vertical

aligned text lines we use the sets of pixels

P ,

P :

()

{

iii

yxpP ,

== right edge of

}

(12)

()

{

iii

yxpP ,

left edge of

}

(13)

The skew angle of the text line is

()

tan

−

. Where a is selected from Table 1.

The result of this stage can be seen in Figure 4.

Table 1: Selection of a value used to calculate the skew

angle of a text line based on the regression result of the set

of fitted lines.

Accepted Result on

Selected a

none

Figure 4: Fitting of a pair of lines in horizontal and

vertical aligned text. In the zoomed part of the Figure edge

pixels can identified as well as poor fit indication.

2.7 Text Area Growing

The next stage of the proposed technique is the

construction of the text areas. The seed in this

procedure are the text lines and their estimated skew.

A text area is created for each identified text line.

The text area is a rectangle rotated by an angle

from the x axis containing all the text index pixels of

characters

C members of the text line as shown in

Figure 5. This is done efficiently by using only the

edge pixels of the characters bounding boxes shown

on Figure 1.

Two text areas

A are grown into an area

kjl

AAA ∪

when the following two conditions

hold:

 There is no candidate character

C member of

an area

A contained in the result rectangle

of area

A .

 The two areas rectangle rotation angles

differ only be a few degrees

. The chosen

value for

is 5

, a value estimated from the

experiments that will allow most adjacent text

areas with the same skew to be joined. It has

also been observed that adjacent text areas,

differently aligned in a document have skew

angles many times greater than the selected

value.

Figure 5: Construction of a text area from a single

identified text line.

The resultant’s area

A rectangle will contain all the

text index pixels of characters

C members of both

areas and its skew angle

will be calculated as a

weighted average:

kkjj

ϑϑ

(14)

Where

m ,

m are the

C member counts for each

text area. If the rotation angle

of text area

A , in

the previous stage, is a result of two poor fitted lines,

VISAPP 2007 - International Conference on Computer Vision Theory and Applications

Figure 6: Experimental result. (a) skewed magazine page, (b) book cover scanned with 200dpi and 50dpi (in centre), (c)

advertisement with multiple skewed text areas, (d) skewed paragraph in Japanese and (e) spreadsheet with multiple

skewed text areas.

then the rotation angle

of the resultant text area

A will be

. With this measure the proposed

technique eliminates the skew error that results from

poorly fitted regression lines.

The step of area growing by joining two areas is

repeated until no more areas can be joined. The next

step of this stage of the proposed technique is the

inclusion of candidate characters that failed to form

words and the connected components that have been

filtered, into text areas.

The candidate characters

C that failed to form

words are joined with its nearest text area by adding

them to the area. Text areas are not ordered groups

like words and text lines, so the adding of a member

isn’t difficult. The text area’s rectangle is grown to

include the text index pixels of the newly added

member. The rotation angle does not change.

The connected components that have been

filtered, i.e. punctuation marks and non-text

elements, whose bounding box has common areas

with a text area, are considered parts of that area and

will be rotated by the text areas rotation angle

Connected components outside the text areas are

considered noise, or frames.

At the end of this stage, the text of the document

has been localized and its skew rotation is measured.

2.8 Text Area Rotation

The last stage of the proposed technique is the

rotation of the identified text areas to a vertical or

horizontal orientation. To avoid the possibility of

overlapping target rectangles, they are moved left as

needed. The pixels of each area members are

projected to the target rectangle using bilinear

interpolation. Bilinear interpolation is used to

minimize the effect of artefacts produced by simply

rotating binary images.

The result of this stage is a single layered binary

image ready to be processed by the layout analysis

module of an OCR system.

SKEW CORRECTION IN DOCUMENTS WITH SEVERAL DIFFERENTLY SKEWED TEXT AREAS

3 EXPERIMENTAL RESULTS

The proposed technique has been tested to a great

variety of complex documents with a single or

multiple skews, images and graphics that where

scanned with a variety of resolutions. The

documents tested were magazine and book pages,

spreadsheets, book covers and advertisements. Some

of the results, emphasizing on the ability of the

proposed technique to handle different types of

documents with single or multiple skews, can be

seen in Figure 6.

To test the proposed technique’s accuracy we

scanned with 200dpi a document paragraph taken

from a magazine column with great effort in

aligning the paragraph correctly. Then we rotated

the paragraph in multiple angles and constructed a

document with all these rotated paragraphs. The

results for the detected skews from the proposed

technique are reported on Table 2.

Table 2: Results indicating the accuracy of the proposed

technique. Rotation is the angle by which a text area was

rotated and Estimated Skew is the result of the proposed

technique.

Rotation Estimated Skew Difference

35 35.02 0.02

25 24.96 0.04

0 0.01 0.01

-5 -4.99 0.01

-15 -14.98 0.02

-65 -65 0.00

-75 -75.04 0.04

-85 -85.01 0.01

Average Error

0.01875

The experiments run on an Intel Pentium 4 CPU

running at 2.8 GHz. The processing of the

documents depends on its complexity as the

technique uses connected component analysis. For

most of the documents tested processing, without the

pre-processing stage, took less than a second.

4 CONCLUSIONS

In this paper, a new technique is proposed for skew

correction in documents with several differently

skewed text areas. The technique shown to be robust

in handling a variety of documents such as magazine

and book pages, spreadsheets, book covers and

advertisements in multiple languages and unlimited

rotation angles.

The main contribution of the proposed technique

is its ability to correct the skew in documents with

several differently skewed text areas. The novelties

of our approach are the vertical and horizontal

grouping of candidate characters, which improves

the ability to handle a great range of skew angles,

the calculation of two skew angles for each

identified text line, which improves the techniques

accuracy, and the area growing technique which

allows handling of unclassified connected

components and punctuation marks.

REFERENCES

W.Y. Chen, S.Y. Chen, Adaptive page segmentation for

color technical journal’s cover images, Image and

Vision Computing 16, pp. 855-877, 1998.

B. Gatos, N. Papamarkos and C. Chamzas, Skew detection

and text line position determination in digitized

documents, Pattern Recognition, Vol. 30, No. 9, pp.

1505-1519, 1997.

J.J. Hull, Document image skew detection: survey and

anotated bibliography. In: Hull, J.J., Taylor, S.L.

(Eds.), Document Analysis Systems II. World

Scientific, pp. 40–64, 1998.

Y. Lu, and C. L. Tan, A nearest-neighbor chain based

approach to skew estimation in document images,

Pattern Recogn. Lett. 24, 14, pp. 2315-2323, 2003.

U.-V. Marti, H. Bunke, Using a statistical language model

to improve the performance of an HMM-based

Cursive Handwriting Recognition System, Internat. J.

Pattern Recognit. Artificial Intell. 15 (1), 65—90,

2000.

S. Messelodi, C.M. Modena, Automatic identication and

skew estimation of text lines in real scene images,

Pattern Recognition 32:5, 791-810, 1999.

O. Okun, M. Pietikainen, and J. Sauvola, Document skew

estimation without angle range restriction,

International Jurnal on Document Analysis and

Recognition, pp. 132-144, 1999.

N. Otsu, A Threshold selection method from gray-level

histograms, IEEE Tran. on System Man and

Cybernetics, SMC-9 (1), pp. 62-69, 1979.

C. Strouthopoulos, N. Papamarkos and C. Chamzas,

Identification of text-only areas in mixed type

documents, Engineering Applications of Artificial

Intelligence, Vol. 10, No. 4, pp. 387-401, 1997.

Y. Zhong, K. Karu, A.K. Jain, Locating text in complex

color images, Pattern Recognition, 28 (10), pp. 1523-

1535, 1995.

VISAPP 2007 - International Conference on Computer Vision Theory and Applications
