COLOR AND TEXTURE BASED SEGMENTATION

ALGORITHM FOR MULTICOLOR TEXTURED IMAGES

Irene Fondón, Carmen Serrano and Begoña Acha

University of Seville, Camino de los Descubrimientos s/n 41092, Seville, Spain

Keywords: Region-growing, segmentation, texture analysis, color segmentation.

Abstract: We propose a color-texture image segmentation algorithm based on multistep region growing. This

algorithm is able to deal with multicolored textures. Each of the colors in the texture to be segmented is

considered as reference color. In this algorithm color and texture information are extracted from the image

by the construction of color distances images, one for each reference color, and a texture energy image. The

color distance images are formed by calculating CIEDE2000 distance in the L

color space to the colors

that compound the multicolored texture. The texture energy image is extracted from some statistical

moments. The method segment the color information by means of an adaptative N-dimensional region

growing where N is the number of reference colors. The tolerance parameter is increased iteratively until an

optimum is found and its growth is determined by a step size which depends on the variance on each

distance image for the actual grown region. The criterium to decide which is the optimum value of the

tolerance parameter depends on the contrast along the edge of the region grown, choosing the one which

provides the region with the highest mean contrast in relation to the background. Additionally, this color

multistep region growing is texture-controlled, in the sense that an extra condition to include a particular

pixel in a region is demanded: the pixel needs to have the same texture as the rest of the pixels within the

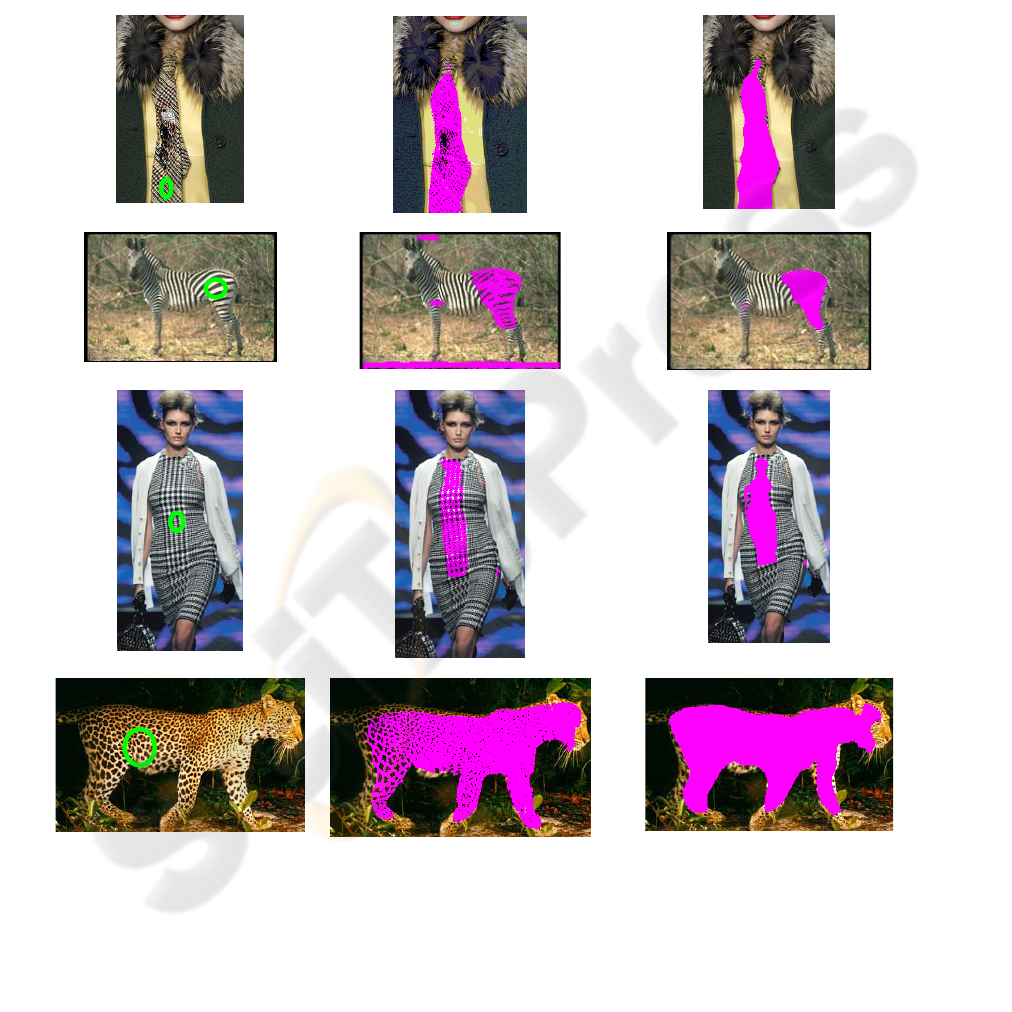

region. Results prove that the proposed method works very well with general purpose images and

significantly improves the results obtained with other previously published algorithm (Fondón et al, 2006).

1 INTRODUCTION

In the literature there are many different region-

growing algorithms. Most of them applied to grey-

scale images and some of them extended to color

images. Hojjatoleslami and Kittler (Hojjatoleslami

and Kittler, 1998) presented a region-growing

method based on two different contrast measures but

it has a poor efficiency. Adams and Bischof (Adams

and Bishop, 1994) proposed a method for grey-scale

images, where the seeds are selected manually. The

method depends on the order in which the pixels are

analyzed. Fan et al.

(

Fan

et. al., 2001) extended the

previously mentioned technique to color images.

Then, they improved the algorithm selecting

automatically the seeds and proposed a new method

for pixel labeling (Fan

et. al., 2005). Cheng (Cheng,

2003) published a region-growing approach to color

segmentation using 3D clustering and relaxation

labeling. The three last methods mentioned take only

into account the color information but not the texture

one and for many natural scenes it is very important

to consider both. Finally, Maeda et al. (Maeda et al.,

1999) have proposed a region-growing algorithm

that joins color and texture information by applying

fuzzy sets, performing a region-growing procedure

based on a fixed homogeneity parameter. This

method is not adaptative. There are some adaptive

region-growing algorithms (Hao et. al, 2000), (Pohle

and Toennies, 2001), but they are specifically

designed to work with a particular kind of image and

are computationally inefficient. In a previous work

an adaptive and efficient algorithm for general-

purpose color and textured images segmentation was

proposed by the authors (Fondón et al, 2006).

Nevertheless, when multicolored textures are present

in the image, the results are not completely

satisfactory. In this paper we propose a new method

that solves this problem.

258

Fondón I., Serrano C. and Acha B. (2007).

COLOR AND TEXTURE BASED SEGMENTATION ALGORITHM FOR MULTICOLOR TEXTURED IMAGES.

In Proceedings of the Second International Conference on Computer Vision Theory and Applications - IFP/IA, pages 258-263

 SciTePress

2 ALGORITHM DESCRIPTION

2.1 Reference Colors and Texture

The algorithm will segment all pixels in the image

with color and texture similar to the ones present in

an area selected by the user.

2.2 Color Information

2.2.1 L

Color Space

A perceptually uniform color space is needed so that

distances between colors measured in this space are

correlated with color differences according to human

perception. We have chosen the L

color space

that is a perceptually uniform orthogonal Cartesian

coordinate system (Plataniotis and Venetsanopoulos,

2000).

2.2.2 Anisotropic Diffusion

Anisotropic diffusion is used for the denoising step.

This is a non linear filtering method stronger in the

homogeneous parts of the image and weaker in the

edges

(Perona and Malik

1990).

2.2.3 Reference Colors

In order to find the reference colors, we perform a

clustering operation with the well-known k-means

algorithm in the L

color space. To obtain the

value k of numbers of clusters automatically, we use

Dunn’s coefficient

(Maulik and Bandyopadhyay,

2002)

()

()()

⎪

⎭

⎪

⎬

⎫

⎪

⎩

⎪

⎨

⎧

⎪

⎭

⎪

⎬

⎫

⎪

⎩

⎪

⎨

⎧

′

≤≤

≠≤≤≤≤

ijkjki

ccd

,11

max

minmin

(1)

where d(c

) is the Euclidean distance between

cluster i and cluster j, that is, the inter-cluster

distance. d’(c

) is the intra-cluster distance for We

assume that, in multicolored textures, the number of

different colors is less or equal to 16. So, we

perform 16 clusterings beginning from k=1 to k=16.

We select the value of k that provides the highest

value of D, which leads to a maximum inter-cluster

distance and a minimum intra-cluster distance. Then,

the k reference colors are defined as the centroids of

the k clusters in L

color space. In Figure 1 we

can see an example.

2.2.4 Distance Images

(b)

(a)

(c)

Figure 1: From the original image (a) the user selects a

region, circled in red, where a multicolored texture is

present. The reference colors obtained with k-means

algorithm and Dunn coefficient are shown in images (b)

and (c).

Once the reference colors are obtained, the

distances between every single pixel of the image

and each of the reference colors are calculated. We

have chosen CIEDE2000 as the distance metric.

This measure has been extensively tested and

outperformed other existing color difference

formulae (Luo et. al.,

2001). Then, a new set of

images is built, where each pixel value will be the

CIEDE2000 color difference to each of the reference

colors. In order to obtain a better visualization, we

invert this image, that is, those pixels whose values

are similar to the reference ones, will appear light in

a dark background. These inverted images are called

the distance images In Figure. 2, there is an example

for the reference colors shown in Figure. 1.

2.3 Texture Information

The proposed method extracts texture features only

from the luminance component (L

) of the original

image and not from the chrominance ones (a

, b

This assumption is based on previous works: the

psychophysical studies of Poirson and Wandell

suggest that color and pattern information in the

human visual system are processed separately

(Poirson and Wandell,1996). Mojsilovic et al.(

Mojsilovic et al, 2000), state that human perception

of pattern is unrelated to the color content of an

image. Mäenpää and Pietikäinen (Mäenpää and

Pietikäinen, 2004) conclude that it seems that texture

information should be extracted from the luminance

component, whereas color is more a regional

property. The texture features employed in this

method are based on some local low statistical

moments (Tuceryan., 1994) In order to justify the

choice of first order statistics for texture feature

extraction, Zamperoni et al. (Zamperoni et al,1995)

state that although one can construct some patterns

for which the choice of first order statistics does not

work, the converse is true for a surprisingly high

COLOR AND TEXTURE BASED SEGMENTATION ALGORITHM FOR MULTICOLOR TEXTURED IMAGES

259

number of real images representing natural scenes of

a given type, as confirmed by the experiments

reported in Lowitz (Lowitz, 1983) and in Kim (Kim,

1986).

The algorithm calculates for every pixel, four

statistical moments m

with p,q={0,1} by

processing the L

component with local masks

expressed in a normalized coordinate system. A

formal expression of these moments is shown in

equation (2).

()

1,0,,,

;

=∈

−

∑∑

−=

qpimageji

yxnmf

Wim

Wjn

(2)

W is the window width, (i,j) are the pixel

coordinates for which the moments are computed,

(m,n) the coordinates of another pixel which falls

within the window, (x

) are the normalized

coordinates for (m,n), and f(m,n) is the value of the

component at the pixel with coordinates (m,n).

This normalized expression leads us to compare

among pixel moments and it is equivalent to the

finite convolution of the image with a mask. The

sizes of these masks have been fixed to the size of

the selection box. Usually, for each segmentation

this size will be different, so the algorithm will be

automatically adapted to the texture we want to

isolate. With all these parameters, we can build four

new images M

with p,q={0,1} corresponding to

each statistical parameter. To this purpose we assign

to each pixel a value equal to the previously

calculated moment m

. Afterwards, we defined new

images calculated from the energy of the moments.

We called them energy images E00, E01, E10 and

E11 and they represent the strength of each moment

around the pixel location. The computation of the

energies follows equation (3).

() ()

∑∑

−=

Wim

Wjn

pqpq

nmM

jiE

(3)

(i,j) is the energy corresponding to the pixel

with coordinates (i,j) in the image M

, W is the

window width, M

(m,n) is the value of the pixel

with coordinates (m,n) in the moment image M

and

p,q={0,1}Each pixel is now characterized with four

values, one from each energy image. They are

considered as coordinates in a four-dimensional

space. Subsequently, in order to assign each pixel to

one texture in the image, we apply the same

clustering procedure previously described in section

2.2.3 but in this four-dimensional texture space.

(a)

(b)

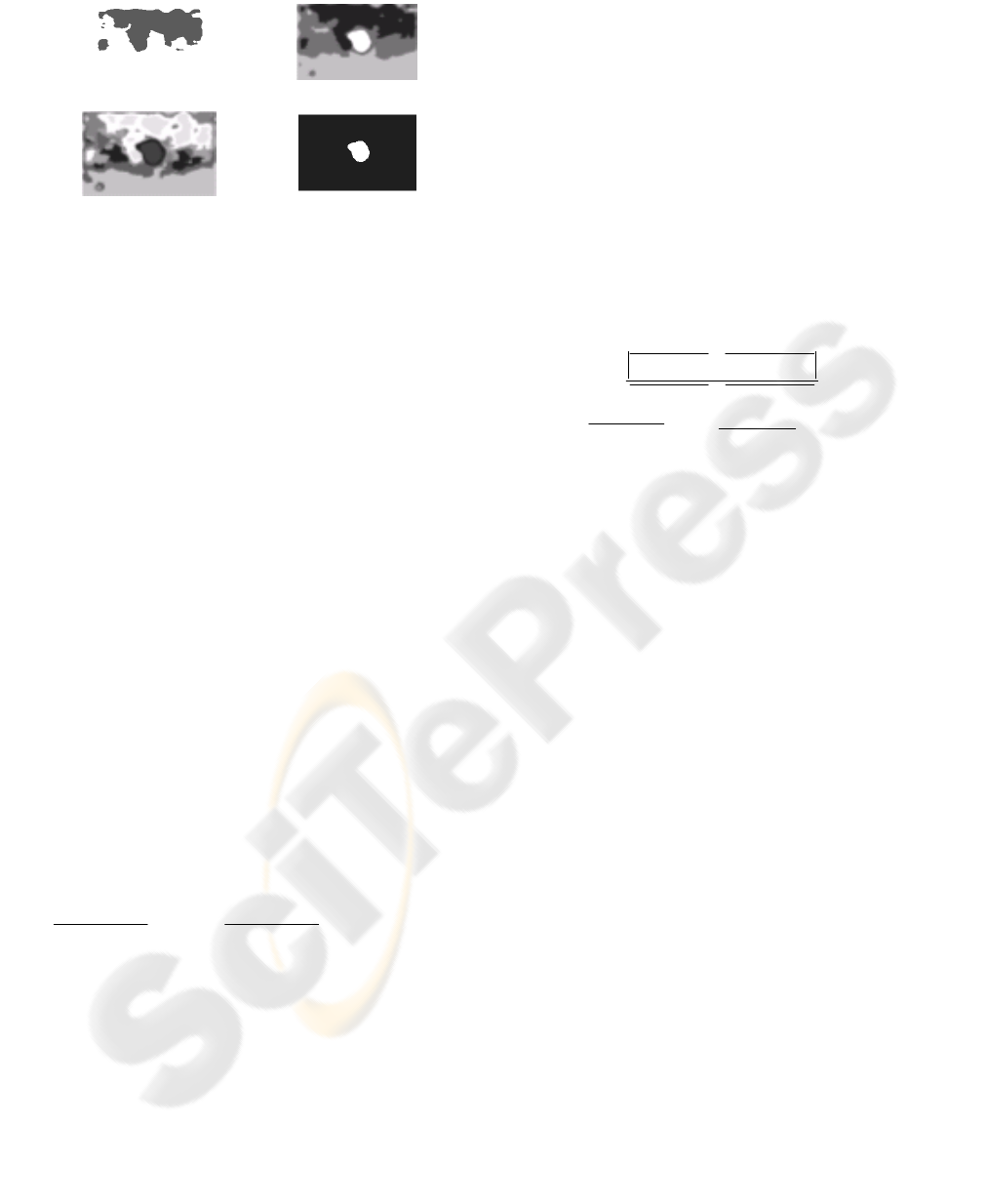

Figure 2: Two distance images obtained with CIEDE2000

color distance formulae, for the original image shown in

Figure 1. Image (a) corresponds to light yellow and (b) to

brown.

We again assume that, in natural scenes, the

number of different textures is less or equal to 16.

Once each pixel in the image has been classified, we

select only those pixels whose texture is equal to the

desired one, obtaining a black and white image in

which white pixels are those with the desired

texture, as shown in Figure 3. This image will be

used afterwards in the region-growing process.

2.4 Multistep Region Growing

As explained before, region-growing techniques

have two critical aspects: the seed selection and the

choice of the merging condition.

2.4.1 Seed Selection

We must notice that those pixels more similar to the

reference color have been assigned a high value

(note that we have inverted the distance image). In

order to select the seeds, the next three steps are

followed for each of the distance images: 1)

Selection of the local maxima of the image, which

represent the candidates to seeds. Not all these

candidates will be seeds for the region growing,

because these local maxima do not belong

necessarily to the region of interest. 2) Application

of a threshold to these candidate seeds. The

threshold is determined from the histogram of the

distance following an algorithm developed by the

authors (Acha et al, 2003). 3) Finally, texture

information is applied to reject some of the seed

candidates: the final seeds must have, not only the

desired color, but also the desired texture. That is,

among the group of color seeds, only those pixels

that appear white in the texture image are selected.

VISAPP 2007 - International Conference on Computer Vision Theory and Applications

260

Figure 3: The original image in Figure 2 is processed in

order to isolate the strips of the bird. Image (a) is the result

of the k-means algorithm for k=2. The value of D is

0.6944. Image (b) is the result for k=4 and D=0.7469.

Image (d) corresponds to k=8 and D=0.4304 finally, the

maximum D value is obtained for k=4, which leads to the

texture information shown on image (d).

2.4.2 Multistep Region Growing

We use a dynamic region growing method to

segment the distance images. In an ordinary region

growing, the merging condition is always the same.

For each seed, the algorithm grows a region with a

determined condition. With this multi-step

technique, the merging condition automatically

changes in order to find its optimum value, which

will correspond to the highest value of the contrast

parameter explained later on in this subsection.

Let us take a particular seed. The process begins

with a region growing with three conditions:

1) Not belonging to another region grown before.

2) The texture of the pixel must be the desired

one. That means that a pixel only will be added to

the region if it has a value equal to one (for

normalized values) in the texture image.

3) The new pixel must be similar to the pixels

that already are in the region for all the distance

images. This similarity is measured according to (4):

nij

,...,1,

min,max,

≤≤−

ττ

(4)

In equation (4), n is a subindex indexing the

reference colors, N is the number of reference

colors, F

max,n

and F

min,n

are the maximum and

minimum values of the pixels in the distance image

n inside the region, i and j are the coordinates of the

pixel, F is the value of the pixel in the distance

image n, and τ is the tolerance step, which will be

iteratively increased. Once a region is grown with a

particular τ, the next step is to verify whether the

region obtained is optimal. If it is not optimal, the

region growing will be repeated with a more relaxed

condition, that is, τ is increased. More specifically, τ

follows the expression:

⋅

(5)

In equation (5),

is the standard deviations of

the region in the distance image n grown before and

α is variable with an initial value experimentally

fixed to 0.1. For each iteration, to relax the condition

and make the merging interval larger, we increase α

by 0.1. Then, the region growing is repeated with

this more relaxed condition.

The optimality criterion to choose the best region

during the region-growing process consists in

maximizing a contrast parameter. This contrast

parameter is calculated for each distance image as:

edgeOutsideedgeInside

contrast

−

(6)

In (6)

edgeInside

and

edgeOutside

represent the

mean values of the pixels belonging to the inner

border and outer border of a region respectively. We

then, use the mean of so obtained contrast values to

determine whether the region is the best or not

At the beginning, the region growing has a very

restrictive merging condition. This will lead us to

obtain a small region. While repeating the process,

the contrast parameter of equation (6) is calculated.

While the grown region is inside the object, the

contrast parameter increases its value in a smooth

way, because pixels belonging to the inner border

and to the outer border of the region are similar.

When the region whose contrast is being calculated

matches the object, the contrast parameter has a high

value because pixels surrounding the region will

differ from those inside the region. If we continue

growing, the contrast parameter will be low again

because both the inner border and the outer border

are similar. Therefore when the contrast parameter

reaches its maximum we have obtained the best

region. A steep slope in the contrast parameter

evolution corresponds to those values of α for which

boundaries are reached. Once the whole boundary is

reached, if the tolerance is being enlarged again the

region will exceed the limits of the object and,

therefore, the contrast will decrease. In such a

situation the region growing will stop because the

stop condition has been attained.

(a)

(b)

(c)

(d)

COLOR AND TEXTURE BASED SEGMENTATION ALGORITHM FOR MULTICOLOR TEXTURED IMAGES

261

3 EXPERIMENTAL RESULTS

In order to test the algorithm, we have performed the

segmentation of ten particularly difficult images,

with textures compound of very different colors.

Some examples are shown in Figure. 4 To better

analyze its performance, we have compared the

algorithm with one previously published by the

authors (Fondón et al,2006). This second algorithm

takes as the reference color the centroid of the colors

in the selection box. It leads to a poor segmentation

result if colors within a texture are too different.

That is why, as can be observed, segmented regions

present holes in (e)-(h). This problem is solved in

Figures (i)-(l).

Original Previous work Proposed algorithm

(a)

(e)

(i)

(b)

(f)

(j)

(c)

(g)

(k)

(d)

(h)

(l)

Figure 4: Examples of segmentations. (a)-(d) Original images with the selected color and texture marked by the user in

green. (e)-(h) Segmented images by the previous work. (i)-(l) Segmented images by the new algorithm.

VISAPP 2007 - International Conference on Computer Vision Theory and Applications

262

4 CONCLUSIONS

An algorithm to segment multicolored textured

image has been proposed. In a previous work

(author's work 1) the reference color was the

centroid of the colors present within the texture. In

this case, the segmented regions could have holes

corresponding to big differences between the

reference color and that particular pixel color. In the

present work, as we take into account all the colors

in the region, these failures disappear achieving

higher quality results. In the multi-step region

growing technique, which has an automatic

adaptable step, we use a set of color distance images,

each one corresponding to a reference color and we

apply an N-dimensional region-growing, where N is

the number of color distance image. A contrast

parameter is introduced to decide the optimum step

for the region-growing.

The method is designed for general-purpose

images and its good performance with images

difficult to be segmented is demonstrated.

As we have already exposed, the algorithm has

been validated with 10 multicolored textured images

providing better results than the previous work. The

holes are avoided and the regions have better

quality.

ACKNOWLEDGEMENTS

This work is financed by project FIS05-2028.

REFERENCES

Fondón I., Serrano C., Acha B.,2006. Color-Texture

Image Segmentation based on Multi-Step Region

Growing. Optical Engineering, The International

Society for Optical Engineering (SPIE), Vol. 45.

057002-9,057002-9

Muñoz, X., 2002. Image segmentation integrating colour,

texture and boundary information. PhD Thesis,

Universitat de Girona , Spain.

Hojjatoleslami, S. A., Kittler, J., 1998. Region growing: a

new approach. In IEEE Trans. on Image Processing,

7(7), 1079-1084.

Adams, R., Bischof, L., 1994. Seeded region growing, In

IEEE Trans. on Pattern Analysis and Machine

Intelligence, 16(6), 641-647.

Fan, J., Yau, D. K. Y., Elmagarmid, A. K., Aref, W.G.,

2001. Automatic image segmentation by integrating

color-edge extraction and seeded region growing. In

IEEE Trans. on Image Processing, 10(10), 1454-1466.

Fan, J., Zeng, G., Body, M., Hacid, M.-S., 2005. Seeded

region growing: an extensive and comparative study.

Pattern Recognition Letters, 26, 1139-1156.

Cheng, S. -C., 2003. Region-growing approach to colour

segmentation using 3-D clustering and relaxation

labeling. In IEEE Proc. –Vis. Image Signal Process,

150(4), 270-276.

Maeda, J., Novianto, S., Saga, S., Suzuki, Y., Anh, V. V.,

1999. Rough and accurate segmentation of natural

images using fuzzy region-growing algorithm. Proc.

Int. Conf. on Image Processing, Kobe (Japan), 3, 227-

231.

Hao, X., Bruce, C., Pislaru, C., Greenleaf, J. F., 2000. A

novel region growing method for segmenting

ultrasound images. In IEEE Int. Ultrasonics

Symposium, 1717-1720

Pohle, R., Toennies, K. D., 2001. Segmentation of medical

images using adaptative region growin. In Proc. SPIE

Medical Imaging, 4322-4331.

Plataniotis, K.N., Venetsanopoulos, A.N., 2000. Color

image processing and applications, Springer, Berlin

(Germany), 35-37.

Perona, P., Malik, J., 1990. Scale-space and edge

detection using anisotropic diffusion. In IEEE Trans.

on Pattern Analysis and Machine Intelligence, 7, 629-

639.

Maulik, U., Bandyopadhyay, S., 2002. Performance

evaluation of some clustering algorithms and validity

indices. In IEEE Trans. on Pattern Analysis and

Machine Intelligence, 24(12), 1650-1654.

Luo, M.R., Cui, G, Rigg, B., 2001. The development of the

CIE 2000 Colour-Difference formula: CIEDE2000.

Colour Research and Application, 26(5), 340-350.

Poirson, B., Wandell, B., 1996. Pattern-color separable

pathways predict sensitivity to simple colored

patterns. Vision Res., 36(4), 515-526.

Mojsilovic, A., Kovacevic, J., Kall, D., Safranek, R.,

Ganapathy, S., 2000. Matching and retrieval based on

the vocabulary and grammar of color patterns. In

IEEE Trans. Image Processing, 9(1), 38-54.

Mäenpää, T., Pietikäinen, M., 2004.

Classification with

color and texture: jointly or separately?. In Pattern

Recognition, 37, 1629-1640.

Tuceryan, M., 1994. Moment based texture segmentation.

In Pattern recognition letters, 15(7), 659-668.

Zamperoni, P., 1995. Model-free texture segmentation

based on distances between first-order statistics.

Digital Signal Processing, 5, 197-225.

Lowitz, G., 1983. Can a local histogram really map

texture information?. In Pattern Recognition, 2, 141-

147.

Kim, V., Yaroslavskii, Y. P.,1986. Rank algorithms for

picture processing. Comput. Vision Graphics Image

Process., 35, 234-258.

Acha, B., Serrano, C., Acha, J. I., Roa, L. M., 2003. CAD

tool for burn diagnosis, Lecture Notes in Computer

Science (Springer), 2732, 294-305.

COLOR AND TEXTURE BASED SEGMENTATION ALGORITHM FOR MULTICOLOR TEXTURED IMAGES

263
