FUSION OF GPS AND VISUAL MOTION ESTIMATES FOR ROBUST

OUTDOOR OPEN FIELD LOCALIZATION

Hans Jørgen Andersen, Morten Friesgaard Christensen

Department of Media Technology, Aalborg University, Niels Jerners Vej 14, DK-9220 Aalborg, Denmark

Thomas Bak

Department of Electronic Systems, Aalborg University, Fredrik Bajers Vej 7C, DK-9220 Aalborg, Denmark

Keywords:

Computer vision, Autonomous mobile robot, Visual Odometry, GPS, Kalman ﬁltering.

Abstract:

Localization is an essential part of autonomous vehicles or robots navigating in an outdoor environment. In

the absence of an ideal sensor for localization, it is necessary to use sensors in combination in order to achieve

acceptable results. In the present study we present a combination of GPS and visual motion estimation,

which have complementary strengths. The visual motion estimation is based on the tracking of points in an

image sequence. In an open ﬁeld outdoor environment the points being tracked are typically distributed in

one dimension (on a line), which allows the ego motion to be determined by a new method based on simple

analysis of the image point set covariance structure. Visual motion estimates are fused with GPS data in a

Kalman ﬁlter. Since the ﬁlter tracks the state estimate over time, it is possible to use the prior estimate of the

state to remove errors in the landmark matching, simplifying the matching, and increasing the robustness. The

proposed algorithm is evaluated against ground truth in a realistic outdoor experimental setup.

1 INTRODUCTION

Robots or land-vehicles operating autonomously in an

outdoor environment typically rely on GPS position

estimates for determining the vehicle position. Main-

taining an accurate position estimate based on GPS

may, however, be problematic due to foliage, build-

ings, or terrain obstructing the line of sight between

the receiver and a sufﬁcient number of satellites. To

overcome this problem, it is necessary to use sensors

in combination in order to achieve acceptable results.

Data from GPS is typically fused with data from dead

reckoning systems (odometry or inertial) which pro-

vide relative position. While the appeal of odometry

is that is simple and low cost, the accuracy is sus-

ceptibility to errors such as wheel slippage. Inertial

sensors on the other hand are costly and experience

thermal drift of the zero point and the output scale.

An alternative source of relative position informa-

tion is based on vision sensors (Olson et al., 2003;

Nister et al., 2006). Tracking points in an image se-

quence allows the relative movement in position and

orientation of the camera to be estimated. The accu-

racy naturally degrades when no or few natural land-

marks are found. Visual motion estimation and GPS

have complementary strengths, as the availability of

GPS is generally good in the open ﬁeld, while struc-

ture is available for visual tracking when close to

buildings etc. where the GPS fail.

In open ﬁeld applications, landmarks are typically

in the horizon and the visual input is a 2D point set

which is primarily distributed in one dimension (on a

line). If the vehicle motion is restricted to motion on

a plane, the problem may be simpliﬁed to ﬁnding the

lines in 2D and calculating the rotation and transla-

tion between two consecutive point sets. This simple

scenario would typically be too complex and ill posed

for general 3D solutions such as (Matthies, 1989) or

(Stephen Se and Little, 2005).

Robust and accurate visual motion estimates, re-

quire errors in the landmark position estimation and

matching process to be minimized. One method for

detecting and discarding errors is based on RANSAC

and has been applied to motion estimation (Nister,

2003). A potentially efﬁcient approach would be to

to use the knowledge of the relative motion obtained

from a fusion of GPS and vision estimates to remove

outliers.

413

Jørgen Andersen H., Friesgaard Christensen M. and Bak T. (2007).

FUSION OF GPS AND VISUAL MOTION ESTIMATES FOR ROBUST OUTDOOR OPEN FIELD LOCALIZATION.

In Proceedings of the Second International Conference on Computer Vision Theory and Applications - IU/MTSV, pages 413-418

 SciTePress

In this study the focus is on the situation where

a vehicle is moving on a planar surface. The vi-

sion input is predominantly distributed in one dimen-

sion, allowing the rotation and translation to be deter-

mined by analysis of the image point set covariance

structure. Errors in the visual input are discarded re-

cursively based on a priori motion estimates from a

Kalman Filter (KF) where GPS is fused with the vi-

sion estimates. The proposed algorithm is evaluated

against ground truth in a realistic outdoor experimen-

tal setup.

2 MATERIAL AND METHOD

2.1 Visual Motion Estimation

The problem of feature based visual motion estima-

tion is to determine the rotation R and translation T of

corresponding points in two or more successive image

pairs, Q

the current, and Q

the previous position:

= Q

R+ T (1)

In this study a new method for visual motion estima-

tion based on feature matching will be introduced.

The method address the situation when the corre-

sponding points between two successive stereo image

pairs give a point set that is predominately distributed

in one dimension. This is a situation that is likely to

occur using computer vision for outdoor navigation in

open ﬁeld conditions. In this case detectable and re-

liable features are often distributed along the horizon

or boundaries in the landscape.

The method is based on an analysis of the point

sets covariance structure. If the points are predomi-

nately distributed along a line the eigenvalues of their

covariance matrix will have one large eigenvalue, if

the points are distributed in a planar surface it will

have two large values, and if the points are well dis-

tributed in space it will have three nearly even val-

ues. In the last case the method by (Matthies, 1989)

or (Stephen Se and Little, 2005) may be used. How-

ever, in the case where the corresponding points are

not well distributed these method are ill posed and

will become numerical unstable.

2.1.1 The 2d Case

In this study we will only consider the situation where

a robot is moving on a planar surface and hence its

relative movement is restricted to take place only in

two dimension.

Let there be n corresponding points c

= (x

)

and p

= (x

)in Q

and Q

between two successive

stereo pairs. The covariance matrices Γ

c,p

of Q

and

is then determined.

The eigenvalues λ

c,p

and vectors

c,p

of Γ

c,p

are

obtained and sorted in descending order according to

the eigenvalues. The eigenvector due to the largest

eigenvalue will correspond to the line which ﬁts the

point set with the lowest variance, i.e. corresponding

to the line obtain by orthogonal regression (Jackson,

1991). As we have corresponding points in the two

sets the rotation between the lines will correspond to

the rotation of the robots due to its movement. The

rotation (θ) between the two lines is easily determined

by:

θ = arccos(

) (2)

The point set from the previous position Q

may now

be counter rotated so it becomes aligned with the

robots local coordinate system for the current posi-

tion. To account for the uncertainty in the 3D re-

construction the stereo error is modeled according to

the method introduced in (Matthies and Shafer, 1987).

As a result the translation is calculated as a weighted

mean using:

= (det(κ

) + det(ψ

))

−1

(3)

as a weight for point i. κ

and ψ

are the covariances of

the two points c

and p

due to the stereo error model.

The ﬁnal estimate of the translation is then:

T =

∑

i=1

∑

i=1

− p

) (4)

where p

is rotated according to θ.

The covariance estimate for the translation is

found as the pooled covariance of κ and ψ where ψ

is rotated according to θ.

2.1.2 The 3d Case

In the three dimensional case the proposed method is

not as applicable. In this situation it will be necessary

to ﬁnd estimates of the yaw, pitch, and roll angles for

the line in space. This will clearly be difﬁcult to esti-

mate for a degenerated point set.

2.1.3 Feature Detection, Description, and

Matching

For feature detection, description and matching the

method introduced by (Brown et al., 2005) with mi-

nor modiﬁcations is used. First the input image is in-

crementally smoothed with an Gaussian kernel. Next

an image pyramid is constructed by down sampling

of the image at the scale just above the current, as il-

lustrated in Figure 1. Extreme locations is found by

Harris-Corner detection in the image smoothed with

a variance s

larger than one by the Harmonic mean

method with a threshold of 10. The extreme points

are hereafter denoted as landmarks. Finally, the sub

pixel precision of the landmarks are found by a Taylor

expansion (up to the quadric term) at the landmarks

(Brown and Lowe, 2002).

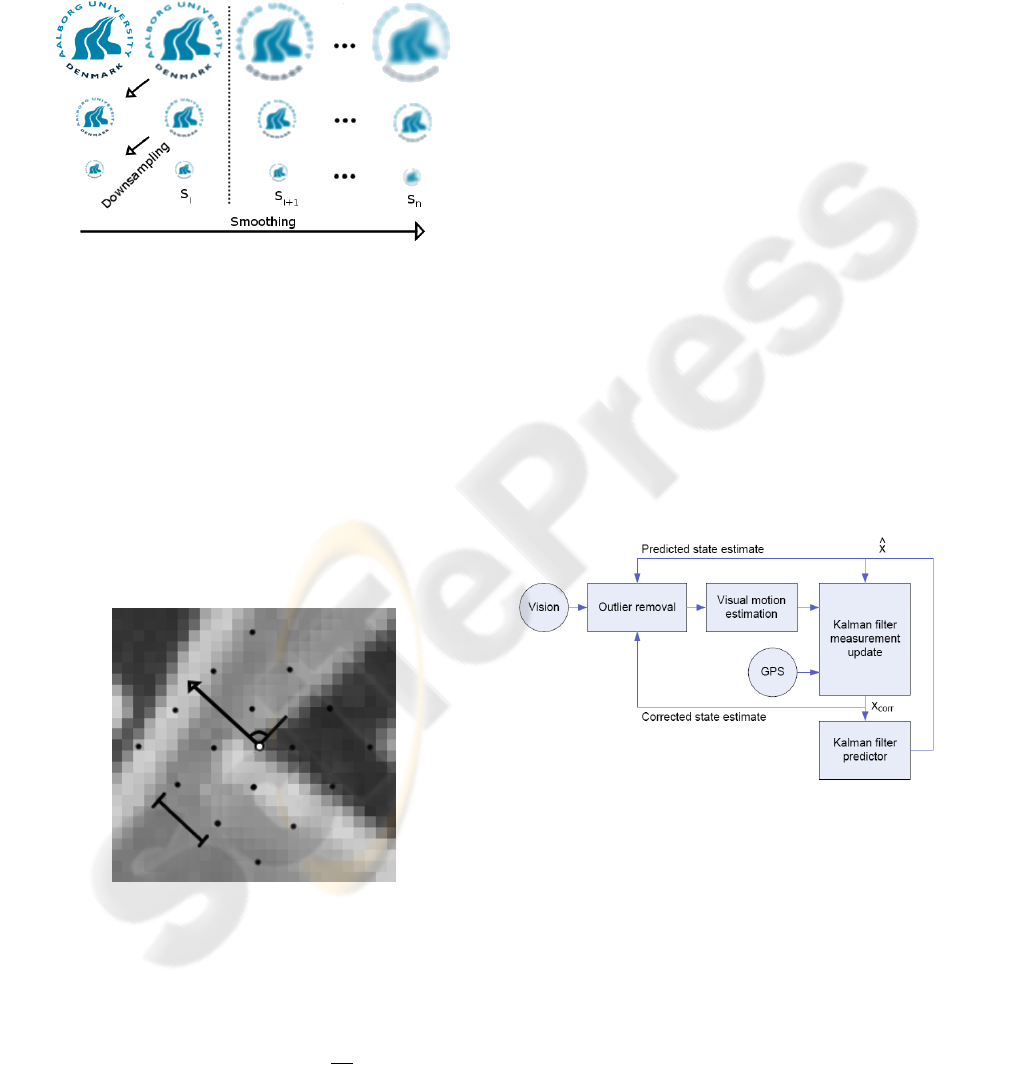

Figure 1: Illustration of the scale-space approach.

The landmarks are described by their orientation

in a window of size 28x28 (corresponding to a Gaus-

sian kernel with σ = 4.5) and sampling of grey level

values in their 40x40 neighborhood in the scale above

the current, i.e. s

i+1

where s

is the variance at the

current scale. The grey level values are sampled in

a grid with a spacing of 5 pixels rotated according to

the landmarks orientation. To adjust for sub pixel pre-

cision bilinear interpolation is used around the sam-

pling location to estimate the grey level values, as il-

lustrated in Figure 2. This gives a feature vector for

each landmark consisting of 8x8 grey level values.

Figure 2: Illustration of the landmarks orientation and grid

for sampling of grey values. For clarity only a 4x4 grid is

illustrated.

Before matching the feature vector is standardized

by substraction the mean and dividing by its standard

deviation. Matching is done along the epipolar lines

using the similarity measure sim =

1nn

2nn

, i.e. the ratio

of the best and second best match. For selection of

candidates only sim with a values less than 0.5 is used

for matching between successive stereo image pairs.

For candidates with successful matching a mean fea-

ture vector is determined as the average between the

two vectors from each of the stereo images.

Matching between successive stereo image pairs

is achieved by using the average feature vector with

the same similarity measure and threshold. Success-

fully matched landmarks are reconstructed and pro-

jected onto the ground plane to give Q

and Q

2.2 Data Fusion

The visual motion and GPS position estimates is

fused by a Kalman ﬁlter (KF). Let χ = (x

)

be the state vector in the KF where (x

) is the posi-

tion in the global coordinate system and (v

) is the

velocity of the robot. The assumed dynamic model

assumes a constant velocity and is given by

χ(k+ 1) =







1 0 1 0

0 1 0 1

0 0 1 0

0 0 0 1







χ(k+ 1) + Σ

(5)

where the process noise Σ

∈ NID(0,0.01· I) is nor-

mally independent distributed with a covariance cor-

responding to 10 cm. The ﬁlter is updated with mea-

surements from the vision and GPS sensors as out-

lined in Figure 3.

Figure 3: Kalman ﬁlter setup. Errors in the image point sets

are detecting and discarding using KF estimates.

Since the KF tracks the state estimate over time,

it is possible to use the prior estimate of the state to

rejects outliers in the image points by comparing the

magnitude of the predicted movement of the KF to the

movement between the corresponding points in point

sets Q

and Q

The magnitude of the movement η between the

corrected χ

corr

and the predicted

χ position of the KF

is:

η =

(χ

corr

−

χ)

(χ

corr

−

χ) (6)

η is used to select plausible corresponding points in

and Q

according to:

ηα < δ < ηβ (7)

where δ is the distance between two point pairs in

and Q

, i. e. δ =

− p

)

− p

). α and

β are constants set to respectively 0.5 and 2. Visual

motion estimation was only considered robust when

more than 15 point pairs had a δ value within the lim-

its according to eq. 7.

2.2.1 Data Alignment

Angular alignment of the local robot (stereo) coordi-

nate system and the global GPS coordinate system is

achieved using an estimate of the orientation θ. This

estimate is generally available directly from the vi-

sual motion estimates, see eq. 2. The experimental

setup, however, provoke the vision system into situa-

tions where no valid vision data is available, and an

alternative source of angular alignment data is hence

required. Such information may be obtained from a

magnetometer, by additional modeling and inclusion

in the ﬁlter model, or by using an attitude type GPS

receiver. In the current study, the rotation estimates

were obtained from the TANS vector GPS (see sec-

tion 2.3) in cases where θ is not available from the vi-

sion sensor. Consequently, every time the visual mo-

tion estimation becomes valid after a period of invalid

data, it begins at the correct angle and from here er-

rors accumulate until it is regarded as being invalid

again.

2.3 Experimental Setup

To obtain ground truth as correct as possible a cali-

brated stereo camera setup with the speciﬁcations ac-

cording to table 1, was mounted on a iron pivot with

a diameter of 21.78 meters, see Figure 4.

Table 1: Speciﬁcations of the stereo setup.

Parameter Value

Baseline, T 60 cm

Height 75 cm

Focal length, f 8 mm

F-value 1.4

Camera tilt angle 45

◦

Image resolution 640 × 512

Pixel size, △ x 6.0 x 6.0 µ m

Left Camera

Right Camera

RTK GPS

TANS Vector

Pivot

Pivot radius (r)

Driving direction

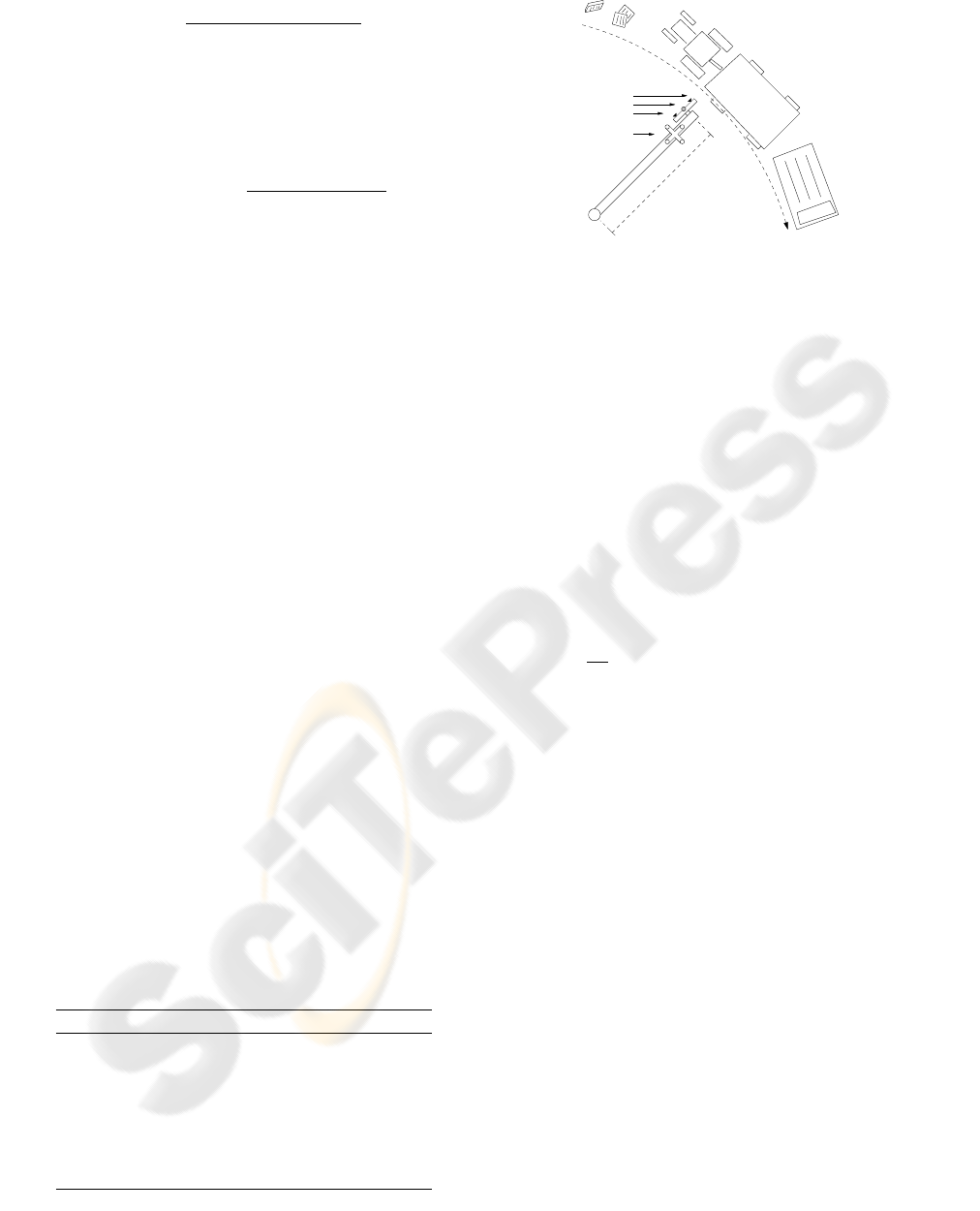

Figure 4: Illustration of the experimental setup.

At the center of the stereo vision setup a Top-

Con RTK GPS-module was placed. At approximately

17 meter from the center a Trimble Advanced Nav-

igation System (TANS), vector GPS attitude mea-

surement system was placed. The TANS vector is

a four-antenna, six-channel Global Positioning Sys-

tem (GPS) receiver system which provides standard

or differentially corrected (DGPS) position, velocity,

time, and 3-dimensional attitude (azimuth, pitch, and

roll) to external data terminals. Corresponding read-

ings from the GPS module, the TANS vector and the

stereo setup was recorded. The TANS vector is re-

garded as ground truth and operates with an accuracy

of 0.5

◦

(RMS). The pivot is drawn smoothly back-

wards clockwise with an angular velocity of approx-

imately 0.7

rad

. The ground surface at the setup has

only minor undulations and may be regarded as pla-

nar.

The landscape surrounding the pivot is open ﬁeld.

At the end of the circular movement of the pivot a

tractor with a trailer and a Van was placed closed to

the circumference to simulate the situation that the

GPS gets occluded and the vision system gets reliable

landmarks, see Figure 5.

Reliable covariance estimates are not directly

available from the TopCon RTK GPS-module. In-

stead an estimate was formed by taking ﬁve GPS read-

ings on either side of the current position. The sum of

squares and cross product matrix of the error between

the position of the TANS vector readings and the GPS

for the 11 samples was used as an estimate of the co-

variance of the GPS.

3 RESULTS

In Figure 6 the percentage variance explained by the

ﬁrst eigenvalue of the covariance matrices for respec-

tively Q

and Q

is plotted. Except at the beginning

and at the end of the experiment the ﬁrst eigenvalue

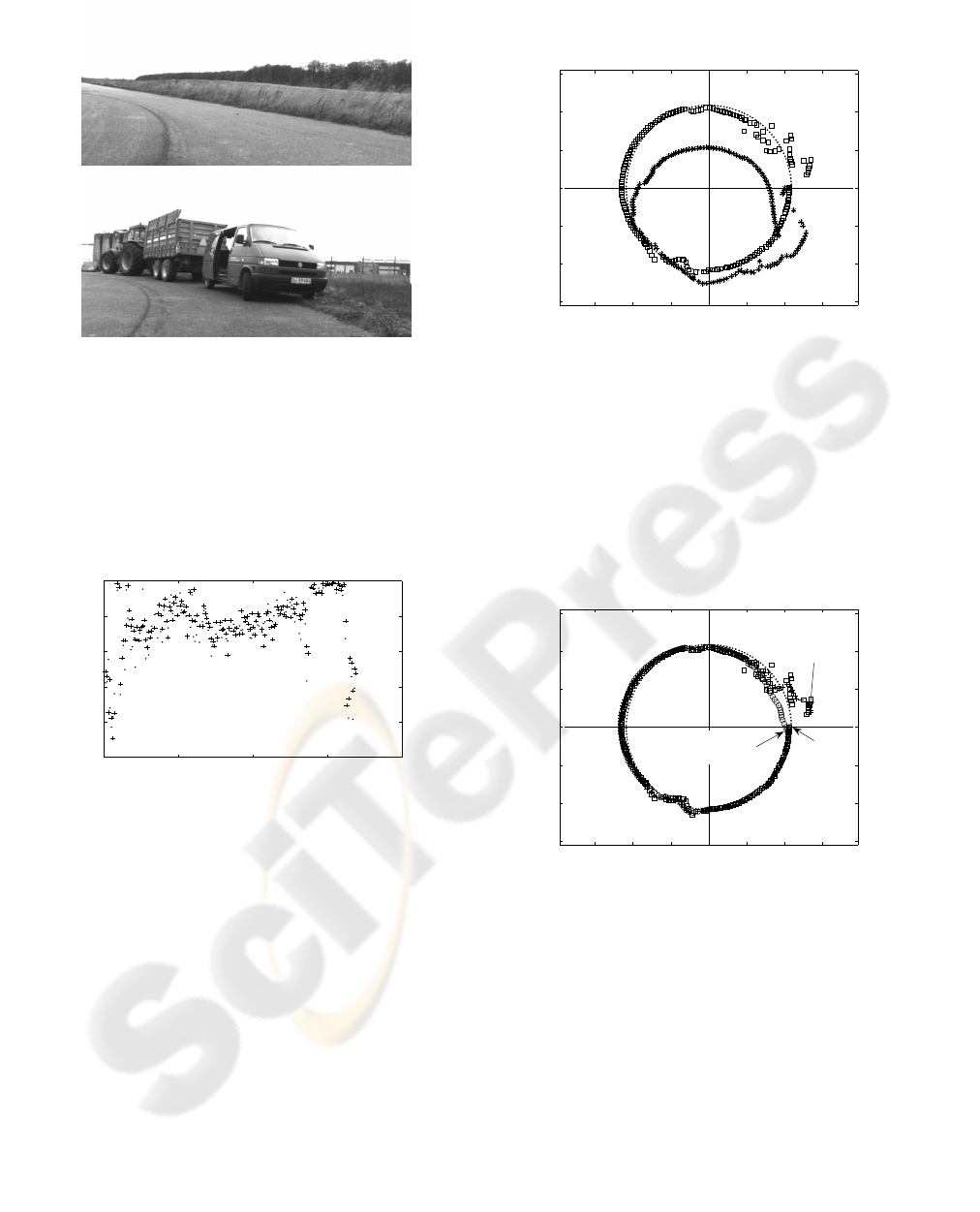

Figure 5: Images from the beginning and end of the image

series.

account for about 90% of the variance in the point

sets. At the end of the series the point sets is not as

dominantly distributed in one dimension which is in

good agreement with what is to be expected from the

experimental setup.

0 50 100 150 200

100

Image number

Percent explained variance

Figure 6: Percentage explained variance by the ﬁrst eigen-

value of the covariance matrix. Dot, the current point set,

. Cross the previous point set, Q

The ”raw” measurements from the experiment are

illustrated in Figure 7. The raw angular readings from

the TANS measurements are multiplied by the radius

(21.78 meters) i.e. the distance from the center of

pivot and to the center of the Topcon GPS module.

In this way the ground truth for the experiment is ob-

tained.

The visual estimates are given in a local robot co-

ordinate system. The local estimates are projected

onto the global GPS deﬁned coordinate system using

the cumulative value of θ. From the ﬁgure it is obvi-

ous that the visual motion estimates are most reliable

at the end of the series. In contrast the GPS record-

ings are stable until the end of the trajectory where it

gets occluded by the obstacles placed along the cir-

cumference.

−30 −20 −10 0 10 20 30

−30

−20

−10

Meter

Figure 7: Raw measurements. Dot, readings from the

TANS setup. Box, GPS readings. Star, accumulated move-

ment by the visual motion estimation.

In Figure 8 the Kalman ﬁltered position estimates

with and without the visual motion estimates is plot-

ted. From the ﬁgure it obvious that inclusion of

the visual motion estimate makes the position more

smooth, especially at the end of the experiment.

−30 −20 −10 0 10 20 30

−30

−20

−10

Meter

End, KF only

with GPS

End, KF with GPS

and Visual Motion

Start

Figure 8: Kalman ﬁltered data for the experiment. Dot,

readings from the Tans setup. Box, GPS readings. Cross,

KF position estimates using only GPS readings as input.

Circle, KF position estimates including the visual motion

estimates.

Table 2 and Figure 9 summaries and illustrate how

the position estimates from the Kalman ﬁlter with

and without visual motion estimation deviate from the

ground truth. From the table it may be noticed that

for the mean deviation there is no difference for the

two approaches. However, for the standard, maxi-

mum, and deviation from ”closing the circle” there

are signiﬁcant smaller deviation for the Kalman ﬁlter

supported by visual motion estimation.

Table 2: Deviation from the ground truth of the position es-

timates given by the Kalman ﬁlter. GPS, only GPS readings

included in the KF. Visual motion, GPS readings and visual

motion estimates included in the KF.

Deviation (meters) GPS Visual motion

Mean 1.38 1.39

Std 1.16 0.80

Max 6.76 2.83

Closing the circle 6.58 1.63

0 50 100 150 200

Image number

Deviation in meter

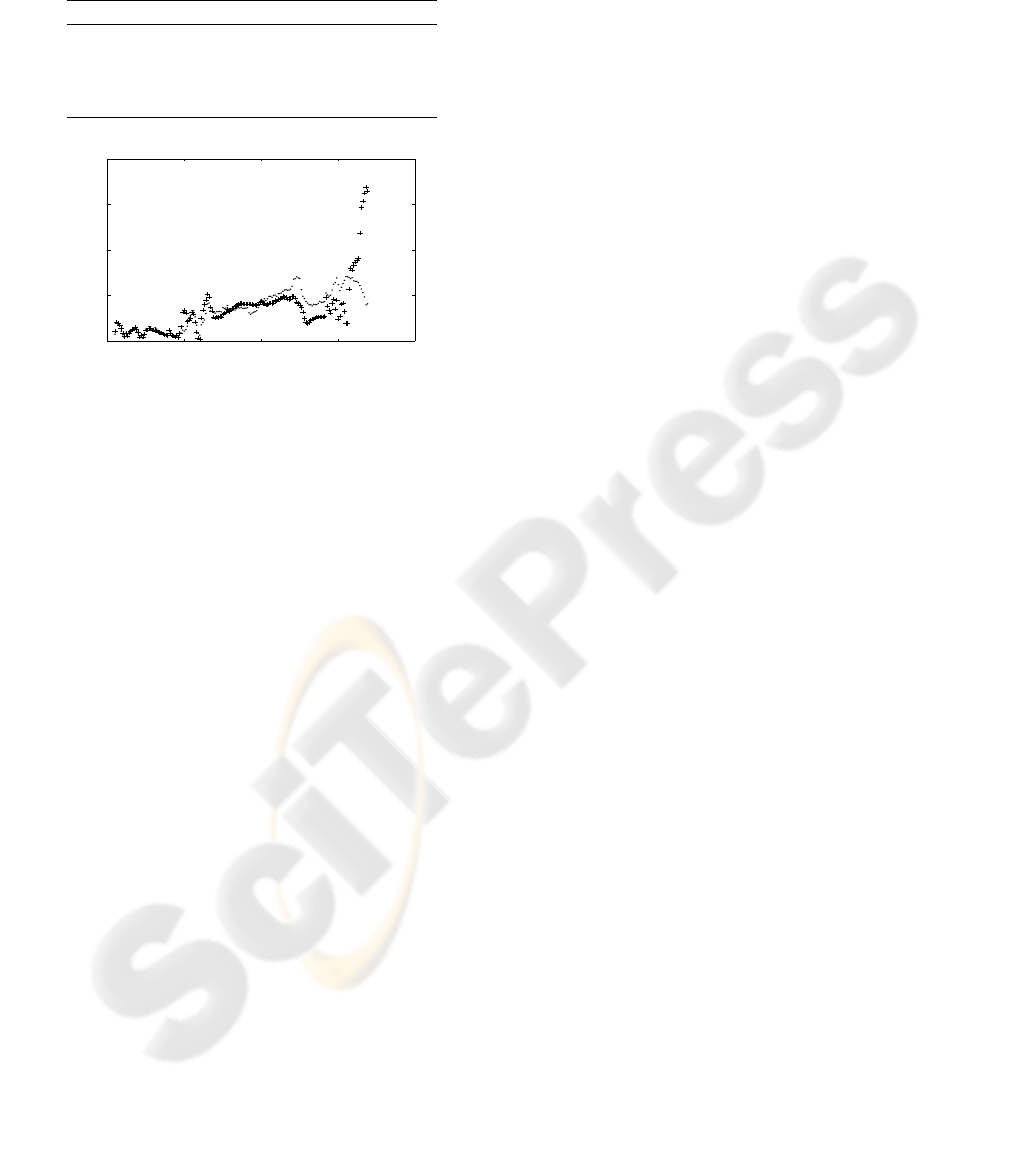

Figure 9: Deviation of the Kalman ﬁltered position estimate

relative to the position from the TANS vector. Cross, only

GPS. Dot, visual motion estimation included in the KF.

4 DISCUSSION

In this study the problem of using visual motion es-

timation to support GPS localization under non ideal

condition for either technologies. A signiﬁcant effort

has been put into establishing ground truth estimate of

the position a prerequisite for evaluation of the prob-

lem addressed.

The α and β has in this study been set to constant

values. In a more dedicated ﬁlter the two constant

should be connected to the covariance structure of the

corrected and predicted state estimate of the KF.

The visual motion estimation has to some de-

gree been put into a favorable situation by letting the

method start at the right rotation angle for alignment

after a drop-out. Whether other sensor modalities or

landmarks can provide the ”correct” angle at a given

position has not been addressed. But what its demon-

strated is that the introduced simple visual motion

method together with the KF outlier detection is able

to enhance the localization estimate where the GPS

is occluded without degrading the estimate where the

visual estimate is unreliable.

5 CONCLUSION

We presented a system for motion estimation of

robots or vehicles operating in an outdoor environ-

ment. The outdoor open ﬁeld application presents

some speciﬁc problems, such as GPS signal occlu-

sion, and visual landmarks that are primarily dis-

tributed in the horizon on a line. We beneﬁted from

the complimentary strengths of vision and GPS, by

fusing the motion estimates in a Kalman ﬁlter while

using the ﬁlter estimates to remove outliers in the vi-

sual landmark matching. Assuming vehicle motion

on a plane, and focusing on a dimensional image point

distribution, allowed visual motion estimation based

on analysis of the image point set covariance struc-

ture. The system was tested under realistic open ﬁeld

outdoor conditions. The system was tested against

ground truth and the fusion of GPS and vision proved

to signiﬁcantly reduce the variance compared to a sit-

uation with only GPS.

ACKNOWLEDGEMENTS

This work is part of the project Across under the Na-

tional Research programme Sustainable Technology

in Agriculture.

REFERENCES

Brown, M. and Lowe, D. (2002). Invariant features from in-

terest point groups. In Proceedings of the 13th British

Machine Vision Conference, pages 253–262, Cardiff.

Brown, M., Szeliski, R., and Winder, S. (2005). Multi-

image matching using multi-scale oriented patches. In

CVPR05, pages 510–517, San Diego.

Jackson, J. E. (1991). A user’s guide to principal compo-

nents. John Wiley & Sons Inc.

Matthies, L. (1989). Dynamic Stereo Vision. PhD thesis,

Carnigie-Mellon University.

Matthies, L. and Shafer, S. (1987). Error modeling in

stereo navigation. Journal of Robotics and Automa-

tion, 3(3):239–248.

Nister, D. (2003). Preemptive ransac for live structure and

motion estimation. In IEEE International Conference

on Computer Vision, pages 199–206.

Nister, D., Naroditsky, O., and Bergen, J. (2006). Visual

odometry for ground vehicle applications. Journal of

Field Robotics, 23:3–20.

Olson, C. F., Matthies, L. H., Schoppers, M., and Mai-

moneb, M. W. (2003). Rover navigation using stereo

ego-motion. Robotics and Autonomous Systems,

43:215229.

Stephen Se, Lowe, D. G. and Little, J. (2005). Vision based

global localization and mapping for mobile robots.

IEEE Transactions on Robotics, 21(3):364–375.
