AN IMAGE BASED FEATURE SPACE AND MAPPING FOR

LINKING REGIONS AND WORDS

Jiayu Tang and Paul H. Lewis

Intelligence, Agents, Multimedia Group, School of Electronics and Computer Science

University of Southampton, Southampton, SO17 1BJ, United Kingdom

Keywords:

Object Recognition, Image Auto-Annotation.

Abstract:

We propose an image based feature space and deﬁne a mapping of both image regions and textual labels into

that space. We believe the embedding of both image regions and labels into the same space in this way is

novel, and makes object recognition more straightforward. Each dimension of the space corresponds to an

image from the database. The coordinates of an image segment(region) are calculated based on its distance to

the closest segment within each of the images, while the coordinates of a label are generated based on their

association with the images. As a result, similar image segments associated with the same objects are clustered

together in this feature space, and should also be close to the labels representing the object. The link between

image regions and words can be discovered from their separation in the feature space. The algorithm is applied

to an image collection and preliminary results are encouraging.

1 INTRODUCTION

Image auto-annotation, which automatically labels

images with keywords, has been gaining more and

more attentions in recent years. It turns the tradi-

tional way of image retrieval using low-level image

features (colour, shape, etc.) as the query, into an ap-

proach that is more favorable to people, namely us-

ing words. However, many image auto-annotation

techniques only generate labels at the whole image

level, rather than at the object or region level. In other

words, in this form auto-annotation does not indicate

which part of the image gives rise to which word, so

it is not explicitly object recognition. Discovering

the relationships between image regions and partic-

ular textual labels is the problem we wish to tackle in

this paper.

1.1 Related Work

(Duygulu et al., 2002) view the process of image

auto-annotation as machine translation. They ﬁrst

used a segmentation algorithm to segment images

into object-shaped regions, followed by the construc-

tion of a visual vocabulary, which is represented by

‘blobs’. Then, a machine translation model is utilized

to translate between ‘blobs’ comprising an image and

words annotating that image. Thus, it is capable of

annotating objects in images.

(Yang et al., 2005) use Multiple-Instance Learn-

ing (MIL) (Maron and Lozano-P

erez, 1998) to learn

the correspondence between image regions and key-

words. “Multiple-instance learning is a variation on

supervised learning, where the task is to learn a con-

cept given positive and negative bags of instances.”

(Maron and Lozano-P

erez, 1998). Labels are attached

to bags (globally) instead of instances (locally). In

their work, images are considered as bags and objects

are instances.

(Russell et al., 2006) propose to use multiple seg-

mentations to discover objects and their extent in im-

ages. They vary the parameters of a segmentation al-

gorithm in order to generate multiple segmentations

for each image. Then, topic discovery models from

statistical text analysis are introduced to analyze the

segments and ﬁnd ‘topics’, which correspond to visu-

ally similar objects occurring frequently.

Tang J. and H. Lewis P. (2007).

AN IMAGE BASED FEATURE SPACE AND MAPPING FOR LINKING REGIONS AND WORDS.

In Proceedings of the Second International Conference on Computer Vision Theory and Applications - IU/MTSV, pages 29-35

 SciTePress

1.2 Overview of Our Approach

We propose an image based feature space and a map-

ping of image regions and words into the space for

object recognition. Firstly, each image is segmented

automatically into several regions. For each region, a

feature descriptor is calculated. We then build a fea-

ture space, each dimension of which corresponds to

an image from the database. Finally, we deﬁne the

mapping of image regions and labels into the space.

The correspondence between regions and words is

learned based on their relative positions in the feature

space.

The details of our algorithm are described in Sec-

tion 2. Section 3 shows experimental results and some

discussions. Finally we draw some conclusions and

give some pointers to future work.

2 IMAGE SPACE BASED

EMBEDDING OF REGIONS

AND WORDS

In this section, we ﬁrst describe how image segments

can be represented by visual terms which are based

on salient regions. Secondly, we propose how to em-

bed image regions and words into an image based fea-

ture space, in order to ﬁnd the relationships between

words and image regions. Then, a simple example is

presented as an illustration of the algorithm.

2.1 Representing Image Regions by

Salient Regions

There are very many different automatic image seg-

mentation algorithms. In this work the Normalized

Cuts framework (Shi and Malik, 2000) is used be-

cause it handles segmentation in a global way which

has more chance than some approaches to segment

out whole objects.

Once images are segmented, a descriptor is calcu-

lated for each image segment. The approach of (Tang

et al., 2006) is followed to represent images by salient

regions. Speciﬁcally, we ﬁrst select salient regions by

using the method proposed by Lowe (Lowe, 2004), in

which scale-space peaks are detected in a multi-scale

difference-of-Gaussian pyramid. Lowe’s SIFT (Scale

Invariant Feature Transform) descriptor is used as the

feature descriptor for the salient regions. The SIFT

descriptor is a three dimensional histogram of gradi-

ent location and orientation. The descriptor is con-

structed in such a way as to make it relatively invariant

to small translations of the sampling regions, as might

happen in the presence of imaging noise. Quantisa-

tion is applied to the feature vectors to map them from

continuous space into discrete space. Speciﬁcally, the

k-means clustering algorithm is adopted to cluster the

whole set of SIFT descriptors. Each cluster then rep-

resents a visual word from the visual vocabulary. As

a result, each image segment can be represented by a

k-dimensional frequency vector or histogram, for the

visual words contained within the segment.

2.2 Image-Based Feature Mapping

We denote images as I

(i = 1, 2, ...N, N being the total

number of images), and the jth segment in image I

as I

. For the sake of convenience, we line up all

the segments in the whole set of images together and

re-index them as I

( t = 1, 2, ..., n, n being the total

number of segments).

We deﬁne an image-based feature mapping m,

which maps each image segment into a feature space

F. The feature space F is an N dimensional space

where each dimension corresponds to an image from

the data-set. The coordinates of a segment in F are

deﬁned by the mapping m:

m(I

) = [d(I

, I

), d(I

, I

), ..., d(I

, I

)] (1)

where d(I

, I

) represents the coordinate of segment

on the ith dimension for which we use the dis-

tance of I

to image I

. The distance of a segment

to an image is deﬁned as the distance to the clos-

est segment within the image. Because the number

of visual words in a single segment can vary from

a few to thousands, the distance between two vec-

tors/histograms V

and V

, which represent two seg-

ments, is measured by normalised scalar product (co-

sine of angle), cos(V

, V

) =

•V

||V

. Therefore, in this

work we deﬁne

d(I

, I

) = max

j=1,...,n

cos(I

, I

). (2)

Intuitively, segments relating to the same objects or

concepts should be close to each other in the feature

space.

We can also map labels used to annotate the im-

ages into the space. Suppose the vocabulary of the

data-set isW

(j = 1, 2, ..., M, M being the vocabulary

size). The coordinate of a label on a particular di-

mension is decided by the image this dimension rep-

resents. If the image is annotated by that label, the

coordinate is 1, otherwise it is 0. Therefore, the map-

ping of words is deﬁned as:

m(W

) = [d(W

, I

), d(W

, I

), ..., d(W

, I

)] (3)

where

d(W

, I

) =



1 if I

is annotated by W

0 otherwise

(4)

Ideally, a label should be close to the image seg-

ments associated with the objects the label represents.

The normalised scalar product is used to measure the

distance between a segment and label, calculated as

cos(m(I

), m(W

)).

This mapping is similar to the work of (Bi et al.,

2005), in which a region-based feature mapping is

used. However, they deﬁned a feature space in which

each dimension is an image segment, and then map

each image into the space. In other words, the two

mappings are essentially the inverse of each other.

However, one of the advantages of our mapping is

that it is also able to map image labels to the feature

space. For (Bi et al., 2005)’s mapping, there is no way

to identify the coordinate of a label on each dimension

of the feature space because labels are only attached

on an image basis, rather than a region basis. In ad-

dition, instead of using global features (colour, shape,

texture), we use a histogram of visual words, which

are quantised from salient regions within each image

segment.

2.3 A Simple Example

In this section a simple example is presented to illus-

trate the major steps of the method. Consider two an-

notated images; I

is labelled as “RED, GREEN” and

half of the image is red and the other half is green;

is labelled as “GREEN, BLUE” and half is green

and the other half is blue. Assume the segmenta-

tion algorithm manages to separate the two colours

in each image and segments them into halves, we will

have four segments in all, denoted as I

, I

and I

Using the RGB values as the feature descriptors, the

segments can be represented as I

= (255, 0, 0), I

(0, 255, 0), I

= (0, 255, 0), I

= (0, 0, 255). Then we

need to map the segments into the feature space,

which is a two dimensional space in this case as there

are two images. By applying Equation 1, the coordi-

nates of the segments are as follows:

: [1, 0];

: [1, 1];

: [0, 1];

(5)

In addition, the labels can also be mapped into the

feature space to give:

RED : [1, 0];

GREEN : [1, 1];

BLUE : [0, 1];

(6)

It can now be seen that in the feature space, the closest

labels for the segments are:

: RED;

: GREEN;

: BLUE;

(7)

3 RESULTS AND DISCUSSION

The method has been applied to the Washington im-

age set

which contains 697 semantically annotated

images. After the original keyword labels were pro-

cessed by correcting mistakes and merging plurals

into singular forms (Hare and Lewis, 2005), the vo-

cabulary consisted of 170 keywords. The whole set

of SIFT descriptors are quantized into 3000 visual

words. The number of segments is set to 5 per image

when using Normalized Cuts (Shi and Malik, 2000).

This results in 3241 segments after removing those

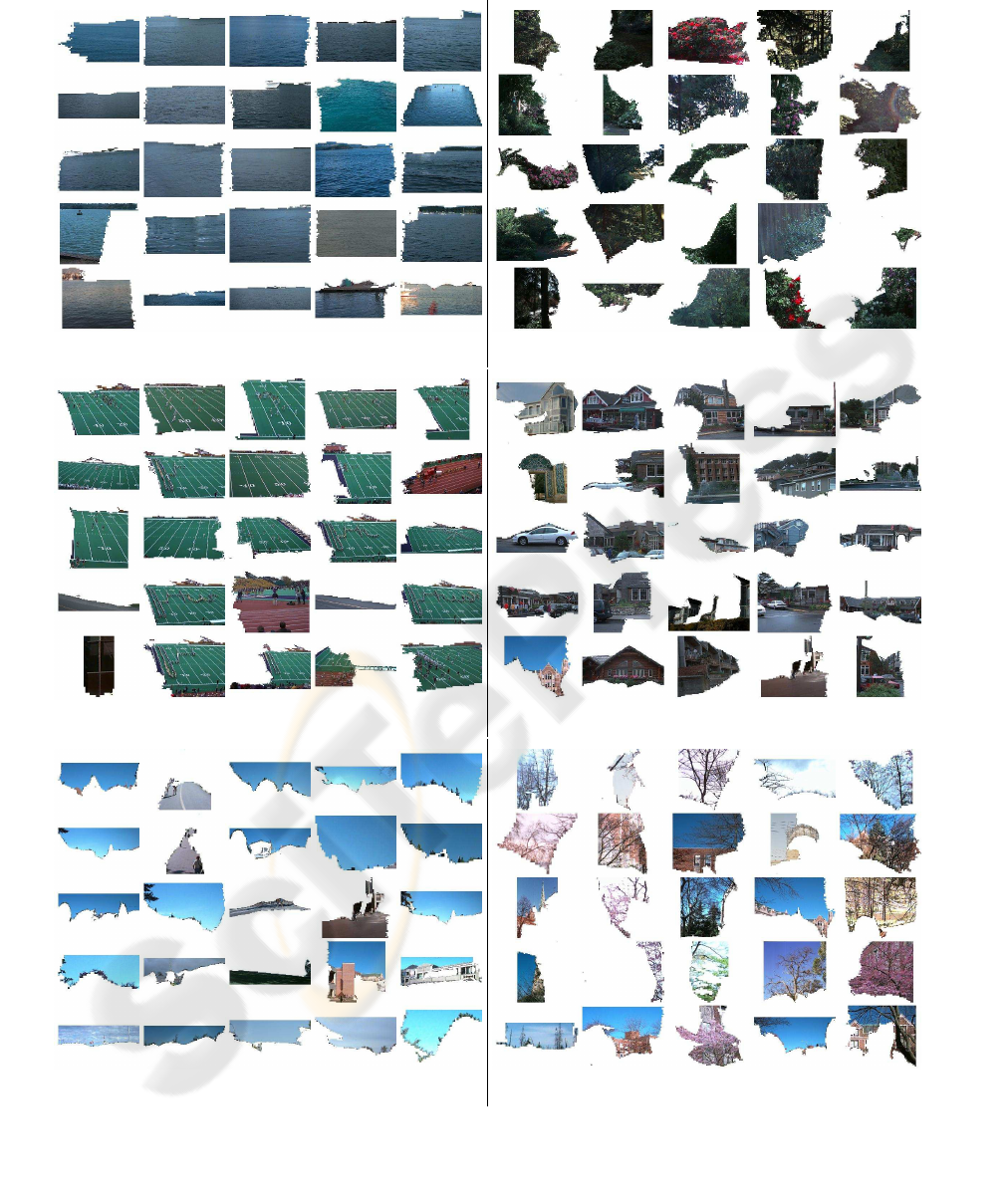

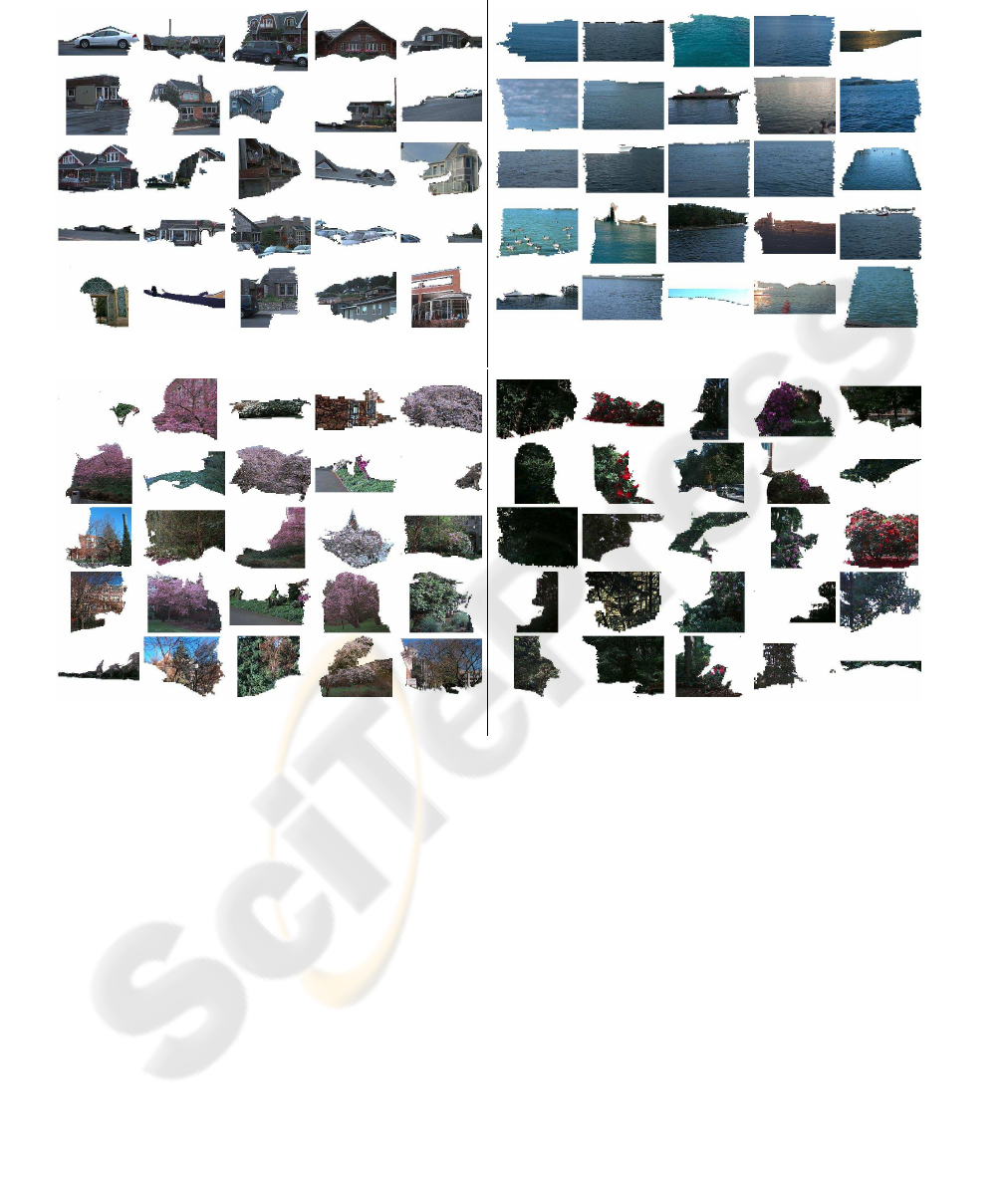

having no salient regions within them. For each key-

word, we ﬁnd in the feature space the 25 closest seg-

ments. The number of correct segments for each key-

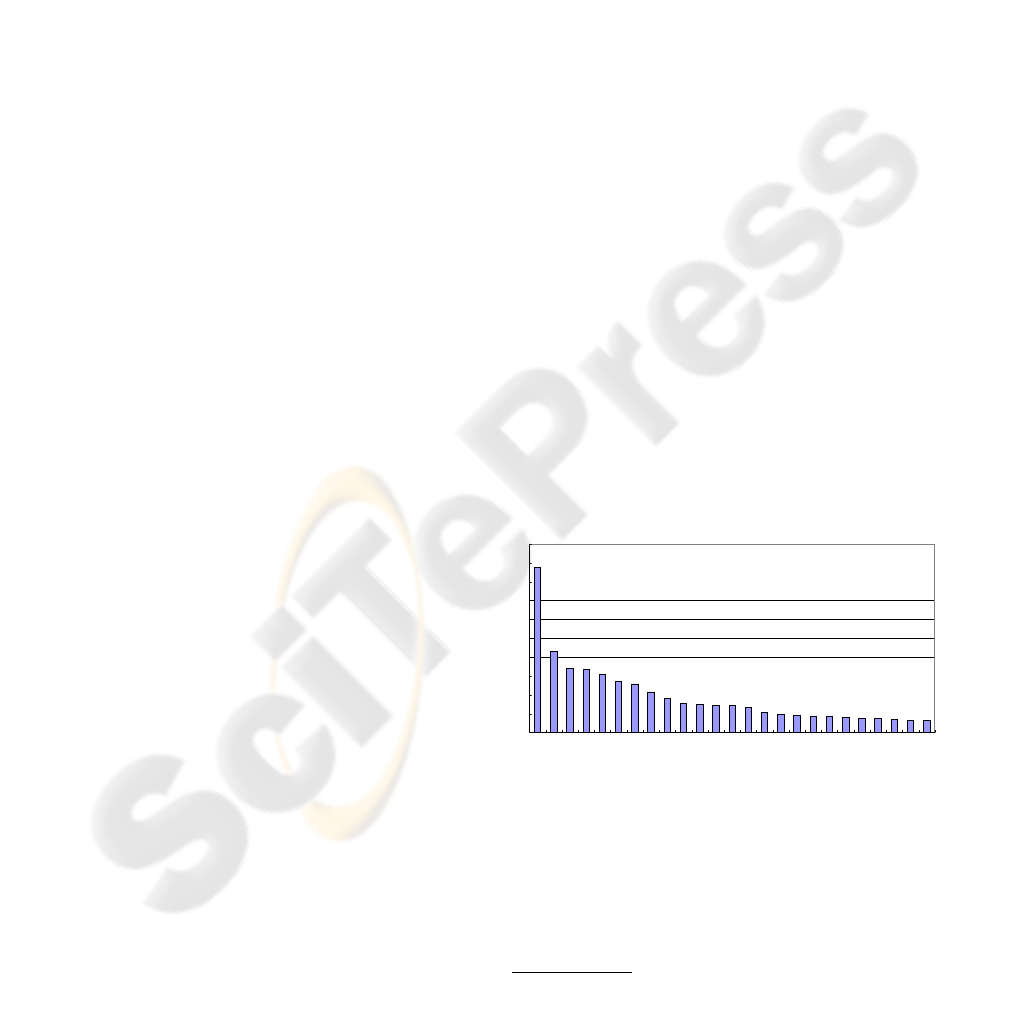

word is counted manually and those for the 25 key-

words (Figure 1) with the highest occurrences in the

data-set are reported in Table 1. Because of the fact

that the original labels are only attached to the whole

image, the decision of whether a segment is correct or

not is made by human judgement. We consider a seg-

ment being correct if the corresponding object occu-

pies more than 50 percent of the area of the segment,

otherwise not. Figure 3 shows some good examples,

and Figure 4 shows some bad ones.

100

150

200

250

300

350

400

450

500

Tree

lding

ple

Clea

Water

Clou

y Sky

Flowe

Side

Clou

y Sk

Hil

Mou

Stad

all

Trac

Stan

ess

Tree

Occurrence

Words

Figure 1: Top 25 Words that appear most frequently in the

Washington set.

As shown in Table 1, the results for some key-

words are reasonably good, however, for the others

they are less so. There are several possible explana-

tions.

Available at: http://www.cs.washington.edu/research/

imagedatabase/groundtruth/

1. First of all, some objects are too small in the im-

age to be segmented out reliably by a 5 region N-

cut. For example, “Sidewalk”, “Car” and “Boat”

usually occupy small areas of the image in the

Washington set and rarely achieve good segmen-

tations. Therefore, the algorithm returns the ob-

jects that have a high co-occurrence with these

words. For “Sidewalk”, image segments with

“Trees” are found; For “Car” and “Boat”, seg-

ments with “Building” and “Water” are found re-

spectively, as shown in Figure 4.

2. Secondly, some words occur together almost ev-

ery time they occur and rarely occur separately.

This is analogous to an extreme example where a

child who has never learnt what a knife and fork

look like, is given many images in which both

knife and fork appear together, even if he/she is

told that all the images contains a knife and fork,

there is no way for the child to learn which is

which. In the Washington set, “Football Field”,

“Track” and “Stand” co-occur almost totally. As

shown in Figure 2, for each cell, the number on

the dashed line indicates the number of times two

words appear together (in the same image), and

the other two numbers indicate their occurrence

alone without the other. For example, “Track”

and “Football Field” occur 36 times together, but

only 1 and 7 times respectively on their own. Be-

cause of high co-occurrence, the algorithm failed

to distinguish them from each other. Almost the

same results are returned for them, mostly “Foot-

ball Field” as shown in Figure 3(c), which is prob-

ably because the feature descriptors for “Football

Field” are more stable.

3. Lastly, insufﬁcient feature descriptors. Since the

SIFT descriptor is using only grey level infor-

mation, objects that are mainly distinguished by

colour will be hard to identify. For example,

in this work, the segments returned for “Flower”

contain a lot of “Tree” labels (Figure 4(d)), prob-

ably because in the data-set, the SIFT feature de-

scriptors for both “Flower” and “Tree” are similar

and also often co-occur as well.

4 CONCLUSIONS AND FUTURE

WORK

A novel image based feature space has been proposed

together with a procedure for mapping in both im-

age segments and textual labels. Some segments as-

sociated with the same objects should be clustered

together, and also close to the label that represents

Table 1: The number of correct segments out of the top 25

for our method and random choice.

Keywords Our Method Random

Tree 21 3

Building 22 0

People 21 1

Bush 25 3

Grass 6 1

Clear Sky 19 0

Water 25 2

Sky 19 3

Cloudy Sky 21 3

Flower 8 2

Sidewalk 2 0

Rock 6 2

Ground 6 3

Overcast Sky 0 3

Partially Cloudy Sky 20 4

Hill 0 2

Mountain 5 1

Stadium 22 0

Football Field 20 1

Car 7 1

Track 2 0

Pole 1 0

Stand 0 1

Leaﬂess Tree 24 1

Boat 0 0

Track Stand

Football

Field

Track

Stand

Football

Field

Figure 2: The number of times words “Track”, “Stand” and

“Football Field” occur together and separately.

the object in question. As a result, the relation-

ships between image regions and words can be dis-

covered by comparing their distances in the feature

space. Annotating new image segments and images

is also straightforward by mapping them into the al-

ready built space and ﬁnding the closest labels.

One current disadvantage of the approach is that

the feature space has as many dimensions as anno-

tated images in the set used to build the space. Ways

in which the dimensionality of the space can be re-

duced without losing the association between seg-

ments, labels and images is being explored.

In future work, we also plan to investigate the ef-

fect of changes in the visual word extraction process

and the use of richer feature descriptors than the SIFT.

The approach will be tested on other image data-sets

(a) Water (b) Bush

(e) Clear Sky (f) Leaﬂess Tree

Figure 3: Some good results.

(a) Car (b) Boat

Figure 4: Some bad results.

for comparison. Since the segmentation is particu-

larly important in this approach, different approaches

to segmentation will be evaluated, including in par-

ticular, the multiple segmentation idea proposed by

(Russell et al., 2006).

REFERENCES

Bi, J., Chen, Y., and Wang, J. Z. (2005). A sparse support

vector machine approach to region-based image cat-

egorization. In CVPR ’05: Proceedings of the 2005

IEEE Computer Society Conference on Computer Vi-

sion and Pattern Recognition (CVPR’05) - Volume

1, pages 1121–1128, Washington, DC, USA. IEEE

Computer Society.

Duygulu, P., Barnard, K., de Freitas, J., and Forsyth., D.

(2002). Object recognition as machine translation:

Learning a lexicon for a ﬁxed image vocabulary. In

The Seventh European Conference on Computer Vi-

sion, pages IV:97–112, Copenhagen, Denmark.

Hare, J. S. and Lewis, P. H. (2005). Saliency-based mod-

els of image content and their application to auto-

annotation by semantic propagation. In Proceedings

of Multimedia and the Semantic Web / European Se-

mantic Web Conference 2005.

Lowe, D. G. (2004). Distinctive image features from scale-

invariant keypoints. Int. J. Comput. Vision, 60(2):91–

110.

Maron, O. and Lozano-P

erez, T. (1998). A framework for

multiple-instance learning. In Jordan, M. I., Kearns,

M. J., and Solla, S. A., editors, Advances in Neural

Information Processing Systems, volume 10. The MIT

Press.

Russell, B. C., Efros, A. A., Sivic, J., Freeman, W. T., and

Zisserman, A. (2006). Using multiple segmentations

to discover objects and their extent in image collec-

tions. In Proceedings of CVPR.

Shi, J. and Malik, J. (2000). Normalized cuts and image

segmentation. IEEE Transactions on Pattern Analysis

and Machine Intelligence (PAMI).

Tang, J., Hare, J. S., and Lewis, P. H. (2006). Image auto-

annotation using a statistical model with salient re-

gions. In IEEE International Conference on Multi-

media & Expo (ICME).

Yang, C., Dong, M., and Fotouhi, F. (2005). Region based

image annotation through multiple-instance learning.

In MULTIMEDIA ’05: Proceedings of the 13th an-

nual ACM international conference on Multimedia,

pages 435–438, New York, NY, USA. ACM Press.
