GAP FILLING IN 3D VESSEL LIKE PATTERNS WITH TENSOR

FIELDS

Application to High Resolution Computed Tomography Images of Vessel Networks

Laurent Risser, Franck Plourabou

IMFT, Universit

e Paul Sabatier, av. du Pr. Camille Soula, 31400 Toulouse, France

Xavier Descombes

INRIA, 2004 route des Lucioles, BP93, 06902, Sophia Antipolis Cedex, France

Keywords:

Network, vessel extraction, skeleton, tensor voting, gap ﬁlling.

Abstract:

We present an algorithm for merging discontinuities in three-dimensional (3D) images of tubular structures.

The application of the proposed method is associated with large 3D images presenting undesirable discontinu-

ities. In order to recover the real network topology, we need to ﬁll the gap between the closest discontinuous

tubular segments. We present a new algorithm to achieve this goal based on a tensor voting method. This

algorithm is robust, relatively fast and does not require numerous parameters nor manual intervention. Repre-

sentative results are illustrated on real 3D micro-vascular networks.

1 INTRODUCTION

The extraction of vascular networks is an important

problem in numerous medically oriented image anal-

ysis tasks. In this context many methods for extract-

ing vessel networks from noisy images have been de-

veloped (Lorigo et al., 2001; Krissian et al., 2000;

Zana and Klein, 2001; McInerney and Terzopoulos,

1996). One important issue concerning these extrac-

tion techniques is that they may cause the boundaries

of a structure to be indistinct and disconnected. In

an attempt to solve the problem some authors have

proposed speciﬁc methods associated with the need

for topological preservation in the extraction of vas-

cular networks (Quek and Kirbas, 2001). Neverthe-

less, despite the large number of vessel segmentation

methods put forward, the issue of gap ﬁlling has not

been addressed much in the context of 3-D medical

imaging. To the best of our knowledge only one gap

ﬁlling algorithm for vascular networks has been de-

veloped (Szymczak et al., 2005). Discontinuities in

the network limit the topological analysis, a drawback

which is becoming important in an increasing number

of medical applications (Bullitt and Aylward, 2005).

There is indeed a growing demand for better analysis

of micro-vascular structures (Popel et al., 1999). Im-

proving vessel connectivity in those networks is thus

a key issue, and it is the goal of the present paper.

2 PRIOR WORK ON GAP

FILLING IN TUBULAR

STRUCTURES

In order to generalize the context of 3D vascular net-

works, we will consider it as a network of tubular

structures. In the following, the term segment refers

to a part of this network. A segment may be deﬁned

between two bifurcations, between one bifurcation

and one extremity of the tubular structure or between

two extremities of the tubular structure (ﬁg.2).

Although the problem of gap ﬁlling in tubular

structures has not been widely addressed in 3D, it has

been the object of much attention in 2D. For example,

in the ﬁeld of remote sensing, the extraction of road

networks requires gap ﬁlling. Blockages, crossroads,

shadows and variations of the background or road in-

tensity may cause gaps in the road network. In this

context an algorithm of road extraction improvement

by using higher-order active contours is proposed in

(Rochery et al., 2004). In (Tesser and Pavlidis, 2000),

road network mid-lines are ﬁrst extracted. The mid-

line endpoints are thus easily detected. They become

the seeds of the gap ﬁlling algorithm. In (Lacoste

et al., 2005), a global optimization solution with sim-

ulated annealing for gap ﬁlling in line networks is ap-

plied. The cost function depends on the conﬁguration

Risser L., Plouraboué F. and Descombes X. (2007).

GAP FILLING IN 3D VESSEL LIKE PATTERNS WITH TENSOR FIELDS - Application to High Resolution Computed Tomography Images of Vessel

Networks.

In Proceedings of the Second International Conference on Computer Vision Theory and Applications - IFP/IA, pages 46-52

 SciTePress

of the overall line endpoint pairs.

Perceptual organization techniques (Marr, 1982)

are especially interesting for the problem of gap ﬁll-

ing in vessel like patterns. Those techniques aim at

grouping the primitives contained in a data set into

perceptual structures. Those primitives are usually

called tokens. For example, in (Parent and Zucker,

1989) a reliability measure on whether two isolated

segment ends seem to be on the same arc of a cir-

cle is given. Experiments have been carried out on

biomedical images in order to merge vessel pieces.

In (Saund, 1992) gaps between tokens are ﬁlled with

a ﬁne to coarse process. In (Heitger and Von der

Heydt, 1993), several features are distinguished in

shape boundaries. They are thus merged locally with-

out feedback. A rich expansion of perceptual organi-

zation techniques is tensor voting (Guy and Medioni,

1997). This technique was initially developed in order

to reconstruct shapes from point clouds. It allows the

simultaneous communication among various types of

tokens. Moreover the information exchange between

tokens uses tensor ﬁelds rather than scalar ones as

in other methods. The communication is thus much

richer. The initial algorithm has numerous evolutions

and adaptations. For example a multi-scale algorithm

for boundary inference is presented in (Tong et al.,

2004). In (Massad et al., 2002) a tensor ﬁeld is built

using Gabor ﬁlters on a gray level image. The tensor

ﬁeld is thus used to ﬁll gaps between segments. In (Jia

and Tang, 2003), tensor voting is applied to curve end-

points in order to extrapolate and merge them. There-

fore, tensor voting provides an interesting formalism

for gap closure procedures in vessel networks.

3 MEHOD

3.1 Method Overview

In the present paper, we distinguish three typical

cases of discontinuities: (1) A vessel is simply

disconnected (ﬁg.1 (a)); (2) A vessel is disconnected.

The vessel is however detected at several voxels

within the gap (ﬁg.1 (b)); (3) A vessel is discon-

nected just close to a bifurcation (ﬁg.1 (c)). Most

of the current methods presented in section 2 which

could be applicable to 3D vascular network images

could only ﬁll the ﬁrst type of discontinuities. Our

method permits to treat efﬁciently the three cases of

discontinuities deﬁned.

The initial data are the vascular network skeleton.

The following notations will be taken: a skeleton

point is an element. Each element contains the

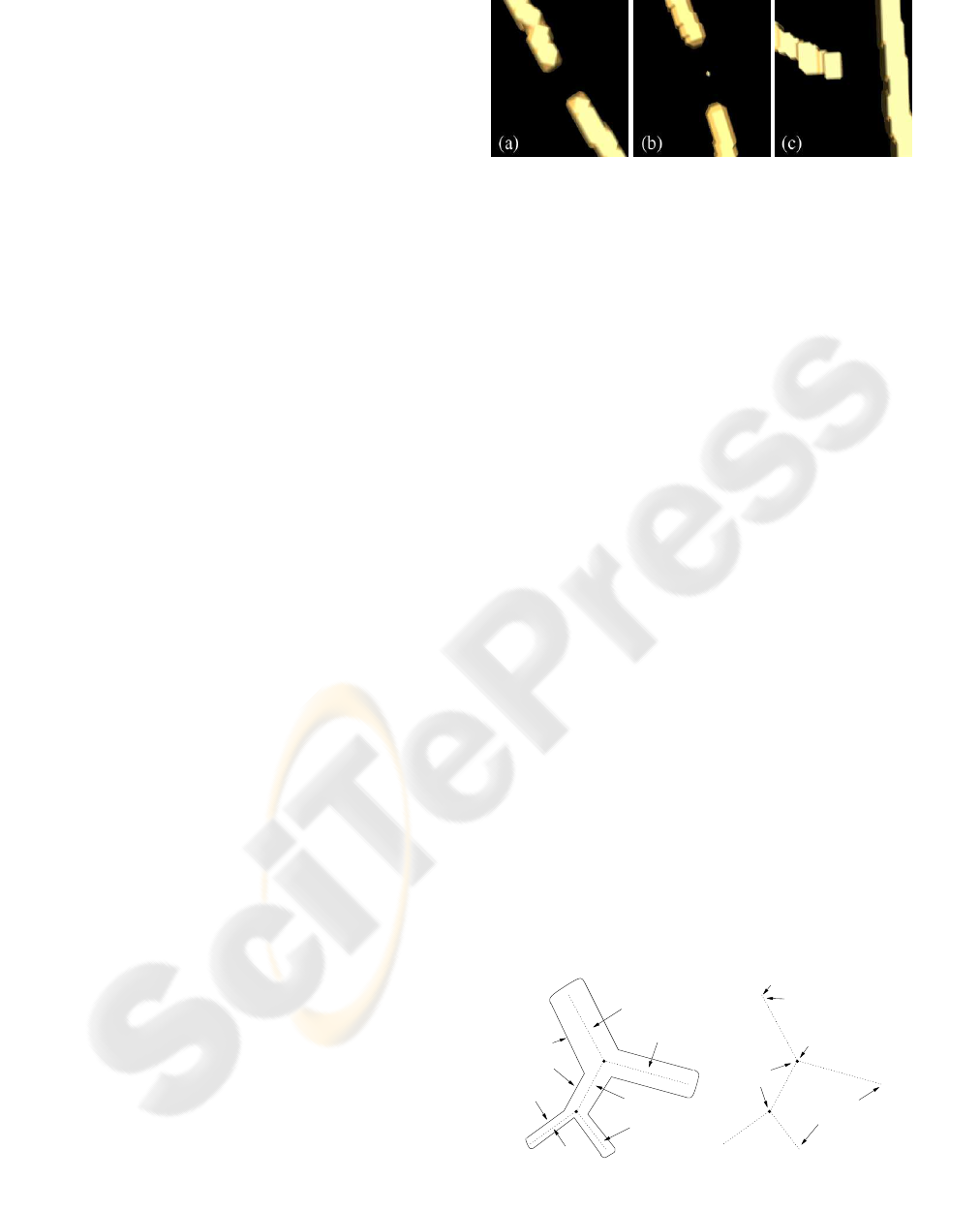

Figure 1: (a) A simple gap. (b) Information remaining

within a gap. (c) Information lacks just after a bifurcation.

coordinates and the radius of the local section of the

shape. For each segment the elements are ordered as

a chain. Each chain is a S-segment (ﬁg.2).

Two ﬁelds are required for the gap ﬁlling algo-

rithm: a tensor ﬁeld T and a scalar ﬁeld A. Each ten-

sor is represented by a 3×3 matrix. Each ﬁeld can be

seen as a 3-D image of tensors for T and of scalars for

A. Both T and A size is [I,J,K]. This size has to be

large enough to contain the whole network. Indeed,

in order to describe the disconnected network, three

kinds of tokens will be extracted from the skeleton.

Those token will express themselves in T and A.

3.2 Tokens Description

Let α be the threshold number of elements which dif-

ferentiates a usual segment from an island. An island

is a segment which is so small that its directional as-

pect is not signiﬁcant. We take α = 5. In order to de-

ﬁne the tokens, we will distinguish three kinds of seg-

ments: 0-segments are not connected to any other seg-

ment. 1-segments have just one end connected to an

other segment. 2-segments have their two ends con-

nected. The tokens are then deﬁned as follows (ﬁg.3):

• Segment-end token: A non connected segment

end. The segment size is larger than α. A site

and a direction certainty are associated with each

segment end token.

• Island token: A 0-segment whose size is smaller

S−segment 1

S−segment 2

S−segment 3

S−segment 4

Isolated

endpoints

Element 1 (S−segment 1)

Element 2 (S−segment 1)

Node

S−segment 5

Segment 1

Segment 3

Segment 5

segment

endpoints

Element I (S−segment 1)

Figure 2: Notations used for the skeleton description. Ele-

ment I

designates the last element in the S-segment 1.

or equal to α. A site is associated with each island

token.

• Segment token: A 0-segment of size larger than

α or a 1-segment or a 2-segment. The elements

close to the ends are not taken into account be-

cause they correspond to segment end tokens.

Each element of the segment token is associated

with a site, a radius and a direction uncertainty

around the segment tangent. The radius expresses

the volume of each element.

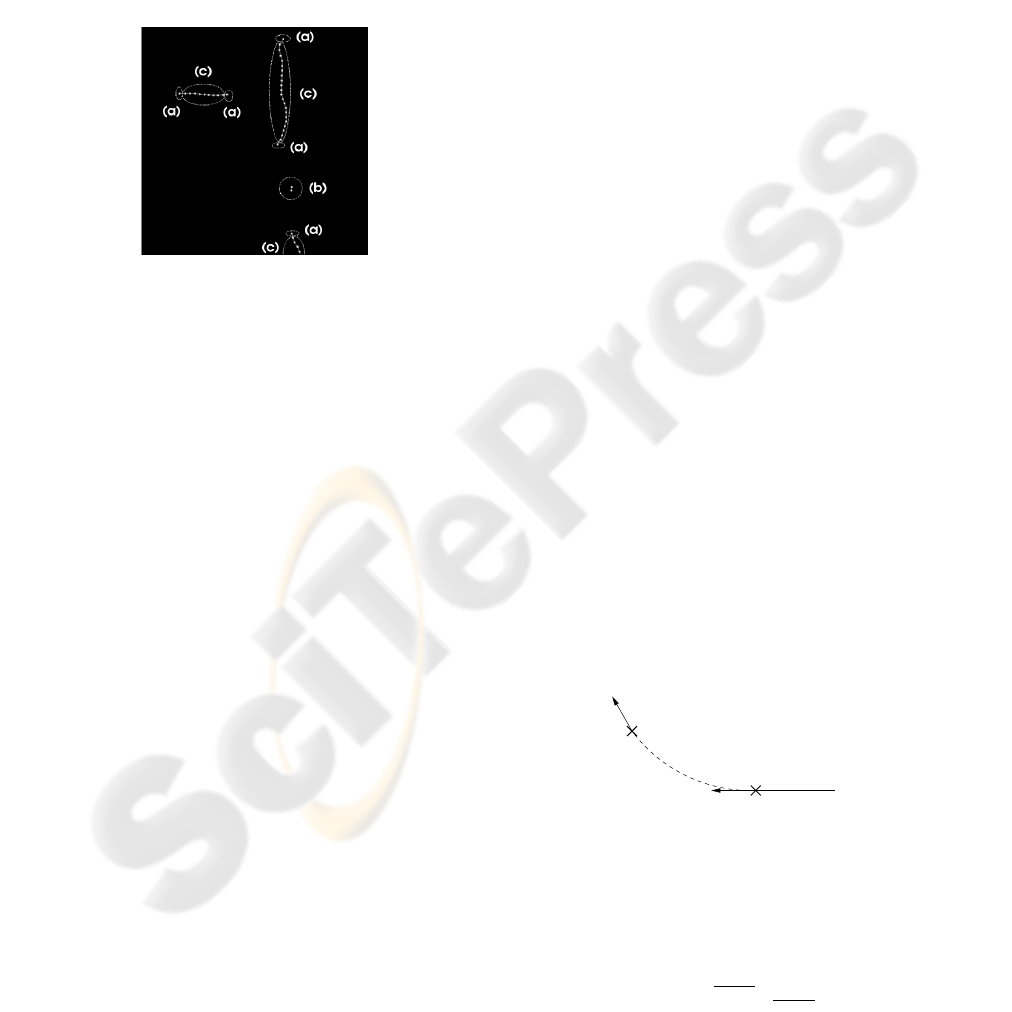

Figure 3: The three types of tokens: (a) Segment-end to-

kens; (b) Island Token; (c) Segment tokens.

3.3 Scalar Field Construction

The tokens express their coordinates in the scalar ﬁeld

A. Each class of token expresses itself in its own par-

ticular way.

An identiﬁer is associated with the end of each S-

segment. This identiﬁer is written in A at the coordi-

nates corresponding to the segment end. The coordi-

nates of A are integers whereas those of the segment

ends are ﬂoats. The exact coordinates are thus ap-

proximated in A. If two or more segment ends express

their coordinates in the same pixel of A the segment

ends are supposed to make up a node of the network.

This pixel is then set to zero. If one and only one

voxel express himself at a pixel of A the identiﬁer is

kept and the segment end is a segment-end token.

As for the segment-ends, each island has an iden-

tiﬁer. This identiﬁer is written in A at the coordinates

of the island’s center. An island token is thus consid-

ered for each island.

The segments are also expressed in A using iden-

tiﬁers. Each element of the corresponding S-segment

puts the segment identiﬁer in a sphere. This sphere is

centered in the element coordinates and its radius is

the embedded element’s radius. If the element sam-

pling is not dense enough to form an unbroken curve

in A, the points are interpolated.

3.4 Tensor Field Construction

The tokens as a whole express their direction certainty

in T (ﬁg.5 (d)). Let us break T into several tensor

ﬁelds each expressing a token directional aspect. Let

, n ∈ [1,N] be the tensor ﬁeld created by the n

segment-end token, TI

, m ∈ [1,M] the tensor ﬁeld

created by the m

island token and TS

, q ∈ [1,Q] the

tensor ﬁeld created by the q

segment token. Thus,

for each point [i, j,k] of T :

T(i, j,k) =

∑

n=1

(i, j,k)

∑

m=1

(i, j,k) +

∑

q=1

(i, j,k)

(1)

This formula represents the communication be-

tween tokens. The construction and expression of

each token is slightly different than those proposed

in (Tong et al., 2004) or (Guy and Medioni, 1997).

In those papers, the tensor ﬁelds express a direction

uncertainty but, due to the expression we use for the

tokens, a direction certainty is more natural. Our ten-

sor ﬁelds thus embed a direction certainty. Let us now

describe the construction of each tensor ﬁeld.

3.4.1 Segment-End Token

We assume a point P close to the segment end O. The

tangent to the segment in O is V. First, V and OP are

chosen as normalized unit vectors (||V|| = ||OP|| =

1). Let W be such that:

W = 2OP(OP.V) − V (2)

The vector W is the oriented tangent at P to

the circle Ci which contains O and P and which is

tangent at O to V.

Figure 4: Arc of circle used for the construction of the ten-

sor ﬁeld which express a segment-end token direction cer-

tainty.

The vector W is weighted as follows:

∗

= e

−



+cϕ



||W||

(3)

Where r is the length of the arc

OP of the circle

Ci and ϕ its curvature. The coefﬁcient σ is the scale

of the analysis and c the inﬂuence ratio between the

proximity and the curvature. The tensor TE is then

deﬁned from w

∗

as TE = w

∗

⊗ w

∗

, where ⊗ is the

tensor product. At P, the tensor TE then corresponds

to the vote of the segment end token located at O (ﬁg.5

(a)).

3.4.2 Island Token

Let C be the center point of the segment representing

an island token and P a point close to C. The vector

CP is then weighted as for the segment-end token ex-

cept that the length of the arc of the circle is replaced

by the distance between C and P and that the curva-

ture is no longer used :

∗

= e

−



||CP||



||CP||

(4)

The tensor TI is then deﬁned from vector cp

∗

TI = cp

∗

⊗ cp

∗

. At P, the tensor TI corresponds to

the vote of the island token located at C (ﬁg.5 (b)).

3.4.3 Segment Token

In order to build the tensor voting ﬁeld of a segment

token we ﬁrst create a vector ﬁeld. Let V(P) be the

vector of the ﬁeld at the point P. This vector aims at

the nearest element of the segment token N. Its norm

is ||NP|| − Rad(P) where Rad(P) is the radius of the

skeleton at the element expressed in P. If ||NP|| >

Rad(P) the norm is null. The segment token is thus

weighted:

∗

= e

−



(||V(P)||−A(P))



V(P)

||V(P)||

(5)

The tensor TS is then deﬁned from vector np

∗

: TS =

∗

⊗ np

∗

. At P, the tensor TS corresponds to the

vote of the segment token at the nearest point to N of

its skeleton (ﬁg.5 (c)).

3.5 Tokens Junction

As already proposed in (Tong et al., 2004) or (Guy

and Medioni, 1997) we compute the saliency map S

to a curve by using the tensor voting ﬁeld T (ﬁg.6).

Each point of this map contains a scalar value which

measures the saliency of the tensor voting ﬁeld to a

curve. Let λ

(i, j,k), λ

(i, j,k) and λ

(i, j,k) be the

eigenvalues of the tensor T(i, j,k) with |λ

(i, j,k)| >

|λ

(i, j,k)| > |λ

(i, j,k)|. Since our choice on the ten-

sor construction differs from those of (Tong et al.,

Figure 5: Expression of the direction certainty energy E of

the tokens with E = (

∑

i=1

∑

j=1

i, j

)

1/2

. (a) Segment-end

token energy E(TP). (b) Island token energy E(TI). (c)

Segment token energy E(TS). (d) Total energy E(T).

2004; Guy and Medioni, 1997) we self-consistently

deﬁne the saliency to a curve at the point [i, j, k] as

S(i, j,k) = λ

(i, j,k) −λ

(i, j,k) (6)

The tokens are merged with paths following iter-

atively the watersheds of the saliency map S. Each

segment end token is the seed of a path. Let P

be a

point of the path and D

the direction associated to P

The point P

i+1

is estimated as follow:

i+1

= argmax S(p)



p ∈ N

3×3×3

)

> 0

(7)

The direction D

i+1

is thus: D

i+1

= P

i+1

. The

path is stopped according to four criteria: (1) The

path leads to another segment end token. The two

segments are then joined by the path (ﬁg.6 (a)). (2)

The path conducts to a segment token. The segment

is divided at the nearest element token to the junction

point. The segment end token join the segment token

at this point (ﬁg.6 (b)). (3) The path leads to an is-

land token. The segment end token is then joined to

the island token by the path (ﬁg.6 (c)). The island to-

ken and its contribution in the tensor voting ﬁeld are

deleted. The expression of the newly created segment

end token is added to the tensor voting ﬁeld. An other

watersheds path starts thus from the end of the new

segment in order to try another junction (ﬁg.6 (d)).

(4) The path is stopped if the value of the saliency

map is lower than a given threshold or if it reaches

the boundary of the image.

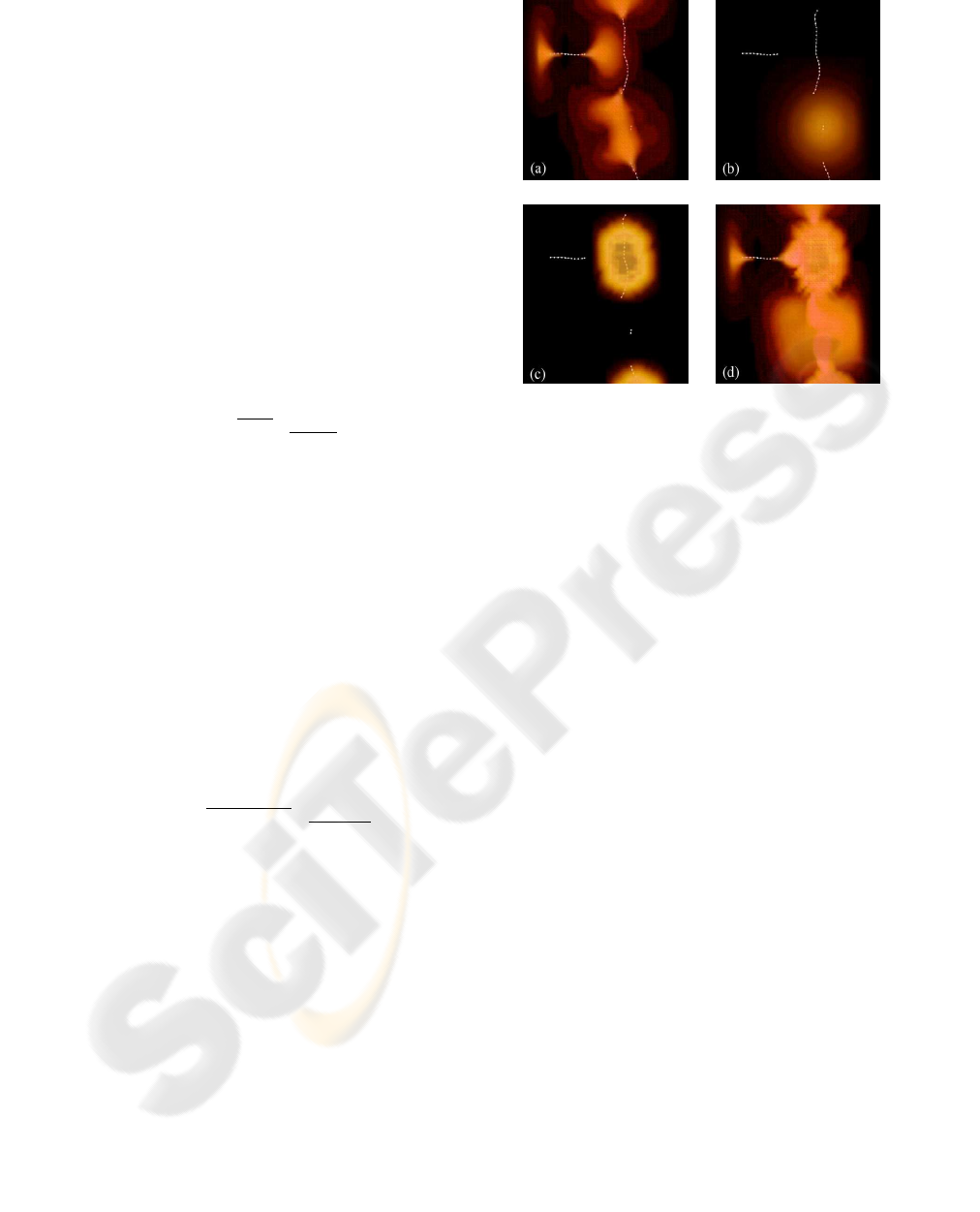

Figure 6: Different cases of path. The voltex represents the

saliency map. (a) Segment end token to segment end token.

(b) Segment end token to segment token. (c) Segment end

token to island token (part 1). (d) Segment end token to

island token (part 2).

The radii of the segments created depends on the

radii in the segment-end token. They are linearly

interpolated if the junction is drawn between two

segment-end tokens and are equal to the radius at the

segment-end in the two other cases. At each itera-

tion, the junction test between the path and a token

is computed by using the scalar ﬁeld. When a path

joins a token identiﬁer, the token is thus immediately

recognized. The token junction algorithm avoid thus

the comparison of token pairs. The whole algorithm

is then of order O(E) with E the number of segment

end tokens. It is thus especially adapted to large net-

works.

4 APPLICATION

The gap ﬁlling treatment was tested both on real intra-

cortical micro-vascular networks (ﬁg.7) and on phan-

tom networks (ﬁg. 8 and 9). The images of real net-

work were obtained using synchrotron tomography

imaging at the European Synchrotron Radiation Fa-

cility (Plourabou

e et al., 2004). They contain from

5000 to 50000 segments. The resolution is about one

micron, so that one can obtain a 3D image of the en-

tire vascular network on volumes as large as 8mm

The image contrast between the vessels and the sur-

rounding tissues is very good. The image binarization

with hysteresis thresholding followed by skeletoniza-

tion leads thus to a very satisfactory result. However,

the observed vascular network contains some discon-

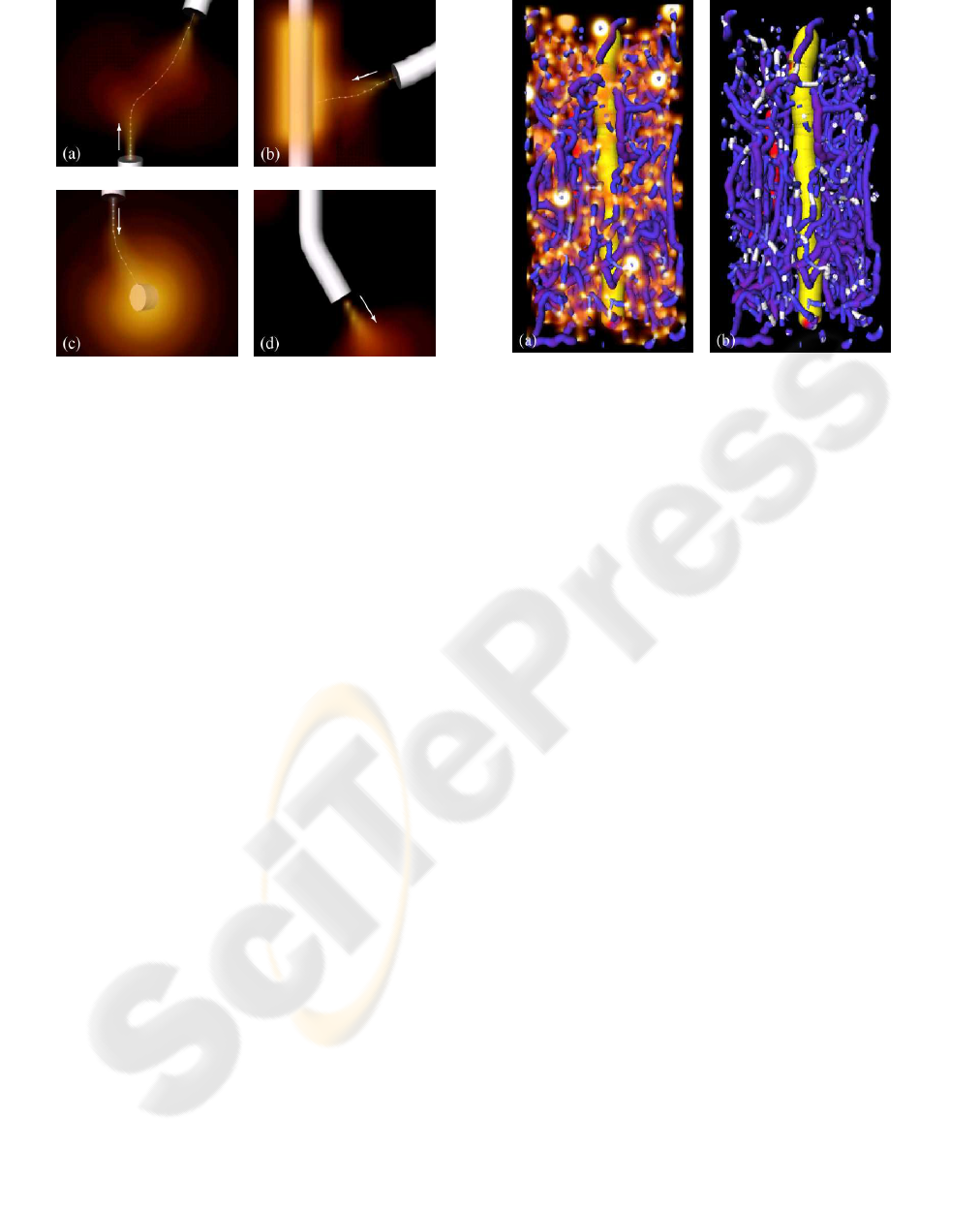

Figure 7: Treatment of the sample of a real network. The

sample contains 822 segments. Calculations require 499

seconds and 689 Mo. (a) Skeleton and saliency map. The

voltex represents the saliency map. (b) Filled skeleton.

Filled gaps are in white.

tinuities. The gap ﬁlling algorithm is then applied to

those networks. The evaluation of the algorithm efﬁ-

ciency is tough on a real 3D network mainly because

the rigorous estimation of the number of gaps to ﬁll is

complicated. The thorough visualization of the gaps

ﬁlled requires also a large amount of time because of

the 3D. The gap ﬁlling algorithm is therefore roughly

estimated visually (ﬁg.7). The results look perceptu-

ally good. Almost all the gaps seem ﬁlled when the

scale and curvature parameters are adapted to the net-

work. All calculations were carried out on a Linux

PC with an intel Xeon 2,13 GHz processor and 4 Go

of RAM. The comments of the ﬁgure 7 give an idea

of the time and the memory required.

In order to measure quantitatively the gap ﬁlling

algorithm, clean 2D phantom networks were created.

They were extracted from real intra-cortical networks.

These samples were thin and especially clean. They

were then projected onto a plan. The crossings be-

tween segments due to the projection were erased.

Then the networks were repaired so that our gap ﬁll-

ing algorithm did not improve them any more. Those

networks became the reference networks. Damaged

networks were obtained using the reference networks.

Their deterioration was controlled. It was then possi-

ble to measure the efﬁciency of the damaged network

reconstruction. The deterioration is processed in the

following way. A given proportion of points of the

network were the centers of gaps. The size of each

of these gaps followed a Gaussian law. Once the net-

work had been disconnected, noise was added to the

background. A given density of island tokens was ho-

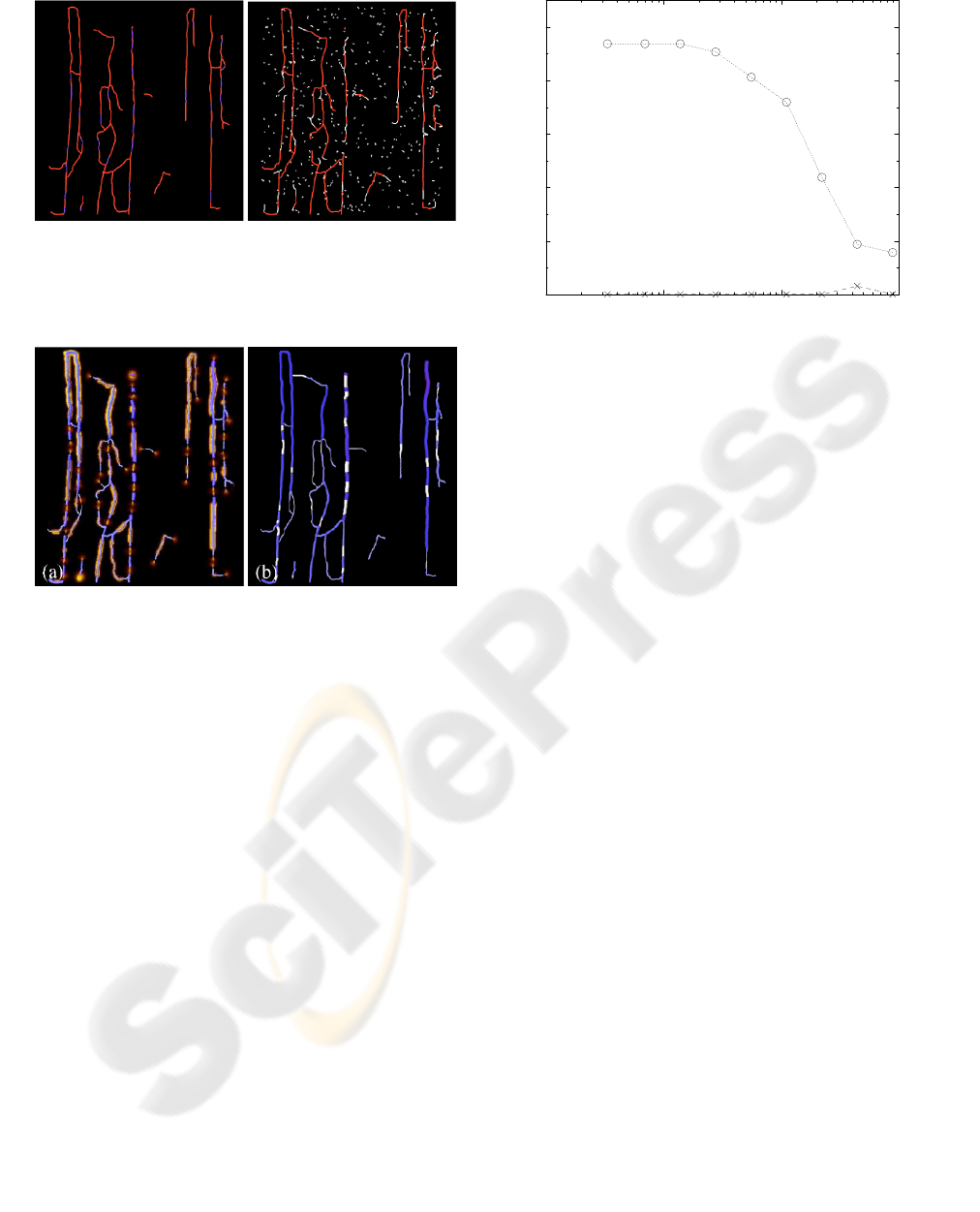

Figure 8: (left) A reference network. The parts removed

from the network are blue. (right) A reconstructed damaged

network with 198.10

−6

islands per voxel (A thickness of 20

voxels is considered).

Figure 9: Treatment of a phantom network. The network

contains 71 segments. Calculations require 42 seconds and

71 Mo.(a) Skeleton and saliency map. The voltex represents

the saliency map. (b) Filled skeleton. Filled gaps are in

white.

mogeneously distributed around the disconnected net-

work. Figures 8 and 9 illustrate the deterioration and

reconstruction of a reference network.

The inﬂuence of noise on our gap ﬁlling al-

gorithm will now be evaluated. Several densities

of noise island tokens and a given number of dis-

continuities were injected into the networks. The

noised networks were then treated with the gap

ﬁlling method. Figure 10 represents the algorithm

efﬁciency in function of the noise injected. Both

the proportion of gaps ﬁlled and the number of

fake junctions in the expected number of junctions

versus noise was then evaluated. Fake junctions

are due to two segment-end tokens which join the

same noise island. They are uncommon and only

found on very noisy networks. The number of good

junctions was high and stable for moderately noised

networks. For highly noised networks, the number

of good gaps ﬁlled decreases almost linearly in the

semi-logarithmic representations of ﬁgures indicating

a sensible inﬂuence of the noise ratio. At this stage,

−6

−5

−4

−3

Noise (number of islands injected / voxel)

100

Gaps Filled (percents)

Figure 10: Gap ﬁlling efﬁciency compared to the noise. Cir-

cles: Proportion of good gap closures. Crosses: Number of

false gap closures on the expected number of gap closures.

the gaps that cannot be ﬁlled anymore are mainly

associated with segment-end tokens which are useful

for the network reconstruction and which now join a

noisy island.

5 CONCLUSION

We have proposed a new method for fast and robust

gap ﬁlling in large 3D tubular structurs networks. The

three typical cases of discontinuities highlighted in

the introduction are easily taken into account. The

network is improved by the junction of tokens that

would perceptually be attributed to the same vessel.

The results look perceptually natural. The gap ﬁlling

procedure does not require numerous parameters nor

manual interventions. The whole algorithm is of or-

der O(E) with E the number of segment end tokens. It

is thus especially adapted to large networks. The use

of a tensor ﬁeld requires however a large amount of

memory. Nevertheless, the required memory can be

minimized by the use of a sliding window inside the

image. The proposed method shall prove very useful

in the topology reconstruction of micro-vascular net-

works. It is interesting to note that this method can be

used for post-treating medical images as for example

in angiography or scanners. The formalism can also

be easily generalized to any other dimension, includ-

ing 2D, with a large number of applications.

ACKNOWLEDGEMENTS

The research was supported by ASUPS A03 and

ASUPS A05 of Paul Sabatier University, Toulouse,

France; the French Ministry of Research; the Eu-

ropean Synchrotron Research Facilities (MD99 and

MD26); and the French Foundation for Medical Re-

search (Fondation pour la Recherche M

edicale). The

authors thank Vincent Gratsac for technical support.

REFERENCES

Bullitt, E. and Aylward, S. (2005). Three-dimensional blood

vessel trees: Clinical needs and applications. RSNA

Syllabus on Diagnostic Imaging Physics.

Guy, G. and Medioni, G. (1997). Inference of surfaces,

3d curves, and junctions from sparse, noisy, 3d data.

IEEE PAMI, 26(11):1265–1277.

Heitger, F. and Von der Heydt, R. (1993). A computational

model of neural contour processing: Figure-ground

segregation and illusory contours. In Proc. Int’l Conf.

Computer Vision, pages 32–40.

Jia, J. and Tang, C.-K. (2003). Image repairing: Robust

image synthesis by adaptative Nd tensor voting. In

Proceedings IEEE CVPR.

Krissian, K., Malandain, G., and Ayache, N. (2000). Model-

based detection of tubular structures in 3d images.

Computer Vision and Image Understanding, 80:130–

171.

Lacoste, C., Descombes, X., and Zerubia, J. (2005). Point

processes for unsupervised line network extraction in

remote sensing. IEEE PAMI, 27(10):1568–1579.

Lorigo, L., Faugeras, O., Grimson, W., Keriven, R., Kiki-

nis, R., Nabavi, A., and Westin, C.-F. (2001). Curves:

Curve for vessel segmentation. Medical Image Anal-

ysis, 5:195–206.

Marr, D. (1982). Vision. W.H. Freeman and Company.

Massad, A., Bab

os, M., and Mertsching, B. (2002). Percep-

tual grouping in grey-level images by combination of

gabor ﬁltering and tensor voting. In ICPR02.

McInerney, T. and Terzopoulos, D. (1996). Defomable

models in medical image analysis: a survey. Medical

Image Analysis, 1(2):91–108.

Parent, P. and Zucker, S. (1989). Trace inference, curva-

ture consistency, and curve detection. IEEE PAMI,

11(8):823–839.

Plourabou

e, F., Cloetens, P., Fonta, C., Steyer, A., Lauw-

ers, F., and Marc-Vergnes, J. (2004). High resolution

x-ray imaging of vascular networks. J. Microscopy,

215(2):139–148.

Popel, A., Pries, A., and Slaaf, D. (1999). Developments

in the microcirculation physiome project. Journal of

Vascular Biology, 36:253–255.

Quek, F. and Kirbas, C. (2001). Vessel extraction in medi-

cal images by wave-propagation and traceback. IEEE

Transactions on Medical Imaging, 20(2):117–131.

Rochery, M., Jermyn, I., and Zerubia, J. (2004). Gap closure

in (road) networks using higher-order active contours.

In Proc. IEEE ICIP 2004.

Saund, E. (1992). Labelling of curvilinear structure across

scales by token grouping. In Proc. CVPR, pages 257–

263.

Szymczak, A., Tannenbaum, A., and Mischaikow, K.

(2005). Coronary vessel cores from 3d imagery: a

topological approach. In Proceedings of SPIE - Med-

ical Imaging 2005: Image Processing, volume 5747,

pages 505–513.

Tesser, H. and Pavlidis, T. (2000). Roadﬁnder front end:

An automated road extraction system. In Proc. ICPR,

pages 338–341.

Tong, W., Tang, C., Mordohai, P., and Medioni, G. (2004).

First order augmentation to tensor voting for boundary

inference and multiscale analysis in 3d. IEEE trans-

actions on pattern analysis and machine intelligence,

26(5):594–611.

Zana, Z. and Klein, J. (2001). Segmentation of vessel-like

patterns using mathematical morphology and curva-

ture evaluation. IEEE Transactions on Image Process-

ing, 10(7):1010–1019.
