REAL TIME SMART SURVEILLANCE

USING MOTION ANALYSIS

Marco Leo, P. Spagnolo, T. D’Orazio, P. L. Mazzeo and A. Distante

Institute of Intelligent Systems for Automation

Via Amendola 122/D-I 70126 Bari, Italy

Keywords: Smart surveillance, Motion analysis, Homographic Transformations, Edge Detection.

Abstract: Smart Surveillance is the use of automatic video analysis technologies for surveillance purposes and it is

currently one of the most active research topics in computer vision because of the wide spectrum of

promising applications. In general, the processing framework for smart surveillance consists of a

preliminary and fundamental motion detection step in combination with higher level algorithms that are able

to properly manage motion information. In this paper a reliable motion analysis approach is coupled with

homographic transformations and a contour comparison procedure to achieve the automatic real-time

monitoring of forbidden areas and the detection of abandoned or removed objects. Experimental tests were

performed on real image sequences acquired from the Messapic museum of Egnathia (south of Italy).

1 INTRODUCTION

Smart surveillance is the use of automatic video

analysis technologies in video surveillance

applications. The aim is to develop intelligent visual

equipment to replace the traditional vision-based

surveillance systems where human operators

continuously monitor a set of CCTV screens for

specific event detection. This is not only quite a

tedious activity, but with increased demand for area

coverage, the continuous surveillance quickly

becomes unfeasible due to the information overload

for the human operators.

Current literature proposes different smart

surveillance systems to measure traffic flow,

monitor security-sensitive areas such as banks,

department stores and parking lots, detect pedestrian

congestion in public spaces, compile consumer

demographics in shopping malls, etc. In (Wu &

Huang,1999), (Cedras & Shah,1995),

(Gravila,1999), (Aggarwal & Cai,1999), (Hu, Tan,

Wang & Maybank, 2004) excellent surveys on this

subject can be found .

Nearly every visual surveillance system involves a

preliminary motion analysis step to segment regions

corresponding to moving objects from the rest of an

image (Haritaoglu, Harwood, Davis, 2000),(Wren et

al.,1997),(Remagnino, Shihab, Jones,2004) ,(Dee &

Hogg, 2004),(Collins et al., 2000), (Mittal &

Davis,2003), (Bobick & Davis, 2001).

In this paper a motion analysis approach is coupled

with semantic paradigms to achieve automatic smart

surveillance of a public museum. In particular two

problems are addressed: the monitoring of forbidden

areas and the detection of abandoned or removed

objects. In both cases the system has to

automatically detect the unexpected event and to

send an alarm containing a label of the detected

anomaly (access violation, removed object or

abandoned object).

This work is aimed towards the design of a reliable

and automatic surveillance system to ensure a more

efficient protection of the archaeological heritage of

the considered sites.

The rest of the paper is organized as follows: section

2 details the algorithmic steps of the proposed

methodology; section 3 reports experimental results

and finally computational factors are discussed.

2 OVERVIEW OF THE SYSTEM

The first step of the whole procedure is a complex

preprocessing phase which extracts the binary

shapes (without shadows) on which the following

algorithms have to work (Spagnolo, D'Orazio, Leo,

527

Leo M., Spagnolo P., D’Orazio T., L. Mazzeo P. and Distante A. (2007).

REAL TIME SMART SURVEILLANCE USING MOTION ANALYSIS.

In Proceedings of the Second International Conference on Computer Vision Theory and Applications - IU/MTSV, pages 527-530

 SciTePress

Distante, 2006) ,(Spagnolo, D'Orazio, Leo, Distante,

2005).

The following step is to aggregate pixels belonging

to the same moving object in order to build a higher

logical level entity named region or blob. Detected

regions are the input of a color based probabilistic

tracking procedure. The main aim of the tracking

procedure is to analyze temporally the displacements

of each moving region in order to manage

overlapping or occlusion when the following

decision making procedures could otherwise be

misleading .

The tracking procedure exploits appearance and

probabilistic models, suitably modified in order to

take into account the shape variations and the

possible region of occlusion (Cucchiara, Grana &

Tardini, 2004). Using the procedures outlined each

object is localized in the 2D image plane and is

temporally tracked. Tracking information is the

input to the two procedure dealing with the

automatic recognition of suspicious human

behaviors.

The first procedure deals with the problem of

detection of forbidden area violation.

This procedure consists of two steps: firstly the 3D

localization of moving regions is obtained using an

homographic transformation (Hartley,R., Zisserman,

A., 2003); then object positions on the ground plane

are compared with those labeled as forbidden in the

foregoing calibration procedure. If a match occurs

the algorithm generates an alarm.

The second procedure deals with the problem of

recognition of abandoned and removed objects.

In the literature usually these two issues are not

distinguished, and they are dealt with in a similar

way. So, detecting an abandoned/removed object

becomes a tracking problem, with the aim of

distinguishing moving people from static objects

left/removed by human people (see (Connell, 2004)

and (Spengler & Schiele, 2003) for good reviews).

In this work, instead, the goal is to distinguish

between these two cases: so a classic tracking

problem now becomes a pattern recognition

problem. The reliability of the algorithm is strictly

related to the ability to find/not find correspondences

between patterns extracted in different images.

The approach implemented starts from the

segmented image at each frame. If a blob is

considered as static for a certain period of time (we

have chosen to consider a blob as static if its

position does not change for 5 seconds, but this

value is arbitrary and does not affect the algorithm),

it is passed to the module for removed/abandoned

discrimination. By analyzing the edges, the system is

able to detect the type of static regions as abandoned

object (a static object left by a person) and removed

object (a scene object that is moved). Primarily, an

edge operator is applied to the segmented binary


to find the edges of the detected blob. The

same operator is applied to the current gray level


To detect abandoned or removed objects a matching

procedure of the edge points in the resulting edged

images is introduced. To perform edge detection, we

have used the Susan algorithm (Smith, 1992), which

is very fast and has optimal performances. The

matching procedure physically counts the number of

edge points in the segmented image that have a

correspondent edge point in the corresponding gray

level image. Additionally, a searching procedure

around those points is introduced to avoid mistakes

due to noise or small segmentation flaws. Finally if

the matching measurement

M is greater than a

certain value th

experimentally selected, it means

that the edges of the object extracted from the

segmented image have correspondent edge points in

the current grey level image and it is labeled as an

abandoned object by the automatic system.

Otherwise, if

has a small value, typically less

then a given threshold th

, it means that the edges of

the foreground region do not match with edge points

in the current image, so it is labelled by the

automatic system as an object of the background that

has been removed. For values of

between

these two thresholds the system is not able to decide

on the nature of the object.

3 EXPERIMENTAL RESULTS

The experiments were performed in both the

Messapic Civic Museum of Eganthia.

The museum has many rooms containing important

evidence of the past: the smallest archeological finds

are kept under lock in proper showcases but the

largest ones are exposed without protection. The

areas around the unprotected finds are no-go zones

for visitors and are defined with cord. Only a visual

control can ensure that visitors don’t step over the

cord in order to touch the finds or to see them in

more detail.

The proposed framework was tested to detect

forbidden entry into protected areas of the museum

and to recognize removed and abandoned objects in

the monitored areas.

VISAPP 2007 - International Conference on Computer Vision Theory and Applications

528

In our experiment IEEE 1394 cameras were placed

in the main room of the museum. The acquired

images were sent to a laptop where the algorithms

described in the previous sections were processed.

The room was monitored for about 3 hours (30

frame/sec) during visiting hours: several visitors

came to the room but none went inside the forbidden

areas or touched the archeological finds. In this

experimental phase no false positives were found,

that is the system never gave the alarm in an

improper way.

After closing time some people performed illegal

behaviors in order to validate the capability of the

system to automatically detect them. A set of 29

sequences were recorded collecting 15 forbidden

area violations, 8 abandoned objects, and 6 removed

objects.

Misclassification of human behaviors did not occur

even in non trivial conditions. In particular, during

the experimental phase, different people entered the

scene at the same time and the sunlight shone

through the large window with continuous changes

of illumination conditions. The procedure for

abandoned and removed object recognition did not

fail even considering that texture in the static areas

of the scene was not uniform and, in theory, this

could cause false detections (due to possible edge

matching between the contour of the removed object

in the segmented image and the edge of the texture

in the background).

In figure 1 column on the left shows a frame

extracted while a person steps over the cord into the

forbidden area, column in the middle shows the

relative image containing the moving points detected

before the shadow removing step and finally column

on the right shows the results obtained after shadow

removing. The relative position of the moving

person on the image plane and onto the ground plane

are also reported.

By comparing the position of the moving person on

the ground plane with the boundary lines of the

forbidden area the decision making procedure

detected that in the third and fourth rows the person

is performing an illegal access and sends an alarm.

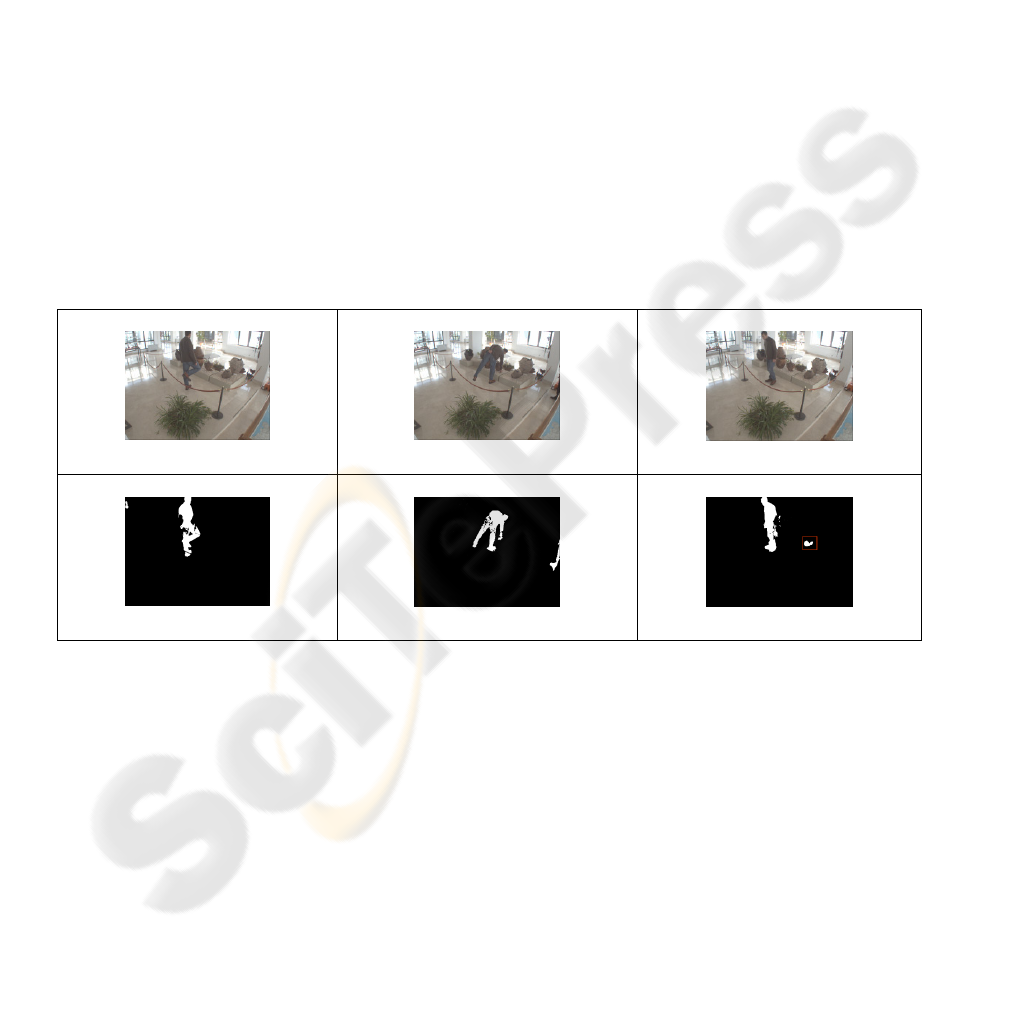

In figure 2 the correct detection of a removed object

is shown; the three images show a person

approaching the finds and stealing a piece of an

ancient vessel. In the second row the processed

images are shown: notice that a red rectangle (red

rectangles indicate removed object whereas blue

rectangles indicate abandoned objects) has been

positioned around the area where the removed object

was.

U=134 v=211

x=1.43 m y=3.90 m

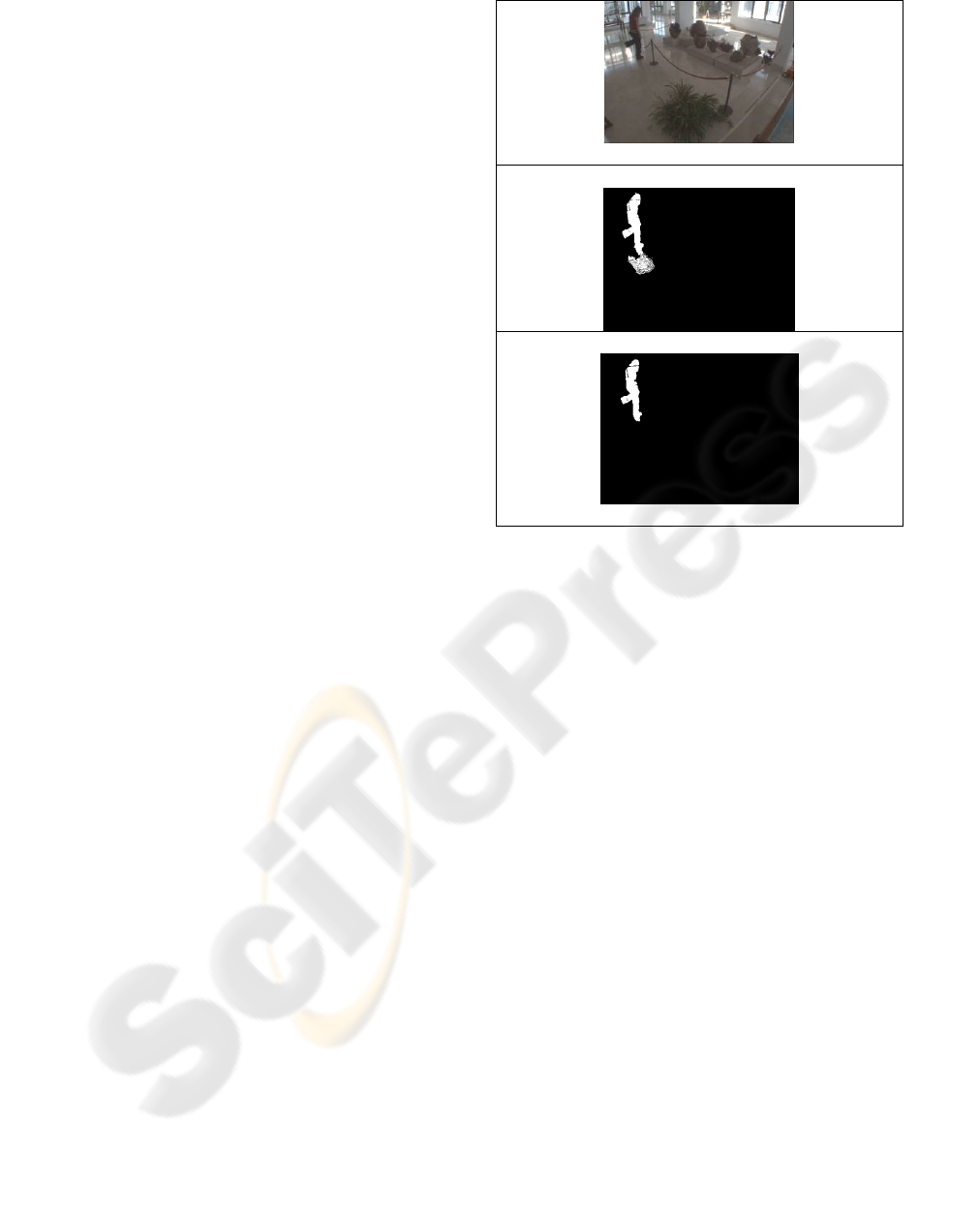

Figure 1: A frame extracted while an actor stepped over

the cord and the corresponding segmented images before

and after shadow removing. The relative position of the

moving person on the image plane and onto the ground

plane are also reported.

ACKNOWLEDGEMENTS

This work was developed under MIUR grant (ref.

D.M. n. 1105, 2/10/2002) “Tecnologie Innovative e

Sistemi Multisensoriali Intelligenti per la Tutela dei

Beni Culturali”.

REFERENCES

Wu,Y., Huang,T.S., (1999). Vision-Based Gesture

Recognition: A Review. Lecture Notes in Computer

Science 1739, 103-114.

Cedras, C., Shah, M., (1995). Motion based recognition: a

survey. Image and Vision Computing, 13(2), 129-155.

Gravila, D.M., (1999). The visual analysis of human

movement: a survey. Computer Vision Image

Understanding, 73(1),82-98.

Dee,H., Hogg, D., (2004). Detecting inexplicable

behaviour. British Machine Vision Conference.

Bobick, A. F., Davis,J. W. ,(2001).The recognition of

human movement using temporal templates”. IEEE

Transactions on Pattern Analysis and Machine

Intelligence, 23(3), 257–267.

REAL TIME SMART SURVEILLANCE USING MOTION ANALYSIS

529

Collins, R.T., Lipton, A.J., Kanade, T., Fujiyoshi,

H., Duggins, D., Tsin, Y., Tolliver, D., Enomoto, N.,

Hasegawa, O., 2000.A System for Video

Surveillance and Monitoring. Technical Report

CMU-RI-TR-00-12, Carnagie Mellon University.

Wren, C., Azarbayejani, A., Darrell, T., Pentland, A.,1997.

Pfinder: Real-time tracking of the human body. IEEE

Transactions on PAMI, 19(7), 780–785.

Cucchiara, R., Grana, C. , Tardini, G., 2004. Track-based

and object-based occlusion for people tracking

refinement in indoor surveillance. ACM 2nd

International Workshop on Video Surveillance &

Sensor Networks. 81-87.

Connell, J., 2004. Detection and Tracking in the IBM

People Vision System. IEEE ICME.

Spengler, M. and Schiele, B., 2003. Automatic Detection

and Tracking of Abandoned Objects. IEEE Int. Work.

on VS-PETS

Smith., S.M., 1992. A new class of corner finder. Proc.

3rd British Machine Vision Conference, 139-148

Aggarwal, J.K., Cai Q., 1999. Human motion analysis: a

review, Computer Vision Image Understanding 73 (3),

428-440.

Hu,W., Tan, T., Wang, L., Maybank, S. 2004. A Survey

on Visual Surveillance of Object Motion and

Behaviours. IEEE Transactions on Systems, man and

Cybernetics part. C Applications and review, 34(3).

Haritaoglu,I., Harwood, D., Davis,L.S. 2000. W4: Real-

Time Surveillance of People and Their Activities.

IEEE Transactions on Pattern Analysis and Machine

Intelligence, 22(8), 809 – 830.

Mittal, A., Davis, L.S., 2003. M2Tracker: A Multi-View

Approach to Segmenting and Tracking People in a

Cluttered Scene. International Journal of Computer

Vision 51(3), 189–203.

Remagnino, P., Shihab, A.I., Jones, G.A, 2004.

Distributed intelligence for multi-camera visual

surveillance. Pattern Recognition 37(4), 675-689.

Spagnolo, P., D'Orazio,T., Leo, M., Distante , A, 2006.

Moving Object Segmentation by Background

Subtraction and Temporal Analysis. Image and Vision

Computing 24, 411-423

Spagnolo, P., D'Orazio,T., Leo, M., Distante, A., 2005.

Advances in Shadow Removing for Motion Detection

Algorithms. Second International Conference on

Vision, Video and Graphics, 69-75.

Hartley,R., Zisserman, A., 2003. Multiple view geometry

in computer vision Cambridge University Press,

Cambridge, 2nd edition.

Figure 2: An example of automatic detection of removed object.

VISAPP 2007 - International Conference on Computer Vision Theory and Applications

530
