OBJECT RECOGNITION AND POSE ESTIMATION ACROSS

ILLUMINATION CHANGES

D. Muselet

Laboratoire LIGIV EA 3070 - Universit´e Jean Monnet - France

B. Funt, L. Shi

School of Computing Science, Simon Fraser University, Vancouver, Canada

L. Macaire

Laboratoire LAGIS UMR CNRS 8146 - Universit´e des Sciences et Technologies de Lille - France

Keywords:

Color histograms, object recognition, 2D pose estimation, illumination changes, local color descriptors.

Abstract:

In this paper, we present a new algorithm for color-based object recognition that detects objects and estimates

their pose (position and orientation) in cluttered scenes observed under uncontrolled illumination conditions.

As with so many other color-based object-recognition algorithms, color histograms are also fundamental to

our approach; however, we use histograms obtained from overlapping subwindows, rather than the entire

image. Furthermore, each local histogram is normalized using greyworld normalization in order to be as less

sensitive to illumination as possible. An object from a database of prototype objects is identiﬁed and located

in an input image by matching the subwindow contents. The prototype is detected in the input whenever many

good histogram matches are found between the subwindows of the input image and those of the prototype.

In essence, normalized color histograms of subwindows are the local features being matched. Once an object

has been recognized, its 2D pose is found by approximating the geometrical transformation most consistently

mapping the locations of prototype’s subwindows to their matched subwindow locations in the input image.

1 INTRODUCTION

Starting with Swain and Ballard’s color index-

ing (Swain and Ballard, 1991), color has proved to

be a very important clue for object recognition. Fol-

lowing in this tradition, we present a new algorithm

for color-based object recognition that detects objects

and estimates their pose (position and orientation) in

cluttered scenes under uncontrolled illumination con-

ditions. As with so many other color-based object-

recognition algorithms (Funt and Finlayson, 1995;

Bressan et al., 2003), color histograms are also funda-

mental to our approach; however, we use histograms

obtained from overlapping subwindows, rather than

the entire image. Furthermore, each local histogram

is normalized using greyworld normalization (Buchs-

baum, 1980).An object from a database of prototype

objects is identiﬁed and located in an input image by

matching the subwindow contents. The prototype is

detected in the input whenever many good histogram

matches are found between the subwindows of the

input image and those of the prototype. In essence,

normalized color histograms of subwindows are the

local features being matched. Once an object has

been recognized, its 2D pose is found by approximat-

ing the geometrical transformation most consistently

mapping the locations of prototype’s subwindows to

their matching subwindow locations in the input im-

age (Lowe, 1999).

An entry in the database of prototypes is built from

an image of a single object placed on an uniform

background. The test images containing the objects

to be recognized may contain several objects, some of

which may be partially occluded. The prototype and

test images are acquired under different illumination

conditions and with the same zoom parameters (See

Fig.1).

Color histograms are very effective for object

recognition (Swain and Ballard, 1991) and image in-

dexing (Park et al., 1999) because they are simple and

fast to compute, are invariant to rotation and trans-

lation, and are insensitive to partial object occlusion.

264

Muselet D., Funt B., Shi L. and Macaire L. (2007).

OBJECT RECOGNITION AND POSE ESTIMATION ACROSS ILLUMINATION CHANGES.

In Proceedings of the Second International Conference on Computer Vision Theory and Applications - IU/MTSV, pages 264-267

 SciTePress

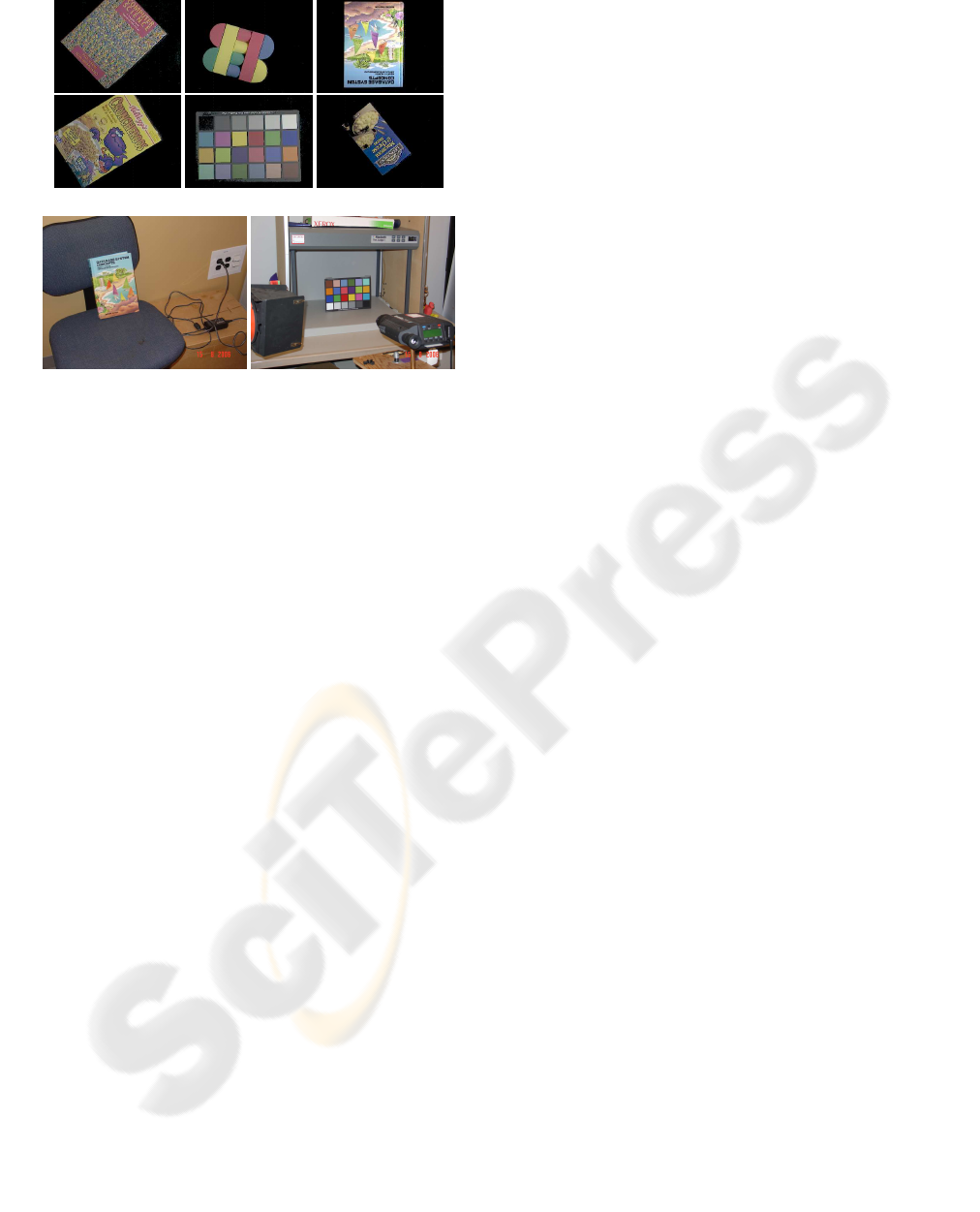

Example prototype images.

Example input test images.

Figure 1: These images come from the Simon Fraser

University Database (Barnard et al., 2002) available at

http://www.cs.sfu.ca/∼colour/data.

However, color histograms of whole objects are use-

less for determining object pose, precisely because

they are rotation invariant. In terms of accurately de-

termining object position, Swain’s histogram back-

projection (Swain and Ballard, 1991) is very sensi-

tive to noise and provide only a coarse estimate of

the object’s position. When the input images may

contain several objects and include the possibility

of partial occlusion, many other non-color-based ap-

proaches (Lowe, 1999; Ohba and Ikeuchi, 1997) rely

on local image features for matching. The approach

proposed here combines the ideas of color histogram

matching and local feature matching.

Many of the local-feature-based object recogni-

tion methods (Bressan et al., 2003; Lowe, 1999; Ohba

and Ikeuchi, 1997) extract interest points from the

images as an initial step and then evaluate local de-

scriptors around these points. A drawback of this ap-

proach is that the robustness and the repeatability of

the interest-point detector becomes crucial. To avoid

the reliability problems associated with interest-point

detectors, we propose to analyze all the local neigh-

borhoods in the image and to extract descriptors for

all of them. Indeed, rather than to extract features

from a limited number of areas in the image, we con-

sider all pixels to be interest points and consequently

extract the features around all of them. Thus we

divide the image into overlapping subwindows and

compute their color histograms. The computation in

this step can be organized so that each pixel needs to

be visited only once, so it is fast.

When the illumination is not controlled during

the acquisition of the images, the classical color his-

tograms lead to poor recognition results (Funt et al.,

1998). Thus, we propose to normalize the color his-

tograms in order to cope with this problem. One clas-

sical and computationally simple approach is grey-

world normalization. The main drawback of this nor-

malization is that it assumes that the illumination is

spatially constant over the whole image (Buchsbaum,

1980). In normalizing each subwindow separately, we

only assume that the illumination is constant within

each subwindow, not across the whole image.

The database of prototypes represents each object

in terms of the normalized local color (NLC) his-

tograms from its image’s subwindows. This repre-

sentation associates a point on the object with each

NLC histogram. To identify the objects in the input

test image, each test-image subwindow is matched to

the entire set of database subwindows and labeled ac-

cording to the one that matches the best. A subset

of subwindows with the same object label indicates

the presence of the corresponding object in the im-

age. The locations of the subwindow labels within

the image indicates the object’s pose.

The second section of this paper is about the il-

lumination changes and the greyworld normalization.

The third section presents details about how the space

and time requirements for NLC histogram storage and

matching can be reduced using incremental principal

components analysis (Hall et al., 1999). The speciﬁcs

of 2D-pose estimation are described in the fourth sec-

tion. Results of tests based on the Amsterdam image

database (Geusebroek et al., 2005) are given in the

ﬁfth section.

2 ILLUMINATION CHANGES

In order to deal with variations in the spectral com-

position of the incident illumination, we adopt the di-

agonal model of illumination change. The diagonal

model assumes that the spectral sensitivity function

of each sensor of the camera is sufﬁciently narrow-

band that they can be viewed as Dirac delta functions

at three distinct wavelengths. In practice, although

this assumption does not hold perfectly it is generally

an adequate model, and it can be improved by spectral

sharpening (Finlayson et al., 1994).

Using the diagonal model of illumination change

along with the additional assumption that all pixels

in a subwindow are lit by the same illumination, we

can apply the greyworld normalization to each local

color histogram by dividing each color component by

its mean value within this subwindow. Each subwin-

dow within then is characterized by a normalized lo-

cal color (NLC) histogram.

3 EIGEN NORMALIZED LOCAL

COLOR HISTOGRAMS

Since each prototype image represents only one ob-

ject, each subwindow represents a speciﬁc area of the

object. Thus, considering that we have P prototype

images I

pro

, i ∈ {1, ..., P}, the prototype image I

pro

which represents the object O

, is divided into WP

subwindows wp

, j ∈ {1, ..., WP

}, each one repre-

senting the j

area Op

of the object O

Since the proposed object recognition method re-

quires the storage and matching of many subwindow

histograms, it is important to reduce the memory and

computation requirements as much as possible. One

strategy for decreasing the complexity of histogram

matching is to reduce the dimensionality of the his-

tograms (Bressan et al., 2003; Tran and Lenz, 2005).

Therefore, we apply principal component analysis to

the set of prototype local color histograms.

Following the method of Tran and Lenz (Tran and

Lenz, 2005), PCA is applied to histogram differences,

rather than the histograms themselves. The histogram

differences sufﬁce since the aim when compressing

histograms for the object recognition is not to be able

to reconstruct the histograms, but only to estimate dis-

tances between histograms. Therefore, PCA applied

on the space of histogram differences should lead

to better results than PCA applied on the histogram

space. Since we care only about similar images, PCA

is not applied on all the differences between the proto-

type histograms, but only on the differences between

similar prototype histograms. Hence, for each proto-

type histogram, we use the histogram difference be-

tween it and its closest prototype histogram from the

same image. The closest histogram is the one at the

minimum Manhattan distance between the two his-

tograms. Swain showed that the Manhattan distance

is equivalent to use of the intersection between color

histograms when these histograms contain the same

number of pixels (Swain and Ballard, 1991).

When the number of images in the prototype

database is high, the number of NLC histograms be-

comes very high and the time required to apply prin-

cipal component analysis becomes prohibitive. To

overcome this limitation, we move to incremental

PCA (Hall et al., 1999). Thanks to incremental PCA,

the size of the prototype database is effectively unlim-

ited. The IPCA step is completed once off-line.

The NLC histograms projected onto the eigenba-

sis from IPCA are then called eigen NLC (ENLC)

histograms. All NLC histograms, from both the

database of prototypes and the input test image, are

projected onto the same eigenbasis. Finally, each

input ENLC histogram is compared against all the

prototype ENLC histograms, and the most similar

prototype ENLC histogram is kept. Histograms are

matched according to the Manhattan distance be-

tween them.

After the matching step, each sub-window

, k ∈ {1, ..., WQ}, of the input image

is associated with one prototype subwin-

dow wp

, and so, with one object area Op

of the object O

. The subwindow’s labels

[input subwindow, object area] [wq

, Op

] are

used to determine the best geometrical transforma-

tion mapping the corresponding prototype image to

the input image.

4 2D POSE ESTIMATION

After the matching step, the subwindows wq

k ∈ {1, ..., WQ}, from the input image will have

an associated object area Op

. Let C

, i ∈

{1, ..., T}, T ≤ WP

, denote the subset of fea-

tures (areas) from the object O

that have been as-

sociated with at least one input subwindow wq

= {Op

|there exists k so that [wq

, Op

] exists}.

We next consider the non-empty subsetsC

one by one

and estimate the orientation and position of the corre-

sponding object O

in the input image. This means

ﬁnding the geometric transformation from the spatial

coordinates of the object O

in the prototype image

pro

to its coordinates in the input image. The esti-

mation of this transformation is based on the spatial

coordinates of the matching subwindow pairs.

As described by Lowe (Lowe, 1999), the geomet-

ric transformation from a point [x, y]

associated with

a prototype subwindow to a point [u, v]

associated

with the corresponding input subwindow can be writ-

ten as:



x −y 1 0

y x 0 1



















(1)

where t

and t

represent the translation parameters

and the m

represent the rotation around the center of

the object and scale parameters.

This equation is based on one pair of prototype and in-

put subwindows, but we can add some other pairs and

calculate the least-squares solution for the geometric

parameters.

Since this method is very sensitive to outliers, we

propose the following two step approach:

• The set C

is randomly divided into subsets

of a ﬁxed number of features, and then the

least-squares ﬁt for the geometric transformation

for each of these subsets is determined indepen-

dently. A large residual error in the ﬁt indicates

mismatched features that are then deleted from

the set C

. The number of features in a subset

and the threshold of the residual error are ﬁxed

parameters determined experimentally.

• Using only those features leading to low resid-

ual error in the preceding step, the best geomet-

ric transformation is determined by least-squares

ﬁtting.

5 EXPERIMENTAL RESULTS

We ﬁrst test our algorithm on the real images from

Fig.1 and the recognition and pose estimation are per-

fect. Then, the Amsterdam Library of Object Images

(ALOI) database (Geusebroek et al., 2005) is used for

testing. The Amsterdam database contains 12 sets of

color images. Each set contains images of one ob-

ject on a uniform background under one of the 12 dif-

ferent illuminants having color temperatures between

2175

◦

K to 3075

◦

K. For the tests, we use 2 sets of

color temperature 2325

◦

K and 2750

◦

K. 250 images

of the ﬁrst set are used as the prototype images. From

the second set, we extract 100 objects to create 20

input images, each one representing 5 objects. Each

object is subject to 2D rotation and translation before

being added to the set of input images.

For these tests, the size of the subwindows is ﬁxed

at 45x45 pixels, and the offset between the centers of

two neighboring subwindows is 15 pixels. The aver-

age number of ENLC histograms for each prototype

image is 250. The number of bins in a raw histogram

is 8

= 512. After projection on the eigenbasis, this

number reduces to 64.

The algorithm correctly recognizes and makes a

perfect estimate of the pose for 96 of the 100 input

objects.

6 CONCLUSION

A method for object recognition and 2D pose estima-

tion has been presented. The method is insensitive to

the color of the scene illumination. The basic strat-

egy is to match local image features, in particular, to

match the color histograms of subwindows from the

input image to histograms of subwindows of proto-

types in the database. The subwindow contents are

normalized via greyworld averaging to remove the

effects of variations in illumination. Pose is deter-

mined by ﬁnding the best correspondences between

the matching subwindows that are consistent with a

single geometrical transformation. Overall the accu-

racy of the proposed method is quite good consider-

ing that the database comprises images of objects with

quite similar color distributions imaged under lights

of different color temperature than the input images.

REFERENCES

Barnard, K., Martin, L., Funt, B., and Coath, A. (2002).

A data set for colour research. Color Research and

Application, 27(3):147–151.

Bressan, M., Guillamet, D., and Vitria, J. (2003). Using an

ica representation of local color histograms for object

recognition. Pattern Recognition Letters, 36:691–701.

Buchsbaum, G. (1980). A spatial processor model for ob-

ject colour perception. Jour. of the Franklin Institute,

310:1–26.

Finlayson, G., Drew, M., and Funt, B. (1994). Color con-

stancy: Generalized diagonal transforms sufﬁce. Jour.

of the Optical Society of America A, 11(11):3011–

3020.

Funt, B., Barnard, K., and Martin, L. (1998). Is machine

colour constancy good enough? In Procs.of the 5

European Conf. on Computer Vision, pages 445–459.

Funt, B. and Finlayson, G. (1995). Color constant color in-

dexing. IEEE Trans. on Pattern Analysis and Machine

Intelligence, 17(5):522–529.

Geusebroek, J. M., Burghouts, G. J., and Smeulders, A.

W. M. (2005). The amsterdam library of object im-

ages. Int. Jour. of Computer Vision, 61(1):103–112.

Hall, P., Marshall, D., and Martin, R. (1999). Adding and

subtracting eigenspaces. British Machine Vision Con-

ference, 2:463–472.

Lowe, D. G. (1999). Object recognition from local scale-

invariant features. In Procs. of the International Conf.

on Computer Vision, pages 1150–1157, Corfou.

Ohba, K. and Ikeuchi, K. (1997). Detectability, uniqueness,

and reliability of eigen windows for stable veriﬁcation

of partially occluded object. IEEE Trans. on Pattern

Analysis and Machine Intelligence, 19 (9):1043–1048.

Park, D., Park, J., Kim, T., and Han, J. (1999). Image in-

dexing using weighted color histogram. In Procs. of

ICIAP, pages 909–914.

Swain, M. J. and Ballard, D. H. (1991). Color indexing. Int.

Jour. of Computer Vision, 7(1):11–32.

Tran, L. V. and Lenz, R. (2005). Compact colour descrip-

tors for colour-based image retrieval. Signal Process.,

85(2):233–246.
