EXTRACTION OF WHEAT EARS WITH STATISTICAL

METHODS BASED ON TEXTURE ANALYSIS

M. Bakhouche, F. Cointault

Enesad, UP GAP, 21, Bd Olivier de Serres, F21800 Quétigny, France

P. Gouton

LE2I, UMR-CNRS 5158, University of Burgundy, BP 47870, 21078, Dijon Cédex, France

Keywords: Image processing, texture analysis, pattern recognition, agronomy.

Abstract: In the agronomic domain, the simplification of crop counting is a very important and fastidious step for

technical institutes such as Arvalis

, which has then proposed us to use image processing to detect the

number of wheat ears in images acquired directly in a field. Texture image segmentation techniques based

on feature extraction by first and higher order statistical methods have been developped for unsupervised

pixel classification. The K-Means algorithm is implemented before the choice of a threshold to highlight the

ears. Three methods have been tested with very heterogeneous results, except the run length technique for

which the results are closed to the visual counting with an average error of 6%. Although the evaluation of

the quality of the detection is visually done, automatic evaluation algorithms are currently implementing.

Moreover, other statistical methods of higher order must be implemented in the future jointly with methods

based on spatio-frequential transforms and specific filtering.

1 INTRODUCTION

Manual wheat ear counting for yield prediction

requires high labor cost in addition to the time that

needs to be achieved. Recently many works have

been carried out on the agriculture domain (remote

sensing, weed detection…) by using image

processing techniques, but little research has been

done on wheat ear detection and counting (Germain

et al., 1995), which are however two important steps

for yield evaluation or prediction. Since Arvalis

wants to replace the manual counting by an

automatic one, a feasibility study on the use of

image processing techniques has been proposed in

2004 (Guérin et al., 2005). The way explored in this

study combines information jointly provided by

texture and colour analysis, which allow to represent

each image in a color-texture hybrid space. This

study showed that the use of image processing

techniques directly in the field is an interesting

solution, but, although the results obtained are

satisfactory, the different algorithms must be

validated on numerous images, and contain some

disadvantages mainly in detection phase due to no

recurrent hybrid space. Consequently Arvalis

decided to continue this project with a first objective

based on the improvement of the detection step. It

appears that the combination of texture and color

analysis is not clearly evident for our application.

Particularly, the color and the shape of ears (figure

1) depend on the wheat growth stage and the

illumination conditions.

Figure 1: Wheat images acquired in field at different

growth stages (from flowering (April-top left) to harvest

(July-bottom)).

French plant and feed-grain research institute.

276

Bakhouche M., Cointault F. and Gouton P. (2007).

EXTRACTION OF WHEAT EARS WITH STATISTICAL METHODS BASED ON TEXTURE ANALYSIS.

In Proceedings of the Second International Conference on Computer Vision Theory and Applications - IU/MTSV, pages 276-280

 SciTePress

In order to avoid this problem, we decided to focus

our approach on the development of texture analysis

before associating the color information because

texture is very rich in information.

2 IN-FIELD IMAGE

ACQUISITION SYSTEM

The acquisition system must allow to take

photographs at different wheat growth stages with a

good resolution. We use a Canon digital camera (5

Mpixels) which takes images on an 0.5*0.5 m²

homogeneous test area of wheat delimited by a black

matt frame as shown in figure 2. The digital CCD

camera is controlled by a PC laptop and is located

vertically above the field of view at a height of 0.93

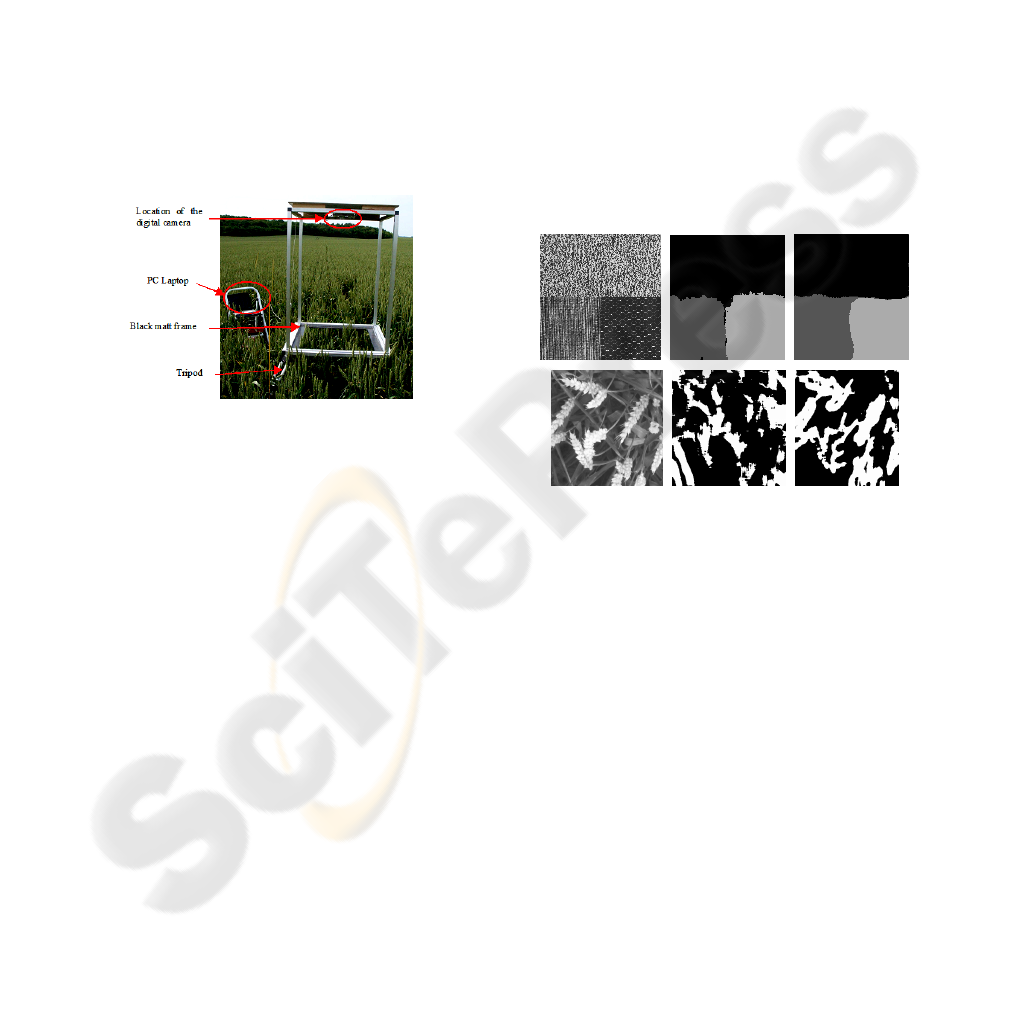

Figure 2: In Field image acquisition system.

Taking photographs directly in the field needs to

control the illumination of the scene. Because we

take images under different lighting conditions, due

to variable cloud cover and solar illumination, we

use some screen protection system (not shown in the

figure 2) to limit the light in the area of study.

3 WHEAT EAR EXTRACTION BY

PIXEL CLASSIFICATION

All the acquired images contain three important

classes: wheat ears, stems and leaves, and soil. Their

extraction can be done using texture and/or color

image analysis techniques. The current approach

proposed in this paper is only based on texture

analysis techniques because texture and color seem

to be independent phenomena that should be treated

separately (Mäenpää and Pietikäinen, 2004) (even if

some recent works (Foucherot et al., 2004) have

shown that the color of an image can slightly modify

the texture) and the information obtained with

texture analysis are available for each wheat growth

stage.

3.1 Statistical Methods of Feature

Extraction

The non-periodicity of the position of the ears in

each image conducted us to use statistical methods

for feature extraction. These methods study the

interaction between a pixel and its neighbours in

term of intensity. In literature, many methods are

proposed but none of them is generally applicable to

all kinds of images and different algorithms are not

equally suitable for a particular application. This can

be proved in figure 4 in which we tested the method

based on Cross-Diagonal Texture Matrix, defined by

Al-Janobi in 2001 and the method based on grey

level differences defined by Weska et al. in 1976 to

discriminate Brodatz textures (Brodatz, 1966) and

wheat ears.

Figure 3: Results of classification with cross-diagonal

texture matrix and grey level differences. (a) and (a’): test

images. (b) and (b’): segmentation with cross-diagonal. (c)

and (c’): segmentation with grey level differences.

The two previous methods do not allow a well

recognition of the wheat ears, which can be due to

the aspect of the textures (local grey scale

variations), texture orientation, non-homogeneous

objects to detect, … For these different reasons, we

decided to study other statistical methods of first and

higher-order. The first order method implemented is

based on the computation of a mono-dimensional

histogram of the intensity (Pratt, 1991) from which 7

features are extracted: Mean, Variance, Energy,

Entropy, Contrast, Skewness, Kurtosis.

Nevertheless, this technique does not consider the

correlation between pixels in the processing. This

drawback is resolved by the study of a bi-

dimensional histogram based on the computation of

the co-occurrence matrix defined by Haralick et al.

in 1973. From this matrix, we extract some Haralick

a’

’c’

EXTRACTION OF WHEAT EARS WITH STATISTICAL METHODS BASED ON TEXTURE ANALYSIS

277

features that allow a better texture discrimination

(Conners and Harlow, 1980) and also three others

features (cluster shade, cluster prominence and

diagonal moment) (Unser, 1986):

max 1 max 1

(* *(,,,))

Dmoment i j P i j d

−−

=−

∑∑

(2*)(,,,)

−−

=+−

∑∑

CShade i j moy P i j d

max max

(2*)(,,,)

−−

=+−

∑∑

CProminance i j moy P i j d

where (i,j) represents the grey scale of the current

pixel, P(i,j) designs the probability to find the grey

scale i with neighbour j in the considered region, and

max

N is the maximum intensity in this region.

Despite the good results obtained by this

method, it depends on the choice of direction and

need an important computing time although it can be

reduced by decreasing the quantification to the

detriment of the loss of information. For a better

description of the texture, statistical methods of

higher-order seem to be more suitable (according to

the obtained results). One of the most popular

methods is the run length matrix defined by

Galloway in 1975. This method is based on the

determination of the runs of grey levels that are

present in the image or an area of the image. To

summarize the information brought by run length,

we define a matrix in which we can extract 11

features among which the Short and Long Run

Emphasis, the Grey Level Distribution, the Run

Length Distribution and the Run Percentage.

3.2 Unsupervised Pixel Classification

by K-Means Algorithm

In literature, a great number of classification

algorithms based on distance measurement, K-

nearest-neighbours, Support Vector Machine

(Burges, 1998), … have been developped. The K-

Means algorithm is one of the most used in several

works due to its simplicity of implementation and

the good results that it provides in texture

classification. First, the features are normalised and

the class centres are randomly initialised. Then each

pixel k is assigned to a class C

if the Euclidian

distance between its attributes and the centre of the

class is minimal. Finally, the centres are updated by

calculating the mean of each attribute given by the

equation (1) and the process is iterated until

stabilisation fixed by a criteria given by the formula

(2):

kij

∈

∑

(1)

→−=

∑∑

−

ijUUijcrt (2)

Where:

: centre of gravity of the class C

,ij

t : attribute j of considered pixel i,

: number of pixels at the class C

Uij : class centre updated at the step k-1,

ij: new class centre updated at the step k,

Nc: number of classes considered in the processing,

Np: number of parameters.

Other algorithms of classification have also been

applied in agriculture, such as neural network, which

are used to evaluate, for instance, the quality of

apple surface combined with knn and Bayesian

classification (Kavdir and Guyer, 2004). However

our application depends of a lot of parameters,

which give us numerous different images, and the

learning seems to be quite difficult.

3.3 Evaluation of the Detection and

Segmentation

Although numerous segmentation algorithms have

been developed these last years, none of them can be

universally used. To evaluate these methods the

visual evaluation is always used as the reference

method. However, evaluation criteria have been

defined in literature and can be divided into

categories: with or without ground truth. According

to Laurent et al. in 2003, the most suitable criteria

for uniform or less textured images are those defined

by Zeboudj in 1988 and Borsotti et al. in 1998,

whereas Rosenberger criteria (Rosenberger, 1999) is

more suitable for texture images.

Here the evaluation of the different results is

visually done but some unsupervised criteria of

detection evaluation are currently implemented.

Moreover, results obtained from agronomists on

numerous images took at different wheat growth

stages and for different illumination conditions will

be compared in a few days with automatic counting.

4 RESULTS AND DISCUSSION

To put across our study, some in-field images have

been tested by the different statistical techniques

VISAPP 2007 - International Conference on Computer Vision Theory and Applications

278

implemented. The figure 4 shows the results of the

wheat ear detection obtained for one image among

the in-field acquired images done by Arvalis.

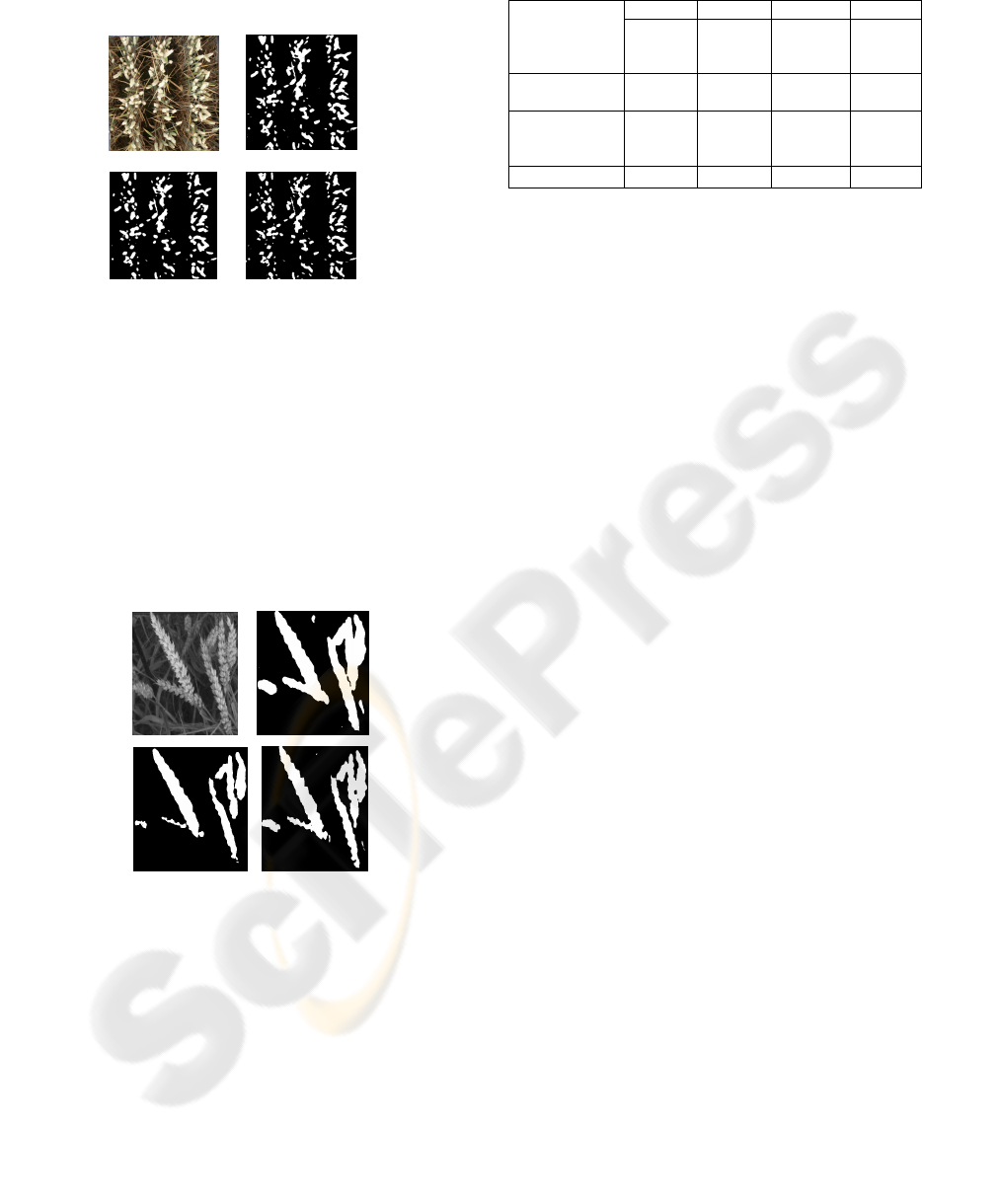

Figure 4: Results of segmentation obtained by the different

techniques implemented for a whole image: (a) Test

image. (b) with 1

order statistic. (c) with co-occurrence

matrix. (d) with run length.

The previous results seem to be good, but visual

evaluation is too long to be done on numerous

images.

Taking into account the different tests carried out

until now, it appears in this case that the three

methods give good results, even if run length

method reproduces nearly the real shape of the ears

as it is shown in the figure 5.

Figure 5: Wheat ear detection with the three different

methods implemented for a part of an image. (a) Test

image. (b) with 1

order statistic. (c) with co-occurrence

matrix. (d) with run length.

These last results are very instructive because the

second step of our project will be focused on the

counting of the number of grains per wheat ears, and

it appears that the Run Length method could be

interesting. Although the results are given for a few

number of images, the table 1 confirms that run

length method is the most appropriated method for

our application, according to the other methods.

Table 1: Detection of wheat ears by the different methods.

Image 1 Image 2 Image 3 Image 4

Visual

detection

(‘true’ value in

bold)

184 179 128 150

With 1

order

statistics

190 156 116 134

With co-

occurrence

matrix

174 139 119 131

With run length

182 159 123 141

The evaluation of the detection quality is actually

done visually and by comparison of the results of

automatic counting with those done manually by

Arvalis. A comparison will be provided soon, jointly

with other results tied to a visual evaluation done by

agronomist experts.

Finally, in order to test a lot of images in one

step, wheat ear simulated images will be interesting

and constitutes another step of our application.

These images will be able to accurately represent the

different wheat growth stages, the different

illumination conditions, the different shapes, …

4 CONCLUSION

In this paper, we presented automatic wheat ear

detection based on textural feature extraction. Three

statistical methods of first and higher-order have

been used in an unsupervised pixel classification

algorithm based on K-means. The results of the

detection with the Run Length method are quite

close to visual detection but all the methods need to

be validated on numerous images, took in different

lighting and wheather conditions, and must be

evaluated by the quality of the detection they allow.

As previously mentionned, this work is also

part of a more global project to facilitate the

countings for the agronomist technicians, but also to

give in final an evaluation of the wheat yield before

the harvest. In terms of image acquisition, an

autonomous mobile robot used for different

applications is under construction, simultaneaoulsy

with the development of other texture analysis

methods based on orthogonal transforms and

specific filtering.

REFERENCES

Al-Janobi A. 2001. Performance evaluation of cross-

diagonal texture matrix method. Pattern Recognition,

vol. 34, pp-171-180.

EXTRACTION OF WHEAT EARS WITH STATISTICAL METHODS BASED ON TEXTURE ANALYSIS

279

Borsotti M., Campadelli P. and Schettini R. 1998.

Quantitative evaluation of color image segmentation

results. Pattern Recognition Letters, 19:741-747.

Brodatz P. Textures. 1966. A photograph Album For

Artists and designer. Dover, New York.

Burges C.J. 1998. A tutorial on support vector machines

for pattern recognition. Data Mining and Knowledge

Discovery, 2:121-167.

Conners R.W. and Harlow C.A. 1980. A Thoerical

Comparison of Texture algorithms, IEEE Trans. On

PAMI, Vol.2, N°3, pp. 204-222.

Foucherot I., Gouton P., Devaux J.C. and Truchetet

F. 2004. New method for analysing colour texture

based on the Karhunen-Loeve transform and

quantification. Pattern Recognition, 37 (8), pp. 1661-

1674.

Galloway M.M. 1975. Texture analysis using gray level

run lengths. Computer Graphics and Image

Processing, vol.4, pp-172-179.

Germain C., Rousseau R. and Grenier G. 1995. Non

destructive counting of wheatears with picture

analysis. Image Processing and its application, pp.

453-439.

Guérin D., Cointault F., Gée C. and Guillemin J.P. 2005.

Étude de faisabilité d’un système de comptage d’épis

de blé par vision (Feasibility study of a wheatears

counting system per vision) – Traitement du Signal,

Special Session Colour Imaging, Vol. 21, n°5, pp.

549-560.

Haralick R.M., Shanmugam K. and Dinstein I.H. 1973.

Textural features for image classification. IEEE Trans.

On sys. Han and cybernetics, Vol. SMC-3, n°6.

Kavdir I. and Guyer D.E. 2004. Comparison of artificial

neural networks and statistical classifiers in apple

sorting using textural features. Biosystem Engineering

89 (3), pp 331-334.

Laurent H., Chabrier S., Rosenberger C., Emile B. and

Marché P. Etude comparative de critères d’évaluation

de la segmentation, In Gretsi 2003.

Mäenpää T. and Pietikäinen M. 2004. Classification with

colour and texture: jointly or separately. Pattern

Recognition, vol 37, pp 1629-1640.

Pratt W.K. 1991. Digital image processing. Willey

Interscience, New York.

Rosenberger C. 1999. Mise en Oeuvre d’un Système

Adaptatif de segmentation d’images. PhD thesis,

Université de Rennes 1.

Unser M. 1986. Sum and difference histograms for texture

classification. IEEE Trans, Patterrn Anal, Mach. Intel.

8, pp. 118-125.

Weska J. S., Dyer C. R. and Rosenfeld A. 1976. A

comparative Study of texture measures for terrain

classification. IEEE Trans. On sys, Man. And

cybernetic, vol. 6, n°4, pp. 269- 285.

Zeboudj R. 1988. Filtrage, Seuillage Automatique,

Contraste et Contours: du Pré-Traitement à l'analyse

d'image.

PhD thesis, Université de Saint Etienne.

VISAPP 2007 - International Conference on Computer Vision Theory and Applications

280
