A SELF-CALIBRATING CHROMINANCE MODEL APPLIED TO

SKIN COLOR DETECTION

J. F. Lichtenauer, M. J. T. Reinders and E. A. Hendriks

Information & Communication Theory Group, Delft University of Technology, Mekelweg, Delft, The Netherlands

Keywords:

Adaptive color modelling, chrominance, chromatic color space, skin detection.

Abstract:

In case of the absence of a calibration procedure, or when there exists a color difference between direct and

ambient light, standard chrominance models are not completely brightness invariant. Therefore, they cannot

provide the best space for robust color modeling. Instead of using a ﬁxed chrominance model, our method

estimates the actual dependency between color appearance and brightness. This is done by ﬁtting a linear

function to a small set of color samples. In the resulting self-calibrated chromatic space, orthogonal to this line,

the color distribution is modeled as a 2D Gaussian distribution. The method is applied to skin detection, where

the face provides the initialization samples to detect the skin of hands and arms. A comparison with ﬁxed

chrominance models shows an overall improvement and also an increased reliability of detection performance

in different environments.

1 INTRODUCTION

Color is an important property of many objects.

Therefore, it has been of great interest to researchers

in the ﬁeld of image analysis since the introduction

of digital color images. However, the lack of con-

stancy of color between different lightings, camera

equipment and settings has challenged researchers

ever since. To reduce the problem of color varia-

tion between different scenarios, color can be mod-

eled adaptively. But even in the same scenario, color

can change due to changing lighting conditions. A

signiﬁcant amount of research has been conducted to

ﬁnd functions of color that are invariant to illumina-

tion change. The most prominent functions that are

commonly used are the chromatic color models. E.g.

normalized rgb, YUV, YCrCb, HSV or CIELAB. In

these color spaces, the brightness factor is isolated

from the chromatic representation of color. This fa-

cilitates adaptive color modeling that is invariant to

changes in illumination brightness.

However, brightness invariance is not guaranteed

in these models. All these chromatic color space

conversions are based on certain assumptions about

color appearance in RBG space. Normalized rgb,

HSV and CIELAB assume that black is represented

by [R, G,B] = [0, 0,0] and, as a result, all colors meet

each other at this point when their brightness is re-

duced. Contradictory, YUV and YCrCb assume that

a brightness change results in a change of color par-

allel to the diagonal of RGB space. Furthermore,

HSV assumes that gray (unsaturated) colors satisfy

R = G = B (correct white balance) and CIELAB even

needs a completely calibrated RGB (XYZ) space.

Violation of these assumptions, e.g. due to in-

correct white balance, non-ideal camera sensitivity or

settings or heterogeneous illumination, can severely

degrade performance of color analysis methods based

on these color spaces. This was shown by Mar-

tinkauppi et al. (Martinkauppi et al., 2003), who have

tested robustness of different skin detection methods

under large changes of conditions. To our knowledge,

the validity in real-world digital imaging situations of

the chrominance models that are often used for these

methods, and the consequences of violating the model

assumptions, have never been studied directly.

If the color spectrum of the illumination is homo-

geneous, the assumptions can be satisﬁed by a cali-

bration procedure. However, in many real-world ap-

plications, such a procedure is not desirable because

115

F. Lichtenauer J., J. T. Reinders M. and A. Hendriks E. (2007).

A SELF-CALIBRATING CHROMINANCE MODEL APPLIED TO SKIN COLOR DETECTION.

In Proceedings of the Second International Conference on Computer Vision Theory and Applications - IFP/IA, pages 115-120

 SciTePress

it takes extra time and effort. It may not even be

possible, e.g. in case of diversity of unknown cam-

eras, non-expert users or processing of video previ-

ously recorded under non-ideal circumstances. Fur-

thermore, calibration may not be effective, because

of a difference between spectra of direct and ambient

light, resulting in correlation between chrominance

and brightness.

To avoid the shortcomings of chromatic models in

real-world scenarios, we don’t want to rely on con-

straints on white balance, origin offset or correlation

between brightness and chrominance. Therefore, we

take the principle of chromatic color representation

one step further, by presenting our Adaptive Chromi-

nance Space (ACS) method that adaptively ﬁnds a

linear function that minimizes correlation between

brightness and the chrominance representation of the

appearance of a speciﬁc object color.

Our application for this color model is hand ges-

ture recognition. Skin color is modeled from samples

obtained from face detection and applied to detect and

track a person’s hands. Furthermore, two models are

combined, ﬁtted to samples from the left and right

part of the face, respectively. This increases robust-

ness to variation in illumination spectra from different

horizontal directions.

Section 2 contains a summary of related research

on skin color detection, section 3 describes our

method, for which experimental results are provided

in section 4. Our conclusions are given in section 5.

2 RELATED WORK

Many methods for skin color detection have been pro-

posed in the literature. Surveys can be found in (Yang

et al., 2002; Vezhnevets et al., 2003). Most methods

learn a general skin color distribution from a database

of images (Jones and Rehg, 2002; Phung et al., 2005;

Lee and Yoo, 2002), e.g. a selection from the internet.

This results in very general models that take into ac-

count variation of camera, camera settings and illumi-

nation. However, because the variation of skin color

appearance between different situations is so large,

these general models lack precision to distinguish be-

tween real skin and skin-colored objects. This greatly

restricts the reliability of skin segmentation, since the

false positive rate will be high when other colors in

the image are close to skin color.

To overcome this problem, some methods adapt to

the speciﬁc situation by learning the skin color distri-

bution from samples taken from the same video (Raja

et al., 1998; McKenna et al., 1999; Soriano et al.,

2000; Fritsch et al., 2002; Argyros and Lourakis,

(a)

(b)

100

200

100

200

100

150

200

250

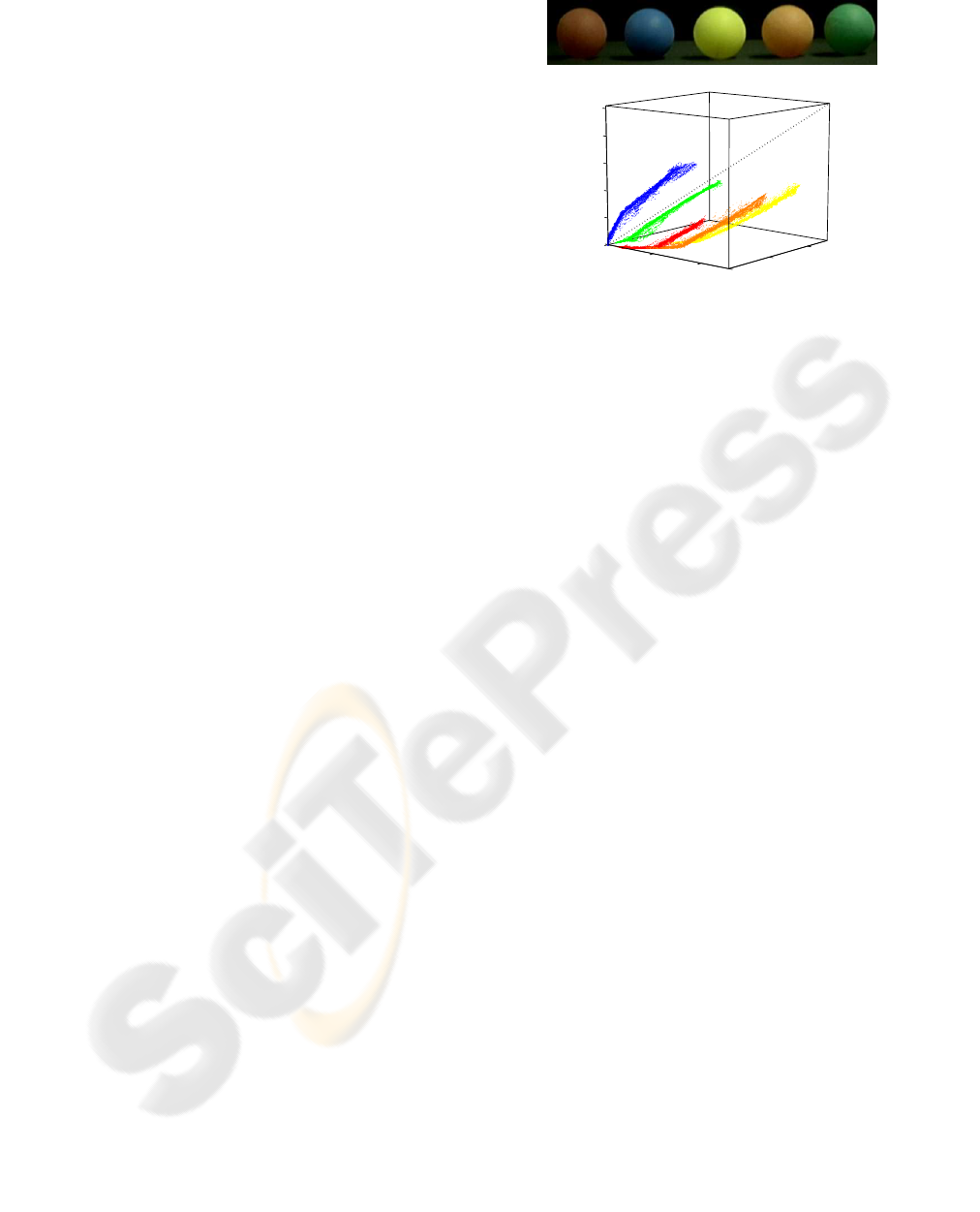

Figure 1: RGB scatter plots of colored balls under ofﬁce

lighting without calibration. The dotted line indicates the

diagonal of RGB space.

2004), often combined with a prior skin color distri-

bution learned from a database. The problem with

skin model adaptation is that it is difﬁcult to obtain a

large and representative sample set of skin color from

a video automatically. Adaptive methods do not gen-

eralize well to other skin regions in the video if they

lack a (realistic) chrominance model.

3 COLOR DETECTION METHOD

Instead of learning a general skin color distribution

that generalizes too much, or relying on a chromi-

nance model based on rigid, non-realistic assump-

tions, we propose to use a general model of skin color

variation for not-calibrated camera’s with ﬁxed set-

tings and non-changing illumination. We use an au-

tomatic procedure that ﬁts this model to a small and

noisy sample set.

The general model of skin color variation is ex-

plained in paragraph 3.1. Paragraph 3.2 explains how

a similarity measure for skin color can be computed

using this model, and 3.3 describes how the model is

ﬁtted to the sample set.

3.1 Skin Color Appearance Model

We deﬁne x as a point at a speciﬁc image pixel loca-

tion, corresponding to a point on the surface of an ob-

ject with object color ξ and θ as the spectrum of the il-

lumination source. Our appearance model of skin as-

sumes that the appearance in RGB space

RGB

(x,ξ,θ)

of color ξ is a linear function

ℓ(x,ξ, θ) of reﬂected

light intensity I(x) plus some independent random

zero-mean noise vector

η(x) (assuming Lambertian

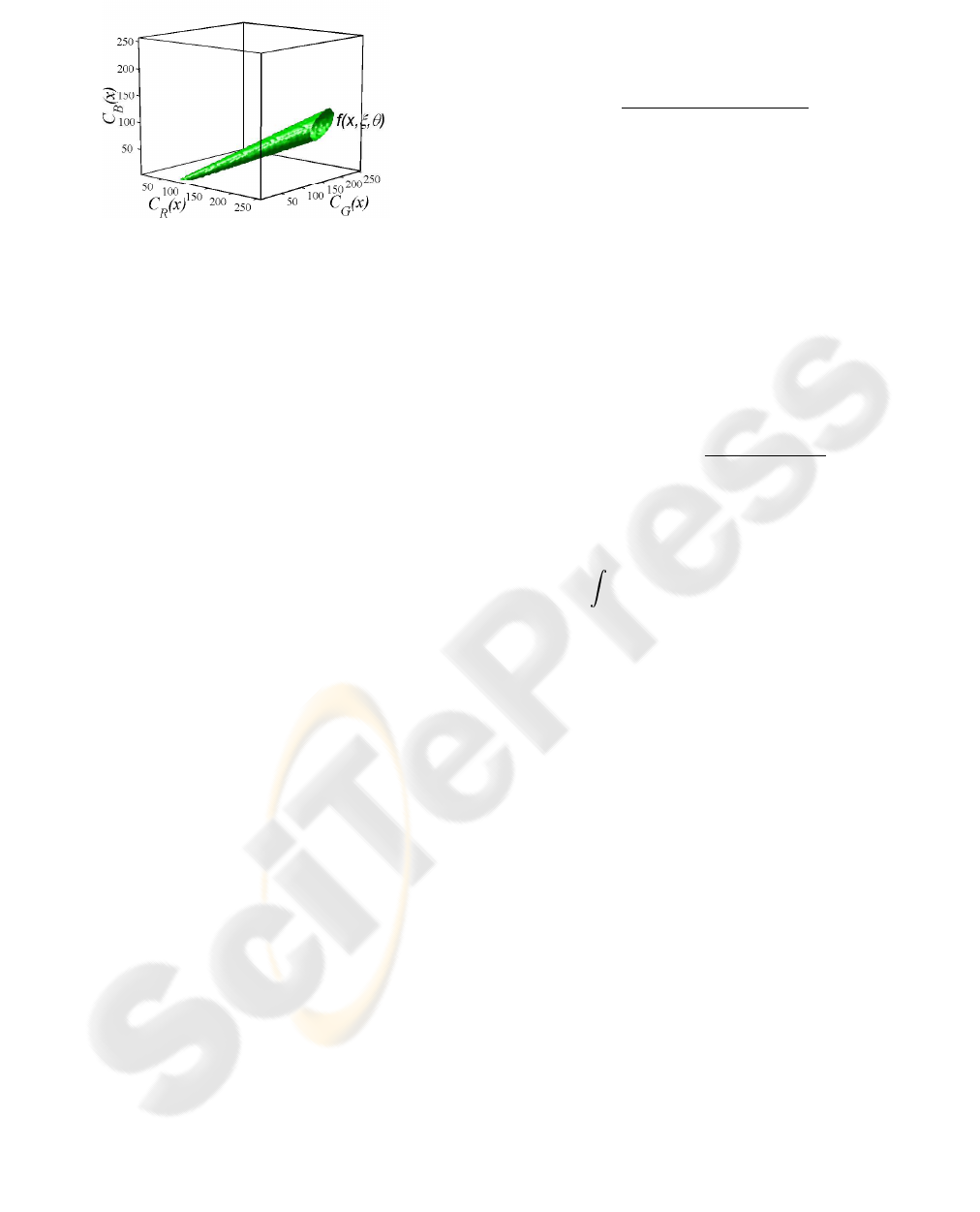

Figure 2: Appearance model of skin color p(

RGB

|skin) ac-

cording to the multiplicative noise model, represented by an

isosurface.

reﬂection):

RGB

(x,ξ, θ) =

ℓ(x,ξ, θ) +

η(x), (1)

ℓ(x,ξ, θ) :=

RGB0

+ I(x)~c(ξ,θ). (2)

where~c(ξ,θ) is a color vector with unit intensity and

RGB0

is the (unknown) calibration point for black.

I(x) depends on both the light source intensity and

the surface tangent, of which the latter depends on

x in a non-deterministic way. For brief notation,

RGB

(x,ξ, θ) is denoted by

RGB

in the remainder of

this work, silently assuming a speciﬁc object color,

illumination and image pixel coordinates.

For ﬁxed ξ and θ,

ℓ(x,ξ, θ) is a straight line in

RGB space. If the camera is not calibrated,

ℓ(x,ξ, θ)

does not have to pass through the origin. An exam-

ple image without calibration is shown in ﬁgure 1 (a).

This is an image of uniformly colored balls captured

by a webcam under ofﬁce lighting. Although the im-

age quality looks acceptable, the color distributions of

the balls are not at all directed towards the origin, as

would have been the case if black was calibrated at

RGB0

= [0,0, 0]

For speciﬁc ξ and θ, the dimensionality of the ap-

pearance model can be reduced from three to two di-

mensions by projecting the RGB values

RGB

onto a

plane perpendicular to

ℓ(x,ξ, θ):

= [

]

RGB

. (3)

[

] is the orthonormal basis of the adapted

color space, which is a rotated RGB coordinate sys-

tem with

in the direction of

ℓ(x,ξ, θ), correspond-

ing to the luminance axis, and [

] spanning the

perpendicular plane. The latter can be seen as an

intensity-invariant chrominance space for one spe-

ciﬁc object color in a speciﬁc situation (camera, cal-

ibration, illumination, etc.), referred to as ’Adaptive

Chrominance Space’ (ACS). The distribution of an

object color in ACS will be modeled by a Gaussian

distribution with mean µ

and 2 ×2 covariance ma-

trix Σ

. The Mahalanobis distance D

to the closest

point on the line

ℓ(x,ξ, θ) is computed by

(

−µ

)

−1

(

−µ

) (4)

Because of the Gaussian approximation perpendicular

to the luminance axis, the skin color model becomes

an inﬁnite elliptic cylinder in RGB space. To save

computational load,

and

can be chosen in the

directions of the eigenvectors of Σ

and divided by

the square roots of the respective eigenvalues, leaving

the 2x2 identity matrix instead of Σ

3.2 Skin Likelihood

Computation of skin likelihood at image position x is

performed according to Bayes’ theorem:

p(skin|

RGB

) =

RGB

|skin)p(skin)

RGB

)

(5)

Where skin is the event that the image really contains

skin at the measured location. The prior probability

density of p(

RGB

) can be marginalized by

RGB

) =

∞

−∞

RGB

|I = α)p(I = α)δ(α−I)dα

= p(

RGB

|I = β)p(I = β), (6)

because p(

RGB

) is zero for α 6= I. β is equal to the

light intensity of (

RGB

), calculated by

I = (C

−C

) + (C

−C

) + (C

−C

)). (7)

Since the real value of black

RGB0

is unknown, we

approximate it by

= min{C

(X) ∪C

(X)} (8)

where C

, C

are the red, green and blue values,

respectively, of

RGB

and X is the total set of pix-

els available, measured in the speciﬁc situation. Here

we assume that the black origin is on the diagonal of

RGB space, which is a reasonable assumption con-

sidering the imaging processes of most digital cam-

eras. Unfortunately, in most situations the real value

RGB0

is negative and the lower color values are

clipped to 0, resulting in a large estimation error in

RGB0

The probability density of the distance to the RGB

diagonal at the brightness plane C

= I is

assumed constant and non-zero inside positive RGB

space, but zero outside (uniformly distributed satura-

tion). The integral of p(

RGB

|I = β) over all possi-

ble values of

RGB

for which I = β must be equal to

1. This set is a plane perpendicular to the diagonal

of RGB space, which is an equilateral triangle with

its corners at

RGB

= {[β, 0,0]

,[0, β,0]

,[0, 0,β]

]}.

Using the area A(β) of this triangle and assuming that

the prior probability of brightness p(I = β) is con-

stant,

RGB

) ∝ 1/A(β) = 2/(

√

3β

). (9)

We choose to model uncertainty about the actual color

of skin ξ, but to neglect the additive noise

η(x). This

results in a conical shape with its tip at

RGB0

, cen-

tered around

ℓ(x,ξ, θ) corresponding to the mean ξ

and θ, shown in ﬁgure 2. In this case, deviation from

the line

ℓ(x,ξ, θ) is only due to variation of skin or il-

lumination color. The existing appearance model can

easily be modiﬁed by normalizing the Mahalanobis

distance of equation 4 by the brightness I, similar to

computing normalized rgb:

(x) =

. (10)

When p(

RGB

|skin), in equation 5, is computed with

instead of D

, the prior (equation 9) has to be nor-

malized by 1/I

, hence becomes a constant. The log

likelihood becomes:

ln{p(skin|

RGB

)} ∝ −

(

−µ

)

−1

(

−µ

)

. (11)

Note that, if

RGB0

= [0, 0,0]

(i.e. in case of correct

calibration), this approach is very similar to a skin

color model in Hue/Saturation space or two dimen-

sions of the normalized rgb space.

3.3 Automatic Model Fitting

The automatic Adaptive Chrominance Space adap-

tation procedure attempts to ﬁnd the best ﬁt of the

model to a sample set taken from a speciﬁc situation.

To obtain positive RGB skin samples for model ﬁt-

ting, a face detection method could be used. Pixels

from the left and right side of the sample area are

modeled separately. Resulting in two separate ACS

models. This is because the left and right side of the

face are often illuminated with a different θ, causing

a different

ℓ(x,ξ, θ). By modeling both sides of the

face separately, the combined model can detect skin

illuminated by different light sources.

Skin samples for which at least one of the color

channels has an intensity of 0 or 255 are removed.

This is because these samples might have been pro-

jected from outside the RGB space, leading to a

skewed color representation. Note that modeling

these projected values is possible, as described in our

previous work (Lichtenauer et al., 2005), however, it

is beyond the scope of this work.

The ﬁtting procedure is based on the assumption

that the main axis of the positive sample distribution

corresponds to

ℓ(x,ξ, θ). This is usually the case,

since the area of the face, used for sampling, contains

both dark and light skin values (e.g. due to the nose

and its curved shape). Even in case of very uniform

illumination, some shading will still be present. Oth-

erwise, one would not see any shape of the face other

than the eyes and mouth of a person. These small nu-

ances of skin color are enough to show a main axis

in the direction of intensity in RGB space. The main

axis is found by line ﬁtting, using RANSAC (Fischler

and Bolles, 1981). However, the search of RANSAC

is constrained by assumptions about shadowed colors,

following (Lichtenauer et al., 2005). Pairs of points

for which one of the two can never be a shaded color

of the other, are discarded. The regular least square

ﬁtting method does not work because of the inhomo-

geneous distribution of samples along the line. There-

fore, the best result of the RANSAC search is reﬁned

by computing the means m

and m

of two subsets

of the inlier samples: First, the samples are projected

on the initially ﬁtted line. m

is the mean of the sam-

ples with the lowest 0.1 quantile of projection values,

is computed from samples in the highest 0.1 quan-

tile. From the line between m

and m

is derived

and two perpendicular vectors

and

can be de-

termined. After projecting the positive samples onto

the AC space spanned by [

], the mean and co-

variance of the distribution are estimated by a ﬁxed

number of EM iterations, where the 0.9 best ﬁtting

samples are used to compute the parameters of the

next iteration. The latter is to discard outliers.

To get a combined likelihood of the ACS model

for the left and the right side of the face, the two are

combined by taking the maximum of the two log-

likelihoods, computed with normalized inverse co-

variance matrices

−1

|Σ

−1

. (12)

The measured main axis of the skin color distri-

bution is not always the result from the appearance

model in equation 1. For example, when multiple

light sources are present, the transition from one light

source to the other could contain correlation between

I(x) and θ. In these situations, there is no guarantee

that the appearance model will continue in the same

direction, outside of the intensity range of the train-

ing samples. In order to be more robust against these

exceptions, also a more conservative Hybrid ACS

(HACS) method is considered. This model is split

Studio Window Glass Wall

Figure 3: Some images used for the experiments. The area

inside the white rectangle was used for modeling skin color.

in three parts: a middle part for I(m

) < I < I(m

identical to the normal ACS model, and a lower and

higher part, for I < I(m

) and I > I(m

), respectively,

that assume that

ℓ(x,ξ, θ) continues from the ends of

middle part into the directions corresponding to the

estimated

RGB0

from equation 8, but using the same

covariance as the middle part.

4 EXPERIMENT

We have evaluated our ACS method by applying it

to 10 different photos of different persons in differ-

ent environments (see ﬁgure 3). Most photos were

taken with a digital photo camera, except for ’Studio’,

which was captured with a ﬁrewire video camera.

This camera was calibrated to have

RGB0

= [0,0, 0]

and homogeneous illumination was used (i.e. ideal

circumstances for most color models). The photo

cameras used for the other photos automatically ad-

justed white balance and intensity for each photo. All

photos were ﬁltered using a 3x3 median ﬁlter, to re-

duce noise and erroneous colors around sharp edges.

A rectangle was manually annotated at each face, to

extract the training color samples. These rectangles

are shown in the photos of ﬁgure 3. The left and right

sides of these rectangles were used for training the

left and right ACS models, respectively. To remove

remaining non-skin pixels from the training samples

(e.g. from eyes and mouth), the training is done in

two steps. After training the initial ACS models on all

respective training pixels, the pixels with the lowest

30% of likelihoods for the respective ACS model are

removed from the rectangle and a 3x3 morphological

closing is applied on the total remaining pixel mask.

The ACS models are re-trained using only the sam-

ples selected with this skin mask. For a fair compar-

ison, also the other color models are trained on these

ﬁltered samples.

Training and testing of the skin color model was

done separately for each image, to evaluate the av-

erage performance of ACS over different circum-

stances. The true positive (TP) rate (number of pixels

correctly detected as skin divided by the total num-

Table 1: Area Under the Curve of the ROC for FP rate ≤

0.1.

Image ACS HACS HS rg CrCb RGB

Studio .0992 .0994 .0993 .0994 .0994 .0994

Ofﬁce .0935 .0890 .0834 .0814 .0833 .0772

Hallway .0553 .0547 .0526 .0544 .0907 .0978

Sunset .0633 .0676 .0523 .0596 .0749 .0701

Restaurant .0485 .0572 .0601 .0526 .0379 .0543

Window .0726 .0654 .0486 .0173 .0280 .0257

Living room .0778 .0557 .0157 .0250 .0599 .0647

Glass wall .0781 .0832 .0821 .0789 .0711 .0579

Table tennis .0963 .0961 .0950 .0953 .0953 .0918

Street .0604 .0726 .0817 .0656 .0845 .0855

average .0745 .0741 .0671 .0630 .0725 .0724

st.dev. .0169 .0160 .0245 .0259 .0227 .0217

worst result .0485 .0547 .0157 .0173 .0280 .0257

average ranking 3.2 2.6 4.0 4.5 3.4 3.3

ber of tested skin pixels) is computed only from the

bare skin of the hands and arms in the same image,

which was also manually annotated. The false posi-

tive (FP) rate (number of pixels wrongly detected as

skin divided by the total number of tested non-skin

pixels) was computed from all areas in the same photo

not containing any bare skin or hair. Note that, al-

though training and test samples were extracted from

the same image, they correspond to physically differ-

ent parts of the scene, subject to possibly different

illumination and captured with different parts of the

camera sensor. This results in a better separation be-

tween training and test set than when they only differ

in time.

Four different color spaces were compared to

ACS: Hue-Saturation (HS) space, normalized Red-

Green (rg) space, CrCb space and RGB space. His-

tograms of the face samples were used as the skin

likelihood models. For the ﬁrst three color spaces, the

histogram sizes are 100×100 bins and for RGB space

the histogram was 100×100×100 bins. The reason

for using histograms is because histograms do not as-

sume any type of distribution. Because histograms

do not generalize as well as parameterized distribu-

tions, the histograms are all smoothed with a Gaus-

sian kernel of 21 bins in all dimensions, with standard

deviation 1. HACS and HSV color models and skin

detection for the image ’Window’ are shown in ﬁgure

To get an objective and comparable measure-

ment of performance, the Area Underneath the Curve

(AUC) is computed for the Receiver Operation Char-

acteristic (ROC) curves of all methods and photos.

Only the part of the curve with small FP rate is rel-

evant, since too many false positives will make it im-

possible to separate hands from the rest of the image.

Therefore, only the AUC for FP rates between 0 and

0.1 is used for comparison. The results are shown in

table 1 (the closer to 0.1, the better). The ACS method

shows the best mean AUC, however, HACS has the

best average ranking over the test images. Further-

HACS model HACS skin

HSV model HSV skin

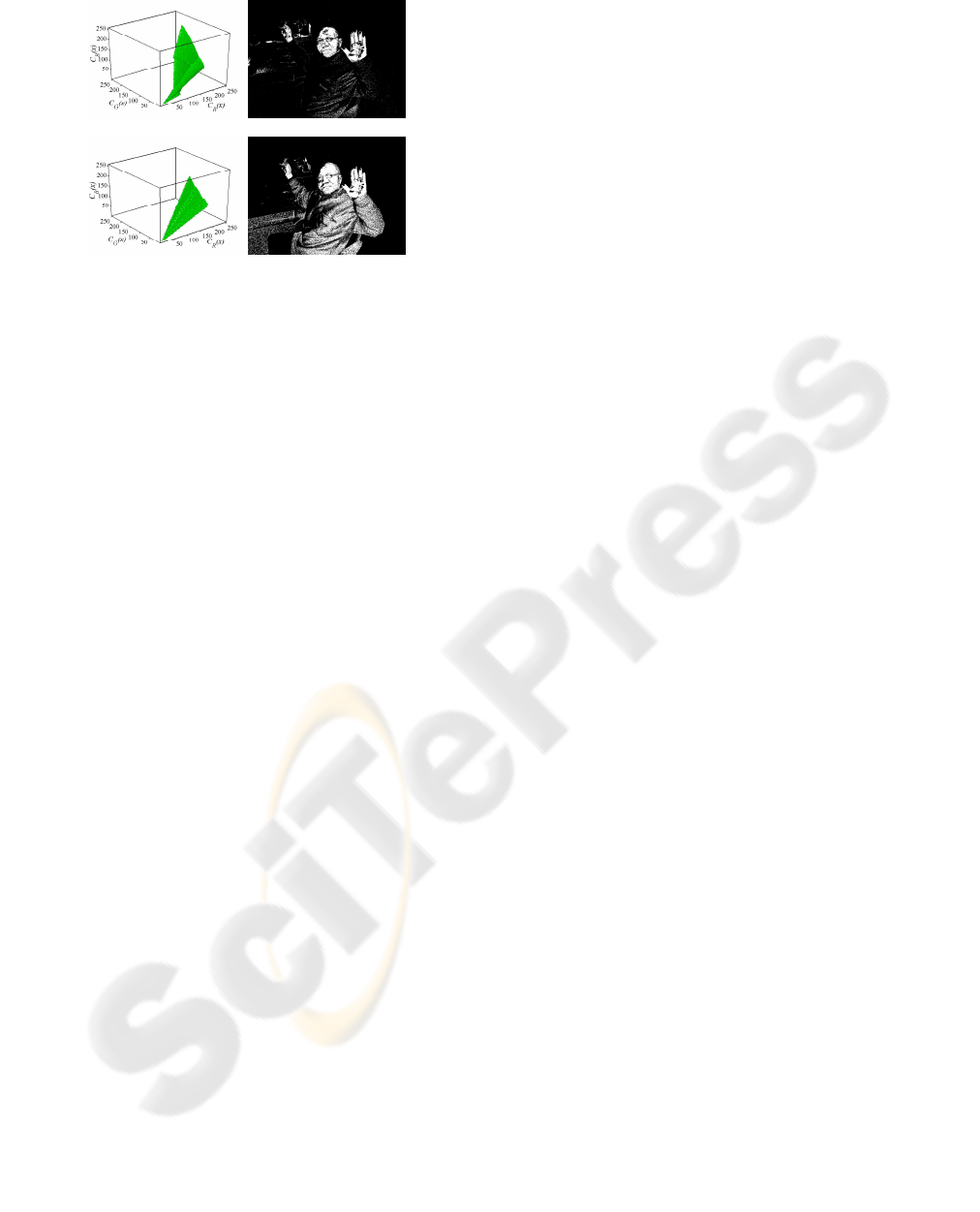

Figure 4: Results for the image ’Window’. The upper left

ﬁgure shows detection of the main axes of the left (black

dots, solid line) and right (blue dots, dashed line) side of

the face. The hulls in RGB space correspond to skin color

using a threshold that detects 75% of the training samples.

more, these results show that the relative performance

between all color models greatly depends on the sit-

uation. The low standard deviation of the HACS re-

sults indicates the high robustness of the method. Al-

though the other methods have higher results in some

speciﬁc images, they also have signiﬁcantly lower re-

sults for other images. Surprisingly, the RGB model

outperforms the HS, rg and CrCb models, contrary

to what could be expected from modeling skin color

with prior knowledge about intensity invariance. The

violation of the assumptions of these models in ev-

eryday situations clearly has a negative effect on their

performance.

5 CONCLUSIONS & FUTURE

WORK

We have proposed an adaptive chrominance model

and automatic ﬁtting procedure that can be used to

detect skin color more accurately than the compared

methods when no color space calibration is performed

and/or heterogeneous illumination is present. This

makes our (H)ACS model especially useful for real-

world applications. Besides a better overall skin de-

tection performance, HACS also showed a lower stan-

dard deviation between different situations, while the

other methods showed more unstable results.

Further improvements of the model are possible.

First of all, over- or under-saturated colors can be

accounted for and assumptions about the model ori-

entation and shape outside of the intensity range of

the training samples can be improved. Furthermore,

many improvements are possible on the prior prob-

ability model of background color. A histogram of

the complete image and/or an off-line image database

could be used to exclude colors with a high prior prob-

ability.

ACKNOWLEDGEMENTS

We we would like to thank the VSB fund and the

NSDSK (Dutch Foundation for the Deaf and Hard of

hearing Child) for making this research possible.

REFERENCES

Argyros, A. and Lourakis, M. (2004). Real-time tracking of

multiple skin-colored objects with a possibly moving

camera. In ECCV04, pages Vol III: 368–379.

Fischler, M. and Bolles, R. (1981). Random sample consen-

sus: A paradigm for model ﬁtting with applications to

image analysis and automated cartography. Commu-

nications of the ACM, 24(6):381–395.

Fritsch, J., Lang, S., Kleinehagenbrock, M., Fink, G. A.,

and Sagerer, G. (2002). Improving adaptive skin color

segmentation by incorporating results from face de-

tection. In ROMAN, pages 337–343, Berlin, Germany.

Jones, M. J. and Rehg, J. M. (2002). Statistical color mod-

els with application to skin detection. International

Journal of Computer Vision, 46(1):81–96.

Lee, J. and Yoo, S. (2002). An elliptical boundary model

for skin color detection. In CISST’02.

Lichtenauer, J., Hendriks, E., and Reinders, M. (2005).

A shadow color subspace model for imperfect not-

calibrated cameras. In ASCI 05, Heijen, The Nether-

lands.

Martinkauppi, B., Soriano, M., and Pietikainen, M. (2003).

Detection of skin color under changing illumination:a

comparative study. In CIAP03, pages 652–657.

McKenna, S., Raja, Y., and Gong, S. (1999). Tracking

colour objects using adaptive mixture models. IVC,

17(3/4):225–231.

Phung, S., Bouzerdoum, A., and Chai, D. (2005). Skin

segmentation using color pixel classiﬁcation: analy-

sis and comparison. PAMI, 27(1):148–154.

Raja, Y., McKenna, S., and Gong, S. (1998). Tracking and

segmenting people in varying lighting conditions us-

ing colour. In AFGR98, pages 228–233.

Soriano, M., Martinkauppi, B., Huovinen, S., and Laakso-

nen, M. (2000). Skin detection in video under chang-

ing illumination conditions. In ICPR00, pages Vol I:

839–842.

Vezhnevets, V., Sazonov, V., and Andreeva, A. (2003). A

survey on pixel-based skin color detection techniques.

In Proc. Graphicon-2003, pages 85–92.

Yang, M., Kriegman, D., and Ahuja, N. (2002). Detecting

faces in images: A survey. PAMI, 24(1):34–58.
