A HARRIS CORNER LABEL ENHANCED MMI ALGORITHM FOR

MULTI-MODAL AIRBORNE IMAGE REGISTRATION

Xiaofeng Fan, Harvey E. Rhody

Chester F. Carlson Center for Imaging Science, Rochester Institute of Technology, Rochester, NY, USA

Eli Saber

Dept. of Electrical Engineering, Rochester Institute of Technology, Rochester, NY, USA

Keywords:

Image Registration, Maximization of Mutual Information.

Abstract:

Maximization of Mutual information (MMI) is a method that is used widely for multi-modal image registra-

tion. However, classical MMI techniques utilize only regional and/or global statistical information and do not

make use of spatial features. Several techniques have been proposed to extend MMI to use spatial informa-

tion, but have proven to be computationally demanding. In this paper, a new approach is proposed to combine

spatial information with MMI by using the Harris Corner Label (HCL) algorithm. We use the HCL based

MMI algorithm to accelerate the computation and improve the registration over noisy images. Our results

indicate that the HCL based registration technique yields superior performance on multimodal imagery when

compared to its classical MMI based counterpart.

1 INTRODUCTION

The availability of remote sensing imagery from satel-

lites and aircraft using many kinds of imaging sen-

sors has led to the need for robust and efﬁcient multi-

modal registration tools. Some imagery examples in-

clude low and high resolution still/video cameras in

the visual spectrum, multi-spectral cameras using a

variety of infra-red wavelengths, imaging spectrome-

ters and synthetic-aperture radar systems. Maximiza-

tion of Mutual Information MMI (Viola, 1995), ini-

tially introduced by Viola, is an automatic registra-

tion method for multi-modal images that exploits the

underlying inherent information relationships. Com-

pared to cross-correlation, it is insensitive to bright-

ness variations that are inherent across modalities.

However, it is somewhat computationally slow and

sensitive to image noise. The technique described in

this paper will address these shortcomings.

The MMI-based image registration represents an

entropy-based measure that does not require the def-

inition of features such as edges or corners and does

not employ spatial information that would be avail-

able in the form of image features. Researchers have

proposed adaptation of the traditional MMI-based

registration framework to incorporate spatial infor-

mation. Butz et al. (Butz and Thiran, 2001) ap-

plied Mutual Information (MI) to edge measures de-

ﬁned by different edge operators. However, the at-

traction range is narrow thereby increasing the dif-

ﬁculty of the optimization procedure. Pluim et al.

(Plium et al., 2000) proposed including spatial infor-

mation by multiplying the MI measure with an ex-

ternal local gradient term. Holden et al. (Holden

et al., 2004) registered two images by maximizing the

multi-dimensional MI of the corresponding features.

Gan et al. (Gan and Chung, 2005) utilized the spatial

feature, maximum distance-gradient-magnitude, in a

complicated and computationally extensive four di-

mensional framework for image registration.

In this paper, we introduce a spatial feature-based

technique that uses the Harris Corner Label (HCL)

algorithm to identify high-information pixels and a

wavelet pyramid to support computation at different

scales. We propose to calculate the MI from the

HCL map of the original images instead of their cor-

responding intensity values. The experimental re-

sults demonstrate that our method is both more robust

and efﬁcient than that of traditional MMI registration

techniques for multimodal registration. The remain-

der of the paper is organized as follows. Section 2

provides a brief background on spatial feature infor-

420

Fan X., E. Rhody H. and Saber E. (2007).

A HARRIS CORNER LABEL ENHANCED MMI ALGORITHM FOR MULTI-MODAL AIRBORNE IMAGE REGISTRATION.

In Proceedings of the Second International Conference on Computer Vision Theory and Applications - IFP/IA, pages 420-423

 SciTePress

mation and describes our proposed algorithm. Section

3 describes our experimental results. Conclusions are

drawn in Section 4.

2 SPATIAL FEATURE

INFORMATION

Given an image pair and a geometric transformation,

we aim at improving the MMI algorithm by select-

ing the most relevant pixels for registration purposes.

Classical MMI relies only on global statistical infor-

mation. However, for image registration, it is obvious

that edge pixels are more important than those within

a nearly uniform region. A focus-of-attention mech-

anism such as a corner detector provides a excellent

avenue to differentiate between these pixel classes.

2.1 Harris Corner Detector

The Harris corner detector (Harris and Stephens,

1988) is a popular interest-point selector due to its

strong invariance to rotation, translation, illumination

variation and relative tolerance of image noise. It

utilizes the average gradient c(x, y) computed over a

small region w as follows:

c(x, y) =

∑

[I(x

, y

) − I(x

+ ∆x, y

+ ∆y)]

(1)

where (x,y) represent the location of a pixel. This can

be expressed in matrix form as

c(x, y) ≈ d

M(x, y)d (2)

where d = [∆x, ∆y]

M =





∑

, y

))

∑

, y

)

∑

, y

)

∑

, y

))





and I

, y

) = I(x

, y

) − I(x

+ ∆x, y

)) are gradi-

ent measures. Hence, c(x, y) represents the gradient

structure of the local neighborhood. The eigenvalues

of the matrix M(x, y) are calculated and represented

as λ

and λ

. The relationship between them, as de-

picted in Figure 1, is an excellent indicator of local

image characteristics.

Given the above, three cases are customarily con-

sidered:

1. If λ

and λ

are both small, then the local area is

relatively smooth.

2. If one eigenvalue is large and the other small, it

implies that the local auto-correlation function is

ridge shaped indicating a local shift in one direc-

tion. This represents a horizontal or vertical edge.

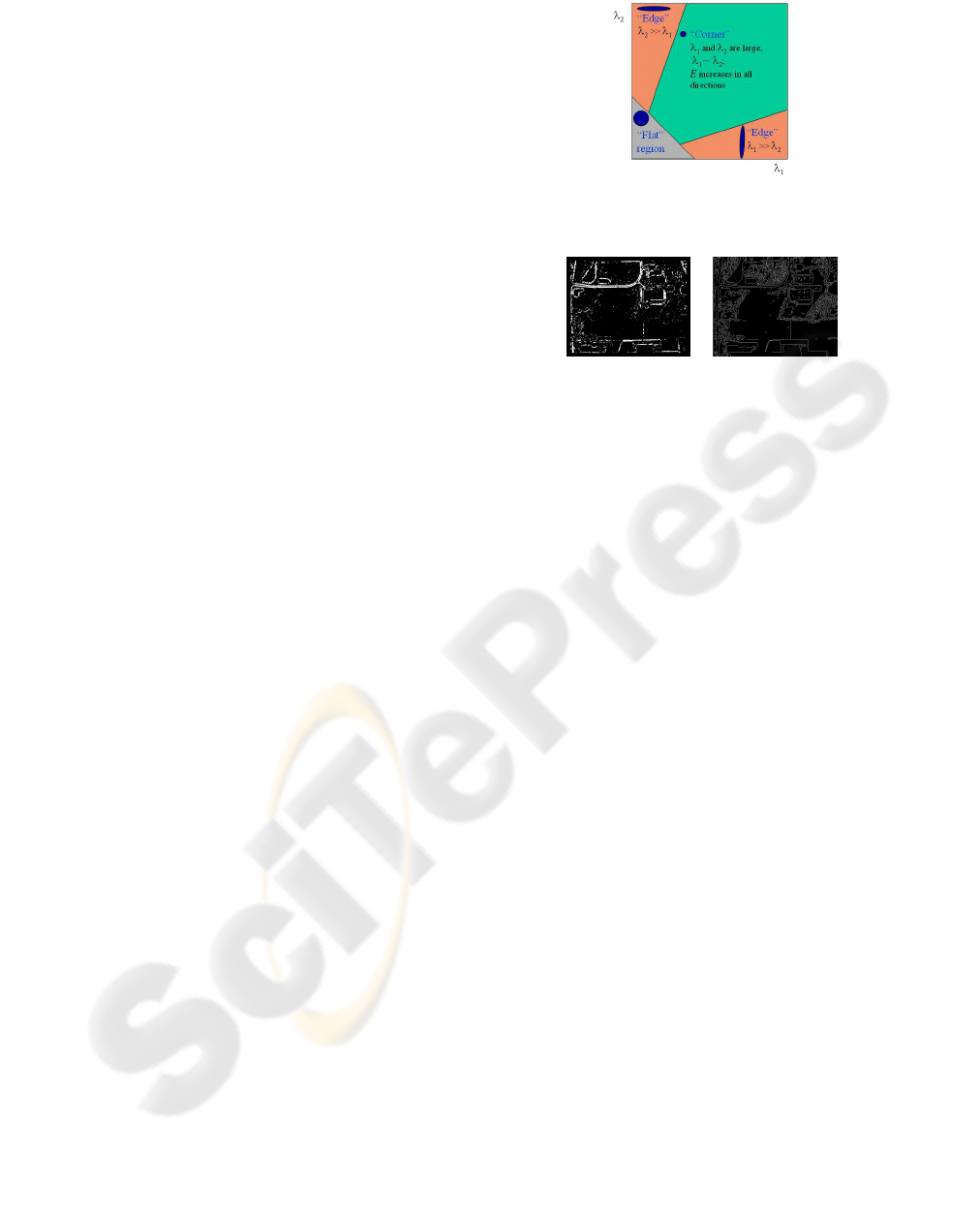

Figure 1: Possible relationships between eigenvalues pro-

duced by HCL .

(a) (b)

Figure 2: Comparison between HCL and Canny edge de-

tection.

3. If both eigenvalues are large, the local auto-

correlation function is sharply peaked, which in-

dicates the presence of a corner.

As a result, we classify pixels by the comparing the

eigenvalues to determine which region of Figure 1 ap-

plies at each point. Each pixel given a class value of

0, 1, or 2 depending on whether it is in a ﬂat region,

near an edge or at a corner.

The Harris corner detector is a good choice as a

focus-of-attention for our approach to MMI registra-

tion. We tried other focus-of-attention methods such

as typical edge detection, but found that the HCL map

provides superior performance. The Harris detector,

in effect, identiﬁes a rich set of pixels that can be used

in the MMI computation. This can be easily seen in

Figure 2.

To achieve the effect of focusing on areas that have

high information content, our algorithm applies MMI

to the HCL map of the images instead of the origi-

nal intensity. Because it is computed from the local

auto-correlation map, HCL also provides a level of

ﬁltering. This property helps to increase the capture

range in the registration procedure.

2.2 Mmi on Hcl Mapping

In our implementation of the MI-based multi-modal

image registration, MI is computed on imagery that

has been pre-processed by the HCL. To this effect, a

Harris Corner Detector is utilized to divide all pixels

into three categories: inside pixel, edge and corner.

The joint histogram calculation among the labels has

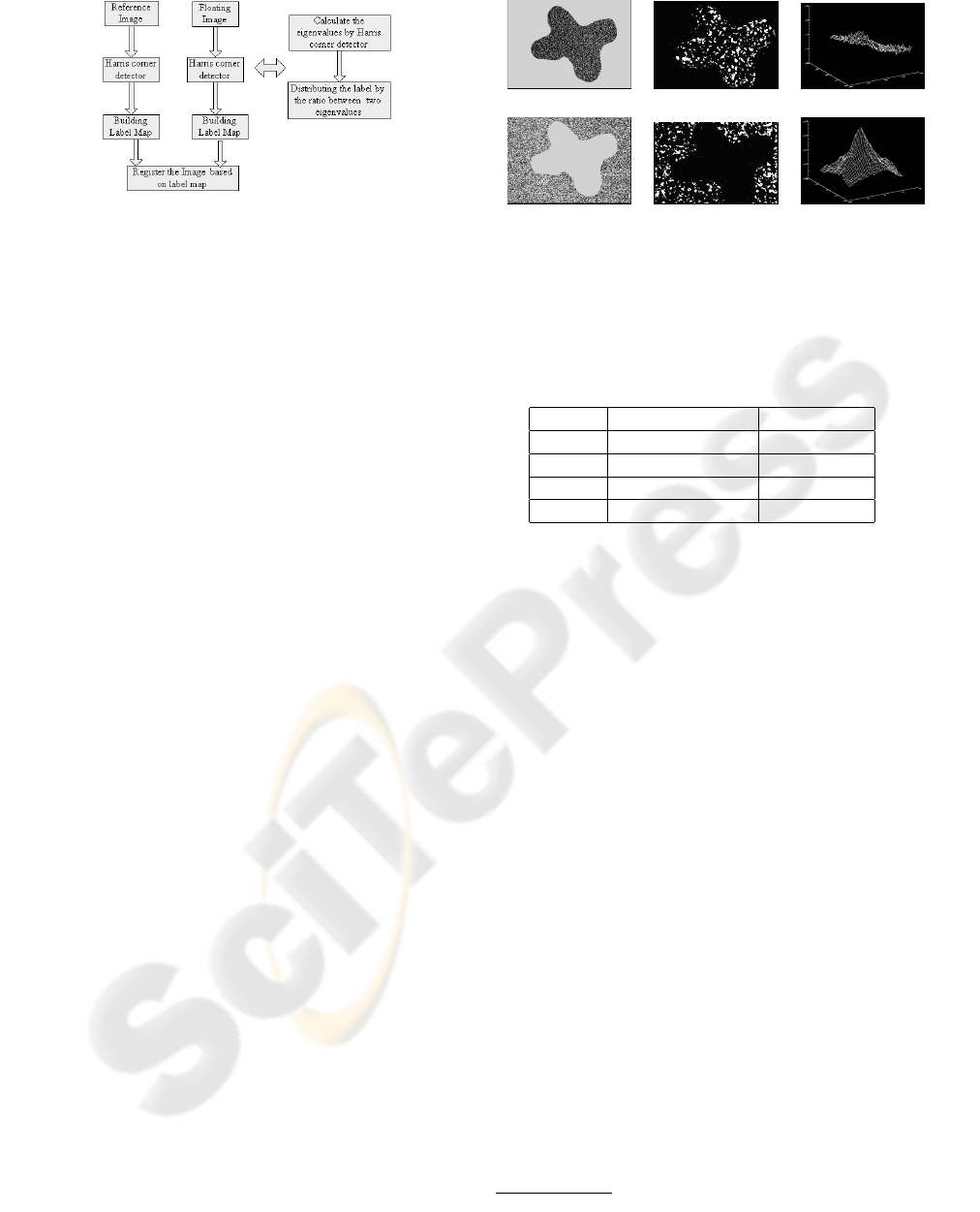

Figure 3: Flowchart for the HCL-Based MI registration.

a smaller range of values to consider than the calcu-

lation based on the intensity. In addition, we use a

4-level-wavelet-pyramid to accelerate the registration

process and increase its robustness.

3 EXPERIMENTAL RESULTS

In this section, we present two sets of experiments.

The ﬁrst set is utilized to test the robustness of HCL-

based MI with regard to noise. The second set is em-

ployed to evaluate the performance of our proposed

method relative to traditional MI-based registration.

3.1 Synthetic Images

Although conventional MMI is very powerful, its per-

formance is reduced in images with large regions of

uniform intensity and regions of high randomness.

This can be demonstrated by an extreme case. In Fig-

ure 4, we show an image of a noisy object on a ﬂat

background and vice versa. In Figure 4a, the back-

ground is constant, and the object has spatially inde-

pendent random pixels. Figure 4b has a reversal of the

structure in Figure 4a. When Figure 4a and Figure 4b

are aligned, every random pixel in one image is con-

stant in the other and vice versa. This makes the pix-

els in one image statistically independent of its coun-

terpart in the other image. Hence, any misalignment

leads to overlaps of like regions which poses signiﬁ-

cant challenges for conventional MMI registration.

On the other hand, the images shown in Figure

4 are easily processed by a HCL-Enhanced MI. Al-

though the pixel intensity is random inside the region,

sufﬁcient gradient information is detected to enable

MMI registration. Figure 4c and d show the HCL map

at one of the pyramid layers. Figure 4e depicts the re-

sulting MMI surface achieved from Figure 4a and 4b,

as a function of horizontal and vertical shifts, while

Figure 4f represents the MMI surface achieved with

Figure 4c and d. As can be easily seen, the MI sur-

face obtained from the HCL based technique is far

(a) (c) (e)

(b) (d) (f)

Figure 4: Noisy image registration Example: (a) and (b)

represent two noisy images; (c) and (d) shows the HCL

mapping for two images; (e) and (f) shows the search sur-

face for conventional MMI and HCL-enhanced MMI regis-

tration algorithm.

Table 1: WASP camera description.

Bandwidth Resolution

SWIR 0.9-1.7 µm 640×510

MWIR 3-5 µm 640×510

LWIR 8-9.2 µm 640×510

VNIR 0.4-0.9 µm RGB 2048×2048

well suited for registration that its counterpart.

3.2 Real Life Multimodal Images

The real life multimodal images used in this section

were captured by the Wildﬁre Airborne Sensor Plat-

form (WASP) system, which includes three IR cam-

eras and a high-resolution visible camera. The speci-

ﬁcations of the system are shown in Table 1.

3.2.1 Intra-band Registration

The images shown in Figure 5a and 5b represent two

frames taken 4 seconds apart from the short wave

IR band of the WASP system. Figure 5c shows the

corresponding registration curves for the two algo-

rithms, where the solid is for HCL-MMI algorithm

and the dashed is for the conventional MMI. The reg-

istered images are overlaid (See Fig. 5d to indicate

the high degree of accuracy obtained by our proposed

approach.

3.2.2 Inter-band Registration

In this section, we demonstrate the effectiveness of

the HCL-MMI algorithm in registering multi-modal

imagery acquired by the WASP system using the three

IR bands discussed in Table 1. The short, medium and

The running environment is P4 3.0G 1G RAM, IDL 6.0

(a) (b)

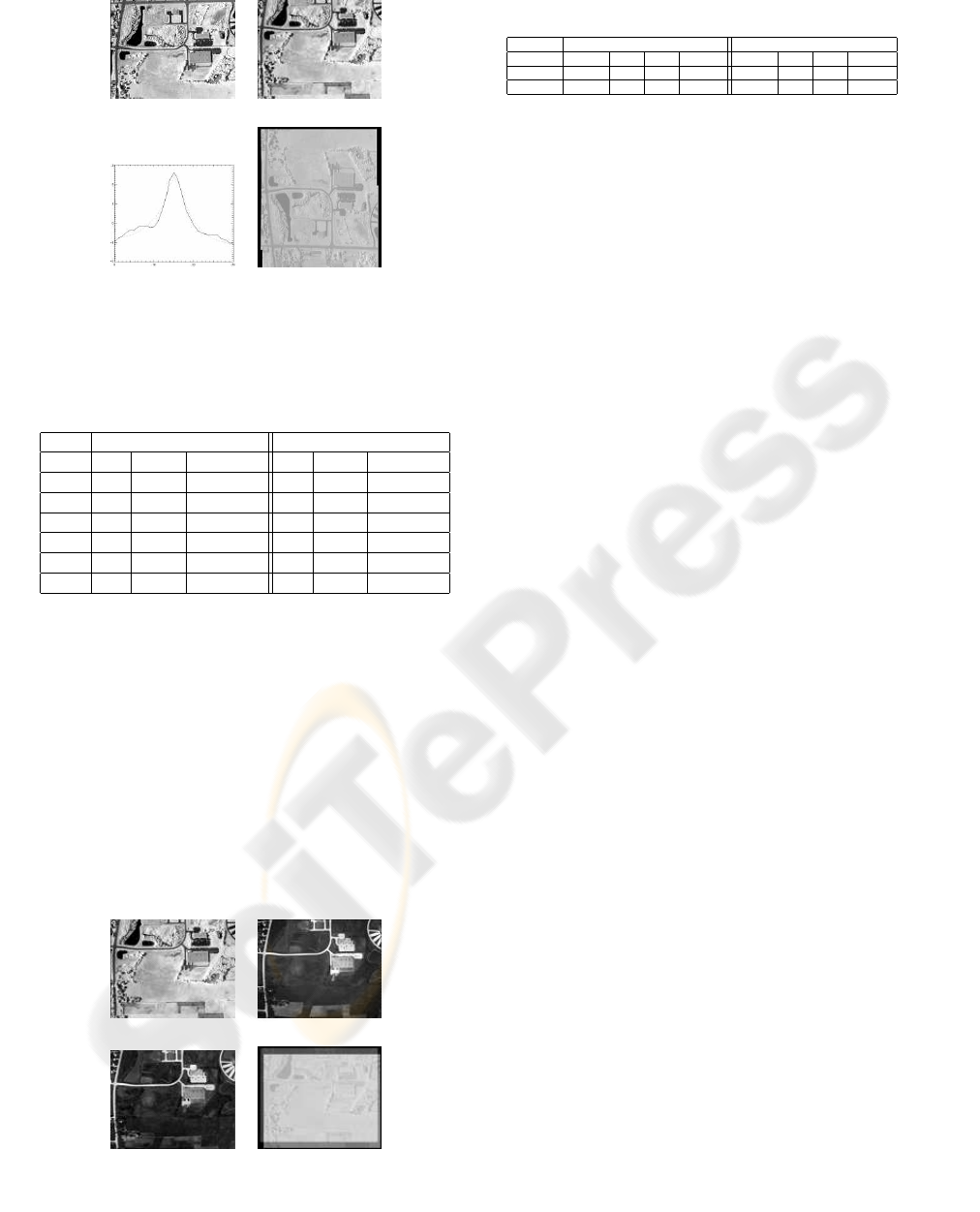

Figure 5: Intra-band Registration Example: (a) and (b) rep-

resent two sequential frames, (c) Registration Curve for two

algorithms, (d) Overlaid registered images.

Table 2: Results for WASP Intra-band Registration.

Conventional MMI HCL-Enhanced MMI

θ x y Time (s) x y Time (s)

0 -8 237 14.04 -8 237 7.753

0 65 232 12.765 65 232 7.422

0 10 104 11.547 10 104 6.656

-0.5 19 -236 71.75 19 -236 39.329

0.5 27 -251 84.26 27 -251 45.23

0 4 -246 15.531 4 -246 7.859

long IR images are shown in Figure 6a, b and c re-

spectively. Note the translation, scale and signiﬁcant

intensity variations. The results computed by our al-

gorithm are shown in Fig. 6d and displayed in Table

3, where the short wave band was utilized as the base

image.

From the above examples, we can see, relative to

the conventional MMI algorithm, that the HCL-MMI

algorithm can reach the same accuracy in about half

the computing speed. This was found to be true for

many other examples that have been tested.

(a) (b)

Figure 6: Inter-band Registration Example.

Table 3: Inter-band Registration Results.

Conventional MMI HCL-Enhanced MMI

scale x y time scale x y time

MWIR 1.13 19 32 51.06 1.13 19 32 29.68

LWIR 1.12 6 36 46.16 1.12 6 36 26.6

4 CONCLUSION

In this paper, we proposed a HCL-based MMI algo-

rithm for registering multi-modal images. The HCL-

based MMI is reliable and efﬁcient. The Harris corner

label improves robustness as demonstrated with vari-

ous synthetic and real life images. Because the Harris

corner detector is invariant to the translation and ro-

tation, the HCL-MMI algorithm can register images

with shift, rotation and scale differences. The Har-

ris corner detector broadens the attraction range and,

in our experience, reduce the risk of being trapped

in a local minimum. Experimental results show the

algorithm is successful in registering IR with visual

images. The use of a multi-resolution technique in-

creases robustness by enabling computation at an ap-

propriate scale.

REFERENCES

Butz, T. and Thiran, J.-P. (2001). Afﬁne registration with

feature space mutual information. In MICCAI ’01:

Proceedings of the 4th International Conference on

Medical Image Computing and Computer-Assisted In-

tervention, pages 549–556, London, UK. Springer-

Verlag.

Gan, R. and Chung, A. C. S. (2005). Multi-dimensional mu-

tual information based robust image registration us-

ing maximum distance-gradient-magnitude. In IPMI,

pages 210–221.

Harris, C. and Stephens, M. (1988). A combined corner and

edge detector. In 4th Alvey Vision Conference,, pages

147–151.

Holden, M., Grifﬁn, L. D., and Hill, D. L. G. (2004). Multi-

channel mutual information using scale space. In mic-

cai04, St. Malo, France.

Plium, J., Maintz, J., and Viergever, M. (2000). mage regis-

tration by maximization of combined mutual informa-

tion and gradient information. IEEE Trans. Medical

Imaging, 19(8):809–814.

Viola, P. A. (1995). Alignment by Maximization of Mutual

Information. PhD thesis, Massachusetts Institute of

Technology Artiﬁcial Intelligence Laboratory.
