AN ATTENTION-BASED METHOD FOR EXTRACTING SALIENT

REGIONS OF INTEREST FROM STEREO IMAGES

Oge Marques, Liam M. Mayron, Daniel Socek

Department of Computer Science and Engineering, Florida Atlantic University, Boca Raton, FL - 33431, USA

Gustavo B. Borba, Humberto R. Gamba

CPGEI, Universidade Tecnol

ogica Federal do Paran

a, Av. Sete de Setembro 3165, Curitiba-PR, Brazil

Keywords:

Image segmentation, stereo vision, visual attention.

Abstract:

A fundamental problem in computer vision is caused by the projection of a three-dimensional world onto one

or more two-dimensional planes. As a result, methods for extracting regions of interest (ROIs) have certain

limitations that cannot be overcome with traditional techniques that only utilize a single projection of the

image. For example, while it is difﬁcult to distinguished two overlapping, homogeneous regions with a single

intensity or color image, depth information can usually easily be used to separate the regions. In this paper

we present an extension to an existing saliency-based ROI extraction method. By adding depth information

to the existing method many previously difﬁcult scenarios can now be handled. Experimental results show

consistently improved ROI segmentation.

1 INTRODUCTION

Extracting regions of interest (ROIs) from digital

images represents one of the fundamental tasks in

computer vision. The problem of extracting ROIs

from digital images of natural scenes is often ex-

acerbated by the loss of information caused by a

two-dimensional projection of the three-dimensional

real world. Consequently, most methods have dif-

ﬁculty distinguishing homogeneous overlapping re-

gions caused by partial occlusion, or separating re-

gions belonging to the background from those belong-

ing to the foreground.

In this paper we present a method for extract-

ing salient regions of interest from stereo images.

Our approach represents an extension to an existing

attention-based ROI extraction method proposed in

(Marques et al., 2007), which relies on two comple-

mentary computational models of human visual atten-

tion, (Itti et al., 1998) and (Stentiford, 2003). These

models provide important cues about the location of

the most salient ROIs within an image. By incorpo-

rating the estimated depth information obtained from

left and right stereo images, our method can success-

fully cope with the aforementioned extraction prob-

lems, resulting in a more robust and versatile method.

2 THE PROPOSED METHOD

The proposed method combines a saliency-based ROI

extraction method with depth map information. This

Section presents background information on both top-

ics and outlines the proposed solution.

Much of the visual information our eyes sense is

discarded. Instead,

Marques O., M. Mayron L., Socek D., B. Borba G. and R. Gamba H. (2007).

AN ATTENTION-BASED METHOD FOR EXTRACTING SALIENT REGIONS OF INTEREST FROM STEREO IMAGES.

In Proceedings of the Second International Conference on Computer Vision Theory and Applications - IU/MTSV, pages 294-297

 SciTePress

tiford, 2003) through a series of morphological op-

erations. The model produces one or more extracted

regions of interest.

Figure 1: General block diagram of the 2D ROI extraction

method.

Figure 1 shows an overview of the 2D ROI extrac-

tion method. The saliency map (Itti-Koch) (S) and vi-

sual attention map (Stentiford) (V) are generated from

the original image. Post-processing is performed in-

dependently on each in order to remove stray points

and prune potential regions. Then, the remaining

points in the processed saliency map are used to target

regions of interest that remain on the visual attention

map. The result is a mask (M) that can be used to

extract the regions of interest (R) from the original

image. This process is detailed in (Marques et al.,

2007).

There are certain cases where the previous method

does not work. When objects are occluded or overlap-

ping they may appear as a single region when inspect-

ing a single 2D projection of the view. Only with a

separate view can enough information of the original

3D scene be reconstructed to determine the relative

depth of the occluding objects. Convesely, relying

only on depth information is also not enough to prop-

erly determine a region of interest. A bright poster

on a ﬂat wall, for example, would be ignored if only

depth information were used, as it rests on the same

plane as the wall. As a result, we propose a combi-

nation of both methods, mitigating the weaknesses of

each.

In (Birchﬁeld and Tomasi, 1999), the authors pro-

posed fast and effective algorithm for depth estima-

tion from stereo images. Unlike other similar ap-

proaches, such as (Cox et al., 1996), the approach of

Birchﬁeld and Tomasi achieves optimal performance

mainly by avoiding subpixel resolution with a mea-

sure that is insensitive to image sampling. The depth

estimation phase of our method relies on this compu-

tational approach.

Depth

image computation

Left

camera

n-level nonlinear

quantization

Saliency/depth-based ROI extraction

Saliency-

based

ROI

mask

generation

Right

camera

Figure 2: General block diagram of the 3D ROI extraction.

According to Figure 2, the scene is ﬁrst acquired

by two properly-positioned and adjusted cameras, so

that the scanlines are the epipolar lines. The left

and right stereo images, I

and I

are processed

by Birchﬁeld-Tomasi disparity estimation algorithm.

The output disparity map D is then nonlinearly quan-

tized within n levels, resulting in output image D

The left channel image, I

, is also processed by the

existing 2D saliency-based ROI segmentation algo-

rithm that produces a binary mask M corresponding

to the salient regions of the image (Figure 1). In the

last stage of the algorithm, M and D

are submit-

ted to the saliency/depth-based ROI extraction block,

which combines both images in order to segment the

ROIs (R

) and label them according to their respec-

tive depths in the real scene. δ is the quantized depth,

with δ ∈ {a, . . . , n} and r is an ROI at a depth δ.

In the example shown in Figure 2, the objects

(ROIs) belong to either foreground, middle, or back-

ground. In the output at the bottom of the ﬁgure the

pyramid within the foreground plane is labeled with

, the partially occluded parallelepiped and the green

solid, at the same middle plane, are labeled with R

and R

. Finally, the clock in the background is la-

beled with R

Under normal conditions depth images are rela-

tively efﬁcient in discriminating objects at the frontal

planes of the scene but they generally do not have suf-

ﬁcient resolution to capture ﬂat objects in the back-

ground or even common objects on a distant plane.

On the other hand, a saliency-based ROI identiﬁca-

tion algorithm can capture such objects, but they do

not account for relative object depth within the scene.

The objective is to combine the information provided

by both salient regions and depth cues to improve ROI

extraction.

In Figure 2, a purely saliency-driven ROI extrac-

tion algorithm tends to identify both light-orange ob-

jects as a single region. However, using depth infor-

mation, it is possible to divide this region, discrim-

inating the two objects. Another beneﬁt of this ap-

proach is the possibility of extracting objects such as

the watch in the background of Figure 2. While algo-

rithms for depth estimation are not able to discrimi-

nate the watch plane from the wall plane (their depth

is too similar), a saliency-driven ROI extraction can

segment that object. Using only depth images the

watch would not be captured.

3 COMPONENTS

The following is a description of the system compo-

nents from Figure 2.

Depth Images

The disparity maps generated by the Birchﬁeld-

Tomasi method are represented as 256-level grayscale

images. Darker (lower) values indicate further dis-

tances, and vice versa. In particular, purely black val-

ues denote the background plane.

Nonlinear Quantization

An n-level (L

, ... , L

) quantization is obtained and

applied to the disparity map according to Equation 1.

Level L

identiﬁes the depth closest to the cameras

and level L

denotes the depth farthest depth from

camera (the background).

(x, y) =











if D(x, y) = [0 T

n−1

if D(x, y) = [T

n−1

255].

(1)

where T

are the selected threshold values.

Saliency-based Roi Mask

Salient regions of interest are extracted from the left

image using the method described in (Marques et al.,

2007). This method was modiﬁed in the original

saliency-driven ROI extraction algorithm to reﬁne

some of the thresholds used to determine relative ob-

ject size.

Roi Extraction

The ROI extraction stage combines images M and D

Its goal is to segment and label the ROIs according to

their depths in the real scene. First, an AND opera-

tion between grayscale image D

and mask M is per-

formed, originating a grayscale

D image. This image

is then used to perform a depth decomposition accord-

ing to Equation 2.



1 if

D (x, y) = L

0 otherwise

(2)

where

are the decomposed depths binary images.

δ is the depth, with δ ∈ {1, . . . , n}.

After that, ROIs can be effectively extracted. First,

decomposed depth image

is submitted to a set of

morphological operations, denoted by m(·), in Equa-

tion 3.

= m(

) (3)

is a binary image where the white regions corre-

sponds to ROIs into depth 1, that is, those that are

closest to the camera. Function m(·) performs the fol-

lowing sequence: closing, region ﬁlling, pruning, and

small blobs elimination.

The remaining R

for each decomposed depth are

sequentially computed, from δ = 2 to δ = n, according

to Equation 4

= m

δ−1

k=1

(4)

where [·]

means the complement operation. Note that

the computation of a deeper R

takes into account the

depths before it. This operations gives preference to

closer regions of interest over the further ones.

Each image R

can have a set of ROIs, denoted by:

} = {R

, . . . , R

} (5)

where r is the number of ROIs in the depth δ, with

r ≥ 0.

(a) (b) (c) (d)

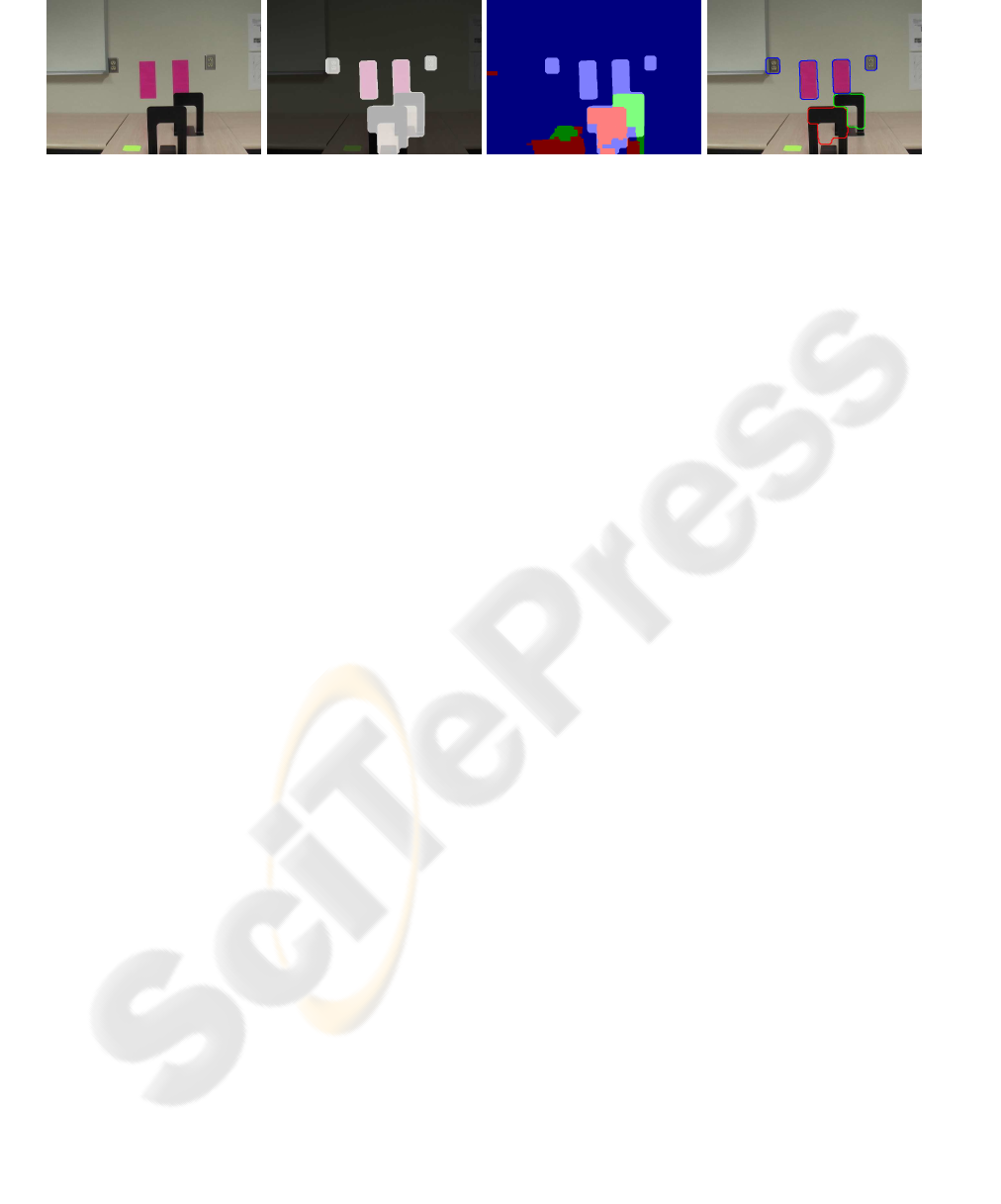

Figure 3: Results for occluding salient objects in the foreground and distracting salient objects in the background:

(a) original left stereo image; (b) highlighted ROI using saliency-based mask M; (c) highlighted pseudo-colored nonlin-

early quantized depth image (D

) using binary mask M. From the closest to the deepest plane: red, green, blue; and (d) ﬁnal

ROIs highlighted in the actual image.

4 EXPERIMENTAL RESULTS

We illustrate the performance of our algorithm with

a setting (Figure 3) consisting of stereo images cap-

tured in laboratory environment with two aligned

identical cameras ﬁxed on a professional stereo

stand. This and other stereo image pairs along

with the experimental results are currently posted at

http://mlab.fau.edu/stereo/roi3d.zip

In our experiments, a 3-level (L

, L

) quanti-

zation was used, according to Equation 1, while the

threshold values were obtained empirically: T

= 11

and T

= 23.

Figure 3 shows a case in which occluding salient

objects in the foreground and distracting objects in

the background are segmented. Note that there is a

bright yellow distracter in the foreground that is not

perceived as such by the algorithm, resulting in a false

negative. It can be observed that while the 2D ROI ex-

traction fails to discriminate between two foreground

objects and fails to identify background objects as

such, our proposed algorithm successfully discrimi-

nates between the two foreground ROIs and identiﬁes

all background ROIs.

5 CONCLUSIONS

Object and region segmentation from 2D data is not

always a straightforward task. In particular, it can

be impossible to segment occluded object because of

the depth information that is lost. In this work we

extended a previously proposed method for 2D re-

gion of interest extraction with depth information. A

disparity map was generated from two views using

the method proposed by Birchﬁeld-Tomasi (Birch-

ﬁeld and Tomasi, 1999). Using this depth information

we were able to differentiate occluding regions of in-

terest. Our experiments demonstrate the promise of

this approach but stress the need for nonlinear quan-

tization thresholds of the disparity map for successful

results. We are continuing work on this approach by

creating a method of automatically determining these

quantization thresholds and extending it to a variety of

applications. We are currently obtaining quantitative

results to further validate our method.

ACKNOWLEDGEMENTS

This research was partially sponsored by UOL

(www.uol.com.br), through its UOL Bolsa Pesquisa

program, process number 200503312101a.

REFERENCES

Birchﬁeld, S. and Tomasi, C. (1999). Depth discontinu-

ities by pixel-to-pixel stereo. International Journal of

Computer Vision, 35(3):269–293.

Cox, I., Hingorani, S., Rao, S., and Maggs, B. (1996). A

maximum likelihood stereo algorithm. Computer Vi-

sion and Image Understanding, 63(3):542–567.

Itti, L., Koch, C., and Niebur, E. (1998). A model of

saliency-based visual attention for rapid scene anal-

ysis. IEEE Trans. on PAMI, 20(11):1254–1259.

Marques, O., Mayron, L. M., Borba, G. B., and Gamba,

H. R. (2007). An attention-driven model for group-

ing similar images with image retrieval applications.

EURASIP Journal on Applied Signal Processing.

Stentiford, F. (2003). An attention based similarity mea-

sure with application to content-based information re-

trieval. In Proceedings of the Storage and Retrieval

for Media Databases Conference, SPIE Electronic

Imaging, Santa Clara, CA.

Styles, E. A. (2005). Attention, Perception, and Memory:

An Integrated Introduction. Taylor & Francis Rout-

ledge, New York, NY.
