FACIAL POSE ESTIMATION FOR IMAGE RETRIEVAL

Andreas Savakis and James Schimmel

Department of Computer Engineering, Rochester Institute of Technology, Rochester, NY 14623, USA

Keywords: Pose estimation, image retrieval, neural networks, eye detector, mouth detector.

Abstract: Face detection is a prominent semantic feature which, along with low-level features, is often used for

content-based image retrieval. In this paper we present a human facial pose estimation method that can be

used to generate additional metadata for more effective image retrieval when a face is already detected. Our

computationally efficient pose estimation approach is based on a simplified geometric head model and

combines artificial neural network (ANN) detectors with template matching. Testing at various poses

demonstrated that the proposed method achieves pose estimation within 4.28 degrees on average, when the

facial features are accurately detected.

1 INTRODUCTION

Semantic information in the form of face detection is

often included in content-based image retrieval

systems. When a face is detected in the query image,

additional information, such as facial pose

estimation, would be very helpful for more effective

image retrieval. This paper presents a

computationally efficient pose estimation method

that can be used to generate additional metadata

given that a human face is already detected in the

query image.

Faces in images rarely appear frontal and

upright, and this fact underscores the importance of

reliable, computationally efficient pose estimation

algorithms that aid image retrieval methods. While a

face can undergo pitch, roll and/or yaw rotations,

this paper focuses on yaw angle estimation which is

most commonly encountered. The ‘yaw’ of a face is

the angle at which the face turns horizontally right or

left and has the greatest possible benefit to

applications, since it is an indication of which way a

person is looking or heading.

Pose can be estimated using various methods,

however, the most computationally efficient

approaches tend to be geometric. In this paper, we

propose a novel geometric head model approach,

where proportions between the facial features are

used to calculate the pose angle. Section 2 presents

the background and assumptions used for the

proposed method. Section 3 discusses facial feature

detection using ANN’s and is followed by the pose

estimation method based on a simplified geometric

head model in Section 4. Sections 5 and 6 present

results and conclusions respectively.

2 BACKGROUND

An important aspect of geometric pose estimation

methods involves the human facial features to be

used. Selecting the two eyes as feature points is

useful, because eyes are prominent and relatively

easy to detect. The mouth is another prominent

feature, but its shape can vary depending on the

person’s activity. The nose can be harder to detect

due to its lack of contrast, however, some methods

(Burl and Perona 1996), (Choi et al. 1998) make use of

this feature with proper filtering. Facial feature

detection is often the most computationally

demanding portion of a pose estimation algorithm

(Fergus et al. 2003). To reduce computations, we limit

the number of features to three (left eye, right eye

and mouth), which reduces complexity while

maintaining accuracy.

Our method employs ANN’s for feature

detection and exploits the angles of a geometric

triangular template formed by the detected eyes and

mouth features. Other methods that have used

ANN’s tend to be mainly appearance-based

(Rowley

et al. 1998), (Haddadnia et al. 2002). These methods

train their networks on small images of the whole

face turned at different angles, while the proposed

method searches for individual facial features.

173

Savakis A. and Schimmel J. (2007).

FACIAL POSE ESTIMATION FOR IMAGE RETRIEVAL.

In Proceedings of the Second International Conference on Computer Vision Theory and Applications - IU/MTSV, pages 173-177

 SciTePress

Triangle or pyramidal templates were presented

(Choi et al. 1998) and (Yilmaz and Shah 2002), where

these methods perform pose estimation using a

classification system based on template deformation

or orthogonal projections of the detected points. Our

method focuses on the efficiency of detecting pose

by using a small number of feature points (three) and

by directly determining pose from two of the angles

of the triangular template.

The following simplifying assumptions were

made for easily training feature detectors: (a) facial

expression is assumed to be calm with the eyes

open; (b) there are no facial occlusions, such as hats,

glasses, facial hair, etc. Violation of these

assumptions would make the detection of eyes and

mouth more difficult, but once these facial features

are detected, the geometric pose estimation would

still work. The final assumption is that both eyes are

visible, which limits the pose angle to ±30 degrees.

The next sections cover the detection of the facial

features used, present the head model and discuss

the results.

3 FACIAL FEATURE

DETECTION

The first step in the detection of facial features is

done by detecting the face using a face detection

method and narrowing the search space of the facial

feature detectors based on the skin region. Once a

face is detected, the skin detection method selected

to narrow the search space is a lookup table based on

pixel probability distributions in the YCbCr color

space. The most notable challenge with skin

detection is due to lighting conditions

(Storring et al.

1999)

, (Gong et al. 2000). The luminance portion of

the image is ignored here, which makes the process

more resilient to lighting effects.

With pose estimation, facial features undergo

deformations as the pose angle changes. This and the

variability in facial proportions from person to

person, make the feature detection problem

challenging. Previous approaches have involved the

segmentation of the facial image and then the use of

shape detectors to determine the location of the

features

(Storring et al. 1999). Areas of high change

are often related to facial features

(Fitzpatrick 2003),

which motivates using edges in a facial image or

looking at changes in pixel intensities.

Artificial Neural Networks (ANNs) are used here

for the detection of facial features from grayscale

images. An eye detection network was trained using

2760 eye images and 13800 non-eye images of size

21x11. The training images for the eye network

consisted of both left and right eye images at varying

poses up to 30 degrees. A mouth detection network

was trained using 1430 mouth images and 7150 non-

mouth images of size 33x13. The eye network

provides accuracy of 90%, while the mouth network

results in accuracy of 93%.

During feature detection, the image is scaled

based on the results from the skin detection process.

The grayscale image is then subjected to contrast

stretching for normalization. Each detector network

is applied through the skin area of the image using a

sliding window and produces an output result

between 0 and 1 for each pixel. The higher the

output value, the more likely the subimage centered

at the pixel of interest contains a feature. Two

weight maps are generated for the location of eyes

and the mouth respectively. An averaging filter is

passed over the maps to reduce the effects of

outliers. Local maxima indicate likely locations of

the eyes and mouth.

Each combination of likely feature points is

checked to make sure they adhere to template

limitations. Finally, the set with the greatest total

weight is selected as the correct position for the

facial template.

4 POSE ESTIMATION

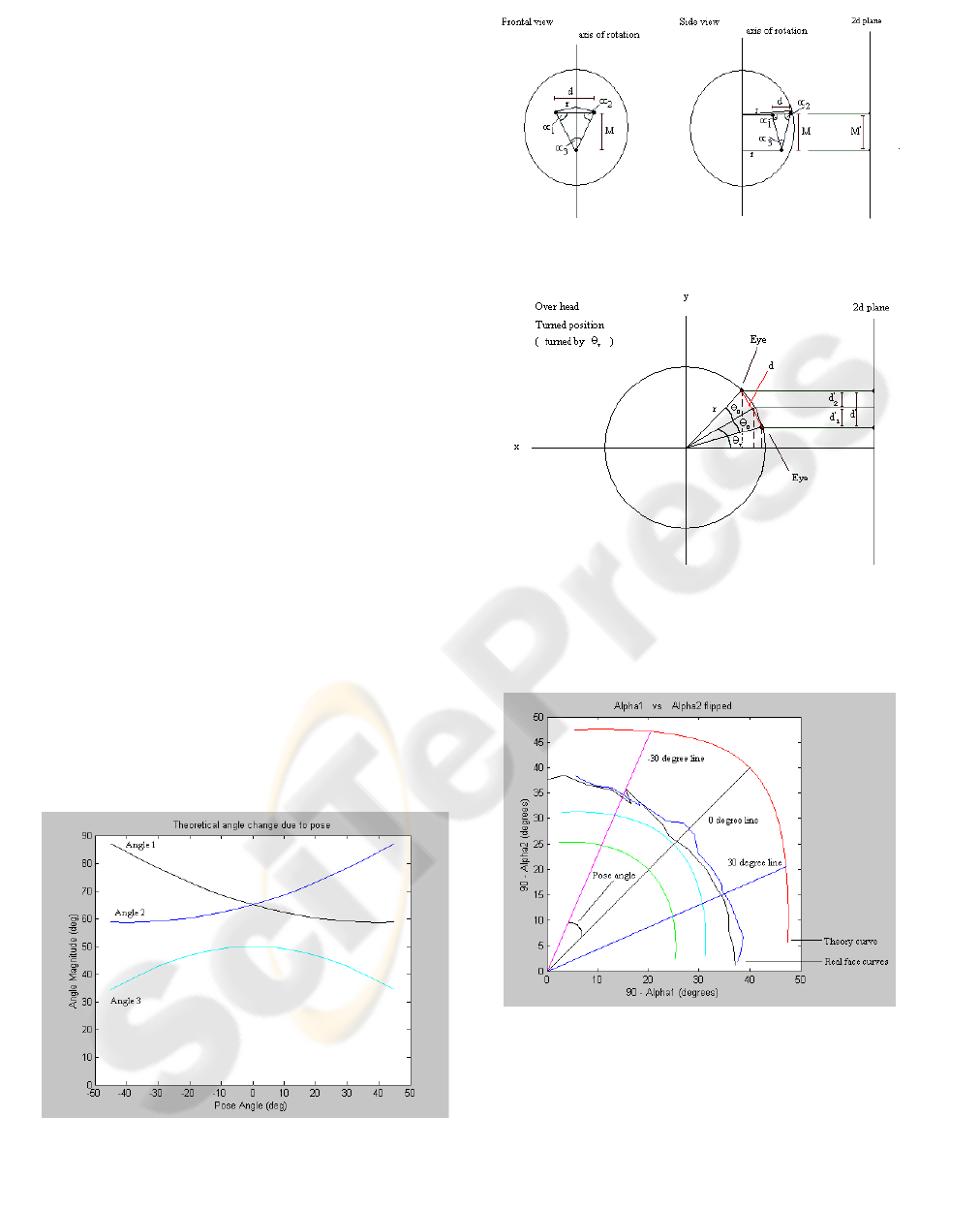

A simplified head model considered for fast pose

estimation is shown in Figure 1. Note that the eyes

and mouth are used as the primary feature points.

The head itself is treated as a spherical object of

radius r which rotates upon the y-axis. The mouth

and eyes are treated as a vertical plane on this

sphere. The distance between the eyes is labeled d.

By projecting the model of the head onto a two

dimensional plane, Equations (1), (2) and (3) were

developed to describe the change in the triangular

template angles,

′

, and

′′

, as the model

increases in yaw pose angle.

⎟

⎠

⎞

⎜

⎝

⎛

−−

′′

)sin()sin(

sin

*)tan(arctan

θθθ

αα

(1)

⎟

⎠

⎞

⎜

⎝

⎛

−−

′′

)sin()sin(

sin

*)tan(arctan

θθθ

αα

(2)

)(

213

′′

′

−

′

(3)

VISAPP 2007 - International Conference on Computer Vision Theory and Applications

174

where the pose angle is represented by

, variables

and

represent the angles of the triangular

face template in the frontal position, and variable

represents the angle formed by the eyes and the

central axis of rotation (Figure 1b). It is important to

note that since the sum of the angles in the triangular

template is 180 degrees, only two of the angles are

needed to fully describe it within a similarity

transformation. Figure 2 shows a graph of these

theoretical angle changes with respect to pose angle.

The quantities

αα

and

all vary from

individual to individual making it necessary to

normalize the angle relative to one another when

performing the final pose estimation. Figure 3 is a

graph of

−

versus

−

, the two top angles

of the triangle, as the face pose changes. The figure

shows three theoretical curves and two curves

generated from image sets. The lines from the origin

connect points on the curves at -30°, 0° and 30°.

This graph helps illustrate how the pose angles form

curves around a given focal point. This is due to the

symmetry inherent in the human face. At the

forward position, these two angles are equal and we

are operating on the graph diagonal. When the pose

changes, the difference between these angles

increases, as illustrated in the curves shown.

The pose angle is equal to the angle formed by

the center line, where the face is in the frontal

position, and the line formed by the calculated

αα

point and the origin. Using this observation and the

previous equations, a simplified equation for the

pose can be developed:

⎟

⎠

⎞

⎜

⎝

⎛

−

arctan

αα

(4)

This equation is easy to compute once the facial

features have been detected and the template triangle

has been formed.

5 RESULTS

In order to test the pose estimation algorithm an

image database was generated under controlled

conditions. Images of ten individuals were obtained

at various poses taken at 5° increments from 30° to -

30°, with 0° being considered the frontal position.

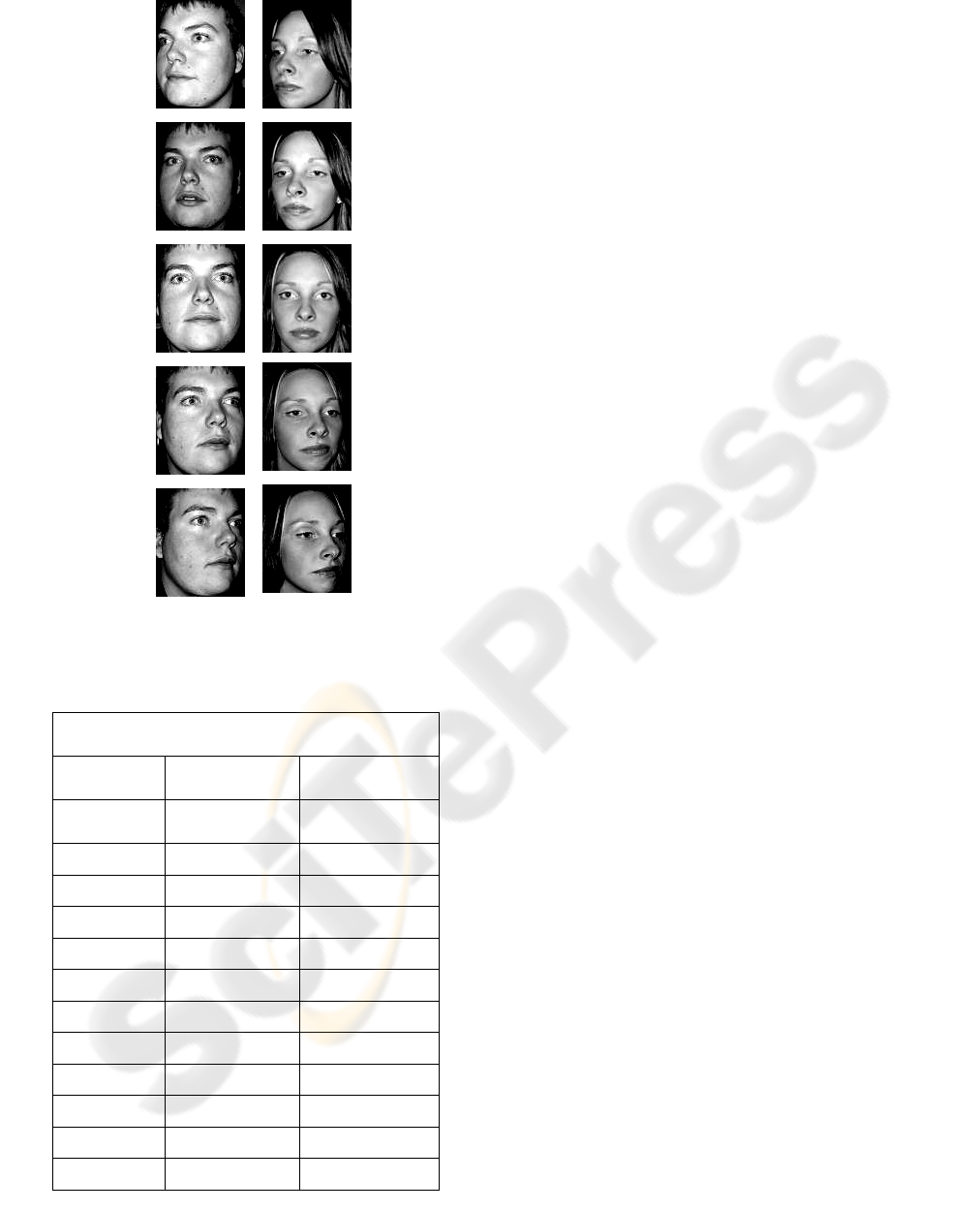

Samples of the facial images from this database are

shown in Figure 4. None of these images were used

in the training of the ANN’s. Lighting, facial

expression, and head movement were kept constant.

At first, the center locations for the right eye, left

eye and mouth were selected manually. From these

values the pose was calculated independently on

each of the test images. With most image sets the

error tends to be lowest at the frontal position and

worsens gradually as the head approaches the

extreme angles. Table 1 summarizes the results by

showing the error from all ten test sets. The average

error for all datasets was 4.28 degrees.

Results based on automatic feature detection

were obtained using all 130 images. The algorithm

was able to detect the features and apply a template

correctly for 120 of the images or a 92.3% correct

detection rate. Problems with the automatic scaling

or a person’s particular features caused most of the

missed detection.

The automatic detection method performed well

compared to the best possible performance obtained

by manual methods, as shown in Table 1. From this

table the average error due to automatic feature

detection was 6.41° degrees.

The entire process can be optimized using Intel’s

Synchronous SIMD Extensions (SSE)

(Farber 2003).

After optimization, pose estimation only requires

141ms, when processing an image on a 1.8 GHz

Pentium 4 workstation, which renders the method

suitable for real-time applications.

6 CONCLUSIONS

The pose estimation method presented in this paper

offers both robust and efficient pose estimation that

can be incorporated in content-based image retrieval

systems. The accuracy of the algorithm makes this

method capable of automatically determining the

pose of a human face to within 10° of the actual

value, while limiting the amount of computations

that must be performed on the image.

Currently this method is designed to determine

pose in only the yaw direction. Future work should

expand the model to include ways of determining

changes in the roll and the pitch of the head and to

incorporate pose estimation in content-based image

retrieval systems.

ACKNOWLEDGEMENTS

This research was sponsored in part by the Eastman

Kodak Company and the Center for Electronic

Imaging Systems (CEIS), a NYSTAR-designated

FACIAL POSE ESTIMATION FOR IMAGE RETRIEVAL

175

Center for Advanced Technology in New York

State.

REFERENCES

Burl M.C., and Perona P., 1996. Recognition of Planar

Object Classes. In IEEE Conference on Computer

Vision and Patten Recognition.

Choi K. N., Carcassoni M., and Hancock. E., 1998.

Estimating 3D Facial Pose using the EM

Algorithm. In 9

British Machine Vision

Conference.

Fergus R, Perona P., and Zisserman A., 2003. Object

Class Recognition by Unsupervised Scale-

Invariant Learning. In IEEE Conference on

Computer Vision and Pattern Recognition.

Rowley H. A., Baluja S., and Kanade T., 1998. Neural

Network-Based Face Detection. IEEE

Transactions on Pattern Analysis and Machine

Intelligence, vol. 20, pp. 23–38.

Haddadnia J., Faez K., and Ahmadi M., 2002. N-Feature

Neural Network Human Face Recognition. In 15

international Conference on Vision Interface.

Yilmaz A. and Shah M., 2002. Automatic Feature

Detection and Pose Recovery for Faces. In 5

Asian Conference on Computer Vision.

Storring M., Andersen H. J. and Granum E., 1999. Skin

Colour detection under changing lighting

conditions. In 7

symposium on Intelligent

Robotics Systems.

Gong S., Mckenna S. J., and Psarrou A,, 2000. Dynamic

Vision. Imperial Collage Press, London.

Fitzpatrick P., 2003. Head Pose estimation without

manual initialization. Massachusetts Institute of

Technology. AI Lab Technical Report.

Farber A., 2003. Introduction to SSE Programming.

http://www.codeproject.com/cpp/sseintro.asp. The

Code Project.

Figure 2: Graph of theoretical equations of template angles

vs. pose variation.

(a) Frontal and side views of head model.

(b) Overhead view of head model.

Figure 1: Head model using eyes and mouth as feature

points that generate a triangular template

Figure 3: Graph used for pose estimation, where pose

angle is the angle of deviation from the diagonal line.

VISAPP 2007 - International Conference on Computer Vision Theory and Applications

176

Figure 4: Sample images used for pose estimation.

Table 1: Pose estimation results for manual feature

detection and automatic feature detection.

Pose Estimation Error

Pose between -30 and 30 degrees

Manual feature

detection

Automatic

feature detection


Set

Average Error

(degrees)

Average Error

(degrees)

1 4.42 4.43

2 2.62 4.01

3 2.23 4.33

4 6.04 11.80

5 7.48 9.19

6 4.48 7.65

7 4.05 3.83

8 3.94 4.86

9 5.15 8.57

10 2.39 5.44

Overall 4.28 6.41

FACIAL POSE ESTIMATION FOR IMAGE RETRIEVAL

177
