DEMOSAICING LOW RESOLUTION QVGA BAYER PATTERN

Tommaso Guseo and Emanuele Menegatti

Intelligent Autonomous Systems Laboratory (IAS-Lab), The University of Padua

Keywords:

Robot vision, demosaicing, QVGA resolution, Bayer pattern.

Abstract:

In this paper, we present a solution for the interpolation of low resolution digital images. Many digital cameras

can function in two resolution modes: VGA (i.e., 640×480) and QVGA (i.e., 320×240). These cameras use a

single sensor covered with a Color Filter Array (CFA). The CFA allows only one color component to be mea-

sured at each pixel, the remaining color components must be interpolated, this operation is called demosaicing.

There is not a standard way to interpolate the QVGA Bayer pattern and most of the known demosaicing al-

gorithms are not suitable. In this paper, we propose a new solution for the interpolation of QVGA Bayer

pattern. Experimental results using digital images and an evaluation function conﬁrm the effectiveness of the

interpolation method. The use of the QVGA resolution is important in low-cost and low-power embedded

hardware. As an application, we chose the RoboCup domain and in particular our Robovie-M humanoid robot

competing in the RoboCup Kid-Size Humanoids League.

1 INTRODUCTION

Color digital cameras are popular today. They can

be found also in PDA cellular phone, etc. CMOS

digital cameras are more and more often used in au-

tonomous robots to acquire images of the environ-

ment surrounding a robot. Most cameras use a single

light sensor covered with a Color Filter Array (CFA).

The CFA is a colored ﬁlter that allows only one color

component to be measured at each pixel, the remain-

ing color components must be interpolated: this op-

eration is called demosaicing. Several patterns exist

for the CFA, the most common is the Bayer pattern,

shown in Fig. 1(a). Many algorithms for demosaic-

ing the Bayer pattern exist in literature. In this pa-

per we focus on low computational cost algorithm

that are intended for embedded low power systems.

Low cost digital cameras with CFA can acquire im-

ages at different resolutions: the most important are

high resolution VGA and low resolution QVGA. In

low resolution acquisition mode, the Bayer pattern is

sampled to reduce the data rate. This reduction is ob-

tained skipping two consecutive columns every four,

as shown in Fig. 1(b), obtaining what we call QVGA

Bayer pattern. In this paper, we propose a new so-

lution for the interpolation of QVGA Bayer pattern,

obtained sampling only columns, based on periodic

reconstruction. The QVGA resolution is adopted in

many devices such as cellular phones and PDAs with

inexpensive cameras. The QVGA interpolation algo-

rithm proposed in this paper could also be used to im-

prove the color image acquisition in these handheld

devices or for image visualization in small LCDs. We

use QVGA low resolution mode in our Kid-Size Hu-

manoid to reduce the data rate and to improve image

processing speed, maintaining a large ﬁeld of view

and reducing the resolution. We use QVGA resolu-

tion for full ﬁeld of view and VGA for focalized view

reduced to a region of interest of the image, where an

object of interest has been detected. We also introduce

an evaluation function to compare the different inter-

polation methods for QVGA; this function shows ef-

fectiveness of improvement of quality in interpolation

results due to periodic reconstruction. The remainder

of the paper is organized as follows. In Section 2, we

summarize the most common interpolation methods

for the Bayer pattern. In Section 3, we present basic

interpolation methods for QVGA Bayer pattern and

141

Guseo T. and Menegatti E. (2007).

DEMOSAICING LOW RESOLUTION QVGA BAYER PATTERN.

In Proceedings of the Second International Conference on Computer Vision Theory and Applications - IFP/IA, pages 141-146

 SciTePress

(a) VGA mode. (b) QVGA mode.

Figure 1: Bayer pattern base structure VGA and QVGA

mode.

the new one proposed by us. In Section 4 these al-

gorithm are compared using quality evaluation func-

tions.

2 DEMOSAICING BAYER

PATTERN

Consider a 2×2 base grid, the Bayer pattern measures

the G in two diagonal pixel and the R and B in the

others, as shown in Fig. 1(a). The G component is

measured twice with respect to R or B because the

peak sensitivity of the human visual system lies in the

medium wavelengths, corresponding to the G portion

of the visible spectrum. The computer vision commu-

nity has devoted many efforts to the problem of Bayer

pattern demosaicing. There are many algorithms to

interpolate the Bayer pattern. In this paper, we con-

sider only low computational algorithm. For a com-

prehensive description of the current state of the art

see the work of Gunturk et al. (Gunturk et al. (2005)).

The Nearest Neighbor Replication method is the

simplest algorithm for demosaicing CFA images. It is

analyzed in the works of (Parulski (1985)), (Adams

and Hamilton (1997)), (Zen et al. (1998)) and of

(Sakamoto et al. (1998)). The algorithm is non–

adaptive, i.e. operates in the same way for all pixel

of the same components in every images. The value

of each interpolated pixel is obtained by copying the

value of the nearest pixel in the Bayer pattern im-

age. The nearest pixel can be any one of the pixel

in the neighborhood: upper, lower, left and right pix-

els. This algorithm does not involve any arithmetic

operation and therefore this method does not impose

a heavy computational cost. However there are many

negative aspects: creation of false colors and high

chromatic gradient transitions become irregular, this

effect is called zipper effect.

The Bilinear Interpolation is the most used algo-

rithm for demosaicing CFA images. It is analyzed in

the works of (Parulski (1985)), (Wu et al. (1997)),

(Chan et al., 1996), (Tsai et al. (1997)), (Zen et al.

(1998)), (Adams et al. (1998)) and also of (Sakamoto

et al. (1998)). In other works, such as in (Lukin

(2004a)). Bilinear Interpolation method forms the

base for more sophisticated algorithm; in (Malvar

(2004)) this method is studied for non–linear interpo-

lation algorithm on rhomboidal grid. The algorithm

is non–adaptive. There are two privileged directions

(i.e., vertical and horizontal) and pixels are bilinearly

interpolated along these directions.

An interpolation algorithm that has good perfor-

mances in terms of quality of reconstruction is Linear

Interpolation with Laplacian Second–order Correc-

tion Terms that we adopted in our application. The

Linear Interpolation with Laplacian Second–order

Correction Terms is an adaptive algorithm, i.e. it

changes the interpolation equation adapting to the im-

age to be interpolated. This algorithm is analyzed in

(Hamilton and Adams (1997)) and with modiﬁcations

in (Adams and Hamilton (1997)) and (Adams et al.

(1997)). Interpolation of the green component has to

be computed before the other components. Consider

interpolation of green component in blue pixel, see

Fig. 2(a), for example G5 in B5. Calculate gradient in

horizontal (∆H), and vertical (∆V) direction

∆H = |G4− G6| + |B5− B3+ B5− B7| ; (1)

∆V = |G2− G8| + |B5− B1+ B5− B9| . (2)

Then evaluate which interpolation fuction has to

be used:

∆H < ∆V → G5 =

(G4+G6)

(2·B5−B3−B7)

;(3)

∆H > ∆V → G5 =

(G2+G8)

(2·B5−B1−B9)

;(4)

∆H = ∆V → G5 =

(G2+G4+G6+G8)

+ (5)

(4·B5−B1−B3−B7−B9)

. (6)

For red and blue components are possible tree

cases, consider Fig. 2(b):

1. interpolate red or blue component in green posi-

tion when nearest same color components are in

the same column. Consider R4 in G4, interpola-

tion is done with (7)

R4 =

(R1+ R7)

(G4− G1+ G4− G7)

; (7)

2. interpolate red or blue component in green posi-

tion when nearest same color components are in

the same row. Consider R2 in G2, interpolation is

done with (8)

R2 =

(R1+ R3)

(G2− G1+ G2− G3)

; (8)

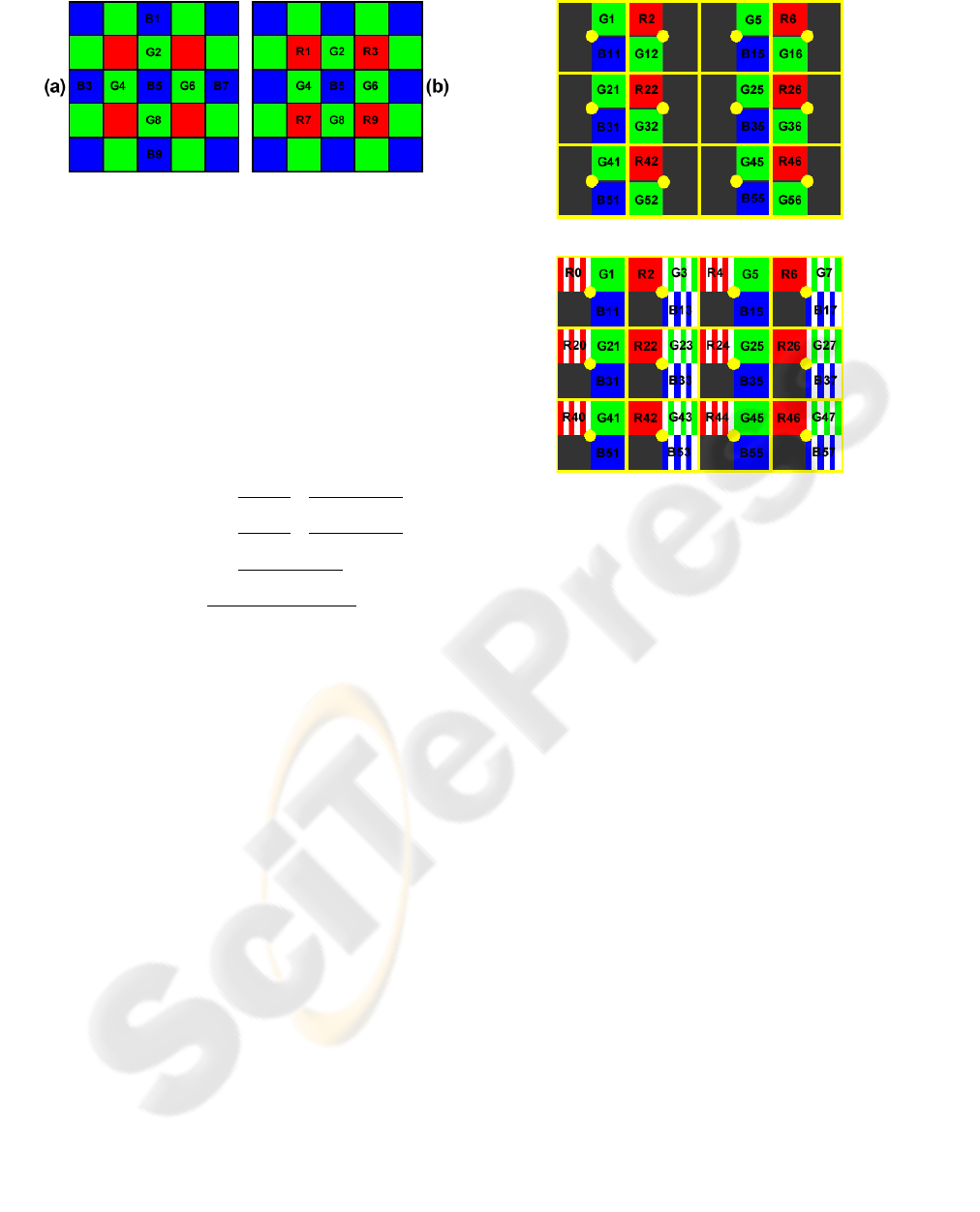

Figure 2: Linear Interpolation with Laplacian Second–order

Correction Terms in VGA Bayer pattern.

3. interpolate red or blue component in blue or red

position. Consider R5 in B5. Deﬁne diagonal gra-

dient in negative direction ∆N (9) and in positive

direction ∆P (10).

∆N = |R1− R9| + |G5− G1+ G5− G9| ;(9)

∆P = |R3− R7| + |G5− G3+ G5− G7| .(10)

Then evaluate which interpolation fuction has to

be used:

∆N < ∆P → R5 =

(R1+R9)

(2·G5−G1−G9)

; (11)

∆N > ∆P → R5 =

(R3+R7)

(2·G5−G3−G7)

; (12)

∆N = ∆P → R5 =

(R1+R3+R7+R9)

+ (13)

(4·G5−G1−G3−G7−G9)

. (14)

3 DEMOSAICING QVGA BAYER

PATTERN

As we already said in the introduction, the QVGA

Bayer pattern is obtained sampling the Bayer pattern

skipping two columns every four, see Fig. 1(b). To

the best of our knowledge, there is not a standard way

in literature to interpolate the QVGA Bayer pattern.

In this paper we propose a new interpolation method.

The main idea originates from an original work of

(Tang and Lee (2004)) about interpolation of classical

Bayer pattern. In that work, Tang and Lee proposed

a vertex based interpolation method instead of center

based interpolation method.

Similarly, we based our interpolation algorithm

for QVGA on vertex interpolation mode (i.e. the

interpolated pixels are centered on the vertex of the

Bayer pixels). This is sketched in Fig. 3(a). The inter-

polated pixel is the yellow square binding 2x2 Bayer

pixels. The yellow dot represents the center of the

interpolated pixel. With respect to the VGA Bayer

pattern, the QVGA Bayer pattern has the following

peculiarities:

(a) QVGA structure.

(b) QVGA periodic reconstruction.

Figure 3: Base structure of QVGA and periodic reconstruc-

tion.

1. in each yellow square one color component is

missing;

2. the vertical periodicity of the grid is of 2 pixels,

while the horizontal is of 4 pixels;

3. in the yellow squares along the same column is

missing always the same color component;

In the next paragraphs, we will show how the

Nearest Neighbor Replication algorithm and the Bi-

linear Interpolation algorithm could be applied to the

QVGA Bayer pattern. We will see that both algo-

rithms perform poorly, basically because they do not

use a periodic pattern for the color components. We

propose a new method called Periodic Reconstruc-

tion Interpolation in which some of the color compo-

nents are interpolated to obtain a periodic color pat-

tern, that is equally repeated in every yellow square

of the QVGA image, as depicted in Fig. 3(b). Interpo-

lated pixels are always painted with the corresponding

color and white bar pattern.

The Nearest Neighbor Replication algorithm is

the simplest non–adaptive algorithm for demosaic-

ing QVGA images. The green component does not

need to be interpolated; every yellow square contains

a green pixel of the QVGA Bayer pattern. The red

and the blue pixels are obtained by replicating, re-

spectively, the nearest right pixel and the left near-

Figure 4: Nearest Neighbor Replication in QVGA Bayer

pattern.

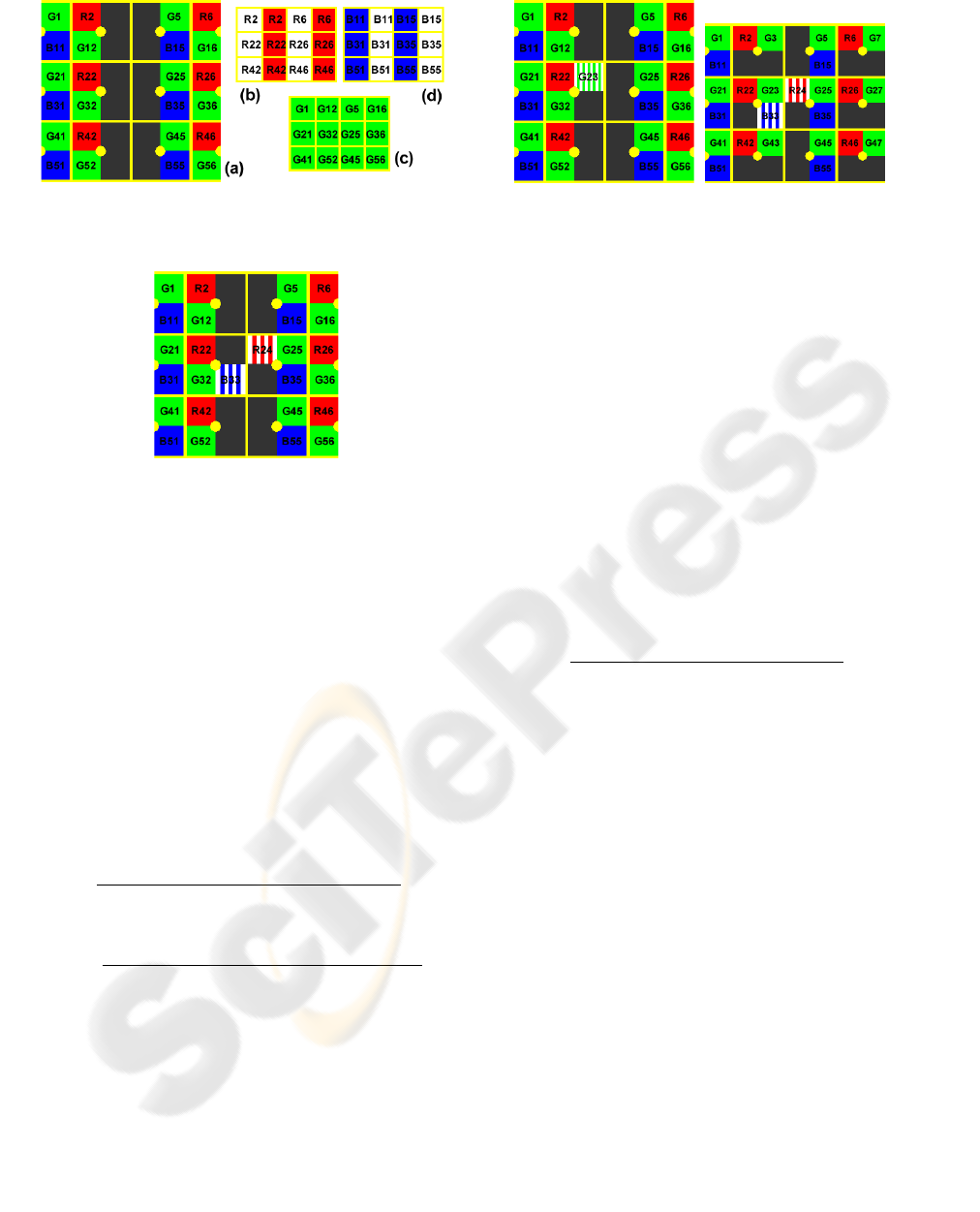

Figure 5: Bilinear interpolation in QVGA Bayer pattern.

est pixel, as shown in Fig. 4. The pros and cons of

this method are the same as the algorithm presented

in VGA mode: low computational cost, presence of

false color and zipper effect.

The Bilinear Interpolation algorithm is a non–

adaptive algorithm for demosaicing QVGA images,

that makes an average on vertical and horizontal di-

rection. The green component, as in Nearest Neigh-

bor Replication algorithm, is not interpolated. For the

interpolation of red and blue components, see Fig. 5,

is not possible to have an exactly bilinear interpola-

tion, because the color information in vertical direc-

tion is always absent. The interpolation method uses a

weighted mean based on the distance. For a red pixel,

for example R24, the value is obtained with (15)

R24 =

(4·R22+ 4·R26+ 3·R2+ 3·R6+ 3·R42+ 3·R46)

, (15)

and for a blu pixel, as B33, consider Eq. (16)

B33 =

(4·B31+ 4·B35+ 3·B11+ 3·B15+ 3·B51+ 3·B55)

(16)

Unfortunately this algorithm blurs the image by

averaging over all pixels without any appropriate

weighting. Even this algorithm is affected by the zip-

per effect.

A thorough analysis of the Nearest Neighbor

Replication and Bilinear Interpolation algorithms

when used for the interpolation of QVGA Bayer pat-

tern shows that they do not correctly interpolate the

green component. This problem arises from the non–

(a) Green. (b) Red and Blue.

Figure 6: Periodic Reconstruction Intepolation in QVGA

Bayer pattern.

periodic interpolation domain (i.e., the distance be-

tween two green pixels varies along the grid). This

results in a wrong attribution to green components.

We propose ﬁrst to interpolate the green components

to construct the periodic grid of Fig. 3(b), from this

the name Periodic Reconstruction Interpolation, and

then to interpolate the red and blue components.

The green component in every yellow square is

obtained as the average of the nearest green Bayer

pixels weighted by their distances. As an example

consider pixel G23, as shown in Figure 6(a). The in-

terpolation is obtained by (17)

G23 =

(3·G21+ 4·G12+ 4·G32+ 3·G25)

. (17)

To limit the low-pass ﬁlter effect due to the aver-

age operation, we perform it only on pixel closer than

two pixels from the interpolation center.

The next step is to create a periodic structure also

for these components. Consider Fig. 6(b) where green

pixels have been already interpolated by the Eq. (17).

We propose an adaptive algorithm for interpolation of

red and blue pixels.

Consider red pixel R24. We deﬁne diagonal gra-

dients in negative direction as ∆N (18) and in positive

direction as ∆P (19) and the horizontal gradient as ∆O

(20).

∆N = |R2−R46| + |G25−G3+G25−G47| ;(18)

∆P = |R6−R42|+ |G25−G7+G5−G43| ; (19)

∆O = |R22−R26|+ |G25−G23+G25−G27| .(20)

The value of every interpolated pixel is calculate

with Algo 3.1 depending on which of the gradient is

maximum. The interpolation of blue pixel is done in

the same way.

Algorithm 3.1 QVGA Periodic Reconstruction Inter-

polation.

1: for all i is pixel has to be interpolated do

2: A = max(∆N, ∆P, ∆O)

3: if (A == ∆N) then

4: R24 =

(R2+R46)

(2·G25−G3−G47)

5: else if (A == ∆P) then

6: R24 =

(R6+R42)

(2·G25−G7−G43)

7: else if (A == ∆O) then

8: R24 =

(R22+R26)

(2·G25−G23−G27)

9: else

10: R24 =

(4·R22+4·R26+3·R2+3·R6+3·R42+3·R46)

11: end if

12: end for

4 ALGORITHM QUALITY

EVALUATION

To compare the quality of the images reconstruction

with different algorithms, in addition to the visual

comparison of the reconstructed images, we use the

dependency index developed in (Guseo T. (2006)).

This index is based on the concept of entropy, see

(Guseo R. (2006)).

The original and reconstructed images to be com-

pared has to be considered as a linear array. In bivari-

ate case the dependency index

P|F

D is deﬁned as (21),

where P represent the pixel’s position in the linear ar-

ray and F indicates the original and reconstructed im-

age.

H and

H is denoted the marginal entropy re-

spect ﬁgure (F) and position (P), with

H the joined

entropy and with

I the information between origi-

nal and reconstructed ﬁgure.

P|F

D =

H +

H −

. (21)

In the trivariate case, where third qualitative variable

is color (C) we consider the partial dependency index

without effect of color (22)

P|F

P|C

H −

P|FC

P|C

H −

PFC

H +

H −

(22)

The dependency indexes are for construction nor-

malized in the range [0, 1]. If two images are very

similar the dependency index tends to 0.

We use dependency indexes

P|F

(R)

P|F

(G)

and

P|F

(B)

for bivariate case for each single components

and

P|F

(T)

for image in all components. We use

partial dependency index without effect of color

P|F

for trivariate case.

To assess to interpolation quality of different al-

gorithm proposed, consider the Tab. 1 the which are

listed dependency indexes. Periodic Reconstruction

has

P|F

(G)

index that is half than other methods.

This represent a good improvement in interpolation

quality. In Fig. 7 interpolation algorithms have been

visually compared . It is visible the presence of zip-

per effect an false colors in Fig. 7(b) and Fig. 7(c)

corresponding to Nearest Neighbor Replication and

Bilinear Interpolation alortithm. The Fig. 7(d) ob-

tained with Periodic Reconstruction algorithm has

sharp edges and no zipper effects.

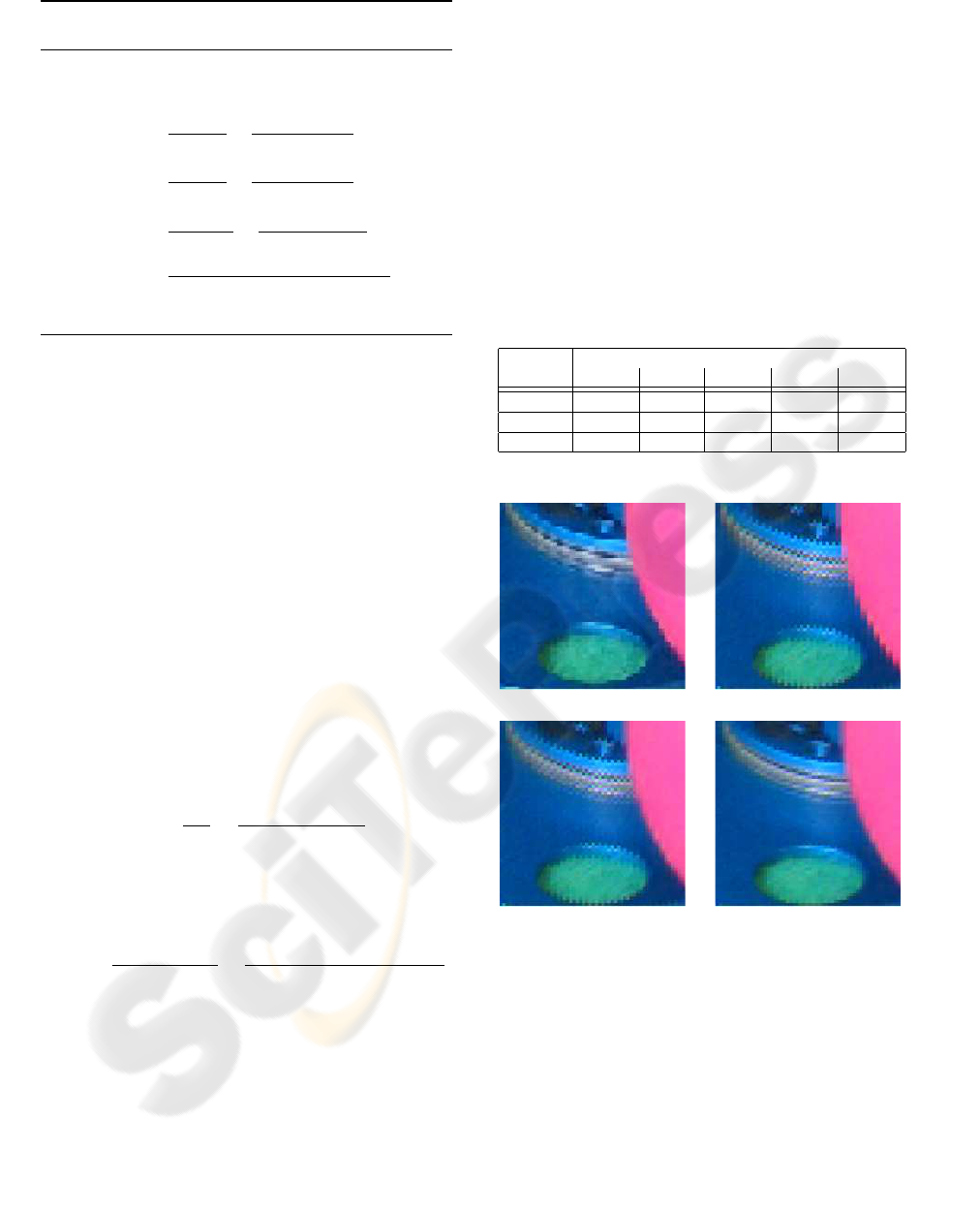

Table 1: Comparison between interpolation methods on

QVGA Bayer pattern, all values are in 10

−5

Dependency index

P|F

(R)

P|F

(G)

P|F

(B)

P|F

(T)

P|F

Neighbor 10.4765 5.8445 23.1138 10.2245 11.0308

Bilinear 10.9063 5.8445 22.6590 10.2537 11.0618

Periodic 7.3436 2.4420 15.2124 6.8667 7.5032

(a) Original (b) Neighbor

Figure 7: Visive comparison between QVGA interpolation

methods.

5 CONCLUSION

The use of QVGA format is important in low cost and

low computational power systems as embedded PCs,

PDAs and cellular phones. In this paper we present

a new interpolation method for QVGA Bayer pattern:

Periodic Reconstruction Interpolation. The improve-

ment of quality of the images reconstructed with pro-

posed method is demonstrated using dependency in-

dexes.

The platform on which this method is imple-

mented is Robovie-M by VStone with a Renesas CPU

at 40Mhz and a RAM of 256k–Word of 16–bit. The

digital camera used is a CMOS camera (an OV3620

by Omnivision). Acquiring the 240×240 Bayer pat-

tern with a QVGA resolution and interpolating it

with the Periodic Reconstruction Interpolation, en-

ables the robot to allocate memory space for three im-

ages to be used for image processing operations that

cannot be done in place. We reached a performance

of 2 fps on the 40Mhz CPU that has also to control 22

motors during image processing time.

At the moment of writing, we are applying the

proposed method to omnidirectional images. We are

evaluating an extension of Periodic Reconstruction

Interpolation to other patterns, for example to pat-

tern implemented in STMicroelectronics cameras, ob-

tained skipping also two rows with the same ratio.

REFERENCES

Adams, J.E. and Hamilton, J.F.: Design of practical color

ﬁlter array interpolation algorithms for digital cam-

eras, Proceedings of SPIE 3028 (1997) 117–125.

Adams, J.E. et al.: Adaptive color plane interpolation in

single color electronic camera, U.S. Patent 5 506 619

(1997).

Adams, J.E., Parulski, K. and Spaulding, K.: Color Pro-

cessing in Digital Cameras, IEEE Transactions on Mi-

croeletectronic, 18 6 (1998) 20–31.

Chan, W. et al.: A Mega-Pixel resolution PC Digital Still

Camera, Proceedings of SPIE, 2654 (1996) 164–171.

Gunturk, B.K., Glotzbach, J., Altunbasak, Y., Schafer, R.W.

and Mersereau, R.M.: Demosaicking: Color Filter Ar-

ray Interpolation, exploring the imaging process and

the correlations among three color planes in single-

chip digital cameras, IEEE Signal Processing Maga-

zine, 10 53 (2005) January 44–54.

Guseo, R: Statistica, terza ediz., Cedam, Padova (2006).

Guseo, T.: Architettura Software per Robot Umanoide Au-

tonomo, Tesi di laurea, University of Padova, Padova

(2006).

Hamilton, J.F. and Adams, J.E.: Adaptive color plane inter-

polation in single sensor color electronic camera, U.S.

Patent 5 629 734, (1997).

Lukin, A. and Kubasov, D.: An Improved Demosaicing

Algorithm, Graphicon.2004 conference proceedings,

Faculty of Applied Mathematics and Computer Sci-

ence, State University of Moscow, Russia (2004).

Malvar, H.S., He, L. and Cutler, R.: High-quality linear in-

terpolation for demosaicing of Bayer-patterned color

images, Microsoft Research One Microsoft Way, Red-

mond, WA, USA, (2004).

Maris, M.: Attention-based navigation in mobile robots us-

ing a reconﬁgurable sensor, Robotics and Autonomous

Systems, 34 (2001) 53–63.

Okuno, H.G., Nakadai, K., Lourens, T., Kitano, H.: Sound

and Visual Tracking for Humanoid Robot, Applied In-

telligence 20 (2004) 253–266.

Parulski, K.A.: Color Filters and Processing Alternatives

for one-chip cameras, IEEE Transactions on Electron

Devices, 32 8 (1985) August.

Reece, D.A., Shafer, S.A.: Control of perceptual atten-

tion in robot driving, Artiﬁcial Intelligence 78, (1995)

397–430.

Sakamoto, Tadashi, et al.: Software pixel interpolation for

digital still cameras suitable for a 32-bit MCU, IEEE

Transactions on Consumer Electronics, 44 4 (1998)

November 1342–1352.

Tang, B. and Lee, K.F.: An efﬁcient color image acquisition

system for wireless handheld devices, IEEE ICASSP

2004, 3 (2004) 105–108, Multimedia Architecture

Lab Motorola Labs, Schaumburg, Illinois, USA.

Tsai, Y.T. et al.: Optimized Image Processing Algorithms

for a Single Sensor Camera, IEEE Paciﬁc Rim Confer-

ence on Communications, Computers and Signal Pro-

cessing, 2 (1997) 1010–1013.

Vijayakumar, S., Conradt J., Shibata, T. e Schaal, S.: Overt

Visual Attention for a Humanoid Robot, Proc. Inter-

national Conference on Intelligence in Robotics and

Autonomous Systems, IROS (2001).

Wu, X. et al.: Color Restoration from Digital Camera

Data by Pattern Matching, Proceedings of SPIE, 3018

(1997) April 12–17.

Zen, Hidemori, et al.: A New digital signal processor for

progressive scan CCD, IEEE Transactions on Con-

sumer Electronics, 44 2 (1998) May 289–295.
