On Board Camera Perception and Tracking of Vehicles

Juan Manuel Collado

, Cristina Hilario

, Jose Maria Armingol

and Arturo de la Escalera

Intelligent Systems Laboratory, Department of Systems Engineering and Automation

Universidad Carlos III de Madrid Leganes, 28911, Madrid, Spain

Abstract. In this paper a visual perception system for Intelligent Vehicles is

presented. The goal of the system is to perceive the surroundings of the vehicle

looking for other vehicles. Depending on when and where they have to be de-

tected (overtaking, at long range) the system analyses movement or uses a ve-

hicle geometrical model to perceive them. Later, the vehicles are tracked. The

algorithm takes into account the information of the road lanes in order to apply

some geometric restrictions. Additionally, a multi-resolution approach is used

to speed up the algorithm allowing real-time working. Examples of real images

show the validation of the algorithm.

1 Perception in Intelligent Vehicles

Human errors are the cause of most of traffic accidents, therefore can be reduced but

not completely eliminated with educational campaigns. That is why the introduction

of environment analysis by sensors is being researched. These perception systems

receive the name of Advanced Driver Assistance Systems (ADAS) and it is expected

that will be able to reduce the number, danger and severity of traffic accidents. Sev-

eral ADAS, which nowadays are being researched for Intelligent Vehicles, are based

on Computer Vision, among others Adaptive Cruise Control (ACC), which has to

detect and track other vehicles. Now, commercial equipments are based on distance

sensors like radars or LIDARs. Both types of sensors have the advantages of provid-

ing a direct distance measurement of the obstacles in front of the vehicle, are easily

integrated with the vehicle control, are able to work under bad weather conditions,

and lighting conditions do not affect them very much. The economical cost for LI-

DARs and a narrow field of view of radars are inconveniences that make Computer

Vision (CV) an alternative or complementary sensor. Although it is not able to work

under bad weather conditions and its information is much difficult to process, it gives

a richer description of the environment that surrounds the vehicle.

From the point of view of CV, the research on vehicle detection based on an on-

board system can be classified in three main groups. Bottom-up or feature-based,

where the algorithms looked sequentially for some features that define a vehicle. But

they have two drawbacks: the vehicle is lost if one feature is not enough present in

the image and false tracks can deceive the algorithm. Top-down or model-based,

Manuel Collado J., Hilario C., Maria Armingol J. and de la Escalera A. (2007).

On Board Camera Perception and Tracking of Vehicles.

In Robot Vision, pages 57-66

DOI: 10.5220/0002066600570066

 SciTePress

where there are one or several models of vehicles and the best model is found in the

image through a likelihood function. They are more robust than the previous algo-

rithms, but slower. The algorithm presented in this paper follows this approach. The

third approach is learning-based. Mainly, they are based on Neural Networks (NN).

Many images are needed to train the network. They are usually used together with a

bottom-up algorithm to check if a vehicle has been actually detected. Otherwise, they

have to scan the whole image and they are very slow.

A previous detection of the road limits is done in [1]. After that, the shadow under

the vehicles is looked for. Symmetry and vertical edges confirm if there is a vehicle.

In [2] symmetry and an elastic net are used to find vehicles. Interesting zones in the

image are localized in [3] using Local Orientation Coding. A Back-propagation NN

confirms or rejects the presence of a vehicle. Shadow, entropy and symmetry are used

in [4]. Symmetry is used in [5] to determine the column of the image where the vehi-

cle is. After that, they look for an U-form pattern to find the vehicle. The tracking is

performed with correlation. In [6] overtaking vehicles are detected through image

difference and the other vehicles through correlation. Several 3D models of vehicles

are used in [7]. The road limits are calculated and the geometrical relationship be-

tween the camera and the road is known. Preceding vehicles are detected in [8]. They

calculate a discriminant function through examples. A different way of reviewing the

research on vehicle detection based on optical sensors can be found in [9].

The review has shown some important aspects. First, the module in charge of de-

tecting other vehicles has to exchange information with the lane detection module.

The regions where vehicles can appear are delimited and some geometric restrictions

can be applied. The number of false positives can be reduced and the algorithm

speeds up. Moreover, the detection of road limits can be more robust as this module

can deal with partial occlusions produced by vehicles. Second, vehicle appearance

changes with distance and position respect to the camera. A model-based approach is

not useful to detect over-taking vehicles which are not fully seen in the image, and a

vehicle that is far away shows a low apparent speed in the image. Several areas in the

image have to be defined in order to specify where, how and what is going to be

looked for in the image. Third, the algorithm not only has to detect vehicles but to

track them and specify their state. These three points define the structure of the paper.

2 Different Areas and Vehicle Appearance

Different features define the same vehicle depending on the area of the image where

it appears. As it is shown in Fig. 1, lateral areas of the images are the only ones where

overtaking vehicles can appear. Depending on the country, overtaking vehicles will

appear on the left/right lane, and overtaken vehicles on the right/left one. A model-

based approach is difficult to implement and it is better to use a feature-based ap-

proach, mainly taking movement into account. A different case is when the vehicle is

in front of the camera. The rear part of the vehicle is full seen in the image and a

model-based approach is possible. Beside these areas, there is another corresponding

to the vehicles have just over-taken ours. The rear part of the vehicle is completely

seen in the image, although a small deformation due to projective distortion appears.

It will be shown that the same model-approach can be applied. The vehicles can ap-

pear from the laterals of the image and from a far distance. Depending on which case

one detector or another is chosen. Then the vehicle trajectory has to be tracked until it

is out of sight.

3 Detection of Overtaking Vehicles

Mainly, there are three approaches to detect overtaking vehicles: Image difference,

learning from examples and optical flow. Image difference [6] has the main advan-

tages of simplicity and speed and its basics is the lack of texture in the objects sur-

rounding the vehicle. The main drawbacks are the little information (magnitude, ori-

entation) of the movement, and, that the effect of the shock absorbers, the presence of

guardrails and a textured environment can cause the same result as an overtaking car.

To show this, the absolute value of image difference is shown in Fig. 2.b and the

binary images in Fig. 2.c. There is no threshold able to eliminate the background and

only filter the vehicle. An example of NN-based movement detection is [10], where

an algorithm based on a Time Delay NN with spatio-temporal receptive fields was

proposed for detecting overtaking vehicles. It does not provide information about the

range and direction of the movement.

That is why some authors have preferred optical flow, as the movement can be fil-

tered taking into account its range and direction. In [11] they use a planar parallax

model to predict where image edges will be looked for after travelling a certain dis-

tance. Detection of overtaking vehicles given the vehicle velocity and camera calibra-

tion is done in [12]. The image motion is obtained and image intensity of the back-

ground scene is predicted. A difference with the methods above is the need of ego-

motion estimation while in our case it is not necessary because the vehicle is going to

be tracked.

Movement

Detection

Movement

Detection

Distant

Vehicles

Close vehicles

Overtaking

vehicles

Overtaking

vehicles

(a) (b)

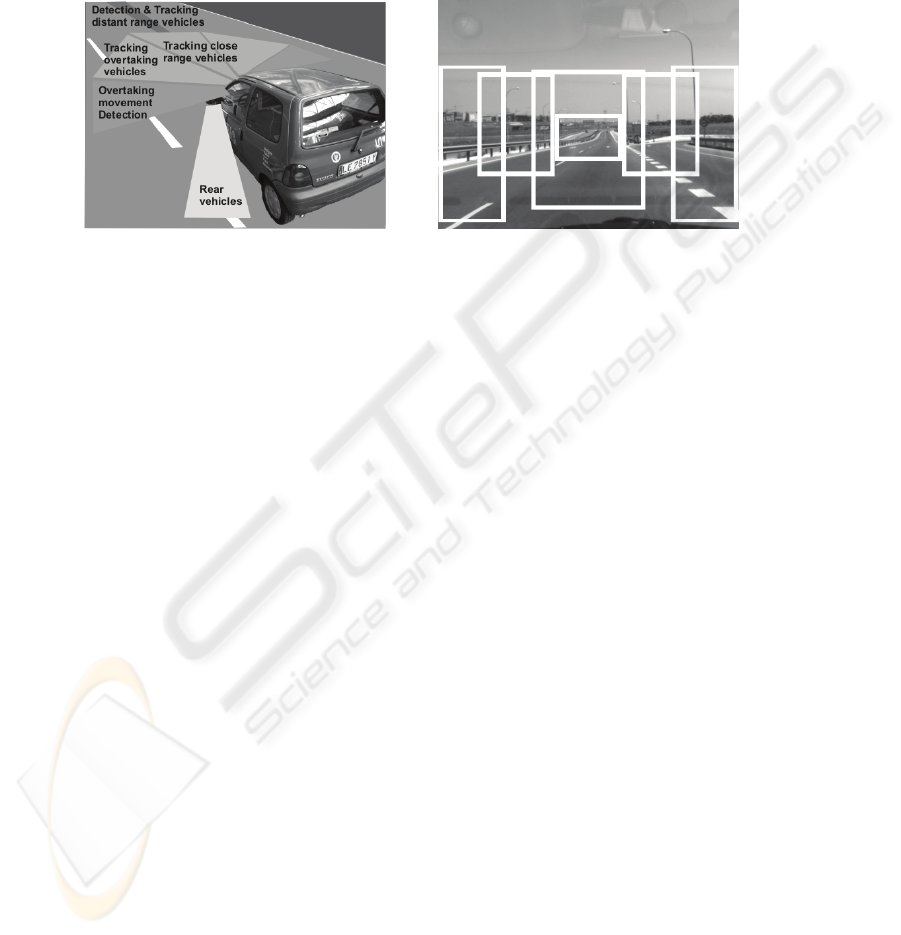

Fig. 1. Image areas and vehicle appearance.

There are several methods to obtain optical flow. In this paper, block similarity has

been used due to the movement range. The similarity is obtained through the sum of

absolute differences because it is a good deal between speed and accuracy. In Fig. 3

there is a detection of the overtaking car. Its movement is filter based on three fea-

tures: range, direction, and size of the blobs with the same movement. Range is useful

to discriminate fast movements against false movements produced by noise. Direction

is useful to discriminate overtaking vehicles against any other object that it is over-

taken by our vehicle. In order to speed up the algorithm, this is done only for those

pixels whose difference with the previous images is bigger than a threshold. There-

fore a thresholding is done if:

⎪

⎩

⎪

⎨

⎧

⎪

⎩

⎪

⎨

⎧

≥

≤≤

elsewhere0

),,,(

),(

S),(S

),(

maxmin

TjiyxSAD

yxR

yxI

θθθ

(1)

The blobs are detected, and if one of them is greater than an area threshold there is

an overtaking vehicle (Fig. 3-b). When the vehicle is no longer detected, the tracking

module (described later) is called and it receives the information of the vehicle posi-

tion in order to track it using a geometric model. A similar reasoning is used detecting

when our vehicle is overtaking another; the tracking module will call the movement

based detection module, as the geometric information is no longer useful.

(a) (b) (c)

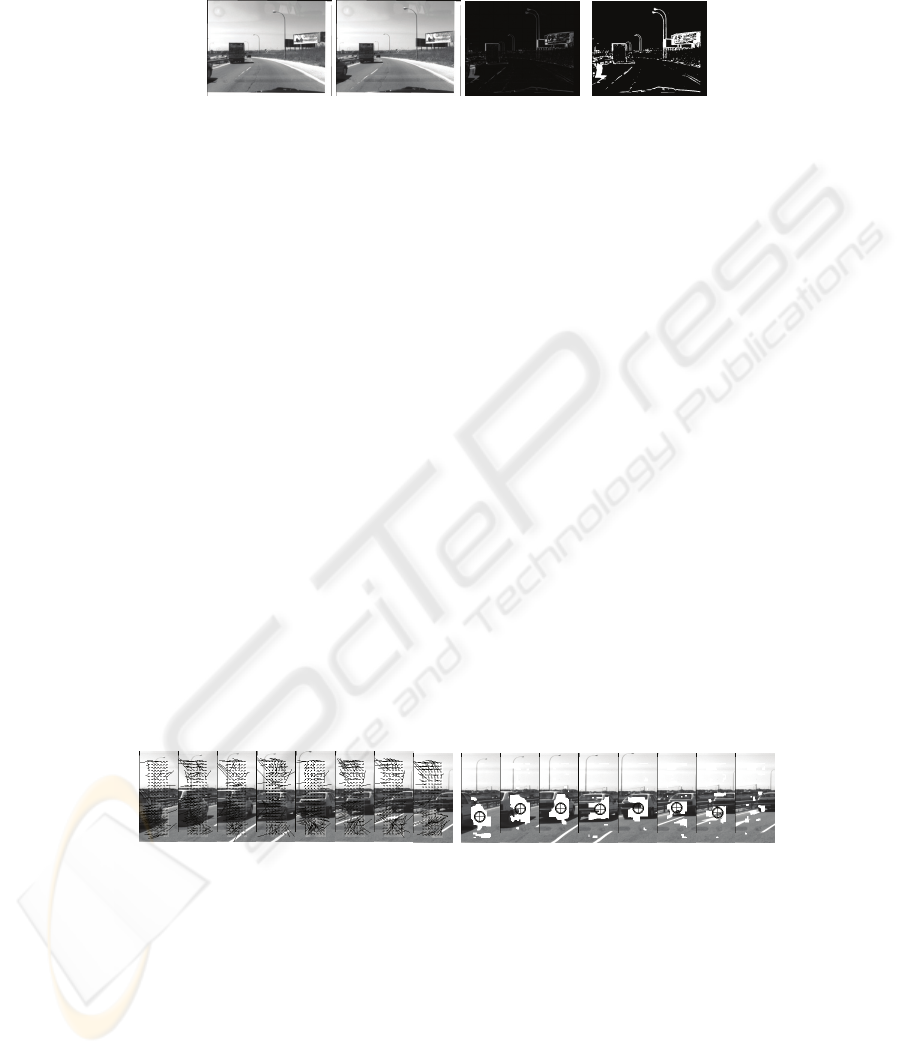

Fig. 2. Movement detection based on image difference. (a) Image sequence (b) Absolute

value of image differences (c) thresholding of the previous images.

(a) (b)

Fig. 3. Detection of overtaking vehicles. (a) Optical flow detection (b) Thresholding and blob

analysis.

4 Distance Measurement Error due to Camera Coordinates

Stein et al. [13] demonstrated how an ACC could be based on a monocular vision

system. Their implementation was the simplest one: the world is flat and the camera’s

optical axe is parallel to the road. This configuration has the main disadvantage that

one object at the farthest distance projects itself at the middle height of the image.

This way half of the sensor is useless to obtain distances. In our case the camera is

looking slightly to the ground instead of the front. Then, in order to obtain the dis-

tance Y of the object located with coordinates (u,v):

θθ

cossin

sincos

−

θθ

sincos

cossin

−

(2)

Where

is the angle of the optical axe with the horizontal plane, h is the height of

the camera and

f is the focal length. These parameters can be calculated through a

calibration algorithm [14].

If an error of

pixels is supposed, the true distance is between the ranges:

()

θδθθ

coscossin

−−

=Δ

(3)

And, the relationship with distance is:

(

)

fhY

sincos

θθ

≈

(4)

Because

() ( )

cos

θδ

>>fh .

The most important conclusion is that the distance range and its relationship with

respect the distance, obtained from (3) and (4), are independent of the camera incline

for short and medium distances. This way, for vehicles at less than 200 meter the

values are nearly the same. This agrees with [13], where the formula is (following our

notation):

fhY

≈

(5)

And, for some typical values is:

10 2.263

(6)

While, in our case, the data obtained through Least Squares are:

⎪

⎩

⎪

⎨

⎧

=≈+

=≈

º10 10 2.24710 .74 10 2.247

º5 10 2.28810 .80 10 2.288

º0 10 2.27910 1.4- 10 2.279

3-4-3-

-3-4-3

(

That is, experimentally it is shown for certain angles

sincos hYY >>

≈

and

therefore equations (4) and (5) are equivalent. It is known that the main source of

error is the incline of the camera that, although can be calibrated in advanced, suffers

from mechanical vibrations or the shock absorbers effect. In order to correct the error,

the real angle is obtained computing the vanishing point after the road has been de-

tected. Therefore equation (6) is used for the tracking process as an indicator of the

accuracy of detection and it can be used for the error covariance of the measurement

equation.

5 Geometric Models

Due to shadows, occlusions, weather conditions, etc., the model has to incorporate as

much information as possible. In [15], a vehicle was defined by seven parameters

(Fig. 4): position (x,y), width and height of the vehicle, windshield position, bumper

position and roof angle. As the road is previously detected, the y coordinate of the

vehicle provides its distance and the rest of the values can be geometrically coherent.

Some functions were calculated from the image to enhance three features that define

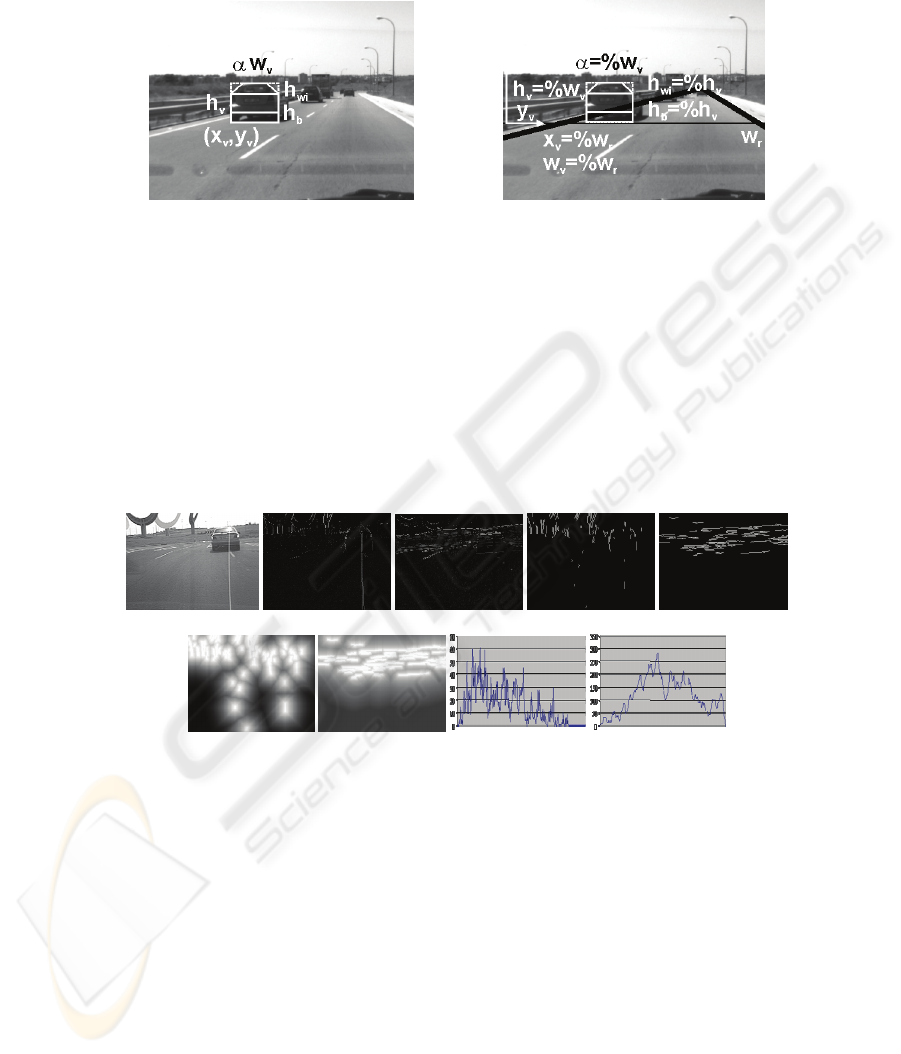

(a) (b)

Fig. 4. Geometric model of a vehicle. (a) the seven parameters (b) The values of theses pa-

rameters are constrained by the detection of the road.

(a) (b) (c) (d) (e)

(f) (g) (h) (i)

Fig. 5. (a) Image (b) Vertical and (c) horizontal gradient (d) Vertical and (e) horizontal edges

(f) vertical and (g) horizontal distances (h) vertical and (i) horizontal symmetries.

a vehicle (Fig. 5): symmetry: the vertical and horizontal edges of the image were

found and the vertical symmetry axis calculated; shape: defined by two terms, one

based on the gradient and the other one based on the distance to the edges found

before; vehicle shadow: defined by the darkest areas in the image. The searching

algorithm for the correct values of the model was based on Genetic Algorithms (GAs)

due to their ability to reach a global maximum surrounded by local ones.

6 Perceiving the Environment

The detection and tracking of vehicles is done for multiple resolutions. A Gaussian

pyramid is created. The information of the detection of lower and greater levels is

mutually exchanged. Working under a multi-resolution approach has the main advan-

tage of choosing the best resolution for every circumstance. For example, the number

of individuals in the GA needed to find the vehicles can be different. As the resolu-

tion is greater the number of individuals needed grows. It is worthwhile noticing that

the low resolution number of individuals has been reduced because overtaking detec-

tion module information has been taken into account, Fig. 6-a. This way the range of

the y value of the geometric model is limited between the lowest y value of the blob

detected and its centre of gravity. Finally, tracking the vehicle (Fig. 6-b) also reduces

the number of individuals as they are distributed around the best individual of the

previous image. The values are shown in Table 1.

Two options for the tracking of the vehicles have been studied. The first one is

based on GA. A prediction of the position of the vehicle is performed taking into

account the previous image and the speed. The population is initialized around that

value. The second approach is a Kalman Filter where the measure error is modelled

by equation (6).

Table 1. Number of individuals depending on the resolution and tracking or not the vehicle.

Generations Population

Minimum resolution (no tracking) 2 64

Medium resolution (no tracking) 2 64

Maximum resolution (no tracking) 40 128

Minimum resolution (tracking) 2 32

Medium resolution (tracking) 2 32

Maximum resolution (tracking) 10 64

The two results are compared, in Fig. 7, with the ones obtained manually and with

no time integration. Two cases are considered: tracking an overtaking vehicle and the

detection and tracking of a slower vehicle. For the first case the Kalman filter predicts

a position of the vehicle form the previous position and speed estimation. This predic-

tion is passed to the model parameters space and the individuals of the GA are initial-

ized around that value. The deviation depends on the covariance matrix following the

3 rule. Once the GA finishes, the best individual solution is given to the medium

level and when it is finished, to the maximum resolution one. This final result is used

for the correction step of the Kalman filter. The second case, tracking of a slower

vehicle, is performed in the image at maximum resolution for large distances. The GA

works until a maximum number of iterations is reached or it converges to a value

higher than a threshold. If it is the first case, it is concluded there is no vehicle an a

new image is grabbed and if it is the second case, the tracking of the vehicle starts.

Some examples are shown in Fig. 8. In the overtaking detection, the algorithm is

able to refine the values and correct a small error in width at low resolution. Kalman

tracking gives better results against the GA tracking as the prediction is better. In Fig.

8-d the algorithm detects a new vehicle appearing in the image with a better fitness

while Kalman still tracks the old one.

500

550

600

650

700

750

800

850

900

1 21416181101121

Iteration

16 Individuals

8 Individuals

16 Individuals (II)

8 Individuals (II)

Fitne ss

740

760

780

800

820

840

121416181101121

Iteration

64 Individuals

32 Individuals

64 Individuals (II)

32 Individuals (II)

680

700

720

740

760

780

800

1 4 7 1013161922252831

Iteration

Fitness

128 Individual s

64 Individuals

32 Individuals

16 Individuals

Maximun Resolution

800

820

840

860

880

900

920

940

1 3 5 7 9 11 13 15 17 19 21

Iteration

Fitness

128 Indiv iduals

64 Individual s

32 Individual s

16 Individual s

Medium Resolution

500

550

600

650

700

750

800

850

1 7 13 19 2 5 31 37 43 49 55 61 67 73 79

Iter ation

128 Individuals

64 Individual s

32 Individual s

16 Individual s

8 Individuals

4 Individuals

2 Individuals

(a) (b)

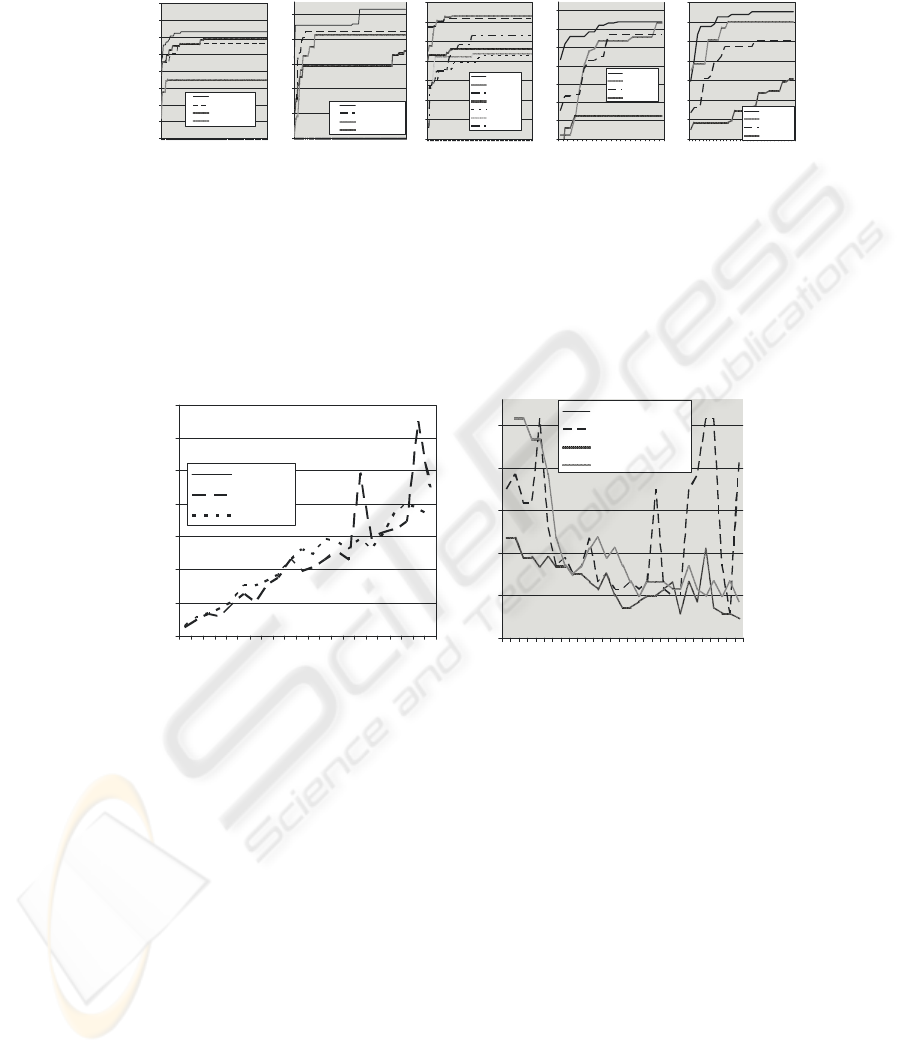

Fig. 6. Number of individuals needed for every resolution (a) when the overtaking informa-

tion is taking or not into account (b) if tracking is performed.

Vehicle detection

10,00

20,00

30,00

40,00

50,00

60,00

70,00

80,00

1 3 5 7 9 111315171921

Frame

tan

(

)

Mannually

Kalman

20,00

25,00

30,00

35,00

40,00

45,00

1 4 7 10131619222528

Frame

(

)

Mannually

GA no prediction

GA prediction

Kalman

(a) (b)

Fig. 7. Detection and tracking of (a) Overtaking vehicle (b) Approaching vehicle.

7 Conclusions

A system based on computer vision for the detection of surroundings vehicles has

been presented in this paper. Experiments were carried out in the IVVI (Intelligent

Vehicle based on Visual Information) vehicle (Fig. 9), which is an experimentation

platform for researching and developing Advance Driver Assistant Systems based on

Image Analysis and Computer Vision. There are two PCs in the vehicle's boot for

image analysis from a stereo vision system and a colour camera. The position and

speed of the vehicle is provided by a GPS connected through a Bluetooth link to a

PDA, which broadcast this information to the PCs by a WiFi Network.

(a) (b) (c)

(d) (e)

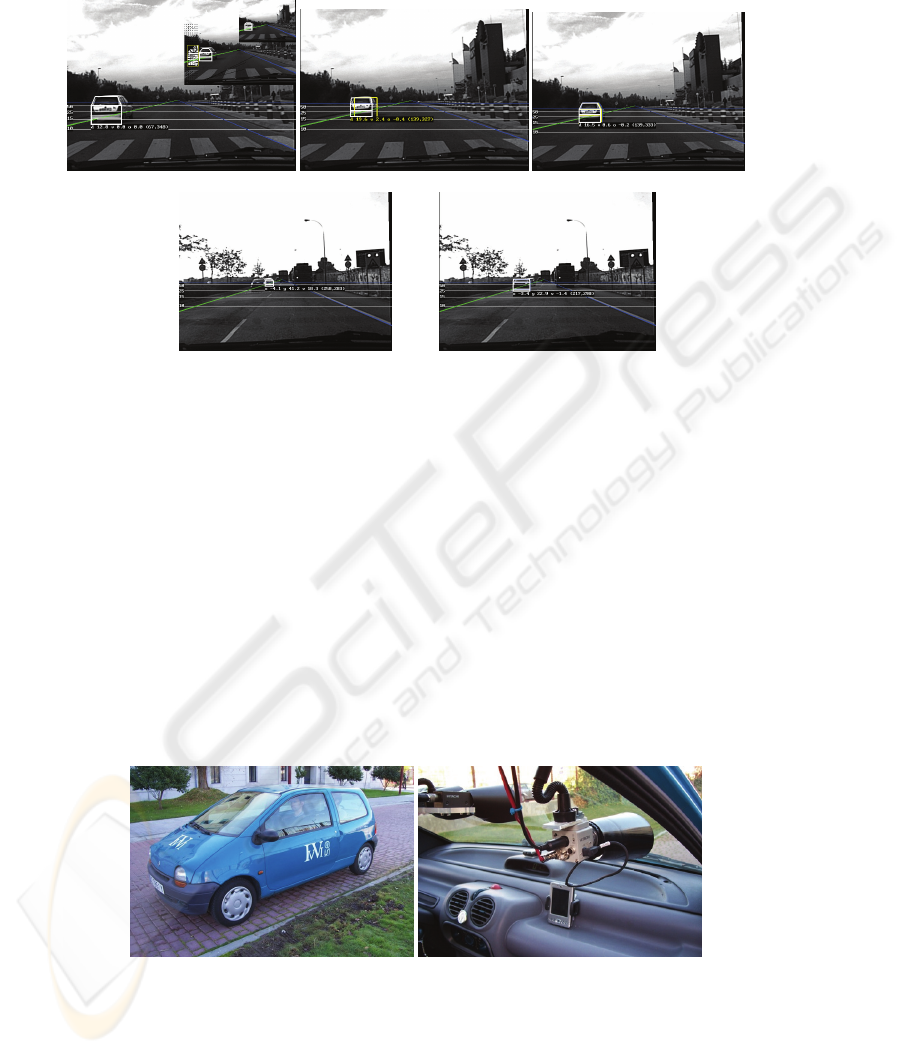

Fig. 8. (a) Pyramidal overtaking detection (b) GA tracking (c) Kalman tracking (d) GA detec-

tion (e) Kalman tracking.

(a) (b)

Fig. 9. IVVI Vehicle. (a) Experimental Vehicle (b) stereo and color camera.

Acknowledgements

This work was supported in part by the Spanish Government under Grant TRA2004-

07441-C03-01.

References

1. H. Mori, N. M. Charkari, and T. Matsushita, On-line vehicle and pedestrian detections

based on sign pattern, IEEE Trans. on Industrial Electronics, vol 41, pp. 384-391, 1994.

2. T. Zielke, M. Brauckmann, and W. Von Seelen, Intensity and edge-based symmetry detec-

tion with application to car-following, CVGIP: Image Understanding, vol. 58, pp. 177-190,

1993.

3. C. Goerick, D. Noll, and M. Werner, Artificial Neural Networks in Real Time Car detec-

tion and Tracking Applications, Pattern Recognition Letters, vol. 17, pp. 335-343, 1996.

4. T.K. ten Kate, M.B. van Leewen, S.E. Moro-Ellenberger, B.J.F. Driessen, A.H.G. Versluis,

and F.C.A. Groen, Mid-range and Distant Vehicle Detection with a Mobile Camera, IEEE

Intelligent Vehicles Symp. 2004

5. Broggi, P. Cerri, and P.C. Antonello, Multi-Resolution Vehicle Detection using Artificial

Vision, IEEE Intelligent Vehicles Symp. 2004.

6. M. Betke, E. Haritaoglu, and L.S. Davis, Real-time multiple vehicle detection and tracking

from a moving vehicle, Machine Vision and Applications, vol. 12, pp. 69-83, 2000.

7. JM. Ferryman, S.J. Maybank, and A.D. Worrall, Visual surveillance for moving vehicles,

International Journal of Computer Vision, vol. 37, pp. 187-97, 2000

8. T. Kato, Y. Ninomiya, and I. Masaki, Preceding vehicle recognition based on learning from

sample images, IEEE Trans. on Intelligent Transportation Systems, vol. 3, pp. 252-260,

2002.

9. Z. Sun, G. Bebis, and R. Miller, On-Road Vehicle Detection Using Optical Sensors: A

Review, IEEE Intelligent Transportation Systems Conf. 2004.

10. Wohler, and J.K. Anlauf, Real-time object recognition on image sequences with adaptable

time delay neural network algorithm-applications for autonomous vehicles, Image and Vi-

sion Computing, vol. 19, pp. 593-618, 2001.

11. P. Batavia, D. Pomerleau, and C. Thorpe, Overtaking Vehicle Detection Using Implicit

Optical Flow, IEEE Transportation Systems Conf. 1997.

12. Y. Zu, D. Comaniciu, M. Pellkofer, and and T. Koehler, Passing Vehicle Detection from

Dynamic Background Using Robust information Fusion, IEEE Intelligent Transportation

Systems Conf. 2004.

13. G. Stein, O. Mano, and A. Shashua, Vision-based ACC with a Single Camera: bounds on

Range and Range Rate Accuracy, IEEE Intelligent Vehicles Symp. 2003.

14. J. M. Collado, C. Hilario, A. De la Escalera, J.M. Armingol. Self-calibration of an On-

Board Stereo-Vision System for Driver Assistance Systems, IEEE Intelligent Vehicle

Symp. 2006.

15. Hilario, J. M. Collado, J. Mª Armingol,A. de la Escalera, Pyramidal Image Analysis for

Vehicle Detection, IEEE Intelligent Vehicles Symp. 2005.
