A Cognitive Robot Architecture Based on 3D Simulator

of Robot and Environment

Antonio Chella

and Irene Macaluso

Dipartimento di Ingegneria Informatica Università di Palermo

viale delle Scienze ed.6, 90128 Palermo, Italy

Abstract. The paper proposes a robot architecture based on a comparison be-

tween the effective robot sensations and the expected sensations generated by a

3D robot/environment simulator. The robot perceptions are generated by the

simulator driven by this comparison process. The architecture is operating in

“Cicerobot” a museum robot offering guided tours at the Archaeological Mu-

seum of Agrigento, Italy.

1 Introduction

An autonomous robot operating in real and unstructured environments has to interact

with a dynamic world populated with objects, people, and in general, other agents:

people and agents may change their position and identity during time, while objects

may be moved or dropped. In order to work properly, the robot should have a

perception of its environment and it should create links between its sensory inputs

and motor actions.

Humphrey [12] makes a clear distinction between sensations and perceptions:

sensations are active responses generated by the body in reaction to external stimuli.

They refers to the subject, they are about “what is happening to me”. Perceptions are

mental representations related to something outside the subject. They are about “what

is happening out there”. Sensations and perceptions are two separate channels; a

possible interaction between the two channels is that the perception channel may be

recoded in terms of sensations, i.e., the mental representation of the vase may be

recoded in terms of sensations and compared with the effective stimuli from the

outside, in order to catch and avoid perceptual errors. This process is similar to the

“echoing back to source” strategy for error detection and correction.

Gärdenfors [6] discusses the role of simulators related to sensations and

perceptions. He claims that sensations are immediate sensory impressions, while

perceptions are built on simulators of the external world. A simulator receives as

input the sensations coming from the external world, it fills the gaps and it may also

add new information in order to generate perceptions. The perception of an object is

therefore more rich and expressive than the corresponding sensations. In Gärdenfors

terms, “perceptions are sensations that are reinforced with simulations”. The role of

Chella A. and Macaluso I. (2007).

A Cognitive Robot Architecture Based on 3D Simulator of Robot and Environment.

In Robot Vision, pages 67-76

DOI: 10.5220/0002066700670076

 SciTePress

simulators in motor control has been extensively analyzed from the neuroscience

point of view, see [23] for a review.

Grush [10,11], proposes several cognitive architectures based on simulators

(“emulators” in Grush terms). The basic architecture is made up by a feedback loop

connecting the controller, the plant to be controlled and a simulator of the plant. The

loop is pseudo-closed in the sense that the feedback signal is not directly generated by

the plant, but by the simulator of the plant, which parallels the plant and it receives as

input the efferent copy of the control signal sent to the plant. In this case, the

sensations are generated by the system as the output of the simulator.

A more advanced architecture proposed by Grush and inspired to the work of

Gerdes and Happee [8] takes into account the basic schema of the Kalman filter. In

this case, the residual correction generated by the difference between the effective

plant output and the emulator output (the sensations) are sent to the plant simulator

via to the Kalman gain. In turns, the simulator send its inner variables as feedback to

the controller. In this case the sensations are output of the simulator process and they

are more or less of the same type of sensory inputs, while the perceptions are the

inner variables of the simulator. The simulator inner variables are therefore more

expressive that rough sensations and they may contain also information not directly

perceived by the system, as the occurring forces in the perceived scene, or the object-

centered parameters and in general the variables used in causal reasoning [7].

Grush [9] discusses the adoption of neural networks to learn the operations of the

simulators, and Oztop et al. [19] propose sophisticated learning techniques of

simulators based on inferences of the theory of mind of others.

An early implementation of a robot architecture based on simulators is due to Mel

[17]. He proposed a simulated robot moving in an environment populated with simple

3D objects. The robot is controlled by a neural network that learns the aspects of the

objects and their relationships with the corresponding motor commands. It becomes

able to simulate and to generate expectations about the expected object views

according to the motor commands, i.e., the robot learns to simulate the external

environment. A successive system proposed by Mel is MURPHY [18] in which a

neural network controls a robot arm. The system is also able to perform off-line

planning of the movements by means of the internal simulator of the environment.

Other early implementation of robots operating with internal simulators of the

external environment are MetaToto [21], and the internalized plan architecture [20].

In both systems, a robot builds an inner model on the environment to be reactively

explored by simulated sensorimotor actions to generate action plans.

An effective robot able to build an internal model of the environment has been

proposed by Holland and Goodman [13]. The system is based on a neural network

that controls a Khepera minirobot that is able to simulate actions and perceptions and

to anticipate perceptual activities is a simplified table environment. Holland [14]

speculates on the relationships between embodiment, internal models and

consciousness.

2 Robot Architecture

The robot architecture proposed in this paper is based on an internal simulator of the

robot and the environment world that takes into account the previously discussed

distinction between sensations and perceptions (Fig. 1). The Robot block is the robot

itself and it is equipped with motors and a video camera. It is modeled as a block that

receives in input the motor commands M and it sends in output the robot sensations

S, i.e., the scene acquired by the robot video camera. The Controller block controls

the actuators of the robot and it sends the motor commands M to the robot. The robot

moves according to M and its output is the 2D pixel matrix S corresponding to the

scene image acquired by the robot video camera.

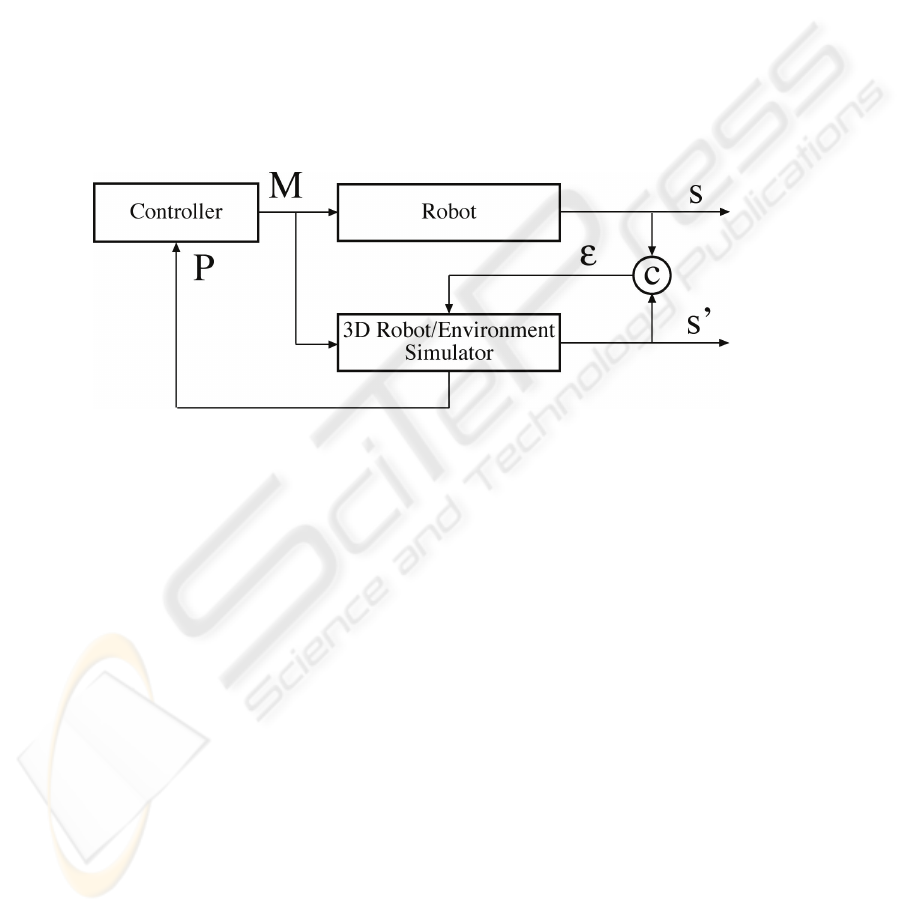

Fig. 1. The robot architecture.

At the same time, an efferent copy of the motor commands is sent to the 3D

Robot/Environment Simulator. The simulator is a 3D reconstruction of the robot

environment with the robot itself. It is an object-centered representation of the world

in the sense of Marr [16]. The simulator receives as input the controller motor

command M and it simulates the corresponding motion of the robot in the 3D

simulated environment. The output S’ of the simulator is the 2D image obtained as a

projection of the simulated scene acquired by the simulated robot. In this sense S is

the effective image scene acquired by the robot and S’ is the expected image scene

acquired by the robot according to the simulator. Both images are viewer-centered, in

Marr’s terms.

The acquired and the expected image scenes are compared by the comparator

block c and the resulting error ε is sent back to the simulator to align the simulated

robot with the real robot. At the same time, the simulator send back all the relevant

3D information P about the robot position and its environment to the controller, in

order to adjust the motor plans, as described below

It should be noted that S and S’ are 2D image scenes; they are modal information

that may be considered sensations as they refer to “what is happening to the robot”,

i.e., they are responses to the robot visual stimuli referred to the robot itself. Instead,

P is amodal information that may be considered the robot perception, as it is a set of

3D information referred to “what is happening out there”.

The image matrix S’ is the 2D recoding of 3D perception used by the simulator

correct and align the simulated robot, while P is the amodal interpretation of robot

sensations by means of the 3D simulator. The 2D reconstruction S’ of the scene is

built by the robot as a projection of the 3D entities in the simulator and from the data

coming from robot sensors. This reconstruction constitutes the phenomenal

experience of the robot, i.e., what the robot sees at a given instant. This kind of seeing

is an active process, since it is a reconstruction of the inner percept in ego

coordinates, but it is also driven by the external flow of information. It is the place in

which a global consistency is checked between the internal model and the visual data

coming from the sensors. The robot acquires evidence for what it perceives, and at

the same time it interprets visual information according to its internal model. Any

discrepancy asks for a readjustment of its internal model. Furthermore, through this

2D image, the robot has an immediate representation of the scene as it appears in

front of it, very useful for rapid decision and reactive behaviour.

3 Planning and Imagination

The proposed framework may be extended to allow the robot to deliberate its own

sequences of actions. In this perspective, planning may be performed by taking

advantage from the representations in the 3D Robot/Environment Simulator. Note

that we are not claiming that all kinds of planning must be performed within a

simulator, but the forms of planning that are more directly related to perceptual

information can take great advantage from visual awareness in the described

architecture.

The signal P describes the perception of a situation of the world out there at time t,

i.e., it describes the perception of the current situation of the world. The simulator, by

means of its simulation engine (see below), is able to generate expectations of P at

time t+1, i.e., it is able to simulate the robot action related with motor command M

generated by the controller and the relationship of the action with the external world.

In facts, the preconditions of an action can be simply verified by geometric

inspections in P at time t, while in the STRIPS planner [5] the preconditions are

verified by means of logical inferences on symbolic assertions. Also the effects of an

action are not described by adding or deleting symbolic assertions, as in STRIPS, but

they can be easily described by the situation resulting from the expectations of the

execution of the action itself in the simulator, i.e., by considering the expected

perception P at time t+1.

In the proposed architecture, the recognition in a scene of a certain component of a

situation described by P may elicit the expectation of the other components of the

situation itself. The recognition of a certain situation by means of the perception P at

time t could also elicit the expectation of a subsequent situation and the generation of

the expected perception P at time t+1.

We take into account two main sources of expectations. On the one side,

expectations are generated on the basis of the structural information stored in a

symbolic knowledge base of the simulator. We call linguistic such expectations. As

soon as a situation is perceived which is the precondition of a certain action, then the

symbolic description elicit the expectation of the effect situation, i.e., it generates the

expected perception P at time t+1.

On the other side, expectations could also be generated by a purely Hebbian

association between situations. Suppose that the robot has learnt that when it sees

somebody pointing on the right, it must turn in that direction. The system learns to

associate these situations and to perform the related action. We call associative this

kind of expectations.

In order to explain the planning by imagination mechanism, let us suppose that the

robot has perceived the current situation

e.g., it is in a certain position of a room.

Let us suppose that the robot knows that its goal g is to be in a certain position of

another room with a certain orientation. A set of expected perceptions

, P

{

}

situations is generated by means of the interaction of both the linguistic and the

associative modalities described above. Each

in this set can be recognized to be

the effect of some action related with a motor command

in a set of possible

motor commands

, M

{}

where each action (and the corresponding motor

command) in the set is compatible with the perception

of the current situation.

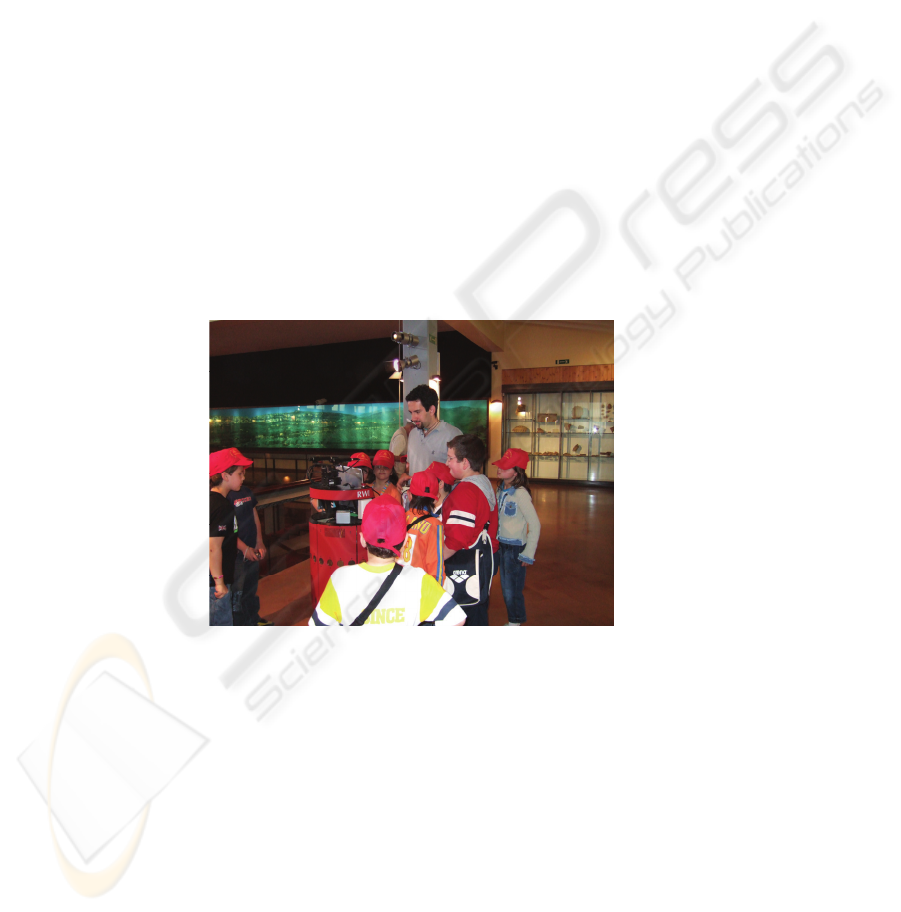

Fig. 2. The robot “Cicerobot” operating at the Archaeological Museum of Agrigento.

The robot chooses a motor command M

according to some criteria; e.g., is the

action whose expected effect has the minimum Euclidean distance from the “goal” g,

or, for example, considering the valuation of the expected effect. Once that the action

to be performed has been chosen, the robot can imagine to execute it by simulating its

effects in the 3D simulator then it may update the situation and restart the mechanism

of generation of expectations until the plan is complete and ready to be executed.

On the one side, linguistic expectations are the main source of deliberative robot

plans: the imagination of the effect of an action is driven by the description of the

action in the simulator KB. This mechanism is similar to the selection of actions in

deliberative forward planners. On the other side, associative expectations are at the

basis of a more reactive form of planning: in this latter case, perceived situations can

“reactively” recall some expected effect of an action.

Both modalities contribute to the full plan that is imagined by the robot when it

simulates the plan by means of the simulator. When the robot becomes fully aware of

the plan and of its actions, it can generate judgments about its actions and, if

necessary, imagine alternative possibilities.

4 Robot at Work

The proposed architecture has been implemented in “Cicerobot”, an autonomous

robot RWI B21 equipped with sonar, laser rangefinder and a video camera mounted

on a pan tilt. The robot has been employed as a museum tour guide operating at the

Archaeological Museum of Agrigento, Italy offering guided tours in the “Sala Giove”

of the museum (Fig. 2). A first session of experimentations, based on a previous

version of our architecture, has been carried out from January to June 2005 and the

results are described in [4,15]. The second session, based on the architecture

described in this paper, started in March and ended in July 2006.

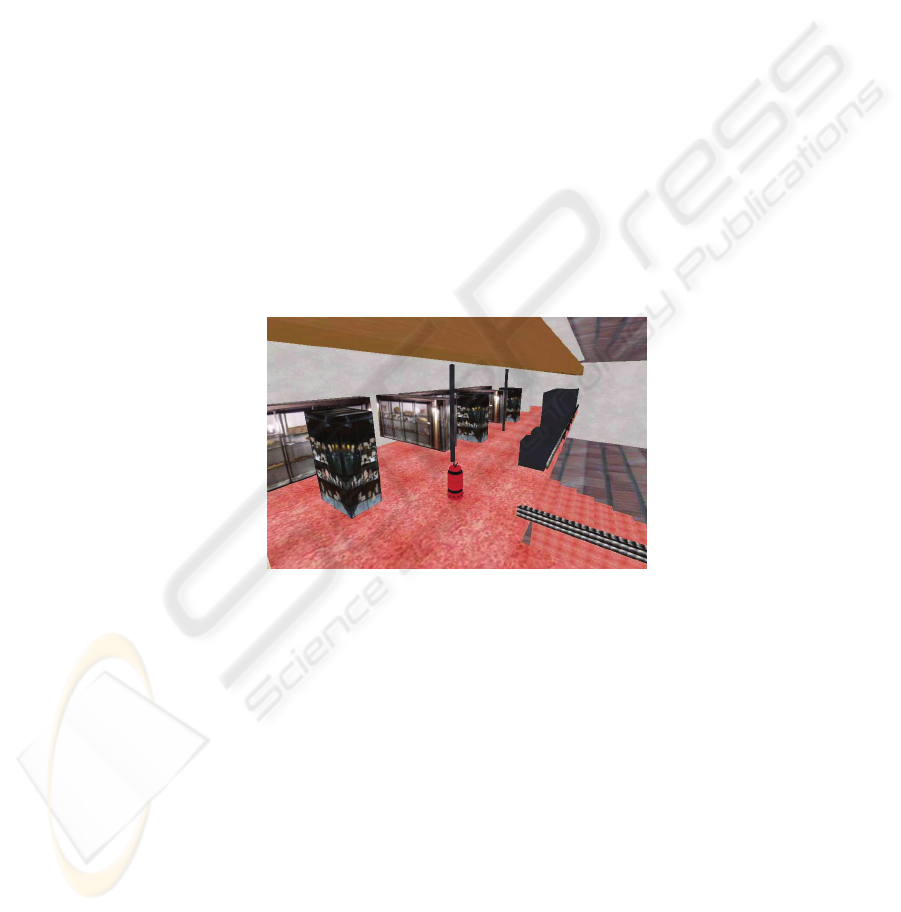

Fig. 3. The 3D robot/environment simulator.

The task of museum guide is considered a significant case study [3] because it

concerns perception, self perception, planning and human-robot interactions. The task

it is relevant as a test bed for phenomenal consciousness. It can be divided in many

subtasks operating in parallel, and at the same time at the best of the robot

capabilities. Moreover, the museum is a dynamic and unpredictable environment.

Referring to the architecture in Fig. 1, the controller includes a standard behavior-

based architecture (see, e.g., [1]) equipped with all the standard reactive behaviors as

the static and dynamic obstacle avoidance, the search of free space, the path

following and so on.

Fig. 3 shows the 3D robot/environment simulator. As previously described, the

task of the block is to generate the expectations of the interactions between the robot

and the environment; it should be noted that the robot also simulates itself in its

environment.

In order to keep aligned the simulator with the external environment, the simulator

engine is equipped with a stochastic algorithm known as particle filter (see, e.g.,

[22]). In brief, the simulator hypothesize a cloud of expected possible positions of the

robot. For each expected position, the corresponding expected image scene S’ is

generated, as in Fig. 4 (right). The comparator then generates the error measure ε

between the expected and the effective image scene S (Fig. 4 left). The error ε

weights the expected position under consideration; in a subsequent step, only the

winning expected positions that received the higher weigh are taken, while the other

ones are dropped. Fig. 5 (left) shows the initial distribution of expected robot position

and Fig. 5 (right) shows the small cluster of winning positions.

Now the simulator receives the new motor command M related with the chosen

action as described before, and, starting from the winning hypotheses, it generates a

new set of hypothesized robot positions. The filter iterates between these two steps

until convergence, i.e., until the winning positions converge to a single moving point.

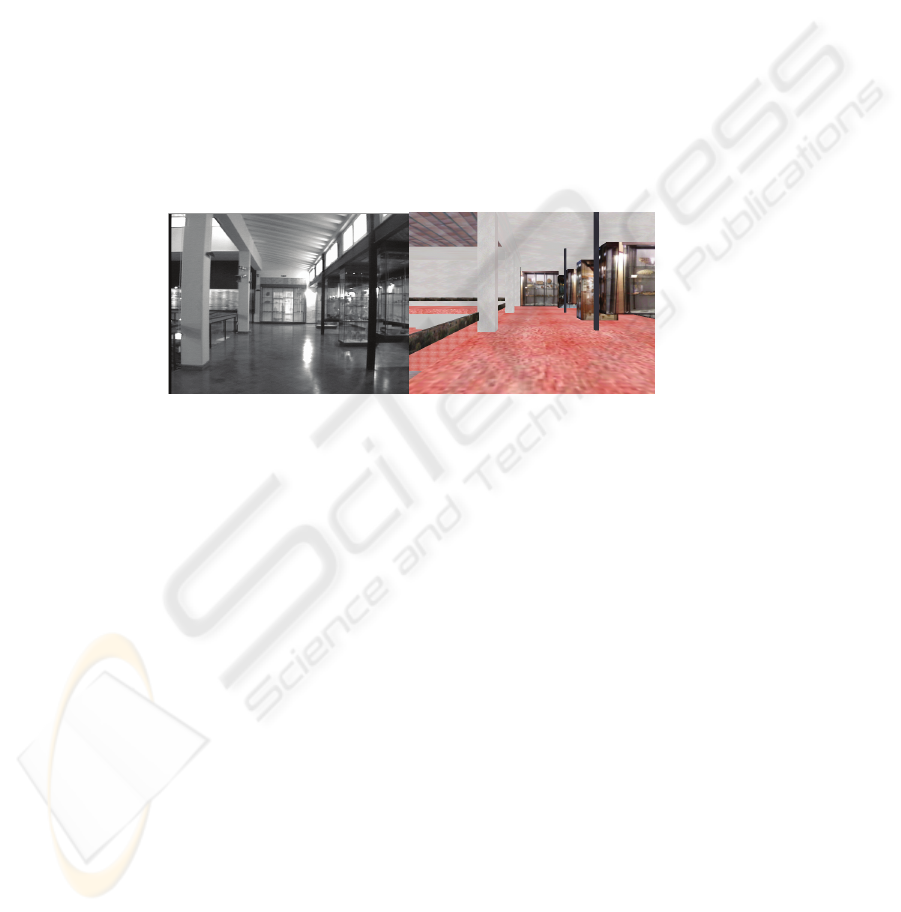

Fig. 4. The 2D image output of the robot video camera (left) and the corresponding image

generated by the simulator (right).

Fig. 4 shows the 2D image S as output of the robot video camera (left) and the

corresponding image S’ generated by the simulator (right) by re-projecting in 2D the

3D information from the current point of view of the robot.

The comparator block c compares the two images of Fig. 4 by using elastic

templates matching [2]. In the current implementation, features are long vertical

edges extracted from the camera image. Spatial relations between edges’ midpoints

are used to locate each edge in the simulated image and compute the relative

distortion between the expected and the effective scene. The relative distortion is a

measure of the error ε related to the differences between the expected image scene

and the effective scene. As previously stated, this error is sent back to the simulator in

order to correct the robot position in the 3D simulator.

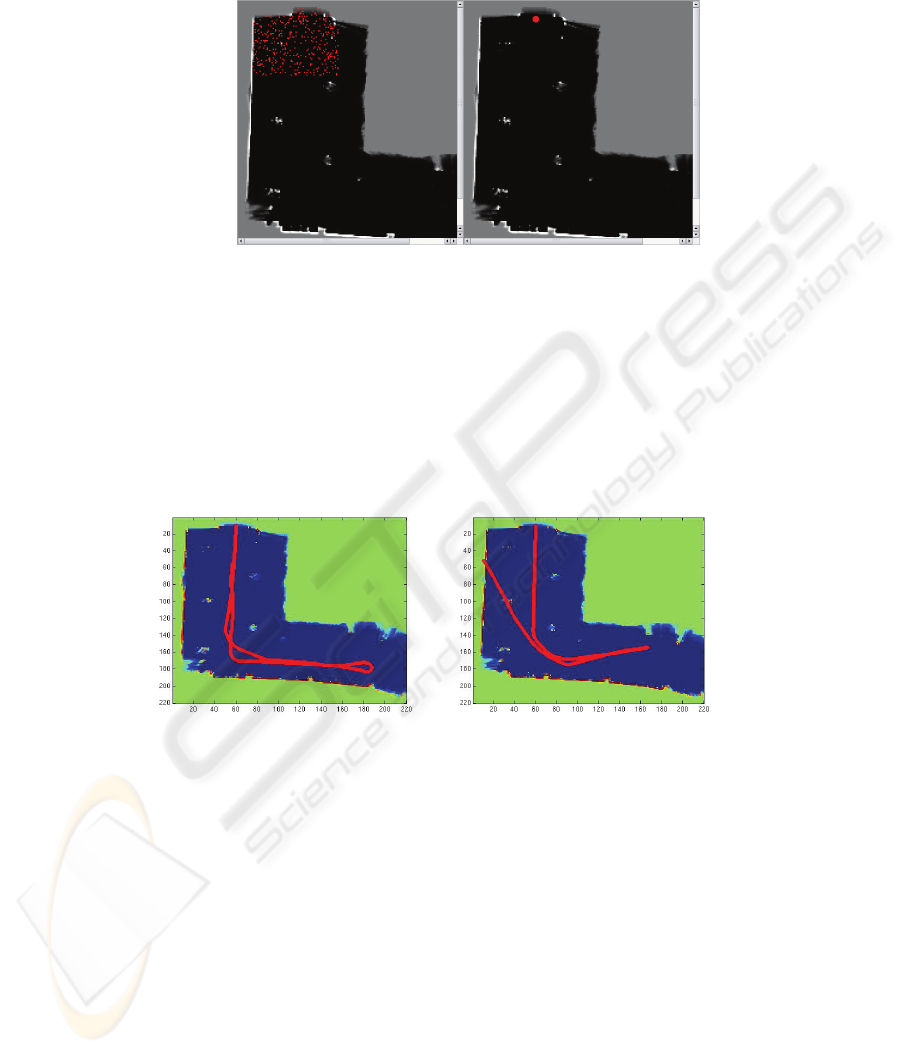

Fig. 5. The operation of the particle filter. The initial distribution of expected robot positions

(left), and the cluster of winning expected positions (right).

5 Experimental Results

In order to test the proposed architecture we compared the operations of the robot

equipped with the described system with the operations of the robot driven by the

odometric information only.

Fig. 6. The operation of the robot equipped with the described architecture (left) and with the

reactive controller and the odometric feedback only (right).

Fig. 6 (left) shows the operation of the robot during the tour guide. To compare the

operation of the robot, we tested the robot by considering the operation of a reactive

robot equipped with the odometric sensor data; results are shown in Fig 6 (right).

Fig. 7 shows the difference of the two trajectories versus time. It should be noticed

that at the very beginning the two tours are quite the same, while early in the robot

operations, the trajectory related with the odometric data only tends to diverge.

During the second part of the tour, when the two robots turn right in order to follow

the corridor and to come back to base home, the two trajectories became again quite

similar (the valley at nearly 1200) and then they diverge again.

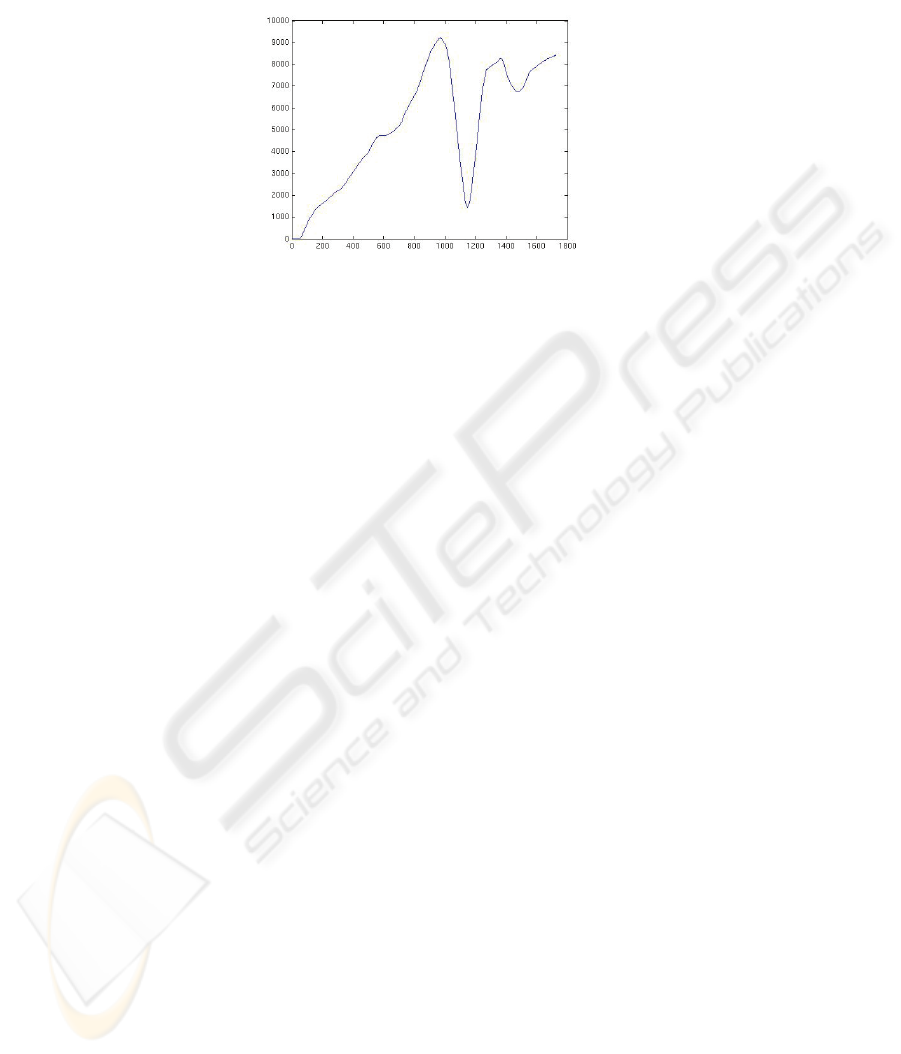

Fig. 7. The figure shows the difference during the tour guide between the two trajectories

versus time.

It should be noted that the proposed architecture based on the described account let

the robot to operate more precisely and in a more satisfactory way. In facts, the

described sensations and perceptions mechanism let the robot to be aware of its

position and of its perceived scene. The robot is therefore able to eventually adjust

and correct its own subsequent motion actions. Moreover, the robot is able to imagine

its future actions and it is therefore able to choose the best motion actions according

to the current perceived situation.

Acknowledgements

Authors would like to thank Salvatore Gaglio, Peter Gärdenfors and Riccardo

Manzotti for discussions about the proposed architecture. The director and the staff of

the Archaeological Museum of Agrigento kindly supported the Cicerobot project.

Edoardo Ardizzone, Massimo Cossentino, Antonio Gentile, Rosario Gradino, Ignazio

Infantino, Marilia Liotta, Daniele Peri, Lorenzo Riano, Riccardo Rizzo, Giuseppe

Scardino contributed in several ways to the implementation and tests of the proposed

architecture.

References

1. R.C. Arkin: Behavior-based robotics. MIT Press, Cambridge, MA, 1998.

2. C. Balkenius, L. Kopp: Elastic template matching as a basis for visual landmark recogni-

tion and spatial navigation, in Proc. of AISB 1997 workshop on Spatial reasoning in mobile

robots and animals, Manchester: Manchester University, UK.

3. W. Burgard, A.B. Cremers, D. Fox, D. Hähnel, G. Lakemeyer, D. Schulz, W. Steiner, S.

Thrun: Experiences with an interactive museum tour-guide robot, Artificial Intelligence,

114, pp. 3–55, 1999

4. A. Chella, M. Frixione, S. Gaglio: Planning by imagination in Cicerobot, a robot for mu-

seum tours, in: Proc. of AISB 2005 Symposium on Next Generation Approaches to Ma-

chine Consciousness, pp. 40-49, University of Hertfordshire, Hatfield, UK.

5. R.E. Fikes and N.J. Nilsson: STRIPS: a new approach to the application of theorem prov-

ing to problem solving, Artificial Intelligence, 2, pp. 189-208, 1971.

6. P. Gärdenfors: How Homo Became Sapiens. Oxford, Oxford University Press, 2003.

7. P. Gärdenfors: Emulators as sources of hidden cognitive variables, Behavioral and Brain

Sciences, 27, 3, p. 403, 2004.

8. V.G.J. Gerdes and R. Happee: The use of an internal representation in fast goal-directed

movements: a modeling approach, Biological Cybernetics, 70, pp. 513-524, 1994.

9. R. Grush: Emulation and cognition. Doctoral dissertation, Department of Cognitive Science

and Philosophy. University of California, San Diego, 1995.

10. R. Grush: Wahrnehmung, Vorstellung und die sensomotorische Schleife. (English transla-

tion: Perception, imagery, and the sensorimotor loop), in: F. Esken and H.-D. Heckmann

(eds.): Bewußtsein und Repräsentation, Verlag Ferdinand Schöningh.

11. R. Grush: The emulator theory of representation: Motor control, imagery and perception,

Behavioral and Brain Sciences, 27, 3, pp. 377-442, 2004.

12. N. Humphrey: A History of the Mind. New York, Simon & Schuster, 1992.

13. O. Holland and R. Goodman: Robots with internal models – A route to machine conscious-

ness? Journal of Consciousness Studies, 10, 4-5, pp. 77-109, 2003.

14. O. Holland: The future of embodied artificial intelligence: Machine consciousness?, in: F.

Iida et al. (eds.): Embodied artificial intelligence. LNAI 3139, Berlin Heidelberg, Springer-

Verlag, pp. 37-53, 2004.

15. I. Macaluso, E. Ardizzone, A. Chella, M. Cossentino, A. Gentile, R. Gradino, I. Infantino,

M. Liotta, R. Rizzo and G. Scardino: Experiences with Cicerobot, A museum guide

cognitive robot, in: S. Bandini and S. Manzoni (eds.): AI*IA 2005, LNAI 3673, Berlin

Heidelberg, Springer-Verlag, pp. 474-482, 2005.

16. D. Marr: Vision. W.H. Freeman, New York, 1982.

17. B.W. Mel: A connectionist learning model for 3-dimensional mental rotation, zoom and

pan, in: Proc. of the 8th Ann. Conf. of the Cognitive Science Soc., pp. 562-571, 1986.

18. B.W. Mel: Connectionist robot motion planning: A neurally-inspired approach to visually-

guided reaching. Cambridge, MA, Academic Press, 1990.

19. E. Oztop, D. Wolpert, M. Kawato: Mental state inference using visual control parameters,

Cognitive Brain Research, 22, pp. 129-151, 2005.

20. D.W. Payton: Internalized plans: A representation for action resources, Robotics and

Autonomous Systems, 6, pp. 89-103, 1990.

21. L.A. Stein: Imagination and situated cognition, MIT AI Memo No. 1277, 1991.

22. S. Thrun, W. Burgard, D. Fox: Probabilistic Robotics. MIT Press, Cambridge, MA, 2005.

23. D.M. Wolpert and Z. Ghahramani: Computational principles of movement neuroscience,

Nature neuroscience supplement, 3, pp.1212-1217, 2000.
