Adaptive and Fast Scale Invariant Feature Extraction

Emanuele Frontoni and Primo Zingaretti

Universita’ Politecnica delle Marche, Ancona, Italy

Abstract. The Scale Invariant Feature Transform, SIFT, has been successfully

applied to robot vision, object recognition, motion estimation, etc. Still, the pa-

rameter settings are not fully investigated, especially when dealing with variable

lighting conditions. In this work, we propose a SIFT improvement that allows fea-

ture extraction and matching between images taken under different illumination.

Also an interesting approach to reduce the SIFT computational time is presented.

Finally, results of robot vision based localization experiments using the proposed

approach are presented.

1 Introduction

In computer vision features are at the basis of image data processing. The goal of com-

puter vision is to extract information about the content of speciﬁc data, i.e., a 2D image

[1–5]. The extraction process is then often deﬁned in terms of image features of dif-

ferent levels of complexity, ranging from low-level features such as edges or lines via

medium-level features such as corners or junctions to high-level features in terms of

objects or living beings, and actions that they perform. However, the classiﬁcation into

low, medium and high level features is not standardized. In the ﬁeld of computer vision

and image processing a large number of features, with different complexity, have been

deﬁned, e.g.:

– point features, e.g., corners, line crossings, or general interest points;

– local boundary features, e.g., lines or edges and their orientation;

– shape features, e.g., curvature;

– region based features, e.g., color, texture or objects.

From a conceptual point of view, an image feature should be deﬁned in terms of at-

tributes related to the image data. Usually these features are used to perform some kind

of scene geometric reconstruction or object recognition or, also, they are used to per-

form range measurements based on vision. In the appearance based approach the same

features can be used to evaluate an image similarity, taking into account the whole im-

age without any need of physic description, but with the only purpose of evaluate scene

appearance.

The SIFT approach was introduced by David Lowe in [6, 7]. SIFT is a method for ex-

tracting distinctive invariant features from images that can be used to perform reliable

matching between different images of the same object or scene. Because of its compu-

tational efﬁciency and effectiveness in object recognition, the SIFT algorithm has led to

Frontoni E. and Zingaretti P. (2007).

Adaptive and Fast Scale Invariant Feature Extraction.

In Robot Vision, pages 117-125

DOI: 10.5220/0002066801170125

 SciTePress

signiﬁcant advances in computer vision. The goal of our project is essentially to clean

up, simplify and improve Lowe’s SIFT algorithm. We intend ﬁrst to implement the al-

gorithm roughly as Lowe has deﬁned it and then to make changes to it, gauging their

effectiveness in object recognition. Speciﬁcally, we intend to improve SIFT’s robust-

ness to illumination changes, which will be judged by recognition accuracy in various

outdoor scenes. We hope in general to improve the effectiveness of SIFT recognition

keys by experimenting with different keypoint-descriptor generation methods, trying to

maximize recognition scores with varying cameras and illuminations. We are creating

an image database along the way to test actual implementation and future changes to

the algorithm.

One of the major problem with SIFT is that the algorithm is not crisply deﬁned and has

lots of free parameters; information provided by the Lowe’s papers is sometimes vague,

and thus leaves lots of implementation details to be ﬁlled in.

The SIFT is invariant to image translation, scaling and rotation. SIFT features are also

partially invariant to illumination changes and afﬁne 3D projections. These features

have been widely used in the robot localization ﬁeld as well as in many other computer

vision ﬁelds. The SIFT algorithm has four major stages.

1. Scale-space extrema detection: the ﬁrst stage searches over scale space using a Dif-

ference of Gaussian (DoG) function to identify potential interest points.

2. Key point localization: the location and scale of each candidate point are determined

and key points are selected based on measures of stability.

3. Orientation assignment: one or more orientations are assigned to each key point based

on local image gradients.

4. Key point descriptor: a descriptor is generated for each key point from information

on local image gradients at the scale found in stage 2.

The ﬁrst stage is clariﬁed as follows. For each octave in the scale space, the initial image

is repeatedly convolved with Gaussians to produce the set of scale space images. Ad-

jacent Gaussian images are subtracted to produce the DoG images. After each octave,

the Gaussian image is down-sampled by a factor of 2 and the process is repeated. For a

more detailed discussion of the key point generation and factors involved see [6].

In a nutshell, Lowe’s algorithm ﬁnds stable features over scale space by repeatedly

smoothing and down sampling an input image and subtracting adjacent levels to create

a pyramid of difference-of-Gaussian images. The features the SIFT algorithm detects

represent minima and maxima in scale space of these difference-of-Gaussian images.

At each of these minima and maxima, a detailed model is ﬁt to determine location, scale

and contrast, during which some features are discarded based on measures of their in-

stability. Once a stable feature has been detected, its dominant gradient orientation is

obtained, and a key point descriptor vector is formed from a grid of gradient histograms

constructed from the gradients in the neighborhood of the feature. Key point matching

between images is performed using a nearest-neighbor indexing method.

There are many points along the course of this algorithm where simpliﬁcations and po-

tential improvements can be made. Our current goals, beyond implementing and testing

Lowe’s algorithm, are:

(1) simplify and clean up the algorithm as much as possible,

(2) improve lighting invariance by normalizing potential SIFT difference-of-Gaussian

118

points with the sum-of-Gaussians, and

(3) improve the general stability of key points.

Our approach is based on the Scale Invariant Feature Transform (SIFT). In particular

we propose an improvement of this feature extraction method to deal with changing

in lighting conditions. This kind of adaptive vision is necessary in various applica-

tion ﬁelds of vision feature based techniques, e.g. outdoor robotics, surveillance, object

recognition, etc. In general, the improvement is particular useful whenever the system

needs to work in presence of strong lightness variations. Also, while invariant to scale

and rotation and robust to other image transforms, the SIFT feature description of an

image is typically large and slow to compute. To solve this matter an approach to reduce

the SIFT computational time is also presented. The paper is organized as follow: next

section providesa description of the SIFT algorithm and of the proposed improvements;

results of mobile robot localization are discussed in section 3 and, ﬁnally, conclusions

and references are given.

2 Extension to Reduced SIFT

SIFT features are distinctive and invariant features used to robustly describe and match

digital image content between different views of a scene. Consequently, hese features

have been widely used in the robot localization ﬁeld as well as in many other computer

vision ﬁelds.

As already said, the SIFT feature description of an image is typically large and slow to

compute. For this reason we compute the image similarity in the innovation term using

a reduced and optimized SIFT approach with 64 feature descriptors, and we introduced

time saving improvements by the following two steps:

- adaptation of SIFT parameters to each sub-image in which the original image is split-

ted(Figure 1);

- extraction of a ﬁxed number of key points.

In particular, the number of scales of original image is deﬁned according to its

dimensions and thus in some cases not all SIFT scales need to be computed.

The following threshold value (Tr) is also computed to deﬁne the contrast threshold

value of the SIFT algorithm:

T r = k ·

DimX,DimY

i,j=0



I(x

) −

I(x

)



DimX · DimY

(1)

where k is a scale factor, DimX and DimY are the x and y image dimensions, I(x,y)

is the intensity of the gray level image and (x,y) is the medium intensity value of the

processed image. In the Lowe’s SIFT implementation the contrast threshold is statically

deﬁned and low contrast key points are rejected because they are sensitive to noise. In

our implementation this threshold is computed for each sub-image, sometime avoiding

119

Fig.1. Adaptive SIFT approach. Feature extraction parameters are adapted to the processed image

and then the SIFT algorithm is performed.

Table 1. Average number of matched features between original images and dark images and

average computational time.

Matched features Computational time (sec)

Lowe’s SIFT 13 1,3

Improved SIFT 94 1,1

at all the time-consuming feature extraction process and in any case allowing to deal

with different lighting conditions. Further details about this approach can be found in

[8]. Results have been obtained using a data set of outdoor images. We artiﬁcially per-

formed lighting and contrast variation to every image. Here below a comparison of the

proposed feature extraction process with the classical Lowe’s SIFT is reported. Figure

2 reports an example of feature matching between an original and a dark image.

Results showed in Tab. 1 demonstrate better performances obtained using the pro-

posed approach. The key results of the experimental comparison are that the average

number of matched features is drastically higher and the computational time of the fea-

ture extraction is lower than the standard SIFT implementation. We also want to reduce

the number of key points and their corresponding extraction and matching time, while

maintaining the same descriptor for each key point.

In the classical SIFT approach, key points are detected by testing each value in the DoG

at each scale with the 8 surrounding values of the same scale as well as with 9 neigh-

bouring values in the scale above and 9 neighbouring values in the scale below. The

120

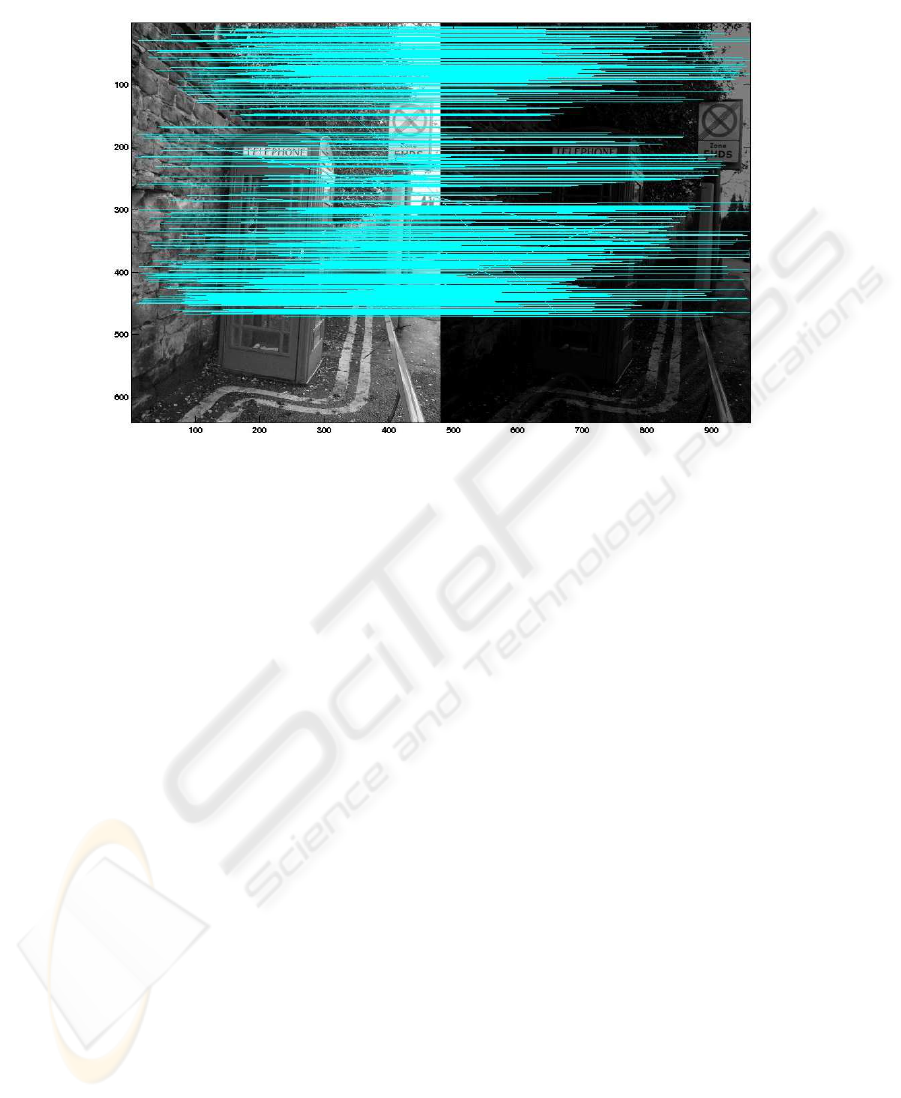

Fig.2. An example of matched features between original and dark image. In this case 174 features

are matched.

ﬁrst and last DoG scales are not examined. This means 26mn comparisons for a DoG

of size m n, taking into consideration that points around a given border of each DoG

are not included in the key point detection.

Since SIFT establishes multiple scales in each octave, the above analysis is applied sev-

eral times to each scale in each octave. Each octave has one quarter of the pixels of the

previous one, so that key point detection in lower octaves requires more time than in

higher ones. We aim to modify this exhaustive search into a sample based one.

In the proposed approach, the number of key points can be deﬁned in advance. The

process of ﬁnding the key points continues iteratively without the need for sequentially

going through the whole scale space. This involves two phases. The ﬁrst phase con-

sists in randomly searching the scale space for local extrema. The random search is

followed by an update phase only when the local extremum is more likely to be found.

The theory behind this approach is mainly based on the assumption that local extrema

points are located in a blob region, i.e. smooth wide two dimensional hills or valleys.

In other words, blobs are regions in the image that are either signiﬁcantly brighter or

signiﬁcantly darker than their surroundings. A local extremum cannot be located on a

ﬂat region and can hardly be found near it. Another possible location of local extrema

are spikes, i.e. rapidly changing narrow regions. But since the scale space structure

involves multiple smoothing operations on the image, only information on the coarse

scale remains and the spikes are ﬁltered out. With the above assumption we can say

that our search mechanism involves dealing with only two cases when searching for a

local extremum: detection or not of a blob region. When a blob region is detected an

update phase handles the search for the position of the local extremum in that region.

121

The search ends either when the local extremum is found or when a given number of

trials elapses. On the contrary, when a non-blob region is detected, the result of the

search in this area is ignored and the search is started somewhere else.

More in particular, we ﬁrst initialize, for each scale, a set of candidate key points (sam-

ples) by selecting random couples of numbers, each representing the coordinates of one

point in the image. The samples are then veriﬁed and only those that have a value above

the given threshold will be considered stable key points. This reﬂects our assumption

that a value above the threshold is most probably a point that lies in a blob. A similar

approach was introduced in [9]. The number of matched key points can be deﬁned in

advance and the computation time will result proportional to that number.

3 Application to Mobile Robotics

The application to mobile robotics is in the localization task. These features have been

widely used in the robot localization ﬁeld as well as many other computer vision ﬁelds.

Here following we will apply the proposed approach to the vision based localization

of a mobile robot in an indoor environment. Figure 3 reports the map of the used en-

vironment, which mainly consists of very similar corridors and ofﬁces. This makes the

robot localization more difﬁcult, due to perceptual aliasing (different places that look

very similar).

Monte Carlo Localization (MCL) is the method used for estimating the position of

the robot and the probability function for the robot position is approximated using a

particle ﬁlter.

The generation of the weight that will be associated to each particle is a crucial aspect of

the localization algorithm, as the robot position depends directly from particle weights.

Each particle weight is assigned according to the difference between the actual sensor

reading of the robot and the sensor reading that a robot would obtain from the position

of the particle.

The MCL weight-updatephase needs to consider that we have reference images only for

a small number of reference positions over the environment; so the weight update takes

into account the similarity between the actual and the reference image and the distance

of the particle from the reference image position. For each particle j at every time

step k the MCL innovation factor can be computed as the similarity measure between

the current observation o

and the reference observation o

nearest (according to the

Euclidean distance) to the particle j:

Innov



Similarity(o

, o

)



, j = 1...nP articles (2)

In our case observations are images and their similarity is computed using the pro-

posed adaptive SIFT approach, but with only 64 feature descriptors (on the contrary

of 128). In particular, the similarity for the whole image is computed by dividing the

total number of features matched between the two images by the number of features

122

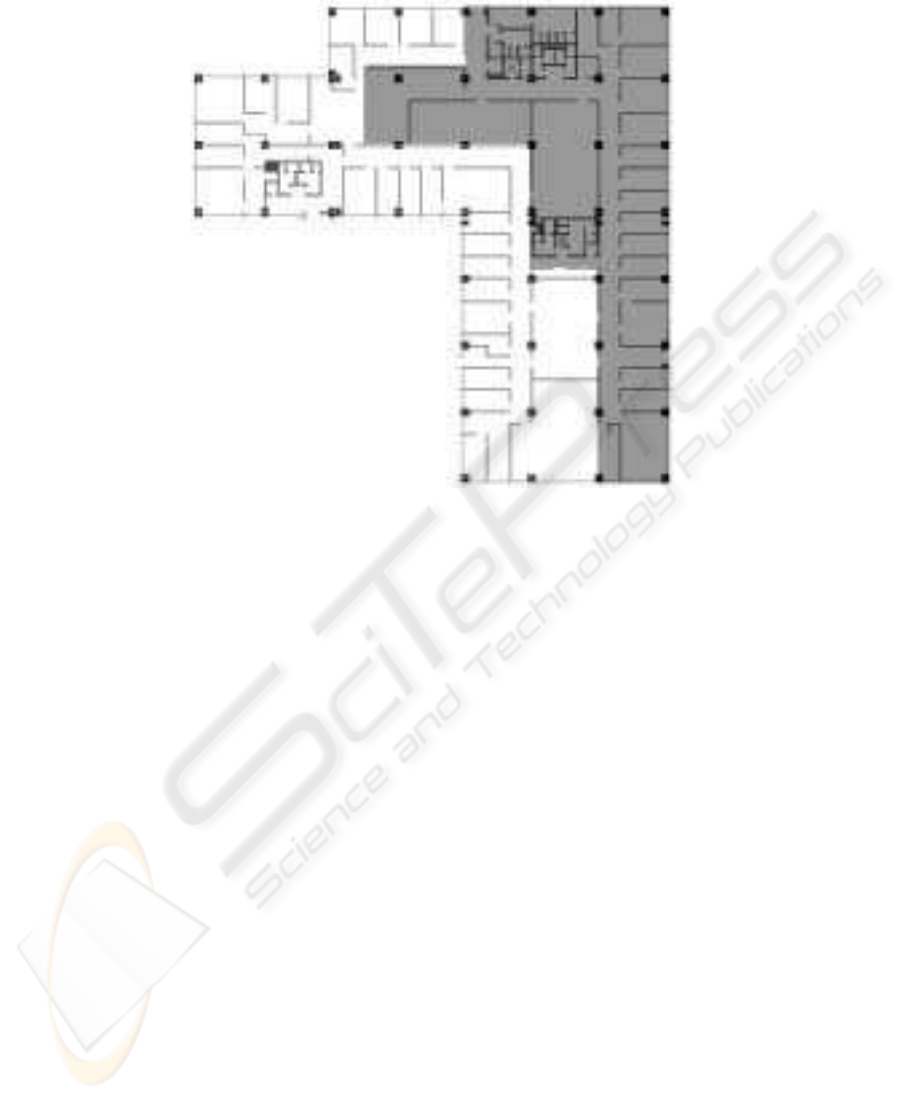

Fig.3. Map of the environment.

extracted from the reference images. In the localization phase, the same set of SIFT

features is extracted from the current observation, and for each particle the similari-

ties with nearby nodes are interpolated to calculate the particle weight. These feature

descriptors are then used to represent the environment appearance at the respective po-

sition and stored in a map. A preliminary visual tour is used to take some pictures of the

environment and store their features and positions in a reference image database. The

map is a graph of nodes, covering the two-dimensional environment, where each node

contains the features extracted from the image at the respective position.

Two examples of feature extraction and matching between similar images are reported

in Figure 5.

Results were obtained using an ActiveMedia Pioneer3 DX robot, a differentialdrive

robot with a high degree of mobility and the capability to climb over small obstacles.

This robot is characterized by the following technical speciﬁcations: eight sonar sensors

situated on the front part and characterized by a maximum range of 5 m and a visibility

angle of 30; two incremental encoders; two wheels controlled by independent motors;

serial connection RS232 and a low cost webcam.

Because of the partially random nature of Monte Carlo Localization, we executed 10

runs over the same data to receive signiﬁcant results. The absolute position error for

SIFT-based MCL, comparing the classical SIFT and the improvedone is shown in Table

2. The computational time for every step is of about 0.4 seconds, with respect to the 1.4

needed for the classical SIFT approach.

123

Fig.4. Sample images of the test environment.

Table 2. Results of visual MCL experiment. The table shows the difference between the classical

SIFT and the proposed one.

MCL ERROR (mm) Time (sec)

Enanched SIFT 1110 0.4

SIFT 1070 1.4

4 Conclusions

In these experiments we tested a practical idea to improve and speed up the SIFT ap-

proach. The number of matched key points can be deﬁned in advance and the com-

putation time is proportional to that number. We also introduced the idea of parameter

adaptation to avoid feature extraction from uniform regions of an image and to deal well

with lightness changes. We applied the approach to a data set of outdoor images and we

demonstrated that this approach is suitable since we need to deal with lightness changes.

Even if results are preliminary the general idea applied to mobile robotics gives com-

fortable performances. The approach can be generally applied to any similar problem

124

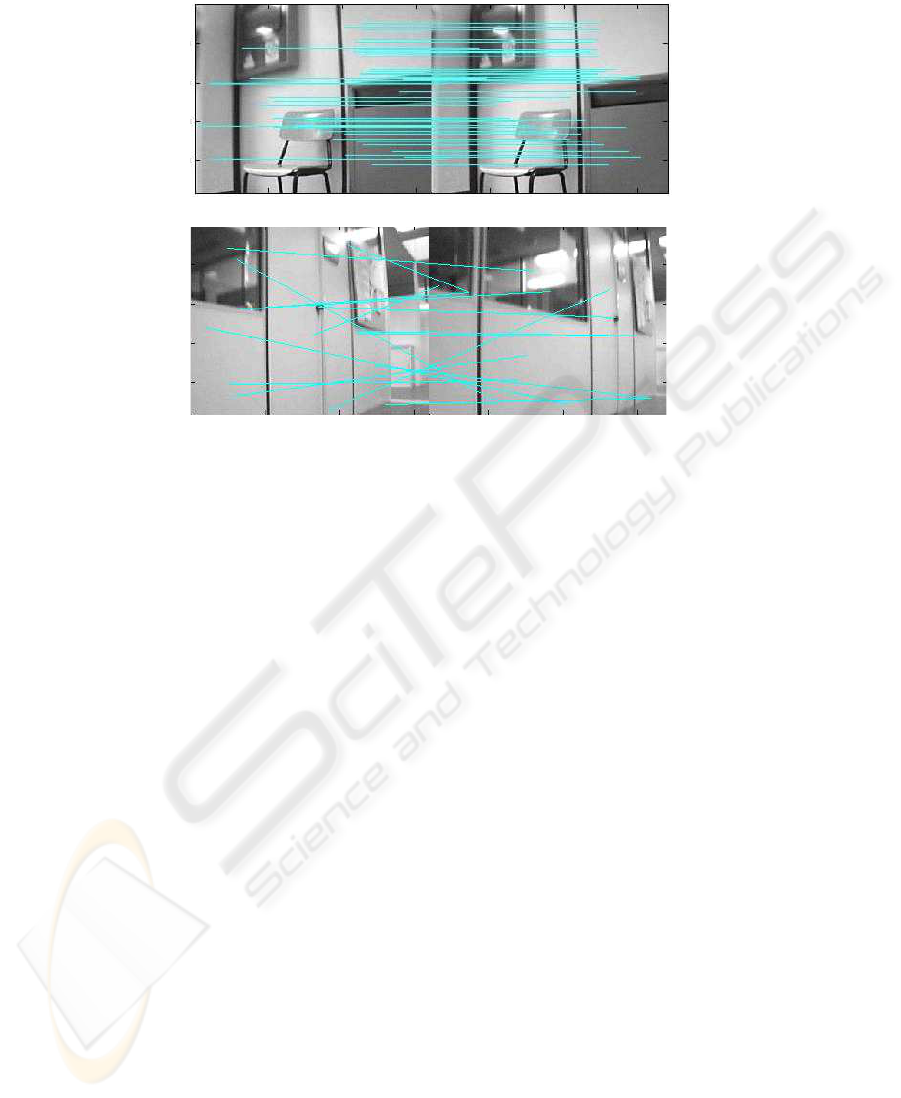

Fig.5. Examples of feature extraction and matching between similar images.

and we plan to perform tests of mobile robot localization in outdoor environments. It is

obvious that any further optimization to the original SIFT approach, such as in the key

point descriptor or orientation assignment, may also be applied to this approach.

References

1. T. Lindeberg, “Scale-space theory: A basic tool for analysing structures at different scales.”

Journal of Applied Statistics, vol. 21, no. 2, pp. 224–270, 1994.

2. K. Mikolajczyk and C. Schmid, “Indexing based on scale invariant interest points,” in Pro-

ceedings of International Conference on Computer Vision, July 2001, pp. 525–531.

3. ——, “A performance evaluation of local descriptors,” in Proceedings of Computer Vision and

Pattern Recognition, June 2003.

4. C. Schmid, R. Mohr, and C. Bauckhage, “Evaluation of interest point detectors.” International

Journal of Computer Vision, vol. 37, no. 2, pp. 151–172, 2000.

5. C. Harris and M. Stephens, “A combined corner and edge detector.” in Proceedings of the

Fourth Alvey Vision Conference, Manchester, UK, 1988, pp. 148–151.

6. D. Lowe, “Distinctive image features from scale-invariant keypoints,” International Journal

of Computer Vision, vol. 60, no. 2, pp. 91–110, 2004.

7. S. Se, D. Lowe, and J. Little, “Vision-based mobile robot localization and mapping using

scale-invariant features,” in Proceedings of the IEEE International Conference on Robotics

and Automation (ICRA) 2001, Seoul, Korea, May 2001, pp. 2051–2058.

8. E. Frontoni and P. Zingaretti, “Feature extraction under variable lighting conditions.” in Pro-

ceeding of CISI06 - Conferenza Italiana sui Sustemi Intelligenti, Ancona, Italy, September

2006.

9. H. Tamimi, H. Andreasson, A. Treptow, T. Duckett, and A. Zell, “Localization of mobile

robots with omnidirectional vision using particle ﬁlter and iterative sift,” in Proceeding of the

2nd European Conference on Mobile Robots, Ancona, Italy, September 2005, pp. 2–8.

125
