Stereo Vision for Obstacle Detection: A Region-Based

Approach

P. Foggia

, A. Limongiello

and M. Vento

Dip. di Ingegneria dell’Informazione ed Ingegneria Elettrica

Università di Salerno, Via Ponte don Melillo, I84084 Fisciano (SA), Italy

Dip. di Informatica e Sistemistica

Università di Napoli, Via Claudio 21, I80125, Napoli, Italy

Abstract. We propose a new approach to stereo matching for obstacle detection

in the autonomous navigation framework. An accurate but slow reconstruction

of the 3D scene is not needed; rather, it is more important to have a fast local-

ization of the obstacles to avoid them. All the methods in the literature, based

on a pixel stereo matching, are ineffective in realistic contexts because they are

either computationally too expensive, or unable to deal with the presence of

uniform patterns, or of perturbations between the left and right images. Our

idea is to face the stereo matching problem as a matching between homologous

regions. Our method is strongly robust in a realistic environment, requires little

parameter tuning, and is adequately fast, as experimentally demonstrated in a

comparison with the best algorithms in the literature.

1 Introduction

During the last years, the Computer Vision community has shown an increasing in-

terest in applications like Automated Guided Vehicles (AGV) or Autonomous Mobile

Robots (AMR). In the literature many approaches have been proposed for Visual

Navigation of a mobile platform [1],[2]. A very challenging task is the so-called ob-

stacle detection. Many authors have expressed their conviction that a robotic vision

system should aim at reproducing the human vision system, and so should be based

on stereo vision. The greatest advantage of stereo vision with respect to other tech-

niques (e.g. optical flow, or model-based) is that it produces a full description of the

scene, can detect motionless and moving obstacles (without defining a complex ob-

stacle model), and is less sensitive to the environmental changes (the major disadvan-

tage of optical-flow techniques). The stereo vision provides a “3D-like” representa-

tion of the scene, producing information about objects in the environment that may

obstacle the motion. A pair of images acquired from a stereo camera implicitly con-

tains depth information about the scene: this is the main assumption of stereo vision.

The main difficulty is to establish a correspondence between points of the two images

representing the same point of the scene; this process is called disparity matching.

Foggia P., Limongiello A. and Vento M. (2007).

Stereo Vision for Obstacle Detection: A Region-Based Approach.

In Robot Vision, pages 36-45

DOI: 10.5220/0002067900360045

 SciTePress

The set of displacements between matched pixels is usually indicated as disparity

map. All the approaches, in the literature, are based on this pixel correspondence. We

propose an extension of that concept, namely we define a disparity value for a whole

region of the scene starting from the two homologous views of it in the stereo pair.

The main reason of this extension is that a pixel-matching approach is redundant for

AMR and AVG applications. In fact, in this framework, it is not very important to

have a good reconstruction of the surfaces, but it is more important to identify ade-

quately the space occupied by each object in the scene, even by just assigning to it a

single disparity information. Moreover the pixel-based approaches are lacking in

robustness in some realistic frameworks, especially for video acquired from a mobile

platform. Our method estimates the average depth of the whole region by an integral

measure, and so has fewer problems with uniform regions than other methods have.

The estimate of the position of the regions is sufficiently accurate for navigation and

it is fast enough for real time processing.

This paper is organized as follows: Section 2 presents the state of art for stereo

matching problem; Section 3 is devoted to show the rationale of our method; Section

4 shows the algorithm. Finally, in Section 5 there is a discussion of experimental

results on a standard stereo image database and also on our stereo video sequences.

Conclusions are drawn in Section 6.

2 Related Works

We will present a brief description of the most important methods for stereo match-

ing; for more details, there is a good taxonomy proposed by Scharstein and Szeliski

[3], and a survey on stereo vision for mobile robots by Zhang [4]. There are two ma-

jor types of techniques, in the literature, for disparity matching: the area-based and

feature-based techniques. Moreover, the area-based algorithms can be classified in

local and global approaches. The local area-based algorithms [5],[6],[7] provide a

correspondence for each pixel of the stereo pair. They assume that each pixel is sur-

rounded by a window of pixels having similar disparity; these windows are matched

using correlation or a similar technique. They produce a dense disparity map (i.e. a

map providing a disparity for each pixel), more detailed than it is needed for AMR

aims. Furthermore, they can be quite unreliable, not only in homogeneous regions,

but also in textured regions for an inappropriately chosen window size. On the other

side, the global area-based approaches (that also yield a dense map) try to propagate

disparity information from a pixel to its neighbours [8],[9], or they define and mini-

mize some energy function over the whole disparity map [10],[11],[12]. They have a

better performance in homogeneous regions, but they frequently have parameters

which are difficult to set, and are highly time-consuming. The feature-based ap-

proaches [13],[14],[15] detect and match only “feature” pixels (as corner, edges, etc.).

These methods produce accurate and efficient results, but compute sparse disparity

maps (disparity is available only in correspondence to the feature points). AMR ap-

plications require more details, such as some information about the size of the ob-

jects; also a rough shape of the objects is needed for guiding a robot in the environ-

ment or for basic recognition tasks (e.g. in industrial applications, or for platooning of

robots). All the proposed methods, as already said, look for a pixel matching in the

stereo pair. Therefore, some constraints have been introduced, since the first works

on the stereopsis by Marr and Poggio [8],[13] in order to guarantee good results. The

stereo pair is supposed to be acquired from a sophisticated system, so that the inten-

sity distributions of the two images are as similar as possible. Moreover, a pre-

processing phase is needed, before the correspondence finding step, to compensate

the hardware setup (calibration phase), or to assume an horizontal epipolar line (epi-

polar rectification). Unfortunately, in realistic applications of mobile platforms these

constraints are not easy to guarantee. The two images of the stereo pair could have a

different intensity distribution, the motion of the mobile platform on a rough ground

could produce mechanical vibrations of the cameras, and consequently local or global

perturbations between the two images.

3 The Rationale

In this paper we propose an extension of the disparity concept. The main idea is to

determinate a unique disparity value for a whole region of the scene and not for a

pixel. In fact, even if we can suppose a unique correspondence between each pixel in

the left and right images from an optical point of view, in some cases we can not have

enough information to find this correspondence looking just at a single pixel. Let us

consider three kinds of situations:

Pixels inside homogeneous areas. The features-based algorithms are unable to find

an appropriate feature in case of textureless region. The local area-based techniques

must define a big correlation area in order to pick enough information for the match-

ing. Finally, the global area-based methods produce a propagation of the error de-

pending on the energy minimization.

Local and global perturbation of the stereo pair depending on the vibration of

the mobile platform. The motion of the robot produces mechanical vibrations of the

cameras with a consequent loss of the horizontal epipolar line constraint, which is

assumed from all the methods in the literature.

A different intensity distribution between the left and right image. In a realistic

framework the stereo pair could suffer from perspective or photometric distortions.

Moreover, the two cameras could have different acquiring parameters, i.e. focus, or

exposure, etc. In ideal conditions all the pixels belonging to the same depth level have

two intensity patterns between the left and right image with a unique horizontal dis-

placement. In real condition the two intensity patterns are no longer a simple horizon-

tal translation, consequently a pixel matching could be unsuitable.

A region-based algorithm is proposed to face up the limitations of the pixel stereo

matching approaches. The corresponding entity is no longer the pixel, but a region;

the matching of regions provide a lowering of resolution, but an increasing of robust-

ness in a realistic environment. In fact, a uniform area is considered as a unique seg-

ment for the matching, so that the local and global perturbations of the stereo pair less

influence the solution. Finally, the proposed algorithm (see next section) define a

matching function, which is able to mitigate the lack of homogeneity between the left

and right image. Therefore, a good tread-off, between an efficient solution (to guaran-

tee an autonomous navigation) and the robustness in a realistic framework, is investi-

gated. Moreover, the real-time requirement is guaranteed.

4 The Algorithm

We determinate the disparity value for the whole region as the horizontal displace-

ment between the regions. The detection of the homologous regions is, of course, a

difficult problem. In fact, a same segmentation method, separately applied on the left

and right image, should divide in different parts the same region of the scene, or

should produce border errors, undermining a correct detection of the disparity for the

whole region. In our algorithm a segmentation of the left image (reference image) is

performed and each segment is overlapped on the sensed image (right image). The

disparity value of the region is the horizontal displacement, corresponding to the

minimization of a best fitting function between the two regions.

Fig. 1. A schema for our algorithm of region-based stereo matching.

This integral measurement of the disparity can mitigate some null integral border

errors, as segmentation, digitalization, and photometric errors. An approximation can

be obtained for the border errors from perspective distortion, that is not right with

null integral. It should be noted that a region is not an object; objects are decomposed

into several regions, so the overall shape of the object is however reconstructed. As

shown in Fig. 1 the algorithm is composed of four steps:

Segmentation of the reference image. Several segmentation methods (mean shift,

pyramid, multi-threshold) have been tested. The algorithm has a similar behavior

towards all the methods, taking care not to under segment the image. In fact, an under

Reference Image

Sensed Image

Disparity computation

for each R

Segmentation

Region

Detection

goal constraints

Performance

Evaluation p(R

)

goal constraints (

)

accepted region

dis

(

)

P(R

)≥σ

rejected region

scene and observer con-

straints

YESNO

segmentation could merge regions belonging to different depth level. The over seg-

mentation has not a big influence in our method, because the best fitting function is

enough accurate.

Region Detection. A connected component analysis is performed to detect connected

segments. Looking at the experimental results, a 4-connected analysis has been

enough for our aim. This step is also devoted to select a subset of regions among all.

The selection is made using some constraints on the goal (goal constraints). Namely,

a minimal knowledge about the obstacle (i.e. the maximum size of an obstacle is an

upper-bound for the maximum size of a region; color information if any) or the de-

sired resolution of the result. In this way, the computation time can be reduced.

Disparity Computation. Each segment from Region Detection step is used as a se-

lection mask on the left and right image in order to select the homologous regions.

The selection of the right region is displaced from 0 to the maximum value of dispar-

ity. The disparity is the horizontal displacement corresponding to the best fitting of

the homologous regions. Formally, let E

(x,y) and E

(x,y) be the intensity value for

each pixel (x,y) on the left and right image. Let G

(x,y) and G

(x,y) be the gradient

map of the left and right images. Finally, let R

be the generic segment from step 2,

the following equations are defined:

()( ) () () ()

ddddRd

grad

col

εβεαεε

⋅+⋅==

≤≤

max

minarg)(

(1)

The best fitting function uses color and gradient information in order to consider the

intensity distribution of pixels inside each region and also texture information. The

values for the weights

and

are experimentally found.

() ()

()

(

)

∑

∈

−−−−=

Ryx

col

dydxEyxE

),(

)(,,

μμε

() ()

()

() ( )

∑

∑∑

∈

∈∈

−−=

−==

Ryx

grad

Ryx

ydxGyxG

ydxE

dyxE

),(

),(),(

)(,

μμ

(2)

The best fitting color function,

(

)

col

, is normalized on the mean color (

) of

the region R

on the left and right image. In this way a good matching is found also in

case of a not homogeneous distribution of intensity between the left and right image.

Performance Evaluation. The previous step provides also a performance index for

the matching, p(R

). For each region the minimum value of the fitting function has

been used as matching error, ε(R

), and the reliability index is:

()

() ()()

dRwhere

εε

max

min:

)(max

1)(

≤≤

=−=

(3)

A region is rejected if the performance index is lower than an imposed tolerance

(p(R)<σ

). This is an other goal constraint because we can choose a reliability level

depending on the requested efficacy of the solution.

Vision is an under constrained problem and therefore that it is necessary to find new

constraints in order to make the problem solvable. Our method can be classified as a

systemic approach [17], in fact we consider constraints coming from the scene, from

the goal and from the observer (as shown in Fig. 1). In particular, with regard to

scene constraints, we assume a strong continuity constraint for each selected region,

and the compatibility and the uniqueness constraints are applied on the whole region

and not longer on each pixel. Moreover, the observer (mobile platform) moves slowly

so that only little vibrations of the cameras are possible. Finally, the obstacle detec-

tion task (our goal) is scalable in time and performance: a robot, having more time,

can carry out a finer investigation of the environment, asking to the system a better

solution.

5 Experimental Results

In the literature, tests are usually performed with standard databases composed of

static images, well-calibrated and acquired in uniform lighting. The Middlebury web

site by Scharstein and Szeliski [18] is a good reference for some stereo images and to

compare some stereovision algorithms. In this section we want to show our qualita-

tive results and discuss some errors of the best algorithms in the literature, when ap-

plied to real cases. Nowadays, in AMR and AGV applications it is not defined a

quantitative measurement for performance evaluation. In [16] it is proposed a quanti-

tative performance evaluation for disparity map, but in case of reconstruction aims.

For this reason we also propose a quantitative method to compare stereo algorithms

when the goal is the obstacle detection and no longer the 3D reconstruction of the

scene. The following Fig. 2 shows our result on the Tsukuba DB and a comparison

with other approaches. We have selected: squared differences (SSD) and graph cuts

(GC) [18] (a local and global area-based algorithm respectively). The experiments

have been performed on a notebook Intel P4 1.5 GHz, 512 Mb RAM, and we have

considered a resolution of 384x288 pixel. We have used the following parameters and

constraints:

Table 1. Parameters and constraints.

Description Value

Scene and observer constraints Respected

Numbers of ranges for segmentation 20

Goal constraint for region detection Not used

[α , β] for disparity computation

[0.4, 0.6]

Threshold for performance evaluation (σ

)

0.8

The goal constraint for region detection is not used in order to not compromise the

comparison with the pixel-based approaches (that can’t use such constraint). The

parameters are obtained by experimental evidences.

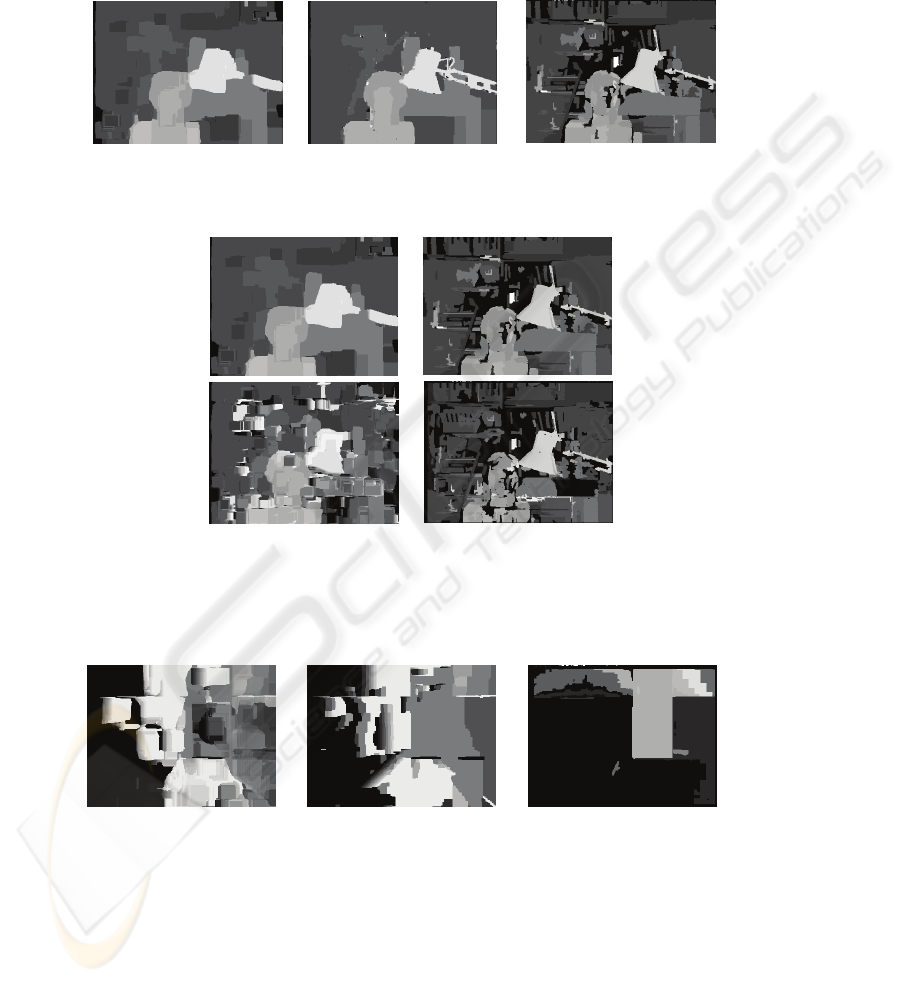

Fig. 2. A comparison with other approaches.

Fig. 3. SSD and Our approach after a vertical translation of 2 pixels.

In Fig. 3 it is clear the robustness of our approach in relation to the loss of the hori-

zontal epipolar constraint.

Fig. 4. Results on our stereo pair: it is characterized by only one homogeneous object.

The presence of texture-less regions causes serious problems to the best algorithms of

the literature as shown in Fig. 4. In order to consider a quantitative comparison of the

algorithms for obstacle detection aim, we define a simple module that detects the

obstacles from the disparity map. Each 4-connected region with the same disparity

value is identified with a bounding box and its distance from the observer. We select

the obstacles as the connected regions that belong to a chosen range of distances, in

Tim

< 1

sec

Tim

sec

Tim

< 1

sec

GraphCut:Time70sec

After

Before

SSD: Time < 1

fact an obstacle is an object so close to the mobile platform to forbid the navigation.

Two performance index are defined in order to valuate: the capability of the algo-

rithm to identify adequately the space occupied by each obstacle (occupancy per-

formance); the correctness of depth computation for each obstacle (distance perform-

ance). For each frame of the video sequence acquired from the platform, let R

be the

real obstacle regions (Ground Truth), let R

be the obstacle regions detected by the

algorithm, and let R

be the subset of regions correctly detected as obstacles by the

algorithm (R

= R

∩ R

). The occupancy performance is evaluated with the meas-

ures of precision and recall:

precision

recall ==

(4)

The distance performance is evaluated with a relative distance error (rde):

rde = |detected distance – real distance|

real distance

(5)

The distance of an obstacle is related to its disparity value following the relation:

distance

disparity

lenghtfocalbaseline

mpx

⋅

(6)

where

px/m

is the conversion factor from pixel to meter. It should be noted that for

each real obstacle (

Ground Truth) could be more than one overlapped obstacle re-

gions detected by the algorithm. The detected distance is supposed to be a weighted

mean distance of all the overlapped regions. The weights are set up to the sizes of

each overlapping area. We report some results obtained on a realistic video acquired

from our mobile platform. The video sequence (100 frames) is characterized by cam-

era vibration, light changing, uniform obstacles (see Fig. 5).

Fig. 5. Some frames of the video sequence.

The proposed method is compared with the Small Vision System (SVS) by Konolige

[20,21], that is the most popular system in off-the-shelf systems. We consider two

different version of that algorithm:

SSD and SSD multi-scale.

Fig. 6. Disparity Map Results: On the left side our method, on the center side the SSD, and on

the right side the SSD multi-scale.

Table 2. Precision and Recall.

algorithm recall precision

our method 0.910500462 0.635458231

SSD 0.208928846 0.477767

SSD multi-scale 0.469375385 0.348905692

Table 3. Relative Distance Error.

algorithm relative distance error

our method 0.108793103

SSD 0.191169769

SSD multi-scale 0.180161282

The results in the previous tables show that our method is much better than the other

two, especially for the occupancy performance. In fact, as it is clear from Fig. 7 and

Fig. 8, our approach can better overlap the space occupied by the real obstacles, as

like the SSD multi-scale algorithm has big opening areas inside the obstacles.

Fig. 7. Some results of our obstacle detection algorithm.

Fig. 8. Some results of obstacle detection from SSD multi-scale stereo algorithm.

6 Conclusions

We have presented a stereo matching algorithm that is especially oriented towards

AMR and AGV applications, providing a fast and robust detection of object positions

instead of a detailed but slow reconstruction of the 3D scene. The algorithm has been

experimentally validated showing an encouraging performance when compared to the

most commonly used matching algorithms, especially on real-world images. The

bigger problem is uniform areas, and here clearly correlation-based stereo does not

work, giving only the edges of the regions. Future works are oriented to combine

region-matching with conventional correlation stereo and to develop a temporal co-

herence of the solution in the video sequence.

References

1. DeSouza, G. N. , Kak, A. C.: Vision for Mobile Robot Navigation: A Survey. IEEE Transac-

tions on Pattern Analysis and Machine Intelligence, vol. 24, no. 2, pp. 237-267 (2002).

2. Kastrinaki, V., Zervakis, M., Kalaitzakis, K.: A survey of video processing techniques for

traffic applications. Image and Vision Computing, vol. 21, pp. 359–381 (2003).

3. Scharstein, D., Szeliski, R.: A Taxonomy and Evaluation of Dense Two-Frame Stereo Cor-

respondence Algorithms. International Journal of Computer Vision, vol. 47, no. 1, pp. 7-42

(2002).

4. Zhang, C.: A Survey on Stereo Vision for Mobile Robots. Technical report, Dept. of Electri-

cal and Computer Engineering, Carnegie Mellon University, Pittsburgh, PA, 15213, USA

(2002).

5. Kanade, T., Okutomi, M.: A stereo matching algorithm with an adaptive window: Theory

and experiment. IEEE Transaction on Pattern Analysis and Machine Intelligence, vol. 16,

no. 9, pp. 920-932 (1994).

6. Fusiello, A., Roberto, V.: Efficient stereo with multiple windowing. Proceedings of IEEE

Conference on Computer Vision and Pattern Recognition, pp 858–863, Puerto Rico (1997).

7. Veksler, O.: Stereo matching by compact windows via minimum ratio cycle. Proceedings of

the International Conference on Computer Vision, vol. I, pp. 540–547, Vancouver, Canada

(2001).

8. Marr, D., Poggio, T.A.: Cooperative computation of stereo disparity. Science, vol. 194, no.

4262, pp. 283–287 (1976).

9. Zitnick, C.L., Kanade, T.: A cooperative algorithm for stereo matching and occlusion detec-

tion. IEEE Transaction on Pattern Analysis and Machine Intelligence, vol. 22, no. 7, pp.

675–684 (2000).

10. Geiger, D., Ladendorf, B., Yuille, A.: Occlusions and binocular stereo. International Jour-

nal of Computer Vision, vol. 14, pp. 211–226 (1995).

11. Roy, S.: Stereo without epipolar lines: A maximum-flow formulation. International Journal

of Computer Vision, vol. 34, no. 2/3, pp. 1–15 (1999).

12. Boykov, Y., Veksler, O., Zabih, R.: Fast approximate energy minimization via graph cuts.

IEEE Transaction on Pattern Analysis and Machine Intelligence, vol. 23, no. 11, pp. 1222–

1239 (2001).

13. Marr, D., Poggio, T.A.: A computational theory of human stereo vision. RoyalP, vol. B, no.

204, pp. 301–328 (1979).

14. Grimson, W.E.L.: A computer implementation of a theory of human stereo vision. Royal,

vol. B, no. 292, pp. 217–253 (1981).

15. Candocia, F., Adjouadi, M.: A similarity measure for stereo feature matching. IEEE Trans-

action on Image Processing, vol. 6, pp. 1460-1464 (1997).

16. Scharstein, D., Szeliski, R.: High-accuracy stereo depth maps using structured light. Pro-

ceedings of IEEE Computer Society Conference on Computer Vision and Pattern Recogni-

tion, vol. 1, pp. 195-202, Madison, WI (2003).

17. Jolion, J.M.: Computer Vision Methodologies. CVGIP: Image Understanding, vol. 59, no.

1, pp. 53–71 (1994).

18. http://cat.middlebury.edu/stereo/

19. http://www.videredesign.com/

20. Konolige, K.: Web site. http://www.ai.sri. com/software/SVS (2006).

21. Konolige, K.: Small vision systems: hardware and implementation. Intl. Symp. On Robot-

ics Research, pages 111–116 (1997).
