NOTES

: ENDOSCOPES LEARN TO SEE 3-D

Basic Algorithms for a Novel Endoscope

J. Penne, K. H¨oller

Friedrich-Alexander-University Erlangen-Nuremberg, Martensstr. 3, 91058 Erlangen, Germany

S. Kr¨uger

Surgical University Hospital Erlangen, Friedrich-Alexander-University Erlangen-Nuremberg

Krankenhausstr. 1, 91058 Erlangen, Germany

H. Feußner

University Hospital Rechts der Isar, Technical University Munich, Ismaninger Str. 22, 81675 Munich, Germany

Keywords:

NOTES, Time-Of-Flight, Endoscopy, Minimally Invasive Surgery, NOTES

, Reconstruction, Calibration,

MUSTOF endoscope.

Abstract:

TOF chips enable the acquisition of distance information via the phase shift of a reference signal and the ref-

erence signal reﬂected in a scene. Transmitting the reference signal via the light conductor of an endoscope

and mounting a TOF chip distally enables the acquisition of distance information via an endoscope. The hard-

ware combination of TOF technology and endoscope optics is termed Multisensor-Time-Of-Flight endoscope

(MUSTOF endoscope). Utilizing a MUSTOF endoscope in the context of NOTES procedures, enables the

direct endoscopic acquisition of 3-D information (NOTES

). While hardware issues are currently under in-

vestigation, an algorithmic framework is proposed here, dealing with the main points of interest: calibration,

registration and reconstruction.

1 INTRODUCTION

The expanding possibilities in endoscopic and laparo-

scopic surgery have reached the point where many

procedures can now be performed in a minimally in-

vasive manner. This is enforced by the rapid develop-

ment of computer assisted surgery (Feußner, 2003). It

could possibly be performed without skin incisions.

The natural oriﬁces may provide the entry point for

surgical interventions in the peritoneal cavity. Enter-

ing through an incision in the digestive tract such as

the stomach or colon will avoid abdominal wall inci-

sions. 14 leaders from the American Society of Gas-

trointestinal Endoscopy (ASGE) and the Society of

American Gastrointestinal and Endoscopic Surgeons

(SAGES) met on July 2005 and agreed that Natural

Oriﬁce Translumenal Endoscopic Surgery (NOTES)

could offer signiﬁcant beneﬁts to patients such as less

pain, faster recovery, and better cosmesis than current

laparoscopic techniques (Rattner et al., 2006).

A potential barrier to clinical practice is the miss-

ing knowledge of spatial orientation and exact endo-

scope position during the operation. Many NOTES

procedures will be performed with the endoscope in a

retroﬂexedposition and require secondary access sites

creating situations in which the image is upside down

and an offaxis manipulation is required. Potential

solutions include incorporating visualization, recon-

structed images, registeres volumes, Augmented Re-

ality or the use of multiple cameras to achieve the ap-

propriate inline view of the working area. If the prin-

ciples learned in advanced laparoscopic operations

are applicable to NOTES, orientation and knowledge

of precise position will be a fundamental requirement

for any NOTES surgical system. Online 3-D informa-

tion registered with preoperative CT or MR data may

provide information on position and orientation of the

endoscope.

One possibility to face this challenge is to ac-

quire 3-D information from endoscopic images. Or

even better: to acquire the 3-D information directly

via the endoscope. Making an endoscope actually

see three-dimensionally will constitute a signiﬁcant

step towards the information necessary to meet the re-

134

Penne J., Höller K., Krüger S. and Feußner H. (2007).

NOTES3D: ENDOSCOPES LEARN TO SEE 3-D - Basic Algorithms for a Novel Endoscope.

In Proceedings of the Second International Conference on Computer Vision Theory and Applications, pages 134-139

DOI: 10.5220/0002068401340139

 SciTePress

quirements of NOTES procedures. Considering this

new option of acquiring data via an endoscope, the

term NOTES

was chosen.

2 STATE OF THE ART

Acquiring 3-D information from endoscopic images

is usually done during an off-line routine, i.e. an im-

age sequence is recorded and subsequently processed

to get the desired information about the operation area

(Vogt et al., 2005; Thorm¨ahlen et al., 2002).

Some systems can provide 3-D information which

can be used to registrate it with preoperative data and

subsequently provide Augmented Reality (Milgram

and Colquhoun, 1999; Vogt et al., 2004; Olbrich et al.,

2005; Vogt, 2005).

TOF technology enables the direct acquisition of

the distance information about a world point which is

projected on a sensor element (Schwarte et al., 1999).

Currently, framerates ≥12 fps are achieved by TOF

cameras.

TOF cameras illuminate the scene actively with an

optical reference signal. By Smart Pixels, which are

integrated into the TOF camera chip (TOF chip), the

reﬂected optical wave is analysed and for each pixel

the phase shift compared to the reference signal is es-

timated. Assuming a constant speed for the spread

of the signal the phase shift is directly proportional

to the distance of a point in the recorded scene. Cur-

rently, lateral resolutions of up to 140×170 pixel and

z-resolutions of 1 mm are available. Simultaneously

to the phase delay, the amplitude of the reﬂected op-

tical wave is estimated. This information provides a

gray-scale image of the scene, with the reﬂectivity of

the material being encoded in the gray-values. We

will reference the information of amplitude and dis-

tance data as one frame acquired with a TOF cam-

era. It will become clear from the context whether we

use the distance and/or amplitude data of the current

frame.

Minimally invasive surgery and especially

NOTES extensively uses endoscopes as image

acquisition devices. An endoscope fulﬁlls two main

tasks: it enables the transmission of optical signals

(for illumination purposes) into the operation area

via ﬁber optic cables; and it enables the transmission

of optical signals from the operation area to the

distally mounted endoscope camera (equipped with

a CCD chip) using a system of only lenses (rigid

endoscopes) or lenses and ﬁber optic cables (non-

rigid endoscopes). Based on these image acquisition

devices and beneﬁtting from the development of

adequate surgical devices the ﬁeld of minimally

invasive surgery subsummarizes a wide ﬁeld of

surgical operations today.

The image acquisition technique applied in en-

doscopes ﬁts the requirements for a TOF based dis-

tance measurement. By transmitting the optical ref-

erence signal via the light ﬁbre cables as well as the

cold daylight which is commonly used for illumina-

tion purposes and distally mounting a TOF chip as

well as a CCD chip the acquisition of image and dis-

tance data is possible. The TOF chip evaluates the

reﬂected reference signal and provides distance in-

formation; the CCD chip provides a color image of

the operation area based on the cold daylight. Con-

sidering the basic techniques applied in this endo-

scope, the name Multisensor-Time-Of-Flight endo-

scope (MUSTOF endoscope) will be used further.

Considering this hardware conﬁguration, which

is currently intensively investigated for optimization

purposes, an algorithmic framework for the handling

of this multisensor system is required. First, a model

of the multisensor system is presented. Second, algo-

rithms for the basic requirements (calibration, regis-

tration, reconstruction) are proposed.

3 MODEL DESCRIPTION

The amplitude value acquired with a TOF camera at

pixel (i, j) is denoted with a

i, j

. The corresponding

distance value measured in mm is denoted with d

i, j

The color value in the CCD camera at position (i, j)

is denoted with p

i, j

. TOF camera and CCD camera

are modeled as pinhole cameras. The intrinsic para-

meters (f: focal length, (c

, c

): principal point) and

the extrinsic parameters (R ∈ R

3×3

: rotation matrix,

t ∈ R

: translation vector) are denoted as given for

the CCD camera and denoted with a

′

for the TOF

camera.

Using homogenous coordinates (indicated by

) a 3-D

point q is projected to the CCD camera pixel p, ac-

cording to

p = K[R|t]q

(1)

and to the TOF camera pixel

′

= K

′

, (2)

where K is the calibration matrix containing the in-

trinsic camera parameters according to (Tsai, 1987).

Let (p

, p

) and (p

′

, p

′

) denote the physical di-

mensions of a sensor element of the CCD or TOF

camera in mm. Given a distance value d

i, j

, let d

(i− c

′

and d

= ( j − c

′

be the distance of the

pixel from the principal point measured in mm and

+ d

+ f

′2

be the distance of the optical

NOTES3D: ENDOSCOPES LEARN TO SEE 3-D - Basic Algorithms for a Novel Endoscope

135

centre to the pixel measured in mm, the corresponding

3-D point q = (q

, q

)

may be computed by

i, j

, q

i, j

, q

′

i, j

. (3)

Assuming the CCD and TOF camera being rigidly

mounted (at the distal end of the endoscope), implies

that the spatial relation between the optical centres of

both cameras can be described by a relative rotation

∈ R

3×3

and translation t

∈ R

, with

= RR

′−1

, t

= t − R

′

, (4)

where R, R

′

, t and t

′

describe the pose of the corre-

sponding camera in a common world coordinate sys-

tem.

4 METHODS

4.1 Calibration

Two cameras are to be calibrated: the CCD and the

TOF camera. Tsai’s widely used algorithm (Tsai,

1987) is in principle applicable to both cameras:

1. Capture image of a calibration pattern with N cal-

ibration points.

2. Determine 2-D calibration points c

, 1 ≤ i ≤ N.

3. Assigning 3-D world points w

, 1 ≤ i ≤ N to 2-D

calibration points.

4. Estimation of an intrinsic (K) and extrinsic

(R, t) camera parameters involving Levenberg-

Marquardt non-linear optimization (Dennis and

Schnabel, 1983).

For the CCD camera the algorithm does not have

to be modiﬁed. For calibrating the TOF camera the

standard algorithm was modiﬁed due to the low lat-

eral resolution of the TOF cameras which leads to a

very unspeciﬁc localization of the points of the cali-

bration pattern in the acquired data. The non-linear

optimization usually aims at minimizing the squared

backprojection error

∑

i=1

− proj(w

, K

′

, R

′

, t

′

(5)

, where proj(w

, K

′

, R

′

, t

′

) is the projection of the

world point w

into the image plane speciﬁed by K

′

, R

′

and t

′

. This functional was extended by a term which

describes the deviation of the 3-D reconstructed cali-

bration points from the plane which they are lying on.

Let ˆc

be the 3-D point reconstructed from c

spec-

iﬁed in world coordinates (of the calibration pattern)

using the distance information available from the TOF

camera and the extrinsic parameters. Furthermore,

denotes the regression plane calculated using all

ˆc

, 1 ≤ i ≤ N. The extended functional, which is min-

imized for a TOF camera in the calibration routine,

∑

i=1

(kc

− proj(w

, K

′

, R

′

, t

′

)k +αk ˆc

− w

k +βd( ˆc

, ε

))

(6)

where d( ˆc

, ε

) is the distance of ˆc

to the regres-

sion plane ε

and α, β are scaling parameters. The

term k ˆc

− w

penalizes wrong intrinsic and extrin-

sic camera parameters which lead to a wrong recon-

struction of the calibration points. The term d( ˆc

, ε

)

only penalizes wrong intrinsic camera parameters as

only those are relevant for the reconstruction of all ˆc

on a plane (wrong extrinsic parameters only imply a

rotation and translation of the plane).

4.2 Registration

CCD and TOF camera have to be registrated as it is

for medical applications necessary to relate the ac-

quired 3-D information with the acquired color in-

formation of the operation area. Using the calibra-

tion routine described above the extrinsic parameters

′

, t

′

, R, t) and intrinsic parameters (K, K

′

) are

known for each camera when capturing simultane-

ously an image of the calibration pattern. This en-

ables the calculation of R

and t

as described by equa-

tion (4) and (assuming a parallel acquisition of data) a

computationally inexpensive assigning of 3-D points

to color information: by using formula (3) a 3-D point

can be reconstructed which is speciﬁed in TOF cam-

era coordinate system and by applying formulas (4)

and (1) the 3-D point is projected into the CCD cam-

era image plane.

4.3 Reconstruction

The TOF camera enables the reconstruction of the

scene visible in the actual frame. For medical appli-

cations it is of utmost importance to provide a recon-

struction of the whole operation area or at least an

arbitrary deﬁned region. This requires the registra-

tion of multiple reconstructions r

, containing a cer-

tain number of 3-D points, available from a TOF cam-

era. Two reconstructions r

and r

(with TOF camera

poses (R

′

, t

′

) and (R

′

, t

′

)) are under the assumption of

constant intrinsic camera parameters related via a ro-

tation R

′

i, j

and translation t

′

i, j

of the optical centre of

the TOFcamera. The great amount of 3-D points to be

registrated (approx. 20000 points for each frame) at a

high framerate requires an efﬁcient determination of

VISAPP 2007 - International Conference on Computer Vision Theory and Applications

136

′

i, j

and t

′

i, j

. The framerate of ≥12 fps allows the as-

sumption of only relatively small camera movements

between consecutive frames. Thus, the following al-

gorithm for determining R

′

i, j

and t

′

i, j

is proposed:

• Initialization:

1. Acquire the ﬁrst frame r

of the TOF camera.

2. Detect edges in the amplitude and distance data

(number of found points: N

). The 3-D coordi-

nates q

, 1 ≤ i ≤ N

of points detected as lying

on an edge are used as world decription data

W = {q

, ..., q

3. Initialize the TOF camera position with R

′

= I

and t

′

= 0

, where I is the identity matrix and 0

is a 3×1 zero-vector.

• Processing of subsequently acquired frames:

1. Acquire a frame r

of the TOF camera.

2. Detect edges in the amplitude and distance data

(number of points N

). The 3-D coordinates

, 1 ≤ i ≤ N

of points detected as lying on an

edge are used as current world decription data

cur

= {q

, ..., q

3. Set the initial solution of the current camera

pose to R

′

= R

′

i−1

and t

′

= t

′

i−1

4. Apply a Levenberg-Marquardt non-linear opti-

mization on (R

′

, t

′

) to maximize

ρ(proj(W, K

′

, R

′

, t

′

), W

cur

) (7)

, where proj(W, K

′

, R

′

, t

′

) describes the projec-

tion of the world description data W on the im-

age plane whose pose is described by (R

′

, t

′

)

and whose intrinsic parameters are given by K

′

(known from the calibration routine). Further-

more, ρ describes the correlation coefﬁcient ac-

cording to Neyman-Pearson. Spoken brieﬂy:

the current extrinsic camera parameters are es-

timated by maximizing the correlation coef-

ﬁcient between edges detected in the current

frame and edges already detected in preceding

frames.

5. Update W: add the edges found in the current

frame (W

cur

) to W.

6. The relative camera pose compared to the pre-

ceding frame is described by R

′

i−1,i

= R

′

′−1

i−1

and t

′

i−1,i

= t

′

− R

′

i−1,i

′

i−1

The algorithm substitutes the task of registrating two

point clouds (each containing thousands of points) by

the task of registrating edges detected in the current

frame with a world description of the world contain-

ing only edges found in previous frames. This enables

an impressive on-the-ﬂy-registration of consecutively

acquired frames.

5 RESULTS

For evaluating the effects of the extended functional

in the non-linear optimization step of the calibra-

tion, the calibration routine was performed 11 times

with the standard functional (backprojection error)

and 11 times with the extended functional (using

α = 0.0001, β = 0.001). The TOF camera used was

a PMD19k (lateral resolution: 120×160 pixel). The

average (indicated by

) and standard deviation (indi-

cated by

) of the calculated intrinsic camera parame-

ters (f

′

, c

′

, c

′

) are given in table 1. The results point

Table 1: Evaluation of calibration routines (I) - average and

standard deviation of intrinsic camera parameters.

standard extended

calibration calibration

′

[mm] 11.526 12.604

′

[mm] 0.732 0.260

′

[pix]

80.000 80.009

′

[pix] 0.0 0.342

′

[pix]

60.000 60.525

′

[pix] 0.0 0.152

out that the stability of the calibration is improved by

the extended functional as the standard deviation of

the calculated focal length is decreased. Note, that in

the case of the standard calibration the principal point

was not changed: the initial pixel coordinates (80,60)

were not altered by the routine. By using the extended

functional the parameters describing the position of

the principal point became more sensitive.

For evaluating the effects of the different calibra-

tion routines on the reconstruction planes at differ-

ent distances were reconstructed: ﬁrst a white wall

at a distance of approx. 1 m (Scene A), approx.

50 cm (Scene B) and approx. 20 cm (Scene C). Each

scene was reconstructed using ﬁrst standard assump-

tions for the intrinsic parameters (f

′

= 12 mm, c

′

80, c

′

= 60; focal length known from datasheet of

the TOF camera), then the average intrinsic para-

meters computed by the standard calibration routine

′

= 11.526 mm, c

′

= 80, c

′

= 60) and ﬁnally us-

ing the intrinsic camera parameters computed by the

extended calibration routine ( f

′

= 12.604 mm, c

′

80.009, c

′

= 60.525). For each reconstruction the av-

erage distance of all points to the regression plane was

calculated (table 2). The results indicate that the in-

trinsic camera parameters, which were calculated us-

ing the extended functional, reduce the error, i.e. they

lead to a reconstruction closer to the world geome-

try (a plane). It is important to notice that the cam-

era used in the tests has the reference light sources

mounted to the left and right of the ocular. Thus, the

NOTES3D: ENDOSCOPES LEARN TO SEE 3-D - Basic Algorithms for a Novel Endoscope

137

difference of the travelled distance of signals emitted

from the left light sources compared to signals emit-

ted from the right light sources can not be neglected

for objects very close to the ocular of the camera. This

effect can be expected to be reduced by the proposed

MUSTOF endoscope as it uses the optical ﬁbres of

a standard endoscope: the reference light is emitted

from the endoscope tip and ﬁts much more to the char-

acteristics of a point light source than the light sources

of the camera used in the tests. To illustrate the pos-

Table 2: Evaluation of calibration routines (II) - average

distance of points to regression plane in mm.

standard standard extended

assumption calibration calibration

Scene A 91.8 83.1 73.9

Scene B 60.5 54.7 51.8

Scene C 40.9 41.9 35.9

sibilities of a stable calibration of a TOF camera ex-

ample images of the reconstruction of a liver model

are given: after calibrating a system consisting of a

Webcam rigidly mounted on a TOF camera the rela-

tive pose of the image planes was computed. Conse-

quently, it was possible to project TOF camera pix-

els onto corresponding Webcam pixels. The images

show different views of a reconstruction of a liver

model: ﬁgure 1 shows the original liver model; ﬁg-

ure 2 shows the 3-D reconstruction of the liver model

(the gray values correspond to the amplitude data);

ﬁgure 3 uses the color information of the registrated

Webcam image plane. The achieved level of detail in

the reconstruction is noticable: the gall bladder is well

distinguishable; and the structure of the liver can well

be recognized.

Figure 1: Silicon model of the liver with gall bladder.

The registration of multiple views is illustrated in ﬁg-

ures 4-7. Figure 4 shows the scene which had to

be reconstructed. Figure 5 visualizes the ﬁrst frame

which was reconstructed (left part of the chair). Then

a camera movement to the right and upwards was per-

formed and the acquired frames were registrated on-

Figure 2: 3-D reconstruction of the model (gray values cor-

respond to amplitude data).

Figure 3: 3-D reconstruction of the model with registrated

color information from a Webcam.

the-ﬂy. Figure 6 shows the state of the reconstruc-

tion during the camera movement. Figure 7 visu-

alizes the ﬁnal 3-D reconstruction: the virtual cam-

era was moved upwards to allow the investigation of

the scene from a higher viewpoint. This possibility

might be very useful for intraoperative usage: while

being able to compute a 3-D reconstruction of the

scene/operation area the already reconstructed world

geometry can be observed and explored by a virtual

camera. Consequently, the endoscope does not have

to be moved while the reconstructed operation area

might be explored three-dimensionally.

Figure 4: Scene to be reconstructed.

6 CONCLUSION

Motivated by the requirement to provide a 3-D re-

construction for NOTES

procedures the idea of a

MUSTOF endoscope has been proposed. The main

VISAPP 2007 - International Conference on Computer Vision Theory and Applications

138

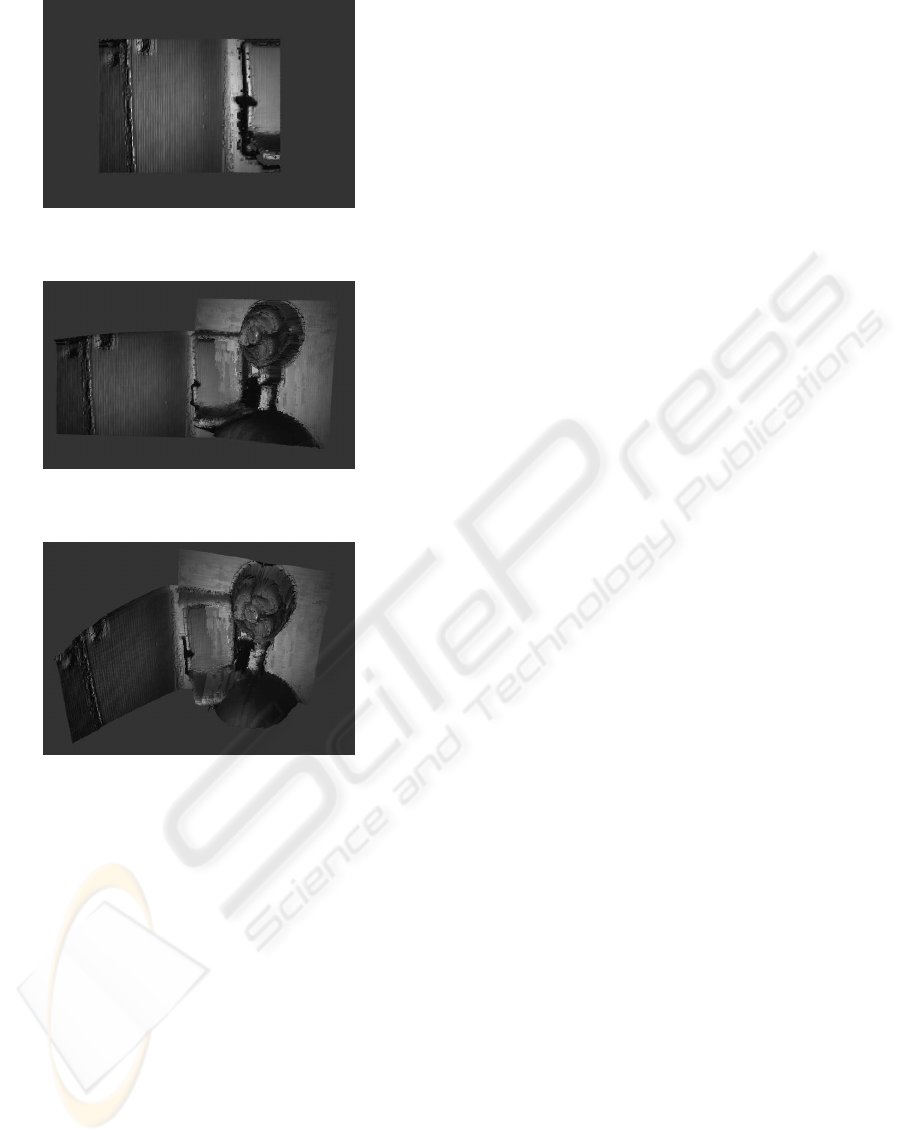

Figure 5: Initial 3-D reconstruction.

Figure 6: Expanding the 3-D reconstruction.

Figure 7: Final 3-D reconstructed scene.

contribution of this work is the description of ba-

sic algorithms for calibration, registration and recon-

struction using TOF cameras (in combination with

CCD cameras). These algorithms are not explic-

itly limited to medical applications, but constitute a

proof of concept considering the applicability of this

technology in minimally invasive surgery and espe-

cially NOTES

, i.e. NOTES procedures utilizing a

MUSTOF endoscope. Future investigations will ad-

dress extensions and modiﬁcations of the proposed al-

gorithms to ensure an optimal performanceif the TOF

camera acquires its data via an endoscope optic. Fur-

thermore, the achievable accuracy of the 3-D recon-

struction will be investigated: currently, an evaluation

of the accuracyof a TOF camera has only very limited

relevance for a MUSTOF endoscope as the character-

istics of the used optical system (standard lense vs.

endoscope optic) vary signiﬁcantly.

REFERENCES

Dennis, J. E. and Schnabel, R. B. (1983). Numerical Meth-

ods for Unconstrained Optimization and Nonlinear

Equations. Prentice Hall, New Jersey.

Feußner, H. (2003). The operating room of the future – A

view from Europe. Seminars in Laparoscopic surgery,

10:3:149–156.

Milgram, P. and Colquhoun, H. (1999). Mixed Reality –

Merging Real and Virtual Worlds, chapter A Taxon-

omy of Real and Virtual World Display Integration,

pages 5–30. Springer, Berlin, Heidelberg, New York.

Olbrich, B., Traub, J., Wiesner, S., Wiechert, A., Feußner,

H., and Navab, N. (2005). Respiratory motion analy-

sis: Towards gated augmentation of the liver. In

Lempke, H. U., Inamura, K., Doi, K., Vannier, M. W.,

and Farman, A. G., editors, Computer Assisted Radi-

ology and Surgery (CARS), Proceedings of the 19th

International Congress and Exhibition, pages 248–

253. Elsevier, Amsterdam.

Rattner, D., Kalloo, A., and the SAGES/ASGE Working

Group on NOTES (2006). ASGE/SAGES Working

Group on Natural Oriﬁce Translumenal Endoscopic

Surgery. Surgical Endoscopy, 20:329–333.

Schwarte, R., Heinol, H., Buxbaum, B., Ringbeck, T., Xu,

Z., and Hartmann, K. (1999). Handbook of Computer

Vision and Applications, volume 1. The Academic

Press.

Thorm¨ahlen, Broszio, T., Meier, H., and P.N. (2002). Three-

dimensional endoscopy. Falk Symposium No. 124,

Medical Imaging in Gastroenterology and Hepatol-

ogy, Hannover, Germany, September 2001, Kluwer

Academic Publishers, 2002, ISBN 0-7923-8774-0,

0(0).

Tsai, R. Y. (1987). A Versatile Camera Calibration Tech-

nique for High-Accuracy 3D Machine Vision Metrol-

ogy using Off-the-Shelf TV Cameras and Lenses.

IEEE Journal of Robotics and Automation, Ra-

3(3):323–344.

Vogt, F. (2005). Augmented Light Field Visualization

and Real-Time Image Enhancement for Computer As-

sisted Endoscopic Surgery. PhD thesis, Friedrich-

Alexander-University Erlangen-Nuremberg.

Vogt, F., Kr¨uger, S., Niemann, H., Hohenberger, W.,

Greiner, G., and Schick, C. (2005). Erweiterte Realit¨at

und 3-D Visualisierung f¨ur minimal-invasive Oper-

ationen durch Einsatz eines optischen Trackingsys-

tems. In Meinzer, H.-P., Handels, H., Horsch, A.,

and Tolxdorff, T., editors, Proceedings of the Work-

shop Bildverarbeitung f¨ur die Medizin (BVM),, pages

217–221. Springer, Berlin, Heidelberg, New York.

Vogt, F., Kr¨uger, S., Zinßer, T., Maier, T., Niemann, H.,

Hohenberger, W., , and Schick, C. H. (2004). Fusion

von Lichtfeldern und CT-Daten f¨ur minimal-invasive

Operationen. In Tolxdorff, T., Braun, J., Handels,

H., Horsch, A., and Meinzer, H.-P., editors, Proceed-

ings of the Workshop Bildverarbeitung f¨ur die Medizin

(BVM),, pages 309–313. Springer, Berlin, Heidelberg,

New York.

NOTES3D: ENDOSCOPES LEARN TO SEE 3-D - Basic Algorithms for a Novel Endoscope

139
