PEDESTRIAN DETECTION BY RANGE IMAGING

Heinz Hügli and Thierry Zamofing

Institute of Microtechnology, University of Neuchâtel, Rue Breguet 2

CH-2000 Neuchâtel, Switzerland

Keywords: Change detection, 3D camera, range imaging, stereo, time-of-flight, pedestrian detection, shadow effects,

changing illumination.

Abstract: Remote detection by camera offers a versatile means for recording people activities. Relying principally on

changes in video images, the method tends to fail in presence of shadows and illumination changes. This

paper explores a possible remedy to these problems by using range cameras instead of conventional video

cameras. As range is an intrinsic measure of object geometry, it is basically not affected by illumination.

The study described in this paper considers range detection by two state-of-the art cameras, namely a stereo

and a time-of-flight camera. Performed investigations consider typical situations of pedestrian detection.

The presented results are analyzed and compared in performance with conventional results. The study

shows the effective potential of range camera to get rid of light change problems like shadow effects but

also presents some current limitations of range cameras.

1 INTRODUCTION

Pedestrian detection plays a central role in many

applications. An overview of different pedestrian

detection sensors such as passive infrared,

ultrasonic, microwave radar, video imaging and

piezometric is presented in reference (Beckwith and

Hunter-Zaworski, 1996), (Haritaoglu et al., 1998).

This paper concentrates on pedestrian detection by a

fixed camera. Various systems based on monocular

vision to detect and track pedestrians are extensively

described in reference

. Basically the detection

process tries to model the background and to detect

the presence of persons or objects from the

difference between the modeled background and the

current scene. A major difficulty of background

modeling with 2-D cameras arises in presence of

changing illumination and shadows. Therefore

shadow suppression algorithms have been designed

to deal with this problem (Finlayson et al., 2002),

(Jiang and Drew, 2003), (Jianguang et al., 2002).

Other interesting and robust background modeling

algorithms use kernel-density model (Elgammal et

al., 2002), hidden markov models, adaptive color

mixture models, weighted match filtering or a

Cauchy statistical model (Ming and Jiang, 2003).

As alternative to above efforts, this study

evaluates new detection systems based on range

image measurements, analyses their efficiency and

compares them with video systems operating in

difficult conditions. The usage of range (3D)

cameras instead of conventional video (2D) cameras

is expected to improve the robustness of detection

and to make the system insensitive to illumination

and shadow perturbations. Two range camera

systems are considered in this paper: stereo cameras

and time-of-flight cameras (Seitz, 2003).

Next section presents a change detection

procedure suited for range. Then, two range imaging

technologies are presented and compared: stereo and

time-of-flight (TOF) imaging. Finally, a section is

devoted to the application of these range cameras for

pedestrian detection.

2 PRESENCE DETECTION BY

VIDEO AND RANGE

Persons or objects are detected where changes with

respect to a background model occur.

Hügli H. and Zamoﬁng T. (2007).

PEDESTRIAN DETECTION BY RANGE IMAGING.

In Proceedings of the Second International Conference on Computer Vision Theory and Applications, pages 18-22

DOI: 10.5220/0002069000180022

 SciTePress

2.1 Change Detection from Video

Figure 1 presents the basic processing scheme for

detecting the presence of persons or objects. Central

to it is change detection, which consists mainly is

detecting differences between the current image I

and the background B, which is a representation of

the static scene. Foreground modeling segments and

labels the change image based on a priori available

knowledge in order to provide a best estimate of the

objects or persons in presence.

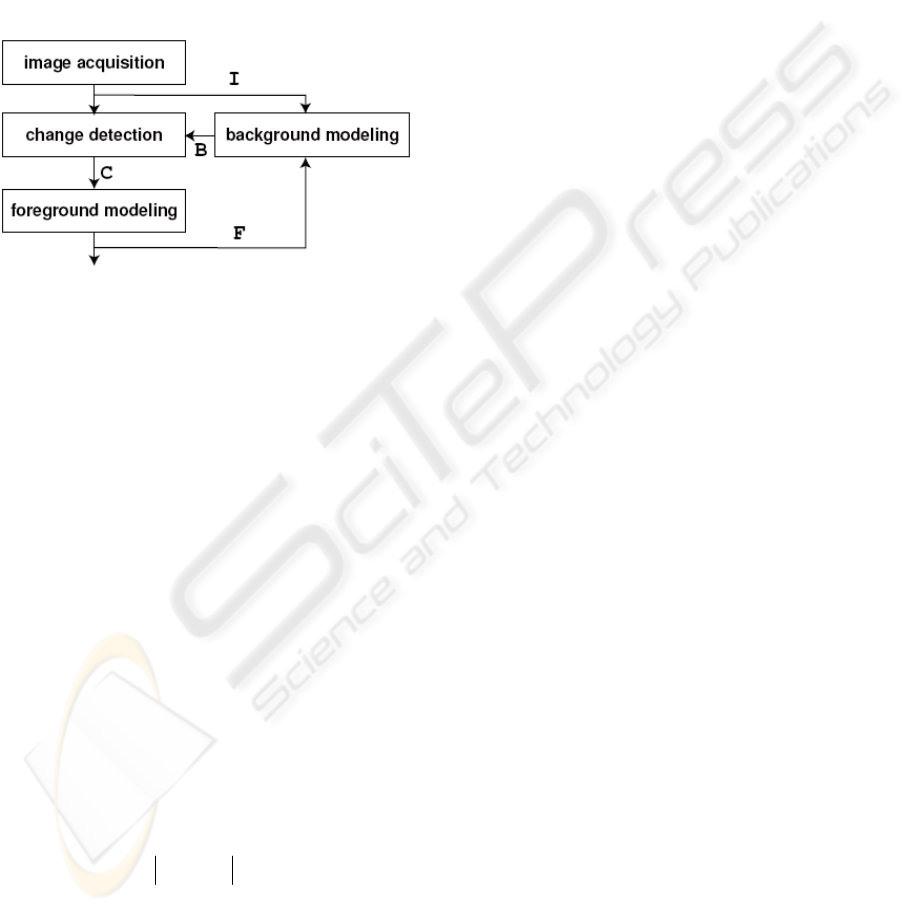

Figure 1: Detecting persons from change.

Background modeling schemes are numerous. Let us

mention, in order of increasing complexity, fixed or

adaptive models, scalar, Gaussian, mixture of

Gaussian models and other advanced models

(Elgammal et al., 2002). As all models can be

applied to video as well as to range, we limit this

paper to the presentation of the simpler adaptive

scalar background model and rather stress

differences in video and range processing.

In this simple context, the adaptation of the

background B

t-1

is performed according to:

⎩

⎨

⎧

+−

−

−−

elseIB

FifB

αα

)1(

(1)

i.e. only pixels not belonging to the foreground F

t-1

(line 1) are processed by recursively substituting in

them a small part (0<α<<1) of the current image I

(line 2)

Then, image values which differ from the

background by more than a given threshold value ΔI

constitute the boolean change image C

⎩

⎨

⎧

Δ>−

−

elsefalse

IBIiftrue

(2)

Finally, in the simplest way, the foreground is set

equivalent to the change image

while more generally, foreground modeling

performs an interpretation of the change image C

order to provide a best possible estimate of the

foreground F

2.2 Change Detection from Range

A specific aspect of range images lies in their

domain of definition:

}],...0{[

max

nilzZ

∈

(3)

i.e. they take values in a bounded range of positive

real values and can possibly take the value nil that

encodes all situations where the range camera

delivers undefined values. Such undefined range

values appear for instance in stereo cameras in

absence of texture, and in TOF cameras when the

modulated reflected signal is weak.

In this context, classical background modeling

must be adapted to the presence of nil values. In

addition, it can take into account that, unlike

intensity in video, presence in the range domain

always decreases the Z value with respect to the

background. A suited means for the updating of the

range background is:

⎪

⎩

⎪

⎨

⎧

+−

−

else

nilBif

ornilZif

)(

)1(

αα

(4)

where the first line says there is no update in

presence of a foreground pixel or with a nil Z value;

the second line says that the background starts with

the first non-nil Z value, and the last line expresses

the standard recursive update.

Regarding the change detection, it must also

consider the nature of possibly undefined signals. In

the following definition of the change image:

else

ZZBifelse

nilBornilZif

true

false

))(

)()(

Δ<−

⎪

⎩

⎪

⎨

⎧

−

(5)

only pixels with valid Z and B values are considered

(line 1) and a change is not detected (line 2) unless

the decrease in range surpasses a threshold ΔZ (line

3).

Note that the presence of nil values in range

images can be partially compensated by so-called

hole filling algorithms, and multi-scale methods are

well suited to do so (Zamofing and Hügli, 2004).

PEDESTRIAN DETECTION BY RANGE IMAGING

This possibility can be introduced at several places

in above procedure, but is not discussed further

here.

3 RANGE CAMERAS

Two range imaging technologies are considered in

this study: stereo camera and time-of-flight (TOF)

cameras

3.1 TOF Cameras

TOF cameras measure the time needed for light to

travels from the camera to the object and back again.

Typically, the phase shift between sent and received

modulated signal is measured and converted into a

range value.

3.2 Stereo Cameras

Stereo cameras record sequences of image pairs.

The images of a pair are recorded at the same time

and represent images of the scene viewed from two

neighboring location. Stereo interpretation consists

in computing the disparity of corresponding pixels

in an image pair, and the Z range is then simply

derived. Disparity computation is quite tedious. It is

usually not performed directly in the camera but

requires a powerful computer to reach real-time

performance.

Some basic differences of the two technologies

considered are compared in table 1 below.

Table 1: Comparison of TOF and stereo ranging.

TOF Stereo

range

calculation

method

phase shift of

sent and

received light

disparity

computation of

stereo pairs

range resolution

over Z range

constant over Z

decreases with

increasing Z

range accuracy

decreases with

increasing Z

depends on

surface texture

sensitive to

ambient light

yes no

need of own

light source

yes no

sensitive to bad

surface

structure

no yes

additional

processing

needed

no yes

4 PEDESTRIAN DETECTION

EXPERIMENTS

Practical pedestrian detection experiments are

performed in order to evaluate the performance of

range detection per se, but also in comparison to

video detection.

The TOF camera is the SwissRanger

(SwissRanger) SR-02 which delivers 16 bit range

images (160x128 pixels) at a rate of 30 Hz or less,

together with an intensity image of same size. Range

is derived locally by the camera, from the measured

phase shift between sent and received modulated

light. The maximum range is limited, and set to 7.5

m in the device used.

The stereo camera is the Bumblebee (P. G.

Research, Bumblebee 3D camera). It delivers pairs

of images (1024x768) from two cameras located on

a 12 cm long baseline, at a rate of about 7 Hz.

Disparity computation is performed on a fast PC.

Because of the processing complexity, there is a

tradeoff between high resolution and high speed. A

typical range images size is 320x240.

Three different situations are considered

successively.

Indoor versus outdoor site: Figure 2 provides a

comparison of range imaging by stereo and TOF in

two different sites, namely an indoor and outdoor

site. Indoors, pedestrians walk along a corridor. The

range of interest is 1 to 3 m (fig. 2a and b). Both

stereo and TOF work fine.

Outdoors, the pedestrians walk along a pathway

and the distance ranges from 4 to 8 m (fig. 2c and

d). Here, only stereo works fine, because TOF is

strongly affected by sunlight illumination that

surpasses by far the camera own illumination. On

the other hand, because operated with IR light, TOF

operates also invisibly during the night, both indoors

or outdoors.

Therefore, both stereo and TOP ranging systems

are suited for pedestrian detection, each method has

specific advantages. Among main advantages of

stereo for pedestrian detection is the capability to

work indoor as well as outdoor, the availability of a

registered high-resolution video image. Among

main advantages of TOF cameras are the locally

embedded range processing, the capacity to work at

night and good object independence regarding

texture.

VISAPP 2007 - International Conference on Computer Vision Theory and Applications

a) stereo indoors

b) TOF indoors

c) stereo outdoors

d) TOF outdoors

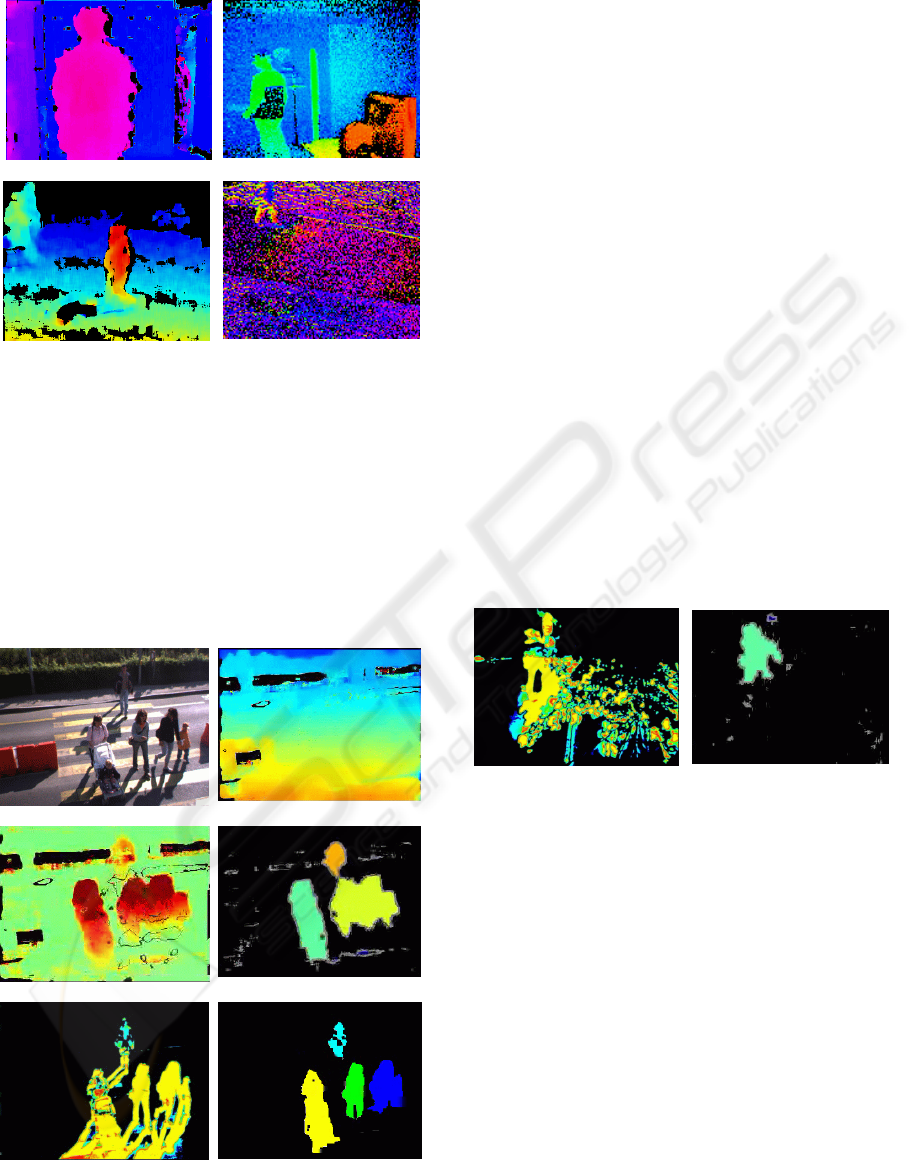

Figure 2: Range from stereo and TOF.

Road crossing site: This outdoor road crossing is

about 8 m long and the Z range of interest reaches

up to 12 m. TOF cannot be used outdoor and stereo,

given the fixed baseline, is at its practical resolution

limit at about 10 m. Stereo images are recorded in

situ and processed off-line.

Of major interest is the pedestrian detection

illustrated in figure 3, where the scene is strongly

affected by the pedestrian shadows.

a) video

b) range background

c) range difference (B-Z)

d) pedestrians from range

e) pedestrians from video

f) pedestrians from range

and video

Figure 3: Results from the road crossing site.

Video detection (fig. 3e) labels shadows as

pedestrians which then, cannot be correctly

segmented. In contrast, range detection (fig. 3d) is

not affected by shadows and provides a correct

segmentation.

Note that a combination of video detection and

range detection provides the best result (fig. 3f).

Pathway site: A pathway for pedestrians is affected

by strong illumination changes. In one situation, fast

traveling clouds in the sky produce fast illumination

changes. In another situation, shadows from moving

trees produce even stronger and faster illumination

changes. While video detection (fig. 4a) is

completely unable to distinguish even the presence

of groups of pedestrians, stereo range detection (fig.

4b) performs correctly and detects the pedestrians

walking along the pathway.

These results confirm the capacity of range

detection to perform well in presence of illumination

changes and show therefore its robustness for people

detection. Given other weaknesses of range imaging

compared to video, like a poorer resolution, it is

suggested that optimal performance will result from

a suitable combination of both methods.

a) pedestrian from video

b) pedestrian from range

Figure 4: Results from the pathway site.

5 CONCLUSIONS

The paper considers range cameras for presence

detection, specifically for pedestrian detection where

conventional video detection systems perform

poorly due their sensitivity to shadows and

illumination changes. A first part was devoted to the

presentation of a change detection scheme that suits

the specificities of range detection, specifically by

considering the presence of undefined range values

and the property of range measurements to always

decrease in presence of objects or persons.

A second part was devoted to two ranging

systems, namely stereo and time-of-flight (TOF).

Among main advantages of stereo for pedestrian

detection is the capability to work indoor as well as

PEDESTRIAN DETECTION BY RANGE IMAGING

outdoor, the availability of a registered high-

resolution video image. Among main advantages of

TOF cameras are the locally embedded range

processing, the capacity to work at night and good

object independence regarding texture.

A final part was devoted to practical pedestrian

detection experiments, in particular in difficult

situations. For indoor pedestrian detection, both

stereo and TOF are suited, the later with the

advantage to be operated also by night. For outdoor

pedestrian detection, TOF is not (yet) suited and

only stereo can be used. The capability of range

detection to get rid of shadow and illumination

changes affecting strongly the video detection was

demonstrated on two sites. On the road crossing site,

range detection is not affected by the strong

pedestrian shadows cast on the road. On the

pathway site, where cast shadows from moving trees

make video detection completely hopeless, range

detection performs correctly.

Finally, using together video and range for

presence detection performs optimally, as it

combines the advantages of both worlds, essentially

good resolution for the first and good robustness for

the second.

ACKNOWLEDGEMENTS

This project was partially supported by the Swiss

Federal KTI/CTI Innovation Promotion Agency

Fruitful collaboration with MIS Institute and ACET

is kindly acknowledged.

REFERENCES

D. M. Beckwith and K. M. Hunter-Zaworski. Passive

pedestrian detection at unsignalized crossings.

Transportation research records, Paper No. 98-0725,

1996. URL http://www.enhancements.org/trb\1636-

016.pdf

I. Haritaoglu, D. Harwood, and L. Davis. Who, when,

where, what: A real time system for detecting and

tracking people. Proceedings of the Third Face and

Gesture Recognition Conference, pages 222--227,

1998.

G. Finlayson, S. Hordley, and M. Drew. Removing

shadows from images. 2002. URL

http://citeseer.ist.psu.edu/finlayson02removing.html.

H. Jiang and M. S. Drew. Shadow-resistant tracking in

video, 2003 URL

http://citeseer.ist.psu.edu/jiang03shadowresistant.html.

L. Jianguang & al. An Illumination Invariant Change

Detection Algorithm", Proc. ACCV, 2002

A. Elgammal, R. Duraiswami, D. Harwood, and L. S.

Davis. Background and foreground modeling using

nonparametric kernel density for visual surveillance.

Proc. of the IEEE, 90(7), pp. 1151-1163, 2002.

J. M. Ying Ming, Jingjue Jiang. Background modeling and

subtraction using a local-linear-dependence-based

cauchy statistical model, 2003. URL

www.cmis.csiro.au/Hugues.Talbot/dicta2003/cdrom/p

df/0469.pdf

P. Seitz. Solid-state time-of-flight range camera. IEEE

Journals of Quantum Electronics, 2003

T. Zamofing, H. Hügli. Range Image Filtering Using

Reliability Information. Proc. SPIE Vol. 5606-16,

2004

SwissRanger. URL http://www.swissranger.ch/

P. G. Research. Bumblebee 3D camera. URL

http://www.ptgrey.com/products/bumblebee/.

VISAPP 2007 - International Conference on Computer Vision Theory and Applications
