DYNAMIC CONTEXT DRIVEN HUMAN DETECTION AND

TRACKING IN MEETING SCENARIOS

Peng Dai, Linmi Tao and Guangyou Xu

Key Lab on Pervasive Computing, Ministry of Education, Tsinghua University, Beijing, China

Keywords: On-the-spot archiving, dynamic context, human detection and tracking, meeting scenarios.

Abstract: As a significant part of context-aware systems, human-centered visual processing is required to be adaptive

and interactive within dynamic context in real-life situation. In this paper a novel bottom-up and top-down

integrated approach is proposed to solve the problem of dynamic context driven visual processing in

meeting scenarios. A set of visual detection, tracking and verification modules are effectively organized to

extract rough-level visual information, based on which a bottom-up context analysis is performed through

Bayesian Network. In reverse, results of scene analysis are applied as top-down guidance to control refined

level visual processing. The system has been tested under real-life meeting environment that includes three

typical scenarios: speech, discussion and meeting break. The experiments show the effectiveness and

robustness of our approach within continuously changing meeting scenarios and dynamic context.

1 INTRODUCTION

Context-aware systems incorporate multi-modal

information so as to extract semantic understanding

of current situation and provide proactive services to

users, among which visual information plays a

significant role due to its expressiveness and

unintrusiveness. Visual detection and tracking of

human objects may be a prerequisite for the

recognition of human physical and mental states and

interactive events, which is essential for those

human-centered applications.

Two significant issues lie in the research of

context-aware vision systems. Firstly, online

analysis of events and context is required so that the

context-aware systems might provide services in

real-time. Secondly, it is difficult to solve the

paradox between low-level visual processing and

high-level semantic analysis. In real-life applications

context model should be dynamic, which could

generate flexible requirements for visual processing

mechanism. Therefore context-aware systems must

be able to analyze context online, and detect and

track human objects in dynamic context. Few

research efforts have been attributed to the issue of

human detection and tracking in dynamic context.

Meeting room has been demonstrated to be an

appropriate research platform for the study of

individual and group events analysis (Hakeem and

Shah, 2004; McCowan et al., 2005; Zhang et al.,

2006). Context model is dynamic during meetings,

which not only includes the changes of meeting

scenarios, but also covers the changes of individual

states or interactive situations. How to deal with

low-level feature extraction in such a dynamic

context model is a challenging task. Thus we focus

our research on online meeting analysis in this paper.

Some researchers have worked on the semantic

analysis of meeting video sequences (Hakeem and

Shah, 2004; McCowan et al., 2005; Hames and

Rigoll, 2005; Zhang et al., 2006), however most of

the related work in this domain adopted offline

processing frameworks and did not take dynamic

context into account, which means high-level

context information is not adopted as the online

guidance and control of low-level visual processing.

An ontology and taxonomy framework was

proposed in (Hakeem and Shah, 2004) for the offline

classification of meeting videos. Head and hand

related events were detected by Finite State

Machines based on the tracking result of

participants’ heads and hands. Those events were

further used for meeting scenario classification by

rule-based systems. McCowan et al. (McCowan et

al., 2005; Zhang et al., 2006) used Layered Hidden

Markov Models for the recognition of individual and

group actions in meetings based on audio-visual

information. Similarly in (Hames and Rigoll, 2005)

Dai P., Tao L. and Xu G. (2007).

DYNAMIC CONTEXT DRIVEN HUMAN DETECTION AND TRACKING IN MEETING SCENARIOS.

In Proceedings of the Second International Conference on Computer Vision Theory and Applications, pages 31-38

DOI: 10.5220/0002070200310038

 SciTePress

Dynamic Bayesian Network was adopted for the

recognition of group actions in meeting scenarios.

All the approaches mentioned above performed

offline context analysis, and visual processing was

performed based on predetermined and fixed context.

Recently some research literatures are referring

to the research issue of dynamic context in smart

environments. A distributed system paradigm was

presented for a long-term research of dynamic

context capture in indoor environments (Trivedi et

al., 2005). Multiple sensors were set in the

environment and various visual modules such as

human detection, tracking and identification were

integrated to extract visual information. However,

dynamic context here only denoted changes of user’s

location and face orientation in the environment,

based on which a top-down control was performed

for the best perspective selection among multiple

cameras. In our work dynamic context is targeted at

higher level semantics, including both the individual

object events and the overall scenario types.

Previous visual approaches for human presence

detection and tracking in meeting environment could

not combine various visual cues effectively, hence

requirements of real-time and long-term processing

in real-life applications could not be matched.

Waibel et al. (Waibel et al., 2003) adopted motion

and color cues for the segmentation and tracking of

human bodies in meeting rooms. Head poses are

important cues for the estimation of participants’

focus of attention. In (Stiefelhagen et al., 2002),

Neural Network models were employed for face

detection and pose estimation, Bayesian Network

was applied to estimate people’s focus of attention.

In Hakeem’s work (Hakeem and Shah, 2004)

tracking algorithms for human head and hands

required manual intervention.

In this paper, a novel approach is proposed to

solve the problem of context-aware human detection

and tracking. A bottom-up and top-down integrated

visual processing framework is addressed to solve

the paradox between the acquisition of visual cues

and dynamic context model. Bayesian Network is

adopted to analyze the changing context in a bottom-

up way, based on the coarse information of human

objects and the meeting room settings. Reversely,

refined level information is extracted based on the

requirements of current context information.

Additionally, an effective hypothesis-verification

approach is proposed to solve the problem of human

detection in indoor environment. Potential human

objects are detected and tracked based on multiple

visual cues, and are further verified with an efficient

face detection module.

Thus the major contribution of this paper can be

addressed as follows:

 An adaptive visual processing mechanism in

dynamic context;

 A hypothesis-verification mechanism for

human detection and tracking in indoor

environment.

Based on the approach, our paper is organized as

follows. Section 2 introduces On-the-Spot Archiving

System we used as the research framework. Section

3 describes the hypothesis-verification mechanism

for human detection and tracking. In Section 4 a

context analysis framework is given, and Section 5

presents the refined level visual modules which can

is selectively determined by dynamic context.

Experimental results are presented and discussed in

Section 5, and Section 6 concludes this paper.

2 ON-THE-SPOT ARCHIVING

SYSTEM

Traditional multimedia meeting corpus (Hakeem and

Shah, 2004; McCowan et al., 2005) records all the

audio-visual information in meetings, which lacks

the capabilities of online meeting highlights

detection and indexing. In our work, an intelligent

multimedia archiving system named On-the-Spot

Archiving System (OSAS) is introduced to

incorporate multimodal information processing

modules into our context-aware research paradigm

and has the capability of archiving the most

significant information selectively in real-time.

2.1 Research Platform

Figure 1: Meeting room settings.

VISAPP 2007 - International Conference on Computer Vision Theory and Applications

Multiple sensors are installed in the meeting room so

as to acquire the overall information about the

environment, as is illustrated in Figure 1. Three

fixed cameras are set to extract video frames from

distinct perspectives. In this paper, visual processing

and context reasoning is constrained on the video

sequences acquired with the 3 fixed cameras.

In our research experiments, the problem is

simplified by restricting the meeting participant

number to be 4. Three typical sorts of meeting

scenarios are taken into account in this paper: speech,

discussion, and break, as described in Table 1 below.

Table 1: Three meeting scenarios.

Scenario Features

Speech One participant gives speech at the

projector screen, the other three seated.

Discussion Four participants seated and talk.

Break Participants leave the seats and perform

random actions.

On-the-Spot Archiving system is designed to

analyze individual and group events in the meeting

room, and archive the multimodal information

appropriately based on the online analysis results of

meetings. Archived multimodal information can be

retrieved and browsed by users later. The prototype

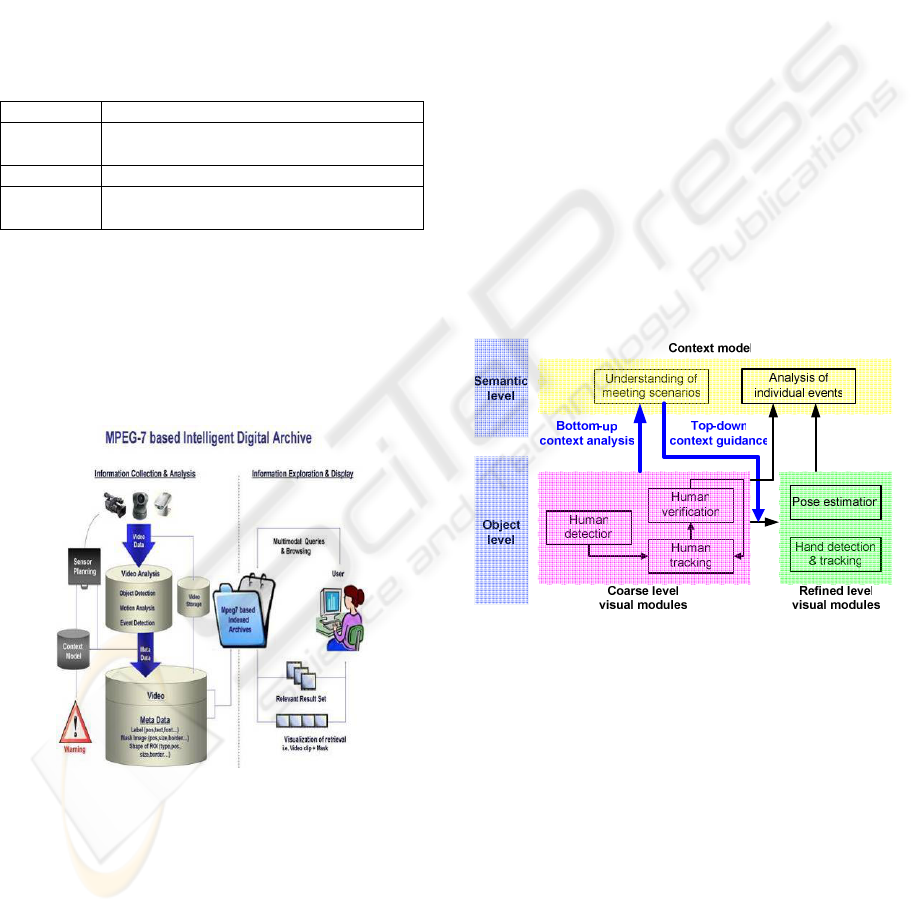

of our system is illustrated in Figure 2.

Figure 2: Prototype of on-the-spot archiving system.

Visual processing in a human-centered smart

environment can be classified into two major

categories: (1) coarse level visual modules, i.e.

detection and tracking of head and body blobs; (2)

refined level visual modules, including detection and

tracking of hand blobs, head pose estimation etc.

The objective of our system is to record the most

relevant information according to dynamic context.

For instance, before the meeting begins or during

meeting breaks, only the coarse level information

processing modules are required. While during

speech or group discussion, refined level visual

processing is required so that we can analyze the

participants’ actions and focus of attention.

2.2 Context-Aware Visual Processing

All participants need to be analyzed via visual

processing techniques so as to recognize individual

and group events. While at the same time, analysis

of individual activities and group events in different

meeting scenarios might demand distinct visual

cues.

Thus a novel framework is proposed to solve this

issue, which proceeds the context-aware visual

mechanism in a loop way. Firstly, coarse level

human blobs are detected and verified so as to

understand current meeting scenarios in a bottom-up

mode; then in a top-down fashion, current meeting

context model helps control the selective processing

of refined level blob information, as is illustrated in

Figure 3.

Figure 3: Context-aware vision system flowchart.

3 HUMAN DETECTION AND

TRACKING

Human detection and tracking generates coarse

information for the bottom-up context analysis,

which is a significant starting point for context-

aware vision systems.

In this paper a two-stage approach is presented to

detect and track potential human objects within

meeting scenarios. The entire procedure can be

divided into two stages: hypothesis generation and

human object verification, which are to be described

in details respectively below.

DYNAMIC CONTEXT DRIVEN HUMAN DETECTION AND TRACKING IN MEETING SCENARIOS

3.1 Hypothesis Generation

Multiple cues are combined to generate hypothesis

for potential human objects in the meeting room

environment. Motion information is used firstly for

foreground object extraction. Color and gradient

information is further employed to determine

potential head objects. Once the head candidates

determined, body blobs are generated according to

somatological knowledge.

Motion detection or foreground extraction is the

first step of our human detection approach, since

motion is a significant clue of human presence, and

by foreground extraction we can immensely reduce

the search range for further human detection

modules. In this paper, a behavior analysis oriented

consistent foreground detection method (Jiang et al.,

2006) is employed to generate moving objects in

indoor environment. Unlike traditional Gaussian

mixture model (GMM) based methods, this

algorithm maintains two background models, the

original background and the run-time background,

based on which foreground and background pixels

are separated effectively. Figure 4 shows the result

of our method compared to traditional GMM results.

Figure 4: Comparison of GMM based foreground

detection and the adopted method here.

Connected component analysis is performed on

the detected foreground pixels, which generates a set

of foreground objects. Based on these detected

objects, color and gradient cues are further

processed so as to determine potential head location.

Skin detection is performed in the upper half part

of the foreground objects. Skin color model

based on HSV color space, and skin and non-skin

pixels are classified according to the distribution of

hue and saturation, as is expressed in Formula 1.

(,) (,) (,)

(|)(|)(|)

xy xy xy

pI ph ps

λλλ

(1)

As a complementary cue of skin color

information, object gradient information is also used

to determine exact boundaries of human heads. In a

neighbor region of skin areas, a set of ellipses

[,, ,]

iiii

xywh=

(1,,)

N= … are generated based

on changing locations

(, )

y and changing sizes

(,)

h within a certain range. Potential head

candidate is determined according to the observation

probabilities:

argmax ( | )

edge

py X=

(2)

Figure 5 shows the result of head candidates

generation by skin detection and elliptical fitting.

Body blobs are further determined based on motion

detection results and somatological knowledge

concerning the relationship between head and body.

Figure 5: Results of head candidates generation.

3.2 Tracking and Verification

Detected candidate head ellipsis and body rectangles

are tracked by particle filtering techniques. Elliptical

head state vector is defined as

[,, ,]

fffff

xywh= ,

where

(,)

y ,

and

denote the center and two

axes of the head ellipse respectively.

Rectangular body

state vector is defined as

[,, ,]

bbbb

xywh= , where

(, )

y ,

and

denote the center, width and height

of the body rectangle respectively. Either for head or

body tracking, a set of samples

() ()

{, }

are

maintained and updated, and the mean state of the

sample set can be adopted as the estimated state of

the current object.

Traditional particle filter methods cannot deal

with long-term tracking applications effectively due

to their lack of appropriate adjustment mechanism.

Therefore we propose a revised particle filter

tracking algorithm so as to reduce the potential

tracking failures. Once the tracking samples drift

away from the object for a certain threshold

, head

and body detection results are adopted for a self

adjustment of the sample set. Those detected head or

body blobs overlapping with currently maintained

samples are used for the re-initialization of the

sample set. Details of our self-adjusted particle filter

tracking algorithm is given in Table 2 below.

Through the previous tracking approach, a set of

hypothesized human objects are generated and

updated, based on which an efficient AdaBoost face

detector (Wang et al., 2006) is adopted to verify

those objects in video streams.

VISAPP 2007 - International Conference on Computer Vision Theory and Applications

Table 2: Self-adjusted PF tracking algorithm.

With the particle set

() ()

111

{, }

−−=

at the previous

time step, proceed as follows at time t:

Step 1: Resampling. Resample

() ()

{, }

−−

to get

() ()

{' , ' }

−−

based on probability

()

−

Step 2: Prediction. Propagate each sample

()

−

by a

linear dynamic model

() () ()

Ax w

−−

=+, where

()

−

is a Gaussian random variable

Step 3: Observation. For each sample

()

, calculate

its weight according to color and edge cues:

() () ()

(|)(|)

color i edge i

ttttt

yxpyx

Step 4: Estimation. Estimate the mean state of the

set

() ()

{, }

() () ()

[]

∑

Step 5: Adjustment. If the highest weight of the

sample set

()

max

πη

< , adjust head or body object

based on detection results and restart the sampling

procedure

AdaBoost face detectors integrate a set of weak

classifiers and group them in a pyramid structure to

generate a strong classifier. The selection of features

and weights is learned through training procedure.

1, ( ) ( ) / 2

()

ii i

if h x

otherwise

αα

⎧

≥

⎪

⎨

⎪

⎩

∑∑

(3)

Besides traditional symmetric rectangle features,

asymmetric rectangle features are also adopted in the

AdaBoost learning algorithm so as to detect multi-

view faces, as is illustrated in the left part of Figure

6. Asymmetric rectangle features can interpret

asymmetric gray distribution in profile face image.

In this paper, an appropriate sub-window is

generated within the neighbour area of tracked head

ellipse. AdaBoost face detector is employed to

search face rectangles in this sub-window. Once the

face detected, the target object is certified to be valid.

As a result of the object layer, input image

sequences are converted into sequences of human

objects, which are adopted for the following context

analysis tasks.

Figure 6: Multi-view AdaBoost face detector (Left:

Rectangle feature set of our approach; Right: Face

detection result).

4 ANALYSIS OF DYNAMIC

CONTEXT

Context analysis is performed on-line in our On-the-

Spot Archiving System and applied as the guidance

of refined visual modules, which is the most

prominent feature between our framework and most

previous related work.

In this paper, the concept of dynamic context lies

in the changing of meeting scenarios. Thus context

analysis here is confined to the recognition of

meeting scenarios based on the extracted visual

cues. According to the meeting room settings

introduced previously, five interest areas are defined

in the three camera views, as is illustrated in Figure

7. Human presence and their standing-sitting states

in these five areas are adopted as inferring cues.

Figure 7: Interest areas in meeting environment.

Bayesian Network is implemented to estimate

human presence status in the five interest areas and

meeting scenario at each time step. The observations

of human objects in the five interest areas

are treated

as observation nodes

O of the Bayesian

Network. Bayesian Network estimates human

presence states

 in the five interest areas

from the given observation and further infer meeting

scenario

from these individual states:

151 5

rg max ( , , , | , ,

)

PS jS S O O==

(4)

Those individual and group

states in BN are

defined in discrete values as follows

{nobody, standing, sitting}

S =

(1,,5)

i = …

{speech, discussion, break}

S =

(5)

Figure 8: Bayesian Network structure for meeting scenario

understanding.

Figure 8 illustrates the basic structure of the

Bayesian network.

is the final output of the

context analysis, which classified current meeting

DYNAMIC CONTEXT DRIVEN HUMAN DETECTION AND TRACKING IN MEETING SCENARIOS

context into three scenarios: speech, discussion and

meeting break. As a result of the context analysis

layer, meeting video sequences are converted into a

sequential outline of meeting scenarios.

Current work contains no temporal information

within our reasoning framework, Dynamic Bayesian

Network is considered to be adopted in future work.

5 CONTEXT-DRIVEN REFINED

VISUAL PROCESSING

In some specific meeting scenarios such as speech

and discussion, detection, tracking and analysis of

detailed blobs are required so as to provide more

refined cues for further analysis of individual events.

5.1 Context-Aware Visual Processing

As we can see, video sequences before, in-between

or after a complete meeting are all categorized into

meeting break scenarios. During meeting breaks, no

significant information is generated or propagated

about the meeting contents, therefore there is no

need for refined level visual processing.

On the contrary, those meaningful individual and

interactive events generated during speech or

discussion scenarios contain the majority of meeting

information, hence refined level visual modules such

as head pose estimation and hand tracking are

required for the further analysis of human activities

and interactions.

As is described in Table 3, head pose estimation

is applied to help analyze participants’ focus of

attention and their concentration level toward the

meeting. Hand detection and tracking module can be

used for the recognition of specific human actions

such as raising hands and pointing directions.

Table 3: Detailed-level visual processing for specific

meeting scenarios.

Visual

module

Scenario Objective

Pose

estimation

Speech,

discussion

Analyze focus of

attention.

Hand

tracking

Speech Analyze hand actions

such as raising hand,

pointing and speech

related actions.

5.2 Head Pose Estimation

A Bayesian estimation method (Park, 2004) can be

further employed to recognize participants’ head

poses rough.

Figure 9: Head pose estimation.

Denote the state of head pose in the current

image with

. Two types of rough observations are

selected as reasoning cues, let

be the angle of

vector from head center to face center,

be the

ratio of face area to head area, as is described in

Figure 9. Pose estimation task is equivalent to

estimate the maximum belief

(|,) (|)(|)

ar a r

XYY PY XPY X∝

(6)

5.3 Hand Detection and Tracking

Use the same skin color detection technique and

connected component analysis algorithm as in

Section 3, hand blobs can be segmented

successfully.

Figure 10: Hand detection and tracking.

Tracking of hand blobs appeals to color based

Mean-Shift algorithm. We apply skin color model

introduced in Section 3 to the human body areas and

generate probability maps, based on which a Mean-

Shift algorithm is carried out to track hand

rectangles. Selected samples of hand detection and

tracking in our system are presented in Figure 10.

The output of hand detection and tracking is a

trajectory of hand blobs, which can be used as input

for the recognition of more individual events, such

as raising hand for QA and object-targeted pointing.

VISAPP 2007 - International Conference on Computer Vision Theory and Applications

6 EXPERIMENTS

We apply the proposed approach to detect and track

human in our meeting room environment. Figure 11

shows the visual processing results performed with

each of the three camera views during a meeting.

Figure 11: Visual processing and human object detection

results (1

row: original images; 2

row: foreground

detection; 3

row: skin detection; 4

row: Edge detection).

Our approach has been demonstrated with real

data extracted in our meeting room. Figure 12 shows

the result of context analysis from one of the

meeting samples. Meeting scenario recognition rate

is 95.4%. Most of the false alarms come from those

false detected ‘speech’ scenarios. For instance, three

pink marked sections expressed in Figure 12 are

typical false detected samples. Such types of errors

are generated due to insufficiency of our context

analysis model. In our current model, such meeting

scenes with one person standing or walking at the

projector screen and the other three seated around

the table are regarded as ‘speech’ scenarios.

However, sometimes such kind of scenes might also

happen during meeting breaks. Recognition rate can

be improved by incorporating more cues and

modifying context analysis model in the future.

0 2000 4000 6000 8000 10000 12000 14000 16000 18000

0.2

0.4

0.6

0.8

Frames (n)

Scenario probability

Speech

Discussion

Break

Discussion Speech

Discussion

Break

Speech

Discussion

Break

(False detected)

Figure 12: Context analysis result.

Figure 13 gives human tracking results before

the meeting starts. As we can see, only coarse level

head and body blobs are tracked during this period.

Initially only one person is detected since two

persons are detected as one foreground object. Once

the two separated and are detected as foreground

objects respectively, the other one is detected.

Figure 13: Tracking results before starting of the meeting,

in which head pose estimation and hand tracking are not

performed.

Experimental results shown in Figure 14

demonstrate the effectiveness of our approach in

human verification while the presenter walks back to

his seat. The initially false detected head blob is

eliminated through verification procedure.

Figure 14: Human verification and tracking results while

the presenter is walking back to his seat and sitting down.

DYNAMIC CONTEXT DRIVEN HUMAN DETECTION AND TRACKING IN MEETING SCENARIOS

Figure 15 and 16 indicate the effectiveness of our

context-aware visual processing approach. During

the speech scenarios, both the coarse level blobs and

the refined level blobs are tracked. Figure 15 shows

the tracking results of the participant’s raising hand

process, and the speaker is tracked stably for a long

time span in Figure 16.

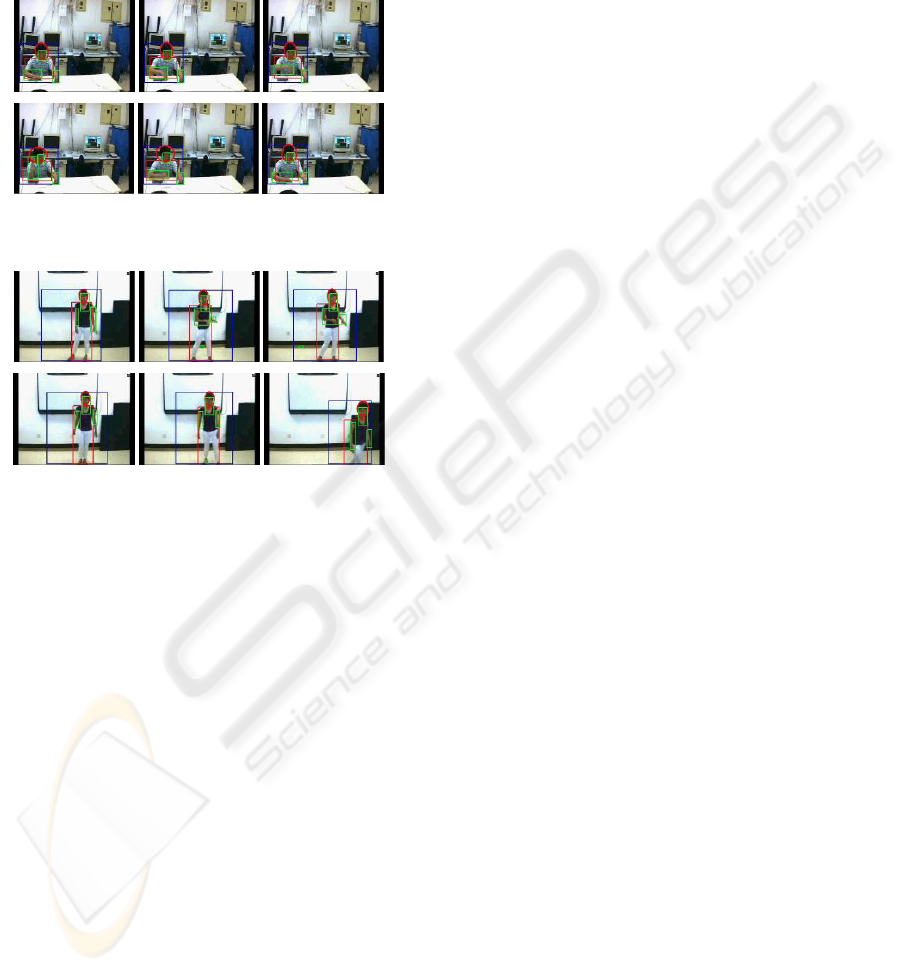

Figure 15: Tracking results while the participant is raising

his right hand.

Figure 16: Tracking results of the presenter.

However, our tracking algorithm might generate

errors when two participants walk across each other

and one of the heads is occluded for a short period.

Cooperative reasoning structure is considered to

improve our approach in future work.

7 CONCLUSIONS

In this paper, a bottom-up and top-down integrated

visual framework is proposed for human-centered

processing in dynamic context. Coarse level visual

cues are extracted concerning human presence and

states in meeting scenarios, based on which context

analysis is performed through Bayesian reasoning

approach. Context information is then applied to

control refined visual modules in a top-down style.

Besides, a novel hypothesis-verification method is

adopted for robust detection and long-term stable

tracking of human objects. Experimental results

have validated our approach. Spatial-temporal

analysis of hierarchical context model is considered

for the future extension of our work.

ACKNOWLEDGEMENTS

The work described in this paper is supported by

CNSF grant 60673189 and CNSF grant 60433030.

REFERENCES

McCowan, I., Perez, D., Bengio, S., Lathoud, G., Barnard,

M., Zhang, D., 2005. Automatic Analysis of

Multimodal Group Actions in Meetings. In IEEE

Trans. on Pattern Analysis and Machine Intelligence

(PAMI’05), Vol. 27, No. 3.

Zhang, D., Perez, D., Bengio, S., McCowan, I., 2006.

Modeling individual and group actions in meetings

with layered HMMs. In IEEE Trans. on Multimedia,

Vol. 8, No. 3.

Waibel, A., Schultz, T., Bett, M., Denecke, Malkin, R.,

Rogina, I., Stiefelhagen, R., Yang, J., 2003. SMaRT：

The Smart Meeting Room Task at ISL. In Proc. IEEE

Intl. Conf. on Acoustics, Speech, and Signal

Processing 2003 (ICASSP'03), Vol. 4: 752–755.

Stiefelhagen, R., Yang, J., Waibel, A., 2002. Modeling

Focus of Attention for Meeting Indexing Based on

Multiple Cues. In IEEE Trans. on Neural Networks,

Vol. 13, No. 4.

Trivedi, M., Huang, K., Mikic, I., 2005. Dynamic Context

Capture and Distributed Video Arrays for Intelligent

Spaces. In IEEE Trans. on Systems, Man, and

Cybernetics—PART A: Systems and Humans, Vol. 35,

No. 1.

Hakeem, A., Shah, M., 2004. Ontology and taxonomy

collaborated framework for meeting classification. In

Proc. 17th Intl. Conf. on Pattern Recognition 2004

(ICPR'04), Vol. 4: 219-222.

Hames, M., Rigoll, G., 2005. A Multi-Modal Graphical

Model for Robust Recognition of Group Actions in

Meetings from Disturbed Videos. In Proc. IEEE Intl.

Conf. on Image Processing 2005 (ICIP'05).

Song, X., Nevatia, R., 2004. Combined face-body tracking

in indoor environment. In Proc. 17th Intl. Conf. on

Pattern Recognition 2004 (ICPR'04), Vol. 4: 159-162.

Wang, Y., Liu, Y., Tao, L., Xu, G., 2006. Real-Time

Multi-View Face Detection and Pose Estimation in

Video Stream. In Proc. 18th Intl. Conf. on Pattern

Recognition (ICPR'06), Vol. 4: 354-357.

Jiang, L., Zhang, X., Tao, L., Xu, G., 2006. Behavior

Analysis Oriented Consistent Foreground Object

Detection. In Proc. 2rd Chinese Conf. on Harmonious

Human Machine Environment 2006 (HHME'06).

Park, S., 2004. A Hierarchical Graphical Model for

Recognizing Human Actions and Interactions in Video.

PhD Thesis.

VISAPP 2007 - International Conference on Computer Vision Theory and Applications
