USING AUGMENTED REALITY FOR REAL-TIME

VISUALIZATION OF TACTILE HEALTH EXAMINATION

Gennadiy Nikishkov and Tomokazu Tsuchimoto

University of Aizu, Aizu-Wakamatsu 965-8580, Japan

Keywords:

Augmented reality, visualization, tactile measurements.

Abstract:

An augmented-reality approach to real-time visualization of tactile data with projection on a human organ is

presented. A target procedure is breast cancer examination with a tactile sensor. The special tactile sensor is

used to measure tissue stiffness values at discrete points of the examined organ. We developed an augmented

reality system which integrates the tactile sensor, a head-mounted display with a small video camera, and a

notebook computer. Tracking of the human organ and the tactile sensor is based on optical markers. One

marker is attached to the patient’s body and is used to track the spatial position of the human organ. Another

marker is placed on the tactile sensor. Registering space positions of this marker with respect to the ﬁrst

marker allows determination of the shape of the human organ for subsequent data visualization. Results of

stiffness measurements are depicted as semi-transparent three-dimensional objects projected on the patient’s

body. Different visualization techniques are employed depending on the amount of data and user preference.

Experiments with sensing tactile data and its visualization for a variety of objects, including a silicon breast

model and animals organs, have been performed. It was found that the developed augmented-reality system is

useful in medical-physics measurements.

1 INTRODUCTION

Most breast cancers are detected by tactile investiga-

tion. The most common method of breast cancer de-

tection is palpation. A health care professional em-

ploys palpation to feel the size and ﬁrmness of a le-

sion. Human ﬁngers are sensitive tools for determin-

ing stiff areas. However, rigorous training and exten-

sive experience of a person performing palpation are

necessary. Even in the case of correct diagnosis, it is

impossible to register results of palpation in quantita-

tive form.

Physical measurements of tactile information can

be done with tactile sensors (Omata and Terunuma,

1992), (Srikanchana et al., 2002), (Kearney et al.,

2004), (Girnyk et al., 2006). Different tactile sensors

are based on different physical principles for measur-

ing information that helps to discover lesions. The

main advantage of tactile sensors over hand palpation

is the possibility of registering quantitative informa-

tion which can be stored and used in the future for

comparison purposes. In addition to archiving of tac-

tile information it is important to develop methods

of visual representation and digital documentation of

the physical examination (Kaufman et al., 2006). It

is also important to get real-time visual information

on measurements during medical examination proce-

dure.

To provide real-time support for breast tactile

measurements we selected the augmented reality (AR)

approach (Azuma, 1997). The AR approach augments

a real view of an object with additional graphical in-

formation generated by computer. The purpose of our

research is to develop an AR system for real-time vi-

sualization of tactile data directly on the surface of a

human organ (in this case, breast) under examination.

Augmented reality has been used in medical appli-

cations for more than a decade (Bajura et al., 1992).

Currently, usage of augmented reality in medical ap-

plications is characterized by a three-dimensional ap-

proach to visualization (Sakas, 2002) and by em-

ploying augmented-realitysystems in clinical practice

Nikishkov G. and Tsuchimoto T. (2007).

USING AUGMENTED REALITY FOR REAL-TIME VISUALIZATION OF TACTILE HEALTH EXAMINATION.

In Proceedings of the Second International Conference on Computer Graphics Theory and Applications - AS/IE, pages 91-97

DOI: 10.5220/0002074800910097

 SciTePress

Tactile

censor

Camera

Video

Frequency

Voltage

Frequency

counter

Artoolkit

Sensor

position

Projection

matrix

Tactile

data

Visualizer

Video

Display

Camera

Sensor

HMD

Object

Markers

a b

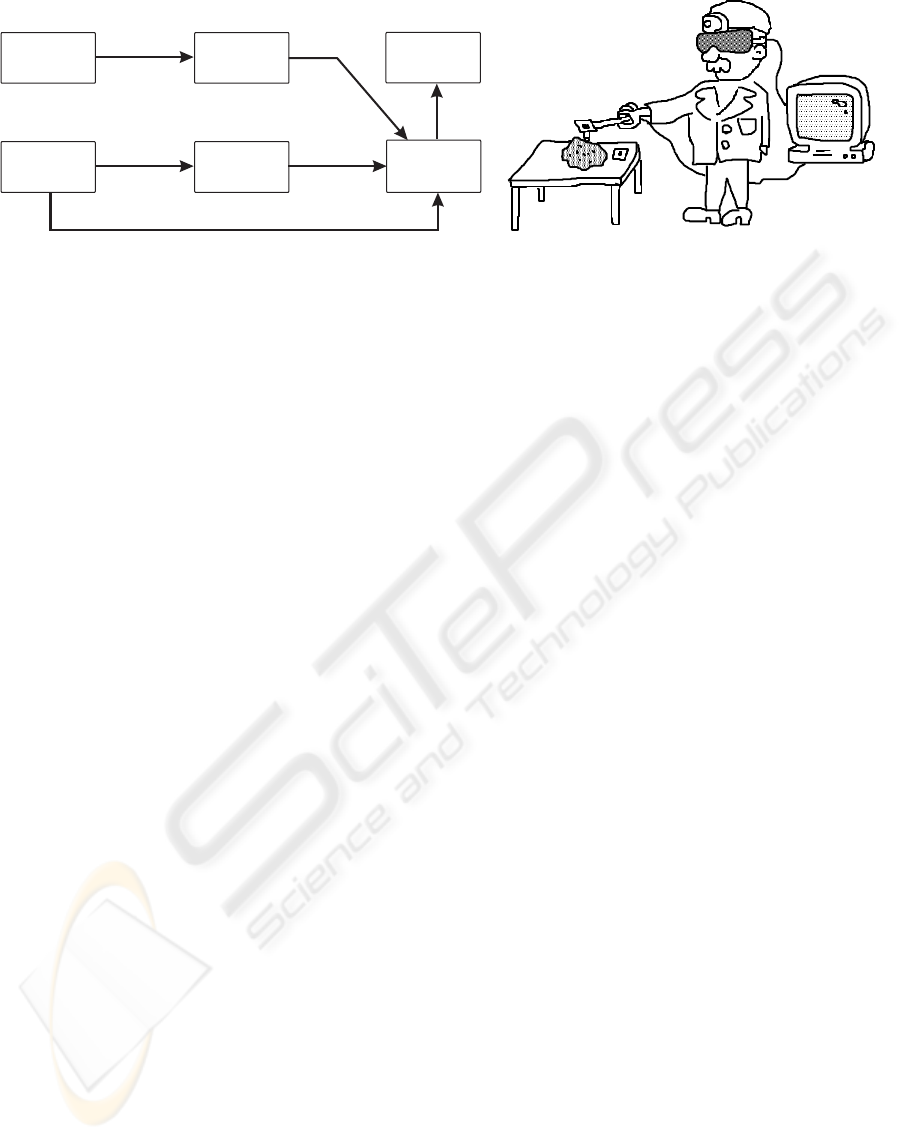

Figure 1: Augmented-reality system for measurement and visualization of human tissue stiffness: a) main system components

and software modules with data ﬂow; b) use of the system by the physician.

(Konishi et al., 2005).

Related research (Balasingham et al., 2003),

(Birkfellner et al., 2002) and (Das et al., 2006) is de-

voted to augmented reality visualization in operating

environments. Typically, AR is used to overlap cross-

sectional medical images onto patient space, thereby

allowing a physician to see under the surface. Rosen-

thal et al. (Rosenthal et al., 2002) performed projec-

tion of a cross-sectional image of a tumor into patient

space. An invasive instrument, such as a biopsy nee-

dle, is simultaneously tracked and projected into the

same patient space. Watching the whole picture, the

physician operates the needle with AR guidance.

The goal of the work that we present in this arti-

cle is an augmented reality system which performs

real-time visualization of tactile information during

breast cancer examination: picture representing mea-

sured tactile information projected on the patient’s

body, which moves and has complicated shape. To

perform AR visualization of tactile data, two mark-

ers are used. One marker serves for tracking the pa-

tient’s body position. The other marker, placed on the

tactile sensor is used to determine three-dimensional

shape of the organ where tactile measurements are

performed. Visual information – in the form of bars,

contours, or contoursurfaces – is superimposed on the

patient’s body, taking into account the actual organ

shape. To observe AR visualization a doctor wears a

head-mounted display (HMD) with a small video cam-

era. The AR visualization can be also viewed on a

computer screen.

Contributions of this paper in medical visualiza-

tion are: real-time integration with a measurement

device; use of a second marker for determining the

shape of the human’s organ; and AR visualization of

tactile data projected on the patient’s body.

2 AR SYSTEM DESCRIPTION

A system for measurement and visualization of tactile

information should fulﬁll the following requirements:

• The system should integrate real-time measure-

ments and visualization;

• Visualization image should be projected on the

patient’s organ, which is not ﬂat;

• Depending on the amount of data, different types

of visual data representation should be available;

• The system should be based on common and in-

expensive hardware components.

2.1 System Design

The main system components and software modules

with data ﬂow in our prototype are shown in Fig. 1a.

The system consists of a tactile sensor, an HMD, a

video camera, and a notebook computer. Two markers

are used for tracking the human organ (measurement

object) and for determining its shape.

The tactile sensor in combination with the fre-

quency counter produces tactile data in the form of

tissue stiffness values at discrete points. Frames from

video camera are analyzed using ARToolkit (AR-

Toolkit, 2006) software. Two markers are identiﬁed

and the position and orientation of the object and the

tactile sensor are established. Visible appearance of

the object marker is used for estimating a projection

matrix. A visualizer software module creates con-

tours or other visualization elements for the tactile

data and makes their proper superposition with frames

produced by the video camera. The result is real-time

AR visualization of the tactile data projected on the

patient’s body. The use of the AR system by a physi-

cian is illustrated by Fig.1b.

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

2.2 Hardware

The following hardware is used to implement the AR

system for real-time visualization of tactile data:

• Tactile sensor with a piezoelectric transducer

(PZT) developed at Nihon University (Omata and

Terunuma, 1992).

• Head-mounted display i-glasses PC/SVGA with

two miniature screens of SVGA (800×600) reso-

lution (i-O Display Systems).

• Video camera PYRO 1394 WebCam with VGA

(640×480) resolution and 30 frames per second

output through IEEE 1394 (FireWire) interface

(ADS Technologies).

• Notebook computer with 3.20 GHz Intel Pentium

4 and 1 GB memory.

• Rectangular paper markers.

The main part of the tactile sensor is a piezoelec-

tric transducer, which helps to estimate stiffness val-

ues of tissue near the surface of the skin. The mea-

surement principle is based on the phenomenon of

changing resonant frequency of the vibrating PZT as

it comes into contact with a material surface. The

changes in frequency are evaluated by the frequency

counter and transmitted to a computer through USB

interface. The tactile sensor produces single values of

tissue stiffness at each contact point. Since the mea-

surement act is immediate, it is not difﬁcult to perform

numerous measurements at different points.

Two square markers of known size are utilized for

optical tracking. Tracking of the target object is per-

formed with the help of an object marker. A sensor

marker is used to determine location of the tactile sen-

sor tip and orientation of the sensor axis. In practice,

we used three markers attached to the top and sides

of the tactile sensor. Usually it is possible to discover

two of three markers and to use both for sensor tip

position determination with subsequent averaging.

3 TRANSFORMATIONS AND

SHAPE DETERMINATION

In order to apply AR to visualization of tactile data,

it is necessary to estimate camera parameters, space

orientation of the organ, and space locations of the

tactile sensor tip at measurement moments. Mathe-

matically these requirements are equivalent to deter-

mination of perspective transformation and rigid body

transformation matrices for the target object and for

the tactile sensor.

Camera

Sensor

marker

Object marker

Figure 2: Object, camera, sensor, and markers. The object

marker yields transformation matrices for projection. The

sensor marker is used for registration of sensor spacial po-

sitions.

3.1 Projection Matrix

The relationship between a projected (video) image

and a three-dimensional object is described by a 4

× 4 projection matrix. Using this matrix, computer-

generated objects can be overlaid on real-world ob-

jects. We use the open-source library ARToolkit to

track small square markers and to determine their

transformation matrices in real time. The relationship

between a camera screen coordinate system and an

object marker coordinate system (see Fig. 2) can be

expressed as













= P













= PT













, (1)

where h is a scale factor; (x

, y

) are the camera

screen coordinates ; (X

, Y

, Z

) are the camera co-

ordinates; (X

, Y

, Z

) are the object marker coordi-

nates; P is a perspective projection matrix, and T

a rigid transformation matrix from the object coordi-

nate system to the camera coordinate system.

The perspective projection matrix P is predeter-

mined by a camera calibration procedure with the

use of four vertices of the object marker. The rigid

transformation matrix T

for the object is calculated

in real-time. These matrices are speciﬁed inside the

usual computer graphics pipeline for drawing three-

dimensional objects correctly superimposed on video

frames.

3.2 Sensor Space Positions

To determine three-dimensional positions of points

where measurements of tissue stiffness are per-

formed, images of the sensor and object markers are

USING AUGMENTED REALITY FOR REAL-TIME VISUALIZATION OF TACTILE HEALTH EXAMINATION

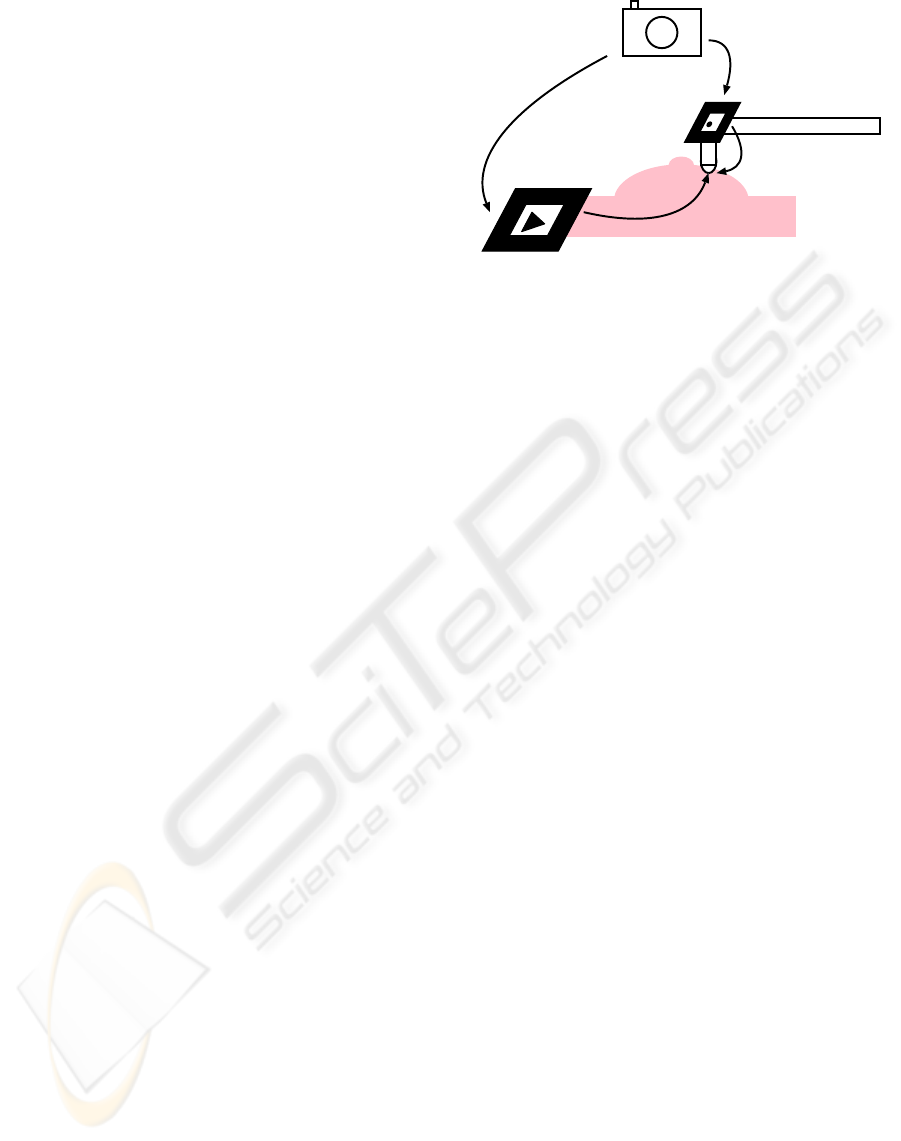

Figure 3: Estimating tip position p

for the tactile sensor.

For calibration, it is necessary to place the sensor tip at the

line intersection.

used. The measurement procedure with the use of two

markers is illustrated by Fig.2.

Let p

be a sensor tip position in the sensor marker

coordinate system. The same measurement position

in the object marker coordinate system p

is calcu-

lated as

= T

−1

. (2)

Here T

and T

are rigid body transformations from

the object coordinate system and from the sensor co-

ordinate system to the camera coordinate system, re-

spectively.

Since the sensor tip and the sensor marker do not

occupy same space position, a calibration procedure

is used to establish additional transformation from the

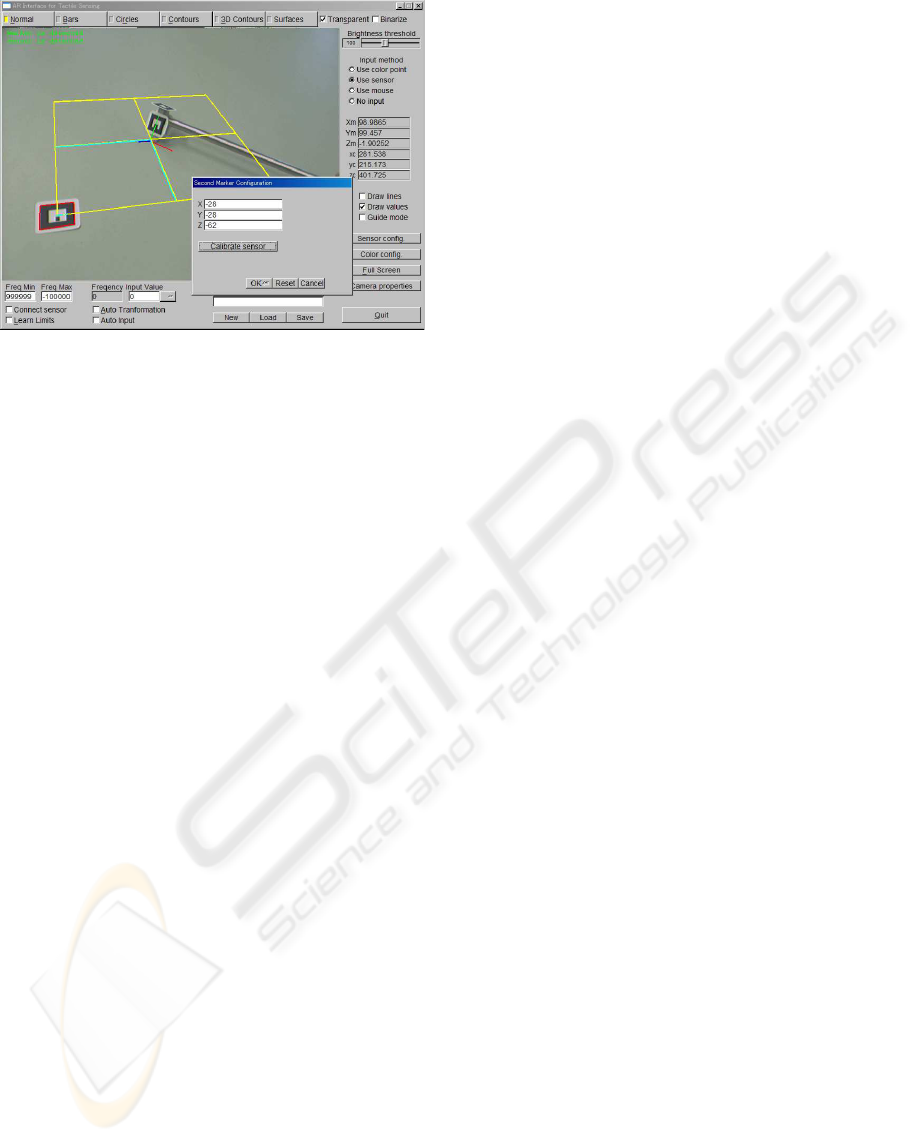

sensor marker to the sensor tip. The user interface for

calibrating the sensor is shown in Fig. 3. The object

marker is placed on a plane surface. Two lines in-

tersecting at z = 0 of the object marker plane are

drawn in video image. For calibration, the user puts

the sensor tip at the line intersection. The position p

is estimated as

= T

−1

, (3)

where p

is the position of line intersection in the ob-

ject marker coordinate system.

4 VISUALIZATION PROCEDURE

Our AR system provides real-time visualization of

tactile data in several forms depending on the amount

of data and user preference. New measurements of

stiffness values are immediately incorporated into the

graphical presentation. In the beginning of a mea-

suring process, when the number of measurements is

small, simple visualization like drawing points with

numerical values can be appropriate. As the number

of points accumulates, it is desirable to use more so-

phisticated visualization technique like contour maps.

During compositing of visualization pictures com-

bined with real-world video,the non-ﬂat shape of

the target object (human organ under examination)

should be accommodated. Using sensor spatial po-

sitions, the surface of the human organ is constructed

and the visualization image is projected onto this sur-

face.

4.1 Surface and Data Approximation

During measurement process, spatial positions of the

tactile sensor tip are determined and recorded. These

positions are directly used in simple point-wise visu-

alization techniques like bars. For drawing smooth

contour graphs, it is necessary to derive smooth sur-

face approximations and possibly smooth data ap-

proximations. We have selected a multi-level B-

splines approximation (MBA) approach (Lee et al.,

1997). The B-spline surface is deﬁned by a con-

trol lattice Φ over the approximation domain. Let

be the value at the ij-th control point on the lat-

tice Φ, where (i, j) for i = −1, 0, ..., m + 1 and

j = −1, 0, ..., n + 1, and m, n are numbers of control

points in x and y directions. Coordinates x and y are

normalized in such a way that 0 ≤ x < 1, 0 ≤ y < 1.

The B-spline approximation f is deﬁned by

f(x, y) =

k=0

l=0

(s)B

(t)φ

(i+k)(j+l)

, (4)

where i = ⌊x⌋ − 1; j = ⌊y⌋ − 1:, s = x − ⌊x⌋;

t = y − ⌊y⌋; and B

and B

are the uniform cubic

B-spline basis functions. It is necessary to ﬁnd values

for φ

that yield the value z

at (x

, y

) as

k=0

l=0

− ⌊x

⌋)B

− ⌊ y

⌋)φ

. (5)

Pseudo-inversion is used to ﬁnd the values φ

at the

control points. The approximation domain is sub-

divided hierarchically up to a speciﬁed level. The

surface created by the MBA is controlled by initial

, n

) and ﬁnal grid sizes (m

, n

). We use the

MBA approach for approximating both the shape of

the object and the tactile data with m

= n

= 1

and m

= n

= 256. The MBA approximation can

be done in real time since each new additional point

affects only 16 surrounding control points.

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

4.2 Visualization Techniques

Our graphical user interfaceenables several visualiza-

tion techniques. Switching among these visualization

techniques can be easily done at any time.

The visualization techniques of the AR system for

tactile data visualization include the following:

• Raw data. Tactile data is shown as points and

numbers, which represent measurement spatial lo-

cations and measured values.

• Circles. Circle centers correspond to the measure-

ment locations; circle areas are proportional to the

stiffness values; different circle colors are used for

different values.

• Bars. Measurement results are represented by

bars, drawn normal to the object marker. Bar

heights are proportional to result values. Colors

from magenta to red are used to draw bars for dif-

ferent measured values.

• Contours. Tactile data is presented as color con-

tours. Contour borders correspond to constant

stiffness values.

The ﬁrst three techniques are useful for visual-

ization of small amounts of data. When more data

points are accumulated, the contour technique pro-

vides better visualization of measurements. For all

visualization techniques, it is possible to toggle and

adjust transparency of computer-generated objects in

order to avoid occlusion of the real-world objects.

Generation of contours is based on a texture inter-

polation algorithm. A triangular mesh with vertices

at the measurement points is created using Delaunay

triangulation. Coordinates of a one-dimensional color

texture (gradation strip) are speciﬁed at vertices of the

triangular mesh. A contour picture is formed by tex-

ture interpolation inside each triangle. If B-spline ap-

proximation is used, then a triangular mesh is gener-

ated on the basis of control points, and geometry and

stiffness values are interpolated for triangle vertices.

The contour map is rendered to texture memory

using orthographic projection. Then, the contour map

texture is applied to the approximated geometric sur-

face, which is rendered using perspective projection

with predetermined camera parameters. Fig. 4 illus-

trates the rendering procedure for visualization of tac-

tile information on an object surface.

4.3 Example of Visualization

Our augmented-reality visualization has been pro-

grammed in the C++ language. The OpenGL graph-

ics library and ARToolkit marker tracking library

are used for real-time visualization of tactile data.

Gradationstrip

Tactiledata

Sensorlocations

Contourmap

Geometricsurface

Framebuffer

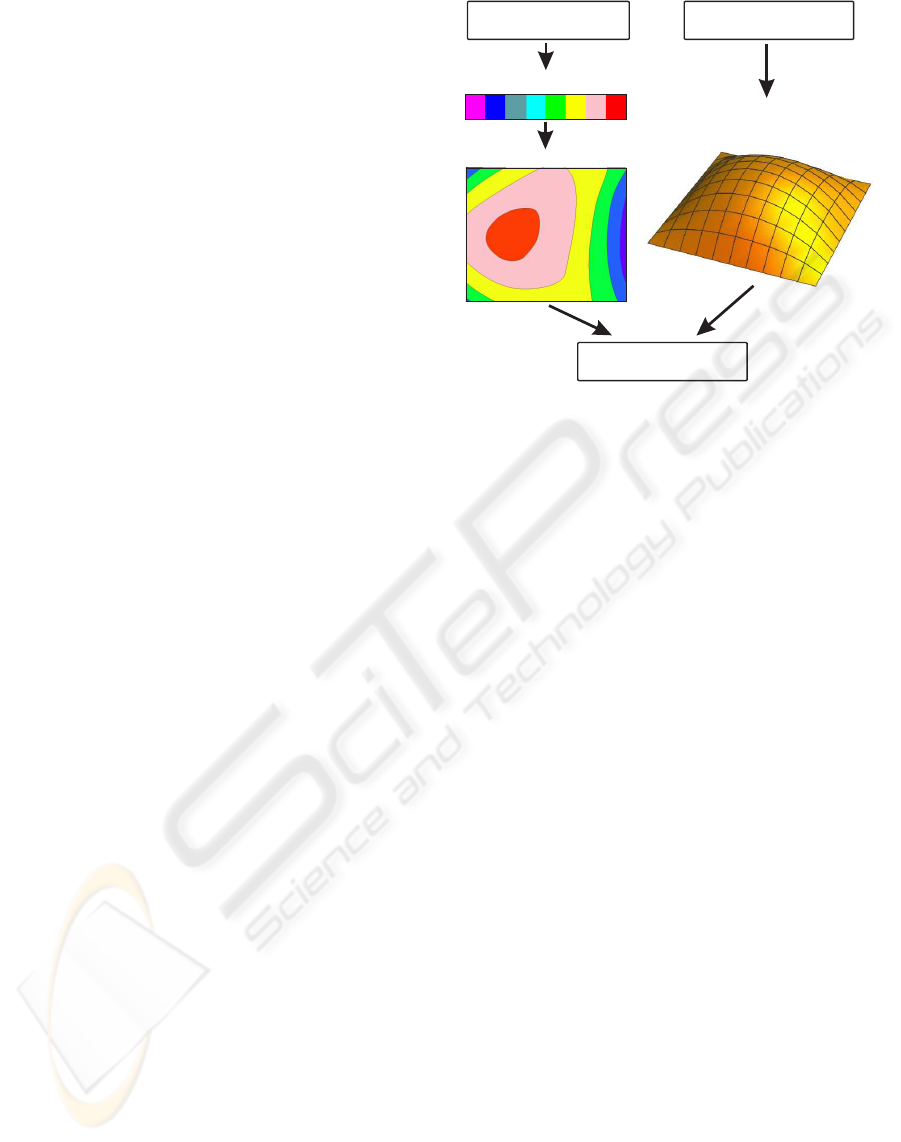

Figure 4: Rendering procedure for visualization of the tac-

tile information on the object surface.

Around 40% of the CPU is typically ocupied during

real-time measurement and visualization procedure

on a notebook computer with 3.2 GHz Intel Pentium

4 processor.

Fig.5 presents an example of tactile examination

using a breast cancer model. The head-mounted dis-

play with a video camera and a tactile sensor with

the markers are shown in Fig. 5a. Figs. 5b,c,d respec-

tively illustrate tactile data visualization as raw data,

circles, and bars. In Fig.5e data is represented as a

contour plot based on Delaunay triangulation. Be-

cause of small number of points, the contour picture is

not smooth. Contours produced with B-spline surface

and data approximation are shown in Fig.5f.

5 CONCLUSION

An augmented-realitysystem for support of tactile ex-

amination and for visualization of tissue stiffness data

has been developed. Visual tracking of two markers,

attached to the examined human organ and to the tac-

tile sensor, is used. The object marker allows deriva-

tion of transformation matrices for augmentation of

real-world video by computer generated information.

The sensor marker helps to register spatial positions

of the tactile sensor during measurements. Several vi-

sualization techniques are employed for AR presenta-

tion of tactile data. Simple data representations can be

used for small quantities of data. When enough data

is accumulated, the measured stiffness values are ap-

proximated by multi-level B-splines and depicted as

contours projected on the human organ.

USING AUGMENTED REALITY FOR REAL-TIME VISUALIZATION OF TACTILE HEALTH EXAMINATION

a b

c d

e f

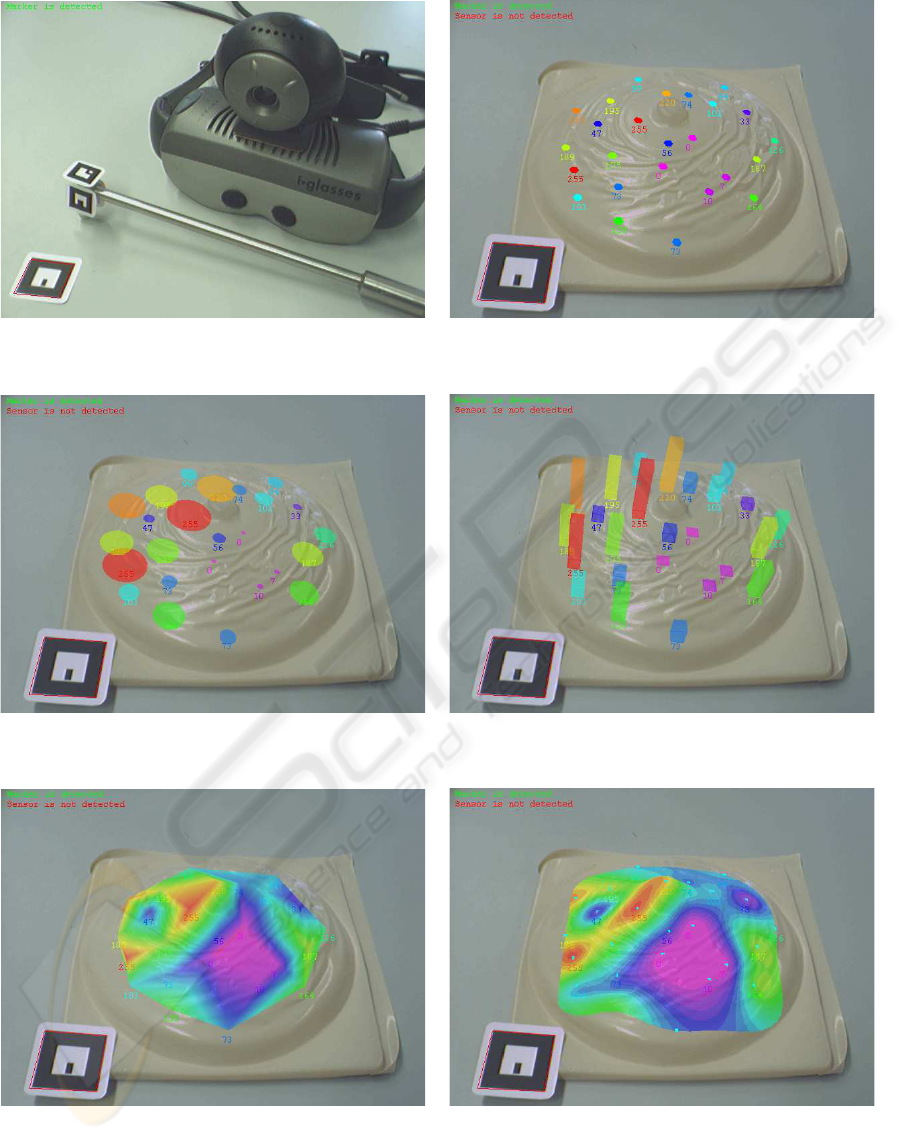

Figure 5: Snapshots of sensing breast cancer model: a) head-mounted display with a video camera and a tactile sensor with

the markers; b) raw stiffness data; c) circles; d) bar representation; e) contours based on Delaunay triangulation; f) contours

generated with B-spline approximation.

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

The developed augmented-reality system has been

tested on a breast cancer model and in experiments

with internal animal organs. The correct combination

of virtual objects with real-world video at reasonable

frame rates with acceptable picture delay have been

conﬁrmed. While hand palpation implies involvement

of a highly qualiﬁed physician, it is possible to imag-

ine that the developed AR system could be used for

remote diagnosis since it does not require high medi-

cal skills.

A video demonstrating the use of the system is

available at http://www.u-aizu.ac.jp/ niki/research/ar/.

REFERENCES

ARToolkit, http://www.hitl.washington.edu/artoolkit/.

Azuma, R.T. (1997) A Survey of Augmented Reality. Tele-

operators and Virtual Environments, 6: 355–385.

Bajura, M., Fuchs, H. and Ohbuchi, R. (1992) Merging vir-

tual objects with the real world: Seeing ultrasound

imagery within the patient. Computer Graphics, 26:

203–210.

Balasingham, I., Samset, E., Hansen, A. and Audral L.

(2003) An interactive augmented reality 3D visualiza-

tion system for destroying liver tumor using cryoabla-

tion. International Congress Series, 1256: 690–695.

Birkfellner, W., Figl, M., Huber, K. et al. (2002) A head-

mounted operating binocular for augmented reality vi-

sualization in medicine: design and initial evaluation.

IEEE Trans Medical Imaging, 21: 991–997.

Das, M., Sauer, F., Schoeph, U.J. et al. (2006) Augmented

reality visualization for CT-guided interventions: sys-

tem description, feasibility and initial evaluation in an

abdominal phantom. Radiology, 240: 230–235.

Girnyk, S., Barannik, A., Barannik, E. et al. (2006). The

estimation of elasticity and viscosity of soft tissues in

vitro using the data of remote acoustic palpation. Ul-

trasound in medicine and biology, 32: 211–219.

Kaufman, C.S., Jacobson, L., Bachman, B.A. and Kauf-

man, L.B. (2006). Digital documentation of the phys-

ical examination: moving the clinical breast exam to

the electronic medical record. The American Journal

of Surgery 192: 444-449.

Kearney, T.J., Airapetian, S. and Sarvazyan, A. (2004).

Tactile breast imaging to increase the sensitivity of

breast examination. Journal of Clinical Oncology,

2004 ASCO Annual Meeting Proceedings, 22: 1037.

Konishi, K. et al. (2005) Augmented reality naviga-

tion system for endoscopic surgery based on three-

dimensional ultrasound and computed tomography:

Application to 20 clinical cases. Int. Congress Series,

1281: 537–542.

Lee, S., Wolberg, G. and Shin, S.Y. (1997) Scattered data

interpolation, IEEE Trans. on Visualization and Com-

puter Graphics, 3: 228–244.

Omata, S. and Terunuma, Y. (1992). New tactile sensor like

the human hand and its applications. Sensor and Ac-

tuators A, 35: 9–15.

Rosenthal, M., State, A., Lee, J. et al. (2002) Augmented

reality guidance for needle biopsies: an initial ran-

domized, controlled trial in phantoms. Medical Image

Analysis, 6: 313–320.

Sakas, G. (2002) Trends in medical imaging: from 2D to

3D. Computers and Graphics, 26: 577–587.

Srikanchana, R., Wang, Y.J., Freedman, M.T. and Nguyen,

C.C. (2002). Tactile imaging of palpable breast can-

cer. Medical Imaging 2002: Physics of Medical Imag-

ing (L.E. Antonuk, M.J. Yaffe Eds.), Proc. SPIE, 4682:

792–800.

USING AUGMENTED REALITY FOR REAL-TIME VISUALIZATION OF TACTILE HEALTH EXAMINATION
