A VIRTUAL REALITY SYSTEM FOR MEDICAL IMAGING

Giuseppe De Pietro, Ivana Marra and Carmela Vanzanella

Institute for High-Performance Computing and Networking, CNR, Via P. Castellino111, Naples, Italy

Keywords: OSG, Immersive Medical Imaging, VR Juggler, 3D interaction.

Abstract: In recent years significant advances in the field of Immersive Medical Imaging Analysis have made it

essential to many disciplines related to medicine, such as radiology, neurology, cardiology, radiotherapy.

Starting from three dimensional (3D) image datasets produced by computed tomography (CT) or magnetic

resonance imaging (MRI) scans, for these areas it can be very useful to use simulated visualizations of

human organs. By viewing the inside of anatomical structures and interacting with them, doctors can better

understand the data of interest for medical training, surgical simulations, examination and diagnosis aims.In

this paper we present a virtual reality system, that involves new software components based on top of open-

source and cross-platform libraries; it consists of a set of services implementing immersive 3D navigation

and interaction of virtual representations of human organ structures, starting from DICOM data.

These features have been developed to be integrated into a medical imaging component-based architecture,

which at present is under development.

1 INTRODUCTION

The field of Virtual Reality for Medical Image

Analysis has been strongly investigated over the past

decade. Innovations in imaging and immersive

technologies and techniques have enabled many

improvements in 3D visualization of complex

anatomical models (Bartz, 2005

). However, existing

software tools have only basic support for

interaction and immersive features. Moreover, many

commercial applications for medical imaging are

platform dependent and freeware ones are often

developed for specific fields of medicine on the top

of proprietary libraries (Rosset, Spadola, Ratib,

2004

) so to make it difficult to easily implement new

features when needed.

In this paper we propose an implementation of

an open-source software components system able to

provide immersive visualization and interaction with

3D models (Angel, 2002) which are reconstructed

from DICOM image series (Suetens, 2002

); the

system is essentially based on Open Scene Graph

(OSG www.openscenegraph.org) and Virtual

Juggler (VR Juggler www.vrjuggler.org) open-

source and cross-platform libraries.

OSG is a graphic library used to organize data

into scene graph structures, and to provide a set of

methods to efficiently handle 3D models. VR

Juggler allows to visualize, navigate and interact

with 3D models through different devices such as

data gloves, HMDs, sensors, and any Immersive

Projection Technology (IPT).

The developed system provides some of the most

used medical imaging functionalities such as the

selection of Region of Interest (ROI), Segmentation,

Co-Registration, Fusion and measurements on the

synthetic model, besides standard 3D visualization

and interaction features.

Another important characteristic of the

developed system is that it can be easily integrated

within the most popular freeware medical imaging

visualization toolkits.

Moreover, we developed a set of OSG-based VR

Juggler components which invoke some OSG

classes methods in order to encapsulate the

advanced features of both libraries.

The virtual reality system is based on a set of

components which have been tested by integrating

them into a software architecture we developed for

medical imaging applications (Von Rymon-Lipinski,

215

De Pietro G., Marra I. and Vanzanella C. (2007).

A VIRTUAL REALITY SYSTEM FOR MEDICAL IMAGING.

In Proceedings of the Second International Conference on Computer Graphics Theory and Applications - AS/IE, pages 215-220

DOI: 10.5220/0002075002150220

 SciTePress

Jansen, Hanssen, Lievin, Keeve, 2002). This architecture, which is shown in figure 1, is based on

open-source and cross-platform libraries,

combined and extended in order to support medical

imaging processing, basic 3D visualization and

interaction functionalities.

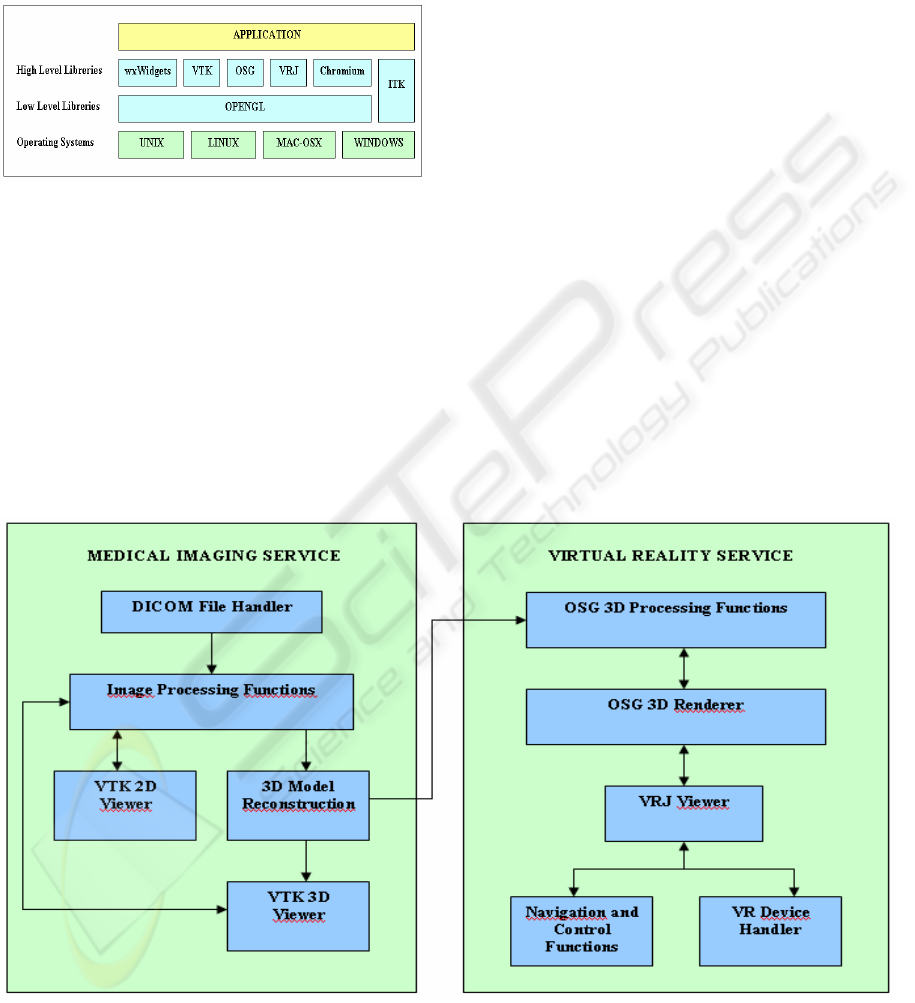

Figure 1: Software Architecture for Immersive Medical

Imaging Applications.

In particular, wxWidgets is used for GUI

implementation, VTK for 2D and 3D visualization,

while ITK for realizing image processing

functionalities.

In addition, if virtual reality is required, the Open

Scene Graph toolkit is used to organize data into

scene graph structures, and the VR Juggler

framework to provide the necessary interface to

virtual reality devices.

Additional C++ code provides efficient

integration of the above mentioned libraries and

adds new functionalities.

2 SYSTEM ARCHITECTURE

OVERVIEW

As said in the previous section, we are currently

developing a component-based framework for

immersive medical imaging, which essentially

implements two services (fig. 2):

1) the Medical Imaging Service,

2) the Virtual Reality Service

The first service provides the user with typical

functionalities for visualization and image

processing of medical data coming from DICOM

images, such as segmentation, co-registration,

fusion, and ROI.

Moreover, 3D models can be reconstructed both

through a surface and direct volume rendering.

Figure 2: Component-based Architecture.

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

216

The Virtual Reality Service gives the user all the

functionalities for immersive visualization and

interaction with the 3D model (Forsberg, Kirby,

2000). This service consists of five components:

1) the VRJ Viewer which is the component

for immersive visualization of the synthetic model.

It provides functionalities for different navigation

devices, active and passive stereoscopic systems,

and cave systems;

2) the OSG 3D Renderer which provides

both surface rendering and direct volume rendering

algorithms, to be applied on the model deriving from

the 3D reconstruction of volumetric data. It has been

designed and implemented as an independent

module from the VRJ Viewer, because they usually

need different computational resources;

Figure 3: OSG user-interface.

3) the OSG 3D Processing Functions is the

key component of the Virtual Reality Service.

Through a user-friendly interface (fig. 3) it is

possible to choose among several functionalities,

such as 3D model transformations, component

selection, bounding box extraction. All of them

allow the user to directly interact with the synthetic

scene, so to select a part of the object, to move the

camera in any direction within the scene, zoom in

and out, pan left or right, or change the 3D model

coordinates;

4) the Navigation and Control Functions

component which gives all the functionalities to get

a natural real-time interaction with the virtual

environment. A user can navigate around a virtual

scene using a control menu, through some pointing

device. For this aim we have used the VR Juggler

configuration manager paradigm combined with

OSG setting parameters, so to allow the application

to run in the virtual system described in the

following section;

5) the VR Device Handler supplies an

interface to easily integrate most of commonly used

virtual reality devices (HMD, Data Gloves, MoCap,

mouse, joystick, etc.) into applications. It is based

on the VR Juggler proxy paradigm, which hides

hardware details of the selected devices.

The above illustrated components offer the end-

user many functionalities, as described in the use-

case diagram of figure 4.

The most important ones are:

1. Navigate 3D world

2. Render mode

3. Transform object

4. Show bounding box

5. Show object

User

navigate 3D world

render mode

stereoscopic mode

transform object

show bounding box

show object

volume rendering

surface rendering

move

rotate

component

point

wireframe

fill

Figure 4: Use Case Diagram.

The Navigate 3D world allows the user to move

through a scene modifying its point of view by

implicitly changing camera movements. Moreover,

it is possible, with the same mechanism, to

implement rotate pan and scale functions.

The Render mode function allows to select

between two rendering techniques: Volume and

Surface. In particular, for Surface rendering it is

A VIRTUAL REALITY SYSTEM FOR MEDICAL IMAGING

217

vrj::App

vrj::GlApp

vrj::OsgAppMenubar

osg::Referenced

osg::NodeVisitorosg::Object MenuCommandCallback

MenuCallback

BoundingBoxEstractor

osg::Drawable osg::NodeCallback osg::Drawable::EventCallback

RefAxes RefGrid

osgGA::GUIEventHandler

TransformManager PickHandler

Application

Figure 5: Component Class Diagram.

possible to select between three representations

(point, wireframe, fill) in order to visualize a 3D

model from abstraction level of detail.

The Show bounding box functionality is used to

optimize geometrical operations by using simple

volumes to contain more complex objects and it is

useful to show the actual size of a partially visible

part of the model from the actual angle-shot.

The Transform object refers to the geometric

manipulation process of the object transform matrix,

and allows to modify the object coordinates to

translate and rotate itself. It should be noted that

such transformations are different from the

Navigation ones because they are linked to the

object itself and not with the camera.

Once the model has been loaded, the user

through the Show object use case can choose an

object within the scene and interact with it.

3 SOFTWARE

IMPLEMENTATION

The Visualization and Interaction Components of

Virtual Reality Service, presented in the previous

section, have been implemented in C++; many

support classes derive from OSG and VR Juggler

libraries. We tested the implementation of the two

software services, the Medical Imaging Service and

the Virtual Reality Service, by using some DICOM

image data sets, coming from MRI and CT scans.

The modular approach used for the implementation

is strongly related to Scene Graph (SG) data

structure, which is used to efficiently represent

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

218

complex scenes in the graphical environment. In

figure 5 the diagram of the main classes, used to

develop software components, is shown. Most of

these classes can be grouped into three categories:

A) Basic Graphic Classes, which provides

methods for graphic interfaces and for setting

environmental graphic options;

B) Events Classes, which includes all the classes

used to handle events generated by user’s

commands;

C) Application Class, which includes the

methods to properly integrate OSG and VR Juggler

libraries

3.1 Basic Graphic Classes

BoundingBoxExtractor class calculates the bounding

boxes of all objects in the scene during the traversal

of the scene graph. The user can select an object and

visualize its bounding box to define a bounding box

of a scene graph.

MenuBar is used to generate the graphical menu

with push-buttons. When an instance of this class is

created, it executes one or more calls to the

addButton () method specifying the data of the push-

buttons to be added; therefore the buildSceneGraph

() method is called in order to generate the subgraph

of the menu. At this point the instance of the

MenuBar class can be destroyed;

RefAxes class is responsible for the visualization

of the reference axes. It inherits from osg::Drawable

class which allows to design geometries

compounded by lines, triangles, etc. An instance of

this class visualizes a system of three orthogonal

axes in the left inferior angle of the window. The

guideline of the axes is calculated for every frame

and is updated according to camera orientation;

RefGrid class allows the visualization (if

required) of the reference grid. Like RefAxes class it

inherits from osg::Drawable class. Instance of this

class visualizes a grid with variable dimension and

step, layered on a plane with z=0.

3.2 Event Classes

MenuCommandCallback is a virtual class in which

are defined the virtual methods for activate or

disable the menu commands.

MenuCallback class inherits from the previous

class and implements the virtual methods enable()

and disable() which are called by an activation/de-

activation action from the menu.

PickHandler class intercepts the mouse events to

make possible the selection and the highlighting of

the nodes of interest of the 3D model. This is

obtained through Application::selectNode() and

Application::highlightNode() methods.

TransformManager class manages the

transformations (translation and rotation) on the 3D

model. It is an event handler that concurs to modify

the transformation matrix of a MatrixTransform

node. These modifications are performed according

to the user input device movements.

3.3 Application Class

A very important class, which is not included in the

previously mentioned class categories is the

Application class.

Application is the core class of the whole

system. Through the vrj::App interface, the VR

Juggler kernel runs an instance of the class and

manages all the computations required by the user

inputs, updates consequently the 3D scene and can

detect collisions among the objects.

In order to have an integrated use of OSG and

VR Juggler, the Application class implements the

vrj::OsgApp::initscene() method which initializes

the SG structure, that represents all the 3D scene

elements. The currently active SG is accessed

calling the vrj::OsgApp::getScene() method

whenever it is required (i. e. for rendering or

updating aims).

4 SYSTEM PROTOTYPE

We developed a first prototype of the Virtual Reality

System implementing the software architecture

described in section 2.

This prototype includes the following hardware

devices:

 a graphical bi-processor workstation;

 a Stereoscopic Video Projection System,

with two DLP 3000ANSI LUMEN

projectors and a 1,5X2 Mt screen;

 a HiRes900 Cybermind Head Mounted

Display;

 an HP iPAQ hx2490 Pocket PC with PDA

functionalities.

A VIRTUAL REALITY SYSTEM FOR MEDICAL IMAGING

219

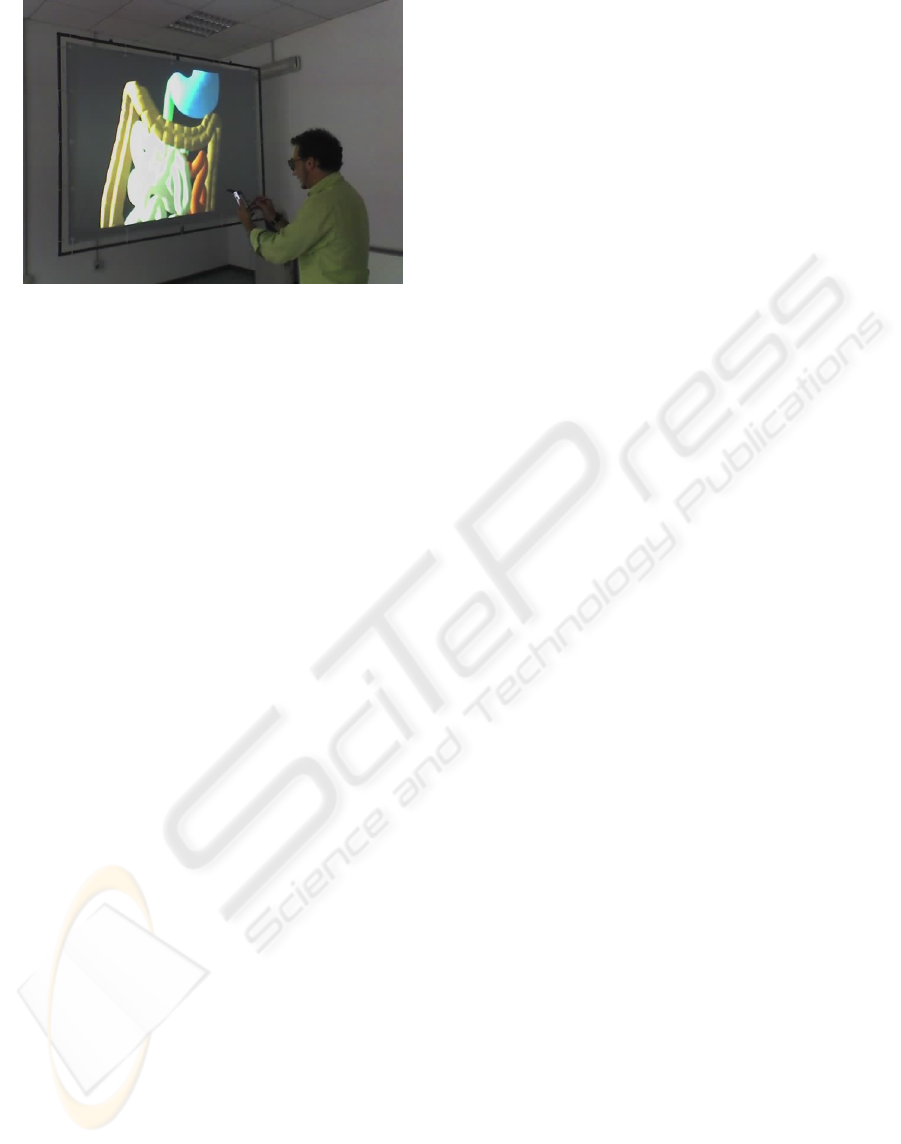

Figure 6: VR System.

In figure 6 it is shown the application used for

testing the whole system. It consists of immersive

stereoscopic visualization of a 3D model

representing a human gut obtained from a series of

DICOM slices acquired as CT datasets scans.

Through a PDA, the user is able to navigate and

interact with the model in a very user-friendly

manner.

5 CONCLUSIONS AND FUTURE

WORK

In this paper we presented a system for immersive

medical imaging.

It is based on visualization and interaction

components which have been realized on the top of

Open Scene Graph and VR Juggler open source

libraries, and integrated into a software architecture

for immersive medical imaging applications

currently under development.

The modularity of the Virtual Reality System can

allow an easy extension of its capabilities. At

present, we are working at the implementations of

some crucial medical imaging functionalities, such

as ROI, Segmentation and Image Fusion, so to make

them work directly on 3D model. In particular, to

reach this aim we are extending some VTK classes

with new methods, and integrating them directly into

VR Juggler, without switching between 2D and 3D

data representation, whenever some kind of 3D

model manipulation is required.

Finally, we are testing effective performance

improvements for highly complex scenes through

the parallelization (Bajaj, Ihm, Koo, 1999) of the

rendering phase.

REFERENCES

Dirk Bartz , “Virtual Endoscopy in Research and Clinical

Practice”ACM CCS: I.3.7 Computer Graphics:

Three-dimensional graphics and realism, J.3

Computer Applications: Life and Medical Sciences

Volume 24 (2005), number 1 pp. 111–126.

Rosset A., Spadola L., Ratib O., “OsiriX: an open-source

software for navigating in multidimensional DICOM

images”, Journal of digital imaging: the official

journal of the Society for Computer Applications in

Radiology., Springer-Verlang .

Von Rymon-Lipinski, B., Jansen, T., Hanssen, N., Lievin,

M., Keeve, E., 2002. A software framework for

medical visualization. In Poster Compendium of IEEE

Visualization_02, pp. 100–101.

P. Suetens, “Fundamentals of Medical Imaging”,

Cambridge University Press.

Andrew S. Forsberg, Robert M. Kirby, David H. Laidlaw,

George E. Karniadakis, Andries van Dam, and

Jonathan L. Elion.” Immersive virtual reality for

visualizing flow through an artery”. In Proceedings

Visualization ’00. IEEE Computer Society Press,

2000.

E. Angel, “Interactive Computer Graphics”, ed. Addison

Wesley.

Chandrajit Bajaj, Insung Ihm, Gee-Bum Koo, et al.

“Parallel Ray Casting of Visible Human on

Distributed Memory Architectures”, Proc on Data

Visualization '99.

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

220
