PORTING LEGACY APPLICATIONS TO IMMERSIVE VIRTUAL

ENVIRONMENTS

A Case Study

Kenny Gruchalla, Jonathan Marbach

Department of Computer Science, University of Colorado at Boulder, USA

Mark Dubin

Department of Molecular,Cellular, and Developmental Biology, University of Colorado at Boulder, USA

Keywords: Immersive visualization, molecular visualization, virtual reality, software engineering, biology.

Abstract: Immersive virtual environments are becoming increasingly common, driving the need to develop new

software or adapt existing software to these environments. We discuss some of the issues and limitations of

porting an existing molecular graphics system, PyMOL, into an immersive virtual environment. Presenting

macromolecules inside an interactive immersive virtual environment may provide unique insights into

molecular structure and improve the rational design of drugs that target a specific molecule. PyMOL was

successfully extended to render molecular structures immersively; however, elements of the legacy

interactive design did not scale well into three-dimensions. Achieving an interactive frame rate for large

macromolecules was also an issue. The immersive system was developed and evaluated on both a shared-

memory parallel machine and a commodity cluster.

1 INTRODUCTION

As immersive environments become more

ubiquitous, so does the desire to adapt legacy three-

dimensional applications to operate within these

environments. However, tightly integrating the

functionality, particularly interactive functionality,

of a legacy three-dimensional application within an

immersive virtual environment (IVE) may not be

possible without major redesign of the application's

architecture. This paper addresses design issues,

implementation issues, and the overall effectiveness

of extending PyMOL (DeLano 2002), an existing

open-source molecular graphics software system, to

support the visualization and manipulation of virtual

macromolecules within an IVE.

PyMOL was successfully extended using

CAVELib

to render its molecule representations

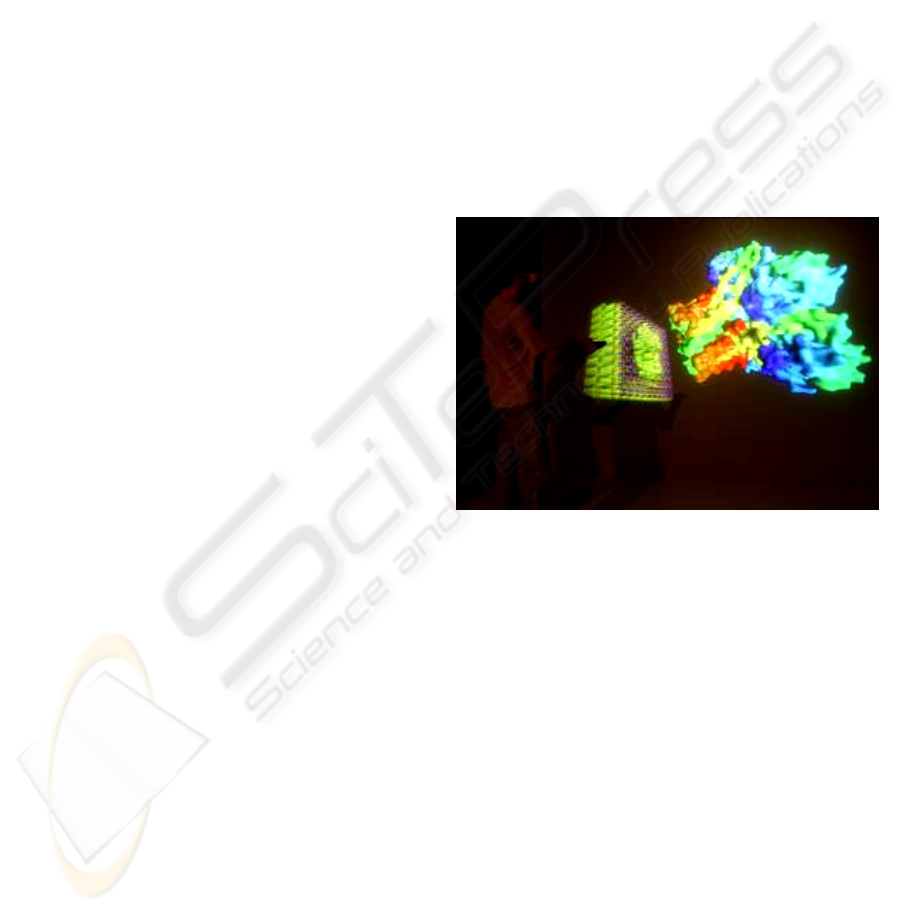

inside a CAVE-like IVE. This allows

crystallographers to physically walk around the

macromolecule representations and view them from

multiple perspectives. Extending the rendering

capabilities was straight-forward; however,

integrating the interactive molecular editing features

of PyMOL was less successful. The initial intent was

to provide a true three-dimensional interface for all

the molecular editing capabilities of PyMOL.

Providing this interface was hindered by two

underlying design principles of PyMOL. First,

virtual objects are selected in PyMOL using an off-

screen buffer color-coding scheme, which is

inappropriate for immersive environments.

Secondly, all PyMOL editing is done directly to the

chemical data structures and not to their graphic

representations. For large molecular structures this

introduces an inefficiency that makes interactive

editing impossible. Therefore, our port is currently

incomplete: it only allows the manipulation

(translation and rotation) of complete molecular

structures but not individual atoms and bonds.

However, this is still a useful result, allowing

crystallographers to investigate the fitting between

two or more molecules.

This work is motivated by a larger pilot study to

determine if there is added value in using immersive

visualization as a molecular research tool. The shape

179

Gruchalla K., Marbach J. and Dubin M. (2007).

PORTING LEGACY APPLICATIONS TO IMMERSIVE VIRTUAL ENVIRONMENTS - A Case Study.

In Proceedings of the Second International Conference on Computer Graphics Theory and Applications - AS/IE, pages 179-184

DOI: 10.5220/0002078401790184

 SciTePress

of a molecule provides the basis for its function.

This is the principle behind rational drug design,

which uses structural information to design drugs

that bind with high affinity and specificity to a

therapeutic target. The effective visualization of

three-dimensional molecular structure can play a

critical role in understanding molecular function,

leading to better drug design. However,

understanding the complex irregular geometry of

multiple macromolecules is a daunting task. Even

more complicated is interacting with and

manipulating these complex three-dimensional

structures. Therefore, immersive visualization of

molecule structures has long been proposed to cope

with the complex three-dimensional nature of

molecule biology (Ihlenfeldt 1997).

There exists a common intuition that an

immersive virtual environment can provide an

improved interface to view and interact with

complex three-dimensional datasets compared to the

more traditional graphics workstation (van Dam

2000). This intuition is based on the fact that an IVE

provides the user with an egocentric three-

dimensional point-of-view, allowing the user to view

and interact with the data space using “natural

skills.” There have been recent studies that have

shown that some three-dimensional tasks can be

improved when the data is presented and

manipulated in an IVE (Pausch 1997, Arns et al.

1999, Swan et al. 2003, Gruchalla 2004). However,

the results are mixed. Several of these and other

studies have also shown reduced performance in

accomplishing various tasks in an IVE (Pausch

1997, Arns et al 1999). The suggestion is that the

applicability of an IVE is highly task dependent.

Therefore, the principle thesis of our larger effort is

to determine if an immersive interface can improve

the rational design of drugs that target a specific

molecule.

2 PYMOL

PyMOL is a powerful and versatile open-source,

cross-platform molecular graphics system with an

embedded Python interpreter. It is capable of real-

time visualization using OpenGL

and the

generation of high-quality, ray-traced images.

PyMOL supports most of the common

representations for molecular structures: wire bonds,

cylinders, spheres, ball-and-stick, dot surfaces, solid

surfaces, wire meshes, backbone ribbons, and

cartoon ribbons. Proteins and electron densities can

be imported from many file types (e.g., PDB, SDF,

and MOL) (DeLano 2002).

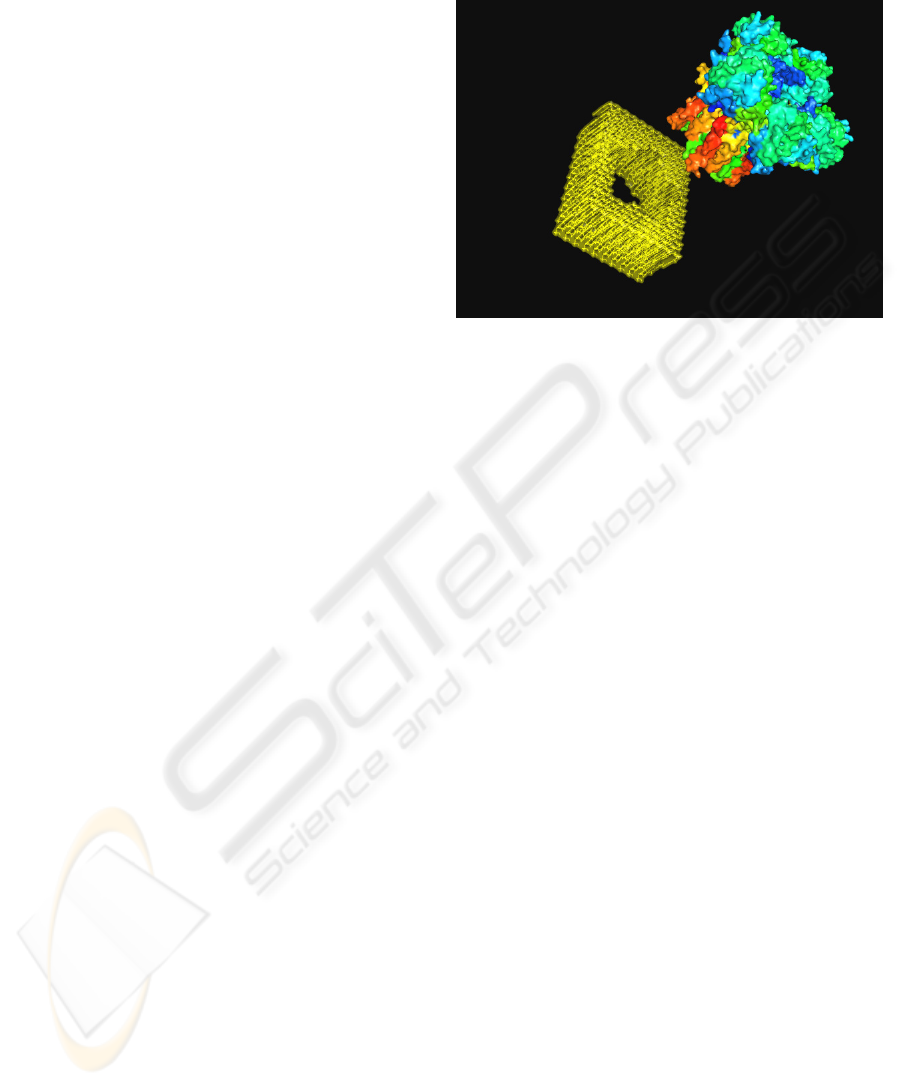

Figure 1: A PyMOL rendered visualization of a

membrane-bound protein docking to a membrane

(yellow).

PyMOL is written in C, but its primary interface

is an embedded Python interpreter. The basis for its

sophistication is the PyMOL scripting language, a

superset of Python. All of the features of PyMOL

are accessible through a command-line interface.

PyMOL also provides an external Tcl/Tk GUI and a

simple internal OpenGL menu system. Both are

merely wrappers around PyMOL scripting

commands: button presses in the GUI generate

PyMOL script that is then evaluated by the

embedded interpreter (DeLano 2002).

There are several immersive molecular

visualization tools that have already been developed.

VRMol is an immersive application that allows for

the interactive investigation of multiple complex

molecules (Hasse et al. 1996). RealMOL is another

more recent example of an interactive immersive

molecular research tool (Ai and Fröhlich 1998).

However, in the context of our larger research goals,

extending PyMOL provided several advantages over

existing immersive molecular applications. The

driving motivation behind this work is to design an

empirical experiment to study the benefits of using

immersive visualization in rational drug design. A

team of crystallographers, from which we will draw

our test subject population, recommended PyMOL

for its sophistication, quality of visualizations, and

user-adjustable parameters. PyMOL is currently

being used within this target population as a desktop

molecular research tool. Drawing from an

experienced user-base will allow us to conduct a

comparative study of a real-world application on

real-world problems. A secondary factor in the

selection of PyMOL was that it has been released

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

180

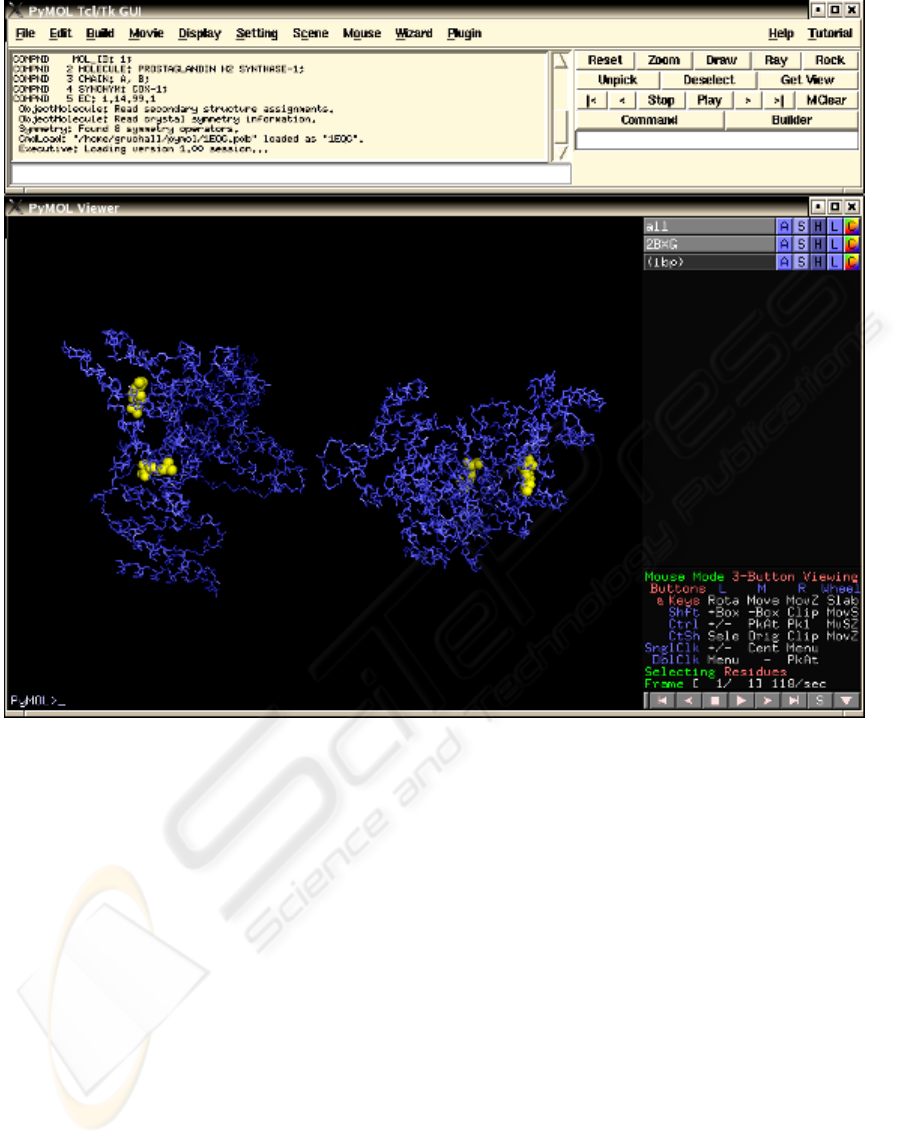

Figure 2: Desktop version of PyMOL (DeLano 2002). PyMOL provides a Python-

ased scripting language, which can be

used directly at the command prompt or indirectly through the Tcl/Tk GUI or the simple OpenGL menu system.

under an open-source software license. This

provides us the opportunity to contribute to both the

immersive visualization and molecular research

communities.

3 IMMERSIVE PORT

The intent of the project was to extend PyMOL's

three-dimensional rendering and manipulation

capabilities into an IVE, allowing crystallographers

an egocentric view of molecular structures.

Furthermore, the scientist would be able to

manipulate the macromolecule at a component level:

selecting and manipulating atoms, bonds, and

structures directly using a six-degree of freedom

input device. The goal of the port was not to replace

the desktop version of PyMOL, but rather to

augment and enhance the desktop version with an

immersive counter-part. Three architectural areas of

PyMOL had to be addressed to provide this

functionality: the rendering architecture, thread

control architecture, and interaction architecture.

PyMOL provides two mechanisms to render

molecular structures: the standard OpenGL pipeline

for interactive visualizations, and a built-in ray-

tracer for generating static, high-quality images for

publication. For the purposes of this port, we were

only interested in interfacing with PyMOL's

interactive visualization capabilities. We used

CAVELib

to handle the hardware-specific details

of the IVE display system. An immersive display

callback function was added to PyMOL that is called

from the CAVELib

display loop for each rendered

view. CAVELib

handles the necessary projections

for each view and synchronization among views in

the IVE. The immersive display function is almost

identical to the PyMOL display function, with two

exceptions: it allows CAVELib

to handle

PORTING LEGACY APPLICATIONS TO IMMERSIVE VIRTUAL ENVIRONMENTS - A Case Study

181

stereoscopic rendering, and it bypasses the

additional back-buffer render used in the picking

scheme discussed below.

PyMOL is a multi-threaded application with

separate threads for the rendering and interaction,

the embedded Python interpreter, and the Tcl/Tk

GUI. This architecture was easily extended to handle

the multiple threads used to render each immersive

view. This involved simply adding an additional

mutex to prevent resource competition between the

immersive displays and the windowed display, and

between the immersive interactions and the

command driven interactions. Although the

development required to extend the thread

architecture was minimal, the difficulty of

understanding the PyMOL thread control should not

be understated. Thorough understanding of the

PyMOL and CAVELib

threads was critical in the

success of the port.

PyMOL provides limited but functional

molecular editing capabilities. From the command-

line, entire molecular structures can be manipulated

(e.g., rotated, translated). PyMOL also provides

limited mouse-driven editing capabilities. These

capabilities allow the individual atoms and bonds of

a protein to be selected and transformed. Extending

these capabilities to a true three-dimensional

interface was hindered by two underlying design

principles of PyMOL. First, virtual objects are

selected in PyMOL using a back-buffer color-coding

scheme. When the user clicks a mouse button, a

function renders each pickable object into the back-

buffer using a distinct color. The color at the mouse

position is read back, and is used to index an array

of visible objects. Unfortunately, this process does

not scale to a three-dimensional pointing device. The

position of the three-dimensional pointing device

cannot be projected into the two-dimensions of a

single back-buffer since there may be multiple views

in an immersive environment. This is further

complicated by stereographic projection, since there

may be multiple back-buffers per view. Extending

PyMOL's architecture to support data structures that

can be efficiently selected in three-dimensions will

require a sizable effort. As a temporary work-

around, we have provided the ability to select

objects from the command-line that can then be

manipulated within the IVE.

The second problem in adapting interactions into

three dimensions was the design of the data

structures used to model the molecular structures.

PyMOL editing is done directly to the chemical data

structures and not to their graphic representations:

transformations are applied to each individual atom,

then, the graphical representation of the molecule is

reconstructed from the transformed atoms. For large

molecules, the construction or reconstruction of

certain types of graphics representations (e.g., solid

surfaces) can cause a delay of several seconds. Since

most PyMOL interaction originates from the

command-line, this inefficiency was tolerable.

However, for manipulation of objects inside an IVE

the potential multiple-second lag between the user's

movements and the visualization response was

clearly unacceptable as operational feedback.

Indeed, if the internal structure of a molecule is

modified, the graphics representation may need to be

reconstructed. However, if the internal structure of a

molecule is not edited and only the molecule's

relative position or orientation has been changed, the

graphics representation does not have to be

reconstructed -- it can simply be transformed with a

transformation matrix.

Figure 3: User interactively docking a protein to a

membrane (yellow) inside an immersive virtual

environment.

To allow rapid independent manipulation of

complete molecular structures, we added

transformation matrices to encapsulate the position

and orientation of the graphics representations

during editing. This provides a crystallographer

means to investigate the fitting between two or more

molecules inside the IVE interactively (see Figure

3). Once the relative positions and orientations of the

graphical representations are decided upon, a

scripting command has been added to transform and

synchronize the chemical data structures with the

graphics representations. Currently, there are no

means to interactively modify internal molecular

structures from within the IVE.

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

182

4 RESULTS

System performance is critical, as our pilot users are

interested in visualizing and interacting with

macromolecules on the order of tens of thousands of

atoms. For example, the macromolecule 1GRU has

over 58,000 atoms (Ranson et al. 2001). Even a

medium-resolution surface representation of this

macromolecule has close to one million triangles. To

maintain satisfactory spatiotemporal correlation

between a user’s actions and system responses, an

update rate of at least ten frames per second must be

achieved (Bowman et al. 2005). Furthermore, the

application is stereoscopic, requiring two views to

be rendered per frame. Therefore, we would require

a throughput of twenty million Gouraud-shaded

polygons with specular highlighting per second. This

throughput figure is of course for one molecule only,

yet for the application to be of value to users, they

must be able to interactively manipulate multiple

molecules.

Our initial development efforts were carried out

on a 20-processor SGI Onyx 3800 with four

InfiniteReality3 graphics pipes. The appeal of

developing on such a machine is the simplicity of

software development: a single application is

executed on a single machine, with multiple

rendering threads running in parallel. The distinct

disadvantage of such a hardware environment is that

its graphics performance trails that of recent

hardware.

To deliver the performance necessary to maintain

interactivity, we ported our immersive version of

PyMOL to a four-PC cluster equipped with

QuadroFX 3000G graphics cards from NVidia. The

clear advantage of such a system is its high-

performance graphics capabilities and cost-effective

upgrade path, but this system incurs its own costs.

With four applications running simultaneously on

separate machines, synchronization becomes an

issue. CAVELib™ does provide synchronized

tracker and controller data to the application;

therefore, if the application responds

deterministically to these inputs, the cluster nodes

will behave identically. Unfortunately, there is no

mechanism that automatically synchronizes

application-specific events and data.

To avoid requiring that the user replicate

commands manually across the four PCs, we have

implemented a command distribution mechanism

using CAVELib™’s synchronized communication

functions. As described earlier, most of PyMOL’s

functionality is exposed through extensions to the

embedded Python interpreter, which accepts

commands as character strings. To achieve

command synchronization, we intercept the strings

before they are sent to the interpreter, and distribute

them to the remote cluster nodes. The only limitation

of this approach is that commands must be entered

on the master node, since CAVELib™ only exposes

a synchronized scatter operation from master to non-

master nodes. A major benefit of this approach is

that most user-initiated events, even from PyMOL

GUIs, are handled as command strings, so these are

automatically distributed and synchronized across

the cluster.

We performed a small pilot study to assess the

usability of the immersive port. Three University of

Colorado biochemistry groups were invited to study

a molecule of their choice using the immersive

version of PyMOL. The biochemistry groups

conducted actual research on how the structure of

their molecule related to its function. Typically,

three or four members of the team would work

collaboratively inside the IVE, while one team

member would control the visualization from a

desktop computer using the PyMOL command-line

and desktop interfaces.

Despite the limitations of the immersive port, our

pilot users indicate that the immersive version of

PyMOL is indeed useful as a research tool. In fact,

the immersive examination of the selected molecules

led all three research groups to a new understanding

of their molecule's functional structure. All three

groups reported the discovery of a large spatial

feature, such as an empty space or ridge that had not

been previously recognized during extensive

previous work with the molecule using the PyMOL

on the desktop.

5 CONCLUSIONS

In this paper, we discussed some of the issues and

limitations of porting PyMOL into an immersive

virtual environment. We successfully extended

PyMOL to render its molecule representations inside

an IVE. However, the interactive molecular editing

features of PyMOL have not been completely nor

effectively integrated into our immersive version. As

a consequence of how three-dimensional objects are

represented and how they are selected in PyMOL,

full immersive integration of the interactive features

will not be realized without a significant amount of

work. This port serves as an example that legacy

three-dimensional applications designed for a

desktop may have made underlying assumptions that

will complicate an immersive port. In fact, to fully

PORTING LEGACY APPLICATIONS TO IMMERSIVE VIRTUAL ENVIRONMENTS - A Case Study

183

integrate the interactive features of a legacy

application may require major architectural changes.

The following observations can be made from the

effort to port PyMOL:

• PyMOL's use of the OpenGL rendering

pipeline provided a direct means to extend

the molecular visualizations to an

immersive platform using CAVELib

• Thread-safety was a key issue. Without

PyMOL's existing thread-safe architecture

the immersive extension would have been

vastly more complicated.

• Being based on an embedded Python

interpreter, commands strings were easily

distributed across a cluster.

• Some object selection schemes designed for

two-dimensional pointing devices do not

scale well for three dimensional pointing

devices.

• Although PyMOL provided molecular

editing capabilities, these were not

designed to support the interactivity

necessary in an IVE.

Much work remains before the immersive PyMOL

will be fully capable of supporting rational drug

design. The ability to select molecules, bonds, and

atoms using a three-dimensional pointing device will

be critical to the success of the project. New data

structures will need to be added to PyMOL to

support this ability. Additionally, the performance of

PyMOL must be improved to reach the frame rates

necessary for interaction with large macromolecules.

Since PyMOL was not architected for rendering to

multiple windows, all OpenGL rendering must be

done in immediate mode. We are currently

investigating options for improving performance,

such as allowing display lists to be used in the

presence of multiple rendering contexts. Finally,

since PyMOL's internal GUIs are rendered using

OpenGL, we have begun investigating the

possibility of directly rendering them in the

immersive environment. Although we do not aim to

replicate all of PyMOL's functionality within the

IVE, this should improve the overall usability of the

immersive port.

ACKNOWLEDGEMENTS

This project was supported by a University of

Colorado Butcher Award and by equipment

donations from NVIDIA. We would like to thank

Geoffery Dorn, Gwen Pech, and Mick Coady of the

University of Colorado at Boulder, BP Center for

Visualization for their assistance, support and

advice. We are most grateful to the members of the

research groups who participated in the pilot study.

Professor Pardi was especially helpful in defining

the early stages of this project.

REFERENCES

Ai, Z. and Frohlich, T., 1998. Molecular Dynamics

Simulation in Virtual Environments. Computer

Graphics Forum. 17(3), 267-275.

Arns, L., Cook, D., Cruz-Neira, C., 1999. The benefits of

statistical visualization in an immersive virtual

environment. In Proceedings of IEEE Virtual Reality

1999. IEEE Press, 88-95.

Bowman, D.A., Kruijff, E., LaViola, J., Poupyrev, I.,

2005. 3D user Interfaces: Theory and Design.

Addison-Wesley.

DeLano, W.L., 2002. The PyMOL Molecular Graphics

System. DeLano Scientific, San Carlos, CA, USA.

http://www.pymol.org

Gruchalla, K., 2004. Immersive Well-Path Editing:

Investigating the added value of immersion. In

Proceedings of IEEE Virtual Reality 2004, IEEE

Press, 157-164.

Haase, H., Strassner, J., and Dai, F., 1996. VR techniques

for the investigation of molecule data. Computers &

Graphics, 20(2), 1996, 207-217.

Ihlenfeldt, W., 1997. Virtual Reality in Chemistry. Journal

of Molecular Modeling 3, 386-402.

Moshell, J.M., and Hughes, C.E., 2002. Virtual

environments as a tool for academic learning. In:

Stanney, K.M., (ed.) Handbook of Virtual

Environments. Lawrence Erlbaum Associates:

Mahwah, NJ. Chapter 45. pp 893-910.

Pausch, R., Proffitt, D., Williams, G., 1997. Quantifying

Immersion in Virtual Reality. Proceedings of the 24th

annual conference on computer graphics and

interactive techniques, 13-18.

Ranson, N., Farr, G., Roseman, A., Gowen, B., Fenton,

W., Horwich, A., Saibil, H., 2001. ATP-Bound States

of Groel Captured by Cyro-Electron Microscopy. Cell.

107. 869.

Swan, J., Gabbard, J., Hix, D., Schulman, R., and Kim, K.,

2003. A Comparative Study of User Performance in a

Map-Based Virtual Environment. Proceedings of

IEEE Virtual Reality 2003, IEEE Press, 259-266.

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

184
