TOWARDS INTELLIGENT VR

Multi-Layered Semantic Reﬂection for Intelligent Virtual Environments

Marc Latoschik and Christian Fr

ohlich

AI & VR Lab, Bielefeld University, PO 100131, 33501 Bielefeld, Germany

Keywords:

Intelligent Virtual Environment framework, Simulation Core, Software Design.

Abstract:

This paper introduces semantic reﬂection, a novel concept for a modular design of intelligent applications.

SCIVE, a simulation core for intelligent Virtual Environments (IVEs), provides semantic reﬂection on mul-

tiple layers: SCIVE’s architecture grants semantic driven uniform access to low-level simulation core logic,

to speciﬁc simulation modules’ application deﬁnitions, as well as to high-level semantic environment de-

scriptions. It additionally provides a frame to conveniently interconnect various simulation modules, e.g.,

for graphics, physics, audio, haptics, or AI etc. SCIVE’s Knowledge Representation Layer’s base formalism

provides the central organizing structure for the diverse modules’ data representations. It allows bidirectional

knowledge driven access between the modules since their speciﬁc data structures and functions are transi-

tively reﬂected by the semantic layer. Hence SCIVE preserves, integrates and provides uniﬁed access to the

development paradigms of the interconnected modules, e.g., scene graph metaphors or ﬁeld route concepts

etc. well known from todays Virtual Reality systems. SCIVE’s semantic reﬂection implementation details are

illustrated following a complex example application. We illustrate how semantic reﬂection and modularity

support extensibility and maintainability of VR applications, potential for automatic system conﬁguration and

optimization, as well as the base for comprehensive knowledge driven access for IVEs.

1 INTRODUCTION

Developing sophisticated Virtual Reality (VR) appli-

cations can become extensively complex. Rich be-

lievable worlds demand the integration of various

simulation aspects, e.g., for the simulation of graph-

ics, sounds, and physics. Furthermore, smart graph-

ics, intelligent environments, games, or ubiquitous

computing etc., demand the integration of Artiﬁcial

Intelligence methods. AI provides fundamental meth-

ods for (path) planning, application logic, or semantic

environment descriptions and more. Such methods

support tasks ranging from advanced multimodal in-

teractions to simulated physical object behavior, e.g.,

required for virtual construction or the simulation of

autonomous entities (agents or NPCs – non-player

characters) with cognitive capabilities.

Since visual perception is considered a primary

sense for immersion, many real-time VR applica-

tions center around the graphics representation. Scene

application design

simulation core logic

speciﬁc modules' deﬁnitions

scene entities

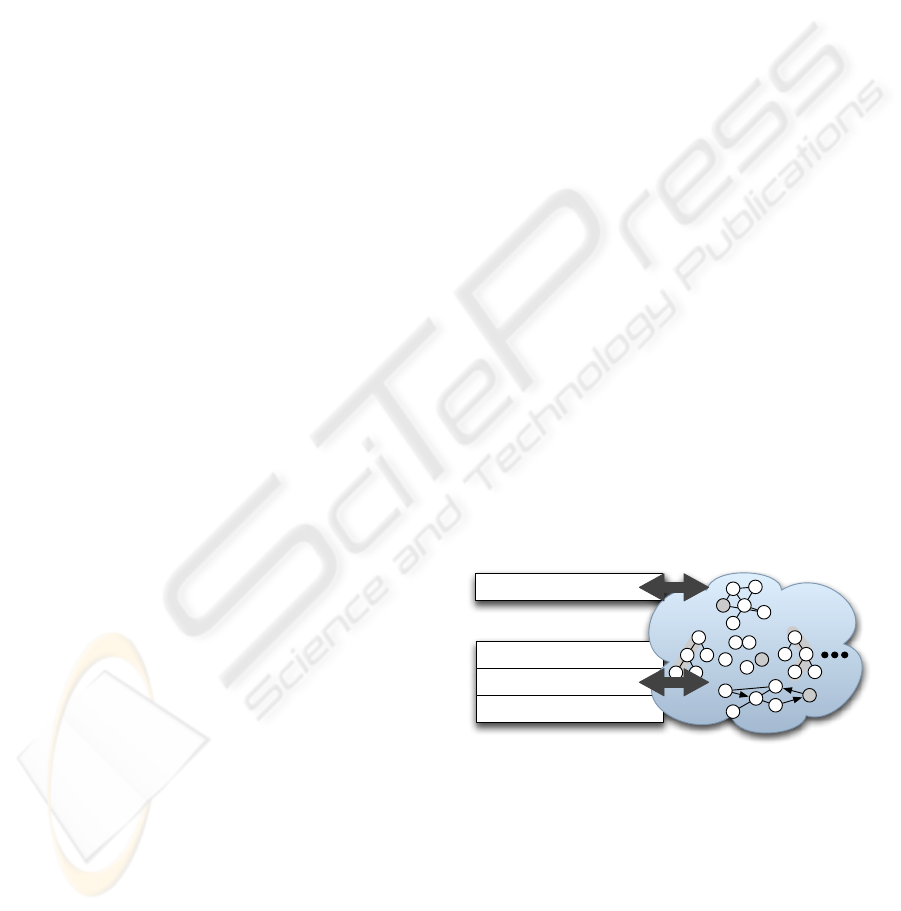

Figure 1: Semantic reﬂection maps the data and object rep-

resentations from various simulation applications’ layers to

a uniﬁed semantic knowledge representation.

graph tools like OpenGL Performer (Rohlf and Hel-

man, 1994), Open Inventor (Strauss and Carey, 1992),

Open Scene Graph, OpenSG (Reiners et al., 2002) or

X3D (ISO/IEC, JTC 1/SC 24, 2004) follow an hier-

archical scene structure which additionally provides

performance optimizations, e.g., for picking, culling

or state sorting. Extension mechanisms, ﬁeld route

data propagation networks as well as scripting sup-

249

Latoschik M. and Fröhlich C. (2007).

TOWARDS INTELLIGENT VR - Multi-Layered Semantic Reﬂection for Intelligent Virtual Environments.

In Proceedings of the Second International Conference on Computer Graphics Theory and Applications - AS/IE, pages 249-259

DOI: 10.5220/0002081302490259

 SciTePress

port the design of customized nodes and application

graphs using rapid prototyping mechanisms.

Purpose-built VR development tools extend these

concepts with VR-speciﬁc key features: First,

input/output device customizability and embed-

ding (Preddy and Nance, 2002) is mandatory,

see, e.g., AVANGO (Tramberend, 1999), Light-

ning (Blach et al., 1998), VR Juggler (Bierbaum

et al., 2001) or commercially available ones like the

CAVELib

or the WorldToolKit

. Second, network

distribution features are commonly integrated, e.g., in

AVANGO (Tramberend, 1999), MASSIVE 3 (Green-

halgh et al., 2000), DIVE (Hagsand, 1996)(An-

thony Steed, 2004) or Net Juggler. They either allow

distributed rendering on cluster architectures, hence

again output device support, or to develop shared vir-

tual environments. Third, application programmers

often require an entity centered access to world states

or world logic which is often realized using event

mechanisms, see, e.g., Lightning (Blach et al., 1998).

The provided scene and data propagation graphs

initially offer a useful representation. Complete sim-

ulation applications are build around the graph struc-

tures utilizing node inheritance and routing methods.

While well motivated in the beginning, such a de-

sign leads to a close coupling between the applica-

tions’ content and the speciﬁc design tool. This is

a source of several drawbacks now known for some

time (Bethel et al., 1999) (Arnaud and Jones, 1999),

e.g., w.r.t. a clean software design: extensibility and

portability are especially required during the integra-

tion or replacement of additional simulation modules

to render animations, sounds, physics, haptics, or AI.

Such modules are either included on a case by case

base, or they are integrated a priori into holistic ar-

chitectures as found in many 3D game engines like

the Doom 3 Engine, the Unreal Engine 3, the Source

Engine, the C4 Engine or the CryENGINE

Extensible and portable architectures modularize

VR system implemetation (Kapolka et al., 2002)(Al-

lard et al., 2004) . The goal is a decoupling of speciﬁc

application content from the internals of a simula-

tion engine—a challenging task due to the potentially

close data coupling but distinct data representations

and data-ﬂow in the various modules. This requires an

abstract high-level interface speciﬁcation for both, the

included simulation modules as well as their internal

data ﬂow and hence the inter-module data exchange.

Here, on a ﬁne grained implementation level, ob-

ject oriented programming (OOP) paradigms provide

the concept of reﬂection to support extensible and

portable software designs, e.g., for dynamic program-

ming approaches. Reﬂection provides meta-access to

an object’s API during runtime which enables calling

objects to automatically query target objects’ capabil-

ities and adjust to their interfaces.

Descending from a different line of research,

a principle found in intelligent virtual environ-

ments (Luck and Aylett, 2000) is a semantic represen-

tation of scene content (Soto and Allongue, 2002)(Pe-

ters and Shrobe, 2003)(Latoschik and Schilling,

2003)(Kalogerakis et al., 2006)(Lugrin and Cavazza,

2007) to provide knowledge driven access to the

scenes’ entities, an approach similar to current seman-

tic web efforts. Lately, semantic models have also

gained interest in OOP (Meseguer and Talcott, 2002)

as an abstract description for object reﬂection. Fol-

lowing these directions, we propose a concept called

semantic reﬂection for intelligent virtual environ-

ments. Semantic reﬂection derives from two princi-

ples: The well-known reﬂection principle of OOP lan-

guages and the semantic entity descriptions provided

by AI based knowledge representations.

Semantic reﬂection provides ontology based dy-

namic access to all modules and entities in a simu-

lation application during runtime. Integrated into a

modular architecture, semantic reﬂection has to be in-

corporated on multiple layers (illustrated in ﬁgure 1):

First, it has to reﬂect the simulation core’s logic, e.g.,

which modules are incorporated and how data access

and ﬂow of control is deﬁned between these modules.

Second, it has to reﬂect the modules’ speciﬁc repre-

sentations, e.g., it should allow scene graph, applica-

tion graph, or physics access on the semantic layer.

Third, it has to reﬂect on the scenes’ entities on the

conceptual layer as motivated from IVE research. To

provide a modular simulation engine with such ca-

pabilities, the engine has to take speciﬁc care of its

semantic reﬂection binding. In contrast to monolithic

designs of programming languages, here, semantic re-

ﬂection has to map data representations and interfaces

from different modules under one layer while bind-

ing them together in a high performance environment.

The following section will illustrate the implementa-

tion of semantic reﬂection using SCIVE, a simulation

core for intelligent virtual environments.

2 ARCHITECTURE OVERVIEW

The following example application illustrates pro-

totypical tasks during the design of rich interactive

worlds and SCIVE’s support through its semantic re-

ﬂection based architecture: The goal is the simulation

of an autonomous agent in a Virtual construction ap-

plication in which users and agent can freely interact

with the environment and with each other, i.e., using

miscellaneous input devices (in case of the users), di-

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

250

rect manipulation, and multi-modal input. User and

agent should be virtually embedded into the environ-

ment. They should be able to perceive their environ-

ment (and each other) while their actions should pro-

duce believable consequences.

graphics

physics

ani-

mation

inter-

action

cog-

nition

world

state

constr.

Figure 2: Required modules for the example application.

All ﬁve modules contribute to, and receive data from an

overall world state.

A functional decomposition suggests an architec-

ture where dedicated modules process graphics con-

tent, agent’s perception and cognitive capabilities (in-

put and reasoning), animation planning and genera-

tion (output), physics simulation, as well as constraint

solving and user interaction as illustrated in ﬁgure 2.

Note that a functional decomposition allows for dif-

ferent modules to be based on the same software tool

or library, as is the case for the constraint and inter-

action module which both will depend on the same

generalized application graph library.

SCIVE’s core logic layer (see ﬁgure 1) enables

interconnections of arbitrary simulation modules to

exchange data with each other from single entity at-

tributes to complete world states as illustrated in ﬁg-

ure 3. In this architecture, the world state as depicted

in ﬁgure 2 looses its central status. Technically, it is

handled as just an ordinary module with its own world

representation to be kept in synchrony. Since an at-

tribute’s data representation may be highly idiosyn-

cratic per module, we have developed a general data

exchange facility (Heumer et al., 2005).

The provided interconnection schemes range from

simple loose coupling to tight close coupling. In the

ﬁrst case, a given module is infrequently contributing

to an overall world state, i.e., the module’s simulation

results might only access down to one of an entity’s

attributes once in a while with respect to the main sim-

ulation rate. In the second case, a module might ac-

cess the complete world state, every entity and every

attribute for every main simulation step performed.

Initialization and data ﬂow between modules is

controlled by a temporal synchronization facility

(see section 4). It handles system bootstrapping and

data access order of the modules and hence implicitly

graphics

physics

ani-

mation

inter-

action

cog-

nition

data

exchange

synchroni-

zation

constr.

KRL

semantic

reﬂection

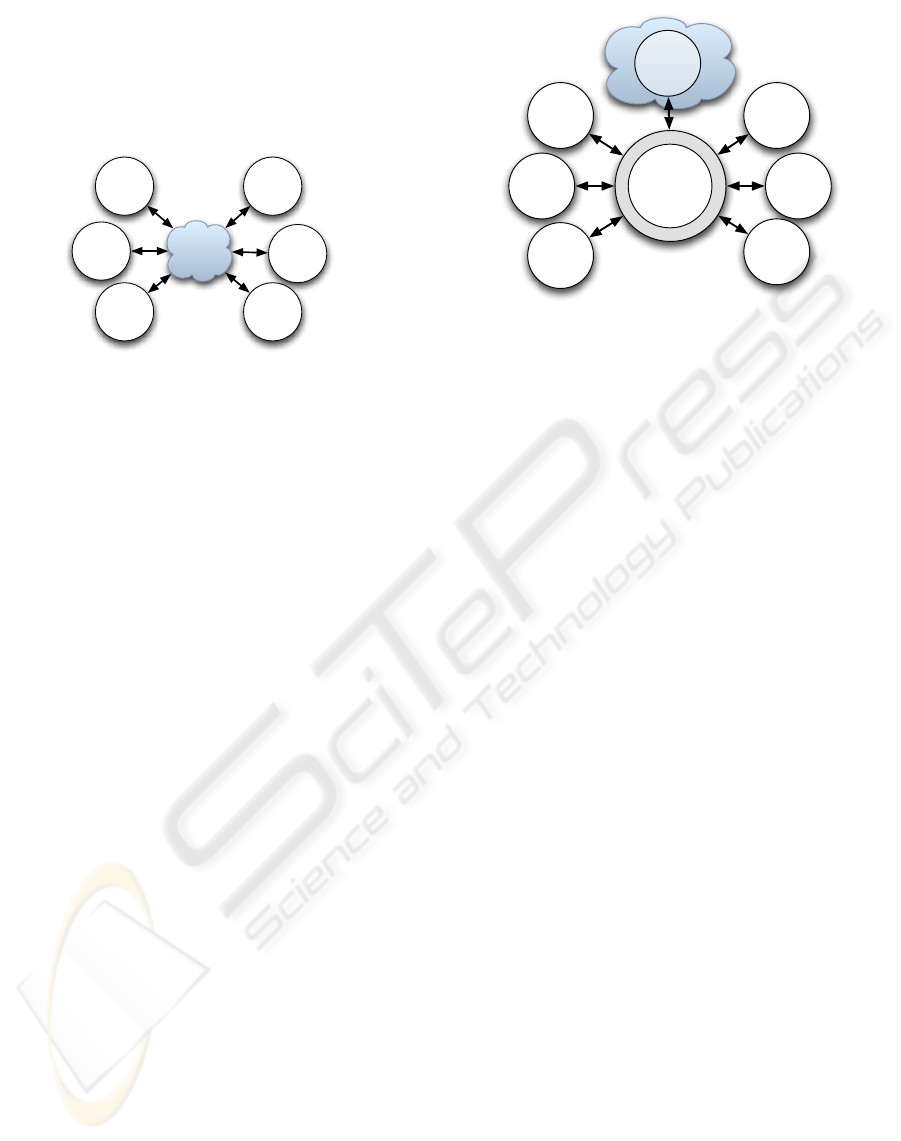

Figure 3: Conceptual interconnection scheme: Every re-

quired module is able to exchange data with every other

module ranging from single entity attributes to complete

world states. This requires facilities for data exchange and

control ﬂow.

handles the multiple-database problem. It triggers the

modules’ local simulation loops asynchronously and

controls the following data collection, conﬂict res-

olution, and data propagation steps. Note that this

architecture speciﬁcally provides performance boosts

on parallel architectures.

3 SEMANTIC REFLECTION

LAYER

A net of interconnected entity deﬁnitions implements

semantic reﬂection in SCIVE. It provides a knowl-

edge representation layer (KRL) that ties the dis-

tributed world representations together. Every appli-

cation object and world entity from the three layers

(see ﬁgure 1) is mirrored by a custom-built semantic

net base formalism (Latoschik and Schilling, 2003).

Its low-level C++ implementation provides an event

system that guards read/write accesses from the con-

nected modules to the speciﬁc attributes.

Initially, all required modules are augmented with

a wrapper API which provides the necessary links to

the core logic as well as the initial bindings between

the modules’ objects and entities and their seman-

tic reﬂection layer counterparts. The KRL interlinks

these counterparts—ordinary semantic net nodes—

with the other modules’ representations while node

slots additionally provide a storage facility for at-

tribute values. The KRL knowledge model strictly

follows a common ontology, hence reading out at-

tribute values or traversing the relations from these

speciﬁc interlink-nodes can rely on a given schema

while the interlink nodes provide a logical entity in-

terface therefor called semantic entities. This seman-

TOWARDS INTELLIGENT VR - Multi-Layered Semantic Reflection for Intelligent Virtual Environments

251

tic reﬂection provides a knowledge driven, uniﬁed ac-

cess to distributed data representations signiﬁcantly

enhancing standard OOP reﬂection.

SCIVE: data exchange & synchronization

KRL

world

state

graphics representation

user

rep.

agent

rep.

: virtual sensor/actors,

displays

: scene representation

inter-

action

anim.

cogn.

agent

user

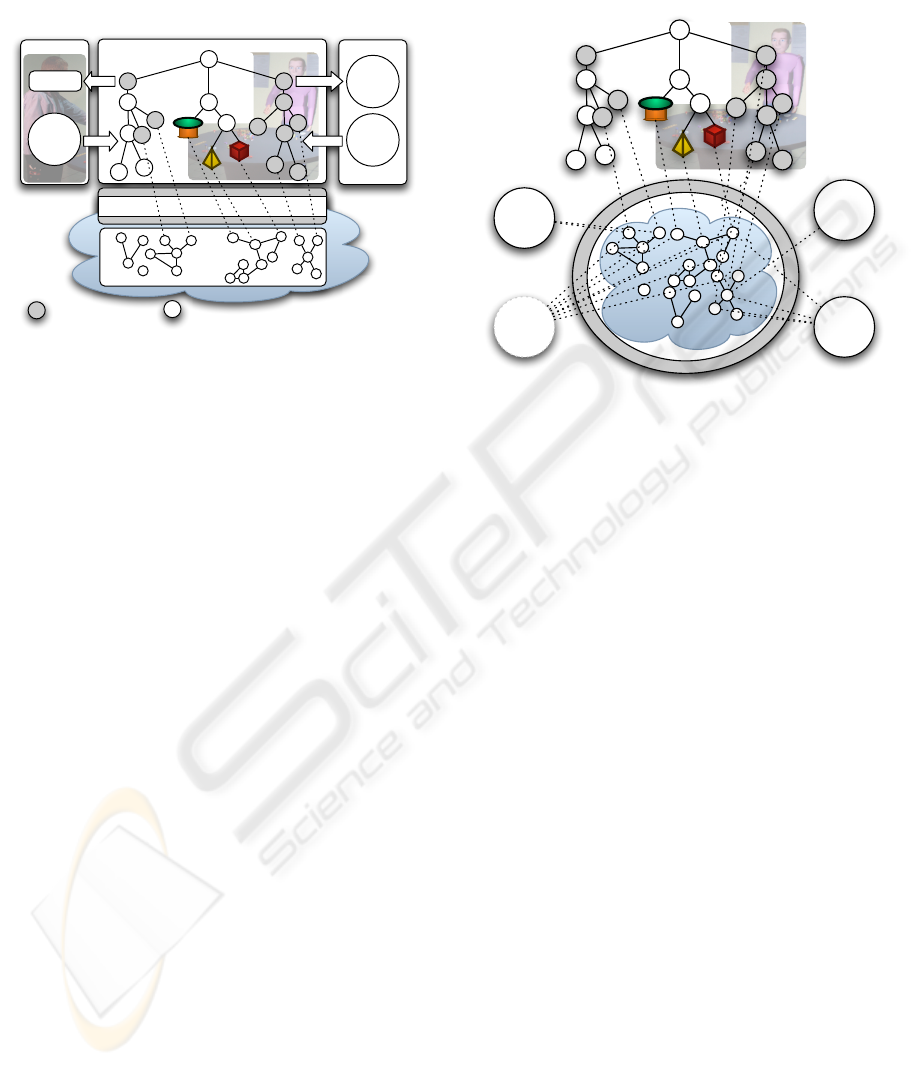

Figure 4: Application layout 1: Embedding of u ser interac-

tion and agent perception into the graphics scene, which in

turn is linked via SCIVE to the KRL by special node types

(see text).

A pointed out, content creation as well as applica-

tion logic can be accessed bidirectionally. For back-

ward compatibility, application designers are permit-

ted to implement a required function in a speciﬁc

module. SCIVE’s inter-module wrappers also in-

clude mappings from the KRL’s semantic entities

to the modules’ object models—usually via multiple

inheritance—which then have full access to all appli-

cation objects and entities as well as to their seman-

tic descriptions. Figure 4 illustrates perception and

action embedding following the example application.

Both, the artiﬁcial agent as well as the user are repre-

sented by speciﬁc semantic entities embedded in the

graphics module (depicted for the nodes with dotted

lines to the KRL). Semantic entity nodes are directly

placed into the scene graph at the appropriate graph-

ics entities. This results in a strong dependence to the

used graphics engine and hence complicates reusabil-

ity and portability.

In contrast to that, SCIVE promotes discrete ap-

plication logic deﬁnition via direct KRL-access which

provides all modules’ functionality by its semantic re-

ﬂection while providing independence from speciﬁc

modules and their underlying software. As illustrated

in ﬁgure 5, this design avoids speciﬁc module depen-

dencies as depicted in ﬁgure 4. Even though the KRL

is now located as a type of a central conceptional rep-

resentation, the modules are all interconnected via the

SCIVE facilities. Hence, dependencies are largely

minimized and modules can be exchanged with only

minor modiﬁcations. Since the KRL reﬂects the over-

all system down to the internal simulation core’s con-

ﬁguration, even ﬁne-grained control and data ﬂow is

now available during abstract application design.

user

rep.

agent

rep.

inter-

action

anim.

cogn.

phy-

sics

KRL - world state

SCIVE

graphics

Figure 5: Application layout 2: SCIVE’s KRL centered in-

terconnection of user interaction, agent perception, anima-

tion, and physics modules (see text).

The beneﬁt of semantic reﬂection can be demon-

strated following our example and the application lay-

out from ﬁgure 5. One solution for the implementa-

tion of the agents visual perception is the design of

a sensor which automatically tracks objects in its di-

rection and range. The sensor should work for every

frame, hence it must be linked to the application stage

of the program. Such specialized sensors are often

implemented as graphics nodes. This is reasonable

since graphics node traversal is synchronized with the

application and, embedded as a node, a sensor has au-

tomatic access to the spatial arrangement of the sur-

rounding scene (including the virtual user representa-

tion). Similar approaches are often followed for inter-

action nodes, e.g., draggers or interpolators, etc.

Parametrization of these nodes has to be deﬁned,

e.g., which objects a dragger should and technically

could drag, or the target objects for the view sensors.

One obvious solution is realized by reﬂection, i.e.,

by using the dynamic runtime-type system available

with most graphics engines. By creating objects of a

speciﬁc type, the sensors or draggers etc. can auto-

matically detect compatible target nodes. Such an ap-

proach is cumbersome since it—using compiled pro-

gramming languages like C or C++—requires source

editing and recompilation which largely limits its use-

fulness. Since the KRL can be read/written during

runtime, it can capture this type of data to a large

amount.

For example, in typical applications we don’t want

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

252

our agent to monitor every entity in a rich environ-

ment, since most of the objects might be irrelevant to

a given task. Hence, the view sensor only searches

for entities which have a given semantic tag, i.e.,

is agent observable. Now, the view sensor pro-

cesses the KRL for every simulation step to collect all

entities it should monitor since it ”knows” what it has

to look for. The KRL is speciﬁcally tuned for fast

entity based per attribute access using an extensive

internal hashing. Having collected all target objects,

bidirectional semantic reﬂection enables the sensor to

easily reach through and read the position data of the

entities for its local spatial ordering.

Runtime type systems are often limited in terms

of their expressiveness, i.e., they are designed to re-

ﬂect the speciﬁc modules object model which is often

limited to plain hierarchies and—to some degree—

multiple inheritance. Proprietary implementations

could of course represent semantic object and entity

information as well, but in absence of a uniﬁed layer

that again would require module speciﬁc low-level

coding strategies and efforts. Yet, such an approach

could not offer an inter-module knowledge represen-

tation and access as provided by the KRL’s seman-

tic net which additionally provides an expressive base

formalism tailored for semantic information.

3.1 Knowledge Deﬁnition

The KRL provides SNIL (Semantic Net Interchange

Language) as a high level XML-based descrip-

tion language for content deﬁnition. The KRL

supports knowledge-base modularization via sub-

domains which allow a modular knowledge engineer-

ing design, e.g., quite useful during the design phase

or as a facility of inspection, while they still pro-

vide inter-domain relations using ordinary relations.

The following example fragment illustrates how spe-

ciﬁc modules’ deﬁnitions as well as simulation core

logic is conveniently deﬁned using one uniﬁed rep-

resentation language. The ﬁrst example uses three

sub-domains to structure modules’ speciﬁc represen-

tations, one for the central KRL entities, and one each

for the graphics and the physics entities:

<?xml version="1.0" standalone="no" ?>

<semantic-net>

</relationtype>

</relationtype>

<in-subdomain name="KR-Central"/>

</node>

<in-subdomain name="SG"/>

<slot name="File" type="string"

inheritanceType="Attribut" value="room.iv"/>

</node>

<in-subdomain name="PHYS"/>

<slot name="File" type="string"

inheritanceType="Attribut"

value="share/landscape-phys.xml"/>

<slot name="Name" type="string"

inheritanceType="Attribut" value="Ground"/>

<slot name="CaName" type="string"

inheritanceType="Attribut" value="GroundCa"/>

</node>

<start-node nodeName="landscape"/>

<end-node nodeName="landscape-gfx"/>

</relation>

<start-node nodeName="landscape"/>

<end-node nodeName="landscape-phys"/>

</relation>

</semantic-net>

The next fragment deﬁnes parts of SCIVE’s core

logic. Here, the KRL reﬂects general system setup

and module speciﬁcation where the semantic net is

used to specify the simulation modules, their pa-

rameters and features (illustrated for one simulation-

module):

<relationType name="has-module"

type="Default"> </relationtype>

<relationType name="has-feature"

type="Default">

</relationtype> <node name="System_Configuration"

type="Default" id="1">

<in-subdomain name="SC" />

</node>

<in-subdomain name="SC"/>

<slot name="configuration_path" type="string"

inheritanceType="Attribute"

value="xml_data/" />

<slot name="priority" type="string"

inheritanceType="Attribute" value="high" />

<slot name="load-time" type="number"

inheritanceType="Attribute" value="3" />

<slot name="frequency" type="number"

inheritanceType="Attribute" value="20" />

</node>

<in-subdomain="SC"/>

<slot name="Method" type="string"

inheritanceType="Attribute"

value="Raycast" />

</node

TOWARDS INTELLIGENT VR - Multi-Layered Semantic Reflection for Intelligent Virtual Environments

253

<start-node nodeName="System_Configuration"/>

<end-node nodeName="Physics"/>

</relation>

<start-node nodeName="Physics"/>

<end-node nodeName="Collision_Detection"/>

</relation>

Instantiation of a new System Conﬁguration (SC)

subdomain is followed by the deﬁnition of nec-

essary relations. The relations has-module and

has-feature are later used to connect the root-node

(System Configuration) with it’s modules respec-

tively the modules with their provided features. Mod-

ule deﬁnitions require some parameters, which are

given as slot-values inside a node environment. These

parameters conﬁgure the modules and their intercon-

nection, and are used for the temporal synchroniza-

tion, which will be discussed in section 4.

”Features” are introduced as another type of

nodes. Existence and implementation of speciﬁc fea-

tures can differ from module to module. In case of

the example, a given feature of a physics module is

the Collision Detection. Along with the existence

of a feature, some details, such as the Method, are

speciﬁed as slot-values. On the basis of the existence

of features and their capabilities, modules can be se-

lected for an application.

4 TEMPORAL

SYNCHRONIZATION

Since the different simulation modules run asyn-

chronously and each with a different update fre-

quency, these components have to be synchronized

to ensure a consistent state of the simulated world.

The different clock rates are necessary to guarantee

accurate computation of the speciﬁc simulation-data.

For example, while the graphics renderer computes

one frame the physics simulator may has to compute

twenty internal steps to ensure a mathematical accu-

rate result. These differences become even clearer

when we take a look at haptics feedback. A mod-

ule computing haptics feedback needs a minimum up-

date frequency of approximately 1000 hertz to give

the user a realistic sensation. Hence inter-module syn-

chronization becomes important to keep module data

consistent with each other.

The temporal synchronization within the SCIVE-

System is divided into two basic areas. While the

macrotemporal area covers the steps required at the

initial startup of the system, as well as those steps ex-

ecuted when loading new modules at runtime, the mi-

crotemporal area includes those which are executed

for every master simulation step. The following ex-

empliﬁes the necessary steps of the microtemporal

area and shows how they can be reﬂected on the

semantic level, using Allen’s temporal interval rela-

tions.

4.1 Microtemporal Processing

Microtemporal steps necessary for computing one

simulation frame in SCIVE’s modular architecture

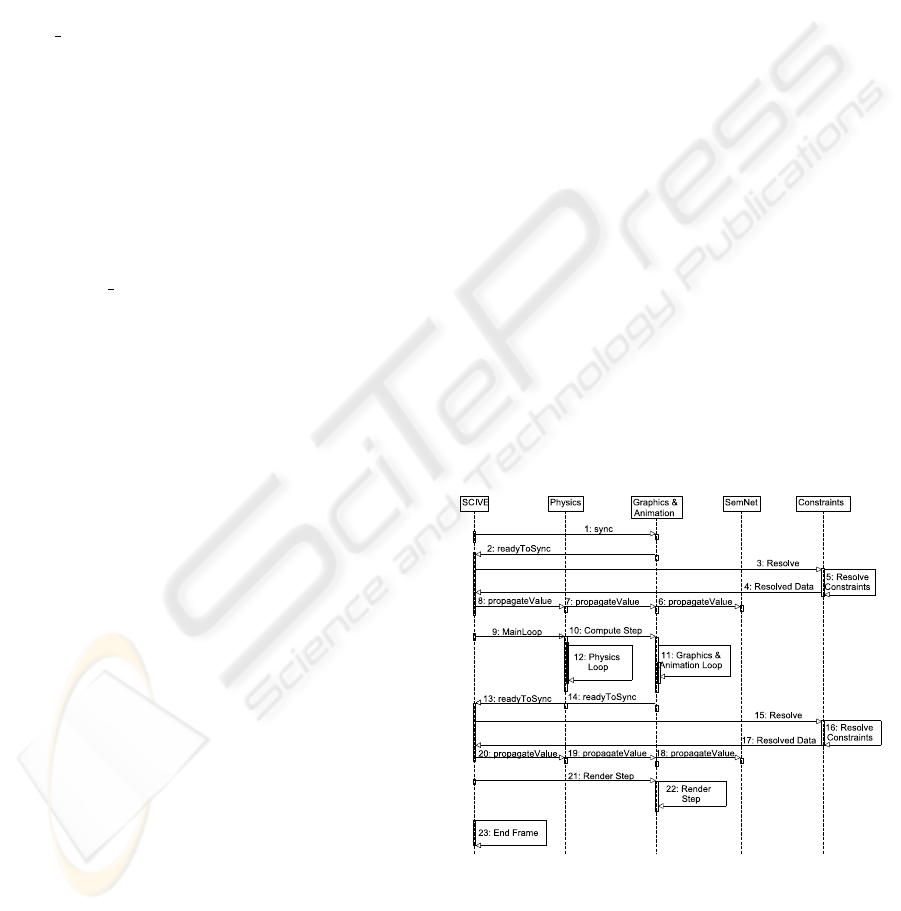

are illustrated for an example setup in the sequence

diagram in ﬁgure 6. The bracketed bold-faced

numbers—(i)—represent the numbers according to

the various steps in the sequence diagram.

Microtemporal processing within SCIVE will be

illustrated for an example application which centers

around the semantic net as the central world state.

Hence, the ﬁrst step in the sequence-diagram dis-

played in ﬁgure 6 sends a sync-signal to the SemNet-

module (1). The sync-signal is answered by a ready-

signal (2) from the semantic module. Before SCIVE

propagates the simulation data to all connected mod-

ules, existing contraints are resolved (3-5). These

constraints can be resolved by SCIVE’s built-in ﬁlter

system, or by any other dedicated simulation-module

(see section 5). After this, SCIVE propagates the data

to all modules (6-8). As a result, all simulation mod-

ules now initially work on the data, which was gener-

ated in the prior master simulation step, and resolved

by the dedicated mechanism.

Figure 6: Microtemporal processing of SCIVE.

The next steps consist of the parallel computations

of the simulation modules (in this case the Physics-

and the Graphics/Animation-module). Steps num-

ber (9-10) start the processing of these modules inside

their own update frequencies. The processing itself is

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

254

displayed in (11-12). Once the modules ﬁnish compu-

tation, they synchronize their results with each of the

other modules, again through SCIVE’s data-exchange

mechanism and again with respect to constraint reso-

lution (13-20). The ﬁnal step in the microtemporal

processing is the rendering of the computed scene.

SCIVE tells the renderer to display the scene (21) and

the graphics renderer executes its render-loop (22).

4.2 Semantic Reﬂection of Temporal

Processes

The temporal processes described in the previous sec-

tion are as well reﬂected on the KRL as part of

the simulation core’s internal logic. The following

code depicts a SNIL representation of the temporal

processes using Allen’s temporal interval relations

(Allen, 1984):

</relationtype>

</relationtype>

</relationtype>

<in-subdomain name="TS" />

</node>

<in-subdomain="TS"/>

</node>

<in-subdomain="TS"/>

</node>

<in-subdomain="TS"/>

</node>

<in-subdomain="TS"/>

</node>

<in-subdomain="TS"/>

</node>

<start-node nodeName="Simulation_Frame"/>

<end-node nodeName="Graphics_App"/>

</relation>

<start-node nodeName="Graphics_App"/>

<end-node nodeName="Sync_data"/>

</relation>

<start-node nodeName="Sync_Data"/>

<end-node nodeName="Constraint_Resolution"/>

</relation>

<start-node nodeName="Constraint_Resolution"/>

<end-node nodeName="Propagate_Data"/>

</relation>

<start-node nodeName="Propagate_Data"/>

<end-node nodeName="Graphics_Rendering"/>

</relation>

The example only illustrates application- and ren-

der stage deﬁnitions for the Graphics&Animation-

module. Representation for other modules and stages

work analogously.

4.3 Built-in Conﬂict Resolution

The concurrent access to the central database by the

various simulation modules could lead to an inconsis-

tent world state resulting in wrong or unexpected be-

havior of entities, if the attribute would not be guarded

or controlled in some way. Here, SCIVE provides a

special type of a data propagation graph utilizing a

system of connections and ﬁlters. For example, in

a simple conﬁguration ﬁlters can forward the output

of the physics module to one entity, a second en-

tity can be controlled by the skeletal animation, and

yet another entity can be controlled by the user in-

teraction. In more complex scenarios, the ﬁlters can

compute new values for controlled entity attributes

by combining outputs of two or more modules or ﬁl-

ters. SCIVE offers various ﬁlters that can change at-

tribute values directly or indirectly, e.g., a developer

can choose whether he wants an object to be dragged

by directly setting the new position in all modules (in-

cluding the physics module) or by applying appropri-

ate forces generated by the physics engine. Filters can

be instantiated manually or by the various simulation

modules which allows automatic ﬂow control by the

application logic, e.g., if the multi-modal interpreta-

tion module triggers a drag action, a ﬁlter is set in

place which binds the interaction target entity to the

interaction module.

The ﬁlter-based data-ﬂow is provided by SCIVE’s

conﬂict resolution component. It is an optional facil-

ity but it provides the necessary functionality for the

design of complex interconnected applications. It can

be completely enabled and disabled on the ﬂy. With

disabled conﬂict resolution, each value change will

be immediately applied to the central database and

the databases of the modules, overwriting all earlier

changes. With enabled conﬂict resolution, all value

changes (triggered as events by SCIVE) will be de-

layed until the beginning of the ﬁnal render stage. In

this case, the requested state changes will be stored

to use them as input for the ﬁlter stage. During this

stage, ﬁlter can 1) forward an event, 2) combine it

with other events and the relating values, or 3) com-

pletely block it. The order of events is less important

for the conﬂict resolution since it applies ﬁlters with

TOWARDS INTELLIGENT VR - Multi-Layered Semantic Reflection for Intelligent Virtual Environments

255

respect to the event source and its simulating feature.

The last ﬁlter in the chain is connected back to the at-

tribute container in the main database. After the eval-

uation of ﬁlters and propagation of changes, all mod-

ules must be informed about the rejected changes.

This additional step is necessary, because the module

that has requested the change, has possibly already

changed its internal state and representation.

4.4 Filters

Connections and ﬁlters establish an event propagation

graph. They receive events they have registered for.

Filters can process computations on the signaled at-

tribute values and ﬁnally produce new signals. In ad-

dition, instead of returning events, a ﬁlter can trigger

execution of speciﬁc actions in the simulation mod-

ules, e.g., to apply some forces in the physics module

or to generate a new animation which simulates an

agent’s reaction to external inﬂuences (as eventually

triggered by the other modules). A certain required

action often can be implemented with different meth-

ods and hence ﬁlters. For example, dragging of an en-

tity can be implemented by setting the new position as

a result from the interaction module which basically

follows the user’s ”drag” hand or by applying some

forces by the physics module. In the basic SCIVE in-

terconnection, the interaction module can just change

the position where the actual action is determined by

the current ﬁlter. Since the desired action is decoupled

from the actual implementation, setup of this inter-

nal application logic is covenantally implemented on

a high level during runtime or initially using conﬁgu-

ration ﬁles. The following ﬁlters realize the required

functionality for the example application.

• Last module pass through. This is the same as if

no conﬂict resolution is done.

• Random module selection pass through.

• Speciﬁc module pass through.

• Prioritized module list selection. Pass the events

from a priority sorted list of modules. If queue is

empty for a chosen module, take the next lower

prioritized module.

• Physics module pass through. Apply forces to the

entity for all other events with position changes.

• Skeletal animation module pass through. Gen-

erate a dynamic animation and blend it with the

current animations for all other events with posi-

tion changes.

The user can implement additional ﬁlters e.g. for

calculating an average value of the incoming events.

The conﬂict resolution set-up deﬁned for the exam-

ple application allows to simulate physical-based an-

imations on the ﬂy and to mix them with motion cap-

tured or pre-calculated animation data. This exam-

ple illustrates SCIVE’s powerful extensibility which

is utilized at this point to produce believable inter-

actions of skeletal animated characters with the en-

vironment in real time. In order to react to physi-

cal forces, a physical representation of the character

is built up which, on the one hand, inﬂuences other

physical bodies and, on the other hand, reports the dis-

placement of the character caused by collisions back

to SCIVE. In case of a collision, the established ﬁlter

interconnection decides how to react to the displace-

ment. The agent could just drag the affected parts

back, wobble, or fall down. The reaction can depend

on the force and the place of the impact. Figure 7

shows the generated animation as result of a collision

between a character and a static as well as between a

dynamic object.

(a) (b) (c) (d)

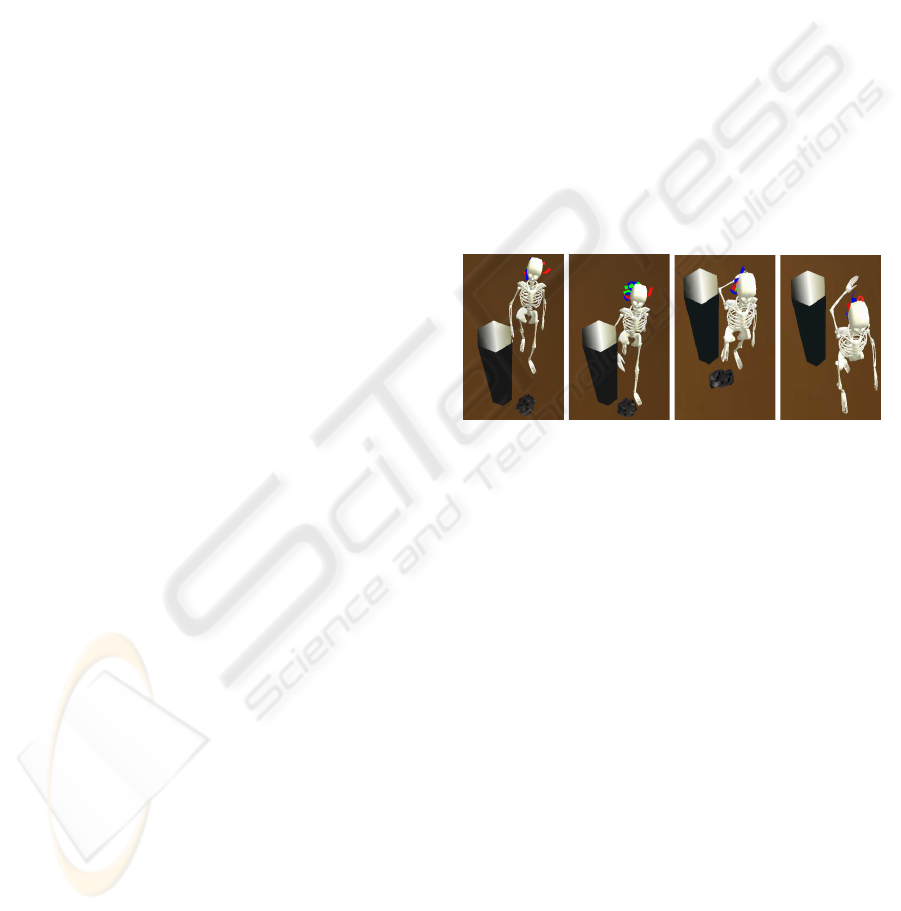

Figure 7: The animated agent ﬁlter in action. The motion

captured animated agent collides with a relatively heavy

(the column) and a lighter (the stone) obstacle in its pre-

determined path. The collision signals the activation of an

animation blending ﬁlter which controls the colliding body

parts for the speciﬁc time interval whereas the collision ob-

jects stay under physics control.

4.5 Filter Application

SCIVE’s supports ﬁlter application via rules which

assign ﬁlters to certain scene parts. These parts can

have different granularities from one attribute of one

entity to all attributes in the scene. Prioritization of

rules ensures that attributes already connected by a

given rule will not be reconnected by lower prioritized

rules. For example, a scene with a skeletal animated

agent can be described by this two rules:

• Assign ”all properties of obj. A” to ”SkeletalAni-

mationFilter”

• Assign ”all properties in scene” to ”PhysicsOnly-

Filter”

The second rule doesn’t inﬂuence the object A (the

agent), because of the ﬁrst rule’s higher priority. The

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

256

created ﬁlter graph can be changed on the ﬂy by in-

serting and removing rules. To drag an entity X, a

new rule has to be installed just before the other two:

• Assign ”position of object X” to ”InteractionFil-

ter”

This results in the disconnection of the position at-

tribute of entity X from the ”PhysicsOnlyFilter” and

its connection to the ”InteractionFilter”. At the inter-

action end, this rule is simply removed to establish the

initial application logic. This prioritized application

of rules, which describe what the user wants to hap-

pen in the scene, provides a convenient way to create

and assign the—possibly—multitude of required ﬁl-

ters. Each rule takes just few lines of code or script

that—at the end—deﬁnes complex ﬁlter graphs which

will now automatically be created and removed. This

lets application designer focus on application seman-

tics rather then to care about the proper connection of

ﬁlters and attributes.

4.6 Filter Deﬁnition on the Semantic

Level

The data propagation graph–including Filters–used in

the built-in conﬂict resolution system can be deﬁned

on the knowledge representation Layer. To deﬁne

such a graph, a subdomain in the semantic net must

be speciﬁed in which speciﬁc nodes an relations are

created. The following shows a small example:

<relationType name="has-input-node"

type="Default">

</relationtype>

<relationType name="has-output-node"

type="Default">

</relationtype>

</relationtype>

<relationType name="has-cr-connection"

type="Default">

</relationtype>

<in-subdomain name="CR" />

</node>

<in-subdomain="CR"/>

</node>

<in-subdomain="CR"/>

</node>

<in-subdomain="TS"/>

</node>

<start-node nodeName="crEntity1"/>

<end-node nodeName="crNode1"/>

</relation>

<start-node nodeName="crNode1"/>

<end-node nodeName="crFilter1"/>

</relation>

<start-node nodeName="crNode1"/>

<end-node nodeName="crNode2"/>

</relation>

<start-node nodeName="crEntity1"/>

<end-node nodeName="crNode2"/>

</relation>

The root node in this example is the crEntity-

node. It is connected with two crNodes, one input-

and one output node. While the input node is the

entry for the data to the conﬂict resolution network,

the output is the exit which contains the conﬂict-

resolved data. Filters get connected to crNodes via the

has-filter-relation while crNodes are connected

with each other through the has-cr-connection-

relation. To concatenate the ”cr-network” with an en-

tity of the central knowledgebase the crEntity node

can be connected to the designated node. This is

done analogously to the connection with a physical

or graphical representation as seen in section 3.1.

5 INTERACTION AND

CONSTRAINTS

For applications similar to the example’s type, we

have developed a multimodal interaction module

which processes speech and gesture input. Interac-

tions can be initiated by a variety of uni- or multi-

modal user expressions. Their analysis and realiza-

tion provide another well motivated example that il-

lustrates the power of semantic reﬂection during the

access of semantic information from different mod-

ules and layers. Speech and gesture interpretation de-

pends on ontology and lexical bindings to identify the

required operations and entities whereas the interac-

tion realization has to access the module speciﬁc ob-

jects to set up the appropriate module structures for

the application graph. Both, gesture recognition as

well as interaction realization, are based on similar

metaphors using generalized application graphs.

The module’s integration engine compares all in-

coming signals from gesture and speech recognition.

If it detects the initiation of an operation, it follows

the semantic interlinks between the lexical informa-

tion extracted from the user’s verbal utterance to an

appropriate action concept in the interaction mod-

ule’s knowledge part. Since this directly reﬂects the

required application graph structures, the integration

engine automatically instantiates such a structure in

TOWARDS INTELLIGENT VR - Multi-Layered Semantic Reflection for Intelligent Virtual Environments

257

handle

user

representation

KRL - semantic reﬂection

inter-

action

constr.

constraint

transformation

of handle

propagate

movement

detect

grasp

instantiate

interaction

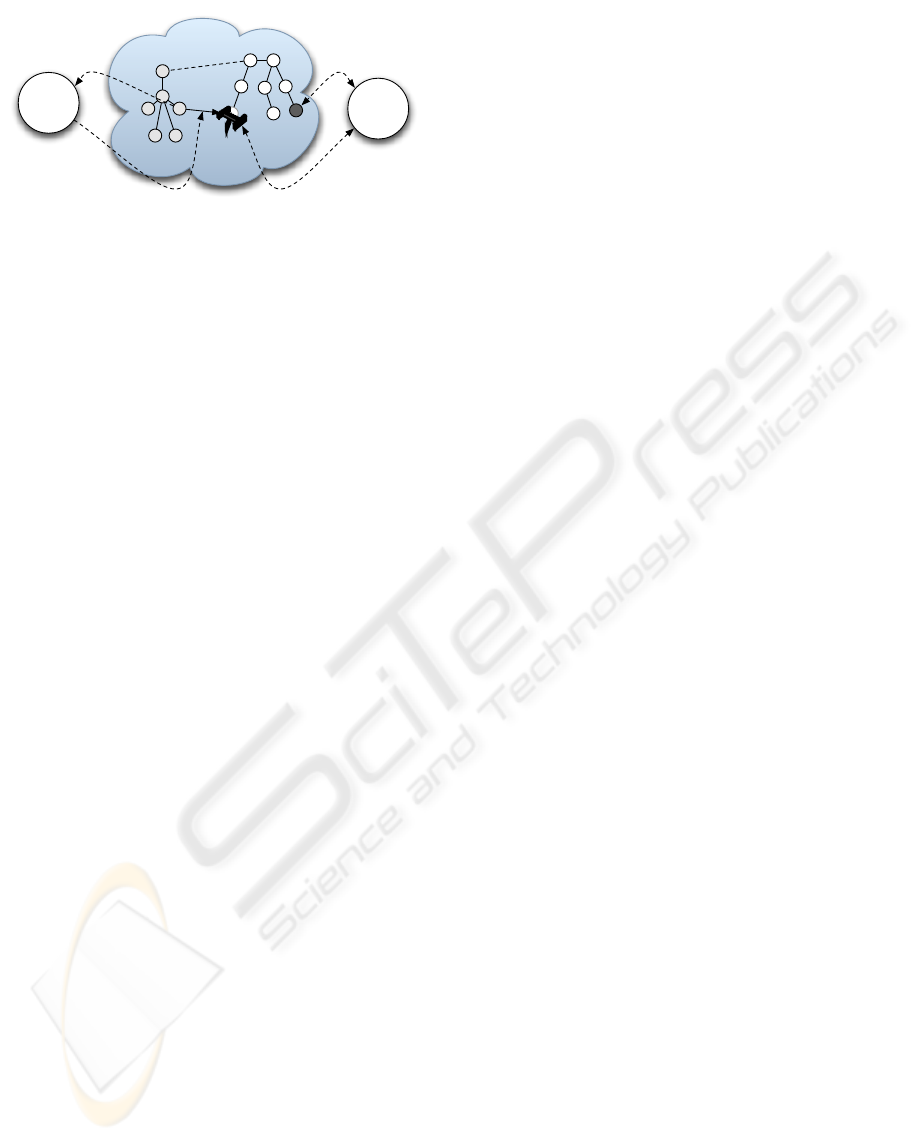

Figure 8: Interaction and constraint module (see text).

the interaction module. The resulting application

graph style interaction binding couples the movement

of the selected object in the KRL with the movement

of the user’s hand as depicted in ﬁgure 8.

Since this interaction binding builds a linear chain

from the sensor data of the hand position to the trans-

formation of the object, the interaction module can

be handled in the common way of trigger, collect and

propagate states of the simulation core. However the

ﬁlter layer of the data-exchange has to make sure that

the transformation of the object from the user inter-

action overwrites the transformation changes of the

other modules, e.g., the physics layer.

More complex application graphs can be estab-

lished by a dedicated constraint module (Biermann

and Wachsmuth, 2004). For example, mapping of

a user’s hand movements to a target object—let’s

assume a simulated steering wheel—should be re-

stricted to certain degrees of freedom to simulate ac-

curate kinematic object behavior. The constraint for

the handle only allows one rotation axis. If the move-

ment of the handle during the Interaction fails to sat-

isfy this constraint, the transformation of the handle

is restricted to the rotation by calculating the rota-

tional part of the movement and setting this as the

transformation of the handle in the KRL. Further con-

straints propagate the movement to other objects or

gears which are also modeled with constraints and

therefore can e.g. simulate a kinematic chain of a

steering mechanism (see ﬁgure 8).

The difference is the way these constraints are

solved during synchronization. Since these con-

straints should globally restrict the attributes of the

objects in the KRL, the execution of the constraint

module must be triggered after the evaluation of the

other modules of the simulation core. This requires

simulation core access from the speciﬁc constraint

module which is conveniently provided by the seman-

tic reﬂection layer. Since the temporal synchroniza-

tion is semantically deﬁned using Allen’s temporal re-

lations, all that has to be done from the module side

is a modiﬁcation of these structures on the semantic

layer to achieve the desired core logic behavior. On

the other hand, SCIVE’s open architecture provides

modules to also solve core speciﬁc tasks. This is addi-

tionally useful if we think of the conﬂict resolution fa-

cility which can be substituted, e.g., by the constraint

module developed to solve similar tasks as reﬂected

by the module’s features on the semantic layer.

6 CONCLUSION

This paper introduced semantic reﬂection as an archi-

tectural concept for developing intelligent interactive

applications. It provides a suitable abstraction layer

to develop reusable, extensible, and portable com-

ponents. Semantic reﬂection uniﬁes the application

design from low-level simulation core layer to high-

level scene semantic using just one metaphor. As a

base design principle, semantic reﬂection has proven

to be extremely useful and very promising.

The modular architecture and the Knowledge

Representation Layer of SCIVE—a simulation core

for IVEs—provides bidirectional semantic reﬂection

to develop module speciﬁc code as well as module

independent components. Its inter-module data ex-

change and synchronization can conveniently be con-

ﬁgured on a high level which includes the deﬁni-

tion of general application logic down to per-attribute

changes via the ﬁlter and rules concept.

SCIVE’s semantic reﬂection capabilities are ex-

plored in several areas from multi-modal communi-

cation in virtual environments to AI supported vir-

tual prototyping. Its capability to integrate physics,

animation, AI etc. for building intelligent agents is

currently utilized to design a large scale continuously

running virtual world for agent interactions as well as

for the development of a prototypical game engine.

Outlook: The potential of semantic reﬂection for ap-

plication design can only roughly be estimated right

now by the examples we have explored so far. Since

semantic reﬂection includes all layers, from simula-

tion core to environment description, it offers verti-

cal reach through between these layers. For exam-

ple, the simulation core could automatically use a

speciﬁc module’s functions, e.g., for an alternative

conﬂict resolution. A module, on the other hand,

could change the core’s behavior depending on its

own running processes. Redundant functions in dif-

ferent modules could automatically be selected w.r.t.

a quality of service attribute for the functions. Lately,

we have modeled an enhanced ontology of interac-

tions which is linked a) to a lexicon and b) to spe-

ciﬁc node arrangements which implement these inter-

actions using the interaction module.

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

258

Grounding the complete application from core

logic to the simulated environment to an adequate

ontology could greatly simplify application develop-

ment. It would provide the necessary semantic infor-

mation for intelligent tools, that, e.g., automatically

map their functions w.r.t. the available resources etc.

while, on the other hand, it would provide an implicit

knowledge representation for building intelligent Vir-

tual Environments.

REFERENCES

Allard, J., Gouranton, V., Lecointre, L., Limet, S., Melin,

E., Rafﬁn, B., and Robert, S. (2004). Flowvr: a mid-

dleware for large scale virtual reality applications. In

Proceedings of Euro-par 2004, Pisa, Italia.

Allen, J. F. (1984). Towards a general theory of action and

time. Artiﬁcial Intelligence, (23).

Anthony Steed, E. F. (2004). Construction of collabora-

tive virtual environments. In Segura, M.-I. S., editor,

Developing Future Interactive Systems, number ISBN

1591404126, pages 235–268. Idea Group.

Arnaud, R. and Jones, M. T. (1999). Innovative software

architecture for real-time image generation. In Pro-

ceedings of the I/ITSEC Conference.

Bethel, W., Bass, C., Clay, S. R., Hook, B., Jones, M. T.,

Sowizral, H., and van Dam, A. (1999). Scene graph

apis: wired or tired? In SIGGRAPH ’99: ACM SIG-

GRAPH 99 Conference abstracts and applications,

pages 136–138, New York, NY, USA. ACM Press.

Bierbaum, A. D., Just, C., Hartling, P., Meinert, K., Baker,

A., and Cruz-Neira, C. (2001). VR Juggler: A Vir-

tual Platform for Virtual Reality Application Develop-

ment virtual platform for virtual reality application de-

velopment. In IEEE Virtual Reality 2001 conference

proceedings, pages 89–96, Yokohama, Japan. IEEE

Press.

Biermann, P. and Wachsmuth, I. (2004). Non-physical sim-

ulation of gears and modiﬁable connections in virtual

reality. In Proceedings of the ﬁfth Virtual Reality In-

ternational Conference (VRIC 2004), pages 159–164,

Laval, France.

Blach, R., Landauer, J., Rsch, A., and Simon, A. (1998).

A Highly Flexible Virtual Reality System. In Future

Generation Computer Systems Special Issue on Vir-

tual Environments. Elsevier Amsterdam.

Greenhalgh, C., Purbrick, J., and Snowdon, D. (2000). In-

side massive-3: ﬂexible support for data consistency

and world structuring. In Proceedings of the third in-

ternational conference on Collaborative virtual envi-

ronments, pages 119–127. ACM Press.

Hagsand, O. (1996). Interactive MultiUser VEs in the DIVE

system. IEEE Multimedia Magazine, 3(1).

Heumer, G., Schilling, M., and Latoschik, M. E. (2005).

Automatic data exchange and synchronization for

knowledge-based intelligent virtual environments. In

Proceedings of the IEEE VR2005, pages 43–50, Bonn,

Germany.

ISO/IEC, JTC 1/SC 24 (2004). X3d abstract. Technical

Report 19775-1:2004, ISO/IEC.

Kalogerakis, E., Christodoulakis, S., and Moumoutzis, N.

(2006). Coupling ontologies with graphics content for

knowledge driven visualization. In Proceedings of the

IEEE VR2006, pages 43–50.

Kapolka, A., McGregor, D., and Capps, M. (2002). A uni-

ﬁed component framework for dynamically extensible

virtual environments. In Fourth ACM International

Conference on Collaborative Virtual Environments.

Latoschik, M. E. and Schilling, M. (2003). Incorporating

VR Databases into AI Knowledge Representations:

A Framework for Intelligent Graphics Applications.

In Proceedings of the Sixth International Conference

on Computer Graphics and Imaging. IASTED, ACTA

Press.

Luck, M. and Aylett, R. (2000). Applying Artiﬁcial Intel-

ligence to Virtual Reality: Intelligent Virtual Environ-

ments. Applied Artiﬁcial Intelligence, 14(1):3–32.

Lugrin, J.-L. and Cavazza, M. (2007). Making Sense of Vir-

tual Environments: Action Representation, Ground-

ing and Common Sense. In Proceedings of the Intelli-

gent User Interfaces IUI’07.

Meseguer, J. and Talcott, C. (2002). Semantic models

for distributed object reﬂection. In ECOOP 2002 -

Object-Oriented Programming: 16th European Con-

ference Malaga, Lecture Notes in Computer Science,

pages 1–36. Springer Berlin / Heidelberg.

Peters, S. and Shrobe, H. (2003). Using semantic networks

for knowledge representation in an intelligent environ-

ment. In PerCom ’03: 1st Annual IEEE International

Conference on Pervasive Computing and Communi-

cations, Ft. Worth, TX, USA. IEEE.

Preddy, S. M. and Nance, R. E. (2002). Key requirements

for cave simulations: key requirements for cave sim-

ulations. In WSC ’02: Proceedings of the 34th con-

ference on Winter simulation, pages 127–135. Winter

Simulation Conference.

Reiners, D., Voß, G., and Behr, J. (2002). OpenSG:

Basic Concepts. www.opensg.org/OpenSGPLUS/-

symposium/Papers2002/Reiners Basics.pdf.

Rohlf, J. and Helman, J. (1994). Iris performer: a high

performance multiprocessing toolkit for real-time 3d

graphics. In SIGGRAPH ’94: Proceedings of the 21st

annual conference on Computer graphics and interac-

tive techniques, pages 381–394, New York, NY, USA.

ACM Press.

Soto, M. and Allongue, S. (2002). Modeling methods for

reusable and interoperable virtual entities in multi-

media virtual worlds. Multimedia Tools Appl., 16(1-

2):161–177.

Strauss, P. S. and Carey, R. (1992). An object-oriented 3D

graphics toolkit. In Computer Graphics, volume 26 of

SIGGRAPH Proceedings, pages 341–349.

Tramberend, H. (1999). A distributed virtual reality frame-

work. In IEEE Virtual Reality Conference, pages 14–

21.

TOWARDS INTELLIGENT VR - Multi-Layered Semantic Reflection for Intelligent Virtual Environments

259
