AUTOMATIC INTEGRATION OF FOLIAGE

INTO 3D CITY MODELS

Real-Time Tree Extraction and Rendering

Based on Seasonal Large Scale Aerial Pictures

Timo Ropinski, Frank Steinicke, Jennis Meyer-Spradow and Klaus Hinrichs

Institut f

ur Informatik, Westf

alische Wilhelms-Universit

at M

unster, Germany

Keywords:

3D city visualization, treetop extraction, massive texture rendering, aerial photography.

Abstract:

In this paper we introduce visualization techniques for massive multimodal texture datasets. These techniques

work on registered texture datasets and have been developed with the goal to improve rendering of these

datasets when used in virtual landscape or city environments. We brieﬂy discuss how to render these mul-

timodal datasets at interactive frame rates, and we present an interactive treetop extraction technique, which

allows to segment treetops and visualize them as 3D objects to increase realism.

1 INTRODUCTION

With the widespread use of geographic information

systems and the increasing availability of image ac-

quisition systems the amount of generated geo-spatial

data has increased dramatically within the last years.

Systems like Google Earth have demonstrated that the

interactive exploration of these datasets ﬁnds many

application areas in the domains of tourist informa-

tion, way ﬁnding, climatology and many more. Two

aspects of applications supporting the exploration of

geo-spatial datasets are interactivity and visual repre-

sentation. Usually there is a trade-off between these

two aspects, since in general visually appealing repre-

sentations require more complex computations which

results in reduced frame rates and thus interferes with

the interactive experience of the user. In this paper

we will propose interactive visualization techniques

for large scale raster data which generate appealing

visual representations at interactive frame rates.

Since nowadays for many locations more than one

aerial image is available, multiple information layers

can be taken into account for the presentation, possi-

bly showing a location during different seasons and/or

weather conditions. Since the information required

for a location may be contained in different aerial im-

ages, novel visualization techniques are needed to in-

teractively analyze and fuse this multimodal content.

We have developed techniques which support the in-

teractive exploration of multiple registered large scale

aerial images, each having a size of possibly several

gigabytes. In particular we will show how to combine

the information stored in two registered aerial images

in order to achieve a more appealing visual represen-

tation in geo-virtual environments. Our techniques

use a summer and a winter aerial image to extract tree-

tops during runtime. These extracted 2D treetops are

extended to 3D and visualized as objects of the geo-

virtual environment.

All concepts proposed within this paper have been

tested using two registered aerial image datasets (see

Figure 1). The datasets cover a 21km × 24km area

around the City of M

unster at a resolution of 10cm ×

10cm. They have been acquired in August 2001 and

in January 2005; in the following we will simply refer

to them as summer texture resp. as winter texture. Al-

though we deal with two large scale texture datasets,

having sizes of 4.33GB resp. 7.80GB, all techniques

proposed in this paper can be applied during runtime

at interactive frame rates. Thus it is possible to inte-

grate them into client side applications streaming data

from map servers without requiring interface adap-

tions with the data provider.

299

Ropinski T., Steinicke F., Meyer-Spradow J. and Hinrichs K. (2007).

AUTOMATIC INTEGRATION OF FOLIAGE INTO 3D CITY MODELS - Real-Time Tree Extraction and Rendering Based on Seasonal Large Scale Aerial

Pictures.

In Proceedings of the Second International Conference on Computer Graphics Theory and Applications - GM/R, pages 299-304

DOI: 10.5220/0002081402990304

 SciTePress

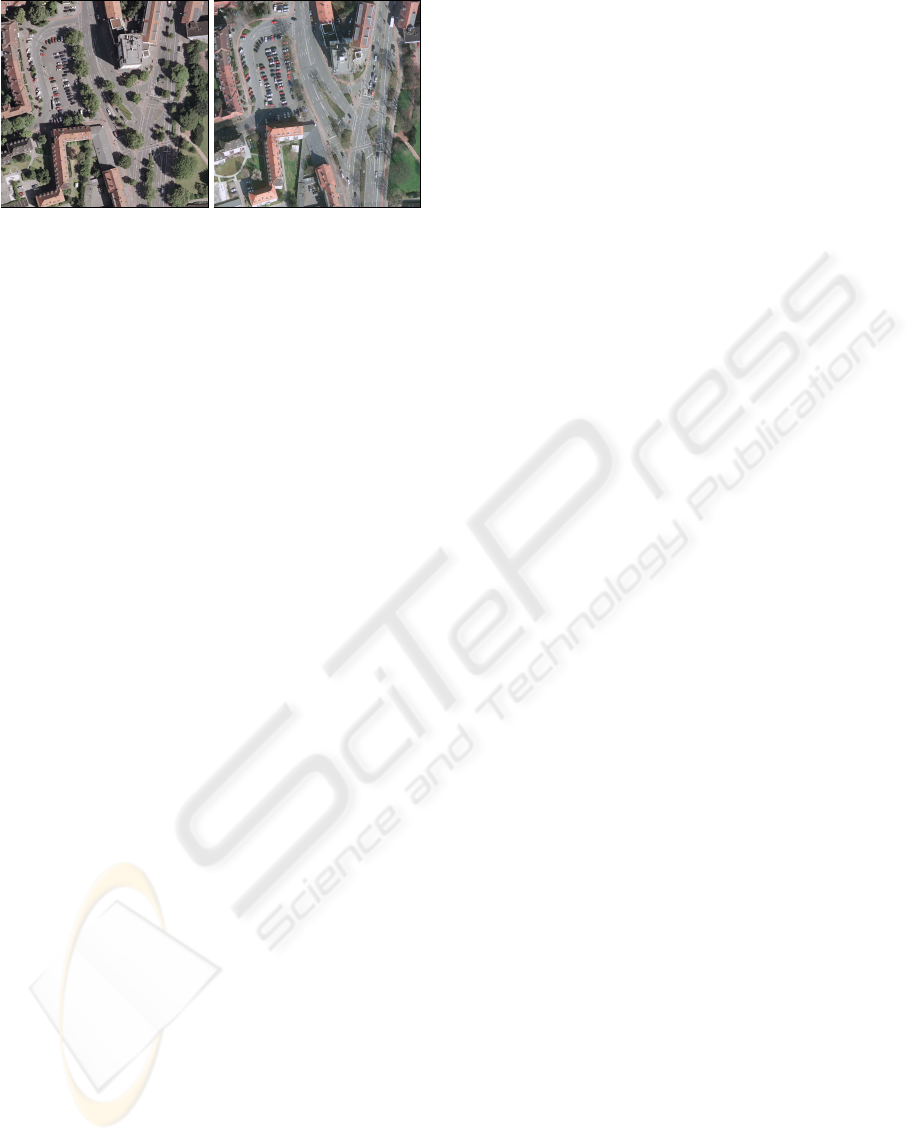

(a) summer texture (b) winter texture

Figure 1: Parts of the summer and the winter texture.

2 RELATED WORK

Several techniques have been developed with the goal

to achieve interactive frame rates when rendering

large scale texture datasets (Hua et al., 2004; Broder-

sen, 2005). These techniques mainly differ in the

supported feature set as well as in implementation

and runtime complexity. To achieve interactive frame

rates when rendering multimodal texture datasets, we

have decided to implement the clipmapping technique

originally proposed by Tanner et al. (Tanner et al.,

1998). To exploit clipmapping for our visualization

techniques we have extended the implementation to

maintain more than one clipmap hierarchy, i.e., in

our case one for each modality. For a more realis-

tic representation aerial textures need to be projected

onto terrain models. Therefore we have integrated

the geometry clipmap proposed by Asirvatham and

Hoppe (Asirvatham and Hoppe, 2005) into our terrain

rendering engine.

Nowadays remote sensing technologies allow an

exact classiﬁcation of certain usage areas (Castel

et al., 2001; Lee et al., 2004; Schlerf and Atzberger,

2006). Although, it is possible to extract forest cov-

erage as well as treetops, most of the techniques ei-

ther require additional registered LIDAR (= light de-

tection and ranging) datasets or are not applicable in

real-time.

Many algorithms for the interactive rendering of

trees and foliage have been presented in the last years.

Since this paper does neither address natural model-

ing of trees nor specialized LoD representation we

simply refer to (Lluch et al., 2003; Deussen et al.,

2004) for an overview of some approaches.

3 LOD DETERMINATION

An important aspect of LoD rendering techniques is

the determination of the appropriate LoD for a given

point or region in space. Since the LoD is view-

dependent the view frustum deﬁned by the camera’s

position and orientation as well as further properties

such as the associated clipping planes have to be con-

sidered when determining the correct LoD. Since Tan-

ner et al. (Tanner et al., 1998) have not covered LoD

determination in their description of clipmapping, we

will describe our approaches to ﬁnd the correct LoD

for a given point or region in space. We distinguish

between two different cases of camera control in or-

der to provide an optimal arrangement of clipmapping

textures: (a) in the 2D case, the view direction of the

camera is orthogonal to the ground plane, whereas (b)

in the 3D case, the camera is arbitrary. The goal is to

arrange the clipmapping textures in such a way that

most of the ground plane within the view frustum is

covered with textures of the highest quality. For sim-

plicity, we reduce the region for which a LoD has to

be determined to a single point in three-dimensional

space, which is located on the ground plane. We ap-

ply a function height(x,y) that returns the height at

the position (x,y). In the following cmc denotes this

optimal clipmap center position in 3D world coordi-

nates.

3.1 3 DoF Top-View Camera

For the simple case in which the camera is constrained

to three degrees of freedom (DoF), i.e., the viewer ex-

plores the virtual environment from a top-view per-

spective where the view direction is focussed along

the negative z-axis towards the ground plane, the cam-

era position p = (p

, p

) is the only camera at-

tribute that has to be considered. We deﬁne the func-

tion lod(p) = min({l|(x

min

≤ p

≤ x

max

)

∧ (y

min

≤ p

≤ y

max

)}) that returns the appropriate

LoD for p, i.e., the level of the clipmap hierarchy,

such that lod(p) ∈ [0, l

max

] where 0 resp. l

max

is the in-

dex of the clipmap level representing the highest resp.

lowest resolution; and the clipmap at level k covers

the area reaching from (x

min

) to (x

max

With these prerequisites the determination of the

correct LoD can be reduced to the calculation of the

optimal clipmap center cmc for a given camera con-

ﬁguration. We assume that the base plane of the

height ﬁeld onto which the aerial photograph has to

be projected is always parallel to the xy-plane having

an averaged surface normal ~n = (0,0, −1). Hence,

assuming that the viewer focuses on the center of

the viewport, we assign the clipmap center cmc

, p

,height(p

, p

)) for all levels l of the clipmap

hierarchy and we can determine the correct LoD for

each camera position p. Thus all clipmap textures are

arranged concentrically. The result is shown in Fig-

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

300

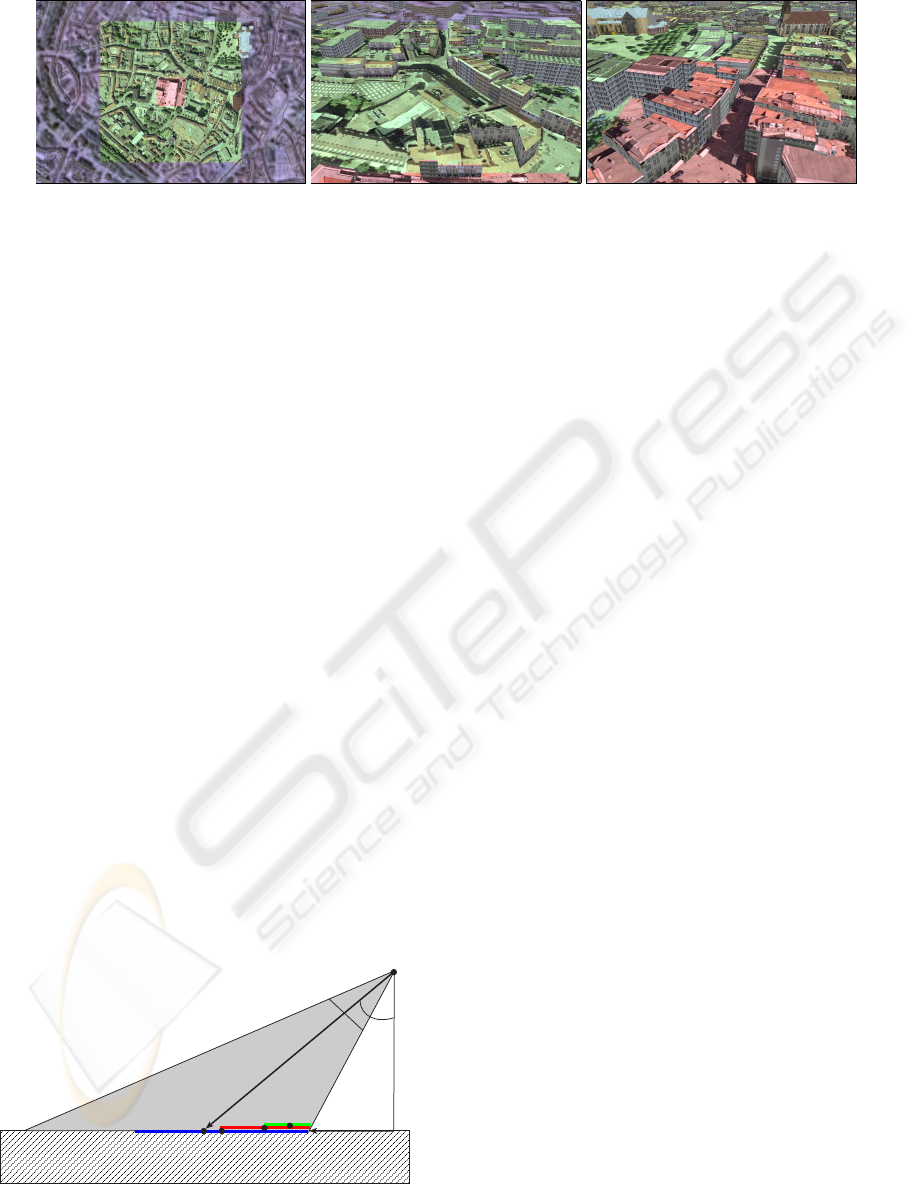

(a) camera centered 3 DoF view (b) camera centered 6 DoF view (c) our technique 6 DoF view

Figure 2: Visualization of different LoD determinations. The LoDs are color coded: highest/red, middle/green, lowest/blue.

ure 2(a), where red, green and blue are used to color

the ﬁrst three levels of the clipmap hierarchy.

3.2 6 DoF Camera

Calculation of the optimal clipmap center in the 6

DoF case is more complicated. While in the afore-

mentioned case we have assumed the optimal clipmap

center to be cmc

= (p

, p

,height(p

, p

)), i.e., the

orthogonal projection of the camera position onto the

ground plane, such clipmap center is not sufﬁcient for

the general 6 DoF case.

As it can be seen in Figure 2(b) a camera setup

with a large angle between the view direction and

~n = (0, 0, −1), results in large areas of the highest

LoD that cannot be seen by the user because they lie

outside the view frustum. Since areas in front of the

user are perceived best, low resolution in these areas

results in unsatisfying visualizations. Thus the strat-

egy to display the highest LoD in the area around the

viewport center as done in the simple top-view case is

not sufﬁcient for the general case.

For a sophisticated visualization when using a 6

DoF camera we have to extend the clipmapping tech-

nique to allow different clipmap centers for the levels

of the hierarchy. We redeﬁne the set of clipmap cen-

pos

dir

hit

cmc

ground

gvec

Figure 3: Schematic side view of the view frustum showing

the conﬁguration of clipmaps on the ground plane.

ters cmc

, where l denotes again the increasing index

of a level in the clipmap hierarchy, without the con-

straint of concentric clipmap levels, and we perform a

clipmap center calculation with the goal to maximize

the areas in image space showing the highest LoD.

Figure 3 illustrates the procedure when arranging

the different clipmap textures. As illustrated we as-

sume that the angle α between the camera’s view di-

rection

d and ~n is between 0 and 90 degrees. Since in

this case the area which is projected directly above

the bottom plane of the view frustum can be per-

ceived best by the user, we have to assure that the

highest level of the clipmap hierarchy is presented in

this area. Therefore we have to determine the edge

formed by the intersection of the ground plane and

the bottom plane of the view frustum which is deter-

mined by b in the near plane, where t denotes the dis-

tance to the top of the ﬁeld of view in the near plane

(see Figure 3). This edge can be calculated by using

the angle α as well as the ground vector ~gvec from

, p

,height(p

, p

)) to the intersection point hit of

the vector

dir with the height ﬁeld. The length of ~gvec

is given by the distance from (p

, p

,height(p

, p

))

to the corresponding edge of the view frustum us-

ing b (see Figure 3). The center of this edge is used

to position the clipmap with highest quality at cmc

Moreover, we add an offset deﬁned by the half of the

clipmap texture’s size to shift the texture along the

ground vector ~gvec in order to ensure that the user can

always see the entire clipmap. The next clipmap cen-

ters are shifted analogously to cmc

, cmc

etc. as il-

lustrated in Figure 3. As depicted the clipmap textures

do not overlap concentrically, but the front edges, i.e.,

closest to the viewer, of the clipmap textures coincide.

Hence, with decreasing distance between the viewer

and the virtual environment displayed on the ground

plane, the quality increases up to the highest resolu-

tion shown directly in front of the user.

As explained in Section 3.1, when the user focuses

on a region orthogonally under her position we use

the concentric arrangement of the clipmap textures

AUTOMATIC INTEGRATION OF FOLIAGE INTO 3D CITY MODELS - Real-Time Tree Extraction and Rendering

Based on Seasonal Large Scale Aerial Pictures

301

(a) trees projected on the

ground

(b) 3D model rendered on

top the projected trees

Figure 4: Two images showing how trees are integrated in

nowadays 3D city models.

around the hit point hit = (p

, p

,height(p

, p

)).

Therefore, when the angle α gets smaller than a cer-

tain threshold we switch to the approach described in

Section 3.1. We experienced best results for an angle

of about 15 degrees (see Figure 2(c)).

4 AUTOMATIC FOLIAGE

INTEGRATION

When combining 2D aerial pictures with 3D city

models a common problem arising is that real objects

contained in the aerial picture are visualized as pro-

jections on the ground as long as no 3D model is pro-

vided. In the cases where a 3D model is visualized

at the appropriate position, this may not be an issue.

Since the projection shown on the aerial picture is ei-

ther not visible because it is occluded by the model,

or the aerial picture is projected onto the model pro-

viding it with a realistic coloring. The second alter-

native is commonly used in 3D city models in order

to texture buildings. However, in the areas were no

3D geometry is present the projections on the aerial

pictures look unrealistic. Especially when using aer-

ial pictures containing many trees, this issue becomes

obvious and results in a very unnatural appearance

(see Figure 4(a)). The commonly used strategy to deal

with this problem is to place a 3D object, in this case

a tree, at the appropriate position of the aerial picture

(see Figure 4(b)). Unfortunately when using 3D tree

models, in general the trunk does not cover the whole

area of the aerial picture which is covered by the tree

as seen from above. With the technique presented in

this section it is possible to visualize trees, which do

not have to be positioned manually on the aerial pic-

ture. To achieve this we perform an automated tree

segmentation on the ﬂy and visualize the trees in an

additional rendering pass.

4.1 Tree Segmentation

In order to visualize the trees contained within a 3D

city model without requiring manual user interac-

tions, a tree segmentation is needed. With the seg-

mentation presented in this subsection we were able

to extract the parts of the textures which correspond

to deciduous trees. The idea is to simply compare the

content of two registered textures showing the same

area of interest during different seasons, i.e., summer

and winter. As it can be seen in Figure 1, the sum-

mer texture is visually more appealing while the cor-

responding winter texture does not contain the tree-

tops, since the leaves are gone in winter. Thus we can

assume, that a texel t

in the summer texture repre-

sents parts of a treetop, if the following condition is

satisﬁed:

max

channel

) = g ∧ max

channel

) 6= g.

Here t

denotes the texel in the summer texture, t

the corresponding texel in the winter texture and

max

channel

returns the color channel with the max-

imum intensity. Although this looks quite easy in

theory, in practice several problems arise. The main

problems are:

• Because lighting is present in both aerial pictures,

treetops are shaded and do not contain a green hue

across their whole extent.

• Since the registered aerial pictures have been ac-

quired during different seasons and possibly dur-

ing different times of the day, the lighting condi-

tions may differ drastically.

Due to the ﬁrst issue no sufﬁcient segmentation

can be obtained when using a simple pixel-based

comparison to identify treetop areas (see Figure 5(a)).

Thus we have extended the tree segmentation not to

process on a texel t isolated from the others, but con-

sider also the k × k neighborhood N

(t), k odd, of the

current texel t. Thus a texel is identiﬁed as a treetop,

if the following assertion evaluates to true:

|{t

∈ N

)|max

channel

) = g}| >

∧|{t

∈ N

)|max

channel

) 6= g}| >

Obviously the size k of the ﬁlter mask is dependent on

the resolution of the aerial picture as well as the light-

ing conditions. For our aerial pictures having a res-

olution of 10cm × 10cm we achieved a good tradeoff

between segmentation results and frame rate, when

using a ﬁlter covering 3 × 3 texels (see Figure 5(b)).

To address the second problem we have calculated

a histogram equalization which can be accessed when

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

302

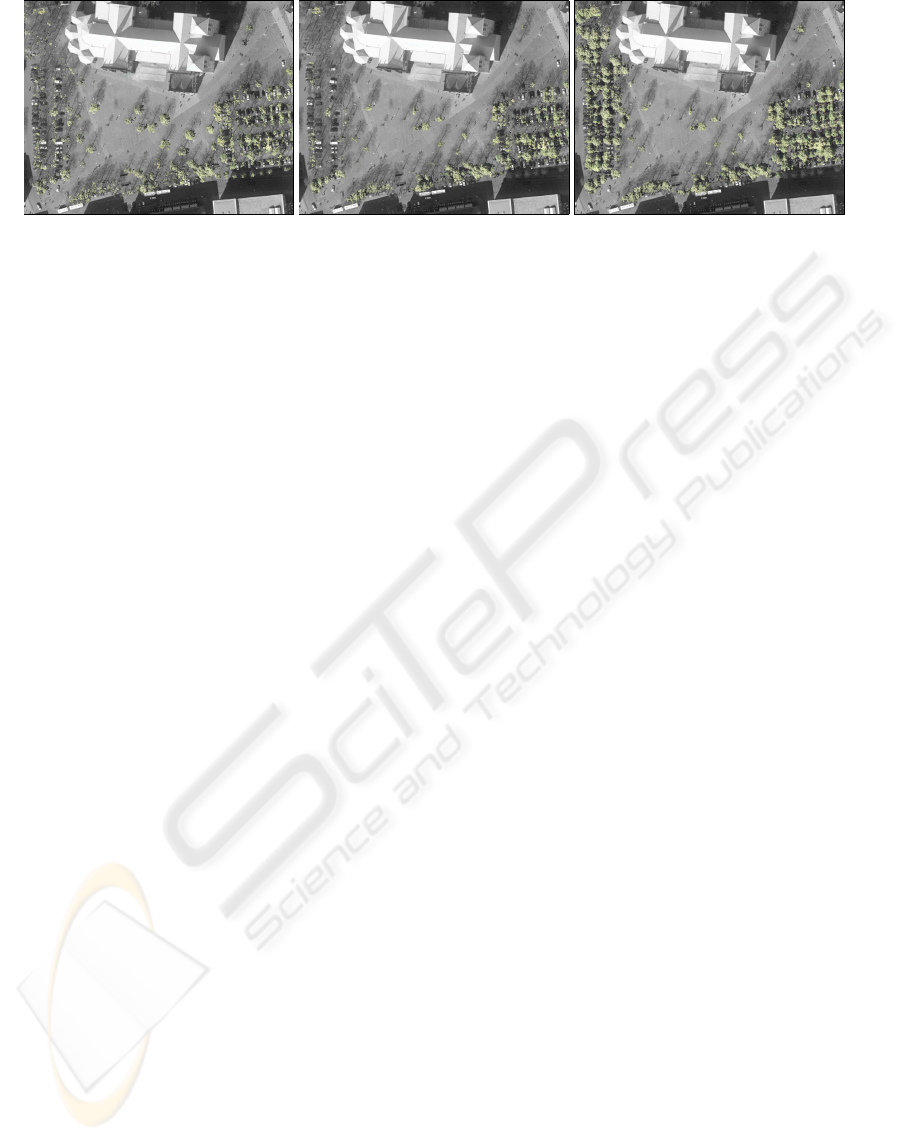

(a) pixel-based segmentation (b) averaged neighborhood segmen-

tation

tion with color transformation

Figure 5: Application of different tree segmentations strategies: simple pixel-based segmentation, averaged neighborhood

segmentation, and averaged neighborhood segmentation with color transformation (from left to right).

fetching the textures. This can be done in real-time

and thus we can ensure that the original image data

does not have to be modiﬁed as it would be neces-

sary when applying the more time consuming light-

ing estimation techniques performed in a preprocess-

ing step. Figure 5(c) shows the segmentation results

we could achieve when combining the neighborhood

average operator with this color transformation.

We achieved good segmentation results by using

the described method. However, there are also draw-

backs. One problem obviously arises when a non-

treetop texel is green in the summer texture and of

different color in the winter texture. This may be the

case for green cars and other green objects present in

the summer texture but not in the winter texture or

for green objects colored differently in the winter tex-

ture due to the lighting conditions. This problem can

be solved to a certain extent by increasing the size k

of the neighborhood used during the color averaging

process. However, increasing the neighborhood re-

sults in less performance. Another problem comes up,

when coniferous trees are present. Since these trees

are green all year round, we are not able to segment

them. Thus in cases were a more robust segmentation

is required an ofﬂine method has to be used.

4.2 Visualizing Trees

Using the segmentation technique described above,

we can distinguish aerial image texels, wether they

belong to tree tops or not. In the visualization process

we use the winter texture, which contains no tree-

tops, for the ground, and we send some extra geom-

etry down the rendering pipeline in order to render

the treetops extracted from the summer texture. For

rendering of the ground with the winter texture we

use a GPU-based implementation of the geometry

clipmaps (Asirvatham and Hoppe, 2005). In the fol-

lowing we will describe the approach for rendering

the trees.

To get a realistic appearance for the general 6 DoF

case, we use a layered geometry consisting of several

stacked geometry clipmaps. Each geometry clipmap

is altered to a certain height, while the average alti-

tude of all these clipmaps represents the average tree

height in the geo-virtual environment.

For processing each clipmap of the clipmap stack,

we can either compute the tree extraction in an ini-

tial rendering pass, or we can vary the segmentation

process for each geometry clipmap. While the ﬁrst

approach allows higher frame rates the second ap-

proach results in more convincing visual representa-

tions. A reasonable approach for achieving realistic

visualizations is to alter the size k of the neighbor-

hood area based on the current height during the seg-

mentation process (see Subsection 4.1). Increasing

k with increasing distance from the ground results in

more naturally shaped treetops. Furthermore to en-

hance realism we inserted a slight texture coordinate

shift when rendering each geometry clipmap.

A major drawback of the described technique for

rendering trees is the fact, that we only render the fo-

liage and not the trunks of the trees. While this is irrel-

evant for birds-view perspectives (see Figure 6(a) and

Figure 6(b)), a different perspective would make the

lack of trunks obvious. Thus in cases where arbitrary

perspectives are required, we combine our visualiza-

tion technique with the rendering of tree trunks (see

Figure 6(c)). However, positioning these trunks is a

critical aspect possibly involving user interactions, al-

though for areas, where cadastral data is available, the

position can be extracted automatically.

AUTOMATIC INTEGRATION OF FOLIAGE INTO 3D CITY MODELS - Real-Time Tree Extraction and Rendering

Based on Seasonal Large Scale Aerial Pictures

303

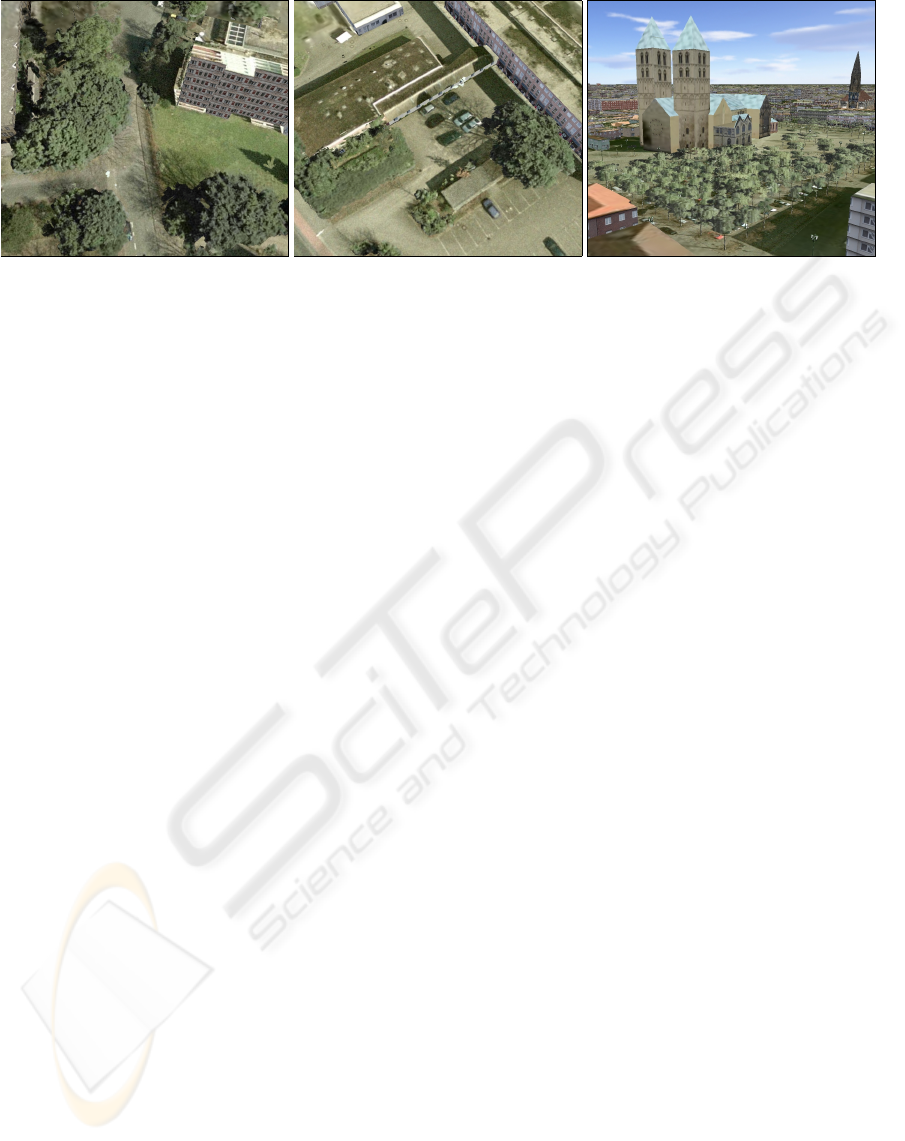

(a) Trees visualized from top view (b) Trees visualized from top view (c) Additionally integrated trunks

Figure 6: Visualizations of the extracted trees, without and with additional trunks inserted.

5 CONCLUSION

In this paper we have presented an efﬁcient imple-

mentation which supports the usage of multimodal

clipmaps on standard graphics hardware. Based on

this clipmapping implementation we have presented

a new approach for estimating the clipmap center to

determine the LoD for the general 3D case. Due

to the efﬁciency of the proposed implementation we

were able to develop interactive visualization tech-

niques which improve realism as well as exploration

of interactive geo-virtual environments. We have pre-

sented an interactive treetop segmentation technique,

which extracts treetops from aerial images and visu-

alize them as 3D elements.

In the future it should be investigated if more ro-

bust ofﬂine segmentation algorithms may improve the

results and how some of the segmented data can be

stored with the aerial pictures.

ACKNOWLEDGEMENTS

The authors would like to thank the reviewers for their

valuable comments. Furthermore the City of M

unster

for providing the texture data as well as the cadastral

data as well as the students contributing to the 3D city

visualization project.

REFERENCES

Asirvatham, A. and Hoppe, H. (2005). Terrain rendering

using gpu-based geometry clipmaps. In GPU Gems 2.

Addison-Wesley.

Brodersen, A. (2005). Real-time visualization of large tex-

tured terrains. In GRAPHITE ’05: Proceedings of the

3rd international conference on Computer graphics

and interactive techniques in Australasia and South

East Asia, pages 439–442, New York, NY, USA.

ACM Press.

Castel, T., Beaudoin, A., Floury, N., Toan, T. L., Caraglio,

Y., and Barczi, J. (2001). Deriving forest canopy pa-

rameters for backscatter models using the amap ar-

chitectural plant model. IEEE Transactions on Geo-

science and Remote Sensing, 39(3):571–583.

Deussen, O., Ebert, D. S., Fedkiw, R., Musgrave, F. K.,

Prusinkiewicz, P., Roble, D., Stam, J., and Tessendorf,

J. (2004). The elements of nature: interactive and

realistic techniques. In SIGGRAPH ’04: ACM SIG-

GRAPH 2004 Course Notes, page 32, New York, NY,

USA. ACM Press.

Hua, W., Zhang, H., Lu, Y., Bao, H., and Peng, Q. (2004).

Huge texture mapping for real-time visualization of

large-scale terrain. In VRST ’04: Proceedings of the

ACM symposium on Virtual reality software and tech-

nology, pages 154–157, New York, NY, USA. ACM

Press.

Lee, K.-S., Cohen, W. B., Kennedy, R. E., Maiersperger,

T. K., and Gower, S. T. (2004). Hyperspectral ver-

sus multispectral data for estimating leaf area index

in four different biomes. Remote Sensing of Environ-

ment, 91(3-4):508–520.

Lluch, J., Camahort, E., and Vivó, R. (2003). Pro-

cedural multiresolution for plant and tree rendering.

In AFRIGRAPH ’03: Proceedings of the 2nd interna-

tional conference on Computer graphics, virtual Real-

ity, visualisation and interaction in Africa, pages 31–

38, New York, NY, USA. ACM Press.

Schlerf, M. and Atzberger, C. (2006). Inversion of a forest

reﬂectance model to estimate structural canopy vari-

ables from hyperspectral remote sensing data. Remote

Sensing of Environment, 100(3):281–294.

Tanner, C. C., Migdal, C. J., and Jones, M. T. (1998). The

clipmap: a virtual mipmap. In SIGGRAPH ’98: Pro-

ceedings of the 25th annual conference on Computer

graphics and interactive techniques, pages 151–158,

New York, NY, USA. ACM Press.

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

304
