Keywords: Virtual Reality (VR), Ygdrasil, VR art, CAVE®, tele-immersion.

Abstract: Ygdrasil is a programming framework used by artists and computer scientists worldwide to create

networked multi-user virtual reality (VR) worlds and tele-immersive art projects. Recently added advanced

rendering modules and scripting language improvements extend the user’s creative control. This paper

describes the development of the VR art project Rutopia 2 using these new features.

1 INTRODUCTION

Multi-user, networked virtual reality technology

enables real-time collaborative science and

engineering. It also serves as a unique art medium

for the enrichment of the human spirit. Through the

use of high-speed networks, powerful graphics

workstations and tracking technology, multiple users

can coexist in an interactive alternate reality of sight

and sound. The development of collaborative VR

environments requires numerous technologies

including 3D modelling software, computer graphics

(CG) rendering techniques, high-speed networking,

sound spatialization and voice conferencing. Artists

working in this medium need development tools that

abstract the process to a level that allows them to

concentrate on their artistic expression instead of the

technology supporting it.

The Electronic Visualization Laboratory (EVL)

at the University of Illinois at Chicago (UIC)

developed the world’s first projection-based virtual

reality room, called the CAVE®, in 1992. In the

mid-nineties, EVL began to connect CAVEs

together over high-speed networks to create real-

time tele-collaborative virtual environments. These

initial development efforts relied heavily on the

expertise of computer scientists working in

collaboration with artists. To streamline the process

for non-expert users, a script-based framework for

shared world development called Ygdrasil was

developed in 1997 by EVL’s Dave Pape (Pape,

2002).

The Rutopia 2 project explores the aesthetics of

virtual art and traditional Russian folk art of wood

sculpture and toys, and the decorative painting styles

of the Russian regional art centers of Palekh,

Khokhloma, and Dymkovo. These art centers are

famous for superb workmanship, the diverse

methods and techniques, distinctive features and use

of narrative imagery—mostly fairytale. Each distinct

style is identifiable by its ornamental pattern, colour

palette and the choice of materials. Rutopia 2

aesthetics is based on the generalized outlines,

decorative colour schemes, and flamboyant colours

inspired by these styles (Ovsiannikov, 1967).

Recent improvements to the Ygdrasil framework

now allow artists to create advanced virtual worlds

with minimal technical assistance. The framework

initially required specialized C++ knowledge to

develop special purpose modules for all but the most

basic projects. This paper describes recent scripting

language improvements and high-end rendering

technique modules that helped to create the enriched

dynamics and content of the VR art project Rutopia 2.

2 YGDRASIL FRAMEWORK

The Ygdrasil framework combines a transparent

shared scene graph with a script-based interface and

dynamically linked modules. Ygdrasil utilizes a

parallel scene graph along side the OpenGL

Performer scene graph and updates distributed nodes

using the QUANTA networking library developed at

EVL. Ygdrasil generated objects can encapsulate

complex behaviours performed on Performer scene

DEVELOPMENT OF RUTOPIA 2 VR ARTWORK USING NEW

YGDRASIL FEATURES

Daria Tsoupikova and Alex Hill

Electronic Visualization Laboratory, University of Illinois at Chicago, Chicago, IL, USA

225

Tsoupikova D. and Hill A. (2007).

DEVELOPMENT OF RUTOPIA 2 VR ARTWORK USING NEW YGDRASIL FEATURES.

In Proceedings of the Second International Conference on Computer Graphics Theory and Applications - AS/IE, pages 225-228

DOI: 10.5220/0002081502250228

 SciTePress

graph objects such as switches, transforms, and

geometric objects. Ygdrasil scripts allow the

creation and initialization of scene objects through

the passing of messages. Additional messages can be

passed between objects at runtime to dynamically

change the content. Dynamic messages are initiated

using events generated by the individual nodes.

For example, a userTrigger node might generate

the event “enter” when a user enters a region of the

environment. Any number of messages can be

assigned to the “enter” event and subsequently sent

to any other node in the scene graph. Events can also

encapsulate additional information relevant to the

event itself. For example, in the following script segment

userTrigger trigger1(volume(sphere),

when(enter,

$user.teleport(100 0 0)))

the variable $user is replaced with the name of

the user node that entered the trigger. Ygdrasil nodes

related to external devices such as a Wanda

(TM)

keyboard input also generate events useful for

programming interactive behaviours.

2.1 Scripting Language Improvements

In the original implementation of Ygdrasil, the

information available when responding to events

was limited to a small set of data passed along with

the event. It soon became apparent that access to the

internal state variables of each node would allow

greater flexibility in programming interactions.

Unfortunately, the original Ygdrasil system

architecture did not facilitate accessing internal state

variables because there was a mismatch between the

stored internal state and the messages sent to the node.

The internal state of each Ygdrasil node was

comprised of any number of database keys, each

requiring a unique identifier within the QUANTA

networking middleware. The available key datatypes

include strings, floats, integers, booleans, and

several different sized float arrays. This internal

state was originally optimized to minimize the

amount of data required for updating networked

client nodes. For example, several messages

indicating the state of collision detection for a

geometry node (i.e. wall(true), floor(false)) were

OR-ed into a single short integer for transfer to

client nodes. Because messages are often aggregates

of several data types, this mismatch required logic to

parse the incoming message into internal database

variables and further logic to retranslate state

variables back into the message format for save-to-

file or runtime access within events. In order to

unify the relationship between message and state,

the message architecture was reorganized around a

system of aggregate data types. The data now

transferred to client nodes directly represents the

aggregate data type of the messages that adjust them.

By registering messages and their corresponding

data types with the system in this fashion, a simple

heuristic can easily recreate message arguments. In

the following script segment

userTrigger trigger1(volume(sphere),

when(enter,trans1.event(teleport,

user=$user)))

transform trans1(position(10 20 0),

when(teleport,

$user.teleport($position0

$position1

$position2)))

the variable user is passed to the transform node

and used in combination with the position state

variables to teleport the user to the current position

of the transform.

In order to facilitate the calculation of

intermediate variables within the scripting language,

an arrayed float value node was created and sub-

classed for various operations. Using recursive

descent on binary and unary trees allows

calculations to be constructed within the existing

scene graph data structure. In the following script segment

add(when(changed,

trans1.position(0 $value 0)))

{

multiply()

{

value height1()

value(set(2.0))

}

value(set(10.0))

}

a value of 10.0 is added to the product of height1

and 2.0. The final result generates a “changed” event

and the state variable can be used to generate a

message to another node. In addition to floating

point operations, a set of and, or, not and boolean

test nodes (i.e. lessThan, greaterThan) support a full

range of boolean logic operations. These math nodes

do not affect the resulting visualization and,

therefore, their location within the scene graph is

arbitrary.

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

226

2.2 Advanced Rendering Techniques

Even with access to state variables and intermediate

variable calculations, artists often find that they need

advanced rendering techniques to realize their

artistic vision. Techniques that fall into this category

are vertex morphing, real-time texture manipulation,

alternate rendering viewpoints, clipping planes and

stencil buffer operations. These techniques must be

componentized carefully in order that they remain

flexible and useful within the scripting environment.

We use two strategies to address these needs;

segmentation of functionality and separation of

rendering object from rendering source.

The majority of early dynamic nodes for

Ygdrasil encapsulated the time based dynamics

within the node itself. For instance, the spinner node

only accepted a message to adjust the period of a full

rotation but could not be paused or reversed. By

segmenting the time manipulation into a general-

purpose timer node and passing only an orientation

value to the spinner we can gain better control of the

dynamics. Nodes for path following, vertex

morphing, material properties and others can now

have their dynamics paused, reversed, and looped

easily with this new implementation. Moreover,

segmenting the manipulation of large data arrays

helps to retain the power of techniques without

sacrificing flexibility. Programs such as Photoshop

and Maya are useful for manipulating large arrays of

pixels and vertices respectively. Our vertex-

morphing node only takes a keyframe position and

morphs between the vertex positions defined within

two 3D model files. And, our texture application

node applies a secondary texture to an arbitrary

location on an existing texture for producing effects

such as burns, bullet holes, or x-ray vision through

surfaces. Users do not manage the values of

individual pixels, they merely apply a smaller image

onto another image at a specified X and Y location.

In both cases, the manipulation of individual pixels

remains in the realm of more special purpose

programs while the expressive power of the

rendering technique can easily be manipulated

dynamically within Ygdrasil.

Many rendering techniques rely both on an

object located within the scene and operation on

some subset of the geometry in the scene. The

clipping plane node, for instance, must both position

the clipping plane in the scene and indicate the

subset of the scene graph that is subject to clipping.

Our viewTexture node renders a subset of the scene

from an alternate viewpoint and applies it to a

texture object within the scene. And, our

stencilBuffer node must specify both a graphical

object used to create the stencil mask and a subset of

the scene graph to be rendered subject to the mask.

In order to accommodate these dual needs we locate

the rendering node at one location within the scene

and give it the name of a node indicating the subset

of the scene graph it should apply to. In the

following script segment

stencilBuffer(node(stencilGroup)) {

object tree(file(tree.pfb))

}

group stencilGroup(){

object moon(file(moon.pfb))

}

object terrain(file(terrain.pfb))

the tree object defines the geometry shape of the

stencil mask, the moon object is rendered into the

resulting mask, and the terrain is rendered normally.

As a result, the user can see the moon only within an

area defined by the rendering of the tree.

3 RUTOPIA 2

Rutopia 2 is a virtual reality art project describing a

magic garden with interactive sculptural trees that

create portals to distant worlds. It was conceived as

a virtual environment linked to a matrix of several

other unique virtual environments that together

create a shared network community. The goal of the

interaction scheme is to avoid the preliminary

instructions usually required to familiarize the user

with the virtual environment and its rules of

exploration. User interaction is based on the

participant proximity to interactive locations while

the wand interface is used only to control the

direction of movement. The project implementation

utilized Ygdrasil, OpenGL Performer 3.2, CAVElib

and the Bergen spatialized sound server on an Intel

Linux PC running SUSE 10.0 and connected to an

Ascension Flock of Birds tracker.

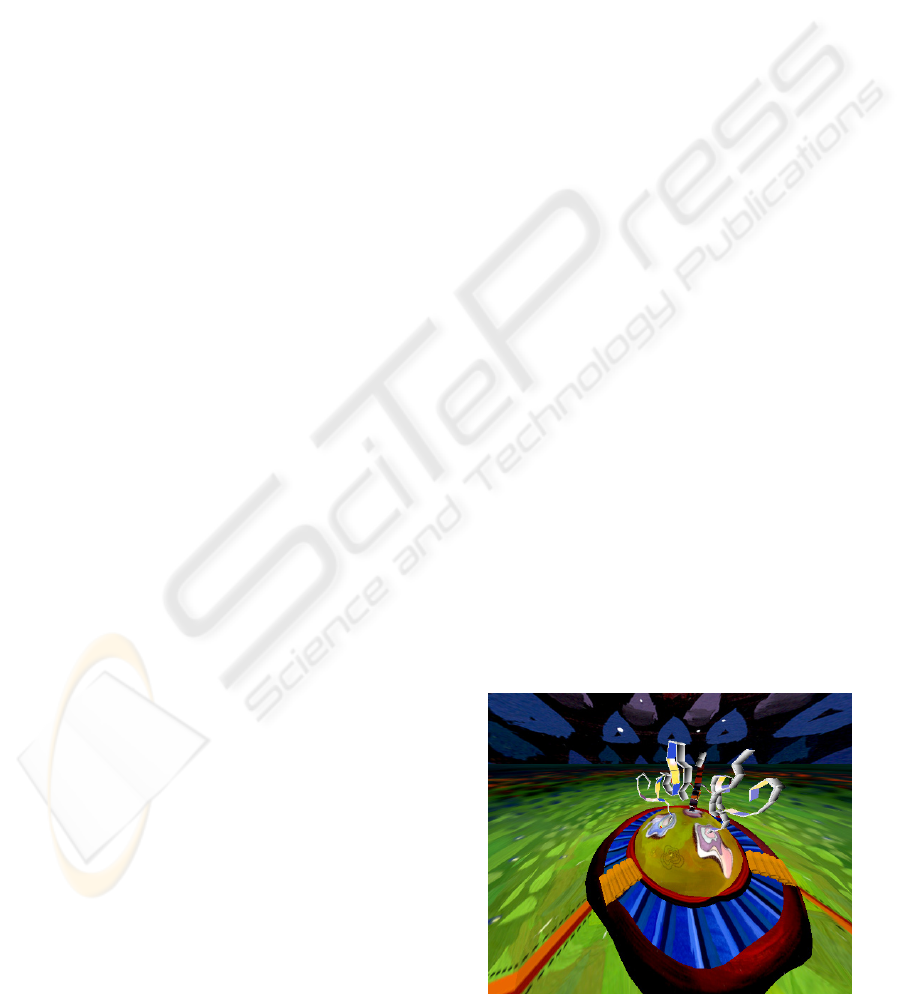

Figure 1: The Island world with the trees.

DEVELOPMENT OF RUTOPIA 2 VR ARTWORK USING NEW YGDRASIL FEATURES

227

A series of 3D modular sculptural trees, each

consisting of dozens of rectangular screens, appear

in the main environment and serve as portals to the

other linked environments (Fig. 1). Users can

“grow” three trees in the monochrome island world

by moving within the proximity of each tree. Each

tree appears as a rapid sequence of flipping and

rotating rectangular screens expanding out and

upward. Once all the trees are fully grown, their

screens turn into windows and the island changes

from monochrome to colour. Each window shows

the view of the remote environment connected to it.

Just as we can look through a window and see the

outside, the user can look through each of the

screens to see a house world consisting of imagery

found in traditional Russian fairytales and folk art.

By moving his or her head completely through one of

the virtual screens, the user enters the connected

environment (Fig. 2).

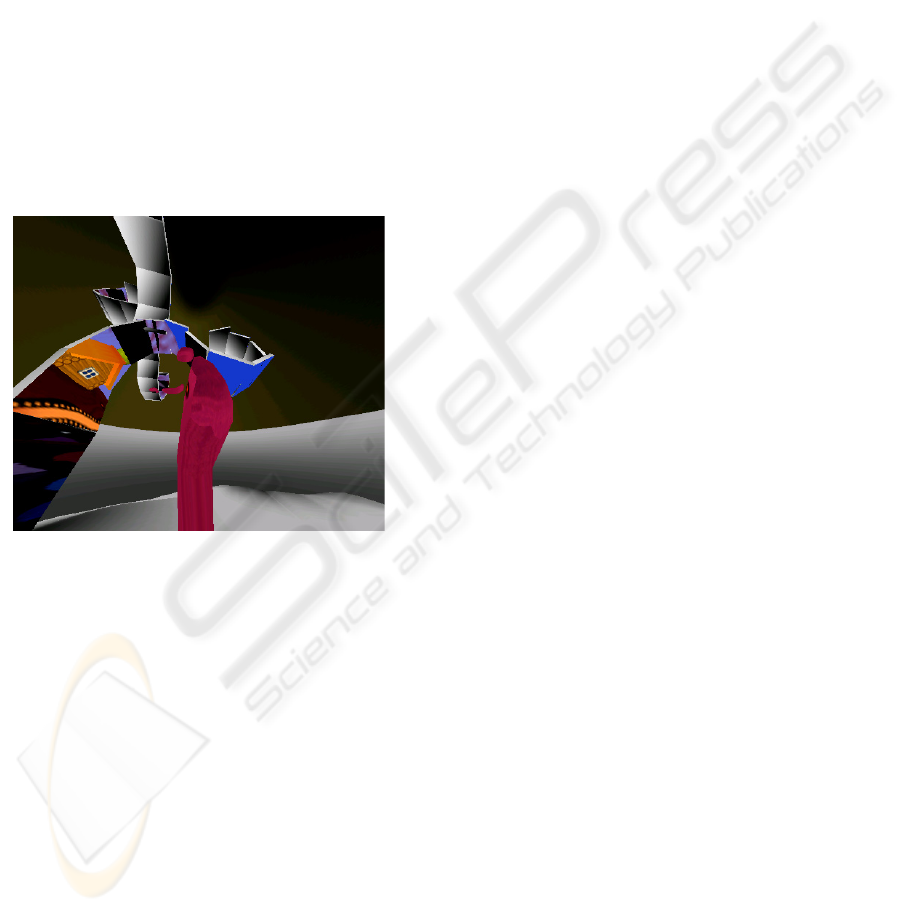

Figure 2: An avatar peeks into the details of the remote world.

3.1 Utilizing Rendering Nodes

The Rutopia 2 project was realized using the latest

improvements to Ygdrasil including state variable

access and logical operations. The windows of the

trees were made using the new stencilBuffer node.

This node acts as a mask covering the areas outside

the windows so that only the selected window area

allows a view to the other world. The other world

consists of two objects, the rendered object and the

stencil object. The rendered object is the geometry

of the remote place the user can see through the

window. The stencil object forms the viewing

window and is utilized by the stencil buffer mask so

that the user can see only a portion of the rendered

object through the region defined by the stencil

object. Each third window-hole on a tree is

connected to the same view of the house world in an

alternating fashion. Participants can recognize and

visually connect lower and upper parts of the remote

house world projected on the different level

windows to appreciate an even broader view of the

remote environment.

4 CONCLUSION

The development of VR environments is

interdisciplinary in nature and requires both artistic

and scientific skills. For the last several years, artists

and scientists have used the Ygdrasil programming

framework to create networked multi-user virtual

worlds and art projects. Recent scripting language

improvements and advanced rendering techniques

within the Ygdrasil framework empower the creative

freedom of artists in order that they may realize their

creative visions. These recent improvements to

Ygdrasil greatly contributed to the development of

dynamic interactions and advanced rendering effects

in the Rutopia 2 project.

ACKNOWLEDGEMENTS

We would like to acknowledge the support of the

University of Illinois at Chicago’s Electronic

Visualization Laboratory (EVL), Geophysical

Center Russian Academy of Sciences (GC RAS),

Global Ring Network for Advanced Applications

Development (GLORIAD) and San Diego State

University. This material is based in part upon EVL

work supported by the National Science Foundation

(NSF), notably equipment awards CNS-0224306

and CNS-0420477 and international networking

infrastructure awards OCI-0229642 and OCI-

0441094. The CAVE, CAVElib and Wanda are

registered trademarks of the Board of Trustees of the

University of Illinois.

http://www.evl.uic.edu/yg/

http://www.evl.uic.edu/animagina/rutopia/rutopia2/

REFERENCES

Pape D., Anstey J., Dolinsky M., Dambik E., 2002.

Ygdrasil--a framework for compositing shared virtual

worlds. In Future Generation Computer Systems,

Special Issue IGRID 2002, pp. 1041-1049.

Chinese puzzle consisting of geometric shapes to be

reassembled into different figures.

Ovsiannikov I., 1967. Russian folk arts and crafts.

Moscow, Progress Publishers.

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

228
