REAL TIME FALLING LEAVES

Pere-Pau V

azquez and Marcos Balsa

MOVING Group, Dep. LSI, Universitat Polit

ecnica de Catalunya

Keywords:

Real-Time Rendering, Rendering Hardware, Animation and Simulation of Natural Environments.

Abstract:

There is a growing interest in simulating natural phenomena in computer graphics applications. Animating

natural scenes in real time is one of the most challenging problems due to the inherent complexity of their

structure, formed by millions of geometric entities, and the interactions that happen within. An example of

natural scenario that is needed for games or simulation programs are forests. Forests are difﬁcult to render

because the huge amount of geometric entities and the large amount of detail to be represented. Moreover,

the interactions between the objects (grass, leafs) and external forces such as wind are complex to model. In

this paper we concentrate in the rendering of falling leafs at low cost. We present a technique that exploits

graphics hardware in order to render thousands of leafs with different falling paths at real time and low memory

requirements.

1 INTRODUCTION

Natural phenomena are usually very complex to sim-

ulate due to the high complexity of both the geome-

try and the interactions present in nature. Rendering

realistic forests is a hard problem that is challenged

both by the huge number of present polygons and the

interaction between wind and trees or grass. Certain

falling objects, such as leaves, are difﬁcult to simulate

due to the high complexity of its movement, inﬂu-

enced both by gravity and the hydrodynamic effects

such as drag, lift, vortex shedding, and so on, caused

by the surrounding air. Although very interesting ap-

proaches do simulate the behaviour of light weight

objects such as soap bubbles and feathers have been

developed, to the authors’ knowledge, there is cur-

rently no system that renders multiple falling leaves in

real time. In this paper we present a rendering system

that is able to cope with thousands of falling leaves

at real time each one performing an apparently differ-

ent falling path. In contrast to previous approaches,

our method concentrates on efﬁcient rendering from

precomputed path information and we show how to

effectively reuse path information in order to obtain

per leaf different trajectories at real time and with low

memory requirements. Our contributions are:

• A tool that simulates the falling of leaves from

precomputed information stored in textures.

• A simple method for transforming incoming in-

formation in order to produce different paths for

each leaf.

• A strategy of path reuse that allows for the con-

struction of potentially indeﬁnite long paths from

the initial one.

The rest of the paper is organized as follows: First,

we review related work. In Section 3, we present an

overview of our rendering tool and the path construc-

tion process. Section 4 shows how we perform path

modiﬁcation and reuse in order to make differently

looking and long trajectories from the same data. Sec-

tion 5 deals with different acceleration strategies we

used. Finally, Section 6 concludes our paper with the

results and future work.

2 RELATED WORK

There is a continuous demand for increasingly re-

alistic visual simulations of complex scenes. Dy-

244

Vázquez P. and Balsa M. (2007).

REAL TIME FALLING LEAVES.

In Proceedings of the Second International Conference on Computer Graphics Theory and Applications - GM/R, pages 244-251

DOI: 10.5220/0002082002440251

 SciTePress

Figure 1: Two scenes with one million polygons and seven thousand (left) and 13.5 thousand leaves falling from the trees.

namic natural scenes are essential for some applica-

tions such as simulators or games. A common exam-

ple are forests due to its inherently huge amount of

polygons needed to represent it, and the highly com-

plex interactions that intervene in animation. There

has been an increasing interest in animating trees or

grass, but there has been little work simulating light

weight falling objects such as leaves or paper. Most

of the papers focus on plants representation and in-

teractive rendering, and only a few papers deal with

the problem of plant animation, and almost no paper

focuses on falling leaves.

2.1 Interactive Rendering

Bradley has proposed an efﬁcient data structure, a

random binary tree, to create, render, and animate

trees in real time (Bradley, 2004). Color of leaves

is progressively modiﬁed in order to simulate season

change and are removed when they achieve a certain

amount of color change. Braitmaier et al. pursue

the same objective (Braitmaier et al., 2004) and fo-

cus especially in selecting pigments during the sea-

sons that are coherent with biochemical reactions dur-

ing the seasons. Deussen et al. (Deussen et al., 2002)

use small sets of point and line primitives to repre-

sent complex polygonal plant models and forests at

interactive frame rates. Franzke and Deussen present

a method to efﬁcient rendering plant leaves and other

translucent, highly textured elements by adapting ren-

dering methods for translucent materials in combina-

tion with a set of predeﬁned textures (Franzke and

Deussen, 2003).

Jakulin focuses on fast rendering of trees by using

a mixed representation: polygon meshes for trunks

and big branches, and a set of alpha blended slices

that represent the twigs and leaves. They use the lim-

ited human perception of parallax effects to simplify

the slices needed to render (Jakulin, 2000). Decaudin

and Neyret render dense forests in real time avoiding

the common problems of parallax artifacts (Decaudin

and Neyret, 2004). They assume the forests are dense

enough to be represented by a volumetric texture and

develop an aperiodic tiling strategy that avoids inter-

polation artifacts at tiles borders and generates non-

repetitive forests.

2.2 Plant Motion

There have been some contributions regarding plant

or grass motion, but without focusing on rendering

falling leaves, we present here the ones more related

to our work. Wejchert and Haumann (Wejchert and

Haumann, 1991) developed an aerodynamic model

for simulating the motion objects in ﬂuid ﬂows. In

particular they simulate the falling of leaves from

trees. They use a simpliﬁcation of Navier-Stokes

equations assuming the ﬂuids are inviscid, irrota-

tional, and uncompressible. However, they do not

deal with the problem of real time rendering of leaves.

Ota et al. (Ota et al., 2004) simulate the motion

of branches and leaves swaying in a wind ﬁeld by us-

ing noise functions. Again, leaves do not fall but stay

attached to the trees and consequently the movements

are limited. Reeves and Blau (Reeves and Blau, 1985)

proposed an approach based on a particle modeling

system that made the particles evolve in a 2D space

with the effect gusts of wind with random local varia-

tions of intensity. Our system is similar to the latter in

the sense that our precomputed information is used by

applying pseudo random variations, constant for each

leaf, thus resulting in different paths created from the

same initial data.

Wei et al. (Wei et al., 2003) present an approach

that is similar to ours in objectives, because they ren-

der soap bubbles or a feather, but from a simulation

point of view. This limits both the number of ele-

ments that can be simulated and the extension of the

geometry where they can be placed. They model the

wind ﬁeld by using a Lattice Boltzmann Model, as it

is easy to compute and parallelize.

REAL TIME FALLING LEAVES

245

3 RENDERING LEAVES

In order to design a practical system for real time ren-

dering of falling leaves in real time, three conditions

must be satisﬁed:

• Paths must be visually pleasing and natural.

• Each leaf must fall in a different way.

• Computational and memory costs per leaf must be

low.

The ﬁrst objective is tailored to ensure realism. De-

spite the huge complexity of natural scenes, our eyes

are used to them, and therefore, if leaves perform

strange moves in their falling trajectory, we would

note rapidly. This will be achieved by using a physi-

cally based simulator that computes a realistic falling

path of a light-weight object under the inﬂuence of

forces such as gravity, vortex, and wind.

The second objective must be fulﬁlled in the pres-

ence of a set of leaves, in order to obtain plausible

animation: if many leaves are falling, it is important

to avoid visible patterns in their moves, because it

would make the scene look unnatural. In order to re-

duce memory requirements and computation cost, we

will use the same path for all leaves. Despite that, we

make it appear different for each leaf by performing

pseudo random modiﬁcations to the path at real time,

and thus, we get a differently looking path per leaf.

The third one is important because it imposes re-

strictions on the rendering tool, if we want a system

to scale well with the number of leaves, the position

computation must have low cost. This can be fulﬁlled

by storing the trajectory information in a texture that

is used to modify leaf position in a vertex shader. We

have used the so-called Vertex Texture Fetch exten-

sion (Gerasimov et al., 2004), available in modern

NVidia graphics cards (and compatible with the stan-

dard OpenGL Shading Language) in order to compute

the actual position and orientation of each leaf in the

vertex shader. Moreover, the vertex shader takes care

of the path modiﬁcation too.

Initially, a simple path is calculated and stored in a

texture. We could use more than one path, and reduce

the computations in the vertex shader, although this

results in small gain because the current GPU imple-

mentations (before GF 8800) of vertex texture fetch

are quite slow and the cost of texture accesses domi-

nate over the rest of the work of the vertex. For each

leaf, the vertex shader updates its position and ori-

entation according to the moment t of the animation

using the data of the path. Thus, each leaf does fall

according to the selected path in a naturally looking

fashion. Next, we explain the path construction pro-

cess, the contents of the texture path, and overview

the contents of our vertex shader. Section 4 deals on

reusing data to produce different trajectories for each

leaf.

3.1 Path Construction

There are two possible different methods to construct

the initial path we need for our rendering tool: i) Cap-

turing the real information from nature, or ii) Simu-

lating the behavior of a leaf using a physically-based

algorithm.

Our initial intention was to acquire the 3D data of a

falling leaf and use it for rendering. Unfortunately,

the data of leaves in movement is very difﬁcult to ac-

quire due to many reasons, mainly: their movement is

fast, thus making it difﬁcult for an affordable camera

to correctly (i.e. without blurring artifacts) record the

path, and second, it is not possible to add 3D markers

for acquisition systems because they are too heavy to

attach them to a leaf (a relatively large leaf of approx-

imately 10 × 15 centimeters weighs 4 to 6 grams).

Moreover, in order to capture a sufﬁciently long path,

we would need a set of cameras covering a volume of

4 or 5 cubic meters, which also implies difﬁculties in

the set up.

A different approach could be the simulation of

falling leaves using a physically based system. This

poses some difﬁculties too because Navier-Stokes

equations are difﬁcult to deal with. Some simpliﬁca-

tions such as the systems presented by Wejchert and

Haumann (Wejchert and Haumann, 1991) or Wei et

al. (Wei et al., 2003), have been developed. Fortu-

nately, there are other commercial systems that simu-

late the behavior of objects under the inﬂuence of dy-

namic forces such as Maya. Although this approach

is not ideal because it is not easy to model a complex

object as a leaf (the trajectory will be inﬂuenced by

its microgeometry and the distribution of mass across

the leaf), and simpler objects will have only similar

behavior, it is probably the most practical solution.

On the other hand, Maya provides a set of dy-

namic forces operators that can be combined in or-

der to deﬁne a relatively realistic falling trajectory for

a planar object. In our case, we have built a set of

falling paths by rendering a planar object under the

effect of several forces (gravity, wind, and so on), and

recovered the information on positions and orienta-

tions of the falling object to use them as a trajectory.

Our paths consist of a set of up to 200 positions (with

the corresponding orientation information at each po-

sition). As we will see later, these resulting paths are

further processed before the use in our rendering tool

in order to extract extra information that will help us

to render a per-leaf different path with no limit in its

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

246

length. This extra information is added at the end of

the texture. This way all the information needed for

the rendering process that will be used by the vertex

shader is stored in the same texture (actually we use a

texture for positions and another one for orientations).

Note that, independently of the acquisition

method, if we are able to obtain the aforementioned

information, that is, positions and orientations, we can

plug it into our system.

3.2 Path Information

As we have already explained, we start with the pre-

computed data of a falling leaf and provide it to the

vertex shader in the form of a texture. Concretely, the

trajectory information is stored in a couple of 1D tex-

tures, each containing a set of RGB values that encode

position (x, y, z) and rotation (Rx, Ry, Rz) respectively,

at each moment t. Given an initial position of a leaf

, y

, z

), subsequent positions may be computed as

+ x, y

+ y, z

+ z). Rotations are computed the

same way. In order to make easy the encoding, the

initial position of the path is (0, 0, 0), and subsequent

positions encode displacements, therefore, the value

of y component will be negative for the rest of the po-

sitions. On their hand, orientations encode the real

orientation of the falling object. The relevant infor-

mation our vertex shader receives from the CPU is:

Number of frames of the path: Used to determine

if the provided path has been consumed and we

must jump to another reused position (see Sec-

tion 4.2).

Current time: Moment of the animation.

Total time: Total duration of the path.

Object center: Initial position of the leaf.

Path information: Two 1D textures which contain

positions and orientations respectively.

The vertex shader also receives other information

such as the vertex position, its normal, and so on.

Each frame, the vertex shader gets the correspond-

ing path displacements by accessing the correspond-

ing position (t, as the initial moment is 0) of the tex-

ture path. This simple encoding, and the fact that the

same texture is shared among all the leaves at vertex

shader level, allows us to render thousands of leaves

in real time, because we minimize texture information

change between the CPU and the GPU. Having a dif-

ferent texture per leaf would yield to texture changes

at some point. In Section 4.2 we show how to use the

same path in order to create different trajectories, and

how to reuse the same path when the initial y position

of the leaf is higher than the represented position in

the path.

3.3 Overview

At rendering time, for each leaf, a vertex shader com-

putes the new position and orientation using the cur-

rent time t. It performs the following steps:

1. Looks for the initial frame f

(different per leaf)

2. Seek current position in path ( f

+t)

3. Calculate actual position and orientation

In step 2, if we have a falling path larger than the

one stored in our texture, when we arrive at the end,

we jump to a different position of the path that pre-

serves continuity, as explained in Section 4.2. Once

we know the correct position and orientation, step 3

performs the corresponding geometric transforms and

ensures the initial and ﬁnal parts of the path are soft,

as explained in the following subsection.

3.4 Starting and Ending Points

As we have mentioned, the information provided by

our texture path consists in a ﬁxed set of positions and

orientations for a set of deﬁned time moments. Ide-

ally, a different path should be constructed for each

leaf according to its initial position, orientation, and

its real geometry. This way, everything could be pre-

computed, that is, the vertex shader should only re-

place the initial position of the element by the position

stored in a texture. Unfortunately, for large amounts

of leaves, this becomes impractical due to the huge

demand of texture memory and, moreover, the limita-

tion in number of texture units would turn rendering

cost into bandwidth limited because there would be a

continuous necessity of texture change between CPU

and GPU. Thus, we will use the same path for all the

leaves (although we could code some paths in a larger

texture and perform a similar treatment).

In our application, a path is a set of ﬁxed posi-

tions and orientations. Being this path common to all

leaves, and being the initial positions of leaves even-

tually different, it is compulsory to analyze the initial

positions of leaves in order to make coherent the ini-

tial orientations of leaves in our model, that depend on

the model of the tree, and the ﬁxed initial orientation

of our falling path. Note that the position is unimpor-

tant because we encode the initial position of the path

as (0, 0, 0) displacement. As in most cases the orien-

tations will not match, we have to ﬁnd a simple and

efﬁcient way to make the orientation change softly.

Therefore, a ﬁrst adaptation movement is required.

Our vertex shader receives, among other parame-

ters, a parameter that indicates the moment t of the

animation. Initially, when t is zero, we must take

the ﬁrst position of the texture as the information for

REAL TIME FALLING LEAVES

247

Figure 2: Several superposed images of a marked leaf start-

ing to fall (left) and adapting to a planar position on the

ground (right).

leaf rendering. In order to make a soft adjustment be-

tween the initial position of the leaf and the one of

the path, at the initial frames (that is, we have a y dis-

placement smaller than a certain threshold) the vertex

shader makes an interpolation between the initial po-

sition of the leaf and the ﬁrst position of the path (by

rotating over the center of the leaf). As the leaf moves

only slightly in Y direction for each frame, the effect

is soft (see Figure 2 left).

The same case happens when the leaf arrives to

the ground. If the ground was covered by grass, noth-

ing would be noted, but for a planar ground, if leaves

remain as in the last step of the path, some of them

could not lie on the ﬂoor. Note that it is not guaranteed

that each leaf will consume all the path because they

start from different heights. To solve it, when the leaf

is close to the ground, we perform the same strategy

than for the initial moments of the falling path, that is,

we interpolate the last position of the leaf before ar-

riving to the ground with a resting position that aligns

the normal with the normal of the ground. We can see

the different positions a leaf takes when falling to the

ground in Figure 2 (right).

4 PATH MODIFICATION

Up to now we have only presented the construction

and rendering of a single path. However, if we want

our forest to look realistic, each leaf should fall in a

different manner. A simple path of 200 positions re-

quires 1.2 Kb for the positions and orientations. If

we want to render up to ten thousand leaves, each one

with a different path, the storage requirements grow

up to 12 Mb. For larger paths (such as for taller trees),

the size of textures would grow. Therefore, what we

do is to use a single path that will be dynamically

modiﬁed for each leaf to simulate plausible variations

per leaf. This is implemented by adding two improve-

ments to our rendering tool: path variation and path

reuse.

4.1 Different Falling Trajectories

As our objective is to reduce texture memory con-

sumption and rendering cost, we will use the same

texture path for each leaf. This makes the memory

cost independent on the number of leaves that fall.

However, if we do not apply any transformation, al-

though not all leaves start falling at the same time, it

will be easy to see patterns when lots of leaves are on

their way down. Updating the texture for each falling

leaf is not an option because it would penalize efﬁ-

ciency. Consequently, the per leaf changes that we

apply must be done at vertex shader level.

In order to use the same base path to create differ-

ent trajectories, we have applied several modiﬁcations

at different levels:

• Pseudo-random rotation of the resulting path

around Y axis.

• Pseudo-random scale of X and Y displacements.

• Modiﬁcation of the starting point.

When we want to modify the falling path we have

to take into account that many leaves falling at the

same time will be seen from the same viewpoint.

Therefore, symmetries in paths will be difﬁcult to

notice if they do not happen parallel to the viewing

plane. We take advantage of this fact and modify the

resulting data by rotating the resulting position around

the Y axis.

In order to perform a deterministic change

to the path, we use a pseudo-random modiﬁ-

cation that depends on the initial position of

the leaf, which is constant and different for

each one. Thus, we rotate the resulting po-

sition a pseudo-random angle Y that is com-

puted as follows: permAngle = mod(center ob j.x ∗

center ob j.y ∗ center ob j.z ∗ 17., 360.). The product

has been chosen empirically.

Although the results at this point may be accept-

able, if the path has some salient feature, that is, some

sudden acceleration or rotation, or any other particu-

larity, this may produce a visually recognizable pat-

tern. Thus, we add a couple of modiﬁcations more:

displacement scale and initial point variation.

Although it is not possible to produce an arbitrar-

ily large displacement scale, because it would pro-

duce unnatural moves, a small, again pseudo-random

modiﬁcation is feasible. The values of X and Z

are then modiﬁed by a scaling factor computed as:

scale x = mod(center ob j.z ∗ center ob j.y ∗ 3.0, 3.)

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

248

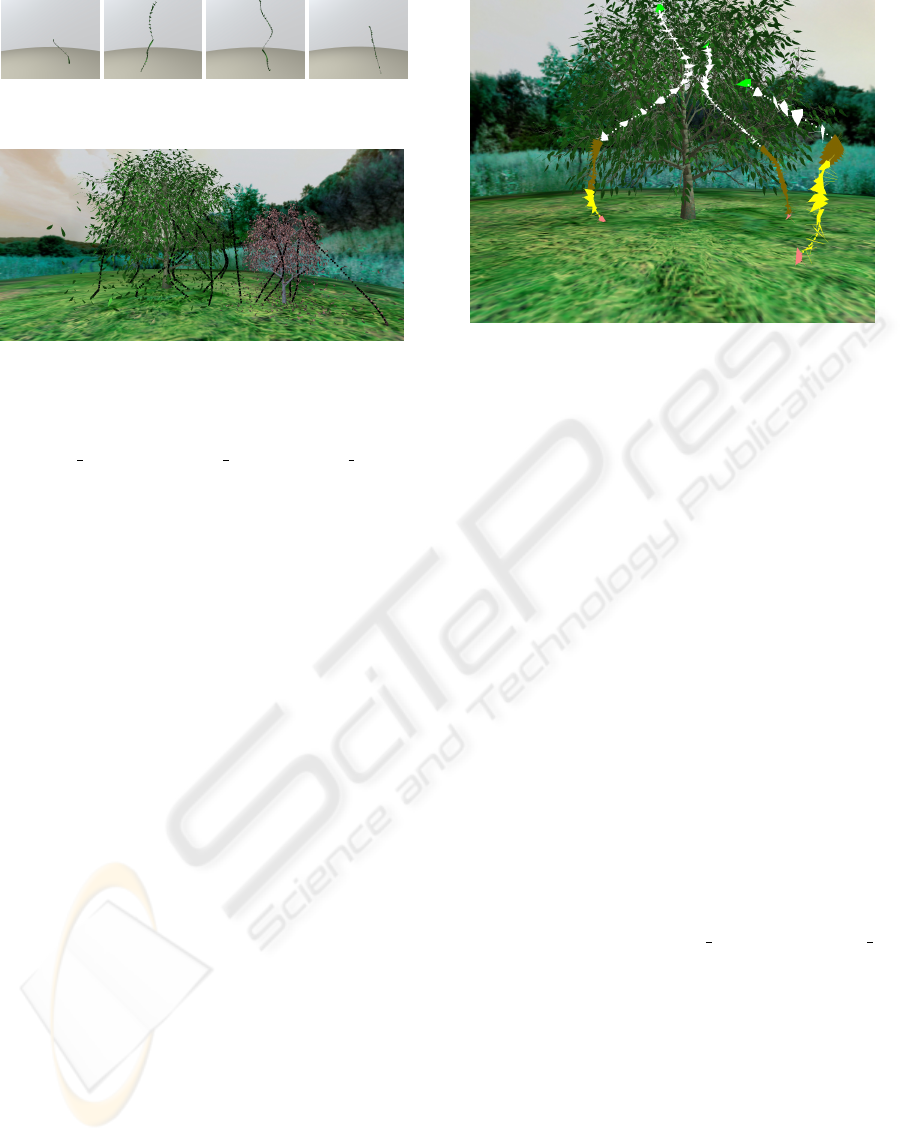

Figure 3: Different variations of the initial path.

Figure 4: Multiple paths rendered at the same time. Note

the different appearance of all of them.

and scale z = mod(center ob j.x ∗ center ob j.y ∗

3.0, 3.) respectively. This results in a non uniform dis-

tribution of the leaves at a ﬁxed distance of the center

of the tree caused by the falling path (whose displace-

ments did not vary in module up to this change). All

these modiﬁcations result in many differently looking

visually pleasing paths. Figure 3 shows several dif-

ferent paths computed by our algorithm and Figure 4

shows the results in a scene.

4.2 Path Reuse

Our texture path information does not depend on the

actual geometry of the scene, in the sense that we

build paths of a ﬁxed length (height), and the result-

ing trajectories might be larger if the starting points

of leaves are high enough. However, we solve this

potential problem by reusing the falling path in a way

inspired by the Video Textures (Sch

odl et al., 2000).

Concretely, once the texture path is consumed, we

jump to a different position of the same texture by

preserving continuity. Thus, we precompute a set of

continuity points in the path that preserve displace-

ment continuity: the positions or orientations must

not match, but the increments in translations must be

similar in order to preserve continuous animation.

The computation of new positions once we have

consumed the original path is quite simple. They are

computed using the last position of the animation and

the displacement increment between the entry point

and its previous point in the texture: path[lastPos] +

path[contPointPos] + path[contPointPos − 1]. This

information is also encoded in the same texture, just

after the information of the path. The texture will

contain then the points of the path and the continu-

Figure 5: Leafs rendered at different moments in a falling

path. Each color indicates a different path usage, pink

leaves are on the ﬂoor.

ity information (that simply consists in a value that

indicates the following point). Then, when a falling

leaf reaches the end of the path and has not arrived

to ground, the vertex shader computes the next cor-

rect position in the path according to the information

provided by the texture. If required, changes to the in-

terpretation of the following positions (different dis-

placements) could be added and encoded as the conti-

nuity information in the same style than the ones per-

formed to modify paths and therefore we could have

a potentially indeﬁnite path with multiple variations.

Different stages of these paths are shown in Figure 5

as different colors (pink leaves lie on the ﬂoor).

Apart from this information, we add another mod-

iﬁcation to the vertex shader. In the same spirit than

the continuity points, we compute a set of starting

points among which the initial position (frame0) is

pseudo randomly chosen (OpenGL speciﬁcation of

the shading language provides a noise function but it

is not currently implemented in most graphics cards)

using the following formula: mod((centre

b j.y ∗

centre

b j.x ∗ 37.), f loat(MAX F − 1) where MAX F

is the maximum number of frames of the animation.

These continuity points are chosen among the ones

with slow velocity and orientation roughly parallel to

the ground, in order to ensure the soft starting of the

movement of the leaf. Therefore, each path starts in

one of the set of precomputed points, making thus the

ﬁnal trajectories of the leaves quite different.

5 OPTIMIZATIONS

Our implementation includes optimizations such as

display lists for static geometry, frustum culling, and

REAL TIME FALLING LEAVES

249

occlusion culling. However there is a bottleneck that

raises when many leaves are continuously thrown dur-

ing a walkthrough. If we implement the algorithm

as is, while rendering a long walkthrough the fram-

erate decays due to the cost incurred in the vertex

shaders. As all thrown leaves are processed by the

vertex shader even if they already are on the ﬂoor.

The vertex processing cost increases because the ac-

cesses to texture are determined by the current frame.

When the computed position is under the ﬂoor, then

the vertex program looks for the ﬁrst position that re-

sults in the leaf lying on the ﬂoor. This requires a

binary search with several texture accesses and tex-

ture access at vertex shader level is not optimized as

in fragment shaders.

We have implemented a simple solution that con-

sists in removing the leaves that are on the ground

from the list of leaves that are treated by the vertex

shader. At each frame, the CPU selects a subset of

leaves that started to fall long enough to have arrived

to the ground (in our case, two seconds since they

started falling is usually enough). The correct position

on the ground is computed on the CPU and updated,

and the leaf is removed from the list of falling leaves.

This step is not costly, as our experiments show that

for one thousand falling leaves, 5 to 13 leaves need

to be erased at each frame. This allows us to keep

the frame rate constant for long exploration paths and

thousands of falling leaves.

We have further taken advantage of graphics hard-

ware in a different way: we use occlusion queries to

lazily remove leaves from the pipeline for a small set

of frames, for instance 4 frames which causes no no-

ticeable artifacts. We proceed the following way: At

each frame, the potentially visible leaves are thrown

and use an occlusion query per leaf to determine if

they were ﬁnally visible. In case they were not, these

are removed from the visible list for 4 frames, and

then rendered again with the occlusion query. As we

are going to skip up to 4 frames, we only check for a

subset of the leaves each of the frames, which allows

us to balance the cost of occlusion queries throughout

the frames. This improvement has noticeable results

especially when the occlusions are important, as when

the walthrough goes among the trees, or the trees are

densely populated. Note that we cannot use view frus-

trum culling for leaves as their initial position is not

the same than the one they will be rendered to.

The impact of those modiﬁcations can be seen in

Figure 6 where the framerates of a complex naviga-

tion path is shown. We compare the initial method

without optimizations (green) with the ﬁrst optimiza-

tion (blue), that consists in progressively determine

the leaves which are on the ﬂoor and compute their

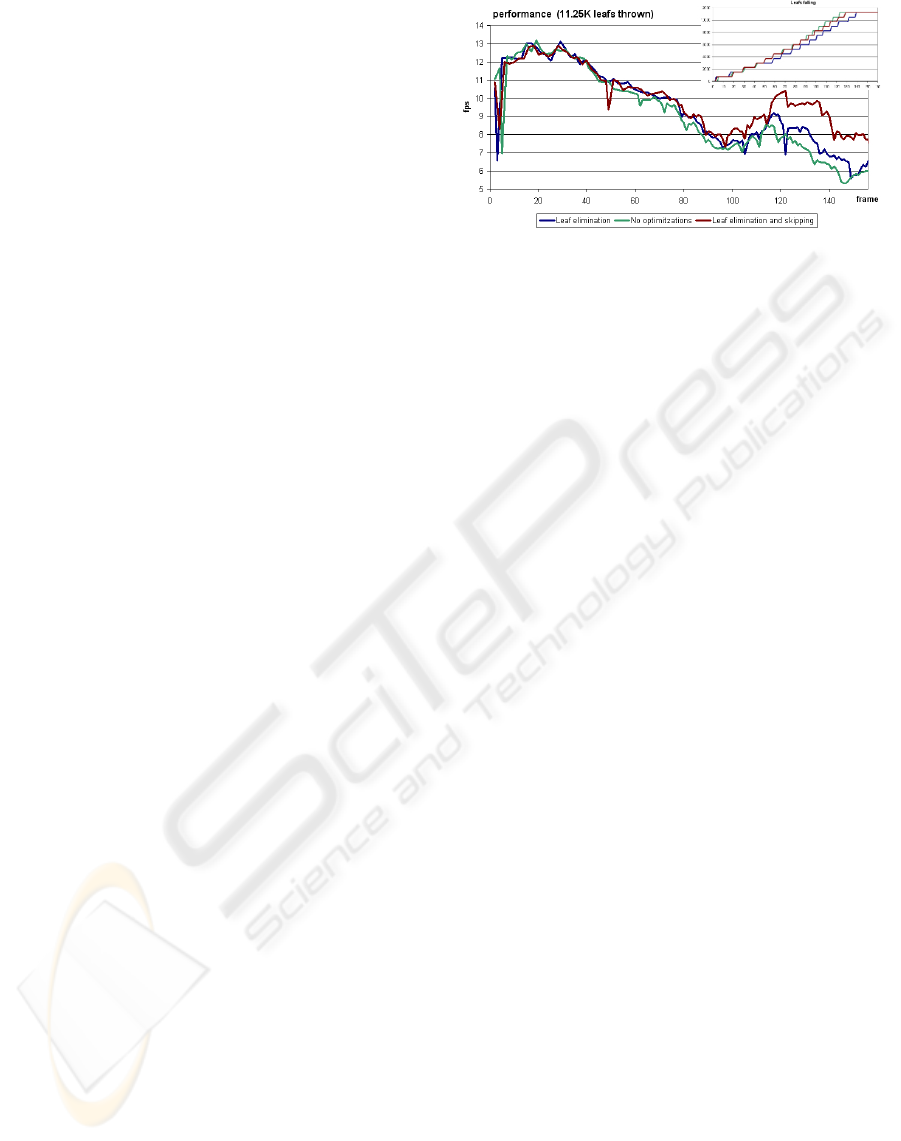

Figure 6: Results with a complex path in a scene of 1M

polygons. Top right shows the amount of leaves that have

been thrown, up to 11250, throughout the path. Note the

maintenance of framerate for the optimized (brown) version

of our method.

actual position and erase them from the set of leaves

that are rendered using the vertex shader, and the one

that also includes occlusion queries for selectively

skip non visible leaves for up to 4 frames (brown).

The framerate especially decays with the increase of

falling leaves if we do not wipe out from the pipeline

when they already are on the ground. Note how the

optimized version (brown) maintains the framerate

for a large number of falling leaves, and can even dou-

ble the results of the non optimized version.

6 CONCLUSIONS

6.1 Results

We have implemented the presented algorithm in a

3.4GHz PC equipped with a GeForce FX 6800 ultra

graphics card and 1Gb of RAM memory. Our re-

sults show that we can render several thousands of

leaves at real time. We have experienced with differ-

ent conﬁgurations, some results are shown in Table 1.

In order to determine the cost of the rendering pro-

cess, we have to compare with the walthrough that

throws no leaves. Note that the framerate impact of

falling leaves is inﬂuenced not only by the number

of falling leaves but the number of polygons that the

leaves have. We can see that even for large scenes

(768K polygons) and a high number of leaves thrown,

we maintain the framerate with small (around 20% for

5000 leaves) cost penalization.

6.2 Conclusions and Future Work

Natural scenes are usually complex to model and to

simulate due to the high number of polygons needed

to represent the scenes and the huge complexity of the

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

250

Table 1: Results obtained with our algorithm for different

amounts of falling leaves and trees. Average fps are ob-

tained from different walthroughs of several hundred frames

that surround or cross the set of trees. All examples are ren-

dered at full screen (1280 × 1024) resolution.

Trees/Pols Triangles per leaf Leafs fps

1/128K 6 0 36.97

1/128K 6 1000 34.4

1/128K 6 2000 31.88

1/128K 6 5000 28.09

4/512K 6 0 18.79

4/512K 6 1000 17.49

4/512K 6 2000 16.66

4/512K 6 5000 14.27

6/768K 6 0 10.9

6/768K 6 1500 10.04

6/768K 6 3000 9.56

6/768K 6 6000 8.63

Figure 7: Two different snapshots. Top: 1M polygons, 3

thousand leaves. Down: 1.2 M polygons, 24.7 leaves.

interactions involved. However, the demands of more

realism in scenes do not stop growing. In this pa-

per we have presented a method for rendering leaves

falling in real time. Our system is capable of render-

ing thousands of leaves at rates of up to 20-30 fps.

We have also developed a method for reusing a sin-

gle falling path in such a way that each leaf seems to

fall in a different manner. This results in low texture

memory storage requirements and bandwidth. We

have also presented a method for path reuse in order

to make longer falling trajectories by reusing the same

information data. In future we want to deal with col-

lision detection and wind simulation.

ACKNOWLEDGEMENTS

This work has been supported by TIN2004-08065-

C02-01 of Spanish Government.

REFERENCES

Bradley, D. (2004). Visualizing botanical trees over four

seasons. In IEEE Visualization, page 13.

Braitmaier, M., Diepstraten, J., and Ertl, T. (2004). Real-

Time Rendering of Seasonal Inﬂuenced Trees. In

Lever, P., editor, Procceedings of Theory and Practice

of Computer Graphics, pages 152–159. Eurgraphics,

UK.

Decaudin, P. and Neyret, F. (2004). Rendering forest scenes

in real-time. In Jensen, H. W. and Keller, A., edi-

tors, Rendering Techniques, pages 93–102. Springer-

Verlag.

Deussen, O., Colditz, C., Stamminger, M., and Drettakis,

G. (2002). Interactive visualization of complex plant

ecosystems. In VIS ’02: Proceedings of the confer-

ence on Visualization ’02, pages 219–226, Washing-

ton, DC, USA. IEEE Computer Society.

Franzke, O. and Deussen, O. (2003). In Plant Modelling

and Applications, chapter Accurate graphical repre-

sentation of plant leaves. Springer-Verlag.

Gerasimov, P., Fernando, R., and Green, S. (2004).

Shader model 3.0, using vertex textures, whitepaper.

http://developer.nvidia.com.

Jakulin, A. (2000). Interactive vegetation rendering with

slicing and blending. In de Sousa, A. and Torres,

J., editors, Proc. Eurographics 2000 (Short Presenta-

tions). Eurographics.

Ota, S., Tamura, M., Fujimoto, T., Muraoka, K., and Chiba,

N. (2004). A hybrid method for real-time animation

of trees swaying in wind ﬁelds. The Visual Computer,

20(10):613–623.

Reeves, W. T. and Blau, R. (1985). Approximate and prob-

abilistic algorithms for shading and rendering struc-

tured particle systems. In Barsky, B. A., editor, Com-

puter Graphics Proceedings (Proc. SIGGRAPH ’85),

volume 19, pages 313–322.

Sch

odl, A., Szeliski, R., Salesin, D. H., and Essa, I.

(2000). Video textures. In Akeley, K., editor, Sig-

graph 2000, Computer Graphics Proceedings, pages

489–498. ACM Press / ACM SIGGRAPH / Addison

Wesley Longman.

Wei, X., Zhao, Y., Fan, Z., Li, W., Yoakum-Stover, S., and

Kaufman, A. (2003). Blowing in the wind. In Proc. of

the 2003 ACM SIGGRAPH/Eurographics Symposium

on Computer Animation, pages 75–85, Switzerland.

Eurographics Association.

Wejchert, J. and Haumann, D. (1991). Animation aerody-

namics. SIGGRAPH Comput. Graph., 25(4):19–22.

REAL TIME FALLING LEAVES

251
