A SCALABLE GPU-BASED APPROACH TO SHADING AND

SHADOWING FOR PHOTOREALISTIC REAL-TIME AUGMENTED

REALITY

Claus B. Madsen and Rune Laursen

Computer Vision and Media Technology Lab, Aalborg University, Aalborg, Denmark

Keywords:

Augmented Reality, shadows, High Dynamic Range images, video see-through.

Abstract:

Visually realistic Augmented Reality (AR) entails addressing several difﬁcult problems. The most difﬁcult

problem is that of rendering the virtual objects with illumination which is consistent with the illumination of

the real scene. The paper describes a complete AR rendering system centered around the use of High Dynamic

Range environment maps for representing the real scene illumination. The main contribution lies in a novel,

physically-based approach to rendering shadows cast by virtual objects without changing the shadows already

present in the images of the real scene. The proposed approach effectively involves real-time estimation of the

diffuse albedos of the real scene, and essentially relighting these areas to take virtual shadows into account.

Another contribution lies in the fact that the proposed approach is designed to run on graphics hardware and

is scalable in the sense that it offers a simple way to balance performance with visual quality.

1 INTRODUCTION

Augmented Reality (AR) is the process of rendering

virtual objects into a video stream in real-time for in-

teractive applications. AR poses a number of inter-

esting rendering problems most important of which is

the issue of achieving rendering of virtual objects with

illumination which is consistent with the real scene il-

lumination.

The present work proposes some novel solutions

integrated into a complete AR rendering pipeline ex-

tensively based on GPU processing for ease of imple-

mentation and for performance.

1.1 Related Work

Most AR research focuses primarily on AR as an in-

terface and explores ways of using AR for various

interactive applications. This paper only concerns

graphics techniques to maximize the visual realism

of AR. Figure 2 provides an example of our system

being used to render a virtual sculpture into a natural

scene.

Some related research also focuses on achieving

realism with impressive results but at the cost of real-

time performance, (Debevec, 1998; Debevec, 2002;

Sato et al., 1999a; Sato et al., 1999b; Loscos et al.,

2000). Other research achieves real-time performance

but with rather low generality and questionable phys-

ical accuracy, (Kanbara and Yokoya, 2004).

Recently research has been performed in tech-

niques for real-time rendering of virtual objects with

illumination from environment maps, (Havran et al.,

2005; Barsi et al., 2005). Both these works offer a

technique for scene-constistent virtual object illumi-

nation, but neither attack the problem of enabling vir-

tual objects to cast shadows on the real environment.

The present paper addresses this problem.

The most closely related research is presently by

(Gibson et al., 2003). They demonstrate a powerfull

approach for rendering animated virtual objects into

still images with impressive results. Their approach

to rendering shadows involves a very fast implemen-

tation of a radiosity algorithm (which can be difﬁcult

to implement for most people). Our work is focused

on augmentation into a live video stream, is based on

techniques (shadow maps) that are much easier to im-

plement, and in particular we address the problem of

”double shadows”. This problem is described subse-

quently.

252

B. Madsen C. and Laursen R. (2007).

A SCALABLE GPU-BASED APPROACH TO SHADING AND SHADOWING FOR PHOTOREALISTIC REAL-TIME AUGMENTED REALITY.

In Proceedings of the Second International Conference on Computer Graphics Theory and Applications - GM/R, pages 252-261

DOI: 10.5220/0002083602520261

 SciTePress

1.2 Addressed Problem Areas

The present work addresses a number of problems re-

lating to approaching photo-realism in real-time AR.

First of all we wish to achieve scene consistent illu-

mination/shading of virtual objects. We have chosen

to employ a High Dynamic Range environment map

based pipeline for this. Secondly, we wish to create a

uniﬁed method to handling shadows to avoid special

cases or loss of generality. In an augmented scene vir-

tual objects should be able to cast shadows on them-

selves and other virtual objects, real objects should be

able to cast shadows on virtual objects, and ﬁnally,

virtual objects should be able to cast shadows on real

objects. The latter case poses a severe problem in the

sense that in some areas the image of the real scene al-

ready contains shadows, so in these regions it would

be wrong to further reduce the intensity to encompass

a shadow cast by a virtual object. This is the dou-

ble shadow problem which is a very typical problem

for AR, (Jacobs et al., 2005). Even the very complex

technique presented in (Gibson et al., 2003) has slight

problems with double shadows judging by the exam-

ples given.

2 OVERVIEW OF APPROACH

This section ﬁrst gives a description of the concrete

system which has been constructed followed by a list-

ing of the assumptions behind the proposed approach.

2.1 Description of System Setup

The goal has been to construct a real-time video see-

through Augmented Reality system, where virtual

objects are augmented seamlessly into a live video

stream and displayed on a computer monitor. To en-

sure very high quality registration between the real

and the virtual scene elements we have restricted the

system to have two rotational degrees of freedom.

This means that the monitor stands on a pole, the user

can pan and tilt the monitor, and since the video cam-

era is mounted behind the monitor the user can ef-

fectively point the camera in any direction. Figure 1

shows a 3D model of the proposed system.

The video camera approximately rotates around

the optical center of the lens. High precision, high

speed optical encoders (rotations measured with an

accuracy of 1/200th degree) are used to continuously

inform the system about the viewing direction of the

camera).

In the present setup the monitor is a 42 inch

plasma TV. The video camera is a Point Grey Drag-

onﬂy2 1024x768 color camera connected to the com-

puter with an IEEE 1394 FireWire connection. The

camera gives 30 frames per second in Bayer color

coding pattern (since it is not possible to transmit

full resolution RGB images at 30 fps over FireWire).

The computer is a single processor 2.2 GHz AMD

athlon 64 machine with 3 GByte RAM. The com-

puter is running 32 bit Windows XP (emulating 32

bit). The graphics card is an NVIDIA GeForce 6800

series card. The optical encoders are two Heidenhain

ROD 480 connected to a Heidenhain IK220 PCI slot

interface card in the computer.

The system is implemented in C++ using the Di-

rect3D graphics API. All geometry is loaded into the

system in .x format exported from 3DStudioMax. The

system can handle animations in the form of procedu-

ral rigid body transformations (translation, rotation,

scaling), which are conﬁgured with a simple scripting

language.

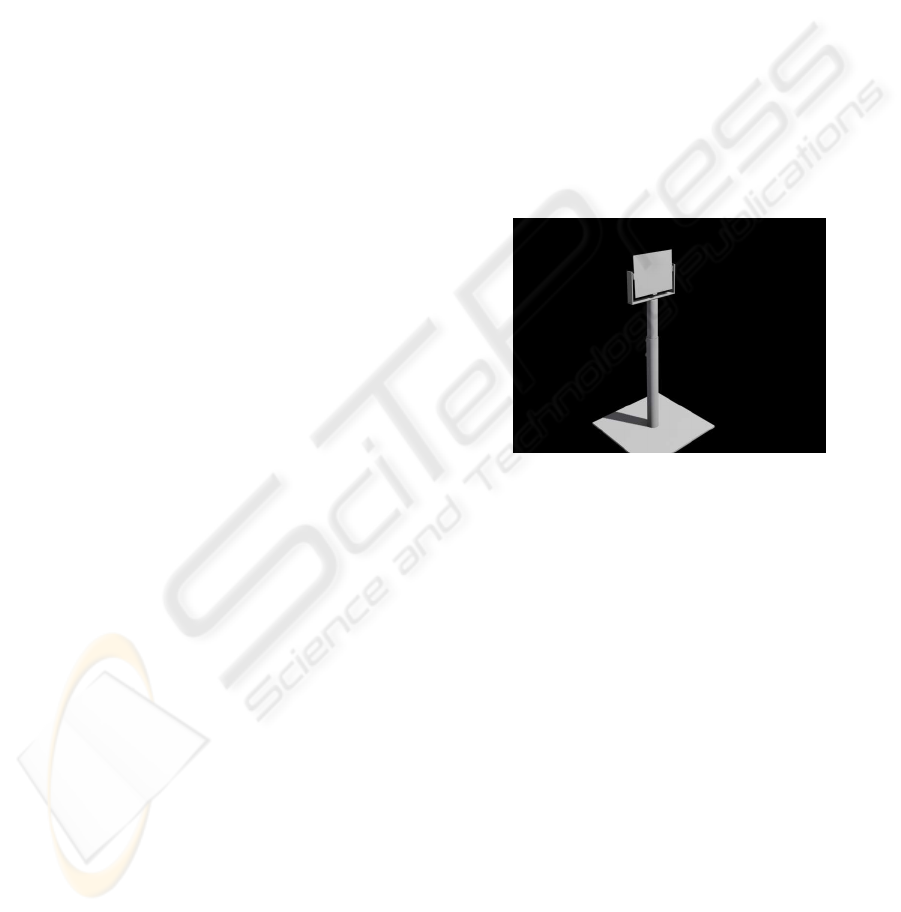

Figure 1: 3D model of the proposed system. The actual pole

with mounting bracket for panning and tilting the monitor

is not yet constructed. Presently, the monitor is static and

only the camera is mounted in a pan-tilt rig.

2.2 Assumptions

The developed techniques in the present system rest

on a number of assumptions the validity of which is

discussed further in section 5.

The present version of the system assumes the il-

lumination conditions in the real scene to be static. In

fact, a High Dynamic Range (HDR) omni-directional

environment map of the real location is captured as

part of an off-line process while setting up the system

at a given location. This environment map is used

for all rendering of virtual geometry in the scene, and

therefore the system would not respond visually cor-

rect if drastic changes in the illumination conditions

occurred. In locations with purely artiﬁcial light it

is easy to ensure that the illumination conditions do

not change. In locations with substantial outdoor il-

lumination the passing of time and changes in cloud

conditions affect illumination conditions, but our ex-

perience with demonstrating the system to hundreds

A SCALABLE GPU-BASED APPROACH TO SHADING AND SHADOWING FOR PHOTOREALISTIC REAL-TIME

AUGMENTED REALITY

253

of people shows that people do not notice that the vir-

tual illumination is slightly inconsistent with the real

illumination, as long as it is merely qualitatively con-

sistent.

The environment map approach additionally as-

sumes that the real scene is distant relative to the vir-

tual geometry, or at least that the environment map is

acquired from a position which is quite close to where

virtual objects will be placed. If the scene is not dis-

tant the environment map acquired at one position is

not valid at other locations, for example 5 or 10 me-

ters away for indoor scenes. In outdoor scenes the

assumption that the real scene is distant is typically

more valid.

It is furthermore assumed that the video camera is

internally calibrated (focal length, image center and

lens distortion). This calibration is also performed

during system setup and therefore no changes can be

made to lens zoom or aperture (iris opening) while the

system is in operation.

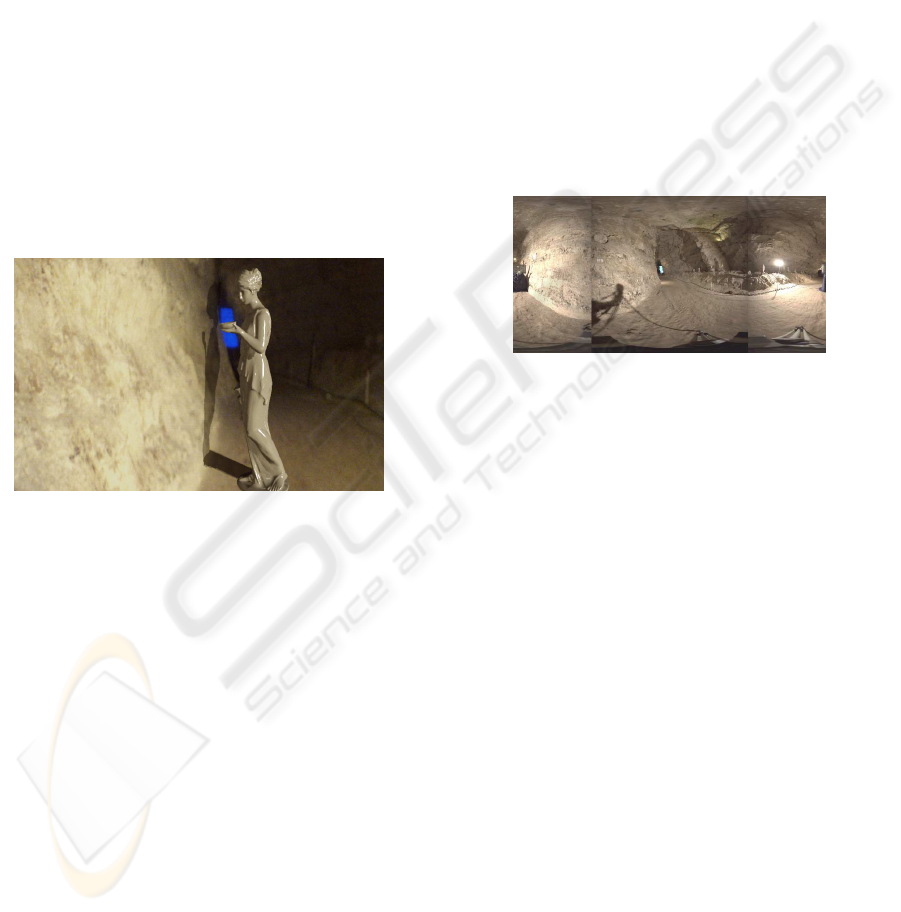

Figure 2: System operating in abandoned chalk mine

demonstrating virtual shadows cast on rough rock wall. The

rock wall is modelled as high resolution mesh with posi-

tional noise added in the normal direction, such that the vir-

tual shadow falls across the rock wall in a credible manner.

Our approach assumes that a 3D model of parts

of the real scene is available. This 3D model is used

for handling occlusion between real and virtual ge-

ometry, for casting virtual object shadows on the real

scene, and vice versa. In many cases the real scene 3D

geometry can be quite rough. Figure 2 shows a screen

shot from the system operating in an abandoned chalk

mine during a recent digital art festival. Finally, our

approach to rendering virtual shadows cast on the real

elements in the scene is only physically valid pro-

vided the shadow receiving real scene surfaces can be

considered as diffuse reﬂectors.

2.3 Hdr Environment Map

To enable shading of virtual objects in manner which

is consistent with the illumination conditions in the

real scene an illumination model of the real scene

is required. For this work an image-based model

has been adopted similar to e.g., (Barsi et al., 2005;

Havran et al., 2005; Gibson et al., 2003; Debevec,

2002; Debevec, 1998; Kanbara and Yokoya, 2004).

Typically a High Dynamic Range (HDR) omni-

directional image (environment map) of the real scene

is acquired by fusing images taken at multiple expo-

sures of a polished steel/chrome sphere, (Debevec and

Malik, 1997). In the present work environment maps

are acquired with a Canon EOS 1Ds Mark II 16 Mega

pixel digital SLR camera ﬁtted with a Sigma 8mm

180 degree ﬁeld-of-view ﬁsh eye lens. This setup en-

ables us to acquire a complete hemi-sphere in each

exposure. Camera response curve calibration, HDR

fusion, and hemisphere fusion is done with the HDR-

Shop 2.0 software, (Debevec et al., 2006). Figure 3

shows such a ﬁnished environment map.

Figure 3: Longitude-latitude HDR environment map of

chalk mine constructed from two hemispherical exposure

sets. Due to slight lens vignetting the seams between the

two hemispheres are visible as darkened vertical lines in

the long-lat mapping. Tripod and photographer shadow arti-

facts are also visible. Such artifacts do not inﬂuence virtual

object rendering noticeably. The dynamic range between

the lamp and the ﬂoor is approximately 10000:1.

2.4 Shading and Shadowing

All shading of virtual geometry is performed in HDR,

i.e., in ﬂoating point values and the last step in render-

ing to the framebuffer is a tonemapping to 8 bit RGB

values (Low Dynamic Range, LDR).

The rendering of virtual geometry in the proposed

system is an additive mixture of diffuse reﬂection and

reﬂection mapping. Figure 4 shows a closeup of an

object with a such a mixture. The scripting language

mentioned above also controls which virtual geom-

etry is loaded and what material parameters to ap-

ply when rendering the objects. This way the dif-

fuse reﬂection coefﬁcient, the diffuse albedo and the

specular reﬂection coefﬁcient can be speciﬁed. At

present texture mapping and glossy reﬂection is not

supported.

Based on the environment map acquired in ad-

vance the irradiance map (total irradiance for all pos-

sible surface normals) is computed and used in con-

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

254

junction with the diffuse reﬂection coefﬁcient and the

diffuse albedo to give the diffuse reﬂection contribu-

tion. Basing the diffuse shading on the environment

map allows the system to correctly reproduce global

illumination effects such as color bleeding from the

environment to the virtual objects.

The reﬂection component is achieved with stan-

dard reﬂection mapping, i.e., by computing the re-

ﬂection direction and looking up in the environment

map to fetch incoming radiance from that particular

direction. The reﬂection component is scaled by the

specular reﬂection coefﬁcient.

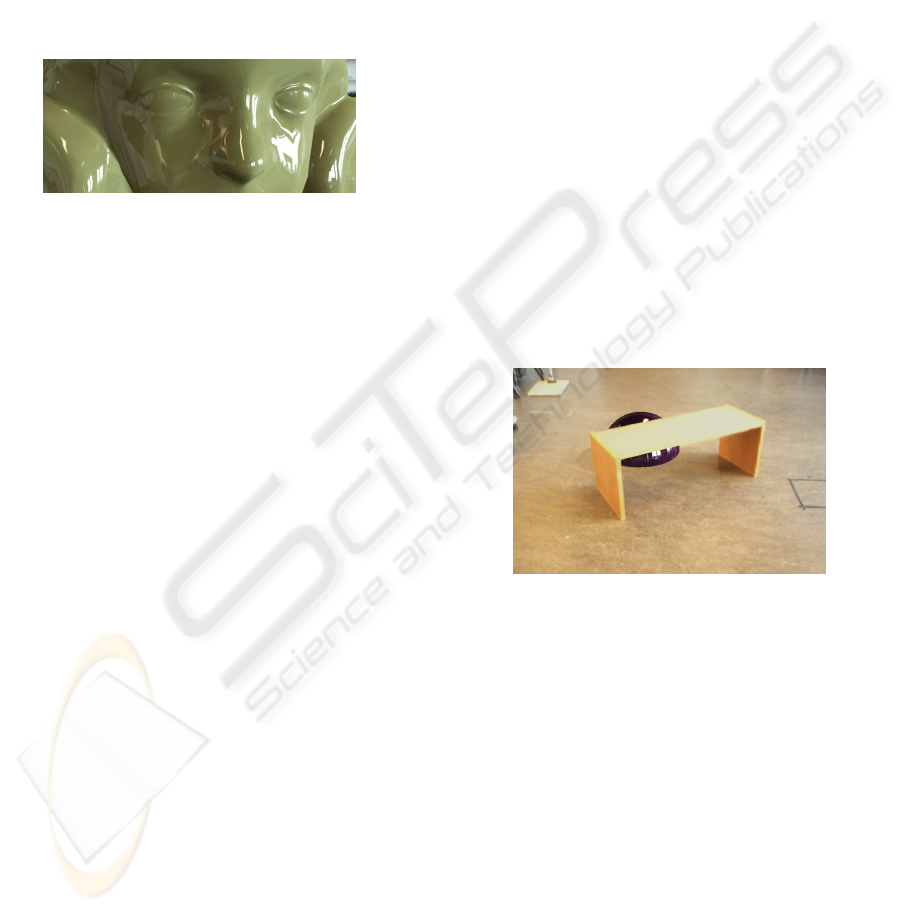

Figure 4: Close-up of virtual sculpture rendered with our

system. A mixture of diffuse reﬂection and reﬂection map-

ping, both based on the environment map is used for ren-

dering of virtual objects. The reﬂection mapping contribu-

tion helps give objects a nice shiny appearance. In a post-

processing step random image noise is added to the ren-

dered virtual geometry to mimic the slight image noise ap-

parent in the feed from the video camera used to ﬁlm the

real scene.

The handling of shadows represents the core of

the contributions of this work. The HDR environment

map is approximated by a number, N, of point light

sources using techniques which will be described in

section 3.2. These sources are sorted in descending

order according to their intensity, and the strongest M

sources will subsequently be allowed to cast shadows.

The remaining N − M sources contribute to shading

but are considered too weak to cast shadows. This is

where the scalability of the proposed approach comes

in: in principle all sources should cast shadows of

varying depths according to their individual radiant

power, but it is too costly for contemporary graphics

hardware to render shadows from so many sources, so

by only casting shadows from the strongest M sources

we can to chose M so as to balance resulting framerate

and visual quality.

Section 3.6 describes the proposed pixel shader

which renders shadows into the ﬁnal image on both

real and virtual geometry. The shader essentially

computes an overlay which is multiplied to the image

on a per pixel basis, and which results in appropriate

attenuation in shadowed areas. The shader handles

the double shadow problem described in section 1.2.

3 APPLIED TECHNIQUES

The previous section gave a broad view of the steps

involved in the proposed Augmented Reality render-

ing process. Subsequently a more technical descrip-

tion is provided. First we describe the two main ele-

ments of the off-line phase: 1) calibration of the setup,

and 2) the HDR environment map capture process.

3.1 Calibration of Video Camera and

Pan-Tilt Rig

To render virtual objects which are embedded cor-

rectly in the real scene it is necessary to have com-

plete knowledge of the mapping from world coordi-

nates to image coordinates of the video signal. This

requires knowledge of 1) the internal parameters of

the video camera, 2) the transformation from world

to pan-tilt unit coordinates, and 3) the transformation

from pan-tilt unit coordinates to camera coordinates.

The proposed system incorporates interactive calibra-

tion steps to acquire this information during a system

setup phase. Figure 5 shows how the system can be

calibrated to a world model to handle occlusion be-

tween real and virtual geometry.

Figure 5: Screen dump from system illustrating virtual

sphere being occluded by real table. This requires calibra-

tion of the complete transformation from world to image

coordinates and a 3D model of the occluder.

The internal parameters (focal length, pixel aspect

ratio, image center and lens distortion) are calibrated

from multiple images of a checker board pattern us-

ing the OpenCV computer vision library, (Source-

Forge.net, 2006). Then a cross hair sight is rendered

at the image center and the user then rotates the cam-

era so as to point the cross hair to a number (at least

4) of ﬁxpoints manually identiﬁed in the geometric

model of the real environment (real geometry). By

recording encoder readings for each ﬁxpoint sighting

it is possible to calibrate the position and orientation

of the pan-tilt unit relative to the world coordinate

system. This calibration is performed by an iterative

optimization process we developed for this particular

purpose, but which is not described in this paper.

A SCALABLE GPU-BASED APPROACH TO SHADING AND SHADOWING FOR PHOTOREALISTIC REAL-TIME

AUGMENTED REALITY

255

Finally, by freezing an image from the video

stream and identifying (with the mouse cursor) a

number of ﬁxpoints (at least 4) we can calibrate the

position and orientation of the camera relative to

the world coordinate system for that particular im-

age. This calibration step is also accomplished with

the OpenCV library. Multiplying the pan-tilt unit to

world transformation with the world to camera trans-

formation then gives us the pan-tilt unit to camera

transformation.

Once these calibration steps are completed the

real-time mapping from world to image coordinates

is completely controlled by the encoder readings.

3.2 Capturing the Illumination

Conditions

As described previously a HDR environment map is

the central representation of the real scene illumina-

tion conditions in the system. The environment map

is captured as a part of setting up the system. First

we formulate how the concept of irradiance relates to

discrete environment maps.

The environment map is a spatially discrete mea-

surement of the continuous function describing the in-

cident radiance (measured in W/(m

· Sr)), which in

turn is a function of the incident direction. Let ~n be

the normal of a differential area surface, and let Ω

the hemi-sphere deﬁned by this normal. By integrat-

ing the incident radiance, L(

ω), from the direction

over the hemi-sphere the total irradiance, E(~n), can

be computed.

In standard spherical coordinates a di-

rection in space is written as

ω(θ,φ) =

[sin(θ)cos(φ),sin(θ)sin(φ),cos(θ)], where θ is

the angle the direction vector makes with the coordi-

nate system z-axis (latitude), and φ is the angle the

projection of the vector on the xy-plane makes with

the x-axis, (longitude).

In this paper we will exclusively use the latitude-

longitude mapping (LL mapping) of environment

maps. Let the resolution of the LL environment map

be W by H pixels, and let u and v represent pixel

coordinates in an image coordinate system with ori-

gin in the top left corner of the LL map, and v-

axis oriented downwards. Thus the top row corre-

sponds to θ = 0 and the bottom row corresponds to

θ = π. Moreover φ = 0 corresponds to the leftmost

column. Each environment map pixel, P(u, v), repre-

sents the radiance in W/(m

· Sr) (if the map acquisi-

tion is radiometrically calibrated) from the direction

given by

ω(u,v) =

ω(θ(v),φ(u)), where θ(v) = v∆

and φ(u) = u∆

, where ∆

= π/H and ∆

= 2π/W.

The discrete version of the total irradiance, E(~n), for

a given normal~n then becomes:

E(~n) ≈

∑

P(u,v)(~n·

ω(u,v))sin(θ(v))∆

∆

(1)

where summations are subject to the constraint that

(θ(v),φ(u)) ∈ Ω

, i.e., that the combinations of u and

v represent pixels inside the region corresponding to

the hemi-sphere deﬁned by the surface normal~n.

From Eq. 1 it is evident that if every pixel, P(u, v),

in the LL map is scaled with ∆

· ∆

= 2π

/(W · H)

and weighted by sin(θ(v)), we get a very simple

summation. We therefore produce a new LL map,

where each pixel Q(u,v) = 2π

P(u,v)sin(θ(v))/(W ·

H). The irradiance for a given normal is then simply

computed as:

E(~n) ≈

∑

Q(u,v)(~n·

ω(u,v)) (2)

where the summations again are subject to the con-

straint that (θ(v),φ(u)) ∈ Ω

To recapitulate in a different way: Each pixel in

the LL map acts as a small area light source subtend-

ing a solid angle of A

= 2π

/(W · H) [Sr/pixel]. By

weighting each pixel by sin(θ(v)) we achieve ”per-

mission” to treat all pixels equally in the sense that

we cancel out the effect of the non-uniform sampling

density of the LL mapping (poles are severely over-

sampled). By subsequently scaling by A

we convert

the solid angle domain from steradians to pixels. I.e.,

each Q(u,v) = 2π

P(u,v)sin(θ(v))/(W · H) measures

the radiance in W/(m

· pixel), such that by perform-

ing a simple cosine weighted sum of pixels we di-

rectly get the irradiance contributed by the pixels in-

volved in the sum (Eq. 2). Another way of putting

it is: each pixel Q(u, v) is an area light source con-

tributing Q(u,v)(~n ·

ω(u,v)) irradiance to the differ-

ential area surface with normal~n.

Several techniques exist for approximating an en-

vironment map with a limited number of light sources

to reduce the computational cost associated with

Image-Based Lighting, (Debevec, 2005; Barsi et al.,

2005; Havran et al., 2005; Cohen and Debevec, 2001;

Madsen et al., 2003). For this work the Median Cut

technique described in (Debevec, 2005) has been cho-

sen. The technique recursively splits the environment

map along the longest dimension into regions of ap-

proximately equal summed radiance. The techniques

splits all regions K times, resulting in either 2, 4, 8,

16, 32 etc. regions. Each resulting region is ﬁnally

replaced with a single light source at the centroid, and

the radiance of that source is set to the sum of all the

pixel values in the region. Figure 6 shows the result of

applying the Median Cut technique to an environment

map.

We apply the Median Cut algorithm to the Q(u,v)

map to produce N sources (on the order of 16 to 128),

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

256

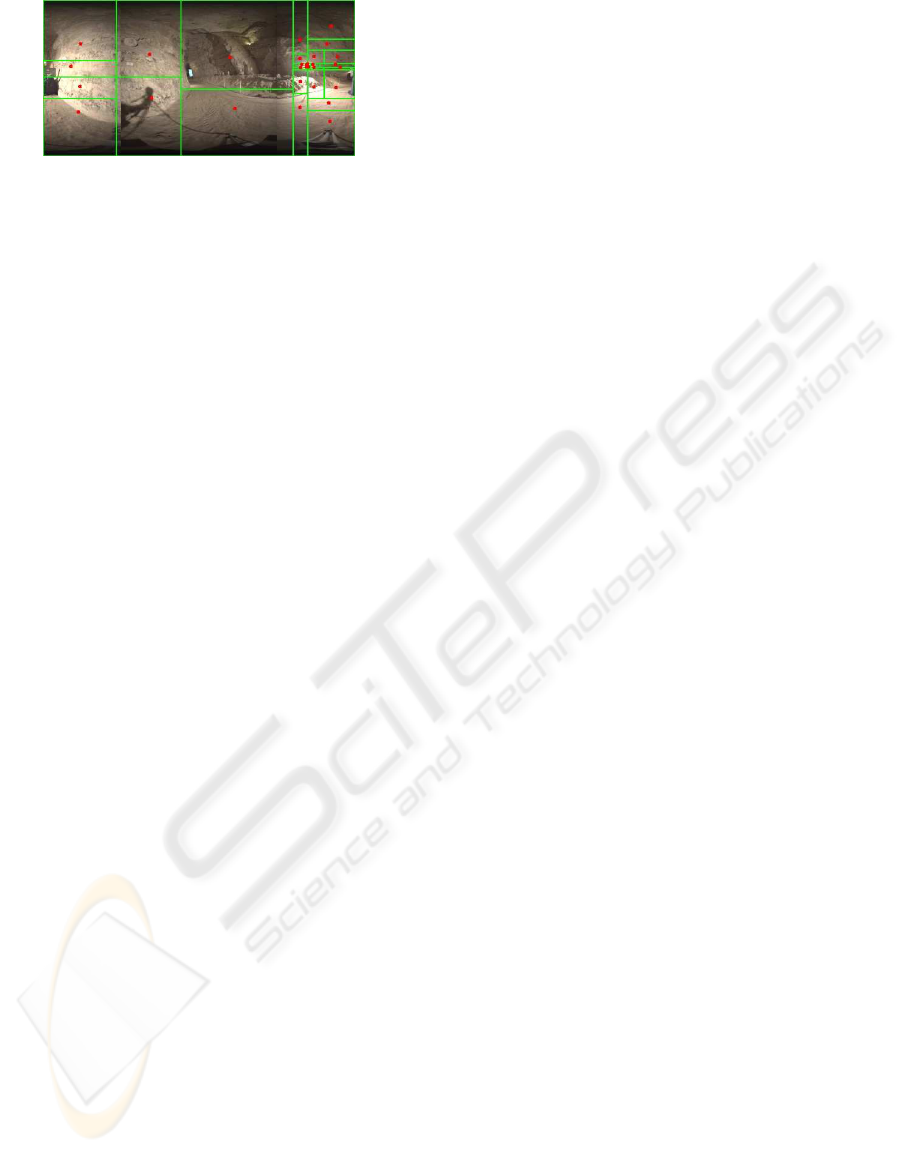

Figure 6: Regions and sources resulting from running the

Median Cut approximation algorithm to a depth of 5, i.e., to

32 regions.

then we sort them according to power and pick the M

strongest, which in the real-time steps of the system

will be treated as separate point sources contributing

with irradiance and will be involved in casting shad-

ows using the shadow map technique. The remaining

N − M sources are integrated with cosine weighting

into a combined irradiance for each of all possible

normal directions in an LL irradiance map. The in-

tention with this irradiance map is to capture the ”am-

bient” illumination in the scene, but it still depends

on normal directions and is thus much more realistic

than a standard Phong ambient term. During subse-

quent rendering the ”ambient” irradiance for a given

normal direction is then found by a simple look-up

into the irradiance map.

Let ℜ

be the ith region, and let (u

) be the

centroid of the ith region. Furthermore, let L

be the

summed radiance within region ℜ

∑

ℜ

Q(u,v) (3)

The ”ambient” irradiance map, E

(u,v), is then com-

puted in some resolution, e.g., W by H, by integrating

cosine weighted contributions from each of the N− M

weakest sources:

(u,v) =

N−M

∑

i=1

· (~n(u,v) ·

ω(u

)) (4)

For a given normal, ~n, the ambient irradiance,

(~n), is then found by look-up in the E

(u,v) map.

3.3 The On-Line Rendering Process

Having thus described the steps involved in prepar-

ing for running the system we now turn toward de-

scribing the actual real-time rendering process. In

pseudo-code the process may be described as follows:

while(1)

1. grab video image and get optical encoder readings

2. demosaic Bayer video image to full RGB, rectify

image and expand to HDR texture

3. render real geometry to depth buffer (for subse-

quent occlusion handling between real and virtual

geometry)

4. render virtual geometry to the HDR texture from

step 2 applying depth check with depth buffer

from step 3, and using a shader which computes

diffuse and specular reﬂection

5. render real geometry to R channel of each of the

M spotlight depth textures

6. render virtual geometry to G channel of each of

the M spotlight depth textures

7. render virtual and real geometry to the HDR tex-

ture, this time with a shader which computes how

much each fragment must be attenuated to take

shadows from the M sources into account

8. render post-processing effects (e.g., additive im-

age noise)

9. render quad to framebuffer with a shader that

tonemaps the HDR texture to LDR

We subsequently provide further explanation on

each of these steps.

3.4 Processing Video Images

The implemented application runs in two threads: one

for rendering and one for getting encoder readings.

Time stamps from the video image grabbing process

are used to synchronize encoder readings to images.

As explained in section 2.1 images are grabbed in

Bayer pattern format and the uploaded to the graphics

card as a texture. A full screen quad with this texture

is the rendered to another texture using a pixel shader

which demosaics Bayer pattern to full RGB and rec-

tiﬁes the image by correcting for the lens distortion

using the distortion parameters from the internal cal-

ibration. Finally a full screen quad textured with the

demosaiced and rectiﬁed video image is rendered to a

High Dynamic Range (HDR) texture in order to ex-

pand the 8 bit per channel video image to ﬂoating

point values, because the rest of the rendering process

is carried out in HDR.

3.5 Rendering Virtual Geometry

The next step is to render the virtual (augmented) ge-

ometry into the HDR texture containing the processed

video image. As described in section 2.4 virtual ge-

ometry is rendered with a mixture of diffuse shad-

ing and reﬂection mapping. The reﬂected radiance

from a fragment, L( f ), of the virtual geometry is con-

trolled by the diffuse (K

) and specular (K

) reﬂec-

tion coefﬁcients, respectively. Let ~n( f ) and ~p( f) be

the normal and the position of the fragment, and let

be the direction vector from the fragment to the ith

A SCALABLE GPU-BASED APPROACH TO SHADING AND SHADOWING FOR PHOTOREALISTIC REAL-TIME

AUGMENTED REALITY

257

light source. The fragment’s radiance can then be ex-

pressed as:

L( f) = K

(~n( f)) +

∑

i=N−M+1

· (~n( f) ·

)

· Q(u(~r( f)), v(~r( f))) (5)

expressing the fact that total irradiance at the fragment

is the sum of the ambient irradiance (from a look-up

in the E

map) and the combined irradiance contribu-

tion from the M most powerfull sources. The reﬂec-

tion vector~r( f) for the fragment is used for a look-up

into the environment map to compute the reﬂection

mapping radiance contribution.

The virtual geometry is rendered into the HDR

texture using a pixel shader which implements the

shading function in eq. 5. As described in step 3 in

section 3.3 the real geometry has previously been ren-

dered into the z-buffer so that when rendering virtual

geometry occlusions can be handled correctly (as il-

lustrated in ﬁgure 5).

3.6 Handling Shadows

The HDR texture now contains the processed video

image and the rendered virtual geometry. Naturally

the video image contains shadows from real geometry

onto real geometry, but no shadows involving virtual

geometry, neither as occluder nor as receiver.

In this work the shadow map algorithm has been

used as the basic technique in detecting shadows,

(Watt and Policarpo, 2001). Basically the algorithm

involves ﬁrst rendering the depth values of the scene

from the viewpoint of the light source into a shadow

map. Then the scene is rendered from the normal

viewpoint and the for each fragment the fragment po-

sition is transformed to the light source coordinate

system and the distance to the transformed point is

checked against the stored depth value in the shadow

map. If the depth of the fragment is larger than what is

stored in the shadow map the fragment is in shadow.

The proposed system operates with M shadow

casting sources. These sources were found from the

environment map and therefore only have direction

vectors. We place the sources at a distance which is

suitable given the size of the scene. Alternatively,

source directions can be intersected with a coarse

3D model of the environment to get a more accurate

source placement. We then render the real geometry

to the R channel of each of the M shadow maps, and

the virtual geometry to the G channels.

Using the R and G channels for real and virtual

geometry respectively allows the shadow shader pro-

gram to distinguish between shadows cast by real and

virtual geometry. Subsequently we will use a notation

where RS

( f) is a Boolean which is true if no real ge-

ometry casts shadow on the fragment f given the ith

source. Similarly VS

( f) is true if no virtual geome-

try occludes the fragment’s ”view” of the ith source.

Our approach to shadows is based on thinking in

terms of shadows being the absence of irradiance. Let

( f) denote the irradiance on a fragment (real as

well as virtual) which only takes into account shad-

ows cast by real objects:

( f) = E

(~n( f)) +

∑

i=N−M+1

( f) · L

· (~n( f) ·

) (6)

Now, at this point in the rendering chain every-

thing in the HDR texture is only subjected to shadows

from real geometry, namely shadows in the real scene

as captured by the video camera. So if the HDR tex-

ture is divided by the E

( f) irradiance for every pixel

the result would be the diffuse albedo of the fragment,

since radiance equals the product of albedo and irra-

diance for diffuse surfaces. This in effect corresponds

to taking the shadows away from the original image.

If we then multiply the albedos with a per frag-

ment irradiance, E

R+V

( f), which takes into account

both real and virtual geometry for casting shadows,

we would get the correct radiances where virtual ge-

ometry also casts shadows.

R+V

( f) = E

(~n( f)) +

∑

i=N−M+1

( f) · VS

( f) · L

· (~n( f) ·

) (7)

In practice we do the following. We set alpha

blending mode to modulation (multiplication), and

then render real and virtual geometry into the HDR

texture with a pixel shader which returns the irradi-

ance fraction E

R+V

( f)/E

( f). Due to the modulation

blending this ratio is multiplied with the pixel values

(radiances) in the HDR texture. In this way we in one

step compute the diffuse albedos of the entire scene

and then re-light the whole scene with illumination

taking shadows from both real and virtual geometry

into account.

For most real scenarios it will be impossible to ac-

curately model all real geometry, and in most of our

examples will only have a few essential objects and a

ground plane modelled. The irradiance fraction multi-

plication will degenerate to a multiplication with 1 in

all image areas (all fragments) where virtual objects

do not cast shadows. Therefore it is not necessary to

3D model real geometry apart from potential virtual

geometry shadow receiving surfaces.

The presented AR shadow pixel shader is physi-

cally correct when shadow receiving surfaces can be

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

258

characterized as diffuse reﬂectors. This is naturally

not generally the case in real scenes, but in our expe-

rience the error made is rarely actually noticeable.

The next step in the rendering pipeline is to ren-

der post-processing effects such as simulated camera

noise on virtual geometry. A ﬁxed noise texture has

been generated off-line and is mapped on a full-screen

quad. This quad is then rendered to the HDR texture

in additive blending mode. To avoid the noise overlay

appearing completely static a random offset is added

to the texture coordinates per cycle, and texture ad-

dressing is set to wrap. Rendering of the noise quad

is masked by a stencilbuffer set up by a render pass

of virtual geometry so only virtual geometry receives

simulated camera noise.

Finally a full-screen quad mapped with the HDR

texture is rendered to the framebuffer with a pixel

shader which transforms HDR fragment radiance,

L( f), to an LDR brightness value as brightness =

1− exp(−γ· L( f)), where γ is an adjustable exposure

value. There are may more advanced tone mapping

operators, but we have not made an important issue of

this since the available video stream of the real scene

is inherently LDR.

4 EXPERIMENTAL RESULTS

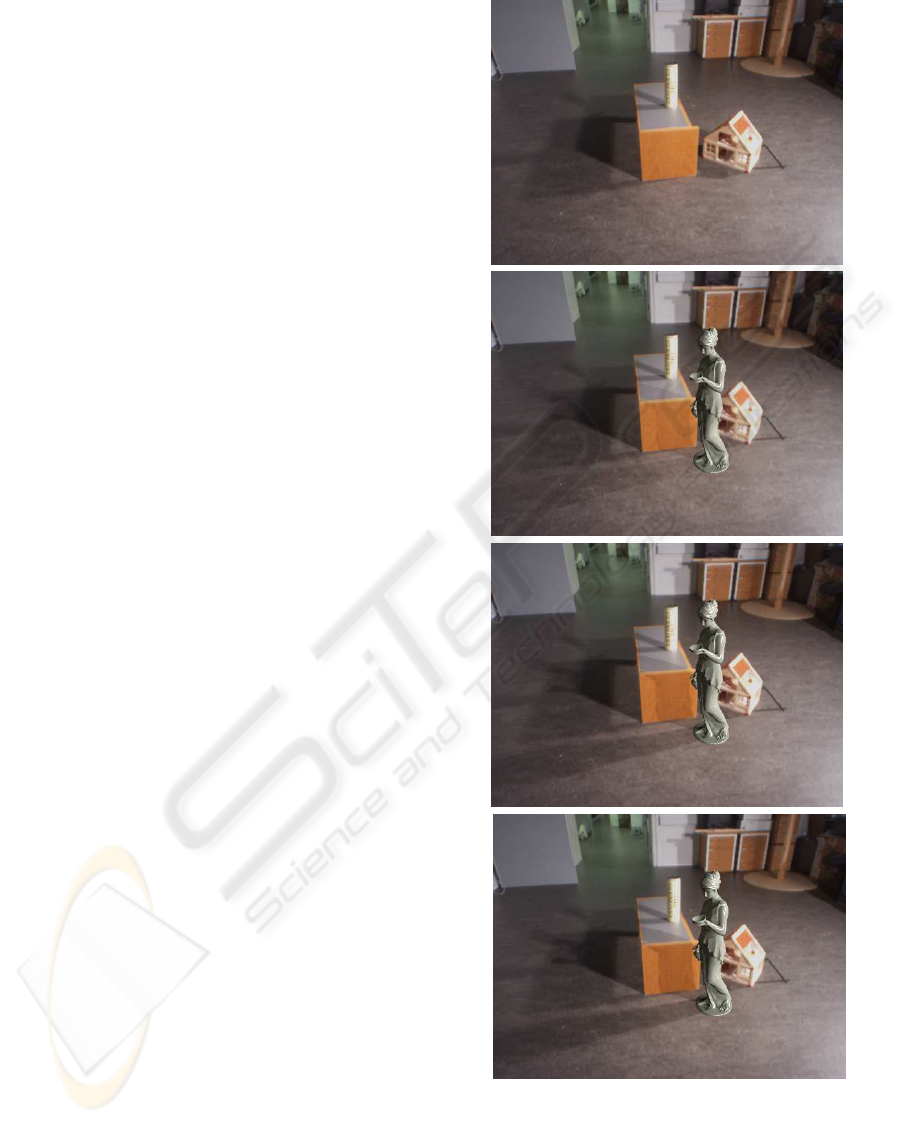

Figure 7 demonstrates shadows cast by virtual geom-

etry on to real geometry, and also demonstrates that

shadows cast by virtual objects do not interfere with

real shadows in areas were real geometry has already

created shadows in the video image, i.e., no double

shadow artifacts are present. The illumination in the

scene is dominated by two lamps (500 W light bulb

with 40 cm aluminium reﬂector) which at this dis-

tance subtend sufﬁcient solid angle to create clear soft

shadows.

There are several important topics to discuss in

relation to the ﬁgure: 1) the scalability of the ap-

proach, 2) the shadow mixing performance, and 3)

the real-time albedo computation performed to render

the depth of virtual shadows correctly.

As seen in ﬁgure 7 the proposed approach is in

fact scalable in the sense that it offers a direct way of

balancing computational load and visual accuracy. In

the case of rendering with 4 sources for shadow cast-

ing (M = 4) the resulting virtual shadows are a little

crude, with hard shadow edges clearly showing, es-

pecially for the shadow near the bottom of the image.

Furthermore, the depth of the shadows are not cor-

rect. This problem is due to the fact that when M is

very small some directional sources which are actu-

ally placed on the lamp reﬂector are not included in

Figure 7: Screenshots demonstrating ability to mix multi-

ple shadows and handle the double shadow problem. The

top image is the scene without any augmentation. The next

three images downwards show rendering with 4, 10, and 15

shadow casting sources, respectively. The 10 sources case

is running at 15 frames per second when shadow maps are

rendered at 1024x1024 resolution.

A SCALABLE GPU-BASED APPROACH TO SHADING AND SHADOWING FOR PHOTOREALISTIC REAL-TIME

AUGMENTED REALITY

259

the M most powerfull, and therefore some lamp irra-

diance is not accounted for, resulting in shadows not

being dark enough. In our implementation the max-

imum value for M is 15 (limited by the number of

texture samplers for shadow maps that can be associ-

ated with a fragment shader). For M = 15 the visual

quality of virtual shadows in terms of depth and edge

softness is quite close to the real shadows.

In the demonstrated case the real and virtual shad-

ows mix well, in the sense that the transition from a

real shadow to a virtual one is quite seemless. An ex-

ample is the virtual shadow cast by the statue extend-

ing (to left) past the real shadow of the table from ﬁrst

one lamp (deep shadow since no lamp shines directly

here), and then the other lamp (lighter shadows since

one lamp shines here). This clearly demonstrates the

ability of our approach to handle the double shadow

problem. Yet, such performance is only possible with

accurate 3D models of the relevant elements in the

real scene (in this case the table). In section 5 pro-

vides a little more discussion on this issue.

As described in section 3.6 virtual shadows are ac-

tually rendered with a re-lighting approach, where we

in one step on a per-pixel basis compute the diffuse

albedo of the surface and re-light it with the irradi-

ance taking into account the ﬂux being occluded by

the virtual object. Since the approach rests on a num-

ber of assumptions the computed albedos can be in-

correct to some degree. To name some sources of

error: the surface may not be perfectly diffuse, the

environment map approach forces all sources to be di-

rectional so varying surface to source distance is not

handled correctly, and some of the irradiance (repre-

sented by the N − M weakest sources) is not subject

to visibility/shadow computations. The reason these

arifact do not show more clearly is that the re-lighting

is performed with the same errors, so the irradiance

fraction is unity for all areas which are not inﬂuenced

by a virtual object shadow. Nevertheless, the long

shadow cast in the bottom of ﬁgure 7 for M = 15

shows that depth and color tone are very consistent

with real shadows in the scene, indicating that the

albedo computation is accurate enough for this pur-

pose, though perhaps not accurate enough for inverse

rendering systems.

5 FUTURE WORK

Section 2.2 stated some assumptions that the pre-

sented techniques are based on. Several of these as-

sumptions are worth further discussion. Here only the

ones where we have ideas for future work will be con-

sidered.

First of all the present system is heavily based

on having a HDR environment map acquired in ad-

vance leading to an assumption that illumination in

the scene is static. The work presented in (Havran

et al., 2005) is centered around a HDR video camera

enabling live capture of environment maps in HDR.

Our approach would work straight forward with such

a camera for continuously capturing the illumination

environment. Alternatively, for outdoor scenes, re-

cent work has demonstrated a way to alleviate static

illumination assumption, (Jensen et al., 2006b; Jensen

et al., 2006a). This work present an approach to

real-time estimation of outdoor illumination condi-

tions from LDR video by continuously estimating the

amount of sun and sky illumination based on reﬂected

radiances from surfaces in the scene, i.e., using the

scene as its own light probe. Furthermore, for indoor

scenes, we are investigating ways of continuously up-

dating the environment map with images from the

video camera as it is being pointed in various direc-

tions by the user. To enable run-time HDR acquisition

it will be necessary to adjust video camera exposure

settings, e.g., by letting every 10th frame by acquired

with very low light sensitivity (and not showing this

frame to the user).

Using environment maps force an assumption that

the real scene is distant, but given a rough 3D model

of the scene light source directions can be intersected

with the real scene geometry to get proper 3D place-

ment for point sources. In this case illumination could

be based on an irradiance volume, (Greger et al.,

1998), in order to make illumination dependent on po-

sition in space.

The double shadow problem has in this work been

solved by assuming that the relevant real geometry

has been accurately modelled. In a general scenario

this will never be possible, e.g., when there are people

and vegetation in the scene. In a not too distant future

high speed high resolution laser range ﬁnder cameras

will enable real-time scene depth capture, but we are

currently investigating techniques for classifying pix-

els as shadow based entirely on the video image infor-

mation. (Jacobs et al., 2005) have presented promis-

ing results in this direction and shadow segmentation

methods are currently the focus of much research.

6 CONCLUSION

We have presented a complete AR system capable of

shading virtual objects and render shadows in a way

which is consistent with the illumination in the real

scene.

Our approach allows for scaling the visual quality

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

260

with the increasing performance of graphics hardware

in the sense that as hardware improves more and more

light sources can be included in the set of sources

which are allowed to cast shadows.

Another important element is the proposed tech-

nique to handling the actual shadowing by essentially

computing albedos and relighting the scene with ir-

radiance which takes both virtual and real geometry

into account when shading shadow areas. In this a

physically-based approach is obtained which will pro-

vide correct intensities and color balances in shadow

areas.

REFERENCES

Barsi, A., Szirmay-Kalos, L., and Sz

ecsi, L. (2005). Im-

age/based illumination on the gpu. Machine Graphics

and Vision, 14(2):159 – 169.

Cohen, J. M. and Debevec, P. (2001). The Light-

Gen HDRShop plugin. www.hdrshop.com/main-

pages/plugins.html.

Debevec, P. (1998). Rendering synthetic objects into real

scenes: Bridging traditional and image-based graph-

ics with global illumination and high dynamic range

photography. In Proceedings: SIGGRAPH 1998, Or-

lando, Florida, USA.

Debevec, P. (2002). Tutorial: Image-based lighting. IEEE

Computer Graphics and Applications, pages 26 – 34.

Debevec, P. (2005). A median cut algorithm for light probe

sampling. In Proceedings: SIGGRAPH 2005, Los An-

geles, California, USA. Poster abstract.

Debevec, P. and Malik, J. (1997). Recovering high dynamic

range radiance maps from photographs. In Proceed-

ings: SIGGRAPH 1997, Los Angeles, CA, USA.

Debevec et al., P. (2006). www.hdrshop.com.

Gibson, S., Cook, J., Howard, T., and Hubbold, R. (2003).

Rapic shadow generation in real-world lighting envi-

ronments. In Proceedings: EuroGraphics Symposium

on Rendering, Leuwen, Belgium.

Greger, G., Shirley, P., Hubbard, P. M., and Greenberg,

D. P. (1998). The irradiance volume. IEEE Computer

Graphics and Applications, 18(2):32–43.

Havran, V., Smyk, M., Krawczyk, G., Myszkowski, K., and

Seidel, H.-P. (2005). Importance Sampling for Video

Environment Maps. In Bala, K. and Dutr

e, P., editors,

Eurographics Symposium on Rendering 2005, pages

31–42,311, Konstanz, Germany. ACM SIGGRAPH.

Jacobs, K., Angus, C., and Loscos, C. (2005). Automatic

generation of consistent shadows for augmented real-

ity. In Proceedings: Graphics Interface, Vancouver,

Canada.

Jensen, T., Andersen, M., and Madsen, C. B. (2006a). Es-

timation of dynamic light changes in outdoor scenes

without the use of calibration objects. In Proceed-

ings: International Conference on Pattern Recogni-

tion, Hong Kong, page (4 pages).

Jensen, T., Andersen, M., and Madsen, C. B. (2006b). Real-

time image-based lighting for outdoor augmented re-

ality under dynamically changing illumination condi-

tions. In Proceedings: International Conference on

Graphics Theory and Applications, Set

ubal, Portugal,

pages 364–371.

Kanbara, M. and Yokoya, N. (2004). Real-time estima-

tion of light source environment for photorealistic

augmented reality. In Proceedings of the 17th In-

ternational Conference on Pattern Recognition, Cam-

bridge, United Kingdom, pages 911–914.

Loscos, C., Drettakis, G., and Robert, L. (2000). Interative

virtual relighting of real scenes. IEEE Transactions

on Visualization and Computer Graphics, 6(4):289 –

305.

Madsen, C. B., Sørensen, M. K. D., and Vittrup, M. (2003).

Estimating positions and radiances of a small number

of light sources for real-time image-based lighting. In

Proceedings: Annual Conference of the European As-

sociation for Computer Graphics, EUROGRAPHICS

2003, Granada, Spain, pages 37 – 44.

Sato, I., Sato, Y., and Ikeuchi, K. (1999a). Acquiring a radi-

ance distribution to superimpose virtual objects onto

a real scene. IEEE Transactions on Visualization and

Computer Graphics, 5(1):1–12.

Sato, I., Sato, Y., and Ikeuchi, K. (1999b). Illumination dis-

tribution from brightness in shadows: adaptive esti-

mation of illumination distribution with unknown re-

ﬂectance properties in shadow regions. In Proceed-

ings: International Conference on Computer Vision,

pages 875–882.

SourceForge.net (2006). OpenCV Computer Vision Library,

www.sourceforge.net/projects/opencv/.

Watt, A. and Policarpo, F. (2001). 3D Games: Real-

Time Rendering and Software Technology, volume 1.

Addison-Wesley.

A SCALABLE GPU-BASED APPROACH TO SHADING AND SHADOWING FOR PHOTOREALISTIC REAL-TIME

AUGMENTED REALITY

261
