FACIAL ANIMATION WITH MOTION CAPTURE BASED ON

SURFACE BLENDING

Lijia Zhu and Won-Sook Lee

School of Information Technology and Engineering, University of Ottawa

800 King Edward Ave., Ottawa, Ontario, Canada, K1N 6N5

Keywords: Surface Blending, Feature Point, Genetic Algorithms, Motion Capture, Facial Animation, Consistent

Parameterization, MPEG-4, Laser Scanner.

Abstract: This paper proposes a methodology to reconstruct 3D facial expressions with motion capture data. Feature-

point based facial animation provides easy control of expression usually by moving surface points using

mathematical deformation. However it does not support the high quality of surface animation of the face

where the feature points are not present. In this paper, we focus on animating a 3D facial model using only

feature points, but keeping the high quality animation by using an expression databank obtained from

surface scanning. Firstly, a facial expression databank is prepared by processing raw laser-scanned human

face data with a consistent parameterization technique. Secondly, sparse motion capture data is obtained

using an optical tracking system. Thirdly, guided by the captured MPEG-4 feature point motions, we find

the corresponding surface information in the existing examples in the databank by linear combination of

them. The optimized blending weights are obtained implicitly by Genetic Algorithms (GA). Finally, the

surface blending result is retargeted into the performer’s neutral facial mesh. Consequently, motions of the

facial surface points are reconstructed.

1 INTRODUCTION

Facial animation can be driven by the facial motion

data captured from a live actor’s performance.

Williams (Williams, 1990) tracks expressions of a

live actor and then he maps 2D tracked data onto a

scanned 3D face model. In his work, motion is

captured using a single video camera and a mirror

which generate multiple views required for vision

reconstruction. Since Williams’ pioneering work,

performance-driven facial animation has been

widely studied. Terzopoulos and Waters

(Terzopoulos, 1993) estimate the dynamic facial

muscle contractions from video sequences of

expressive human faces. They use deformable

contour models to track facial motions in video

images. Then the tracked muscle contractions are

used to animate the physically based model. Guenter

et al. (

Guenter, 1998) capture the geometry and

texture information on a live actor’s face from video

streams and produce life-like facial animation based

on the captured markers. Given video footage of a

person's face, Pighin et al. (Pighin, 1999) present

techniques to automatically recover the face position

and the facial expression from each frame in the

video sequence.

The aforementioned works utilize video

sequences to drive the facial animation. They

reconstruct 3D motion data based on 2D video

images. However, it is difficult to capture detailed

motions of the face from video sequences. Recently,

with more advancing optical motion capture

technology (e.g. VICON

system), higher resolution

and more consistent facial motions can be captured.

Some researchers utilize a VICON

system for

facial animation. For example, Kshirsagar et al.

(Kshirsagar, 2001) use a VICON

system to track

feature point motions of a talking person. Then for

producing realistic speech animation, they use

Principal Component Analysis (PCA) to perform

statistical analysis on the actual speech data.

Normally, the motion capture data consists of

motions for the sparse feature points. While the

feature-point based approach provides easier control

for facial animation, it brings the issue of how to

generate natural-looking results with merely

controlling a few key points on the face.

To tackle this issue, it is better to have additional

information on how the facial mesh should move (i.e.

Zhu L. and Lee W. (2007).

FACIAL ANIMATION WITH MOTION CAPTURE BASED ON SURFACE BLENDING.

In Proceedings of the Second International Conference on Computer Graphics Theory and Applications - AS/IE, pages 63-68

DOI: 10.5220/0002083700630068

 SciTePress

how the facial surface points should move).

Mapping the feature point motions into an available

databank would be a suitable solution. When an

expressive databank is available, it would be very

beneficial to make use of that data and surface

blending is probably the most suitable animation

technique for this case. Some works combine

performance-driven approach with the surface

blending technique. Kouadio et al. (Kouadio, 1998)

present an animation system that captures facial

expressions from a performance actor. They animate

the human face based upon a bank of 3D facial

expressions. A linear combination of the key

expressions in the bank is used to produce facial

expressions. In their work, blending weights are

obtained by minimizing Euclidean distance between

corresponding feature points in the face model and

live markers. Chai et al. (Chai, 2003) show that

facial actions can be created from a pre-processed

motion capture database. They develop a facial

tracking system to extract animation control

parameters from video. They reconstruct facial

motions by blending the K closest examples in the

database.

In this paper, we aim to control facial animation

merely with the facial feature point motions. In order

to produce realistic motions for facial surface points,

we make use of a databank. Then guided by the

captured feature point motions, we produce the

surface blending result based on the examples in the

databank. Here we propose an approach to obtain

blending weights implicitly by Genetic Algorithms

(GA). Then we retarget the surface blending result

onto the neutral model of the performer.

The rest of the paper is organized as follows.

Section 2 prepares a facial expression databank. A

consistent parameterization technique for processing

laser scanned data is also shown in Section 2.

Section 3 uses a VICON

system to capture the

facial motions performed by the human subject.

Section 4 shows a feature-point guided surface

blending technique via GA. Section 5 utilizes a

facial motion retargeting technique. More

experimental results are shown in Section 6. Finally

we conclude our paper with Section 7.

2 PREPARE A FACIAL

EXPRESSION DATABANK

USING A LASER SCANNER

With advanced laser scanning technology, a laser

scanner is able to capture the subject’s face in very

high resolution. In this section, we utilize a

Cyberware

3030 laser scanner to construct a facial

expression databank. We scan a person when he

performs various expressions and visemes statically.

Totally, eleven expressions and fourteen visemes of

this person are scanned. Examples of scanned data

are depicted in

Figure 1. The first row is the example

expressions and the second row is the example

visemes.

Figure 1: Raw laser scanned data.

However, the raw scan data is so dense, irregular

and inconsistent that it can not be directly used for

optimal model construction and animation. A

common approach to tackle this is to pre-define a

generic model with all the necessary structures. Then

this generic model is adapted to the raw laser-

scanned data. Many works have been done on

adapting a generic model to raw laser-scanned data.

(e.g. (Zhang, 2004), (Jeong, 2002), and (Kähler,

2002)). Here we adopt the similar idea to

parameterize the raw-laser scanned data consistently.

Firstly we prepare a generic model

(Figure 2(b))

with predefined feature points. Then we detect the

same feature points in the raw laser-scanned data in

the semi-automatic way

(Figure 2(c)). After that, we

deform the generic model using a Radial Basis

Function (RBF) deformation technique

(Figure 2(d)).

We then increase the triangle count by applying

Loop’s subdivision scheme twice

(Figure 2(e)).

Finally we apply a cylindrical projection technique

to further adapt the subdivision result

(Figure 2(e)) to

the raw laser scanned data

(Figure 2(a)). The details

of the aformentioned techniuqes can be found in our

previous works ((Zhu, May 2006) and (Lee, 2006)).

As we can see, the resulting model shown as Figure

2(f) bears very close resemblance to the raw laser-

scanned data.

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

(a)

(b)

(c)

(d)

(e)

(f)

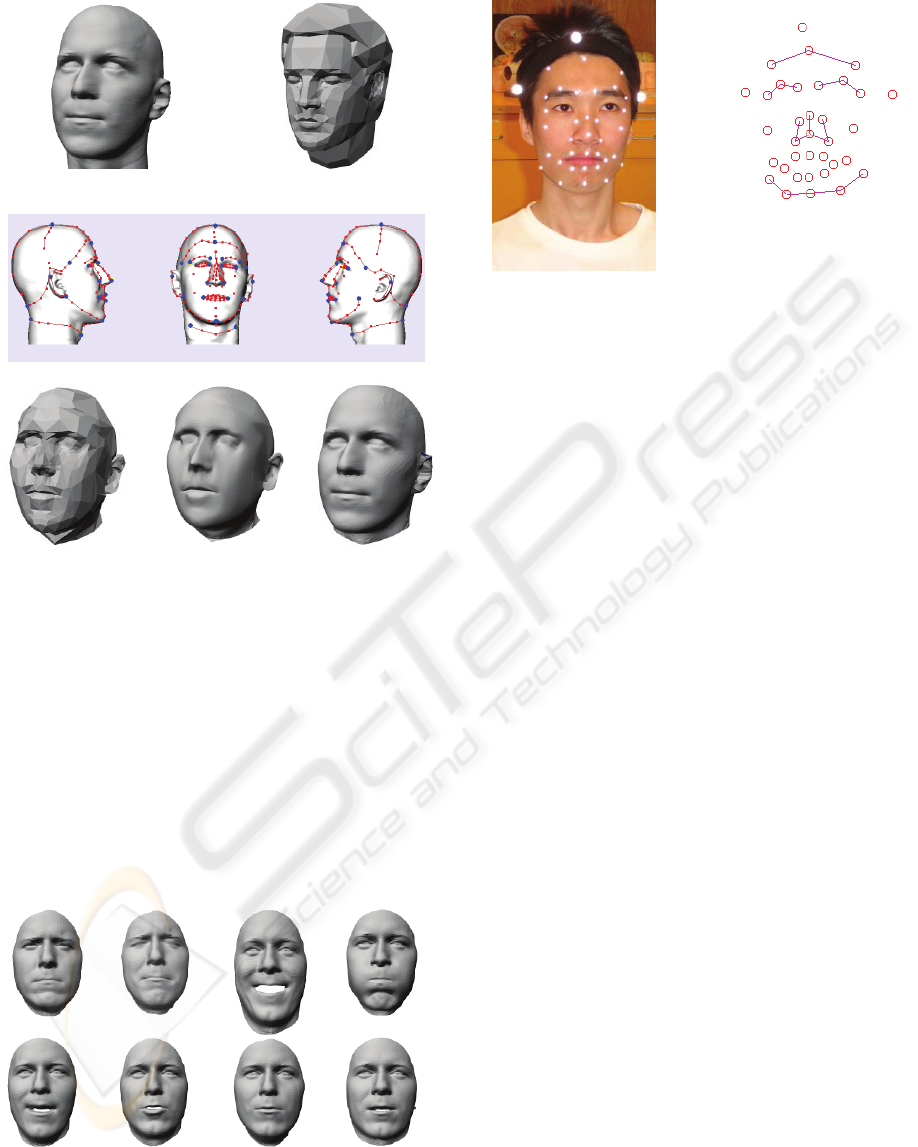

Figure 2: Consistent parameterization technique for

processing the raw laser-scanned data (a) Original laser-

scanned data (699,392 triangles); (b) Generic model (1,485

triangles); (c) Feature point detection for raw laser-

scanned data; (d) Deformed generic model (1,485

triangles); (e) After applying Loop’s subdivision twice

(23,760 triangles); (f) After cylindrical projection (23,760

triangles).

Using this consistent parameterization technique,

we can process all the laser scanned data in the

consistent way. Figure 3 shows examples of the

resulting consistent meshes. The first row is the

example expressions and the second row is the

example visemes.

Figure 3: Example consistent meshes of various

expressions and visemes.

Figure 4: Facial motion capture using a VICON

system.

(a) Sparse markers are attached to the subject’s face; (b)

3D virtual markers reconstructed by the VICON

system.

3 FACIAL MOTION CAPTURE

We utilize an optical tracking system (VICON

) to

capture facial motions performed by a human subject.

As shown in

Figure 4(a), a set of reflective markers is

attached to the human subject’s face. A set of 32

markers is used here which is the subset of the

feature point set specified in the MPEG-4 standard.

Not all MPEG-4 feature points defined in the

standard are put reflective markers here since it is

difficult to track the markers when they are too close

to each other. We do not place markers on the

eyelids since those markers may interfere with the

subject when performing facial motions. Also we do

not put markers in the inner lip region since the

subject has trouble in performing the mouth actions.

Note that three additional markers on the head

mounted jig are used in our motion capture session

(

Figure 4(a)). Although they do not contribute to

facial motions, they are important for removing

global movements when analyzing facial motions.

With reflective markers on the subject’s face, the

VICON

system is able to track those markers when

the subject performs facial motions. A VICON

software suite is then used to process the 2D data

captured from eight high-resolution cameras. The

VICON

software suite is able to clean and

reconstruct the 3D trajectory data from those 2D

motion data.

Figure 4 (b) shows the reconstructed 3D

marker data of a frame.

The reconstructed 3D data needs to be

normalized among frames. The following presented

normalization technique is similar to the one

proposed by Busso et al. (Busso, 2004). In the

normalization step, the first neutral frame is used as

(a)

(b)

FACIAL ANIMATION WITH MOTION CAPTURE BASED ON SURFACE BLENDING

the reference frame. Firstly, the three head jig points

are used for removing global head motions. In each

frame, these three rigid points define a local

coordinate system. Each frame is then rotated to

align it with the reference frame. Then we use the

nose tip point as the reference point to calculate the

translation vector so that the nose tip in each frame

aligns with that in the neutral frame. After the

normalization step, the facial motion for each marker

is calculated using the neutral frame as a reference.

Once facial motions for the sparse markers are

known, next question confronting us is how to

reconstruct motions for facial surface points of the

subject.

4 FEATURE POINT GUIDED

SURFACE BLENDING VIA

GENETIC ALGORITHMS

Given sparse marker motions, the goal of this section

is to reconstruct motions for facial surface points of

the subject. Mapping sparse marker motions into an

available databank is a suitable solution. In Section

2, a facial expression databank is constructed. We

make use of that databank here. Guided by captured

feature point motions, motions for facial surface

points are obtained by blending the examples in the

databank using the surface blending technique.

4.1 Convert the Motion Capture Data

into the Space of the Databank

Firstly, the sparse motion capture data has to be

converted into the space of the databank. Chai et al.

(Chai, 2003) scale the extracted animation

parameters to ensure that motions from the tracked

data have approximately the same magnitude as

those in the database. They compute this scale by the

ratio of the mouth width between the tracked data

and the model in the database.

The following explains how we decide the scale

factor. We calculate the major feature point distances

in both neutral motion capture data (

Figure 5(a)) and

the neutral model of the databank (

Figure 5 (b)). Then

these distances are used to decide the final scale

factor. The final scale factor S is given by:

S ×+×+×+×=

(1)

The four distance scales contribute equally in

deciding the final scale factor S. The averaging

function decreases the amount of uncertainty. This

scale factor S is then applied on the sparse marker

motions. After that, the captured facial motions are

in the same space as that of the databank.

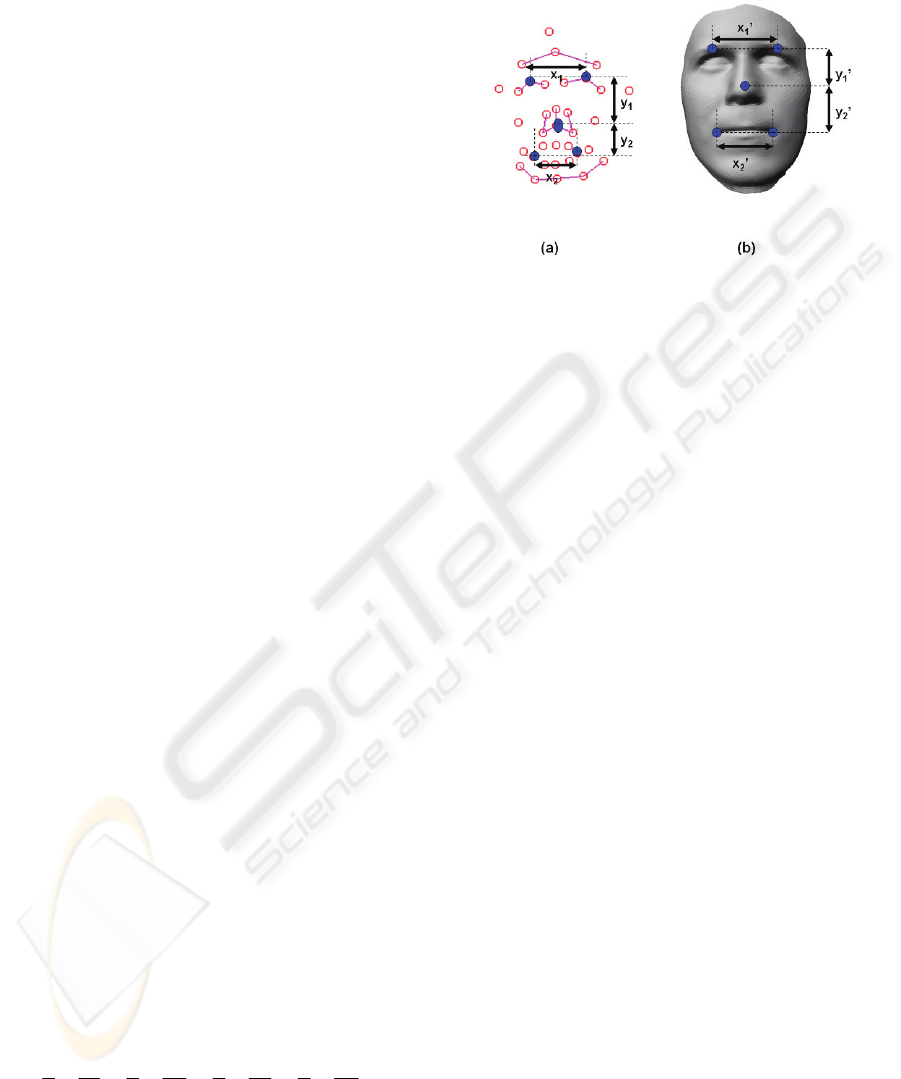

Figure 5: Illustration of calculating the scale factor to

convert motion capture data into the space of the databank.

(a) Neutral motion capture data; (b) Neutral model in the

databank.

4.2 Our Genetic Algorithm Approach

for Finding Blending Weights

Given the scaled sparse facial motions as input (i.e.

specified feature point motions), we blend the

examples in the databank. In this section, we find the

blending weights implicitly via Genetic Algorithms

(GA). More details of the following GA technique

can be found in our previous work (Zhu, July 2006).

Our GA population is initialized with the

previously constructed databank. In each generation,

three example faces from the population pool are

selected randomly. Then we use a fitness function to

evaluate randomly selected three examples

according to the input (i.e. captured feature point

motions). The example with the worst fitness value

in this tournament is not allowed to survive in the

next generation. It is removed from the population

and replaced with the offspring of two winners. For

producing the offspring, we adopt a crossover

operator to mix the two winners. After that, the

offspring is used to replace the worst example in the

previous tournament. The original population now

comes to the next generation. We iterate such

process again and again until N generations are

processed. It is our GA termination condition. N =70

is chosen here experimentally.

We keep track of the best individual over all

generations in the whole GA process. When GA

process meets the termination condition, the best

individual face so far is returned as the final surface

blending result. From Figure 6, we can see the final

surface blending result.

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications

Figure 6: Illustration on how to reconstruct facial motion from sparse motion capture data.

5 FACIAL MOTION

RETARGETING

Since the person in the databank is different from the

performer in the motion capture session, we need to

retarget facial motions to the performer’s neutral

face. Here we adopt the idea proposed by Noh and

Neumann (Noh, 2001) where an expression cloning

technique is used to clone motion vectors of the

source face model onto the target model.

Before retargeting, we have to get the neutral

shape of that performer’s face. We utilize the

Cyberware

3030 laser-scanner to get the neutral

shape for the performer (

Figure 6). The raw laser-

scanned data is processed using the consistent

parameterization technique presented in Section 2.

The resulting performer’s neutral face model shares

the same structure as the models in our databank.

Different from the approach presented in (Noh, 2001)

where the source and the target model have different

structures, here is the trivial case where the source

and the target share the same structure.

Figure 6 shows that the surface blending result is

transferred to the neutral model of the performer

using this facial motion retargeting technique. As

shown in

Figure 6, the final reconstructed facial

motion is quite similar to the one in the real world.

6 RESULTS

In this section, more experimental results are shown.

As described in Section 3, a VICON

motion

capture system is used to capture sparse facial

motions. Facial motions are captured when the

subject is performing facial expressions and

speaking. At the same time, a digital video camera is

used to record facial motions of the subject.

Figure 7 shows reconstructed facial motions

using the aformentioned methodology. The first,

third and fifth rows are the snapshots recorded with

a digital video camera. The rest rows show the

corresponding reconstructed facial motions.

7 CONCLUSIONS

Our experimental results demonstrate that this

methodology is effective for reconstructing realistic

facial motions. By using a facial expression

databank, we can achieve high quality facial

animation using only feature points. The detailed

methodology is: firstly, we utilize the consistent

parameterization technique to process the raw laser-

scanned data. Thus a facial expression databank can

be constructed. Secondly, we capture sparse facial

motions using an optical tracking system. Thirdly,

guided by the captured feature point motions, we use

a GA approach for surface blending the examples in

the databank. Finally, the surface blending result is

retargeted into the performer’s neutral facial mesh.

FACIAL ANIMATION WITH MOTION CAPTURE BASED ON SURFACE BLENDING

However, our results depend on the similarity

between the database of laser captured faces and the

subject. Therefore individualized facial motion

retargeting is our on-going research topic.

Figure 7: Results of reconstructed facial motions.

ACKNOWLEDGEMENTS

We would like to thank Ramesh Balasubramaniam

in the Sensorimotor Neuroscience Laboratory of the

University of Ottawa for allowing us to use his

VICON

system. We are also grateful to Francois

Malric and Andrew Soon for using their face data.

REFERENCES

Busso, C., Deng, Z., Lopes, Yildirim, S., Bulut, M., Lee,

C.M., Kazemzadeh, A., Lee, S., Neumann, U.,

Narayanan, S., 2004. Analysis of emotion recognition

using facial expressions, speech and multimodal

information. In Proc. of ACM 6th International

Conference on Multimodal Interfaces (ICMI 2004).

p.205-211. State College, PA.

Chai, J., Xiao, J., Hodgins, J., 2003. Vision-based control

of 3D facial animation. In Proc. of the 2003 ACM

SIGGRAPH/Eurographics Symposium on Computer

animation. San Diego, California.

Guenter, B., Grimm, C., Wood, D., Malvar, H., Pighin, F.,

1998. Making faces. In Proc. SIGGRAPH 1998. p.

55—66.

Jeong, W.K., Kähler, K., Haber, J., Seidel, H.P., 2002.

Automatic generation of subdivision surface head

models from point cloud data. In Proc. Graphics

Interface. p. 181-188.

Kähler, K., Haber, J., Yamauchi, H., Seidel, H.P., 2002.

Head shop: generating animated head models with

anatomical structure. In Proc of the 2002 ACM

SIGGRAPH/Eurographics symposium on Computer

animation, San Antonio, Texas. p. 55 – 63.

Kouadio, C., Poulin, P., Lachapelle, P., 1998. Real-time

facial animation based upon a bank of 3D facial

expressions. In Proc. of the Computer Animation.

Kshirsagar, S., Molet, T., Magnenat-Thalmann, N.,

2001. Principal components of expressive speech

animation. In Proc. of Computer Graphics

International 2001. p. 38-44.

Lee, W.-S., Soon, A., 2006. Facial shape and 3D skin.

Computer Animation and Virtual Worlds (SCI), Vol.

17, Issue 3-4 (p. 501-512). July 2006, John Wiley.

Pighin, F., Szeliski, R., Salesin, D.H., 1999.

Resynthesizing facial animation through 3D model-

based tracking. In Proc. of International Conference

on Computer Vision. p.143--150. Corfu, Greece.

Terzopoulos, D., Waters, K., 1993. Analysis and

synthesis of facial image sequences using physical and

anatomical models. IEEE Trans. Pattern Analysis and

Machine Intelligence. 15(6):569—579.

Noh, J.Y., Neumann, U., 2001. Expression cloning. In

Proc. of SIGGRAPH 2001. ACM Press. p. 277-288.

Williams, L., 1990. Performance-driven facial animation.

In Proc. of SIGGRAPH 1990. p. 235--242.

Zhang, Y., Sim, T., Tan, C. L., 2004. Adaptation-based

individualized face modeling for animation using

displacement map. In Proc. of Computer Graphics

International 2004 (Crete, Greece). p. 518-521.

Zhu, L., Lee, W.-S., May 2006. Modeling and animating

for the dense laser-scanned face in the low resolution

level. In Proc. of the 17th IASTED International

Conference on Modelling & Simulation 2006.

Montreal, Quebec, Canada.

Zhu, L., Lee, W.-S., July 2006. Facial expression via

genetic algorithms, In Proc .of the 19th Annual

Conference on Computer Animation and Social Agents

(CASA) 2006. Geneva, Switzerland.

GRAPP 2007 - International Conference on Computer Graphics Theory and Applications
