SCRAWLER: A SEED-BY-SEED PARALLEL WEB CRAWLER

Joo Yong Lee, Sang Ho Lee

School of Computing, Soongsil University, Seoul, Korea

Yanggon Kim

Computer and Information Sciences, Towson University, Maryland, USA

Keywords: Web crawler, Parallel crawler, Scalability, Web database.

Abstract: As the size of the Web grows, it becomes increasingly important to parallelize a crawling process in order to

complete downloading pages in a reasonable amount of time. This paper presents the design and

implementation of an effective parallel web crawler. We first present various design choices and strategies

for a parallel web crawler, and describe our crawler’s architecture and implementation techniques. In

particular, we investigate the URL distributor for URL balancing and the scalability of our crawler.

1 INTRODUCTION

A web crawler is a program that retrieves and stores

web pages from the Web. A web crawler starts off

by placing an initial set of URLs in a seed queue.

The web crawler gets a URL from the seed queue,

downloads the web page, extracts any URLs in the

downloaded page, puts the new URLs in the seed

queue, and gets the next URL from the seed queue.

The web crawler repeats this crawling process until

it decides to stop. Figure 1 illustrates the crawling

process.

Initialize

Get a URL

Download page

Extract URLs

Seed queue

Web

repository

WWW

Figure 1: Flow of a crawling process.

A web crawler often has to download thousands

of millions of pages in a short period of time and has

to constantly monitor and refresh the downloaded

pages. In addition, the web crawler should not put a

severe burden on the visited web sites. As the size of

the Web grows, it becomes more difficult or

impossible to crawl the entire or significant portion

of the Web by a single crawling process. In order to

maximize the download rate, many web search

engines run multiple crawling processes in parallel.

We refer to this type of web crawler as a parallel

web crawler.

Web crawlers have been studied since the advent

of the Web. The first web crawler is Wanderer (Gray,

M., 1996). The Internet Archive (Burner, M., 1997)

crawler uses multiple machines to crawl the Web.

Also, it uses a site-by-site basis crawl and a Bloom

filter to find duplicate URLs. The original Google

crawler (Brin, S., Page, L., 1998) is a distributed

system that uses multiple machines for web crawling.

Typically, three to four crawling machines are used

to crawl the Web, so the entire system requires

between four and eight machines. Mercator

(Heydon, A., Najork, M., 1999) presents a number

of functional components that crawler’s basic

algorithm requires: storing the list of URLs to

download, resolving host names into IP addresses,

downloading documents using the HTTP protocol,

extracting links from HTML documents, and

determining whether a URL has been encountered

before. WebBase (Cho, J., Garcia-Molina, H.,

Haveliwala, T., Lam, W., Paepcke, A., Raghavan, S.,

Wesley, G., 2006) is an experimental web repository

built at Stanford University. The WebBase project

has implemented an incremental crawler (Cho, J.,

Garcia-Molina, H., 2000). The incremental crawler

151

Yong Lee J., Ho Lee S. and Kim Y. (2007).

SCRAWLER: A SEED-BY-SEED PARALLEL WEB CRAWLER.

In Proceedings of the Second International Conference on e-Business, pages 151-156

DOI: 10.5220/0002108701510156

 SciTePress

can keep crawled pages after the first crawl and

revisit only changed pages (with high probability).

This paper expands on Kim and Lee’s work

(Kim, S.J., Lee, S.H., 2003) in terms of

parallelization and scalability of a web crawler.

Although the web crawling process is conceptually

simple, designing a parallel web crawler is a

complex endeavour. In this paper, we present the

design and implementation of SCrawler (Soongsil

Crawler). SCrawler has the following

characteristics:

Full distribution. SCrawler can be distributed

across multiple crawling machines for better

performance. Crawling machines download web

pages independently without communication

between them.

Scalability. Due to the fully distributed architecture

of SCrawler, its performance can be scaled by

adding extra machine. In addition, data structures of

SCrawler use a limited amount of main memory,

regardless of the size of the Web. Therefore,

SCrawler can manage to handle the rapidly growing

Web.

Extensibility. SCrawler has been designed in a

modular way. For a particular crawling environment,

SCrawler can be reconfigured by plugging in

appropriate modules without modifying its core

components.

Portability. SCrawler is written entirely in Java to

achieve platform independence, thus runs on any

platforms for which there exists a Java virtual

machine.

2 DESIGN OF A PARALLEL WEB

CRAWLER

In order to maximize the download rate, a parallel

web crawler runs multiple crawling processes

simultaneously. Figure 2 illustrates multiple

crawling processes.

WWW

URL

distributor

Crawling process Crawling process Crawling process

WWW WWW

…

Figure 2: Flow of multiple crawling processes.

Generally, a web site is composed of more than

one page. Given two web pages, p and q, that exist

in the same web site, we say that p is locally

reachable from q if p can be reachable from q

through the web pages only in the same site. In this

paper, a collection of web pages that are locally

reachable from a given page (or seed page) is called

a party.

2.1 Type of Distribution

A parallel web crawler can be “intra-site” or

“distributed”. An “intra-site” crawler runs all

crawling processes on the same local network such

as LAN. A “distributed” crawler runs crawling

processes at geographically distant locations

connected by the Internet or WAN. SCrawler is a

“distributed” crawler that can run on any kind of

network.

2.2 Coordination of Partition

When multiple crawling processes download web

pages in parallel, different crawling processes may

download the same page multiple times. A parallel

web crawler can be classified into three ways in

terms of handling this overlap. In the first scheme,

“independent”, crawling processes may download

web pages independently without any coordination.

Second, when there exists a central coordinator that

logically divides the Web into small partitions and

dynamically assigns each partition to a crawling

process, we refer to this type of coordination as

“dynamic assignment”. Third, when the Web is

partitioned and assigned to each crawling process

before they start to crawl, we call it “static

assignment”.

SCrawler uses the “independent” scheme, thus

has no coordination overhead and can be very

scalable. In addition, since a seed-by-seed basis

crawl downloads web pages in the same party,

SCrawler can simulate the effect of “static

assignment”. Therefore, SCrawler can reduce more

overlap than a parallel web crawler with

“independent” scheme.

2.3 Crawling Mode

Each crawling process of a parallel web crawler is

responsible for a pre-determined partition of the

Web. Each crawling process of SCrawler has to

download web pages in the party. A web crawler

separates URLs into internal URLs and external

URLs. Internal URLs represent web pages that

belong to the partition, to which the downloaded

page belongs. An external URL is a URL that is not

ICE-B 2007 - International Conference on e-Business

152

an internal URL. There are three modes to handle

external URLs.

In “firewall mode”, each crawling process

downloads only web pages in its partition. All

external URLs are ignored and thrown away, and

thus all crawling processes may not download all

web pages that it has to download. In “cross-over

mode”, each crawling process can download web

pages not only in its partition but also in external

URLs. When crawling processes periodically and

incrementally exchange external URLs, we call it as

“exchange mode”.

SCrawler handles external URLs in “firewall

mode” and overcomes the limitations of “firewall

mode” by using a seed-by-seed basis crawl. We will

discuss a seed-by-seed basis crawl in the next

section.

3 IMPLEMENTATION ISSUES

SCrawler uses strategies such as a Bloom filter

(Burner, M., 1997) to remove duplicate URLs and a

breadth-first search to select web pages to be

crawled. We decided to use Java(TM) 2 as

implementation language to achieve platform

independence. Also, we used MySQL to manage

huge statistics from web crawling. SCrawler consists

of 41 Java classes, with 292 methods and about

8,000 lines of code.

3.1 Seed-by-Seed Basis Crawl

A site-by-site basis crawl (Burner, M., 1997) is

known to be a useful strategy. Since a web crawler

with this approach maintains exactly one page

(usually homepage) per a web site as a starting page

of crawling, the web crawler cannot crawl web

pages that are not connected from the homepage. In

order to solve this problem, we have expanded the

concept of a site-by-site basis crawl.

SCrawler crawls on a seed-by-seed basis (Kim,

S.J., Lee, S.H., 2003). In a seed-by-seed basis crawl,

it is possible for a single web site to have more than

one seed. When there are web pages that are not

locally reachable from a seed, SCrawler can crawl

those pages from another seed. A single web site can

have more than one party, and in this case SCrawler

can maintain more than one seed for a single web

site. Therefore, SCrawler finds web pages more than

a web crawler with a site-by-site basis crawl does.

3.2 Crawling Process of SCrawler

Figure 3 shows the overall architecture of crawling

process of SCrawler. Web crawling is performed by

multiple crawling threads. Each crawling threads

repeatedly performs the crawling process. Prior to a

crawl, Input URL Importer stores seed URLs in

Input URL File into a database. During the crawl,

newly found URLs are stored in the database. After

the crawl, Output URL Exporter writes URLs in the

database into Output URL File. Therefore, Output

URL File includes all URLs in Input URL File.

Depth URL

Buffer

Depth URL

Buffer



SCrawler

WWW

Crawling Process Initializing Process

Input URL

File

Output URL

File

Input URL

Importer

Output URL

Exporter

URL

Selector

(MySQL)

Input URL

File

Output URL

File

Input URL

Importer

Output URL

Exporter

URL

Selector

(MySQL)

URL

Collector

DownloaderDownloader

Link

Extractor

Link

Extractor

URL

Analyzer

URL

Analyzer





Web Page

Files

Web Page

Files



Seed ContextSeed Context

Depth URL

Files

Depth URL

Files

URL

Distributor



Seed ID Queue

Figure 3: Main components of SCrawler.

SCRAWLER: A SEED-BY-SEED PARALLEL WEB CRAWLER

153

SCrawler can use Output URL File as Input URL

File on the next crawl. URL Selector selects seed

URLs from the database and loads them into Seed

ID Queue.

The first step of the crawling process is that URL

Collector gets a seed URL from Seed ID Queue and

determines whether it should crawl the seed URL (1).

URL Collector makes Seed Context for a party of the

seed URL. Seed Context is a data structure that

contains a number of seed information such as an IP

address, a seed URL string, a port number, a Bloom

filter for the party, an elapsed time “e-time” after

the last downloading and more. When URL

Collector crawls multiple seed URLs simultaneously,

it has multiple Seed Contexts for each party of seed

URLs.

After making Seed Context, URL Collector calls

Downloader (2). Downloader downloads a web page

using information of Seed Context (3). URL

Collector stores the downloaded page in disk (4),

and sends it to Link Extractor (5). Link Extractor

extracts any URLs in the downloaded page. The

extracted URLs are stored in Depth URL Buffer

temporarily. If Depth URL Buffer is full, all URLs in

the buffer are stored in Depth URL File and the

buffer becomes clear.

URL Analyzer examines whether the extracted

URLs are in syntax errors, and checks duplicate

URLs (6). URL Analyzer separates the extracted

URLs into internal URLs and external URLs.

Internal URLs are sent to URL Collector (7).

External URLs become candidate seed URLs.

SCrawler repeats from step (2) to step (7) until no

page URL in the party is found.

3.3 URL Balancing

SCrawler runs multiple crawling processes in

parallel by multiple machines or multiple threads.

Crawling threads download web pages

independently without communication between

them. Each crawling thread gets a seed URL from a

seed queue. At any crawling times, the number of

seed URLs that are assigned to each crawling thread

should be maintained to be equal as much as

possible (we call it URL balancing). SCrawler uses

URL Distributor to achieve URL balancing. Figure 4

conceptually shows the distribution of seed URLs by

URL Distributor.

URL

Collector

URL

Collector

URL

Collector

Seed

Context

Seed

Context

Seed

Context

…

Seed

Context

Seed

Context

Seed

Context

…

Seed

Context

Seed

Context

Seed

Context

…

Seed ID Queue

URL

Distributor

Figure 4: Conceptual diagram of distribution of seed

URLs by URL Distributor.

URL distribution algorithm

[1] while (true)

[2] if (not empty(seed_queue)) then

[3] foreach t in all_threads

[4] if (not full(seeds_of_t)) then

[5] url = dequeue(seed_queue)

[6] distribute(t, url)

[7] countSeed(t)

[8] else

[9] src_thread = findMaxSeed(all_threads)

[10] dst_thread = findMinSeed(all_threads)

[11] if (min_seed < avg_seed) then

[12] url = selectToDistribute(src_thread)

[13] distribute(dst_thread, url)

[14] countSeed(src_thread)

[15] countSeed(dst_thread)

Function description

dequeue(queue): Remove a seed URL from queue, and return it.

distribute(thread,url): Distribute url to thread, and make seed context for a party of url.

countSeed(thread): Count seed URLs in thread.

findMaxSeed(threads): Return the thread that has the most seed URLs in threads

findMinSeed(threads): Return the thread that has the least seed URLs in threads.

selectToDistribute(thread): Select an inactive seed in thread, and return it.

Figure 5: URL distribution algorithm for URL Distributor.

ICE-B 2007 - International Conference on e-Business

154

URL Distributor uses the URL distribution

algorithm that is illustrated in Figure 5. URL

Distributor maintains information on the number of

seed URLs that each crawling thread holds and the

average number of seed URLs that all crawling

threads hold. URL Distributor gets a seed URL from

Seed ID Queue and distributes the seed URL to each

crawling thread in a sequential order. Given a seed

URL, the number of downloaded pages or the

crawling time completely depends on the seed URL.

Therefore, although all crawling threads start with

the same number of seed URLs, their crawling time

is likely to be different. For this reason, the number

of seed URLs in each crawling thread is likely to be

unbalanced after all seed URLs in Seed ID Queue

have been evenly distributed. In order to cope with

such URL unbalancing, URL Distributor

redistributes seed URLs that crawling threads hold

each other when some condition is met (see line 11).

We performed an experiment on the efficiency of

URL Distributor. We considered the distribution of

seed URLs in free competition as the object of

comparison. The distribution of seed URLs in free

competition means that each URL Collector gets

seed URLs from Seed ID Queue in free competition.

This distribution is illustrated in Figure 6.

URL

Collector

URL

Collector

URL

Collector

Seed

Context

Seed

Context

Seed

Context

…

Seed

Context

Seed

Context

Seed

Context

…

Seed

Context

Seed

Context

Seed

Context

…

Seed ID Queue

Figure 6: Conceptual diagram of distribution of seed

URLs in free competition.

We randomly selected 10,000 Korean web sites

and used them as seeds. SCrawler ran 20 crawling

threads simultaneously, each of which held 10 Seed

Contexts. We conducted web crawling twice. The

first crawl distributed seed URLs by URL

Distributor. In the second crawl, seed URLs were

distributed in free competition.

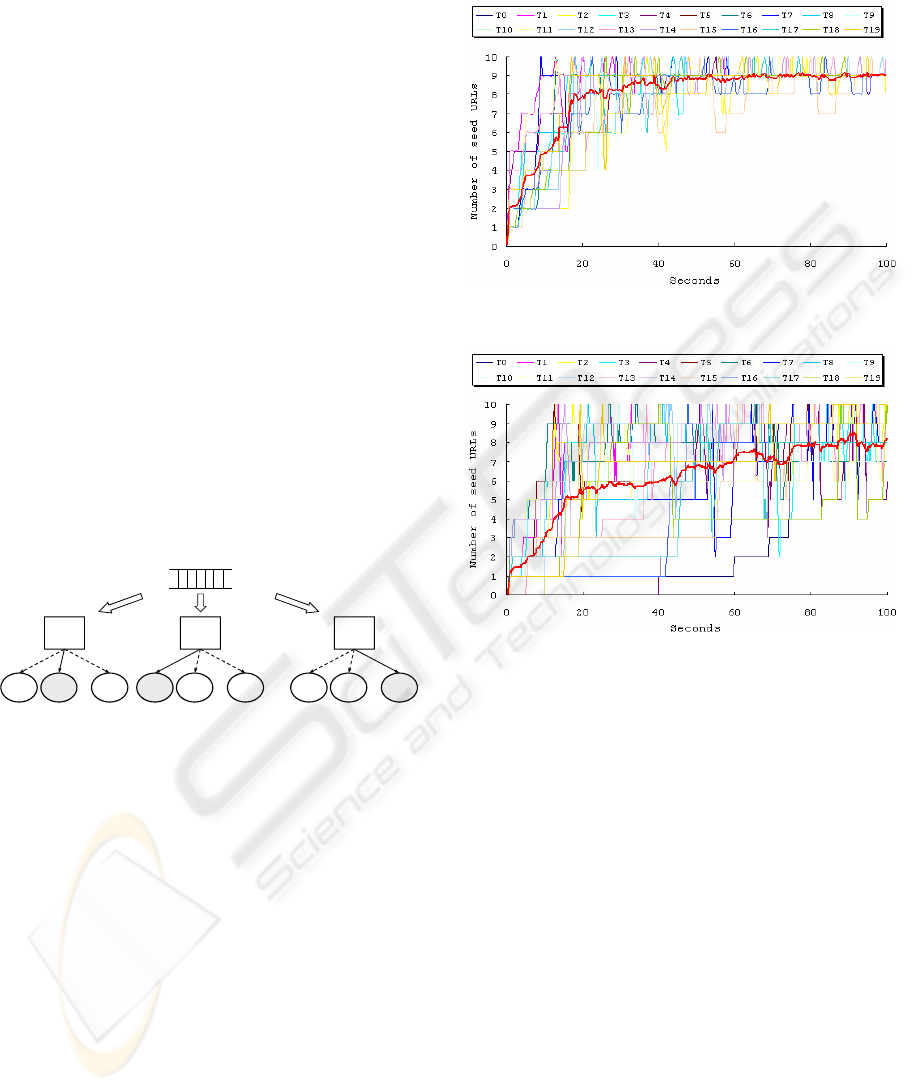

Figure 7 and 8 show the number of seed URLs

that each of 20 crawling threads holds. In the figures,

bold lines represent the average number of seed

URLs that all crawling threads hold. From Figure 7,

we can see that after 40 seconds of crawling, the

average number of seed URLs all crawling threads

held was maintained to be approximately 9. From

Figure 8, we can observe that thread 18 (T18) held

10 seed URLs after 100 seconds of crawling and

thread 0 (T0) held only one seed URL until 60

seconds of crawling. Seed URLs were not equally

distributed to each thread in free competition.

Figure 7: Number of seed URLs in URL Distributor.

Figure 8: Number of seed URLs in free competition.

Using URL Distributor, we reduced crawling

time as much as 2 hours and 40 minutes than that in

free competition. The download rate also increased

by 34.7%. The results show that the URL

distribution algorithm works well in multiple

crawling processes.

3.4 Scalability

In a highly scalable system, one should guarantee

that the work performed by every thread is constant

as the number of threads changes (Boldi, P.,

Codenotti, B., Santini, M., Vigna, S., 2004). That is,

the system and communication overheads do not

reduce the performance of each thread. SCrawler is

scalable in two respects. First, SCrawler has a fully

distributed architecture. Due to this architecture, the

performance of SCrawler is scaled by adding extra

machines. Second, data structures of SCrawler use a

bounded amount of main memory, regardless of the

size of the Web. Therefore, SCrawler can cope with

the rapidly growing Web.

SCRAWLER: A SEED-BY-SEED PARALLEL WEB CRAWLER

155

We experimentally measured how the average

number of downloaded pages per second per thread

changes as the number of crawling machines

changes. For this, we used 250,000 Korean sites

randomly selected as seeds. We increased crawling

machines from one to five by increment of one. We

set the number of crawling threads for each machine

to 10, 15 and 20, and each thread ran with 10 seeds

simultaneously.

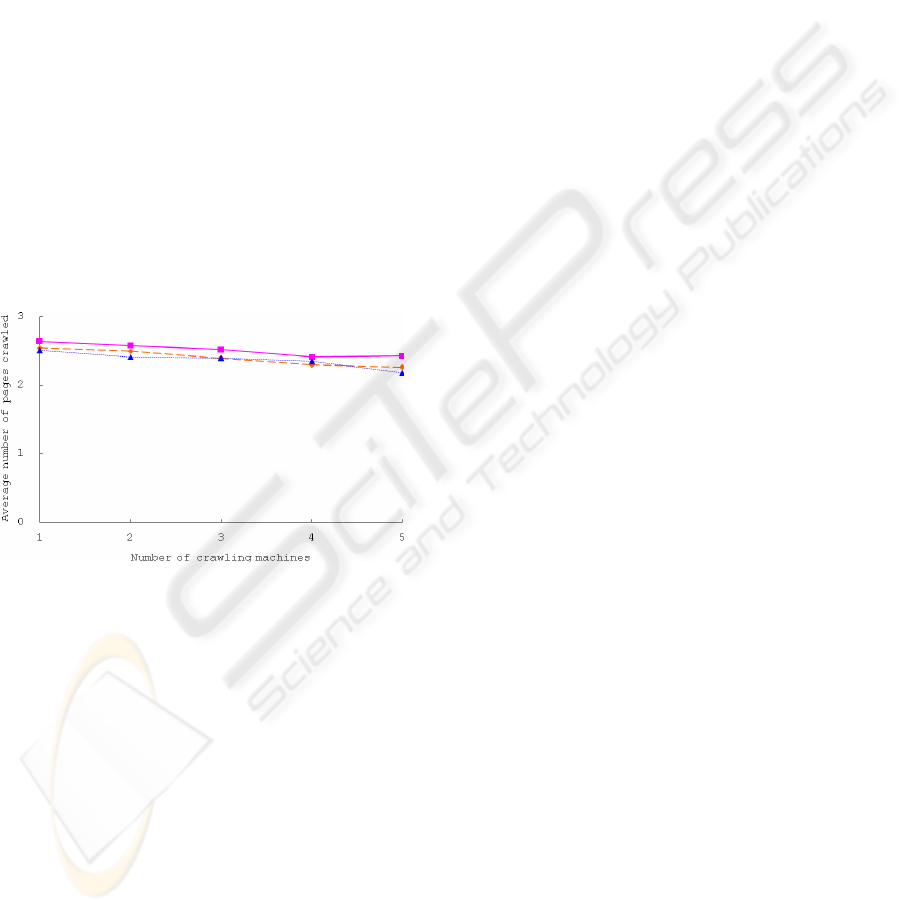

Figure 9 shows how the average number of pages

downloaded per second per thread changes as the

number of crawling machines increases. The solid

line, long dashes, and short dashes represent web

crawling using 20 threads, 15 threads, and 10

threads, respectively. The more systems are scalable,

the more lines are horizontal. From the results, we

believe that SCrawler is scalable almost linearly

with the number of crawling machines. One might

notice that the lines are not completely horizontal.

This could be attributed to the limitations of our

network resources. We ran this experiment in a

campus network where the network status is likely

to vary over time.

Figure 9: Average number of pages crawled per second

per thread.

4 CLOSING REMARKS

The development of SCrawler is ongoing.

Dynamically generated contents are constantly

created on the Web. The Web is growing

tremendously. Our next expansion of SCrawler

would be to selectively crawl web pages that are

relevant to a pre-defined set of topics.

ACKNOWLEDGEMENTS

This work was supported by Seoul R&BD Program

(10581cooperateOrg93112).

REFERENCES

Boldi, P., Codenotti, B., Santini, M., Vigna, S., 2004.

UbiCrawler: a scalable fully distributed Web crawler.

Software-Practice and Experience, Vol. 34, No. 8,

711-726.

Brin, S., Page, L., 1998. The anatomy of a large-scale

hypertextual Web search engine. In Computer

Networks and ISDN Systems, Vol. 30, No.1-7, 107-

117.

Burner, M., 1997. Crawling towards Eternity: Building An

Archive of The World Wide Web. In Web Techniques

Magazine, Vol. 2, No. 5, 37-40.

Cho, J., Garcia-Molina, H., 2002. Parallel Crawlers. In

WWW’02, 11th International World Wide Web

Conference, 124-135.

Cho, J., Garcia-Molina, H., 2000. The Evolution of the

Web and Implications for an Incremental Crawler. In

VLDB’00, 26th International Conference on Very

Large Data Bases, 200-209.

Cho, J., Garcia-Molina, H., Haveliwala, T., Lam, W.,

Paepcke, A., Raghavan, S., Wesley, G., 2006. Stanford

WebBase Components and Applications. In ACM

Transactions on Internet Technology. Vol. 6, No. 2,

153-186.

Gray, M., 1996. Internet Statistics: Growth and Usage of

the Web and the Internet, http://www.mit.

edu/people/mkgray/net/.

Heydon, A., Najork, M., 1999. Mercator: A scalable,

extensible Web crawler. In World Wide Web, Vol. 2,

No. 4, 219-229.

Kim, S.J., Lee, S.H., 2003. Implementation of a Web

Robot and Statistics on the Korean Web. In HSI’03,

2nd International Conference of Human.Society@

Internet, 341-350.

Najork, M., Heydon, A., 2001. High-performance web

crawling. In SRC Research Report 173. Compaq

Systems Research Center.

Najork, M., Wiener, J.L., 2001. Breadth-First Search

Crawling Yields High-Quality Pages. In WWW’01,

10th International World Wide Web Conference, 114-

118.

Shkapenyuk, V., Suel, T., 2002. Design and

Implementation of a High-Performance Distributed

Web Crawler. In ICDE’02, 18th International

Conference on Data Engineering, 357-368.

ICE-B 2007 - International Conference on e-Business

156
