THOTH - A FRAMEWORK FOR BUILDING SECURE TV

BROADCASTERS NETWORKS OVER THE INTERNET

Thiago Curvelo dos Anjos, Luiz Henrique Freitas, Guido Lemos de Souza Filho and Tiago Salmito

Digital Video Applications Lab, Federal University of Paraíba, João Pessoa/PB, Brazil

Keywords: Security architecture, TV content exchange, television virtual enterprises, security in collaborative systems.

Abstract: Nowadays satellite link are costly. Small TV stations can not afford such expenses and big TV stations

make huge investments on such infrastructures. Instead of satellite, IPTV based technologies allow real time

distribution of digital content with lower costs. Security is one of the main impairments for using IPTV on

such type of applications. Considering security as a mandatory requirement we designed Thoth: a

framework for creating secure virtual organizations platforms to share TV content among a scalable number

of TV stations.

1 INTRODUCTION

The television is currently dominated by three

distribution technologies: over the air broadcast,

cable, and satellite. However, television industry is

in the middle of profound changes caused by IPTV

technology. IPTV provided by telecom service

providers is starting to compete with existing

broadcasting services via terrestrial, satellite and

cable networks. The increasing demand for digital

content, improvements on distribution and

compression techniques in addition to high network

bandwidth have made IPTV feasible

Many telecommunications companies are betting

their future on the IPTV “Triple Play”: data, voice

and video. “Data and voice traffic, delivered over

the same IP pipe as video, can be more easily

integrated with the viewing experience” (Wales et

al, 2005). The use of an IP network to deliver

content also makes it easier to provide new features.

Enterprises are now facing growing global

competition and their continuous success in the

marketplace depends on how efficiently the

companies are able to respond to customer demands.

The formation of virtual enterprise network is taking

up momentum to meet this challenge (Lau, 2005).

Moreover, the idea of a dynamic organization

combining synergetic efforts to perform a given

business project is more likely to achieve costumer

satisfaction and market needs than enterprises by

themselves.

The combination of IPTV and Virtual

Enterprises technologies create the perfect

environment to develop new TV applications. In

order to explore this opportunity we developed a

framework that makes possible to instantiate secure

platforms to share TV content among a scalable

number of TV stations. This platform may be used

to set up virtual TV networks formed by a set of

individual broadcasters working together organized

as a virtual enterprise. The framework we developed

is called Thoth, and it was named after the Egyptian

god that was responsible for production and

dissemination of knowledge.

In order to properly work in a TV scenario, the

software needs more than just achieve system

functionalities, it must ensure data security.

The access to organizations’ resources is not

public and must be restricted to a set of specific

users. The first step is to ensure that users are

authenticated before they use the system. However,

authentication itself is insufficient to control who

have permission to use the resources. Even

legitimate system users can not have rights to

perform all application functionalities. In addition, it

is necessary to control which users have access to

which resources.

The implementation of an authorization

mechanism ensures that only users who have

authority to do some task are allowed to do it.

However, beyond access control, on business

environment it is necessary also to register users’

actions, in order to make them responsible for their

Curvelo dos Anjos T., Henrique Freitas L., Lemos de Souza Filho G. and Salmito T. (2007).

THOTH - A FRAMEWORK FOR BUILDING SECURE TV BROADCASTERS NETWORKS OVER THE INTERNET.

In Proceedings of the Second International Conference on e-Business, pages 57-62

DOI: 10.5220/0002113500570062

 SciTePress

acts. On TV environment, where copyrighted

content flows among stations, this control must be

carefully done due royalties’ payments, for instance.

Another important concern regards security

policy. The organization’s security policy is a

document which defines the organizational rules that

must be followed in order to ensure a secure

operation. These rules vary from one enterprise to

another, because they have their own needs.

Therefore, when it is necessary to design an

application which will be used by many different

companies, efforts to permit different

implementation policies must be dispended.

Section 2 introduces a brief overview on Thoth

architecture and functionalities. On section 3,

security design is discussed and the Thoth security

architecture is detailed. Section 4 exposes a case

study of Thoth, applied to build a network of

Brazilian TV Stations. Finally, in section 5, we

present the conclusion of our work.

2 THOTH OVERVIEW

Thoth platform is a factory of TV Virtual

Enterprises; it is used to create and also to provide

support for the operation of distributed TV Virtual

Enterprises. Thoth can be used to organize content

exchange between a set of partner TV stations. The

idea is to reduce content production costs by

exchanging it, this way, a small television enterprise,

instead of producing content 24 hours per day, can

produce a smaller amount of it, to provide it for its

partners on a virtual television network and use

content provided by its partners to fulfill its daily

programming.

Besides providing support for content exchange,

Thoth can be used to build the television network

reference programming schedule and to distribute

this schedule of the TV network to every affiliate.

Thoth broadcasts the content of the TV network

schedule through the Internet using IPTV. It is

important to highlight that this platform fits in the

traditional television network scenario; where there

is a main TV station (network head end) transmits

content to its affiliate stations and then they

retransmit it to end users adding its local content.

Only authorized personal can share content on the

network regarding copyright issues. In this section

we explain Thoth architecture and features. Thoth

architecture is presented in figure 1.

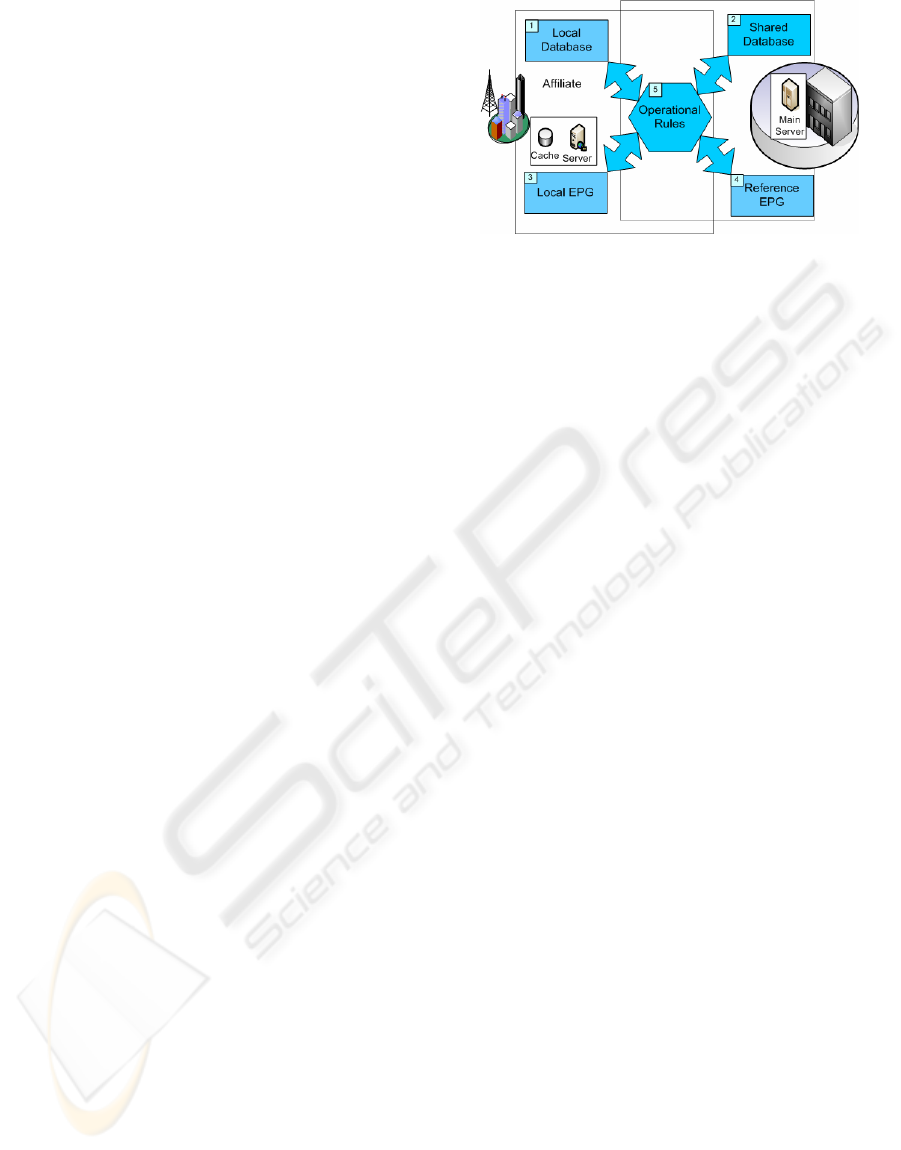

Figure 1: Thoth’s Architecture.

1. All TV stations have their own database where

they store local video content. The content in the

database is used to build local Electronic

Programming Guides (EPG). Video content on

these databases are uploaded by authorized

personal.

2. All TV stations have access to the shared

database. They may download content from this

database to build their local EPG.

3. In order to build local EPGs, programming

operators from affiliate stations may use the video

content from its local database, or from the shared

database. In addition, some instances of Thoth

have the option to use a reference EPG.

4. The main TV station builds reference EPGs with

video content from the shared database and then

sends them to affiliate TV stations. This EPG

contains some empty time-spots that will be

fulfilled by each station.

5. A set of operational rules that define processes

and interactions in the architecture

The five entities mentioned in figure 1 forms the

base of Thoth’s architecture. However, in order to

consider Thoth a factory of TV Virtual Enterprises,

it has to achieve different requirements from distinct

TV stations. These requirements may not be the

same in different enterprises and sometimes they can

be even opposites. Therefore, such requirements

must be flexible and dynamically configured for

each instance of a virtual organization. Thoth was

designed to allow users to configure business rules,

security policies and metadata.

This feature works on the so called flexibility

functions of Thoth architecture, defining operational

rules for the virtual organizations. By changing the

configuration of theses functions, a new virtual

enterprise with different rules is created. These

flexibility functions are showed on figure 2.

ICE-B 2007 - International Conference on e-Business

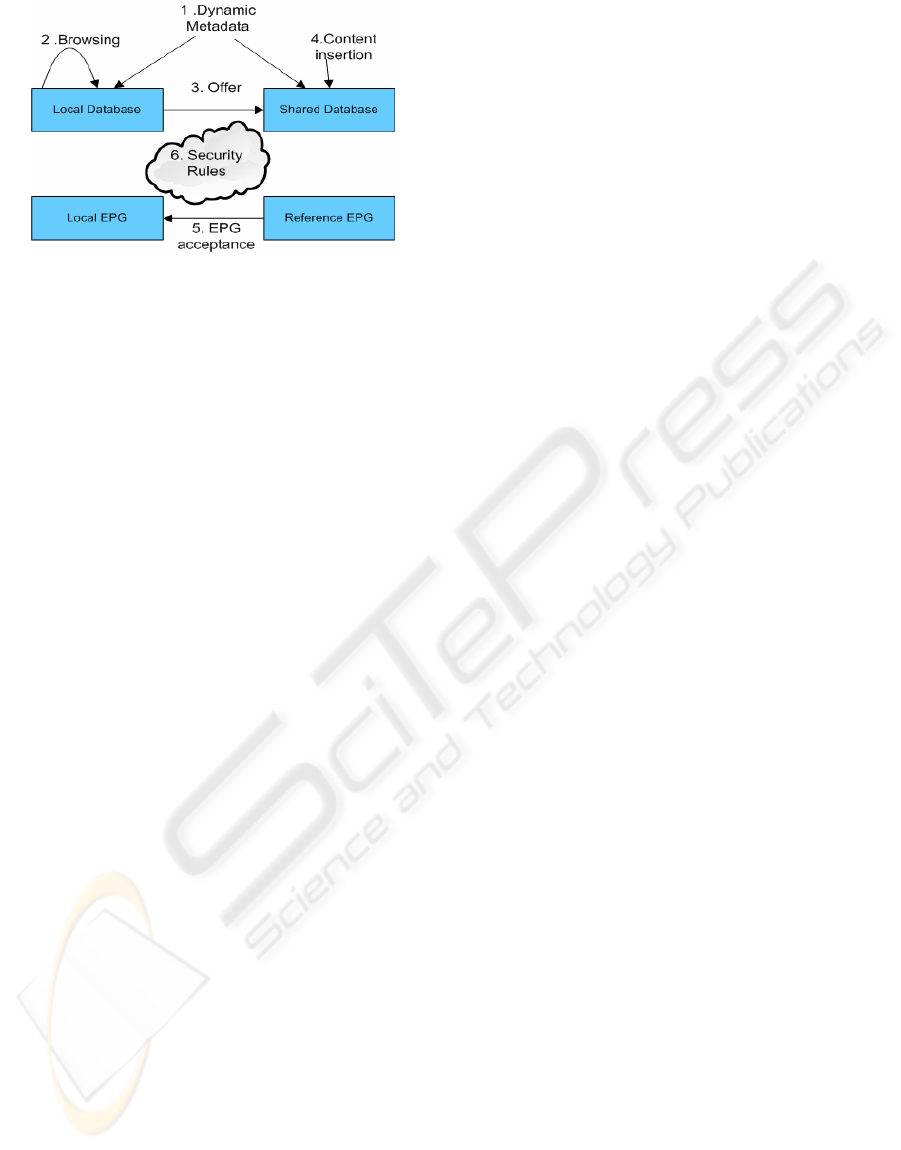

Figure 2: Thoth Flexibility functions.

1. Cooperation is a key aspect in the virtual

enterprise paradigm (Camarinha-Matos, 2001).

Because a virtual enterprise is built according to

the changing business opportunity, the

cooperative partners in a virtual enterprise may

have different priorities. On Thoth, various users

(TV Stations) may have different attributes

requirements to describe their videos and the TV

schedule. To give database’s control to its

administrators, a dynamic metadata approach was

employed. Hence, each station is able to define

and create metadata to achieve its internal

requirements, without interfering on another

station when offering or getting video.

2. In Thoth, affiliate stations can build their local

EPG using video content from their database and

from the shared database. However,

improvements on video content exchange can be

achieved by allowing users to browse and get

content directly from other stations.

3. In order to advertise content to others stations,

affiliate TV stations must either enable the feature

presented above or offers this content to the main

TV station. However, the offered content may be

evaluated and accepted or rejected by the main

TV station. Accepted videos are stored in the

shared database and can be used by all stations.

This flexibility function regards how the offering

process occurs. We have got four different cases:

(i) it can be disabled; (ii) it can be set to

automatically accept an offer; (iii) every time an

offer is made one person will evaluate the content;

(iv) instead of one person, a council will evaluate

the content using a voting system.

4. This issue regards how the shared database is

populated. It may consist only by offered videos

from affiliate TV stations, or only by uploaded

video on the main TV stations or, in a third

scenario, working with both cases.

5. The main TV station builds EPGs with video

content from the shared database and then sends

them to affiliate TV stations. However, the

acceptance of this EPG by affiliate stations can be

configured in three different ways: First, the

acceptance is set to be optional, this ways affiliate

stations may choose not to use the reference EPG

(i.e. on a cooperative TV network). Second, the

acceptance is mandatory and local EPG

administrators are not allowed to change the

schedule (i.e. on a hierarchical TV network), they

are only allowed to add content on the unfulfilled

spots on the reference EPG. Finally, the

acceptance is mandatory but local EPG

administrators can change the schedule, therefore,

they can alter EPG as they want, however, they

have to entirely broadcast the original content

from the reference EPG.

6. In order to control users’ access and to ensure

only authorized personal perform the tasks, Thoth

implements an authorization mechanism, where

the organization security policy is defined and, for

every user action, the right definitions are

checked.

3 THOTH’S SECURITY DESIGN

On this section, we present the features of Thoth’s

security design issues.

So as to ensure quality of the adopted security

solution, Thoth’s design was based on the use of

security patterns (Schumacher et al, 2006). Security

patterns, like design patterns, consist in a set of

generic, high quality and proven solutions to specific

security problems. They are catalogued concepts,

which have been applied successfully in the past

over and over again.

An important feature within security design

scope is transmission. All communication among

station is done using security channels, a well-

known pattern, employed to ensure confidentiality.

To implement security channels Thoth uses the

secure socket layer.

On the follow we discuss main features on

security design.

3.1 Authentication and Identification

Authentication is the binding of a computer identity

to a user (Bishop, 2002). When a user goes through

the authentication process, and he is properly

identified, a security session is created. A session is

a large used pattern which consists in an object that

holds user relevant data (Schumacher et al, 2006).

The user client holds a session id (i.e. cookies on a

THOTH - A FRAMEWORK FOR BUILDING SECURE TV BROADCASTERS NETWORKS OVER THE INTERNET

browser) and presents it on every request. The main

role of session is to identify the user, avoiding him

to re-authenticate on every action.

In Thoth there are two levels of identification. In

the first level, the user identifies him on his TV

station, by using login and password schema. Thus,

if his authentication succeeds and the session is

created, he will be able to attempt to execute tasks

on his station local resources.

The second identification level occurs when the

user attempts to access resources beyond his station.

For instance, offering a program to shared database

or retrieving reference schedule. In Thoth, each

affiliate station has its own users and its own

security server (that will be better showed on

distribution architecture in section 3.4); therefore,

there is a need to identification on main station site.

On these cases, because the session has local station

scope, the user has to be identified on control

station. In order to create another session, and avoid

user re-authentication, a digital certificate-based

authentication is done.

Using this approach, each affiliate station has a

certificate emitted by control station which acts also

as a certificate authority.

When a station attempts to access these

resources, it presents its certificate to the control

station, which creates a session for it. The affiliates

are to main station, as the users are to its affiliates.

That certificate-based authentication approach is

also used when an affiliate attempts to retrieve video

content from another station local database. The

affiliates exchange their certificates in order to

recognize each other as members of the same TV

network. This approach is called known partners

(Schumacher et al, 2006).

3.2 Authorization and Access Control

Users have different access rights, and these

rights must be checked before the application

executes any resource request. So as to ensure that,

Thoth adopts the reference monitor pattern

(Schumacher et al, 2006). Reference monitor is an

entity which intercepts all requests for resources and

checks them for compliance with authorizations.

Therefore, all user requests are addressed to

reference monitor, that queries the security database,

and allow or deny rights to do a task.

Also through the reference monitor, using a

pattern called limited access, the user interface is

customized according to user’s rights. In this way,

the reference monitor hides or display functionalities

to the user.

In Thoth, the main resources are the schedules

(local and reference) and databases (local and

shared). Each resource has different set of functions

and different interests and responsibilities are

involved. Defining detailed rules requires a high

level of granularity.

Aiming to provide the fine granularity

authorization control for the organizations needs,

Thoth uses Role Based Access Control model

(RBAC) (RBAC, 2007). RBAC is a NIST standard

which regulates access of user to resources based on

their roles in an organization. The roles denote

organizational functions which describe authority

and responsibility assigned to a user. In RBAC, the

access rights are assigned to the roles, according to

the role needs. The roles are assigning to the users,

according to their functions on the organization.

In order to ensure the policy independency, the

access control mechanism must be implemented on

an independent layer. In section 4.4 we present

MACA, the middleware solution for access control

adopted by Thoth.

3.3 MACA: Authentication and Access

Control Middleware

MACA (MACA, 2006) is a solution for provide

authentication and authorization service for legacy

or under developing applications. It implements a

contextual authorization model (MOTTA et al,

2003), which extends RBAC reference model.

A contextual authorization allows or denies

access based on evaluation of rules, during an access

attempt. These rules are defined in terms of

environment functions or variables, available on

context, in order to implement specifics access

policies. Using contextual authorization enhances

the granularity of access control, ensuring more

flexibility to implement distinct policies.

MACA implementation is based on open

standards to ensure interoperability. It’s a scalable

solution, which makes possible a centralized access

policy administration, from different systems, for

heterogeneous applications, made in different

languages. Furthermore, in future their services will

be available via web services, aiming to improve

interoperability.

3.4 Security Architecture

In this section, we show Thoth’s security

architecture. First, the Logic Model shows the

solution elements. In the follow, the Distribution

Model expose where the elements are placed on TV

environment.

ICE-B 2007 - International Conference on e-Business

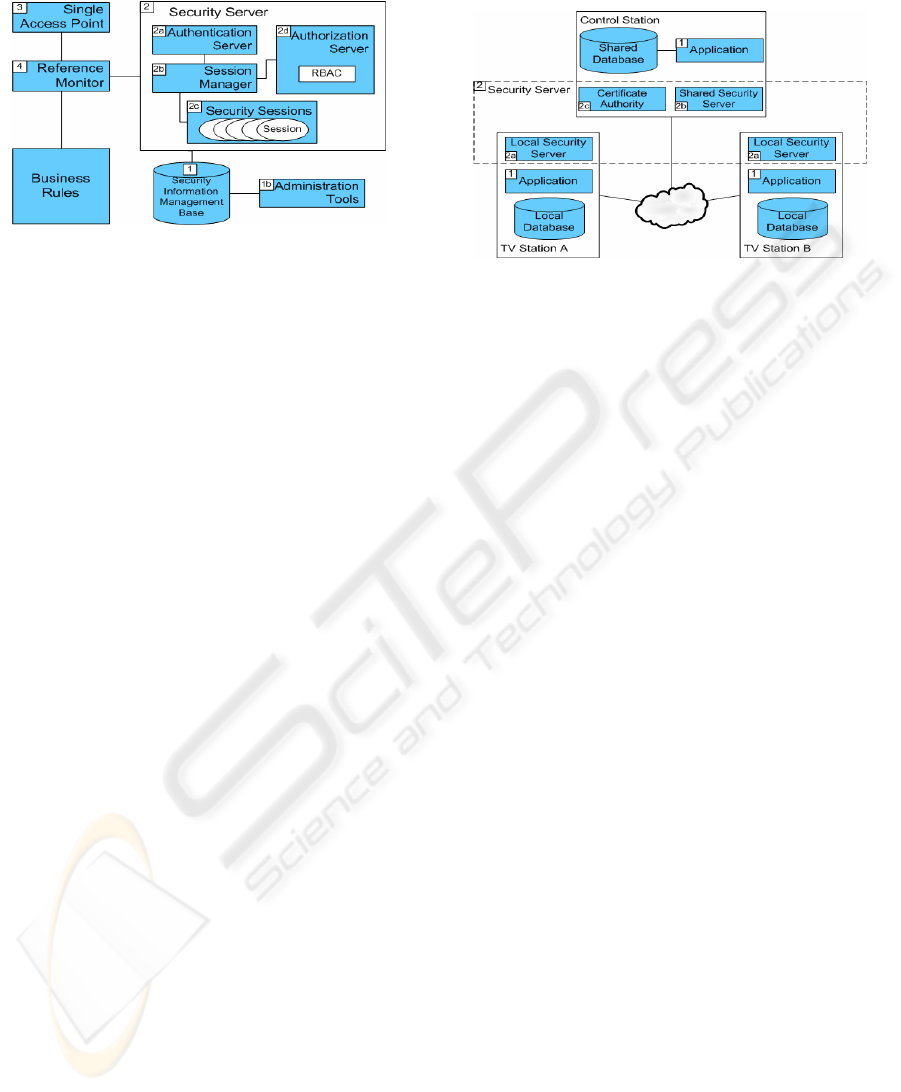

The elements of Thoth security architecture are

showed in Figure 3.

Figure 3: Security architecture: Logic Model.

1. Information about users, roles, resources and

rights, used for authentication and authorization,

are stored on a database known as Security

Information Management Base (SIMB). The

data on this base is populated and managed for

system administrators using a set of

Administration Tools (1.b).

2. The information on SIMB is retrieved by the

Security Server, which is the main element of

Thoth Security Architecture. It must ensure the

security policy implementation.

On the security server occurs the user

identification through the authentication server

(2.a). When a valid user attempts to log in on

Thoth, the authentication server asks the session

manager (2.b) to create a new session (2.c).

The authorization server (2.d) is the entity

responsible for verifying if users are allowed to

execute the tasks they attempt to. The RBAC

logic is implemented on this element. It checks

user’s permissions on the SIMB, based on his

session.

3. All the integration between user and system is

accomplished by a single access point entity. It is

an element of the user interface that allows

system access and it consists in a large utilized

security pattern to provide a unique way access.

4. Finally, the reference monitor intermediates

users and business rules. It is responsible for

asking security server if the user has permission

to execute a task, and allows or denies its

execution. Reference monitor also asks for the

user authentication when he attempts to log in.

Thoth architecture allows to implement distinct

security policies without modifying business rules,

therefore, making Thoth capable to easily adapt for

different TV organizations realities. In the following

section, the distribution model of Thoth architecture

is exposed.

The entities of Thoth architecture are distributed

among the stations affiliated to the television

network. Figure 4 details the distribution model.

Figure 4: Security Architecture: Distribution Model.

Each station has an implementation of its business

rules (1) and a local security server (2a). On the

local security server, users are authenticated and

authorized. However, when resources from the

control station are required (shared base or main

station EPG) both local and shared security servers

are consulted. In these cases, the local server tests if

the user has permission to do what he asks to,

regarding his role. If a positive answer is obtained,

the local server gets clearance with the control

station and then, asks to execute the task on the

control station.

In the control station viewpoint, the affiliate

stations are users, therefore, authentication is

needed. So as to identify affiliate stations, the

control station security server (2b) uses

authentication based on digital certificate. Hence,

control station acts as a certificate authority (2b),

emitting certificate to the affiliate stations.

The use of this architecture for the distribution

model makes Thoth security policy adaptability

more flexible, because Control Station can regulate

what their affiliate stations are allowed to do.

4 CASE STUDY: RITU

University TV Stations in Brazil spread scientific,

technical and educational information throughout the

country. However, a large number of these TV

stations have limited budget and personal to produce

such content and sometimes these productions are

not enough to fulfill its daily programming content.

In addition, video content produced by them is

stored in only one place and at most times in non-

digital Medias making difficult to share the content

with other stations.

THOTH - A FRAMEWORK FOR BUILDING SECURE TV BROADCASTERS NETWORKS OVER THE INTERNET

Brazilian University TV Stations are using Thoth

to build a television network for sharing content

aiming to complete their daily Electronic

Programming Guide (EPG). This network is called

RITU. RITU stands for Brazilian’s university TV

network for content exchange; from the Portuguese

“Rede de intercâmbio de televisão universitária”.

RITU configuration is presented on figure 5.

Figure 5: Thoth configuration schema for RITU.

On RITU, there is one council that defines a

reference programming guide and recommends it to

the stations, however, TV stations are not

contractually enforced to use this reference so, the

acceptance of EPG from the Programming Control is

not mandatory (4). Affiliate stations have complete

control on its local EPGs; they can build their own

programming guide with local video content, content

from shared database or willingly accepting EPG

from the RITU programming council.

Since RITU was developed for sharing content,

affiliate TV stations have access to other TV stations

databases and may download content from them (1).

In fact, if a search is performed the showed results

are from databases of all TV stations on RITU.

Another type of interaction among stations is the

offer process; it always flows from the affiliate to

the main station. At the main TV station the offered

video content is evaluated by a one person (2).

Accepted videos are stored in the shared database

(3). In addition, video content can be uploaded by

authorized personal; in this case the role responsible

for uploading content is the Content Editor (3).

Moreover, there is a file describing the access

control policy (5). It gives control to enterprises,

allowing them to create and manage roles and rights,

according to their needs. In figure 5 we used the role

“Programming Counselor” as configuration sample.

Finally, there is a dynamic metadata system (6)

where the user can define data according to

enterprise needs.

5 CONCLUSIONS

Thoth is factory for TV virtual enterprises that uses

IPTV to distribute video content among TV stations.

It inherits all the advantages of internet based

applications like robustness and maintainability. It is

a cheaper, more robust, and more efficient way to

distribute content among TV stations.

In contrast of many distributed systems, where

security concerns are neglected, Thoth focuses

efforts on design a strong and flexible security

approach. Its flexibility functions allow a high level

of customization, supporting various TV scenarios.

Thoth has been proving it very useful.

RITU, an instance of Thoth, help University TVs

to complete their EPG, exchange content and

minimize costs and flaws. It is a very powerful

solution for TV stations to exchange and commerce

their products with other TV stations.

REFERENCES

Bishop, M. 2002. Computer Security – Art and Science.

Addison Wesley.

Camarinha-Matos L.M and Afsarmanesh Hamideh. 2001.

Virtual Enterprise Modelling and Support

Infrastructures: Apply Multi-agent System

Approaches, in Lecture Notes in Artificial Intelligence

LNAI Nº 2086, pp.335-364, Springer.

Lau, H., Chin, K.S, Pun, K.F, Ning, A. 2005. Decision

supporting functionality in a virtual enterprise

network, Third International Conference on

Information Technology and Applications (ICITA),

Sydney, Australia. IEEE Computer Society.

MACA - Authentication and Access Control Middleware.

In http://maca.sourceforge.net. Access in March, 2007

Motta, G. H. M. B.; Furuie, Sérgio Shiguemi. 2003. A

contextual role-based access control authorization

model for electronic patient record. IEEE Transactions

on Information Technology in Biomedicine, New

York, v. 7, n. 3, p. 202-207.

RBAC NIST Standard. In http://csrc.nist.gov/rbac/.

Access in February, 2007.

Schumacher, M., Fernandez-Buglioni, E., Hybertson, D.,

Bushmann, F., Sommerlad, P. 2006. Security Patterns

– Integrating Security and Systems Engineering. John

Wiley & Sons, Ltd.

Wales C., Kim S., Leuenberger D., Watts W., Weinroth O.

2005. IPTV – The Revolution is here. University of

California at Berkeley.

1. Browsing: allowed;

2. Offer: counselor;

3. Shared Database: offered, uploaded;

4. EPG Acceptance: optional;

5. Security Rules: accesspolicies.xml;

6. Metadata: data.xml

;

<right> delete </right>

<right> evaluate</right>

</resource>

</role>

ICE-B 2007 - International Conference on e-Business
