EXTENSIBLE ACCESS CONTROL MODEL FOR XML

DOCUMENT COLLECTIONS

Goran Sladić, Branko Milosavljević and Zora Konjović

Faculty of Technical Sciences, University of Novi Sad, Fruškogorska 11, Novi Sad, Serbia

Keywords: XML, RBAC, Access control, Information security.

Abstract: This paper presents the XXACF (eXtensible Role-Based XML Access Control Framework) framework for

controlling access to XML documents in different environments. The proposed access control definition

language and the corresponding software architecture are described. The framework enables defining access

control policies on different priority and granularity levels. The XXACF enables the enforcement of access

control for different operations on XML documents, as well as different ways of access control enforcement

for the same operation. This framework’s configurability facilitates customization of particular

implementations according to specific needs. Extensibility of XXACF framework is achieved by the

possibility of extending the core functionality for specific requirements and also the addition of the new

modules for context-sensitive access control.

1 INTRODUCTION

Access control is only one aspect of a compre-

hensive computer security solution, but also one of

its most important segments. It provides confidenti-

ality and integrity of information.

In the role-based access control (RBAC) model,

access to resources of a system is based on the role

of a user in the system (Ferraiolo et. al., 2001;

Ferraiolo et. al., 2003). Basic RBAC model

comprises the following entities: users, roles and

permissions, where permissions are composed of

operations applied to objects. In RBAC, permissions

are associated with roles, and users are made

members of roles, (Ferraiolo et. al., 2001; Ferraiolo

et. al., 2003).

The growth of XML as a format for data

modeling and interchange arises the issue of access

control to XML documents. An XML document

may contain data of different level of accessibility.

The Extensible XML Role-Based Access Control

Framework (XXACF) provides the means of

defining access control policies and access control

enforcement based on users’ roles. Access control

policies in XXACF may be defined in different

priority and granularity levels and they may be

content depended, thus facilitating efficient

management of access control. The access control

policy in XXACF may be separately defined for

each operation on an XML document.

The framework itself is modularly organized in

the manner which provides a simple update or

upgrade of the existing modules, as well as the

inclusion of new ones. The extensibility of the

XXACF is achieved by extending the core

functionality according to the specific requirements,

as well as including new modules for the purpose of

context-sensitive access control enforcement. The

concept of context-sensitive access control enables

customization of access control policies depending

on the environment where XXACF is being used.

Therefore, XXACF can be deployed in various

environments.

XXACF is implemented in Java EE technology

and based on open source components. It is used as a

module of the application server in a multi-tier

software architecture. The prototype implementati-

on, used for controlling access to XML documents,

is tested in a complex real-life workflow system.

The additional modules for context-sensitive access

control, as well as modules for integration with the

workflow system were implemented in order to

satisfy specific requirements of the access control

for the business process implemented through the

workflow system.

373

Sladi

c G., Milosavljevi

c B. and Konjovi

c Z. (2007).

EXTENSIBLE ACCESS CONTROL MODEL FOR XML DOCUMENT COLLECTIONS.

In Proceedings of the Second International Conference on Security and Cryptography, pages 373-380

DOI: 10.5220/0002117203730380

 SciTePress

2 RELATED WORK

X-RBAC (Bhatti et. al., 2004) is a system for

controlling access to XML documents in web

service-based systems. The access control in this

system is based on the RBAC model. The access

control policies depend on the user’s session context

and the content of the documents being accessed

(Bhatti et. al., 2004). Depending on document

content, the access control policies can be specified

on four granularity levels: conceptual level,

document’s schema level, document instance level

and the document’s element level (Bhatti et. al.,

2004). However, policies that deny access can not be

specified. The supported operations are reading,

writing, navigate (reading the referenced data) and

all (supports all three previous operations). The

propagation level down through hierarchy can be

defined for each access control policy. The three

levels of propagation are supported: (a) without

propagation, (b) first level propagation and (c)

cascade propagation (Bhatti et. al., 2003).

In papers (Botha and Eloff, 2001a; Botha and

Eloff, 2001b) access control for XML documents in

a workflow environment is presented. The access

control policies of the workflow system are based on

the RBAC model. There are two types of access

control policies (Botha and Eloff, 2001b): policies

which grant access (operation) and policies which

deny access (operation) on the object. The

operations that are supported are as follows: read,

edit, add and delete (Botha and Eloff, 2001b). Each

process in the workflow system implies the

manipulation of certain number of XML documents.

The definition of the given process defines which

roles can execute that process, i.e. its sub-processes.

It is possible to create access control policies not

only on the document level but also on the document

fragment level (Botha and Eloff, 2001a).

XML ACP (Access Control Processor) (Damiani

et. al., 2000) represents a system for access control

for XML documents in web-based applications. The

system works as a plug-in to the existing web server

technology (Damiani et. al. 2000). The access

control is possible on several levels of granularity:

DTD level, document instance level, specific

document’s element/attribute level. The access

control policies can be classified in eight priority

groups. The access control policies propagation

down through the hierarchy is supported. The

policies can grant or deny access (Damiani et. al.,

2002). In access control policy definitions, user

identification is based on the user ID or the user

group ID and/or the location (computer or computer

network) ID being the origin of the request to access

a document (Damiani et. al., 2002).

Author-X system (Bertino et. al., 2001; Bertino

and Ferrari, 2002) provides for defining access

control policies on different granularity levels,

which can grant or deny the access. The controlled

propagation of access control policies is provided,

where policies defined for document or DTD can be

applied on the other semantically related documents

or DTDs on different granularity levels (Bertino and

Ferrari, 2002). There are two working modes: pull

and push (Bertino et. al., 2001). In the pull mode, the

user requests explicitly the access to the document.

After the reception of the request, the X-Access

forms a document that will contain only the data

visible for the user, i.e. the data that the user can

change. After the change has been done, the user

sends the changed content to the system and the

system verifies whether the changed content is in

accordance with security rights (Bertino et. al.,

2001). In the push mode, the system periodically

sends documents to all users. Although the same

document is sent to all users, the specified security

rights are enforced by encrypting parts of the

document with different keys for different policies.

Each user possesses the keys which are available to

him or her according to the specified security rights

(Bertino et. al., 2001).

Table 1 shows comparation of the XML access

control systems described in this chapter and the

XXACF system.

3 XXACF DATA MODEL

3.1 Roles

The roles are defined in an XML document

conforming to the XML schema presented in Figure

1. The name must be specified for each role (the

name attribute of the <role> element). If the value

of the

abstract attribute of the <role> element is

“true”, then that role can not be directly assigned to

the user, i.e. it’s a connector role. The content of the

<description> element represents a short

description of the role. For each role, it is possible to

specify its parent roles (

<parent_roles> element)

and to establish the role hierarchy with multiple

inheritance (Ferraiolo et. al., 2003).

SECRYPT 2007 - International Conference on Security and Cryptography

374

Table 1: Comparation of XML access control systems.

usage AC model granularity levels policy propagation cont-sens operations extensible

X-RBAC

web-

services

RBAC based

on credentials

conceptual, schema,

instance, element

no propagation, one

level, cascade down

YES

prune read, write,

navigate

XAC

WFMS

WFMS RBAC

schema, instance,

fragment

no propagation,

cascade down

prune read, add, delete,

edit

XML

ACP

web

users, groups,

computers,

domains

schema, instance,

element, attribute

no propagation,

cascade down

NO prune read NO

Author-X general credentials

schema, instance,

element

no propagation, one

level, cascade down

prune & encrypted

read, add, delete, edit

XXACF general RBAC

schema, instance,

fragment

no propagation,

cascade down or up

1-N levels

YES

prune, encrypted &

dummy read, add,

delete, edit, provisional

YES

Figure 1: XML schema of the roles.

3.2 Users

The user is identified by the id attribute of the

<user> element (see Figure 2). The user’s personal

data is contained in the

<personal_info> element.

The entities which comprise user’s personal data are

defined according to the system requirements. The

XXACF is designed and implemented to be

independent of the entities that represent user’s

personal data. The user’s data regarding

authentication and authorization are defined in the

<principals> element. Each user is allowed to

own several

<principal> elements. The

element, identified by id attribute,

contains authentication data (

element) and roles (<roles> element) which will be

assigned to the user when he or she logs in using the

authentication data of that principal. That way it is

possible that the user owns several user accounts,

with specific roles assigned to each user account.

Figure 2: XML schema of the users.

3.3 Access Control Policies

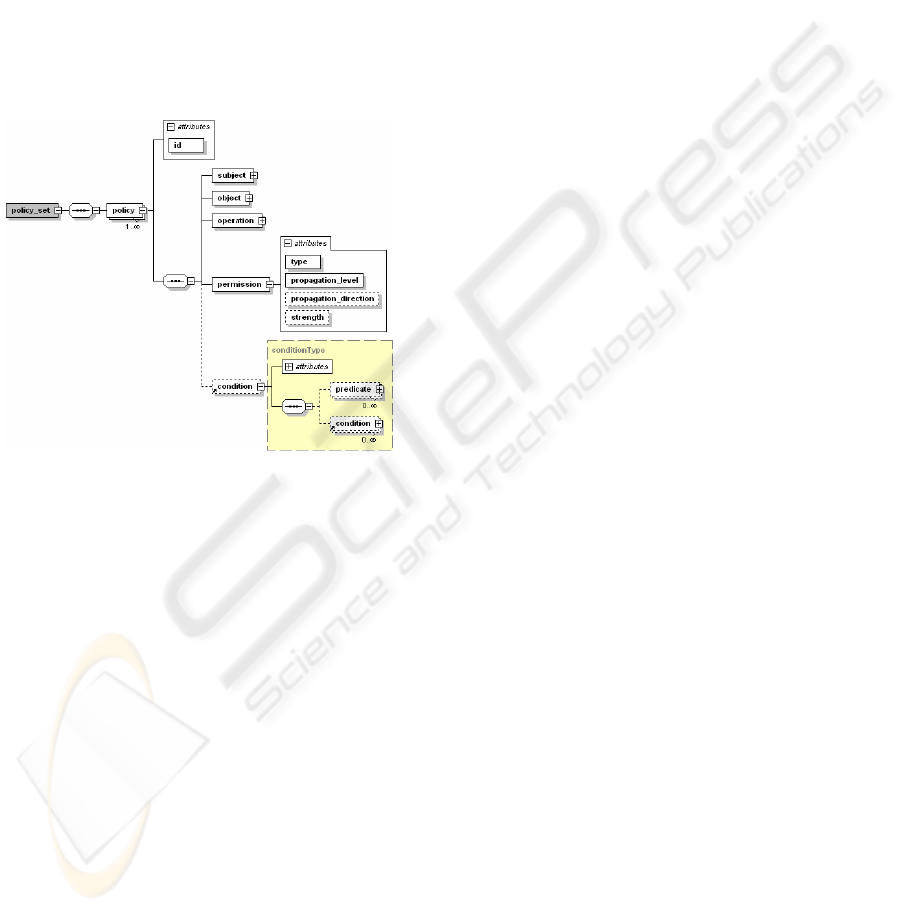

The XML schema in Figure 3 defines the structure

of access control policies, which is based on policies

described in (Hada and Kudo, 2002) supporting

provisional operations and policy conditions. Access

control policies described in (Hada and Kudo, 2002)

are extended in order to support role hierarchies, to

provide priorities of the access control policies as

defined in (Damiani et. al., 2000; Damiani et. al,

2002) and to support arbitrary operations for which

policies are defined. Each access control policy is

defined by the

<policy> element to which a unique

identifier (attribute

id) is assigned. The policy

permits or denies (

<permission>) the subject to

execute the operation (

<operation>) on the object

(

control policies are based on the RBAC model, the

subject, for which the policy is defined, represents

the role. The object of the access control policy is a

document schema or a document instance identified

by its unique ID. If the policy is defined only for the

particular document (schema) fragment, it is

necessary to specify the XPath expression which

selects that fragment. Also, by using XPath

expressions with conditions, content depended

object (policies) may be specified. Apart from the

main operation for which the policy is defined, there

may be some provisional operations (Hada and

Kudo, 2002). If the condition (

<condition>) is

satisfied, the access control policy will be applied.

Contrary, it will not be the case. Each condition is

consist of the name of a logical operation (not, and,

or and xor) (attribute

operation) and a

subconditions and/or a predicates (

element). By predicate is meant function which

return value is true or false. Value calculated by

applying a specified logical operation on return

EXTENSIBLE ACCESS CONTROL MODEL FOR XML DOCUMENT COLLECTIONS

375

values of subconditions and predicates represents the

return value of a condition. The functionality of the

each predicate should be properly implemented. This

gives possibility for implementation of a specific

access control which is not supported through the

RBAC model or is much efficient to implement in

this manner than using presented policies without

conditions (i.e. insertion of a digital signature into

document is allowed if signature is valid and

generated using the key of the certain user). By

using a predicate which return value depends on the

state of an environment (i.e. access to document

depends on current state of the process to which

document belongs to), context-sensitive access

control (Ferraiolo et. al., 2003) is possible.

Figure 3: XML schema of access control policies.

The permission of policy is described by the

<permission> element showed in Figure 3. The

permission can be dual, to grant access (the value of

the

type attribute is “grant”) or deny access (the

value of the

type attribute is “deny”). In order to

avoid specifying explicitly the policy for each entity,

the propagation of policies is enabled, starting from

the entity specified by the

<object> element

downwards or upwards the hierarchy. The attribute

propagation_direction defines the propagation

direction. If the attribute value is “down”, the

propagation is directed from the specified object

downwards along the hierarchy. On the other hand,

if the value is “up”, it is directed from the specified

object upwards. The level of propagation, i.e. the

maximum number of hierarchy levels the

propagation is performed, is specified by the

attribute

propagation_level. The propagation

level can be unlimited, a certain number of levels or

with no propagation at all. Access control policy

strength is defined by the

strength attribute as

defined in (Damiani et. al., 2000; Damiani et. al.,

2002). Values of the

strength attribute can be

“normal”, “hard” and “soft”. The value “normal”

can be specified if the object of the access control

policy is the document schema or the document

instance, “hard” value is specified only for the

document schema and “soft” value if the object is

the document instance.

Access control policies defined for a descendant

role have a higher priority than the policies defined

for the ascendant role. Priority of the access control

policies defined for the same role is determined

according to the object they are related to (document

schema or document instance), to the strength of the

policy and also to the propagation level of the

policy. On the basis of these elements it is possible

to define eight priority levels (the priority is

descending from the first to the last): (1) the policy

defined for the document schema, with no

propagation, strength is “hard”, (2) the policy

defined for the document schema, with propagation,

strength is “hard”, (3) the policy defined for the

document instance, with no propagation, strength is

“normal”, (4) the policy defined for the document

instance, with propagation, strength is “normal”, (5)

the policy defined for the document schema, with no

propagation, strength is “normal”, (6) the policy

defined for the document schema, with propagation,

strength is “normal”, (7) the policy defined for the

document instance, with no propagation, strength is

“soft” and (8) the policy defined for the document

instance, with propagation, strength is “soft”.

4 ACCESS CONTROL IN XXACF

The process of access control is performed within

four steps: (1) a selection of the applicable access

control policies, (2) marking document nodes, (3)

conflict resolution and (4) execution of the requested

operation. Each of these steps is implemented within

one or more modules of the system. Hence, a change

in the algorithm of a particular step or the whole

access control procedure is performed by changing

or adding a certain module(s).

4.1 Selection of the Applicable Access

Control Policies

When a document is being accessed in order to

execute a certain operation, access control policies

defined for that document and its schema are loaded

from repositories. The access control policies being

loaded must be defined for the specified operation

SECRYPT 2007 - International Conference on Security and Cryptography

376

and for the roles assigned to the user who performs

the operation on that document.

The system tests the condition of usage for each

loaded access control policy. If condition is satisfied,

the access control policy will be applied; otherwise

it will not be applied.

4.2 Marking Document Nodes

Marking the document nodes is performed on the

DOM (Document Object Model) model of the

document. In order to provide the means for access

control in XXACF, the DOM model is extended

with the additional functionalities. The diagram in

Figure 4 shows the classes which represent the

marking of a DOM tree.

Each implementation of the

XACNode interface

contains the

MarkMap object which contains all

access control policies applied on that node (Figure

4 shows the example for the

XACElementImpl).

The name of the role for which the access control

policy is defined is used as the key of the hash table

contained in the

MarkMap class. Hash table values

are the instances of the

MarkMatrix class which

contain access control policies defined for the given

role and applied on that node.

The

MarkMatrix distributes access control

policies on the one of

ArrayList lists of the

matrix matrix. The row index depends on whether

the access control policy grants or denies access to

that node. The column index represents the priority

level of the access control policy. Therefore,

matrix has two rows and eight columns.

Each of these lists contains instances of

MarkItem. A MarkItem contains the access control

policy and the distance from the root node selected

by the given policy to the node to which belongs that

MarkItem instance.

For each access control policy, the class

Marker

determines which nodes of the tree are selected by

the object of the policy and applies the policy on

these nodes.

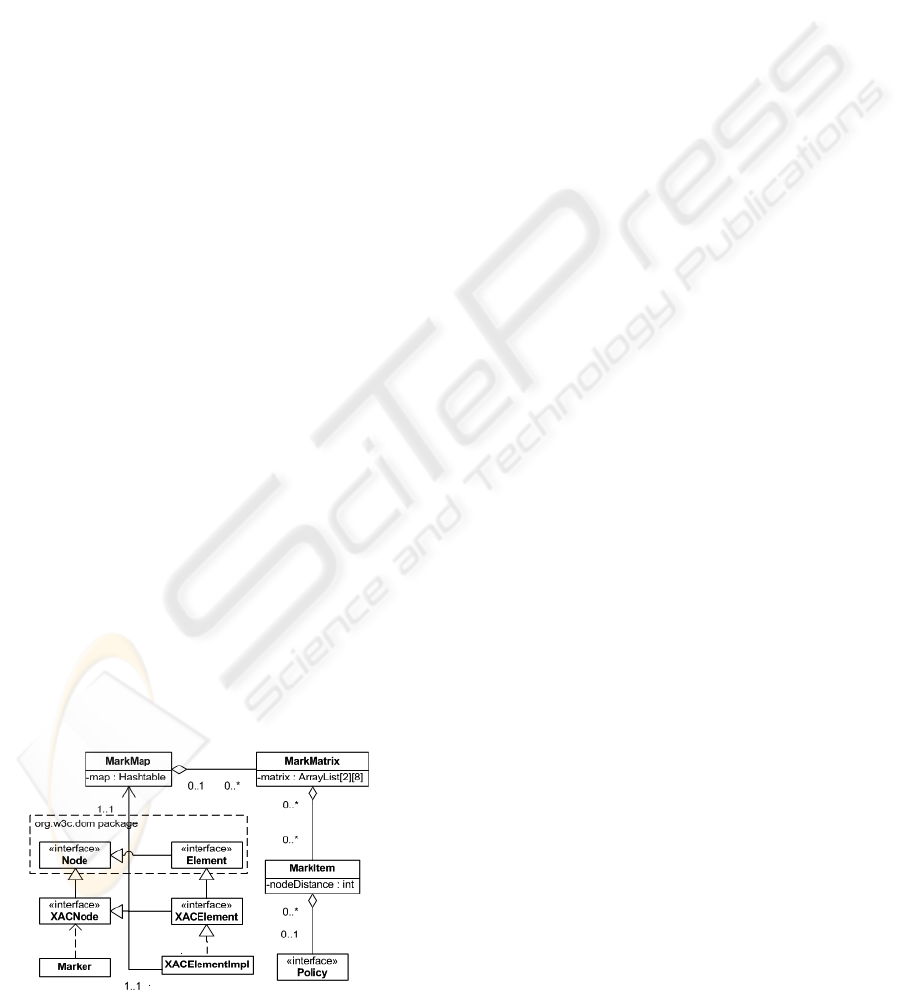

Figure 4: Classes for marking.

4.3 Conflict Resolution

After marking is finished, it is necessary to resolve

conflicts (if any) and determine the final access

control policies which will be applied on the nodes.

Upon conflict resolution there may be several final

access control policies for each node, where all final

access control policies either grant or deny the

access.

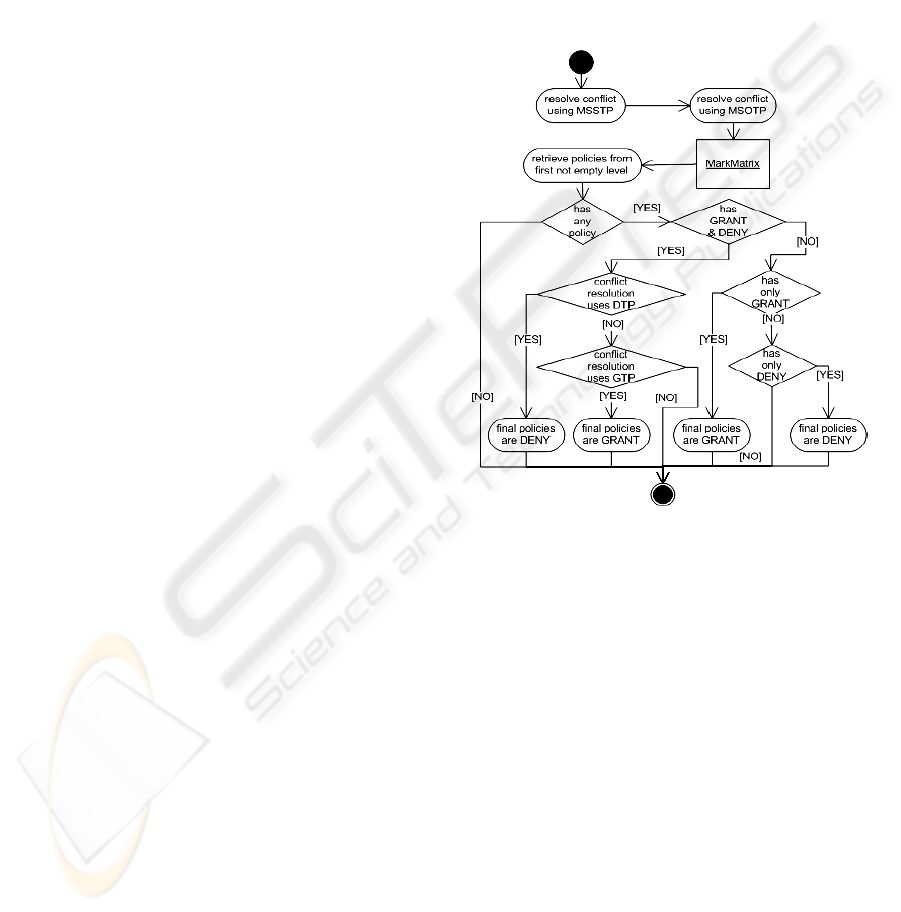

The first activity in selection of final access

control policies is conflict resolution according to

the “most specific subject takes precedence”

(MSSTP) principle (see Figure 5). According to this

principle, access control policies defined for the

roles on the lower hierarchical level have higher

priority than the ones defined for the roles on the

higher level. For each role it is checked whether

there are policies defined for that role. If the policies

defined for that role exist, they are selected. On the

other hand, if they don’t exist, the role hierarchy is

recursively traversed for policies.

When access control policies of a role are added

to the list of selected policies it is checked whether

the list already contains policies defined for one of

the ascendant roles. If there are policies defined for

any of the ascendant roles, they are removed from

the list. That can happen if a role A is an ascendant

to roles B and C, and there are no defined policies

for B, but these policies exist for roles C and A.

Since there were no policies for role B, the policies

of role A are applied according to the MSSTP

principle. If there are policies defined for role C

(which override policies defined for role A), the

policies of role A are not used. But, if the policies of

the role A are already in the list of the selected

policies, they must be removed in order to maintain

the MSSTP principle of conflict resolution.

Besides, while adding policies defined for a

certain role to the list, it is necessary to verify if

there are any policies of descendant roles in the list.

If they exist, given policies will not be added to the

list. That can occur if one role A is and ascendant to

roles B and C and there are defined policies for roles

A and B, while there are no policies defined for role

C. The conflict resolution procedure takes the

policies defined for role B. Since there are no

policies for role C, policies of its ascendant role (A)

are taken. But, since policies of role B are already in

the list of selected policies, policies of role A will

not be added in order to maintain the MSSTP

conflict resolution principle.

The next activity is conflict resolution using

“most specific object takes precedence” (MSOTP)

principle (see Figure 5). It is performed on the

EXTENSIBLE ACCESS CONTROL MODEL FOR XML DOCUMENT COLLECTIONS

377

policies selected in the previous activity. In this step,

the policies whose object is nearest to the node on

which the policy is applied are selected. The

distances between the root node selected by the

object of the policy and the node on which access

control policy is applied are compared.

The result of previously described activities is an

instance of

MarkMatrix class which contains

access control policies (of all selected roles)

arranged according to priority levels. The policies

from the first highest non empty level of matrix are

retrieved.

If, in the selected priority level, there are access

control policies that grant and deny access, the

defined conflict resolution is verified. In case that

defined conflict resolution uses “denial takes

precedence” (DTP) principle, the final access

control policies are the ones that deny access. In

case that the applied principle is “grant takes

precedence”, the final access control policies are the

ones that grant access.

In case that in the selected priority level all

access control policies either grant or deny access,

the final access control policies grant access, or deny

it.

4.4 Operation Execution

XXACF supports the following operations on XML

documents: (a) updating documents (inserting new

nodes, deleting and changing (replacement) of the

existing ones) and (b) reading documents. The

reading operation is implemented in three different

ways: pruned reading, dummy reading and

encrypted reading. Apart from the already

implemented document operations, new operations

may be added by implementing an XXACF module

and registering it within the XXACF framework.

4.4.1 Update Operations

A new subtree to be inserted into the document tree

is temporarily inserted. Then, the selected access

control policies are applied on the whole tree and the

conflict resolution process is performed. If the final

access control policies on each node of the inserted

subtree grant the access, the insertion is allowed. If

the insertion of any node of the inserted sub tree is

not allowed, the subtree is removed from the

document tree because its insertion is not allowed.

Analogously to the insertion operation, a delete

operation of the subtree is allowed if a deletion of all

nodes of the subtree is allowed, i.e. if the final

access control policies of each node of subtree

permit this operation.

For the replacement of some subtree by another

subtree, it is necessary that access control policies

allow replacement of the nodes, i.e. that it is allowed

to replace one of the nodes and that replacement

with the given node is allowed. Hence, two sets of

access control policies have to be defined for the

operation of replacing a subtree. The first set defines

the precondition (whether the node can be replaced).

The second set defines the postcondition (whether

the replacement with a given node is allowed).

Figure 5: Conflict resolution.

4.4.2 Reading Operations

The XXACF currently supports three types of

reading operations: pruned reading, dummy reading

and encrypted reading.

Pruned reading provides only the reading of

those parts of the XML document that are allowed to

be read by the user – the content for which the user

has no read authorization is removed. Given the

extended DOM model of a document, this process is

performed by removing nodes of the document tree

for which the access is not granted. If a node, for

which the access is not granted, is a leaf, it is

removed from the tree. If a node with a denied

access is not a leaf (hence it is an XML element)

then, in order to preserve the document structure, it

is not removed from the tree, but its attributes which

the user is not granted to read are removed.

The dummy read operation processes the

document in such a way that the parts of the

SECRYPT 2007 - International Conference on Security and Cryptography

378

document not granted to be read are replaced by

dummy (fake) values. The purpose of this type of

reading operation is to obtain the document which is

in accordance with its XML schema. Since the XML

Schema standard supports a large number of data

types and defining new ones, generating dummy

values according to the given data type may be very

complex. We have opted to use the approach that

multiple dummy value generators may be

implemented and integrated into the XXACF, each

targeting a specific data type.

The pruned reading and dummy reading

operations are executed on user demand, i.e. on each

request for reading a document. In case of a large

number of users accesses the documents, mostly for

reading, using previously described reading operati-

ons that can seriously impact the system

performance.

The effective alternative to these approaches is to

use encrypted reading – by creating a new

document based on the original one, according to the

access control policies defined for the original

document. The users can access only the parts of the

new document for which they are authorized. One of

the methods to form that kind of document is to use

cryptographic techniques based on keys (Stallings,

1998; Schneier, 1996). According to access control

policies, different parts of document are encrypted

with different keys. The user possesses only those

keys that enable him or her to decrypt the parts of

the documents that he or she is allowed to access.

The major problem for this type of reading is to

determine which document parts will be encrypted

by which key. The simplest approach is to encrypt

each document node with a different key, while this

key is accessible only to the users authorized for the

access to the node. This approach is simple for

implementation, but can cause generation of large

number of keys. Our solution to this problem is to

determine role groups, where each group is

consisted of all roles to which the access to some

node(s) is granted. One key is generated for each

role group; all nodes for which that group has the

access right are encrypted by that key.

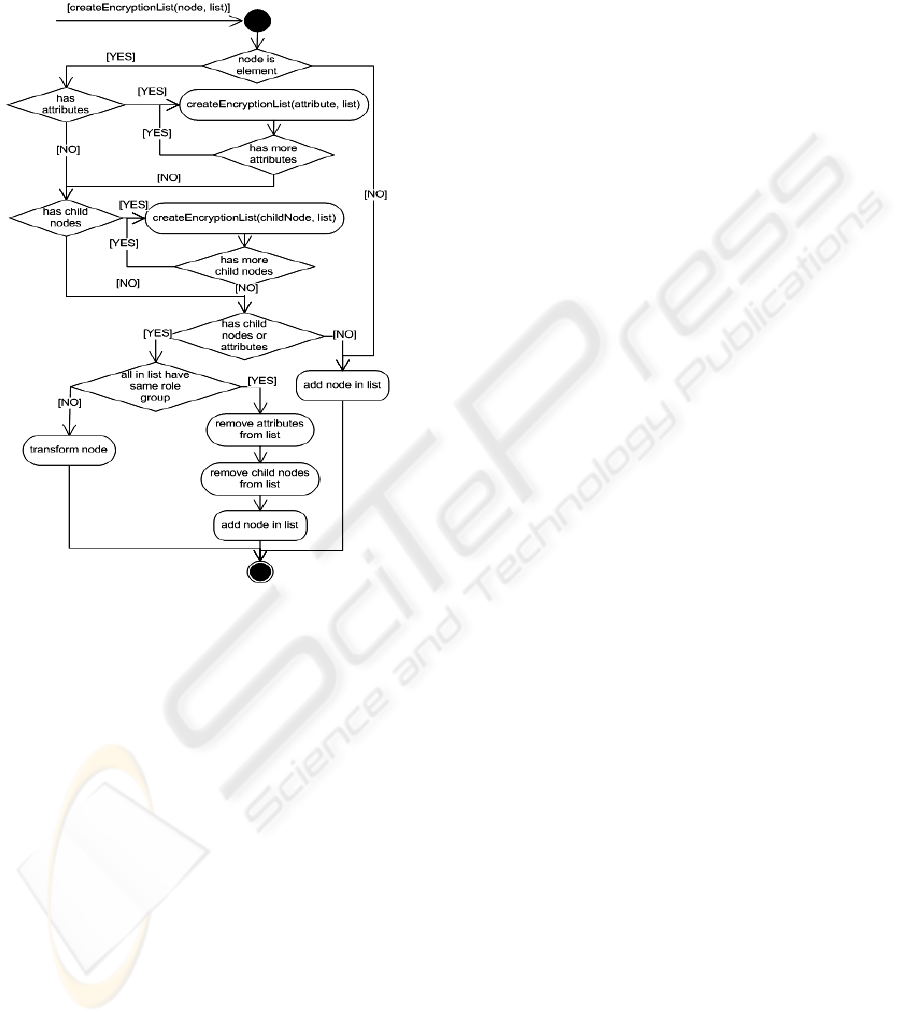

Activity diagram in Figure 6 describes the

XXACF procedure of determining the list of the root

nodes of the subtrees which each node should be

encrypted by the same key, as well as the possible

subtrees transformation. All nodes of the each

subtree own same role group. If the node is an XML

element, the method is recursively invoked for its

attributes and child nodes. If the node is not an XML

element, it is inserted in the list. In case that the node

is an element, and that it has no attributes or child

nodes (the element is a leaf node), it is inserted in

the list. If the element node is not a leaf, it is verified

if all its attributes and child nodes are in the list and

whether they all have the same role group as the

element node. If all these conditions are met, the

whole subtree having the given element as a root can

be encrypted by the same key. Therefore, all

attributes and child nodes are removed from list, and

the node is inserted. If one of these conditions is not

satisfied, the transformations of attributes, as well as

all child nodes that are not elements, are performed

in order to enable the encryption with different keys.

The XML Encryption specification allows only the

encryption on the element level and it is possible to

encrypt the whole element or its content only (XML

Encryption, 2002). If an attribute’s role group differs

from the role group of its element parent, it is

necessary to encrypt that attribute with another key.

In order to enable attribute encryption and maintain

conformance with XML Encryption specification, it

is necessary to transform it into the element. The

similar case occurs if it is necessary to encrypt the

element content (child node) with different keys.

Since it is not possible to encrypt the whole element

with one key, it is necessary to transform all

attributes to subelements of the given element. For

the same reason, there are the situations when all

not-element subnodes must be transformed. At the

end of this activity encryption list will contain the

root nodes of the subtrees which nodes will be

encrypted by the one key. Also, all root nodes

(subtreees) with the same role group should be

encrypted by the same key.

5 CONCLUSIONS

This paper presents the main features of the

eXtensible XML Role-Based Access Control

Framework (XXACF). The language for access

control definition provides its representation

according to the RBAC model and enables definition

of context-sensitive access control. The system

supports specifying access control policies on

document schema, document instance, and

document fragment levels. Also, content-dependent

access control policies specification is possible.

XXACF provides access control enforcement for

different operations on a document, as well as the

possibility of different ways of access control

enforcement for the same operation. XXACF is a

Java-based application. The system extensibility and

configurability facilitates the customization of a

specific implementation to users’ needs, on the basis

EXTENSIBLE ACCESS CONTROL MODEL FOR XML DOCUMENT COLLECTIONS

379

of document access control. The software

architecture, presented in this paper, separates XML

documents from RBAC components and provides an

independent design and administration of the access

control policies.

Figure 6: Creation of encryption node list in XXACF.

The most notable improvements over systems

reviewed in Section 2 are the following:

• Access control is based on the RBAC model

with support of the users’ roles hierarchy.

• Definition of access control policies on

different priority and granularity levels which

may be content depended.

• Context-sensitive access control enforcement

is supported.

• Support for separate access control enforce-

ment for different operations on documents

and different ways of implementing of the

same operation.

• XXACF is extensible in the way that its

deployment can be customized according to

users’ specific needs.

The XXACF prototype implementation is

verified on a real workflow system based on XML

documents.

Future work in development of XXACF includes

the integration with other access control systems,

enabling the application that uses XXACF operate

not only with XML documents, but also with data in

other formats (such as relational databases). Besides,

the functionality of defining the static and dynamic

separation of duties (SoD) constraints (Ferraiolo et.

al., 2003) is also under way.

REFERENCES

Ferraiolo, D. F., Kuhn D. R., Chandramouli, R., 2003.

Role-Based Access Control, Artech House.

Ferraiolo, D.F., Sandhu, R., Gavrila, S., Kuhn, D.R.,

Chandramouli, R., 2001. Proposed NIST Standard for

Role-Based Access Control. ACM Transactions

Information and System Security, 4(3), pp. 224-274.

Bhatti, R., Joshi, J.B.D., Bertino, E., Ghafoor, A., 2004.

XML Based Specification for Web Services Document

Security [Electronic version]. IEEE Computer Society

Press, 37(4), pp. 41-49.

Bhatti, R., Joshi, J.B., Bertino, E., Ghafoo, A., 2003.

Access Control in Dynamic XML-Based Web-

Services with X-RBAC [Electronic version]. The First

International Conference on Web Services, Las Vegas,

USA.

Botha, R.A., Eloff, J.H.P., 2001. An Access Control

Architecture for XML Documents in Workflow

Environments [Electronic version]. Proceedings of

SAICSIT 2001, South African Computer Journal, 3.

Botha, R.A., Eloff, J.H.P., 2001. A Framework for Access

Control in Workflow Systems. Information

Management and Computer Security, 9(3), pp 126–

133.

Damiani, E., De Capitani Di Vimercati, S., Paraboschi, S.,

Samarati, P., 2000. Securing XML documents

[Electronic version]. Proceedings of the 7th

International Conference on Extending Database

Technology, Konstanz, Germany, pp. 121-135.

Damiani, E., de Capitani di Vimercati, S., Paraboschi, S.,

Samarati, P., 2002. A Fine Grained Access Control

System for XML Documents. ACM Transactions on

Information and System Security, 5(2), pp. 169–202.

Bertino, E., Castano, S., Ferrari, E., 2001. Securing XML

Documents with Author-X. IEEE Internet Computing

5(3), pp. 21–31.

Bertino, E., Ferrari, E., 2002. Secure and Selective

Dissemination of XML Documents. ACM

Transactions Information and System Security, 5(3).

pp. 290–331.

Hada, S., Kudo, M., 2002. XML Access Control

Language. Retrieved January 10. 2006, from

http://www.trl.ibm.com/projects/xml/xss4j/docs/xacl-

spec.html.

Stallings, W., 1998. Cryptography and Network Security:

Principles and Practice, Prentice Hall.

Schneier, B., 1996. Applied Cryptography, John Wiley.

XML Encryption Syntax and Processing. Retrieved June

10. 2005, from http://www.w3.org/TR/xmlenc-core.

SECRYPT 2007 - International Conference on Security and Cryptography

380
