A 3G IMS-BASED TESTBED FOR SECURE REAL-TIME AUDIO

SESSIONS

Paolo Cennamo, Antonio Fresa, Anton Luca Robustelli, Francesco Toro

Co.Ri.TeL, Via Ponte Don Melillo, I-84084 Fisciano (SA), Italy

Maurizio Longo, Fabio Postiglione

Dipartimento di Ingegneria dell’Informazione ed Ingegneria Elettrica

Universit

a degli Studi di Salerno, Via Ponte Don Melillo, I-84084 Fisciano (SA), Italy

Keywords:

Beyond-3G networks, IP Multimedia Subsystem, Secure Real-Time Protocol, multimedia communications,

voice quality.

Abstract:

The emerging all-IP mobile network infrastructures based on 3rd Generation IP Multimedia Subsystem philos-

ophy are characterised by radio access technology independence and ubiquitous connectivity for mobile users.

Currently, great focus is being devoted to security issues since most of the security threats presently affecting

the public Internet domain, and the upcoming ones as well, are going to be suffered by mobile users in the

years to come. While a great deal of research activity, together with standardisation efforts and experimen-

tations, is carried out on mechanisms for signalling protection, very few integrated frameworks for real-time

multimedia data protection have been proposed in a context of IP Multimedia Subsystem, and even fewer

experimental results based on testbeds are available. In this paper, after a general overview of the security

issues arising in an advanced IP Multimedia Subsystem scenario, a comprehensive infrastructure for real-time

multimedia data protection, based on the adoption of the Secure Real-Time Protocol, is proposed; then, the

development of a testbed incorporating such functionalities, including mechanisms for key management and

cryptographic context transfer, and allowing the setup of Secure Real-Time Protocol sessions is presented;

ﬁnally, experimental results are provided together with quantitative assessments and comparisons of system

performances for audio sessions with and without the adoption of the Secure Real-Time Protocol framework.

1 INTRODUCTION

The very rapid evolution of the communication infras-

tructures has progressively rendered access to com-

munication facilities ubiquitous.

These fast-evolving communication technologies

have greatly stimulated research activity on security

issues, encompassing both data conﬁdentiality and

data protection, both in corporate and residential en-

vironments.

While, on the one hand, the legacy mobile digital

networks (GSM, GPRS, UMTS) provide strong secu-

rity and conﬁdentiality guarantees, on the other, the

emergence of the 3rd Generation IP Multimedia Sub-

system (IMS) as the uniﬁed and standard platform,

based on the all-IP paradigm for the provision of real-

time multimedia services both to mobile and ﬁxed

users, is bringing the security issues to the forefront

once again. Indeed, the adoption for next-generation

mobile networks of an IP-based transport infrastruc-

ture, based on Internet Engineering Task Force (IETF)

protocols, both for signalling, based on Session Initia-

tion Protocol (SIP) (Rosenberg et al., 2002), and mul-

timedia real-time data transport, by using Real-time

Transport Protocol (RTP) (Schulzrinne et al., 2003),

will expose future mobile telecommunication infras-

tructures to all the security threats (and maybe new

ones) of the public Internet. This emerging scenario

requires speciﬁc research and deﬁnitions of solutions

aiming to guarantee acceptable levels of user data

conﬁdentiality and protection.

Another key feature of future IMS-based networks

will be the access-domain independence, i.e. the IMS

service provision infrastructure will be totally inde-

pendent of the particular radio technologies deployed

in the access network. In other words, future IMS

will be access-agnostic and it will work on the top

of any kind of wired or wireless access technology;

125

Cennamo P., Fresa A., Luca Robustelli A., Toro F., Longo M. and Postiglione F. (2007).

A 3G IMS-BASED TESTBED FOR SECURE REAL-TIME AUDIO SESSIONS.

In Proceedings of the Second International Conference on Security and Cryptography, pages 125-132

DOI: 10.5220/0002118601250132

 SciTePress

on the other hand, given that each access technology

provides different security guarantees (varying from

very strong to none at all), the IMS cannot in general

rely on such capabilities. Then, IMS-speciﬁc security

mechanisms must be provided, and such mechanisms

can only operate from the IP Layer upwards (network,

transport or application), being IP the ﬁrst common

technological layer envisaged by the IMS philosophy.

The paper is organized as follows. First of all, we

point out the advantages of adopting appropriate se-

curity protocols in order to protect both the signalling

and the real-time multimedia ﬂows, for which we fo-

cus on the Secure RTP protocol (SRTP) (Baugher

et al., 2004); then, we propose a architectural solu-

tion to involve security mechanisms during sessions

establishment and control and we describe the de-

veloped testbed which implements it within an IMS-

like prototype. Finally, we provide some quantita-

tive evaluations and comparative assessments related

to voice quality parameters measured in end-to-end

audio sessions, pointing out the the inﬂuence of the

SRTP framework deployment on voice communica-

tion quality.

2 IMS: ARCHITECTURE AND

SECURITY ISSUES

Most researchers consider IMS as the key element in

the next generation network architectures since it en-

ables the convergence of data, speech, and mobile net-

work technologies over a uniﬁed IP-based infrastruc-

ture. The organization responsible for the deﬁnition

of Beyond-3G (also known as B3G) mobile commu-

nication systems, including IMS, is the Third Gen-

eration Partnership Project (3GPP) (3GPP, The 3rd

Generation Partnership Project, 1998). The 3GPP has

chosen SIP as the signalling protocol for the setup,

modiﬁcation and tear-down of multimedia sessions.

The Call Session Control Function (CSCF) servers

represent the core elements, within the IMS, for the

management of the SIP signalling. The Proxy CSCF

(P-CSCF), usually located in the Visited Network,

represents the ﬁrst contact point for the user termi-

nal towards the IMS network and takes care of for-

warding the SIP signalling towards the subscriber’s

Home Network; the Serving CSCF (S-CSCF) is prob-

ably the main CSCF server and is located in the sub-

scriber’s Home Network (typically the operator to

which the user is subscribed): its task is to process

the SIP signalling, take decisions on managing the

multimedia sessions. Another important function of

the IMS architecture is the Home Subscriber Server

(HSS) database that contains all the user-related sub-

scription data required to handle a multimedia ses-

sion, such as information on user location, security

data and user proﬁles. The interaction among the

three CSCF nodes and the HSS allows the complete

management of the SIP signalling necessary for the

establishment and support of the multimedia sessions.

Nowadays, millions of customers are using com-

puter networks for e-banking, e-commerce and sub-

mitting their tax returns and since 3G architecture

aims to enable such secure transactions together with

real-time services in its IP-based infrastructure, the

security issues have acquired a primary importance.

Network security problems can be roughly divided

into six closely related areas, each of them with its

peculiar goals:

• Authentication: to guarantee user identity;

• Conﬁdentiality: to keep information out of the

hands of unauthorised users;

• Integrity: to avoid information alteration or the

whole substitution of messages by malicious

users;

• Non-repudiation: to avoid that users deny having

sent or received information actually sent or re-

ceived by them;

• Authorization: to allow only authorised users to

access particular resources and services;

• Availability: to guarantee the effectiveness of a

service avoiding actions of disturbance by mali-

cious users.

There are many possible approaches in order to

provide security services; indeed, security features

can be implemented in different layers of the TCP/IP

reference stack: at the Network Layer by adopting

IPsec (Thayer et al., 1998), at the Transport Layer

by TLS (Dierks and Allen, 1999) and at the Appli-

cation Layer using HTTP Digest (Franks et al., 1999)

or other.

Security in an IMS scenario can be categorized as

follows (Koien, 2002):

• Access security: it includes mutual authentication,

encryption and integrity of both signalling and

multimedia data which are exchanged between

the B3G terminal and the network;

• Network security: it deals with trafﬁc protection

between network nodes, which can belong to the

same operator or different ones.

The IMS adopts IPsec for signalling protection

both in the access and network domains but nothing

is speciﬁed for data or multimedia trafﬁc. In order

to accommodate all requirements (very different and

SECRYPT 2007 - International Conference on Security and Cryptography

126

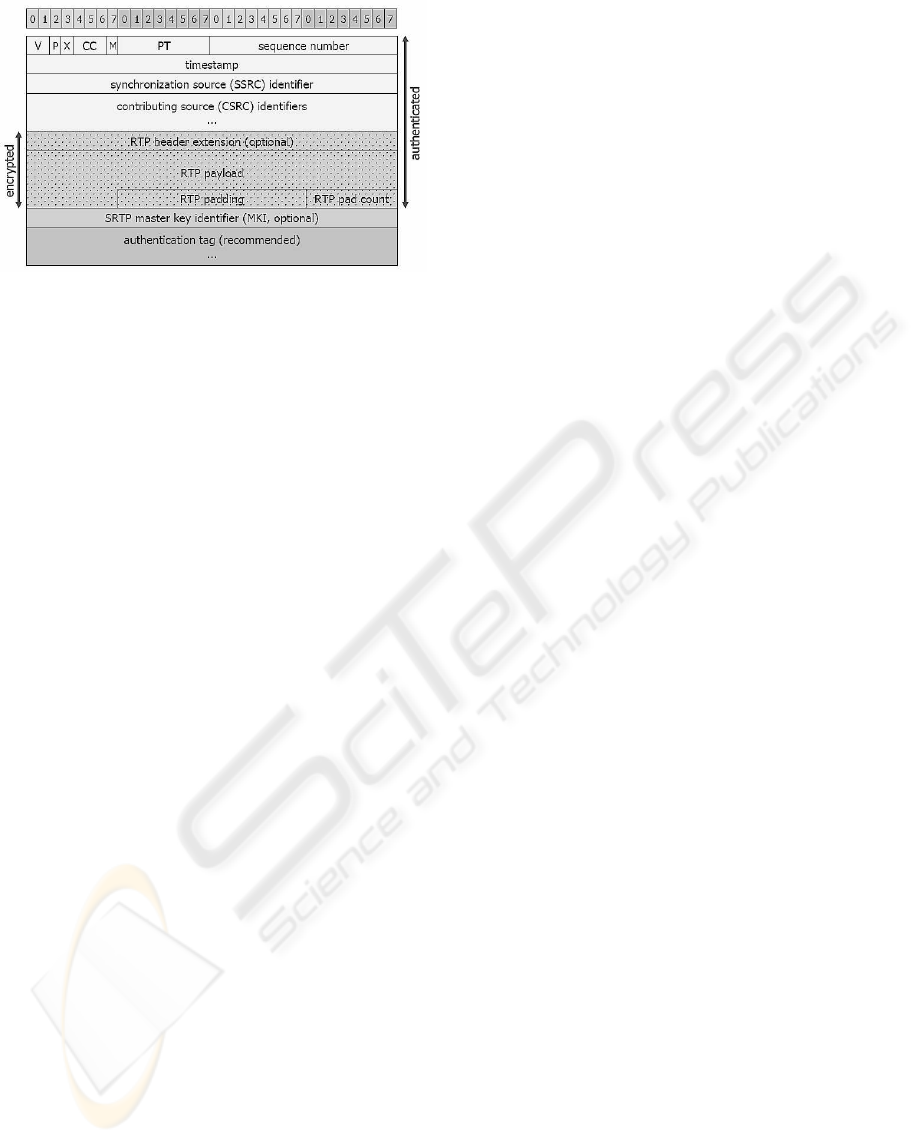

Figure 1: A SRTP message.

sometimes very stringent) of data and real-time appli-

cations, security protocols adapted to the single ap-

plication (and thus working at the Application Layer)

appear more appealing.

In particular, four factors must be taken into ac-

count in order to protect multimedia real-time com-

munications: bandwidth availability, delay, com-

putational power of the mobile terminals and

transmission-error sensitivity. To address these issues

a very promising choice is the adoption of the Secure

Real-time Transport Protocol (SRTP) (Baugher et al.,

2004). This protocol employs particular transforms

such as the Advanced Encryption Standard (AES)

symmetric cipher (Schaad and Housley, 2002), since

symmetric cryptography is characterised by lower de-

lays and computational burden with respect to asym-

metric cryptography (Stallings, 2004); furthermore,

such a ciphering system can avoid the error propaga-

tion drawback if used in a stream modality. Another

advantage of SRTP is related to bandwidth consump-

tion due to the frequent re-keying procedures occur-

ring during long real-time sessions. In fact, it intro-

duces a 32-bit RollOver Counter (ROC) in order to

expand the space of the RTP sequence numbers and

eliminate the need of re-keying (Blom et al., 2002).

Alternative proposals are available for multime-

dia real-time protection based on IP tunneling proto-

cols, such as IPsec, which seem to suffer some perfor-

mance limitations (Ranganathan and Kilmartin, 2001;

Vaidya et al., 2005).

3 THE SECURE REAL-TIME

TRANSPORT PROTOCOL

FRAMEWORK

The SRTP protocol was designed to be deployed in

heterogeneous network architectures; the critical fac-

tors which were taken into consideration were band-

width, delay, the need of computational resources and

transmission errors. SRTP is an RTP proﬁle and it

can be considered as a sub-layer implementation lo-

cated between the RTP application protocol and the

transport protocol: on the sending side, SRTP ﬁrst

intercepts RTP packets and then forwards equivalent

SRTP packets; on the receiving side, it ﬁrst intercepts

SRTP packets and then relays equivalent RTP packets

upwards. On the other hand, the Real-time Transport

Control Protocol (RTCP) is secured by Secure RTCP

(SRTCP) so as SRTP does to RTP. Message authenti-

cation based on SRTCP is mandatory when SRTP is

used; moreover, it can protect the RTCP ﬁelds to keep

track of session members, it can provide feedbacks to

RTP senders and securely manage counters of packet

sequence.

Then, SRTP provides a framework for authentica-

tion and encryption of RTP and RTCP data streams.

Speciﬁcally, SRTP proposes a set of default crypto-

graphic algorithms and it also allows for the introduc-

tion of new ones in the future. Together with appro-

priate mechanisms for key management, SRTP can

effectively provide security services to RTP applica-

tions both of unicast and multicast transmissions.

Fig. 1 depicts the format of a SRTP message. The

speciﬁc additional ﬁelds introduced by SRTP are:

• Master Key Identiﬁer (MKI): the key management

mechanism deﬁnes and uses this ﬁeld. MKI iden-

tiﬁes the master key from which the session keys

can then be derived. Authentication and/or en-

cryption of the RTP packets is then performed by

using such session keys.

• Authentication Tag: this ﬁeld is employed in order

to carry message authentication data. The Authen-

ticated Portion of an SRTP packet is made up of

the RTP header followed by the Encrypted Por-

tion of the SRTP packet. If both encryption and

authentication are applied, encryption must be ap-

plied before authentication on the sending side

and vice-versa on the receiving side. The Authen-

tication Tag provides authentication of the RTP

header and payload, and it also provides, even if

indirectly, replay protection by authenticating the

sequence number. It is worth noting that the MKI

is not integrity-protected since this would provide

no additional protection.

3.1 The Cryptographic Context

Each SRTP stream requires the sender and the re-

ceiver to maintain cryptographic state information;

moreover, in order to establish an SRTP session two

A 3G IMS-BASED TESTBED FOR SECURE REAL-TIME AUDIO SESSIONS

127

P-CSCF 1

AAA

S-CSCF

IPsec

P-CSCF 2

IPsec

VISITED NETWORK

HOME NETWORK

SIP

DIAMETER

SRTP

HSS

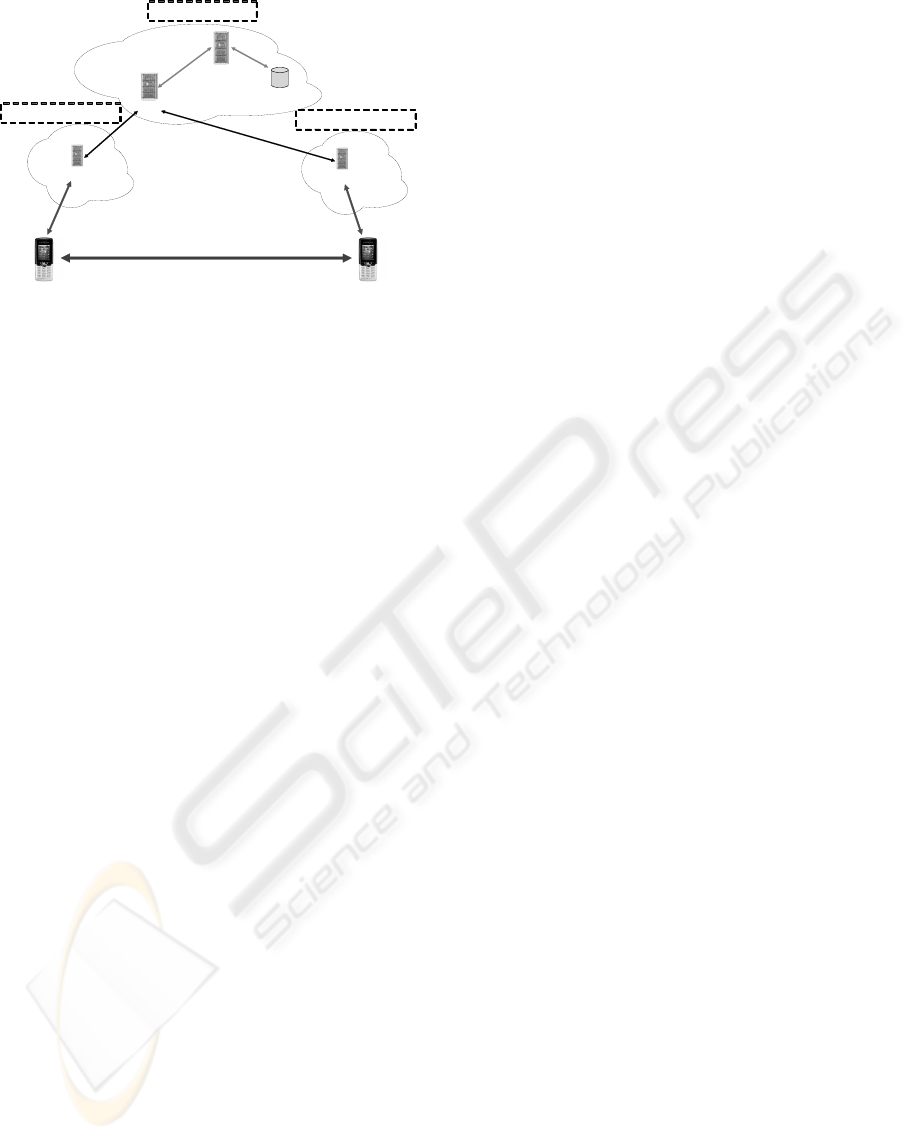

Figure 2: The proposed IMS-based architecture for secure

multimedia communications.

users have to come to an agreement on speciﬁc pa-

rameters, such as the cryptographic and integrity tech-

niques to use, the master key from which the session

keys will be derived and so on. All this information

is called Cryptographic Context and is handled by a

key management mechanism external to SRTP. Sev-

eral key management standards have been proposed

for SRTP cryptographic contexts, such as MIKEY

(Arkko et al., 2004) and KEYMGT (Arkko et al.,

2006).

4 THE PROPOSED SRTP-BASED

COMMUNICATION SYSTEM

In this Section we present the architecture of a

Beyond-3G network built by integrating the SRTP

framework into the IMS infrastructure. The adoption

of SRTP to protect real-time communications is mo-

tivated by performance limitations in IPsec-based so-

lutions, as already stated in Sect. 2. Furthermore,

SRTP allows to propose a novel technique for the key

exchange mechanism, based on IMS SIP signalling,

which does not require any additional message thus

increasing the overall performance (see Sect. 4.2).

4.1 The IMS-based Testbed

Architecture

As previously sketched, with the present work we aim

to show how it is possible to integrate a secure archi-

tecture for multimedia communications into a B3G

network scenario. In order to introduce the several

actors involved in such a scenario, it might prove use-

ful to brieﬂy illustrate the environment we adopted for

the developed testbed.

Our IMS-like prototype is represented in Fig. 2,

where two mobile phones are included which are

connected to the IMS Home Network (i.e. with the

S-CSCF server) through the P-CSCF nodes of each

mobile user’s Visited Network. The Authentication,

Authorisation, Accounting (AAA) server (Senatore

et al., 2004) is introduced according to the IMS ar-

chitecture deﬁned by 3GPP. In the depicted network

scenario, when a user switches his mobile phone on,

a registration phase takes place by means of the AKA

protocol (AKA, 2003) encapsulated within SIP REG-

ISTER messages. This protocol allows a mutual au-

thentication (that is the user and the network authenti-

cate each other): through this procedure each user in-

dependently computes the cryptographic and integrity

keys which will be used in subsequent secure commu-

nications. Furthermore, during the registration phase

an IPsec security association is established between

each user and its reference P-CSCF in order to guar-

antee a strong protection for the subsequent SIP sig-

nalling messages.

4.2 A IMS-based Master Key Exchange

Mechanism

RFC 3711 provides two different methods for select-

ing the Master Key that can be used during an SRTP

session: the ﬁrst mechanism proposes the use of the

MKI of the SRTP packet header, while the second

provides the deﬁnition of a (From, To) mechanism,

as already explained in Subsect. 3.

In our IMS testbed, we adopt a novel mechanism

for cryptographic context transfer which does not in-

troduce either a new protocol or a new messages ex-

change, which would be both a burden to the sig-

nalling system and a cause of delay; in fact, all of the

information necessary to establish the SRTP session

can be encapsulated within the SIP signalling mes-

sages, in appropriate ﬁelds of the Session description

Protocol (SDP) (Handley and Jacobson, 1998) body,

already conveyed by SIP messages for multimedia

sessions.

In particular, we integrated into our B3G network

prototype a mechanism to transfer the cryptographic

context based on the encapsulation of context infor-

mation into the SIP INVITE transaction. Fig. 3

shows the whole signalling process taking place be-

tween two end users for a multimedia session set-up.

An important role is played by the S-CSCF and

the AAA server; indeed, by parsing the SIP INVITE

body the S-CSCF detects the presence of the crypto-

graphic context attribute in the SIP message and con-

sequently sends a speciﬁc request to the AAA server,

SECRYPT 2007 - International Conference on Security and Cryptography

128

User A User BP-CSCF 2AAAS-CSCFP-CSCF 1

INVITE (crypt context)

200 OK (crypt context)

200 OK

(crypt context, K, T )

200 OK

(crypt context, K, T )

QUERY

RESPONSE ( K , T )

ACK ( K , T )

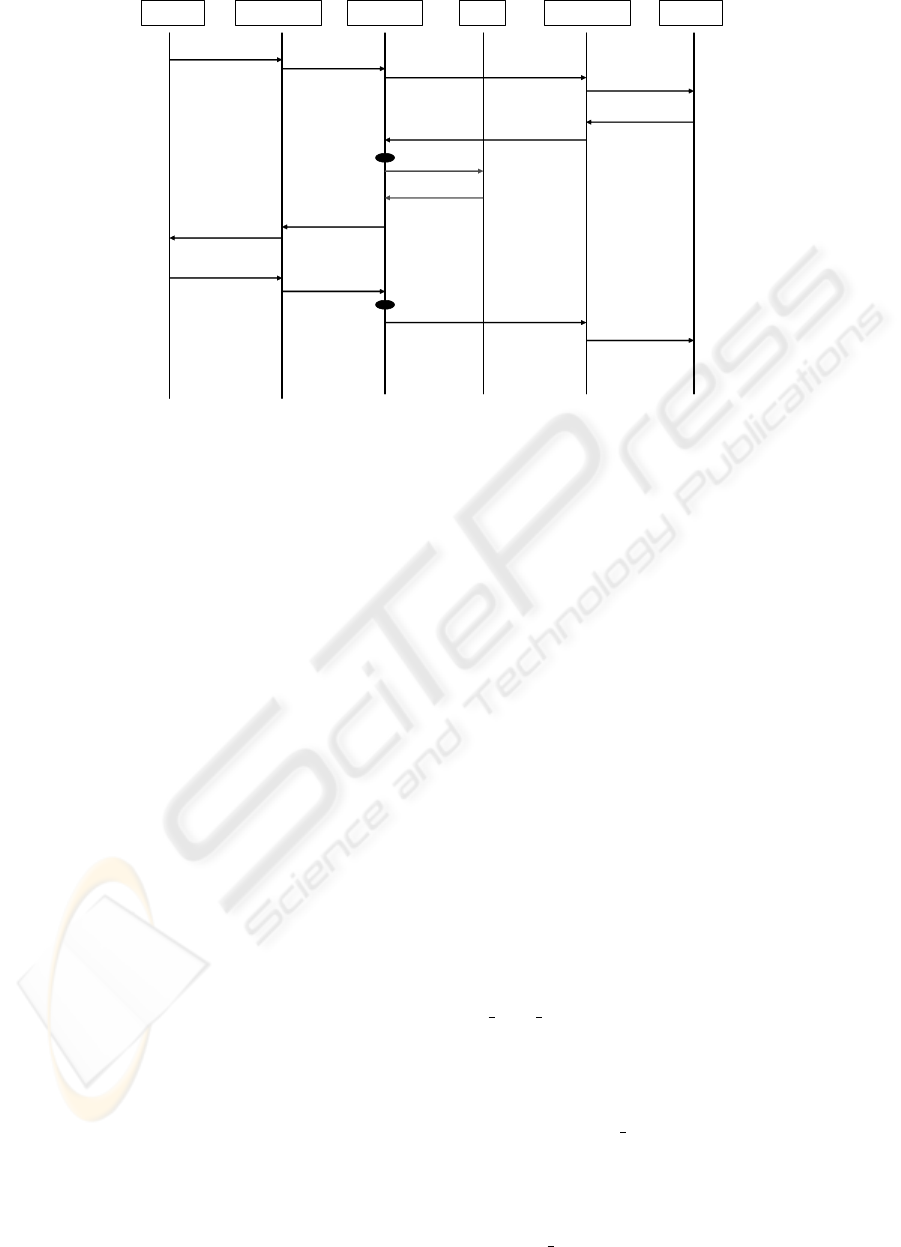

Figure 3: A SIP-based Master Key exchange mechanism.

which answers back by a message with the session

key and its lifetime for the under way SRTP session.

Then, the S-CSCF includes these parameters into the

200 OK message and subsequent ACK message con-

cluding the INVITE transaction. At this point, the two

users are able to establish an SRTP session. When the

timer expires, a re-INVITE message is sent between

the users in order to re-negotiate the cryptographic

context and the previously described procedure takes

place once again.

4.3 A SRTP-enabled Voice Application

Besides the IMS-based solution, in this paper we pro-

pose and develop a Voice over IP (VoIP) application

that implements the SRTP framework by modifying

the open-source Robust Audio Tool (RAT) code, ver-

sion 4.2.25 (Robust Audio Tool (RAT), 2004). In the

application we propose for secure real-time commu-

nications, it is possible to distinguish two different

modules:

• the SIP module for the signalling and session con-

trol;

• the RAT module for the audio communication

management.

These two modules need to exchange information

using a particular communication channel: in our so-

lution, such modules are organized according to the

schema reported in Fig. 4.

The SIP module receives the Master Key within

the SIP signalling ﬂow, as described in Sect. 4.2. By

means of a local Message Bus (Mbus), such a key is

then transferred to the RAT Controller which forwards

it to the Media Engine: thus, this Master Key becomes

the Active Key for the actual SRTP session.

Let us recall that the SRTP layer is located, within

the protocol stack, between the Transport Layer (in

this case, UDP) and the Application Layer (RTP).

It is worth pointing out that, during the deﬁnition

phase, we evaluated two different approaches to the

integration of SRTP in the VoIP application: the for-

mer aimed to maintain RTP and SRTP as separate

modules, the latter to create a hybrid RTP/SRTP struc-

ture. At the end, we decided upon the latter solu-

tion since it requires less computational burden and

achieves better performances, which are crucial con-

straints for an application that has to process real-time

media.

4.3.1 The SRTP Transmission Phase

Our implementation does not modify the RTP pack-

ing phase and operates on the packet which is ready

to be sent. The packet is “intercepted” inside the

rtp send data()

function and, if the session encryp-

tion is enabled, the SRTP packet setting phase starts.

The SRTP packet setting phases implemented in

our prototype are those provided by RFC 3711. The

ﬁrst phase consists of the search of the active key

by using the

find key()

method: this phase is

strictly related to the exchange key mechanism de-

scribed in Sect. 4.2 and uses the key exchanged dur-

ing the SIP session setup. The second phase con-

cerns the generation of the session keys by means

of the

key derivation()

method through the ac-

A 3G IMS-BASED TESTBED FOR SECURE REAL-TIME AUDIO SESSIONS

129

SIP Modue

Controller

RAT

Media

engine

User

Interface

Mbus

SIP Modue

Controller

RAT

Media

engine

User

Interface

Mbus

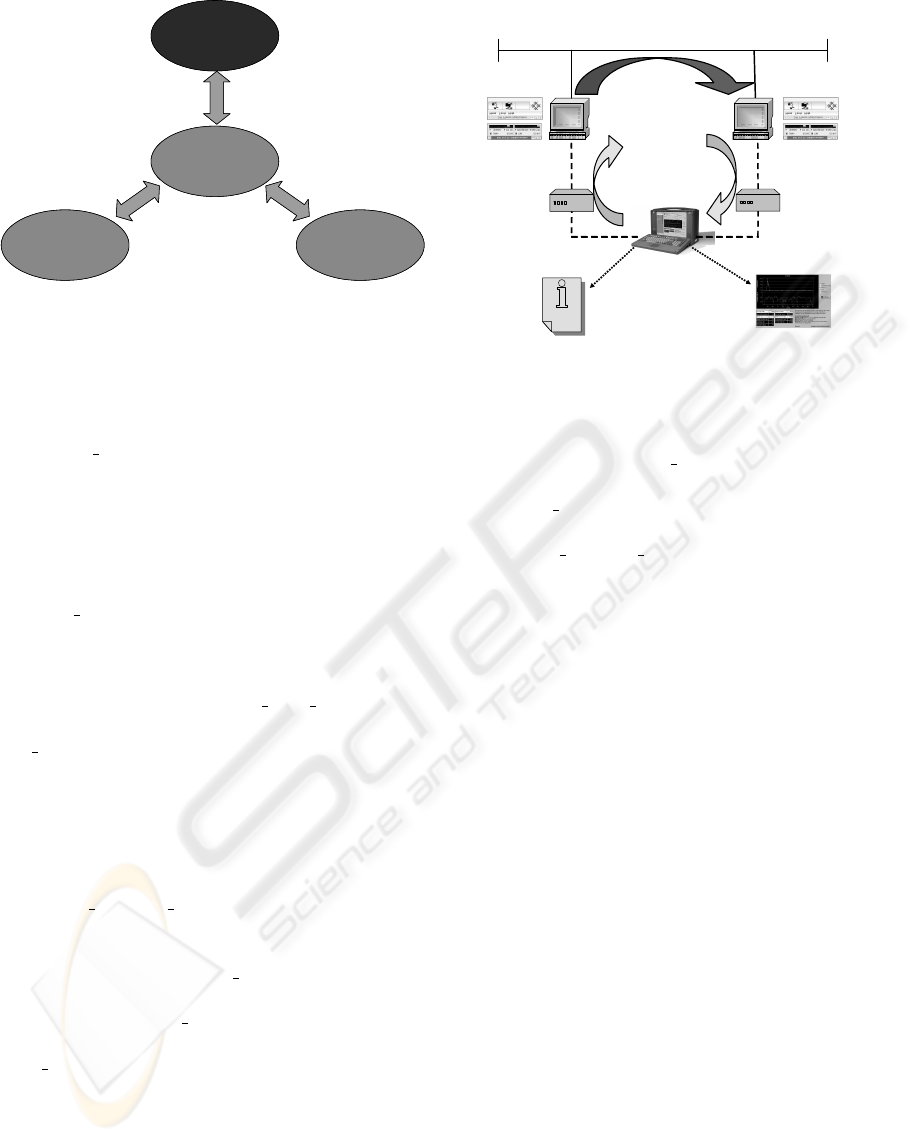

Figure 4: A schematic representation of the developed

Voice over IP application.

tive key obtained in the ﬁrst stage. The third phase

schedules the keystream generation by invoking a

keystream generator()

function. In the fourth

phase, the payload is encoded by performing a sim-

ple XOR operation between the generated keystream

and the payload itself. The resulting encrypted pay-

load replaces the non-encrypted RTP packet payload,

since their length are the same. The last phase sched-

ules the Authentication Tag generation by means of

the

hmac SHA1()

function. This tag is appended to

the RTP packet so that the receiver can authenticate

the packet itself by it.

When those phases are accomplished, the Con-

troller switches back to the

rtp send data()

func-

tion, that delivers the packet thus prepared to the

udp send()

function, which ﬁnally sends the UDP

segment toward the receiver.

4.3.2 The SRTP Reception Phase

Similarly to what happens at the beginning of the

transmission phase, the received packet is intercepted

within

rtp receive data()

function and the SRTP

session management starts.

The ﬁrst action to be performed is ﬁnding the ac-

tive key by using the

find key()

method, as de-

scribed for the transmission phase. This key is

then passed to the

key derivation()

method in or-

der to generate the session key. At this stage the

hmac SHA1()

function locally generates the Authen-

tication Tag to be compared with the one received

within the SRTP packet. If the two tags match, the

received packet is authentic and it is thus possible to

go on with the decryption process. The next step is

devoted to the estimation of the ROC related to the Se-

quence Number of the RTP packet. This process takes

place after the packet authentication procedure and

it is needed in order to estimate the correct counter

Workstation

VQT

Workstation

Phone

Adapter

Isolated Fast Ethernet LAN

Log

files

Graphical

output

Analog

transmitted

(reference)

signal

Analog

received

signal

VoIP communication

Phone

Adapter

Figure 5: The voice quality measurement testbed.

value of the SRTP packet.

The

keystream generator()

method

generates the keystream that is used in the

dencript payload()

method to execute de-

cryption. Subsequently, the control switches back

to the

rtp receive data()

method and the audio

content can be reproduced by the application as

usual.

In line of principle, the introduction of the SRTP

framework introduces, both at the transmission and

reception side, an increase of complexity and compu-

tational load that might potentially badly inﬂuence the

system performances. That is why it appears particu-

larly worthwhile to analyse the impacts of our SRTP

implementation on a real end-to-end audio communi-

cation, as reported in the following section.

5 VOICE QUALITY EVALUATION

In order to assess the inﬂuence of our SRTP imple-

mentation on real VoIP communications, we compare

quantitatively system performances in terms of both

the mean audio delay and the mean perceived voice

quality at the receiver.

The measurement testbed is shown in Fig. 5,

where the VoIP applications involved in the audio

communications are connected to the same (isolated)

Fast Ethernet LAN segment (no signalling server is

involved). In such an environment, the delay in-

troduced by the network can be considered negligi-

ble. Measurements are collected by an Agilent Voice

Quality Tester (VQT) connected, by means of proper

Phone Adapters, to the audio card line-in of PC

and

to the audio card line-out of PC

in the same system

SECRYPT 2007 - International Conference on Security and Cryptography

130

0 1000 2000 3000 4000 5000 6000

100

120

140

160

180

time (sec)

One-way delay (msec)

(

) (SRTP, GSM codec)

(

) (no SRTP, GSM codec)

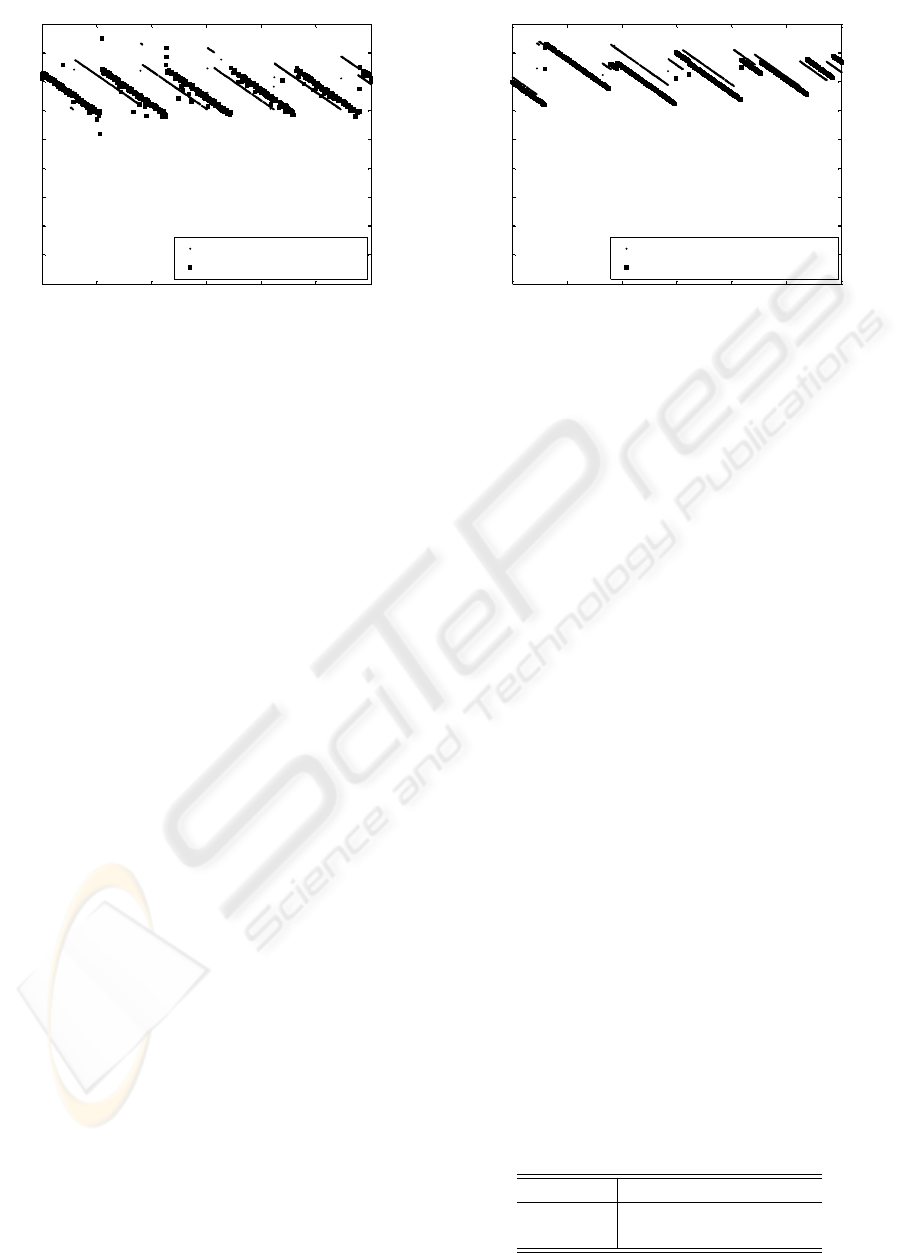

Figure 6: Typical one-way delay time series provided by

VQT for application running on PCs not specialized for

real-time applications. The adopted codec is GSM.

conﬁguration during audio sessions both in case VoIP

applications implement the SRTP framework, as de-

scribed in Sect. 4, and in case of no SRTP implemen-

tation. The VQT can represent measurements results

both in a textual (log ﬁles) and a graphical way.

and PC

, where VoIP applications are run-

ning, are both Linux-based machine with a Pentium

IV 2.8 GHz processor and audio cards, whose quality

can heavily inﬂuence quality measurements, are both

Creative SoundBlaster Live!.

We select two audio codec available in the VoIP

applications under test: (full-rate) GSM and G.711

implementing the companding µ-law algorithm (Bel-

lamy, 2000). Every transmitted packet contains 20

msec of speech, i.e. the RTP payload is 33 byte or

160 byte long for GSM and G.711, respectively. The

encryption algorithm used by SRTP in our measure-

ments is AES in Counter Mode (AES-CTR).

A key parameter that inﬂuences the quality of

real-time communication is the one-way delay expe-

rienced by two speakers during an audio session, also

known as mouth-to-ear delay (Jiang et al., 2003). In

order to assess the impact of SRTP on the total delay,

we collect N = 1000 measures of audio delay for each

session (one using SRTP and one without SRTP for

each audio codec), where every delay sample Θ(n) for

n = 1, ..., N is computed every ∆ = 6 sec by the VQT

by estimating the position of the maximum of the

cross-correlation between the transmitted signal and

the received one. The measured mouth-to-ear delay

time series for GSM and G.711 µ-law are indicated

as Θ

(n) and Θ

(n), respectively, while the presence

of SRTP is pointed out by the superscript (e). Typ-

ical delay time series (with and without SRTP sub-

layer) are shown in Figs. 6 and 7 for VoIP applications

0 1000 2000 3000 4000 5000 6000

100

120

140

160

180

time (sec)

One-way delay (msec)

(

) (SRTP, G.711

-law codec)

(

) (no SRTP, G.711

-law codec)

Figure 7: Typical one-way delay time series provided by

VQT for application running on PCs not specialized for

real-time applications. The adopted codec is G.711 µ-law.

running on operating systems not specialized for real-

time applications, such as Linux or Windows, where

general purpose schedulers can cause some artifacts,

such as a piecewise linear decrease (or increase) of

the one-way delay.

The computed average delays, reported in Table

1, seem to indicate that AES-CTR encryption has no

signiﬁcant inﬂuence (just few milliseconds).

Another key parameter to assess audio communi-

cation quality is the perceived quality of the speech

at destination. A widely adopted tool for objec-

tive measurements of it is the Perceptual Evaluation

of Speech Quality (PESQ), described in ITU-T Rec.

P.862 (Beerends et al., 2002), which uses a sensory

model to compare the transmitted signal with the re-

ceiving one. In order to relate its results to the tra-

ditional subjective quality score Mean Opinion Score

(MOS), based on time-consuming human listeners in-

terviews, the PESQ Listening Quality (PESQ-LQ) is

often used, providing values ranging from 1 (bad) to

4.5 (very good).

The average PESQ-LQ values were computed on

30 voice clarity measurements, provided again by the

VQT using English speech samples, and are reported

in Table 2, where it is possible to notice that the SRTP

does not introduce any appreciable variation on the

quality of the speech. This agrees with the general

conception that encryption in itself should not cause

Table 1: Average mouth-to-ear delays (in msec).

GSM G.711 µ-law

no SRTP 132.71 144.14

SRTP

138.86 149.79

A 3G IMS-BASED TESTBED FOR SECURE REAL-TIME AUDIO SESSIONS

131

Table 2: Average PESQ-LQ.

GSM G.711 µ-law

no SRTP 3.693 4.028

SRTP

3.690 4.013

an information loss.

Summing up, the introduction of the SRTP frame-

work does not seem to inﬂuence speech quality from

a practical prospective in our prototype testbed. Then,

SRTP seems suitable for a deployment in real-world

network scenario.

6 CONCLUSIONS

The introduction of real-time cryptography technique

for the multimedia ﬂows with the adoption of the

SRTP protocol is aimed to guarantee a good security

level to multimedia communications.

One of the mechanism that offer a good level of

robustness against the two time pad typologies of at-

tacks is the introduction of a periodic key update

mechanism. In our proposal the update mechanism

towards IMS SIP signalling does not introduce any

increase of the number of exchanged messages, as

it may happen adopting a Master Key Identiﬁer or a

(From,To) mechanism.

The quality of the communication does not turn

out to be degraded even though a real-time cryptogra-

phy and de-cryptography is performed. In particular,

the SRTP framework does not inﬂuence the quality

of the speech during VoIP communications, both in

terms of delay and PESQ-LQ index.

Future developments will concern, ﬁrst of all, the

practical establishment of an SRTP session also for

the video content between two users within the IMS-

like prototype. Another development will be related

to the adaptation of our architectural solution to a

multi-conferencing scenario.

REFERENCES

3GPP, The 3rd Generation Partnership Project (1998).

http://www.3gpp.org/.

AKA (2003). Authentication and key agreement. 3GPP TS

33.102 version 6.0.0.

Arkko, J. et al. (2004). MIKEY: Multime-

dia internet keying. IETF RFC 3830,

http://www.ietf.org/rfc/rfc3830.txt.

Arkko, J. et al. (2006). Key management extension

for session description protocol (SDP) and real

time streaming protocol (RTSP). IETF RFC 4567,

http://www.ietf.org/rfc/rfc4567.txt.

Baugher, M. et al. (2004). The secure real-time

transport protocol (SRTP). IETF RFC 3711,

http://www.ietf.org/rfc/rfc3711.txt.

Beerends, J., Hekstra, A. P., Rix, A. W., and Hollier,

M. P. (2002). Perceptual evaluation of speech quality

(PESQ), the new ITU standard for end-to-end speech

quality assesment, part i & ii. 50(10):755–778.

Bellamy, J. (2000). Digital Telephony. Wiley-Interscience,

3rd edition.

Blom, R., Carrara, E., Lindholm, F., Norman, K., and

Naslund, M. (2002). Conversational IP multimedia

security. In Proc. 4th IEEE MWCN 2002, pages 147–

151.

Dierks, T. and Allen, C. (1999). The TLS protocol. IETF

RFC 2246, http://www.ietf.org/rfc/rfc2246.txt.

Franks, J. et al. (1999). HTTP authentication: Basic

and digest access authentication. IETF RFC 2617,

http://www.ietf.org/rfc/rfc2617.txt.

Handley, M. and Jacobson, V. (1998). SDP: Ses-

sion description protocol. IETF RFC 2327,

http://www.ietf.org/rfc/rfc2327.txt.

Jiang, W., Koguchi, K., and Schulzrinne, H. (2003). QoS

evaluation of VoIP end-points. In Proc. IEEE ICC

2003, volume 3, pages 1917–1921.

Koien, G. M. (2002). An evolved UMTS network domain

security architecture. Technical report, R&D Telenor.

Ranganathan, M. K. and Kilmartin, L. (2001). In-

vestigations into the impact of key exchange

mechanisms for security protocols in VoIP net-

works. In Proc. First Joint IEI/IEE Sympo-

sium on Telecommunications Systems Research.

http://telecoms.eeng.dcu.ie/symposium/papers/D2.pdf.

Robust Audio Tool (RAT) (2004). http://www-

mice.cs.ucl.ac.uk/multimedia/software/rat/.

Rosenberg, J. D. et al. (2002). Session Ini-

tiation Protocol (SIP). IETF RFC 3261,

http://www.ietf.org/rfc/rfc3261.txt.

Schaad, J. and Housley, R. (2002). Advanced encryption

standard (AES) key wrap algorithm. IETF RFC 3394,

http://www.ietf.org/rfc/rfc3394.txt.

Schulzrinne, H. et al. (2003). RTP: A transport pro-

tocol for real-time applications. IETF RFC 3550,

http://www.ietf.org/rfc/rfc3550.txt.

Senatore, A., Fresa, A., Robustelli, A. L., and Longo, M.

(2004). A security architecture for access to the IP

multimedia subsystem in B3G networks. In Proc. 7th

WPMC 2004.

Stallings, W. (2004). Data and Computer Communications.

Prentice Hall, 7th edition.

Thayer, M. et al. (1998). IP security document roadmap.

IETF RFC 2411, http://www.ietf.org/rfc/rfc2411.txt.

Vaidya, B., Kim, J., Pyun, J., Park, J., and Han, S. (2005).

Performance analysis of audio streaming in secure

wireless access network. In Proc. 4th IEEE ACIS

2005, pages 556–561.

SECRYPT 2007 - International Conference on Security and Cryptography

132
