A COMBINATORICS PROLIFERATION MODEL
TO DETERMINE THE TIMING FOR BLOCKING
SCANNING MALWARE
Kazumasa Omote
University of Tsukuba, Tokyo, Japan
Takeshi Shimoyama, Satoru Torii
Fujitsu Laboratories, Ltd., Kawasaki, Kanagawa, Japan
Keywords: Malware countermeasure, enterprise network, threshold, computer simulation.
Abstract: One of the worst threats present in an enterprise network is the propagation of “scanning malware” (e.g.,
scanning worms and bots). It is important to prevent such scanning malware from spreading within an
enterprise network. It is especially important to suppress scanning malware infection to less than a few
infected hosts. We estimated the timing of containment software to block “scanning malware” in a
homogeneous enterprise network. The “combinatorics proliferation model”, based on discrete mathematics,
developed in this study derives a threshold that gives the number of the packets sent by a victim that must
not be exceeded in order to suppress the number of infected hosts to less than a few. This model can
appropriately express the early state under which an infection started. The result from our model fits very
well to the result of computer simulation using a typical existing scanning malware and an actual network.
1 INTRODUCTION
We aim at achieving a countermeasure against
“malware” within an enterprise network. In such a
network, security software such as the anti-virus
detection and containment is mostly installed in
every host. There are mainly two kinds of security
software: signature-based detection software and
anomaly-based software. In this study we target
anomaly-based detection software without pattern
files. This is because the signature-based scheme
might not be able to detect a new malware for a few
hours because it takes time to make pattern files for
each variant. On top of that, there are recently a lot
of variants of malware (Barford et al., 2006).
Infection damage by malware has been widely
reported in the popular press. One of the most
serious threats in an enterprise network is
propagation of scanning malware (e.g., scanning
worms and bots). A recent scanning malware can
select local addresses. Once a new malware is
infected within an enterprise network, it propagates
rapidly and puts a heavy financial burden on the
enterprise. We therefore consider that it is important
to prevent such a malware from spreading within an
enterprise network. It is especially important to
suppress their occurrence to less than a few infected
hosts in order to decrease the financial loss to an
enterprise as much as possible.
Mainly, two kinds of evaluation model for
preventing scanning malware from spreading have
been proposed. One is evaluation models of the
Internet. These models estimate the number of
infected hosts and the speed of infection. They are
either a continuous time model (e.g., SIR model
(Nikoloski et al., 2006)) or a discrete time model
(e.g., AAWP model (Chen et al., 2003)).
Another example is the evaluation model of an
enterprise network such as the Staniford model
(Staniford, 2004). This model evaluates the number
of infected hosts by considering the timing for
blocking the infection packets sent by a victim. This
timing is measured using a threshold, namely, the
number of packets that can be checked until
detection and containment of an infection and that a
malware scanner can send out to deal with the
infection. If a scanning malware is contained in
quick reaction time after minor infection, the
16
Omote K., Shimoyama T. and Torii S. (2007).
A COMBINATORICS PROLIFERATION MODEL TO DETERMINE THE TIMING FOR BLOCKING SCANNING MALWARE.
In Proceedings of the Second International Conference on Security and Cryptography, pages 16-24
DOI: 10.5220/0002119300160024
Copyright
c
 SciTePress

infection damage can be considerably suppressed
(Moore et al., 2003).
The Staniford model assumes anomaly-based
detection. It is thus necessary to discriminate
between normal traffic and new malware scans. An
anomaly-based scheme generally has a threshold
that discriminates between normal traffic and
malware communications. If the threshold is too
high, the scanning malware can scan and spread
through the enterprise network. On the contrary, if
the threshold is too low, the scheme frequently
mistakes normal traffic for a communication of the
scanning malware (A false positive alert is
frequently generated.) It is therefore important to
choose the appropriate threshold in the case of an
anomaly-based detection.
The Staniford model can estimate the threshold
according to the number of infected hosts. However,
it is suitable as long as the number of infected hosts
is comparatively large. We therefore need to derive
the threshold that suppresses the number of infected
hosts to less than a few.
1.1 Our Contribution
In an enterprise network, it is important not only to
prevent the scanning malware from spreading but
also to suppress the number of infected hosts as
much as possible. Our model is suitable for
situations in which there are a small number of
infected hosts. It uses discrete mathematics known
as combinatorics. It can also estimate the threshold
at which the number of infected hosts can be
suppressed to a small number.
We evaluated the expected number of infected
hosts under a certain threshold by using a computer
simulation. As a result, we confirmed that the result
obtained with our model precisely corresponds to the
result of a computer simulation when the number of
infected hosts can be suppressed to a small number.
Moreover, we clarified the relation between the
number of subnets and the upper bound of the
threshold when the number of hosts is evenly
distributed within the enterprise network. We
conclude from this result that the more the number
of subnets increases, the higher the upper bound of
threshold can be set.
2 RELATED WORK
Various Internet evaluation models of preventing a
scanning malware from spreading have been
proposed. These models estimate the number of
infected hosts and the rate of infection. Such Internet
evaluation models include the continuous time
model and the discrete time model. The SIR
(susceptible-infectious-removed) model (Nikoloski
et al., 2006) is an “epidemic” continuous time
model. In this model, an infected host can be
removed at a certain rate. It can also be used to study
the effect of software patching and traffic blocking.
The AAWP (analytical active worm propagation)
model (Chen et al., 2003) is a discrete time model of
worm propagation. This model considers the
patching rate, that is, the reasonable rate at which a
user can patch the vulnerability on their computer.
When an infected or vulnerable host is patched, it
becomes an invulnerable host.
On the other hand, among the evaluation models
for preventing the scanning malware from spreading
within an enterprise network, the Staniford model is
the most famous. It can calculate the final infection
density under the condition that the detection and
containment software is installed in a host or is
deployed in a network device (e.g., a router or
switch) within the enterprise network. We describe
the Staniford model in detail in section 2.1.
The importance of evaluation in an early stage of
infection is described in (Zou et al., 2003). That
work presents a non threshold-based worm-early-
detection system that uses the idea of detecting the
trend, that is, not the rate, of monitored scan traffic.
However, this scheme does not evaluate the
threshold in the early stage of infection.
Various scan-detection schemes for observing
packets behavior have been proposed. The scheme
described in (Williamson, 2002) for rate limiting
counts the number of connections of a new
destination address and restricts that number. And
the DNS-based scheme in (Whyte et al., 2005a)
looks for non-DNS-based connections that use
numeric IP addresses. The ARP-based scheme in
(Whyte et al., 2005b) calculates and checks the total
anomaly score from three kinds of ARP activity in
order to detect the scanning malware. The ICMP-
based scheme in (Bakos et al., 2002) looks for ICMP
destination-unreachable (ICMP-T3) messages.
These scan-detection schemes check the amount and
the behavior of plural packets.
2.1 Staniford Model
The Staniford model is composed of either the basic
model (non-cell model) or the extended model (cell
model). We treat the non-cell model in the present
study. The Staniford model evaluates the number of
infected hosts by considering the infection packets
A COMBINATORICS PROLIFERATION MODEL TO DETERMINE THE TIMING FOR BLOCKING SCANNING
MALWARE
17

sent unwillingly by a victim. This timing is
measured using threshold T.
In this section, we outline the Staniford model
and state its limitations. It is assumed that a
containment mechanism is installed by every host.
Since the containment mechanism with threshold T
blocks the infection packets after detection, a
malware can send only T infection packets from an
infected host. The threshold thus means the number
of packets that can be checked until detection and
containment of the malware and that the scanning
malware can send from an infected host. This model
can calculate the final infection density under a
certain threshold.
Final infection density
α
(0 <
α
< 1) is derived
by solving Equation (1) below of the Staniford
model using threshold T, vulnerable density v, and
probability
N
P
of targeting a host.
()
)1(01ln
1
=−+ αα
N
TvP
The value of
α
is constant if
N
TvP
is the same
because
α
is determined by
N
TvP
in Equation (1).
The value of
N
TvP
, however, is the limitation
factor on Equation (1) for giving solution
α
. If
N
TvP
≤
1,
α
does not have a solution except for
α
= 0. However,
α
has a solution except for
α
= 0 as
long as
N
TvP
> 1 is satisfied. This model can
therefore accurately estimate the value of
α
as long
as
N
TvP
> 1 is satisfied.
In Equation (1), the value of
N
TvP
means the
expected number of hosts that a single victim
infected. If
N
TvP
> 1 is satisfied, the infection keeps
growing rapidly for a while and the scanning
malware spreads. On the other hand, if
N
TvP
< 1 is
satisfied, this means that chances are the first
infection will infect less than one other site. The
Staniford model can therefore only estimate the
value of
α
on the condition that the scanning
malware spreads.
2.2 Threshold
Two kinds of threshold are introduced in (Weaver et
al., 2004): an “epidemic threshold” and a “sustained
scanning threshold” (SST). An epidemic threshold is
the upper bound for preventing the scanning
malware from spreading in an enterprise network.
Staniford discusses the importance of this epidemic
threshold from the viewpoint of the worm-
containment problem. The containment software for
scanning malware necessarily allows some scans
before the number of scans exceeds the threshold.
Until the number of scans exceeds the threshold, the
scanning malware may find one or more vulnerable
hosts and spread within the enterprise network. The
more the threshold increases, the higher the
propagation risk becomes. It is thus important to
derive such an epidemic threshold.
We can obtain Equation (2) by transforming
Equation (1). Staniford’s threshold is calculated as
follows.
()
)2(
1ln
N
vP
T
⋅
−
−=
α
α
It is accurately derived under the condition T >
1/
N
vP
(
N
TvP
> 1).
In addition to the epidemic threshold, a sustained
scanning threshold (SST) such as the adaptive
threshold (Threshold Random Walk) (Weaver et al.,
2004; Jung et al., 2004; Schechter et al., 2004) is
known well. However, we do not target a SST
because it does not consider preventing a scanning
malware from spreading.
3 CONTAINMENT OF SCANNING
MALWARE
Our goal is to detect a scanning malware and prevent
it from spreading. This study is limited to the
containment of random scanning malware and does
not deal with the issue of containing flash and
topological worms. Furthermore, we target an
enterprise network in which the containment
software is widely installed or in which a
containment device is widely deployed.
3.1 Characteristics of Scanning
Malware
A scanning malware (e.g., a scanning worm or bot)
performs a random scanning in a network. Since the
scanning malware tries to communicate with a lot of
other destination addresses (including non-existent
addresses) and finds new vulnerable hosts, it
communicates with a host whom a correct user
rarely does. The scanning malware chooses a
random IP address according to several scanning
rules and then attempts to infect it. Such scanning
rules include binary search, sequential search, and
universal random search.
We experimentally verified that it is difficult to
distinguish between the scanning malware and the
SECRYPT 2007 - International Conference on Security and Cryptography
18

normal traffic by counting the number of packets,
because the malware scanning is buried in the
normal traffic (Omote et al., 2003). On the other
hand, we also experimentally verified that it is
possible to distinguish between the scanning
malware and the normal traffic by counting the
number of destination addresses, because the normal
traffic is limited to several destinations.
3.2 A Detection and Containment
Method for Scanning Malware
Our scanning malware-detection scheme directly
observes a scanning malware’s connection. It is
different from related works such as (Whyte et al.,
2005a; Whyte et al., 2005b; Bakos et al., 2002),
which do not directly observe the behavior of
scanning packets. Since our scheme directly
observes outgoing scanning packets, it can grasp the
header information of IP packets in the network
traffic and determine its amount. Note that it is
assumed that the detection and containment software
is installed in a host or is deployed in a network
device (e.g., a router or switch) within the enterprise
network.
The scheme counts the number of scans sent by a
single host. More concretely, the scheme counts at a
short interval the number of destination IP addresses
in the first outbound connection packet, such as a
SYN packet, that has the same source IP address,
destination port, and protocol. The scheme is also
very simple for observation of packets because it
only refers to the header information of IP packets.
A detection alert is generated when the count
value of scans becomes more than the threshold.
This threshold is corresponding to Staniford’s
threshold. Although the count value of scans sent by
a host is cleared after a certain time interval, a
detection alert is generated as soon as the count
value reaches the threshold before such an interval
expires.
Threshold
T used in our previous scheme has the
following meaning. The scheme blocks the
connection of worm after the number of outgoing
packets exceeds
T. This means that the scanning
malware is permitted to scan
T times from a victim
until the alert is generated. If the threshold is too
high, the scanning malware can scan through the
enterprise network and propagate. On the contrary, if
the threshold is too low, the scheme frequently
mistakes normal traffic for the scanning malware
(and a false-positive alert is generated). It is
therefore important to determine the appropriate
threshold for our scheme.
4 COMBINATORICS
PROLIFERATION MODEL
In an enterprise network, it is important not only to
prevent scanning malware from spreading but also to
suppress the number of infected hosts as much as
possible. It is thus necessary to strictly evaluate the
infected hosts in the early stages of infection. We
therefore propose a mathematical model that uses
combinatorics. This model is suitable for the early
stages of infection. It can also derive the threshold
for suppressing the number of infected hosts.
In the previous section, we stated the importance
of determining the appropriate threshold to prevent
both the spreading and mistaking of normal traffic.
However, we cannot determine the threshold for the
number of infected hosts to be suppressed from
previous known works. In regards to the Staniford
model (Staniford, 2004), although it can derive the
threshold for preventing a scanning malware from
spreading, it cannot derive the threshold for
suppressing the number of infected hosts.
4.1 Outline
Our model derives the threshold for suppressing the
number of infected hosts by using discrete
mathematics (i.e., combinatorics). This threshold
means the number of scans that go out from an
infected host before the host is contained. The
details about this model are described in the
remainder of this section. First the model's
preparation is described, then the design of the
model is explained, and, lastly, the method for
deriving the upper bound of the threshold is
described.
4.2 Premise
The premise of combinatorics proliferation model is
as follows.
1. To start with, a single node is already infected
within the enterprise network.
2. Whenever the infection packet reaches a
vulnerable node, the node is infected.
3. A vulnerable node is uniformly distributed
within the enterprise network.
4. An infected node sends out the infection packet
at regular intervals.
5. Containment software with the same threshold
T
is installed in every node.
6. Probability
p of targeting is constant.
A COMBINATORICS PROLIFERATION MODEL TO DETERMINE THE TIMING FOR BLOCKING SCANNING
MALWARE
19

7. The time unit (1-tick) advances when one
infection packet is sent out from an infected
node.
8. The processing time from receiving infection to
the next infection activity is disregarded.
In premise 2, for simplicity, it is assumed that a
vulnerable host is infected by one packet, though
several packets (SYN packet, data packet, and so on)
are actually necessary for infection. In regards to
premise 6, refer to section 4.4. In regards to premise
7, we introduce a time parameter into our model.
4.3 Parameters
The parameters used in our model are as follows:
・ Number of vulnerable nodes (
N): the number of
vulnerable nodes (hosts) within the enterprise
network.
・ Vulnerable node density (
D): the density of
vulnerable nodes in the enterprise network. For
example, when the number of hosts in the
subnet of class-B is
Nb, D is expressed as
.2)1(
16
−
b
N
・ Probability of targeting a host (
p): the
probability that a scanning malware picks a
vulnerable address. Probability
p is constant in
the premise. And
p corresponds to the value of
N
vP
in the Staniford model.
・ Threshold (
T): the number of scans that is sent
out from an infected node before the node is
contained.
T is the epidemic threshold, and the
value of
T is one or more.
・ Tick (
k): A time unit. For example, the time unit
of 1-tick advances when one infection packet is
sent out from an infected node.
・ Generation (
n): the infection distance from the
infection source (
Nn
≤
). For example, the
number in “3-generation” means the number of
grandchildren is three.
・
),,( TpkE
n
: the expected number of infected n-
generation nodes after
k-tick under both
probability
p of targeting and threshold T.
・
),,( TpkE
: the expected number of all infected
nodes after
k-tick under probability p of
targeting and threshold T.
・
I(p, T): the total expected number of infected
nodes under probability
p of targeting and
threshold T after enough time passes.
It is very rare that all vulnerable addresses are
used within the enterprise network. The address
space in such a network is usually only partly used.
Moreover, since the scanning malware selects a
targeting node probabilistically, an infection packet
that is sent out from an infected node does not
always reach the vulnerable node within the
enterprise network. We therefore get probability
p of
targeting by using both the number of vulnerable
nodes and the target-selection algorithm of the
scanning malware operating within the enterprise
network.
4.4 Probability of Targeting
An existing scanning worm mainly uses two kinds
of target-selection algorithm: (1) the worm selects a
target node completely randomly or (2) the worm
selects a target node probabilistically according to
the local subnet in which the infected node exists.
For example, a Sasser worm chooses an address
from the same /8 subnet (the number of vulnerable
nodes is
Na) with probability 1/4, chooses a random
address from the same /16 subnet (the number of
vulnerable nodes is
Nb) with probability 1/4, and
chooses a random Internet address with probability
2/4. Hence probability
p of targeting is calculated as
follows.
)3(
2
1
4
1
2
1
4
1
2
1
4
2
162432
⎟
⎠
⎞
⎜
⎝
⎛
−
⋅+
⎟
⎠
⎞
⎜
⎝
⎛
−
⋅+
⎟
⎠
⎞
⎜
⎝
⎛
−
⋅=
NbNaN
p
Probability p of targeting is obtained according
to the composition of the vulnerable host. Thus, p is
constant regardless of the number of infections.
However, in practice, the more the number of
infected nodes is, the fewer the number of nodes that
can be infected. Actually, it is thought that the
probability of targeting gradually becomes small.
We therefore think that the probability of targeting
in our model takes the upper bound because it does
not become low. We also think that a constant
probability
p is acceptable as long as the number of
infected nodes within the enterprise network is fewer
than that in the whole address space.
4.5 Expected Number of Infected
Nodes
Probability p of targeting is used to define the
number of 0-generation infected nodes (the infection
source)
i as
1),,(
0
=
TpkE
regardless of the
parameters
k, p and T.
The 1-generation infected node is the target that
the infection source will infect directly. The number
of 1-generation infected nodes after
k-tick is the sum
of nodes that the infection source directly infects
until
k-tick. The expected number of 1-generation
SECRYPT 2007 - International Conference on Security and Cryptography
20

infected nodes after
k-tick is therefore calculated as
follows.
)4(
)()1(
)()1(
),,(
1
1
1
⎪
⎪
⎩
⎪
⎪
⎨
⎧
≥−⋅⋅⋅
<−⋅⋅⋅
=
∑
∑
=
−
=
−
TkppCi
TkppCi
TpkE
T
i
iTi
iT
k
i
iki
ik
The number of 2-generation infected nodes does not
include the number of the 1-generation infected
nodes because the 1-generation infected nodes can
not be infected twice. When
k is larger than T, the
number of each-generation infected node is
calculated from the approximation
n
n
TpTETpkE ),,(),,(
1
=
.
The total expected number of infected nodes
after
k-tick is the sum of victims from the infection
source (0-generation) to the
k-generation calculated
as follows.
)5(),,(
),,(),,(
0
1
0
∑
∑
=
=
=
=
k
i
i
k
i
i
TpTE
TpkETpkE
After enough time passes (k is close to infinity), the
total expected number of infected nodes under both
probability
p of targeting and threshold T is
calculated as follows.
)6()1),,( if(
),,(1
1
),,(lim),(
1
1
0
1
<
−
=
=
∑
=
∞→
TpTE
TpTE
TpTETpI
k
i
i
k
Note that the value of I(p,T) in the above equation
diverges when threshold T is much larger. In an
actual network, the number of infected nodes finally
approaches
N even if threshold T is much larger.
4.6 Upper Bound of T
We can get the upper bound of T by using Equation
(6) in the following steps.
1. Plural values of
I(p,T) are calculated from
increments of
T under probability p.
2. The upper bound of
T to satisfy the following
equation is obtained.
)7(),( uTpI ≤
Parameter u is the upper bound of the expected
number of infected nodes that is a maximum finite
value or a definite value. Though a candidate for one
or more threshold
T values is derived, we use the
upper bound of
T that satisfies Equation (7).
We can obtain the threshold according to the
expected number of infected nodes by changing
parameter
u. For example, the setting u = 2 in
Equation (7) means that the total expected number
of infected nodes is finally less than two (the
expected number of new infected nodes is less than
one only).
5 COMPUTER SIMULATION
We evaluated the expected number of infected nodes
under a certain threshold by using a computer
simulation. We confirmed that the result from our
model precisely corresponds to the result of the
computer simulation under the condition
),,(
1
TpTE
<
1.
Our goal is to evaluate by computer simulation
whether an actual worm can be prevented from
spreading in a practical enterprise network. In our
evaluation, we thus assume the subnet of class-B and
that an actual scanning worm has damaged the
enterprise network.
We simulate the malware spreading by using a
simple Monte Carlo simulator under the condition
that the containment software with the threshold is
installed in each host. Every address is modeled to
determine whether it is invulnerable, vulnerable or
infected. A malware selects only
T addresses for
scanning and then stops its activity. To establish
reliable statistics on malware behavior, the computer
simulation is repeatedly run with different seeds.
Since the malware spreading is randomized
differently on each run, the result of one simulation
will be different from the next. If the selected
address is vulnerable, the host is always infected.
Also, if the selected address is infected or
invulnerable, the state of the host is unchanged even
if it receives an infected packet.
Figure 1 shows that the value of
I(p,T) in our
model fits the result of computer simulation when
T
is less than 70. In the computer simulation, the
infection of a Sasser worm in the subnet of class-B
of an enterprise network is considered. The first set
of experiments we did involved the following
selected parameters: the size of the subnet of class-
B:
16
2
, p
(=
N
vP
) = 0.0125, N = 3277 (vulnerable node
density:
16
2/3277
= 0.05). The value of p is
calculated from Equation (3) with
N = Na = Nb =
3277. We simulated 10,000 runs by varying
T from
1 to 79 in steps of 1, and plotted the average values.
A COMBINATORICS PROLIFERATION MODEL TO DETERMINE THE TIMING FOR BLOCKING SCANNING
MALWARE
21

Simulation
Our model
I ( p , T )
0
5
10
15
20
25
30
35
1 6 11 16 21 26 31 36 41 46 51 56 61 66 71 76
Threshold
T
Expected number of infected nodes

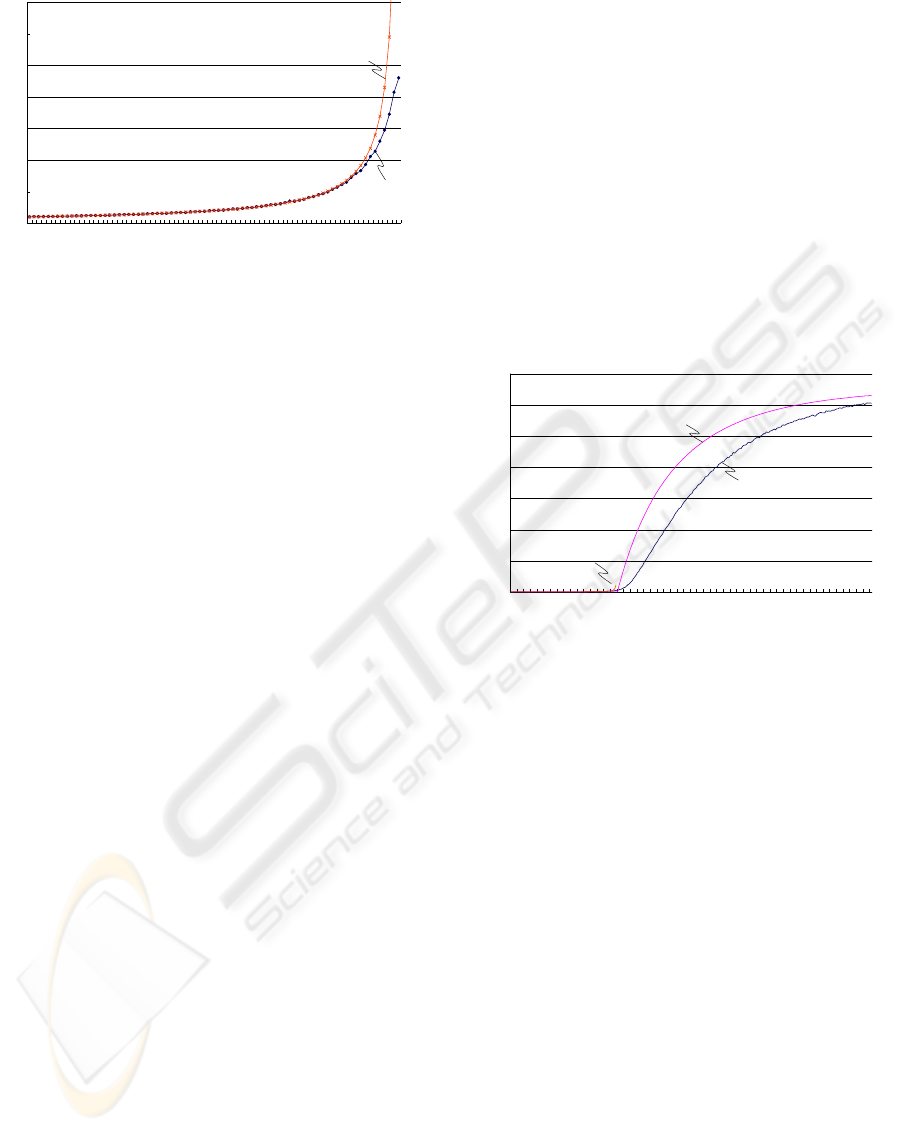

Figure 1: The relation between the result of computer
simulation and the result of I(p,T) in our model using a
Sasser worm in the subnet of class-B.
In Figure 1, the value of I(p,T) in our model
becomes larger than the result of computer
simulation when the number of infected nodes
becomes large. The probability of targeting in our
model is constant for simplicity (refer to section 4.2).
On the contrary, in our computer simulation, the
probability of targeting decreases as the number of
infected hosts increases.
6 DISCUSSION
As mentioned in section 2.2, Staniford’s threshold is
derived under the condition
T >
N
vP/1
(T > 1/p). On
the other hand, our threshold is derived under the
condition
T <
N
vP/1
(T < 1/p). Note that T =
N
vP/1
is a singularity point in both models. In this section,
we confirm the coverage of the two above-described
thresholds is different.
We compare the results from both the Staniford
model and our model with the computer-simulation
results under the same condition as stated in the
previous section. Figure 2 extends the x-axis of
Figure 1 and also includes the results from the
Staniford model. While Staniford’s result is
calculated using Equation (2), our threshold is
calculated using Equation (7). For the expected
number of infected nodes, the Staniford model uses
N⋅
α
but our model uses I(p,T).
As regards the range for fitting the computer-
simulation results in Figure 2, our model is different
from Staniford model. In short, while the coverage
of the Staniford model is T > 80 (1/0.0125), the
coverage of our model is T < 80. In the Staniford
model, threshold T can not be calculated when T <
80. The boundary point between the Staniford model
and our model is T = 80. The target range of
threshold T is clearly divided between the Staniford
model and our model. As shown in Figure 1,
therefore, our model is suitable for the evaluation of
the expected number of infected hosts that
suppresses the number of infected nodes to low
below the threshold.
Here, we discuss Equation (6) for the explanation
about the approximation calculation. Since our
model considers generation infection, it must
calculate the number of infected hosts up to the
number of k-generation infections after k-tick.
However, our model is approximated to the
calculation of the 1-generation infection like
Equation (5). We can therefore easily calculate the
expected number of whole infected hosts from only
the number of one-generation infections.
0
500
1000
1500
2000
2500
3000
3500
0 20 40 60 80 100 120 140 160 180 200 220 240 260
Threshold
T
Expected number of infected nodes
Simulation
Staniford model
α N
Our model
I ( p , T )
Figure 2: The relation between the result of computer
simulation and the results of both
N
α
in the Staniford
model and I(p,T) in our model.
Although the condition that I(p,T) is finite
becomes
),,(
1
TpTE
< 1, we have not gotten the
condition that satisfies I(p,T) < 2. Here we want to
get the condition for
),,(
1
TpTE
that satisfies I(p,T)
< 2 (i.e., the number of new infected nodes is less
than one). As a result, the condition
),,(
1
TpTE
< 1/2
is obtained from Equation (6). This means that the
expected number of infected nodes from a single
victim must become less than 1/2 in order that the
number of infected nodes is suppressed to less than
two.
7 CASE STUDY
The vulnerable-node density changes within an
enterprise network. It is said that the higher the
vulnerable-node density in the network becomes, the
easier infection spreading becomes. Our model can
determine the relation between the number of
subnets, the upper bound of T, and I(p,T). Note that
SECRYPT 2007 - International Conference on Security and Cryptography
22

the same number of vulnerable hosts is distributed
within the enterprise network. The relation is
described concretely as follows.
Table 1 gives the relation between the number of
subnets of class-B and the upper bound of T to
prevent a Sasser worm from spreading when I(p,T) <
2 is satisfied. We assume that the number of new
infected nodes is a constant value like 3277 (as
explained in Section 5). The more the number of
subnets of class-B increases, the lower the
vulnerable node density becomes. As a result, the
upper bound of threshold can be set higher. For
example, when 3277 hosts with T are distributed
within the enterprise network, we set T = 39 if there
is one subnet of class-B, and we set T = 79 if there
are two subnets of class-B.
Table 1: The relation between the number of subnets of
class-B (the number of vulnerable nodes is constant at
3277) and the upper bound of T to prevent a Sasser worm
when I(p,T) < 2.
Number of
subnets of
class-B
N
Number of
vulnerable hosts in
each subnet of
class-B
Upper bound
of T
1 3277 3277 39
2 3277 1638 79
3 3277 1092 118
4 3277 819 157
5 3277 655 196
From the viewpoint of preventing infection from
spreading, it is important to expand the number of
subnets and to lower the density of the host when the
same host is put in an enterprise network. We
quantitatively show how much threshold we should
be set according to the number of class-B subnets. If
the upper bound of the threshold can be raised while
suppressing worm spreading, the times for both
detection and containment can be increased.
Accordingly, the accuracy of detection can be
expected to be improved. It is a big contribution to
the countermeasure of scanning malware in the
enterprise network to know how much high the
threshold we should be set by according to the
number of subnets.
8 SUMMARY
We proposed a “combinatorics proliferation model”
based on discrete mathematics (combinatorics) and
derived the threshold T for satisfying I(p,T) < u (u is
a small number), where I(p,T) is the expected
number of infected hosts. We confirmed that the
results from this model precisely correspond to the
result of computer simulation of malware spreading
when
),,(
1
TpTE
< 1 is satisfied.
Moreover, we clarified the relation between the
number of subnets in an enterprise network and the
upper bound of the threshold when the same number
of hosts is distributed within the network. For
example, when 3277 hosts are distributed within the
network, we set T = 39 if there is one class-B subnet,
and we set T = 79 if there is two class-B subnets.
In a practical enterprise network, it is important
that a suitable countermeasure is executed in the
early stages of infection. Our model can
appropriately express the number of infected hosts in
the early stages of infection, and can derive the
effective threshold to contain the scanning malware
in the enterprise network to a few infections only.
REFERENCES
Barford, P., Yegneswaran, V., 2006. An Inside Look at
Botnets. Special Workshop on Malware Detection,
Advances in Information Security.
Nikoloski, Z., Deo, N., Kucera, L., 2006. Correlation
Model of Worm Propagation on Scale-Free Networks.
Complexus, 2006(3):169-182.
Chen, Z., Gao, L., Kwiat, K., 2003. Modeling the Spread
of Active Worms. In Proceedings of IEEE INFOCOM.
Staniford, S., 2004. Containment of Scanning Worms in
Enterprise Networks. Journal of Computer Security.
Moore, D., Shannon, C., Voelker, G. M., Savage, S., 2003.
Internet Quarantine: Requirements for Containing
Self-Propagating Code, In Proceedings of IEEE
INFOCOM.
Zou, C. C., Gao, L., Gong, W., Towsley, D., 2003.
Monitoring and Early Warning for Internet Worms. In
Proceedings of the 10th ACM Conference on
Computer and Communication Security, pages 190-
199. ACM Press.
Williamson, M. M., 2002. Throttling Viruses: Restricting
propagation to defeat malicious mobile code. In
Proceedings of the 18th Annual Computer Security
Applications Conference.
Whyte, D., Kranakis, E., Oorschot, P. C., 2005. DNS-
based Detection of Scanning Worms in an Enterprise
Network. In Proceedings of the 12th Annual Network
and Distributed System Security Symposium.
Whyte, D., Oorschot P. C., Kranakis, E., 2005. Detecting
Intra-enterprise Scanning Worms based on Address
Resolution. In Proceedings of the 21st Annual
Computer Security Applications Conference.
Bakos, G., Berk, V. H., 2002. Early detection of Internet
worm activity by metering ICMP destination
unreachable messages. In Proceedings of the SPIE
Aerosense.
A COMBINATORICS PROLIFERATION MODEL TO DETERMINE THE TIMING FOR BLOCKING SCANNING
MALWARE
23

Weaver, N., Staniford, S., Paxson, V., 2004. Very Fast
Containment of Scanning Worms. In Proceedings of
the13th USENIX Security Symposium.
Jung, J. Paxson, V., Berger, A. W., Balakrishnan, H., 2004.
Fast portscan detection using sequential hypothesis
testing. In Proceedings of the IEEE Symposium on
Security and Privacy.
Schechter, S., Jung, J., Berger, A. W., 2004. Fast
Detection of Scanning Worm Infections. In
Proceedings of the 7th International Symposium on
Recent Advances in Intrusion Detection.
Omote, K., Torii, S., 2003. A Detection Method of
Worms’s Random Scanning. In Proceedings of the
CSS2003. (Japanese).
SECRYPT 2007 - International Conference on Security and Cryptography
24
