A QUERY UNIT FOR THE IPSEC DATABASES

Alberto Ferrante, Sathish Chandra

ALaRI, Faculty of Informatics, University of Lugano, Lugano, Switzerland

Vincenzo Piuri

DTI, University of Milano, Milano, Italy

Keywords:

IPSec, IPSec Databases, IPSec accelerator, SADB, SPD.

Abstract:

IPSec is a suite of protocols that adds security to communications at the IP level. Protocols within IPSec make

extensive use of two databases, namely the Security Policy Database (SPD) and the Security Association

Database (SAD). The ability to query the SPD quickly is fundamental as this operation needs to be done for

each incoming or outgoing IP packet, even if no IPSec processing needs to be applied on it. This may easily

result in millions of query per second in gigabit networks.

Since the databases may be of several thousands of records on large secure gateways, a dedicated hardware

solution is needed to support high throughput. In this paper we discuss an architecture for these query units,

we propose different query methods for the two databases, and we compare them through simulation. Two

different versions of the architecture are presented: the basic version is modiﬁed to support multithreading.

As shown by the simulations, this technique is very effective in this case. The architecture that supports

multithreading allows for 11 million queries per second in the best case.

1 INTRODUCTION

IPSec is a suite of protocols that adds security to

communications at the IP level. This suite of pro-

tocols is becoming more and more important as it is

included as mandatory security mechanism in IPv6.

IPSec is mainly composed of two protocols, Authenti-

cation Header (AH) and Encapsulating Security Pay-

load (ESP). The former allows authentication of each

IP datagram’s selected header ﬁelds or – depending

on the operational mode that has been selected – of

the entire IP datagram. The latter allows encryption –

and optionally authentication – of the entire IP data-

gram or of the IP payload, depending on the opera-

tional mode that has been selected, namely the trans-

port and the tunnel modes. The former was designed

for being used in host machines, the latter is for se-

cure gateways. In tunnel mode the entire original IP

datagram is processed; the result becoming the data

payload of a new IP datagram with a new IP header.

In transport mode only parts of the original IP data-

gram are processed (e.g., the data payload for the ESP

protocol) and the original IP header is kept with some

small modiﬁcations. Through encryption, authentica-

tion, and other security mechanisms included in IPSec

(e.g., anti-reply), data conﬁdentiality, data authenti-

cation, and peer’s identity authentication can be pro-

vided (Kent and Atkinson, 1998c) (Kent and Atkin-

son, 1998a) (Kent and Atkinson, 1998b) (Harkins and

Carrell, 1998) (Kent, 2005a) (Kent, 2005b). IPComp,

a protocol for data payload compression, is also in-

cluded in the IPSec suite of protocols (Shacham et al.,

1998).

Two databases are involved in processing IP traf-

ﬁc. These two databases are the Security Pol-

icy Database (SPD) and the Security Association

Database (SAD). The former speciﬁes the policies

that determine the disposition of all IP trafﬁc. The lat-

ter contains parameters that are associated with each

SA. The SPD needs to be queried for each packet

traversing the IP communication layer. Upon the con-

formance with the SPD, an IP datagram needs to be

processed by IPSec, the SAD also needs to be queried

to discover the parameters of the considered SA. In-

formation about whether a SA has already been cre-

ated or not are contained in the SPD. If a suitable SA

133

Ferrante A., Chandra S. and Piuri V. (2007).

A QUERY UNIT FOR THE IPSEC DATABASES.

In Proceedings of the Second International Conference on Security and Cryptography, pages 133-139

DOI: 10.5220/0002119901330139

 SciTePress

for the IP datagram to be processed does not exist,

it needs to be established using the Internet Key Ex-

change protocol (IKE) (Harkins and Carrell, 1998).

IPSec is often used to create Virtual Private Net-

works (VPNs). A VPN is an extension of a pri-

vate network on a public network (e.g., the Internet)

(Feghhi and Feghhi, 2001) (Yuan and Strayer, 2001).

The extended part of the network logically behaves

like a private one. Typical usage scenarios for VPNs

are: remote user access to a private LAN over the

Internet and connection of two private networks. In

these cases a virtual secure channel needs to be cre-

ated, respectively, from the user’s PC to the LAN pub-

lic access point or from one LAN to the other. Private

network public access points are called secure gate-

ways. A secure gateway is a router or a router/ﬁrewall

also running a VPN-enabled software (e.g., an IPSec

implementation). All the trafﬁc within the LAN is

usually not protected, while the trafﬁc going out or

coming in the LAN through the secure gateway is pro-

tected by some security mechanisms.

IPSec has proved to be computationally very in-

tensive (Miltchev et al., 2002) (Ariga et al., 2000)

(Alberto Ferrante et al., 2005b). Thus some hardware

acceleration is needed to support large network band-

widths, as may be required even in small secure gate-

ways. Cryptography is often believed to be the only

part of the IPSec suite that requires a large amount of

resources. In the reality, IPSec implementations also

require to perform other operations, such as header

processing and IPSec database querying. The lat-

ter may become a bottleneck for the system as it re-

quires to be done at least once for each IP packet that

is traversing the system. In fact, the SPD needs to

be queried for each IP packet, the SAD needs to be

queried only when IP packets are determined to re-

quire some IPSec processing. Considering an overall

trafﬁc of 1Gbit/s, and the worst possible case (i.e. the

packets are received at the maximum possible rate and

their size is the smallest possible one, that is 40bytes),

the SPD needs to be queried 3, 355, 443 times per sec-

ond. On average, queries are usually fewer then one

million per second in a normal system operating at the

same speed. In any case, an efﬁcient database query

unit is therefore vital to achieve high performance

In this paper we present a study about a database

query unit for the SAD and the SPD databases; in the

best conﬁguration this unit is able to perform 11 mil-

lion of queries per second. Section 2 describes the

different possible architectural solutions and the dif-

ferent techniques that can be adopted for the database

query. This database unit has been taught to be used

in IPSec accelerators such as the one shown in (Al-

berto Ferrante and Vincenzo Piuri, 2007). Section 3

presents the model for the simulations and the ob-

tained results. Section 4 shows an improvement of

the proposed architecture and the related simulations

and results. Section 5 shows a study of the optimal

architecture when an area–delay cost function is con-

sidered.

2 SYSTEM ARCHITECTURE

AND DATABASE QUERY

TECHNIQUES

As shown in Figure 1, the main databases are stored

in an off-chip memory and are accessed through on-

chip caches, one for the SAD and the other one for

the SPD. This structure remains the same for both

hardware and software implementations of the query

unit. An off-chip memory for the databases provides

ﬂexibility at the cost of diminishing performance. In

fact, an external memory provides ease expandability;

on the opposite, an internal memory delivers perfor-

mance that cannot be reached by external ones. The

main goal of the cache is to mask the access to the

external memory thereby reducing the access time. In

our case the total query time is not only given by the

physical access time of the external memory, but also

by the lookup time of the records that are stored in it.

The two caches are implemented as two Content

Addressable Memories (CAMs) (Kostas Pagiamtzis,

nd) (Pagiamtzis and Sheikholeslami, 2003). With this

kind of memory cells can be addressed by a part of

their contents. Therefore, they provide a good way

to implement lookup tables. For this reason they are

often used in routers and network processors (see, for

example, (Prashant Chandra et al., 2003)). The two

databases can be implemented in external memory ei-

ther in shared or unshared fashion; even if the mem-

ory is physically shared, the databases should be con-

sidered as logically separated.

When a new packet arrives, the database is ﬁrst

queried in the cache; if a cache miss occurs, then a

query is performed in the main memory. Hence, the

worst case search time for a record is the sum of the

time required to perform a query in cache and the time

to perform a query in the main database. The best

case search time is deﬁned as the time to do a query

in the cache. Depending on the implementation of the

database query unit, the memory may need more than

one port. Later in this section we discuss different

methods to query the databases and different cache

replacement techniques.

SECRYPT 2007 - International Conference on Security and Cryptography

134

DB Query

Unit

Memory

SPD

Cache

SAD

Cache

On Chip

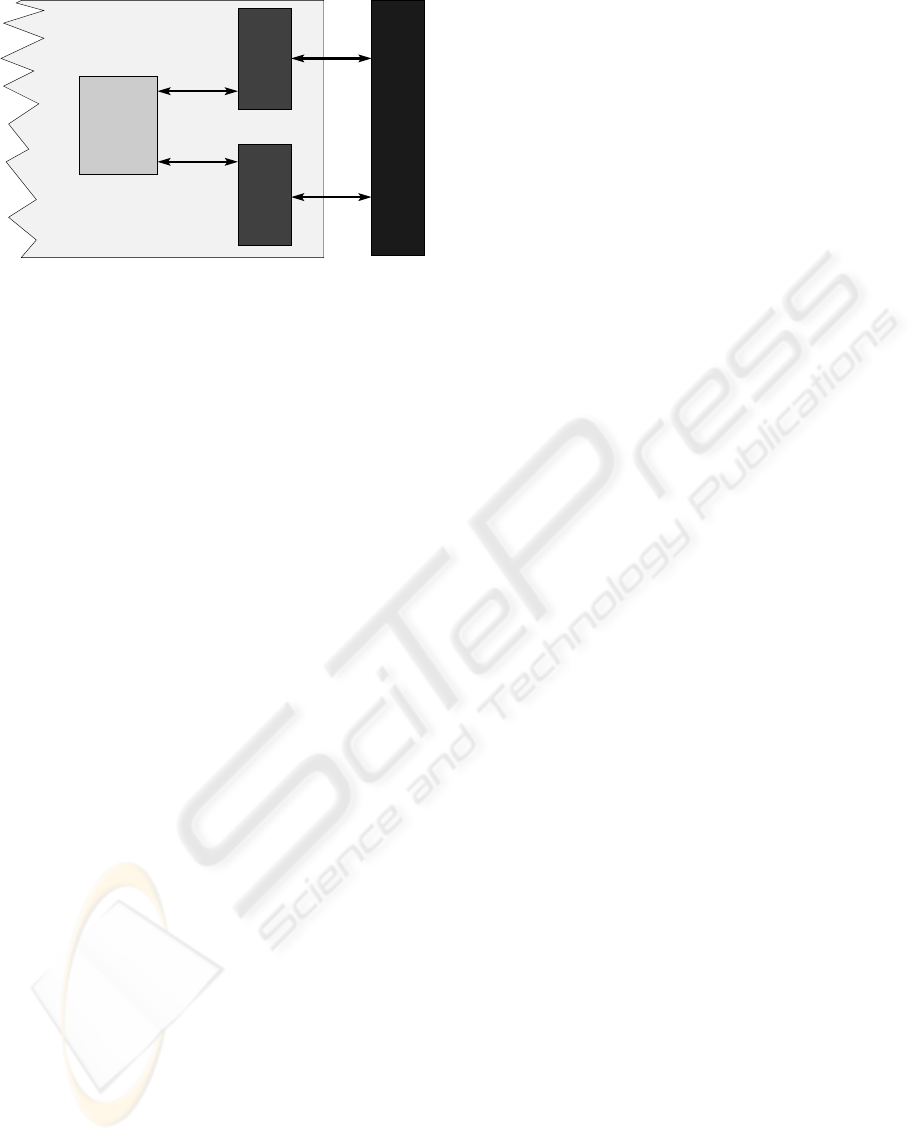

Figure 1: Core of the database query unit.

2.1 Size of the Records

SPD record size is variable. In fact, several conﬁgura-

tion proposals can be stored in each one of them. All

of these proposals are used only during the SA nego-

tiation phase and not during the normal system oper-

ation. Therefore, the SPD records can be divided into

two parts: the ﬁrst one containing the essential infor-

mation (i.e., the source and destination IP addresses,

the direction, the policy, the pointers to the SAs, and

the pointer to the ﬁrst element of the list of proposals);

the second one containing the list of proposals. The

ﬁrst part is cached; the second one – that is used only

during SA negotiations – is stored into a special area

of the external database memory. The size of the part

of the record that needs to be cached can be estimated

in 232 bits.

SAD records contain the settings of the protocols

and of the algorithms, along with the keys for the

cryptographic algorithms. An estimation of the size

of each SAD record is of 792 bits.

2.2 Main Database Lookup Techniques

Two different techniques for database lookup have

been considered in this work: the Linear LookUp

Technique (LLUT) and the Partitioned LookUp Tech-

nique (PLUT) (Henry Hong-Yi Tzeng and Tony Przy-

gienda, 1999).

By using the LLUT technique, records are queried

in a linear fashion. This is the simplest technique to

implement, but it is very slow.

In the PLUT technique, the search in the database

is performed by using a tag that is obtained by sum-

ming up the ﬁrst three decimal digits of the source

IP address. When IPv4 addresses are considered,

each database is divided into 10 sections. For ex-

ample, a record containing a source IP address that

is 192.168.8.1 should be placed in the DB space 3

(1 + 9 + 2 = 12 and 1 + 2 = 3). Inside each sub-

space the search is performed linearly. This technique

should provide far better speed performance than the

LLUT, but it also has a drawback: packets may tend

to concentrate in certain memory partitions. There-

fore, some of these will remain almost empty; others

will be overutilized.

2.3 Cache Replacement Policies

Two different cache replacement policies have been

considered: First In First Out (FIFO) and Least Re-

cently Used (LRU) (John Hennessy and Dave Patter-

son, 2002, p. 378). When the cache is full, the ﬁrst

loaded record is replaced, according with the FIFO

policy. By considering the LRU policy, the least re-

cently used record in the cache is replaced. Before

replacing the record in the cache, the record is written

back in the memory just if some modiﬁcations have

occurred to it.

When the SAD is considered, it may happen that

the database memory (or a memory segment) be-

comes full. Two different actions can be taken in this

situation: no new SA creation is allowed, or the old-

est SAs are discarded and the creation of new ones is

allowed. In this work we adopted the second solution,

but in a real life system the behavior to adopt in this

case should be speciﬁed in the system security policy.

3 SIMULATIONS

The described architecture, along with the different

parameters, have been simulated by using a SystemC

model. The SystemC language (Sys, nd) was selected

to describe our model as it allows for speciﬁcation of

hardware-software systems. Delays associated with

the operations can be easily modeled with this lan-

guage. The next subsections show the model and the

results of the simulations.

3.1 Description of the Model

Our SystemC model provides the ability to simulate

the different lookup techniques and cache replace-

ment methods described above, along with different

cache sizes. With this model the delays of the differ-

ent operations that are performed during the database

query phase are simulated.

Inputs used for the simulations are taken from net-

work trace ﬁles, e.g., the ones provided on the Internet

Trafﬁc Archive (ITA, nd) website. These ﬁles con-

tain long traces obtained by using the tcpdump tool

(tcp, nd) on various networks. We have considered a

A QUERY UNIT FOR THE IPSEC DATABASES

135

Table 1: Sizes of the caches in number of elements and in

bytes.

Number of SPD size SAD size

elements [bytes] [bytes]

64 1,856 6,336

128 3,712 12,672

256 7,424 25,344

512 14,848 50,688

1024 29,696 101,376

2048 59,392 202,752

4096 Not used 405,504

trace taken from a 2Mbit/s gateway and that contains

about 3.8 million TCP packets. For our simulations

we used only 1 million of these packets to avoid long

simulations. Among the different parameters in the

trace ﬁle we considered source and destination IP ad-

dresses thereby ignoring the timestamps and all the

other information contained in the ﬁle.

During SPD query, only some parts of the SPD

records need to be fetched from memory to identify a

possible match; the size of this part is 203 bits. Dur-

ing SAD query, only some parts of the SAD records

need to be fetched from memory to identify a possible

match; the size of this part is 129 bits. The remaining

parts of the records need to be fetched only when a

match is found.

Some memory structure need to be used for imple-

menting FIFO and LRU policies. These structures,

which are saved in an on-chip memory, are updated

while data are fetched from the memory; therefore,

their management does not introduce any further de-

lay.

During the simulations, an access time of 7ns

has been considered for the CAMs as suggested in

(Kostas Pagiamtzis, nd); an access time of 30ns has

been used for the memory. A read/write time of 10ns

has been used for all the memory transfers (on a 64-bit

bus) after the ﬁrst one.

3.2 Simulation Results

The simulations provide different results: the average

time per query and the hit and replacement rates of

the caches. The average time per query is computed

as the total simulated time divided by the number of

requests that have been processed in such a time.

Table 1 shows the correspondence between cache

sizes in number of elements and in bytes for the SAD

and for the SPD. All of these cache sizes have been

simulated; they have been combined with the LLUT

and the PLUT query techniques and with the FIFO

and the LRU replacement methods. All the possible

combinations of these parameters result in 168 differ-

512

1024

1536

2048

2560

3072

3584

4096

4608

0 8 16 24 32 40 48 56 64 72 80 88

Cache sizes [number of elements]

Configuration number

SPD cache size

SAD cache size

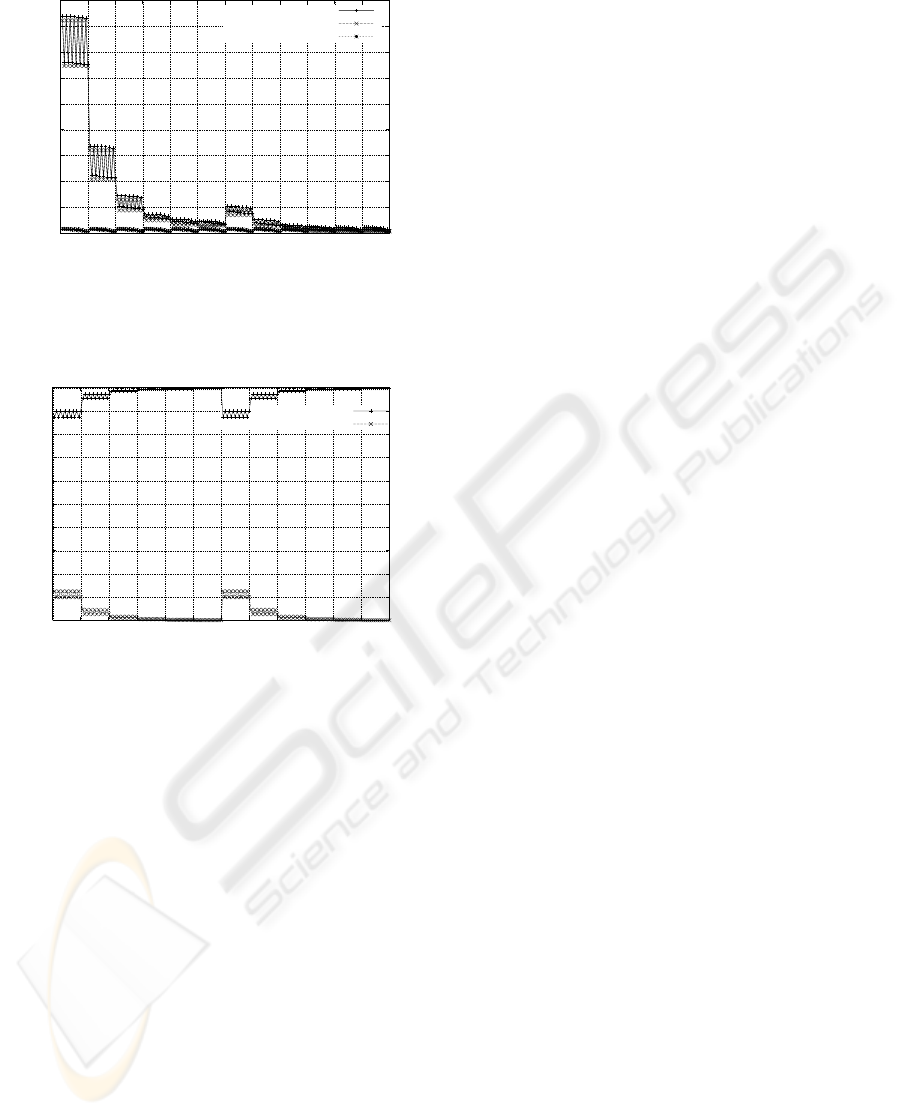

Figure 2: Cache sizes for conﬁgurations 1–84.

1e+06

2e+06

3e+06

4e+06

5e+06

6e+06

7e+06

8e+06

0 14 28 42 56 70 84 98 112 126 140 154 168

0 84 168

Number of queries per second

Config. number

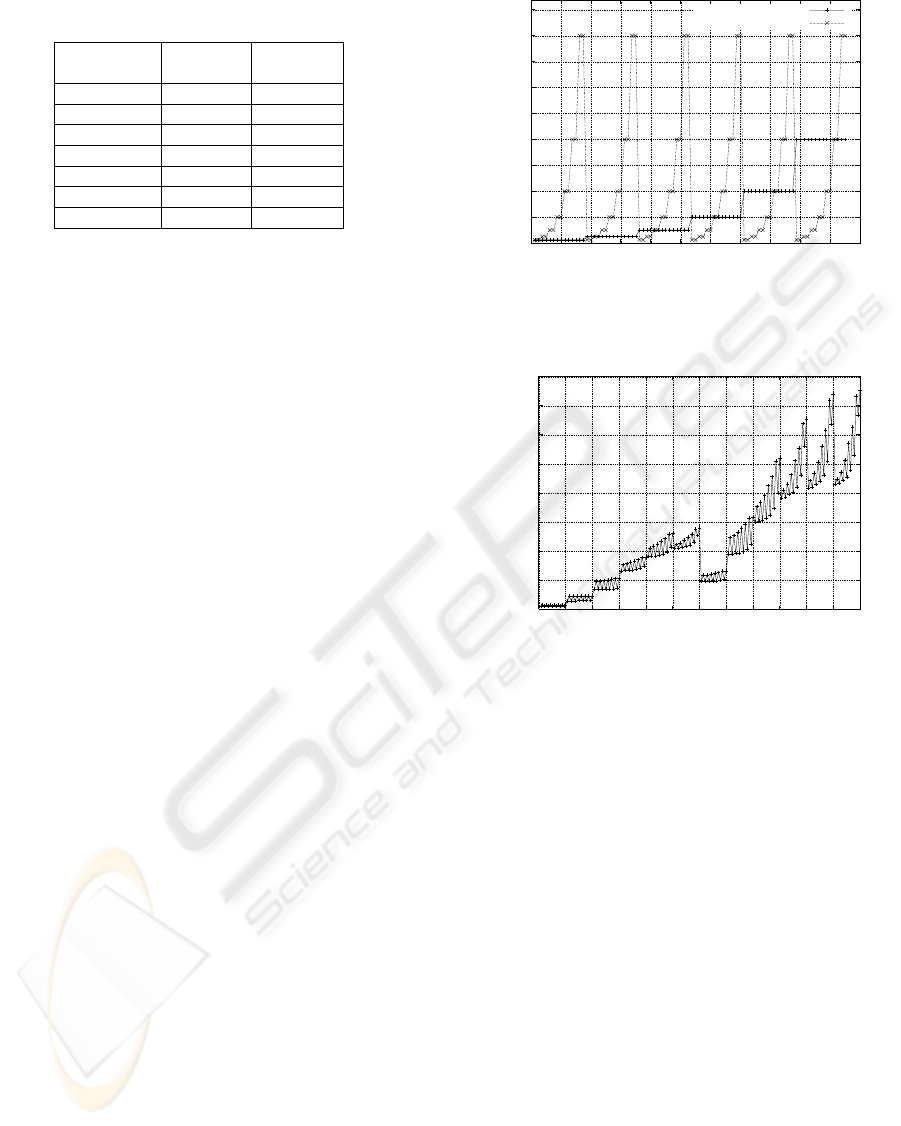

Figure 3: Average number of queries per second.

ent system conﬁgurations. In the ﬁrst 84 conﬁgura-

tions the LLUT technique is considered. Conﬁgura-

tions from 85 to 168 are similar to the ﬁrst 84 ones;

in these conﬁgurations the PLUT technique is consid-

ered instead of the LUT one. Figure 2 shows the dif-

ferent SPD and SAD cache sizes that have been con-

sidered in system conﬁgurations from 1 to 84; odd

conﬁguration numbers identify the use of the FIFO

cache replacement policy; even conﬁguration num-

bers are used to represent the conﬁgurations in which

the LRU policy is used.

The average number of queries that can be per-

formed in one second is the inverse of the average

query time (i.e., the average time that is required to

complete a query). Figure 3 shows the average num-

ber of queries that can be performed in one second

for the different conﬁgurations. Some of the fastest

solutions (i.e., the ones adopting the PLUT technique

and 1024-2048 elements in the SPD cache) provide

the capability to perform from 4 to 7.5 million of

queries per second. This speed is good enough to sup-

port a total bandwidth of 7-8Gbit/s. If, as previously

SECRYPT 2007 - International Conference on Security and Cryptography

136

1000

2000

3000

4000

5000

6000

7000

8000

9000

0 14 28 42 56 70 84 98 112 126 140 154 168

0 84 168

Query time [ns]

Config. number

Query time

SPD query time

SAD query time

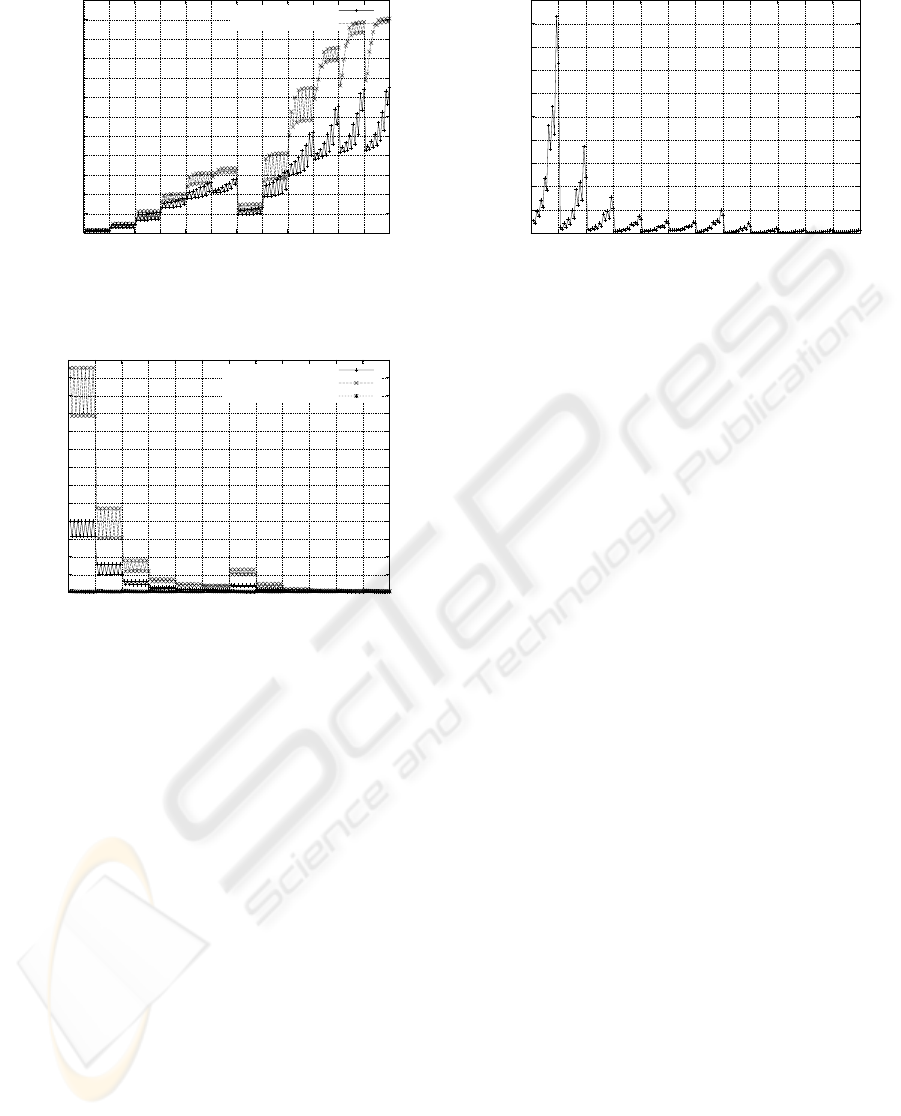

Figure 4: Average global query time and partial query time

of the SPD and the SAD.

100

0 14 28 42 56 70 84 98 112 126 140 154 168

0 84 168

Hit rate [%], Replacement rate [%]

Config. number

hit rate

replacement rate

Figure 5: Hit and replacement rates for the SPD cache.

proposed, two database query units are adopted, full

duplex communications at 7Gbit/s can be easily sup-

ported. Figure 4 shows the average global query time

as well as the SPD and SAD average query times.

SPD query time gives the major contribution to the to-

tal query time for slow conﬁgurations. In fast conﬁg-

urations, the query time of both SAD and SPD plays a

major role in total query time. The average query time

noticeably decreases for increasing sizes of the SPD

cache. The adoption of the PLUT technique provides

a large reduction of the average query time. The LRU

replacement policy provides better results in terms of

query time. The difference in performance between

the FIFO and the LRU policies is quite noticeable.

Figure 5 shows the hit and the replacement rates

of the SPD cache obtained by considering all the dif-

ferent system conﬁgurations. This graph helps in ex-

plaining the results shown previously: larger SPD

caches provide a hit rate close to 100% (99.7% for the

2048-element cache), therefore the SPD query time

becomes close to the query time in the cache.

A similar behavior is observed when the SAD

cache is considered, larger caches provide best results

in terms of performance. Caches larger than 1,024 el-

ements provide better results (the hit rate is of 99.4%

for 4096-element caches). The LRU technique gives

better results over the FIFO for both the SAD and the

SPD caches.

4 FURTHER IMPROVING SPEED:

PARALLELIZING QUERIES

When a cache miss occurs, the DB query unit must

query the database that is contained in the main mem-

ory. This is a time consuming operation that could

lead to a long waiting time both for the packet that

is under processing and for all the other incoming

packets. One natural extension to the architecture

presented in this section, is to introduce multithread-

ing: when a query in the main database starts, other

queries (one at a time) related to the subsequent pack-

ets can be started too. If these queries produce a

cache hit, they will be served much faster than in the

non-multithreaded system. If they produce another

cache miss, their main database query requests will

be queued and served after the current one. This tech-

nique has the disadvantage of requiring a memory to

store the requests under processing and to queue the

processing requests. This disadvantage is highly com-

pensated by far better speed performance, especially

when queries in main DB are much slower than the

ones in cache.

In some cases the multithreaded queries cannot be

done: when a query related to a speciﬁc SA is already

being performed either in the SPD or in the SAD, no

new queries related to the same SA should be started.

This is due to problems that possible DB and cache

modiﬁcations may cause. In this case the new request,

along with all the subsequent ones, is made to wait

until the current query is completed.

4.1 Simulations

The model presented above has been modiﬁed to in-

clude multithreading. Figure 6 shows a comparison

of the number of queries per second that can be per-

formed by the serial and by the parallel units. As

shown in the ﬁgure, the parallel architecture always

outperforms the serial one. The parallel architec-

ture provides the ability to perform up to 11 million

queries per second, 50% more than the serial one.

The query time for the SPD and the SAD, along

with the global query time, are shown in Figure 7.

A QUERY UNIT FOR THE IPSEC DATABASES

137

1e+06

2e+06

3e+06

4e+06

5e+06

6e+06

7e+06

8e+06

9e+06

1e+07

1.1e+07

1.2e+07

0 14 28 42 56 70 84 98 112 126 140 154 168

0 84 168

Number of queries per second

Config. number

simple

multithreaded

Figure 6: Average number of queries per second.

2000

4000

6000

8000

10000

12000

14000

16000

18000

20000

22000

24000

26000

0 14 28 42 56 70 84 98 112 126 140 154 168

0 84 168

Query time [ns]

Config. number

Query time

SPD query time

SAD query time

Figure 7: Average number of queries per second.

The global query time is obtained by dividing the to-

tal simulation time by the number of processed pack-

ets, hence this time is less than the sum of the query

times of the SPD and of the SAD. The SPD query

time is much greater than in the serial architecture. In

fact, in some cases packets need to wait in the input

queue before being processed. In any case, the global

query time is smaller when the parallel architecture

is adopted. In fact, the query time of different pack-

ets overlap in this case, thus providing better global

performance.

5 OPTIMIZING THE

AREA–DELAY PRODUCT

In the previous sections, the proposed architecture has

been optimized only for speed. In many cases we may

need to optimize the architecture by minimizing some

cost functions such as the area–delay product. This

approach is similar to the one adopted in (Alberto Fer-

rante et al., 2005a).

0.25

0.5

0.75

1.25

1.5

1.75

2.25

2.5

0 14 28 42 56 70 84 98 112 126 140 154 168

0 84 168

Area [cm

] * Delay [s]

Config. number

Figure 8: Area–Delay product for the multithreaded archi-

tecture.

Figure 8 shows the area–delay product we have

obtained for the multithreaded architecture. Only

SAD and SPD caches have been considered for area

measurements. These values have been computed by

means of CACTI (Norm Jouppi et al., nd), by consid-

ering a 0.13µm technology; the obtained sizes (in cen-

timeters square) have been incremented by 50% to ac-

complish the fact that CAMs are used instead of stan-

dard memories. The considered delay (in seconds)

is the total simulated time for processing 1, 000, 000

datagrams. Our results emphasizes the fact that the

conﬁguration number 114 minimizes the area–delay

product, in which SPD cache size is 256 and SAD

cache size is 64 elements. The replacement policy

employed is LRU and the memory lookup techinque

is PLUT. This conﬁguration allows to query 6.2 mil-

lion of queries per second; the fastest conﬁguration

allows for 11 million of queries per second. In gen-

eral, all the conﬁgurations with small SAD caches al-

lows to obtain low values for the cost function. In fact,

SAD records are bigger than SPD ones, therefore the

area of the SAD cache has more inﬂuence on the cost

function value than the SPD cache area.

Similar results have been obtained for the non-

multithreaded version of the system, but in that case

we have to consider that the control unit will be less

complex than in the multithreaded case.

6 CONCLUSIONS AND FUTURE

WORK

In this paper we presented an architecture that pro-

vides the ability to query the IPSec databases efﬁ-

ciently. We also developed some simulations to es-

timate the performance that can be obtained by us-

SECRYPT 2007 - International Conference on Security and Cryptography

138

ing the proposed architecture. An improvement of the

architecture, namely the adoption of multithreading,

has also been proposed. The multithreaded architec-

ture provides the ability to perform up to 11 million

queries per second.

Future work will be put into developing better

simulations and to derive more accurate results. Mul-

tithreading may be improved to allow out of order

processing of the queries. This should allow to fur-

ther improving the performance when more than one

packet belonging to the same SA needs to be pro-

cessed.

REFERENCES

(n.d.). The Internet Trafﬁc Archive. http://ita.ee.lbl.gov/.

(n.d.). SystemC Ofﬁcial Website. http:/www.systemc.org/.

(n.d.). TCPDUMP Public Repository.

http://www.tcpdump.org/.

Alberto Ferrante, Giuseppe Piscopo, and Stefano Scalda-

ferri (2005a). Application-driven Optimization of

VLIW Architectures: a Hardware-Software Ap-

proach. In Real-Time and Embedded Technology Ap-

plications, pages 128–137, San Francisco, CA, USA.

IEEE Computer Society.

Alberto Ferrante and Vincenzo Piuri (2007). High-level Ar-

chitecture of an IPSec-dedicated System on Chip. In

NGI 2007, Trondheim, Norway. IEEE Press.

Alberto Ferrante, Vincenzo Piuri, and Jeff Owen (2005b).

IPSec Hardware Resource Requirements Evaluation.

In NGI 2005, Rome, Italy. EuroNGI.

Ariga, S., Nagahashi, K., Minami, M., Esaki, H., and Mu-

rai, J. (2000). Performance Evaluation of Data Trans-

mission Using IPSec Over IPv6 Networks. In INET,

Yokohama, Japan.

Feghhi, J. and Feghhi, J. (2001). Secure Networking with

Windows 2000 and Trust Services. Addison Wesley.

Harkins, D. and Carrell, D. (1998). The Internet Key Ex-

change (IKE) – RFC2409. IETF RFC.

Henry Hong-Yi Tzeng and Tony Przygienda (1999). On

Fast Address-Lookup Algorithms. IEEE Journal on

Selected Areas in Communications, 17(6):1067–1082.

John Hennessy and Dave Patterson (2002). Computer Ar-

chitecture: a Quantitative Approach. Morgan Kauf-

mann Pub, 3rd edition.

Kent, S. (2005a). IP Authentication Header – RFC4302.

IETF RFC.

Kent, S. (2005b). IP Encapsulating Security Payload (ESP)

– RFC4303. IETF RFC.

Kent, S. and Atkinson, R. (1998a). IP Authentication

Header – RFC2402. IETF RFC.

Kent, S. and Atkinson, R. (1998b). IP Encapsulating Secu-

rity Payload (ESP) – RFC2406. IETF RFC.

Kent, S. and Atkinson, R. (1998c). Security Architecture

for the Internet Protocol – RFC2401. IETF RFC.

Kostas Pagiamtzis (n.d.). CAM Primer.

http://www.eecg.toronto.edu/ pa-

giamt/cam/camintro.html.

Miltchev, S., Ioannidis, S., and Keromytis, A. D. (2002).

A Study of the Relative Costs of Network Security

Protocols. Monterey, CA. USENIX Annual Techni-

cal Program.

Norm Jouppi, Glenn Reinman, Premkishore Shiv-

akumar, and Steve Wilton (n.d.). CACTI.

http://research.compaq.com/wrl/people/jouppi/CACTI.html.

Pagiamtzis, K. and Sheikholeslami, A. (2003). Pipelined

Match-lines and Hierarchical Search-lines for Low-

power Content-addressable Memories. In IEEE Cus-

tom Integrated Circuits Conference, pages 383–386.

Prashant Chandra, Sridhar Lakshmanamurty, and Raj Ya-

vatkar (2003). Intel Corporation – Intel IXP2400 Net-

work Processor: A Second-Generation Intel NPU. In

Crowley, P., Franklin, M. A., Hadimioglu, H., and

Onufryk, P. Z., editors, Network Processor Design,

volume 1, chapter 13, pages 259–275. Morgan Kauf-

mann.

Shacham, A., Monsour, R., Pereira, R., and Thomas, M.

(1998). IP Payload Compression Protocol (IPComp)

– RFC2393. IETF RFC.

Yuan, R. and Strayer, W. T. (2001). Virtual Private Net-

works. Addison Wesley.

A QUERY UNIT FOR THE IPSEC DATABASES

139
