COMBINED DATA MINING APPROACH FOR INTRUSION

DETECTION

U. Zurutuza

, R. Uribeetxeberria, E. Azketa, G. Gil, J. Lizarraga and M. Fernández

Computer Science Department, Mondragon University, Mondragon (Gipuzkoa), Spain

Keywords: Computer security, intrusion detection, alert correlation, data mining.

Abstract: This paper presents the results of the project MIAU, a data mining approach for intrusion detection alert

correlation. MIAU combines different data mining techniques in order to properly solve some existing

problems in the management and analysis of alerts generated by actual intrusion detection systems. Some of

these data mining methods and their application to MIAU are introduced in this paper. Experiments have

been carried out with the purpose of demonstrating the validity of the proposed model and some conclusions

about them are extracted. Finally, some possible improvements for the system and further work are exposed.

1 INTRODUCTION

Actual intrusion detection systems present some

problems like the generation of a large amount of

different alerts which analysis is in some cases

unviable. Other well known problem is the

generation of false positives which distort the real

vision of the malicious network traffic. Nowadays,

the approach to solve these problems undertakes the

elimination of the false positives, as well as the

correlation, clustering and fusion of positive alerts.

The goal is offering a clearer vision of the attacks or

intrusion attempts responsible of their generation.

The MIAU project focuses on the area of alert

clustering and fusion. The goal of the project is

increasing the semantic level of alerts (transforming

them into meta-alerts) and their later chronological

reordering to identify global attack scenarios. MIAU

automates all the process by data mining techniques.

2 RELATED WORK

The scientific community has worked on the

problems exposed previously using different

techniques.

Ning et al. have been working on alert

correlation for several years. Their work consists on

This author was supported in part by grant No. BFI 05.454 awarded by

the Department of Education, Universities and Research of the Basque

Government.

generating hyper-alerts based on a knowledge base

with prerequisites (pre-condition) and consequences

(post-condition) of attacks (Ning, Ciu, Reeves,

2002). They also provide a visualisation mechanism,

but the knowledge base must be previously

generated, while the system of this paper does not

need any previous knowledge.

(Debar, Wespi, 2001) implemented a method to

aggregate and correlate alarms to show them in a

more condensed view. They carried out the

correlation by means of duplicates and

consequences.

Similarly, (Cuppens, Miège, 2002) automatically

created correlation rules declared by means of a

predicate logic. They first specify and define offline

logic links between the post-condition of an attack

and the pre-condition of another attack. When a new

alert arrives, it is checked whether it is potentially

correlated with another stored alarm or not.

In a similar approach to the ones seen above,

(Templeton, Levitt, 2000) and (Zhou, Heckman,

Reynolds, Carlson, Bishop, 2007) present a

requires/provides model to define relations between

alarms. All these systems need the definition of a

specific language to model the relations.

Data mining techniques have also been used

before for alert clustering. (Julisch, 2003) clusters

alerts using the AOI (Attribute Oriented Induction)

algorithm, based on pre-configured generalisation

hierarchies of alert attribute values. The target of his

work is to reduce the number of alerts an IDS

triggers, discovering the root cause of the alarms,

Zurutuza U., Uribeetxeberria R., Azketa E., Gil G., Lizarraga J. and Fernández M. (2007).

COMBINED DATA MINING APPROACH FOR INTRUSION DETECTION.

In Proceedings of the Second International Conference on Security and Cryptography, pages 67-73

DOI: 10.5220/0002122800670073

 SciTePress

but it does not provide a mechanism for attack

scenario generation.

Both (Manganaris, Christensen, Zerkle, Hermiz,

2000) and (Treinen, Thurimella, 2006) have applied

association rules algorithms to discover frequent

alarm sets. The formers discover frequent alarm sets

which are then treated as the normal behaviour and

let the analysts focus on the anomalies. The later

ones obtain rules which identify known attack

patterns in alarm streams. (Clifton, Gengo, 2000)

also made use of data mining in order to look for

frequent alarm sequences (using frequent episodes

algorithm) produced by normal operations, and this

way, be able to remove most of the false positives.

None of the works above that use data mining

techniques provide a mechanism for attack scenario

generation.

Another approach closer to the one presented in

this paper is the work done by (Valdés, Skinner,

2001) and (Dain, Cunningham, 2001). Valdés and

Skinner presented the idea of applying probabilistic

similarity measures for the fusion of alerts into

meta-alerts. Later, they try to rebuild the attack

scenario relaxing the similarity measure of the attack

type. Dain and Cunningham proposed an algorithm

that generates scenarios by estimating the

probability of an incoming alert to belong to a

certain scenario. Within data mining techniques used

by them, radial base function networks, multilayer

perceptrons and decision trees were tested, being the

best results obtained by the last one.

3 MODEL DESCRIPTION

3.1 Introduction

MIAU performs the correlation and analysis of alerts

generated by IDSs using a multiple phase method

and some data mining techniques. The first step is

Prepocessing the available data. Prepocessing

consists on extracting only the fields of the alert that

will later be useful for the analysis. The second step

to be taken is the Clustering phase where the whole

alert collection is segmented in distinct clusters

according to the similarities between them. After

that, in the Association stage the similarities

between alerts of the same cluster are deduced.

Finally, each association rule extracted in the

previous step is labelled as a known attack or

network traffic in the Codification and Identification

phase.

All the process is carried out automatically via

data mining techniques supplied by the Java API of

WEKA (http://weka.sourceforge.net/doc) an open

source tool developed by (Frank, Hall, Trigg) and

explained in (Witten, Frank, 2005).

3.2 Preprocessing

Data which is not relevant for the analysis exists

among all the information of the IDS alerts. The

Preprocessing phase consists on isolating the valid

attributes for the analysis.

The task of selecting useful alert attributes has

been tackled by trial and error methods. The

clustering algorithm has been applied over an alert

set which contains a known attack scenario and non

malicious network traffic. Different combinations of

attributes have been tested, and their validity has

been measured by analysing the quality and

homogeneity of the obtained clustering.

The chosen attributes have been the following:

timestamp, source IP, destination IP, IP packet

length, source port and destination port.

3.3 Clustering

The main target of the clustering stage consists on

dividing all the alert set into clusters according to

their attributes. This process seeks getting coherent

and homogeneous clusters according to the

similarities of the alerts that compose each of them.

Clustering offers a high level vision of the

amount of different traffic types existing within the

whole collection of alerts generated by IDSs.

The chosen clustering algorithm has been

Expectation Maximization (EM) (Dempster, Laird,

Rubin, 1977). This algorithm automatically

distributes instances (alerts) into a certain number of

clusters considered the optimum one for that dataset.

EM is a probabilistic model that alternates

between performing an expectation step (E) and a

maximization step (M). E step computes the

expectation of the likelihood by including the latent

variables as if they were observed. On the other

hand, M step computes the maximum likelihood

estimates of the parameters by maximizing the

expected likelihood found on the E step. The

parameters found on the M step are then used to

begin another E step, and the process is repeated

iteratively.

Other clustering algorithms such as K-means and

COBWEB have also been considered (Witten, Frank,

2005). Nevertheless, they have been discarded in

this work. At the beginning, the quantity of existing

different network traffic types is unknown, and that

is why the number and type of generated alerts will

also be unknown. Accordingly, we are not aware of

SECRYPT 2007 - International Conference on Security and Cryptography

the optimum number of needed clusters into which

distribute all those alerts properly. This generates the

necessity of using a clustering algorithm which

automatically calculates the optimum quantity of

clusters, and that is why K-means has been rejected.

Among the clustering algorithms that are able to

accomplish this fundamental requirement, those

which make a probabilistic distribution of the alert

collection ignoring the order the alarms are

introduced in the training phase are preferable. The

reason for this is that the order is altered according

to the network alerts, and these are changing and

unpredictable. COBWEB is rejected because of the

reasons explained above and the EM clustering

algorithm is the selected one.

3.4 Association

The main target of this stage is to automatically get

association rules for each cluster generated in the

Clustering phase.

The association rules algorithm utilised is the

Apriori algorithm (Agrawal, Srikant, 1994).

The association rules extracted for each cluster

have the format defined in Equations 1 and 2.

1. A(R)=>C(S)(U) [U=S/R (S<=R)] (1)

n. A..N(W)=>C..M(X )(Y) [Y=X/W (X<=W)] (2)

Symbol ‘=>’ halves the rule into two sides: the

premise on the left and the consequence on the right.

A, C,… N and M are alert attributes. R, S, W and X

represent number of occurrences of the value of the

attribute/s in the data set. Finally, U and Y define the

confidence of the rule and it is always smaller or

equal to one.

For each rule with confidence value of one, the

algorithm generates another rule with the same

attributes and values but with the premise and the

consequence inverted. As a result, two rules

providing the same information are obtained, being

possible to discard any one of them.

The number of occurrences and attributes which

may be at any side of the rule is diverse. Neither all

rules contain the same attributes nor the quantity of

attributes in each side of the rule has to be the same.

All deduced rules are inserted in a table whose

data fields are alert attributes. They are stored

ignoring the position these attributes have in the

rules obtained by the algorithm. Each record in the

table corresponds to one rule. Repeated rules are

deleted from the table, and summarisation is made

with those ones which, in spite of having different

information, refer to the same sub-collection of

alerts. Thus, the high number of rules deduced by

Apriori algorithm is reduced to just a few ones for

each cluster. Furthermore, some counts are done for

each rule to facilitate the identification of certain

attack types. Table 1 shows examples of them.

Table 1: Example of factors that may indicate certain

attack types.

Factor Possible attack type

Different source IP

addresses quantity

High value may indicate

source IP spoofed DoS or

DDoS attack

Different destination IP

addresses quantity

High value may indicate

IP sweep

Different destination

ports quantity

High value may indicate

port scan

3.5 Codification and Identification

The target of the Codification is to obtain a rule-set

independent of the attribute’s explicit value. This

provides an abstraction level where the relevance of

some attributes does not rely on their value, but in

the way they relate with the rest of attributes, as well

as the frequency this value appears for the different

alerts.

Some alert attributes may contain data fields that

take different values depending on particular

variables such as source, destination, length, etc. For

example: explicit values of source and destination

are not relevant to identify a port scanning. On the

other hand, the number of packets with the same

length coming from the same source and going to

different and consecutive destination port numbers is

and important data. Therefore, attributes whose

explicit value is not important in the task of

identifying the attack pattern will be codified.

A table containing descriptions of codified well

known attacks and normal network traffic patterns is

built manually before the system is run (from now

on referred as ATP table). To do so, the same

attributes used during the alert analysis phase have

been taken into account. These values are codified in

such a way to ease the comparison between the

coded association rules and ATP in order to identify

each rule. Unrelated rules describe alerts generated

by unknown attacks or not characterised network

traffic. These are labelled as suspicious, as well as

those other rules whose source IP address coincide

with the one of a rule labelled as known attack.

The values of labelled rule attributes are

compared with the attributes of all individual alerts,

and those alerts whose values fit in the rule are

labelled accordingly. This way, malicious alerts can

be combined to attacks scenarios. It has been

mentioned that ATP rules comparison can only be

COMBINED DATA MINING APPROACH FOR INTRUSION DETECTION

applied over previously extracted association rules

because ATP patterns not only take into account

attribute values but also the relationship between the

attribute values among different alerts.

The values of Count data fields of ATP table

define a threshold. Every codified rule with a value

greater than this minimum limit and keeping the rest

of fields as in ATP table (Table 2) will be labelled

with its corresponding Type and Method values.

Table 2: Codified well known attack and normal network

traffic patterns table (ATP) format.

Data field Example value

Type IP sweep

Method TCP

Signature identifier -

Count different source IP 1

Count different destination IP 25

Destination port -

Count different destination port 0

Transport protocol code 6

IP packet length 1

4 EXPERIMENTAL RESULTS

4.1 Real Scenario

Two victims have been deployed in a LAN with

approximately 1000 hosts: a Windows XP host in a

VLAN and a Windows 2003 IIS Web Server in the

DMZ. Two Linux with Snort have also been

deployed in the same LAN segments where the

victim hosts are placed.

The attack has been accomplished from another

Windows XP from another VLAN, using the Core

Impact penetration-testing tool. First, the network

has been scanned looking for vulnerabilities. As a

result, the RPC-DCOM vulnerability in the XP host

has been discovered. Secondly, an exploit has been

launched against that vulnerability and root

privileges have been gained. After that, a DoS tool

has been uploaded using TFTP. The previous

information gathering has also revealed the IIS Web

Server placed in the DMZ. Finally, a DoS attack has

been launched against this web server by sending a

great amount of large ICMP packets from the

Windows XP host.

4.1.1 Preprocessing

Attributes exposed in section 3.2 have been used in

the 26660 events accumulated in the experiment.

4.1.2 Clustering

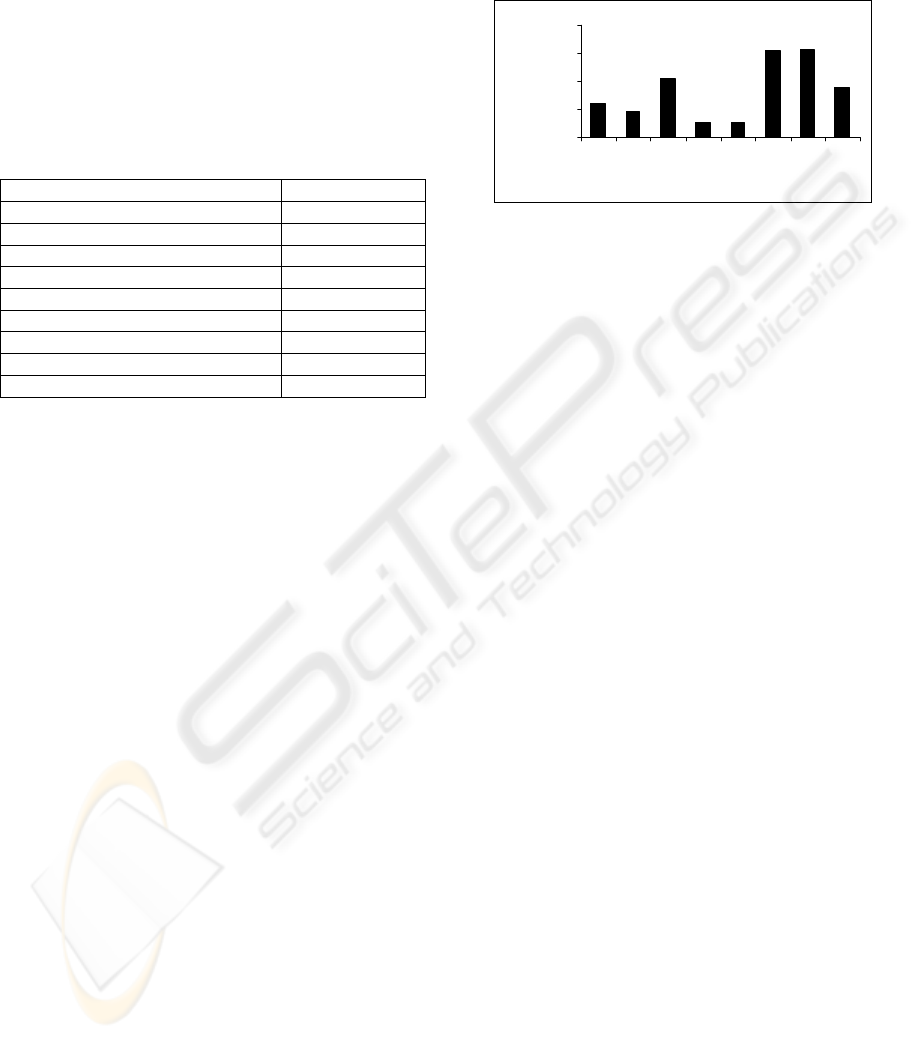

Figure 1 shows the distribution made by the EM clustering

algorithm over the alert set.

2423

1857

4188

1053 1060

6212

6280

3587

2000

4000

6000

8000

01234567

Cluster

Ale rts

Figure 1: Distribution of 26660 alerts of real scenario.

4.1.3 Association

The Apriori association rules algorithm extracts

1133 rules. As shown in section 3.4, the application

of the rule redundancy reduction method decreases

the amount of them to 60 rules. Table 3 shows some

of the obtained rules. Analysing them, it is possible

to observe that the homogeneity of cluster 0 is not

the desired one. Both ID 1 and ID 7 rules belong to

cluster 0, but they seem to be quite different.

However, getting a large rule-set allows identifying

very different types of alerts clustered together. For

example and continuing with the analysis, the ID 46

tuple shows a rule obtained from cluster 5. Source

IP data field is empty, so it may indicate multiple

source IP traffic with the attributes of this rule.

Generalising, empty data fields are ignored. On the

contrary, Source IP and Destination IP attributes are

codified as explained in the next section.

4.1.4 Codification and Identification

Table 4 is the result of the Codification phase. First,

applying the method exposed in section 3.5, the

values of Source IP and Destination IP are codified

to get an abstraction from their explicit values. After

that, different source IP, different destination IP and

different destination ports are counted for each rule

in Table 3. This method allows identifying some

types of attacks, as it is explained in section 3.4. The

values of Cluster, Signature Identifier, Destination

port and Transport protocol code are not modified

because they are very useful during the rule

Identification phase.

As it is exposed in section 3.5, the Identification

stage consists on comparing codified association

rules table represented in Table 4 with ATP table. As

a result, each malicious and suspicious rule is

SECRYPT 2007 - International Conference on Security and Cryptography

identified and labelled with its corresponding

category to ease its comprehension.

Table 5 shows that every attack and suspicious

alert was grouped into cluster 0. The most precise

identification was obtained in rules with 469 and

499 signature identifiers. The first one has been

identified as IP sweep type attack using ICMP. The

second one has been labelled as DoS attack using

ICMP Flood. The rest IP sweep labelled rules may

be considered as SNMP sweeps, and therefore,

malicious traffic. Those labelled as suspicious were

identified because their Source IP coincides with a

previously labelled rule: in this case, IP sweep.

4.2 DARPA Data Sets Scenario

The experiment has been extended using the 2000

DARPA Intrusion Detection Data Sets. Not

everybody (Mahoney, Chan, 2003) in the research

community believes in the relevance of the results

obtained with this sets. Anyhow, the authors think

that it is an interesting experiment.

4.2.1 Preliminary Results

The analysis has been carried out over 12064 alerts.

5145

662

270

1990

278

641

960

1020

1088

1000

2000

3000

4000

5000

6000

01234567891011

Clus ter

Alerts

Figure 2: Distribution of 12064 alerts of DARPA Data Set.

4.2.2 Preprocessing

The attributes exposed in the Preprocessing section

have been taken.

4.2.3 Clustering

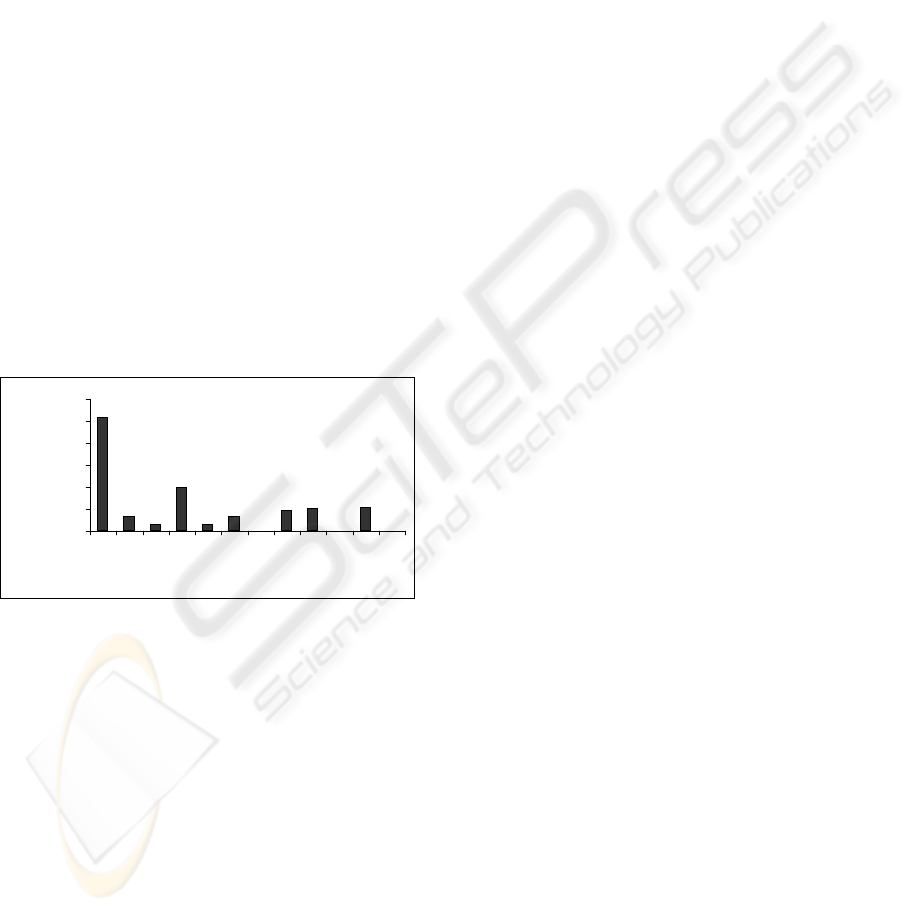

Figure 2 shows the clustering. Note that when EM is

initialised with a random cluster number, model can

converge in empty clusters (6, 9 and 11).

4.2.4 Association

The Apriori association rules algorithm deduces 401

rules. The rule redundancy reduction method

decreases the amount of them to 57 rules.

4.2.5 Codification and Identification

Table 6 shows the final results obtained with the

DARPA Data Set scenario. The labelled association

rules of Table 6 maintain a coherency with the attack

steps exposed, so they can be called meta-alerts. The

IP sweep and the Spoofed source DoS attack have

been properly identified. The rest of meta-alerts

have been tagged as Suspicious, since their Source

IP coincides with the Source IP of the above

mentioned rules. Besides, two meta-alerts with

Destination port 111 can be seen. This is the

attacked service. Launching of the exploit is the

cause of meta-alert with IP packet length 1440.

After this, a Destination port 23 meta-alert can also

be seen. This is the service used to remotely control

the DoS tool. Finally, the spoofed source DoS attack

appears clearly identified.

It seems important to mention that the attack

steps have been grouped in different clusters. IP

sweep is from cluster 8. The vulnerability

exploitation meta-alerts are included in cluster 7.

The remote control via telnet (Destination port 23)

is from cluster 3. And the DoS attack meta-alert

belongs to cluster 2. This homogeneity may cause

the extraction of valid rules (meta-alerts) and the

precise identification of the attack steps.

5 CONCLUSIONS

Analysing the results of the DARPA Data Set

scenario experiment, it seems clear that a

homogeneous clustering is very useful in the task of

identifying all the steps of an attack. Each step

belongs to a different cluster and, consequently, their

corresponding rules are properly deduced.

On the contrary, in the real scenario experiment

the Clustering phase does not obtain a perfect

segmentation of the whole alert-set: some clusters

contain very different alert types while other ones

group very similar alarms. That is why some phases

of the attack, such as the exploit launching or the

remote control, are not identified. In spite of this, the

Clustering eases the extraction of association rules.

In the real scenario experiment, it seems that the

association rules extraction phase does not obtain all

the desirable rules. Apriori algorithm extracts rules

whose information can be repeated from one rule to

another. That is why, and with the purpose of

obtaining a valid rule of a certain alert type, Apriori

has to be configured to extract a large amount of

them. Nevertheless, some clusters may contain

several alert types. If some valid rules for each alert

COMBINED DATA MINING APPROACH FOR INTRUSION DETECTION

type are desired, the quantity of rules to be deduced

by Apriori will be very large. This, apart from

having a high computational cost, complicates the

rules redundancy reduction task. In any case, the

association rules provide many benefits: they are a

representative sample of the whole alert-set and

facilitate the legibility of the alarm-set.

As a conclusion, MIAU supplies an attack

scenario detection system by applying a novel data

mining algorithm combination. The results have

been very encouraging and there is still room for

improvement the system.

6 FURTHER WORK

One possible improvement of MIAU consists on

tuning the EM algorithm configuration parameters in

order to obtain a more coherent and homogeneous

clustering. These configuration parameters, such as

the number of iterations or the allowable maximum

standard deviation, can be adjusted finely even by

means of trial and error methods. That way, the

Clustering phase would obtain a better segmentation

of the whole alert-set, without including very

different alerts into the same cluster. Consequently,

the association rules algorithm would be able to

extract more precise information because it would be

working on a more homogeneous alert-set.

The association rules deducing phase may also

be improved adjusting the Apriori algorithm

configuration parameters, such as the number of

rules or the metric type. In addition to this, the rules

redundancy reduction algorithm may be optimised

with the purpose of obtaining a more compact,

precise and complete rule-set in less time.

Another possible improvement of MIAU is the

creation of a complete ATP table, permitting the

system to cover the whole type of traffic that can

exist in a network. This can be made analysing the

characteristics of known attacks and traffic and

codifying them with the ATP table format.

REFERENCES

Ning, P., Ciu, Y., Reeves, D., 2002. Analyzing Intensive

Intrusion Alerts Via Correlation. In Proceedings of the

5th International Symposium on Recent Advances in

Intrusion Detection. Springer-Verlag, Switzerland,

pp.74-94.

Debar, H., Wespi, A., 2001. Aggregation and Correlation

of Intrusion-Detection Alerts. In Proceedings of the

4th International Symposium on Recent Advances in

Intrusion detection. Springer-Verlag, USA, pp. 85-

103.

Cuppens, F., Miège, A., 2002. Alert Correlation in a

Cooperative Intrusion Detection Framework. In

Proceeding of the 2002 IEEE Symposium on Security

and Privacy. IEEE Computer Society. USA, pp. 202

Templeton, S., Levitt, K., 2000. A requires/provides

model for computer attacks. In Proceedings of the

Workshop on New Security Paradigms. pp. 31–38.

Zhou, J., Heckman, M., Reynolds, B., Carlson, A., Bishop,

M., 2007. Modelling network intrusion detection alerts

for correlation. ACM Transactions on Information and

System Security 10 (1).

Julisch, K. 2003. Clustering Intrusion Detection Alarms to

Support Root Cause Analysis. ACM Transactions on

Information and System Security 6 (4). ACM Press,

pp. 443-471.

Manganaris, S., Christensen, M., Zerkle, D., Hermiz, K.,

2000. A Data Mining Analysis of RTID Alarms.

Computer Networks 34 (4). Elsevier North-Holland,

Inc., pp. 571-577.

Treinen, J.J., Thurimella, R., 2006. A framework for the

application of association rule mining in large

intrusion detection database. In Proceedings of the 9th

International Symposium on Recent Advances in

Intrusion Detection. Springer-Verlag, Zurich, pp. 1-

18.

Clifton, C., Gengo, G., 2000. Developing custom intrusion

detection filters using data mining. In 2000 Military

Communications International Symposium. USA. pp.

22-25.

Valdés, A., Skinner, K., 2001. Probabilistic Alert

Correlation. In Proceedings of the 4th International

Symposium on Recent Advances in Intrusion

Detection. Springer-Verlag. USA.

Dain, O., Cunningham, R.K., 2001. Fusing Heterogeneous

Alert Streams into Scenarios. In Proceedings of the

ACM CCS Workshop on Data Mining for Security

Applications. Barbará and Jajodia. USA.

Witten, I., Frank, E., 2005. Data Mining: Practical

Machine Learning Tools and Techniques. Morgan

Kaufmann Series in Data Management Systems.

Dempster, A., Laird, N., Rubin, D., 1977. Maximum

Likelihood for Incomplete Data via the EM Algorithm.

Royal Statistical Society, Vol.1, N.1.

Agrawal, R., Srikant, R., 1994. Fast Algorithms for

mining association rules in large databases. In

Proceedings of 20th International Conference on Very

Large Databases. Santiago de Chile. pp. 487-489.

SECRYPT 2007 - International Conference on Security and Cryptography

Table 3: Some tuples from association rule table.

ID Cluster

Signature

identifier

Source IP Destination IP

Destination

port

Transport

protocol

code

IP packet

length

Confidence

1 0 1418 192.168.100.30 161 6 48 1

7 0 499 193.146.78.1 193.146.78.49 1 60028 1

17 1 1653 192.168.100.37 192.168.100.15 80 1

25 2 1411 192.168.100.52 192.168.100.1 161 17 74 1

46 5 1917 239.255.255.250 1900 17 161 0.91

60 7 466 192.168.100.9 1 60 0.99

Table 4: Some tuples from codified association rule table.

ID Cluster

Signature

identifier

Count

different

source IP

Count different

destination IP

Destination port

Count different

destination port

Transport

protocol code

IP packet

length

1 0 1418 1 38 161 0 6 48

7 0 499 1 1 0 1 60028

17 1 1653 1 1 80 0

25 2 1411 1 1 161 0 17 74

46 5 1917 675 1 1900 0 17 161

60 7 466 18 1 0 1 60

Table 5: Automatically generated multi-step attack scenario of real scenario experiment, ordered by time.

Cluster Type Method

Signature

identifier

Signature Source IP Destination IP

Destination

port

Transport

protocol

code

packet

length

0 IP sweep ICMP 469

ICMP

ping

NMAP

192.168.100.30 1 28

0 IP sweep TCP 1418

SNMP

request

TCP

192.168.100.30 6 48

0 Suspicious

Port

162

1653 192.168.100.30 162

0 Suspicious

Port

161

1417

SNMP

request

UDP

192.168.100.30 161

0 IP sweep TCP 1420

SNMP

trap TCP

192.168.100.30 162 6 48

0 DoS

ICMP

Flood

499

ICMP

large

packet

193.146.78.1 193.146.78.49 1 60028

Table 6: Automatically generated multi-step attack scenario of DARPA Data Set experiment, ordered by time.

Cluster Type Method

Signature

identifier

Signature Source IP Destination IP

Destination

port

Transport

protocol

code

packet

length

8 IP sweep ICMP 384 ICMP ping 202.77.162.213 1 38

7 Suspicious Port 111 202.77.162.213 172.16.112.50 111

7 Suspicious Port 111 585

RPC sadmind

request UDP

202.77.162.213 111 17 84

7 Suspicious 202.77.162.213 17 1440

3 Suspicious Port 23 202.77.162.213 172.16.112.10 23

Spoofed

Source

DoS

TCP

Flood

528

Bad-Traffic

loopback

traffic

131.84.1.31 6 40

COMBINED DATA MINING APPROACH FOR INTRUSION DETECTION
