WISE GUARD

MAC Address Spoofing Detection System for Wireless LANs

Kai Tao, Jing Li and Srinivas Sampalli

Faculty of Computer Science, Dalhousie University, Halifax, Nova Scotia, B3H 1W5, Canada

Keywords: 802.11 wireless networks, access point parameters, intrusion detection system, MAC address spoofing,

operating system fingerprinting, received signal strength, sequence number tracking.

Abstract: MAC (Medium Access Control) address spoofing is regarded as an important first step in a hacker’s attempt

to launch a variety of attacks on 802.11 wireless LANs. Unfortunately, MAC address spoofing is hard to

detect. Most current spoofing detection systems mainly use the sequence number (SN) tracking technique,

which has drawbacks. Firstly, it may lead to an increase in the number of false positives. Secondly, such

techniques cannot be used in systems with wireless cards that do not follow standard 802.11 sequence

number patterns. Thirdly, attackers can forge sequence numbers, thereby causing the attacks to go

undetected. We present a new architecture called WISE GUARD (Wireless Security Guard) for detection of

MAC address spoofing on 802.11 wireless LANs. It integrates three detection techniques – SN tracking,

Operating System (OS) fingerprinting and tracking and Received Signal Strength (RSS) fingerprinting and

tracking. It also includes the fingerprinting of Access Point (AP) parameters as an extension to the OS

fingerprinting for detection of AP address spoofing. We have implemented WISE GUARD on a test bed

using off-the-shelf wireless devices and open source drivers. Experimental results show that the new design

enhances the detection effectiveness and reduces false positives, in comparison with current approaches.

1 INTRODUCTION

The popularity of wireless local area networks

(WLANs) has increased tremendously with the

advent of IEEE 802.11 series of standards (IEEE

Wireless LAN Standards, n.d.). IEEE standards for

WLANs include 802.11a, 802.11b, the currently

popular 802.11g, and the upcoming high bandwidth

standard 802.11n. These can be used in conjunction

with 802.11e for quality of service and 802.11i for

security.

The architecture of an IEEE 802.11 WLAN in

the infrastructure mode consists of a number of

wireless stations communicating with an access

point (AP). The AP and the set of stations within its

radio range form a basic service set (BSS). Several

APs can be interconnected together by means of a

distribution system (DS) to form an extended service

set (ESS). The distribution system is typically, but

not necessarily, a wired LAN. Two identifiers are

significant in the architecture: the ID of the BSS or

BSSID, which is the MAC address of the AP serving

the BSS, and the ID of the ESS or ESSID, also

known as SSID, which is a character string given to

the WLAN by the administrator.

MAC address spoofing is considered as an

important first step in an intruder’s attempt to launch

a variety of attacks on 802.11 WLANs, such as

sniffing, session hijacking, man-in-the-middle, data

modification and denial of service. MAC addresses

are 48-bit hardware addresses. The manufacturer

intending to produce network cards needs to obtain a

three-byte organizationally unique identifier (OUI)

from IEEE to be used as prefix for the MAC

addresses of their products, which makes these

addresses globally unique for all LAN-based devices

in use today. Randomly generated MAC addresses

are easy to detect by filtering through the OUI prefix

information lists. However, adversaries can easily

sniff legitimate MAC addresses on the wireless LAN

and spoof these addresses. Many wireless cards

permit setting/changing the MAC addresses by

software, thereby enabling easy spoofing.

Since MAC address spoofing is such a threat to

WLANs, many wireless developers have designed

Intrusion Detection Systems (IDSs) to detect the

MAC address spoofing. Most current IDSs – both

140

Tao K., Li J. and Sampalli S. (2007).

WISE GUARD - MAC Address Spooﬁng Detection System for Wireless LANs.

In Proceedings of the Second International Conference on Security and Cryptography, pages 140-147

DOI: 10.5220/0002123601400147

 SciTePress

commercial and open source – use sequence number

tracking to detect MAC address spoofing.

Unfortunately, this technique has a number of

drawbacks. Firstly, it may lead to an increase in the

number of false positives in attack detection.

Secondly, such techniques cannot be used in systems

with wireless cards that do not follow 802.11

sequence number patterns. Thirdly, attackers can

forge sequence numbers thereby causing the attacks

to go undetected.

We propose a new architecture called WISE

GUARD (Wireless Security Guard) for detection of

MAC address spoofing on 802.11 wireless LANs. It

integrates three detection techniques - Sequence

Number Analysis, Operating System (OS)

fingerprinting and tracking and Received Signal

Strength (RSS) fingerprinting and tracking. It also

has a novel AP fingerprinting and tracking as an

extension to the OS fingerprinting and tracking

mechanism. We have implemented WISE GUARD

on a test bed using off-the-shelf wireless devices and

open source drivers. The algorithm used in our

system integrates the three detection techniques and

reduces the false positives. The result shows that,

while compared with WiFi-Scanner and Snort-

Wireless, WISE GUARD has more accurate

information and has less false positives. It should be

noted that although the focus in our paper is on

detection of MAC address spoofing in 802.11

wireless LANs, WISE GUARD is built on top of

Snort-Wireless and can be extended to detect other

kinds of attacks such as ICMP (Internet Control

Message Protocol) flooding or buffer overflow

attacks as well.

The paper is organized as follows. Section 2

introduces the background and related work. Section

3 presents the design and implementation of WISE

GUARD. Section 4 gives the experiments and

results of testing WISE GUARD. The final section

provides concluding remarks.

2 BACKGROUND

2.1 Sequence Number Tracking

Sequence Number Tracking is a recent technique

(Wright, 2003) for MAC address spoofing detection

in wireless networks, and is popularly used in many

IDSs. The IEEE specification (IEEE Wireless LAN

Standards, n.d.) defines the sequence number as a

12-bit field indicating the sequence number of an

MSDU (MAC service data units) or MMPDU (MAC

management protocol data unit). Figure 1 shows the

802.11 frame header with an expanded sequence

control field. Sequence numbers are assigned from a

single modulo 4096 counter, starting at 0 and

incrementing by 1 for each MSDU or MMPDU. The

SN remains constant in all retransmissions of an

MSDU or MMPDU. The fragment number is always

zero unless the frame is a fragment of a larger

packet. Without the ability to control the firmware

functionality of wireless cards, and without the

source code to develop custom firmware, an attacker

does not have the ability to alter the value of the

sequence control field in the 802.11 headers.

Most current IDS’s – both commercial and open

source – rely on tracking of sequence numbers for

MAC address spoofing detection. Spoofing is said to

have occurred when a jump in the sequence number

is recorded (Haidong et al., 2004).

Figure 1: Format of 802.11 Frame Header (IEEE Wireless

LAN Standard, n.d.).

2.2 OS Fingerprinting

Operating System (OS) fingerprinting technique was

first proposed by Arkin (Arkin, 2000) and has been

widely used by security professionals for mapping

remote OSs on wired networks. There are two types

of OS fingerprinting techniques: passive and active.

Passive fingerprinting is the practice of determining

a remote operating system by sniffing network

packets without actively sending probes to any host

while active fingerprinting is accomplished by

sending carefully crafted packets to the target

machine and analyzing the response that can be

measured and compared to known fingerprints.

OS fingerprinting can serve as a useful tool in

wireless LANs since many hacking tools only

support Linux or FreeBSD systems. Thus, most

attacks can only be launched from Linux or

FreeBSD systems. According to (Arkin, 2000),

wireless stations with different OSs have different

features when they generate TCP, UDP, ARP and

ICMP packets, and the OS can be detected by

analyzing these features. OS fingerprinting and

tracking has been used for the first time in this paper

as one of the parameters for WLAN MAC address

WISE GUARD - MAC Address Spoofing Detection System for Wireless LANs

141

spoofing detection. In our design, we use “passive

SYN-based OS fingerprinting” to track the wireless

stations’ OS fingerprints. This type of OS signature

analysis is similar to the one used in P0f (Zalewski,

n.d.).

Like SN tracking, passive OS fingerprinting and

tracking also has its drawbacks if used alone. Firstly,

management frames and control frames in 802.11

WLANs do not provide OS fingerprints. Secondly,

in some cases, MAC address spoofing does not need

to be run on Linux system. For example, in

Windows system with service pack 2, the MAC

address of the NIC can be changed with only a

simple configuration. Thirdly, passive OS

fingerprinting relies on SYN packets. However,

during the network communication wireless stations

do not always generate SYN packets, especially

when the station is under passive monitor mode or

when it only sends out management frames. In these

cases, no OS fingerprints are tracked, thus no alert

will be triggered by the IDS.

2.2 RSS Fingerprinting

Received Signal Strength (RSS) has been widely

used in indoor geographical location (geolocation)

and positioning systems in wireless LANs (e.g. the

RARDA system of Microsoft (Bahl and

Padmanabhan, 2000)). Some Intrusion Detection and

Response Systems, as described in (Interlink

Networks, 2000), use RSS to pinpoint the

unauthorized 802.11 wireless station and APs.

However, RSS itself has never been used as

fingerprints of 802.11 wireless devices for the

purpose of intrusion detection. It is very hard for an

attacker to modify the signal strength of his or her

wireless devices during the network transmission.

For this reason, the RSS at the physical layer is a

good signature or fingerprint for both wireless

station and AP in IDS. There are four units of

measurement to represent the RF signal strength

(Bardwell, n.d.): mW (milliwatts), dB (decibels) and

RSSI (Received Signal Strength Indicator), and a

percentage measurement.

RSSI in IEEE 802.11 standard (IEEE Wireless

LAN Standards, n.d.) is an integer value between 0-

255 (a 1-byte value). No vendors have actually

measured 256 different signal levels in their wireless

devices, so each vendor’s device will have a specific

maximum RSSI value (“RSSI_Max”). For example,

Cisco has 101 separate RSSI values for RF energy,

and their RSSI_Max is 100. RSSI is internally used

by the microcode on the wireless adapter or by the

device driver. Roaming Threshold is the point when

the wireless station is moving away from the AP and

the received signal drops to a somewhat low value,

which indicates the wireless station is roaming.

Different vendors use different RSSI values for

the Roaming Threshold, and those threshold values

are seldom released. We tested the roaming

threshold of Cisco Aironet 1200 Wireless AP, and

the RSSI value is around 97, which we implemented

in our test bed as the roaming threshold for wireless

station RSS fingerprinting and tracking. Some

protocol analysis tools, such as AiroPeek (Airopeek,

n.d.), measure RSSI as a percentage of RSSI_MAX.

2.3 Current IDSs

Many open source and commercial IDSs are

available today. Snort-Wireless (Snort Wireless,

n.d.) is a “lightweight”, rule-based and real-time

network IDS under UNIX OS. It is popular because

of its open source, which can be customized for new

detection by writing Snort rules or by adding new

preprocessors and detection rules to reflect the latest

attacks and exploits. Snort-Wireless adds several

new features for 802.11 IDS functionality to the

standard Snort distribution. These features allow one

to specify custom rules for detecting specific 802.11

frames, rogue access points and Netstumbler like

behavior (Wright, 2003). In order to accomplish this,

Snort’s rule engine has been augmented with support

for Wi-Fi. The remaining features are implemented

as preprocessors that can be configured and

customized as desired according to the different

requirements.

WiFi-Scanner (WiFi Scanner, n.d.) is an

identification scanner program under UNIX OS. It

changes the channel periodically, tries to find any

received frame on every channel, and displays them.

It uses the SN Tracking techniques discussed in the

previous section as well as the timestamp

fingerprinting technique for intrusion in the WLAN.

AirDefense (Air Defense Enterprise, n.d.) is a

complete hardware and software system consisting

of sensors deployed throughout the network, which

are interfaced to a management appliance and

administered by a management console. Their starter

kit provides five sensors and can guard up to ten

APs. AirDefense detects intruders and attacks and

also diagnoses potential vulnerabilities in the

network like mis-configurations.

Aruba Wireless Networks (Aruba Networks,

n.d.) has released a complete software and hardware

system consisting of switches, APs and its

monitoring software. It is the first company to

announce the installation of a secure wireless

SECRYPT 2007 - International Conference on Security and Cryptography

142

network based on the recently ratified 802.11i

standard. One feature of Aruba networks is the

ability to “lock the air” using wireless intrusion

detection technology built into every Aruba switch

and AP.

3 WISE GUARD

We propose a layered architecture called WISE

GUARD. It uses off-the-shelf wireless devices and

is built on the open source Linux drivers. WISE

GUARD integrates OS and RSS fingerprinting and

tracking techniques with SN tracking for MAC

address spoofing detection. In addition, AP

fingerprinting and tracking is used as an extension of

OS fingerprinting and tracking to detect AP address

spoofing. WISE GUARD can be a standalone

solution to the MAC address spoofing detection or

be integrated into large wireless IDSs like Snort.

WISE GUARD can also be used to advantage in a

wireless environment that is WEP- or WPA-enabled

due to the fact that these methods can also be subject

to MAC address spoofing since there is no

authentication or encryption to protect MAC

addresses.

3.1 Layered Architecture

The architecture of WISE GUARD, shown in Figure

2, integrates three techniques, which target different

layers of the protocol stack in the detection engine:

OS fingerprinting, Sequence number tracking and

RSS fingerprinting. We also include the

fingerprinting of Access Point (AP) parameters as an

extension to the OS fingerprinting for the detection

of AP address spoofing.

Figure 2: Layered Architecture.

As mentioned earlier, at the network layer, we use

“passive SYN-based OS fingerprinting” (Zalewski,

n.d.) to track the OS fingerprints of wireless stations.

However, this technique cannot deal with the

situation when the wireless stations and APs only

have management frame transmission. Hence we

propose a new AP fingerprinting and tracking

technique to extend OS fingerprinting and tracking.

This technique includes the fingerprints of

Timestamps, Capability Information, Traffic

Indication Map, and Tag Information (Vendor

Information) in management frames. Here is the

description of these fields (IEEE Wireless LAN

Standards, n.d.).

Timestamp: The timestamp in the beacon frame

is a 64-bit field counting in increments of

microseconds. After receiving a beacon frame, a

wireless station uses the timestamp value to update

its local clock. This process enables synchronization

among all stations that are associated with the same

AP. So the timestamp is like the system clock of AP,

it is very hard to spoof.

Capability Information: This signifies the

requirements of wireless stations, which wish to

belong to the wireless LAN that the beacon

represents. For example, this information may

indicate that all stations must use wired equivalent

privacy (WEP) in order to participate on the

network.

Traffic Indication Map (TIM): An AP

periodically sends the TIM within a beacon to

identify which stations using power saving mode

have data frames waiting for them in the access

point's buffer. The TIM identifies a station by the

association ID that the access point assigned during

the association process. We can set this value when

configuring the AP.

Tag Information: This field includes the

information about tag length and not interpreted

vendor specification.

Tracking the change both the APs’ and wireless

stations’ OS fingerprints can be done passively

without generating additional traffic to the network.

At the data link layer, we still use the SN

tracking technique. The rogue AP’s SN and the

legitimate AP’s SN usually have a large gap,

because the rogue AP and the legitimate AP turn on

at different times. However, it is still possible for a

rogue AP to have an SN similar to that of a

legitimate AP in a short period, because the SN will

restart from 0 after it reaches 4096. So the SN

tracking technique has a threshold that indicates the

times it can tolerate when the SN gap over a

designated value. This value is called the “tolerate

gap”. However, the retransmitted frames have a gap

of 0. In Snort-Wireless, the retransmission frames is

OS Fingerprinting

and Tracking

AP Fingerprinting

and Tracking

Sequence Number

Tracking

RSS Fingerprinting

and Tracking

Network Layer

and above

Data Link Layer

Physical Layer

WISE GUARD - MAC Address Spoofing Detection System for Wireless LANs

143

regarded as abnormal frames from rogue AP by

using the formula:

Tolerate Gap = ((Current SN value – Previous

SN value) + 4095) mod 4096

This approach eliminates the possibility for a

hacker to spoof the SN number, but it will alert

either AP has retransmitted frames or its SN value in

the current frame is smaller than the SN value in

previous frame, thus leading to false positives.

In our design, we changed this SN tracking

scheme of Snort-Wireless. We assume that the

possibility for a hacker to spoof the SN number is

not high (even if he can, we still have the detection

technique from other layers), and regard the

retransmitted frames as legitimate frames from the

AP. Thus if the retry bit is equal to 1 and the

Tolerate Gap from the formula above is equal to

4095, we set the Tolerate Gap to 0. We also used the

absolute value of the difference between current SN

value and previous SN value to bypass the case of

occurrence of the smaller SN value because of the

transmission delay.

At the physical layer, we use RSS Fingerprinting

and Tracking technique. Both (Bahl and

Padmanabhan, 2000) and (Bahl et al, 2000) have

established an indoor radio propagation model for its

geolocation system, which indicate that RSS has

some relationship, not linear, with the distance of the

wireless devices. This may not be useful for

distinguishing wireless stations and attackers. For

example, if they are both on the edge of a circle,

they will have same distance to the sensor, thus have

the same signal strength, according to the

propagation model. However, this is useful for

detection of rogue APs. If we set the sensor right

beside the AP, when the rogue AP turns on and is

approaching the WLAN, the sensor can tell the

difference immediately from the RSS.

Another reason we set up the sensor near the

legitimate AP is because we can monitor the

wireless station for roaming. If the RSS from a

certain wireless station is going below the “Roaming

Threshold”, the sensor will inform the Sequence

Number tracking model and reset the tracking

pattern. In this way, we can reduce the number of

false positives of the SN tracking alert.

However, using RSS fingerprinting tracking

alone is not accurate. According to the indoor Radio

Propagation model in (Bahl et al, 2000), the signal

propagation is dominated by reflections, diffraction,

attenuation, and scattering of radio waves caused by

structures within the building, e.g., when people

moving in front of the AP will change the signal

received by wireless stations, even when the

wireless node is stationary.

3.2 Detection Components

There are three detection components in our design:

Sensor, Analyzer and Alert. For a large-scale

wireless network, the deployment should be

centralized; with Sensors deployed all over the

network to send back captured packets to a central

server over a separate network, where the Analyzer

and alert components are located. This separate

network could typically be a secured wired network,

e.g. a Virtual Private Network (VPN), and hence the

detection traffic does not reduce the bandwidth of

the wireless LAN. Furthermore, communication

between the Sensor and the central server is secure.

When frames with abnormal signatures are detected,

the Analyzer will trigger an alert to be sent to the

central server through the backbone and the Alert

component decides the level. The alert can be simply

displayed on the console of the central server or sent

to the administrator by an e-mail or a page message.

In a small-scale wireless network, the three

components can be integrated into one AP or into a

standalone wireless device (acting like a sniffer).

3.3 Design Prototype

Our design is an extension of the Snort-wireless

architecture. Snort has the three components that we

require. However, it cannot intercommunicate

between detection preprocessors or plug-ins,

although Snort has defined pass rules, log rules and

alert rules to tell the detection engine how to deal

with a packet when rules have conflicts. We have

added a postprocessor to process the outcome of the

detection preprocessors or plug-ins and give a

probability evaluation on the incoming packets. The

parameter sets have the new OS fingerprinting

feature values, RSSI tolerate gap, threshold values,

authorized AP and wireless station lists or other

parameters to initiate the detection engine.

The design prototype of WISE GUARD is

shown in Figure 3. Like most of the WLAN

discovery tools, Snort is built on widely available

open source Linux drivers – HostAP (Malinen et al,

n.d.) for 802.11 network cards utilizing the PRISM

chipset. On top of the driver, the frame capture and

decoder uses the libpcap or other open source Linux

libraries to find and decode all the captured frames.

SECRYPT 2007 - International Conference on Security and Cryptography

144

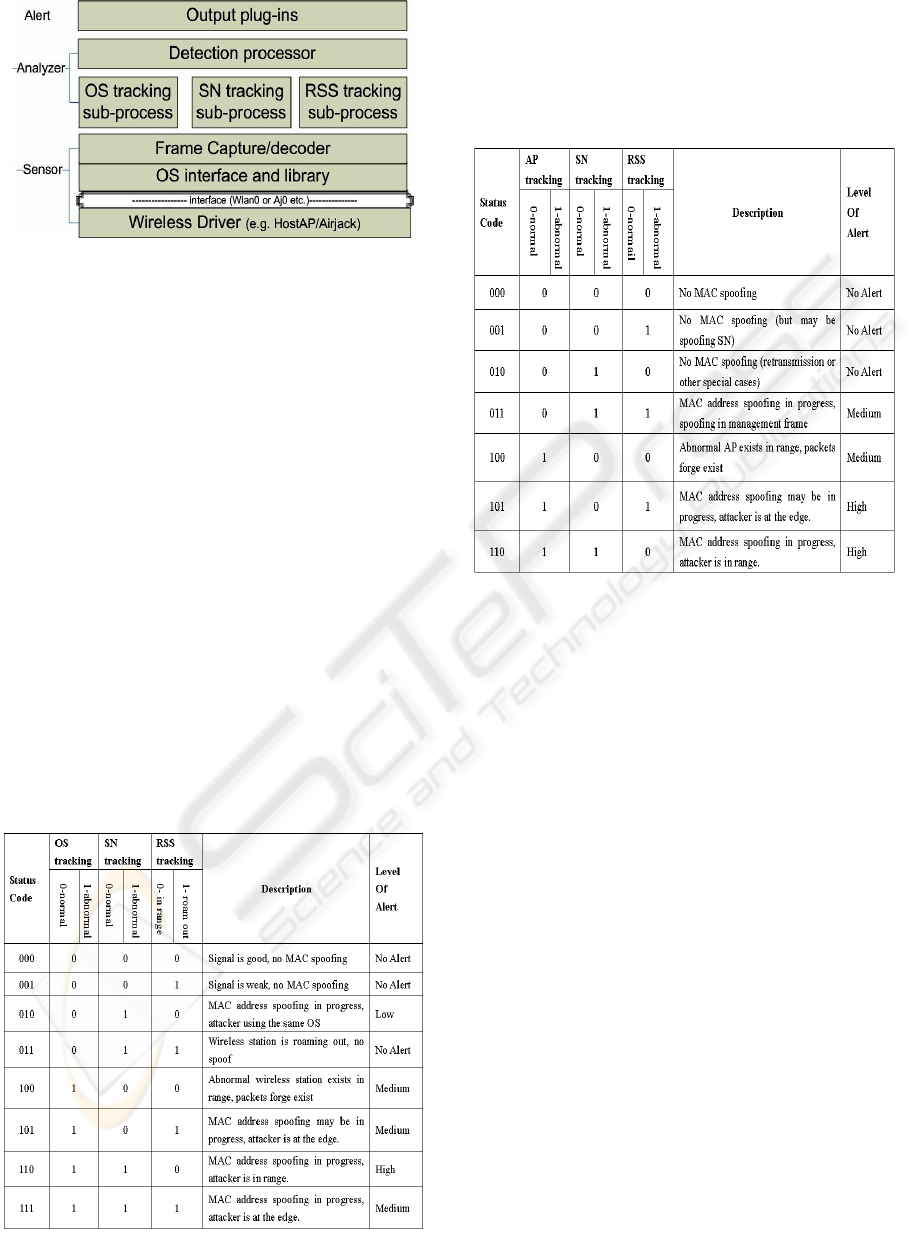

Figure 3: Design Prototype of Wise Guard.

After the frames have been decoded, the RSS,

OS and Sequence Number fingerprints will be

retrieved and sent to the detection processor (with

three sub-processes), which is the core of the

Analyzer. Results or outcomes will be generated

between each sub-process. The main process waits

and processes these outcomes, and then generates

and sends out the status code based on the outcomes

to the output plug-ins. The output plug-ins acts as

the Alert; it can be an interface to any alert

applications like e-mail system, page system or log

system.

Based on different status codes, the output

console will give three levels of alert as the report:

high, medium, and low. In our implementation, we

translate the status code into scores, which are used

to calculate the indicators as percentages. For

example, timestamp feature has a score of 5 out of

the total score value 20. The administrator can

decide the conversion scale between the scores and

the alert levels.

Table 1: Status Code Descriptions for AP Detection.

Table 1 and Table 2 give the status codes for AP

detection and wireless station detection,

respectively.

Table 2: Status Code Descriptions for Wireless Station

Detection.

4 EXPERIMENTAL RESULTS

We tested WISE GUARD and two other IDSs,

namely, Snort-Wireless and WiFi-Scanner. Figure 4

shows the test bed. WISE GUARD was first

launched on the detection server and then Snort-

wireless was run on a laptop (K). The attacks were

launched from another laptop. To launch the session

hijacking attack, the attacker spoofs the BSSID and

channel of the AP using the HostAP driver, and

brings down the network. When performing the

management frame DoS attack, de-authentication

and disassociation frames were sent from the

attacker’s laptop to the wireless client using the

Libradiate tool. The attacks are stopped by resetting

the HostAP driver or by terminating Libradiate.

WiFi-Scanner was then run on the laptop K to detect

the same attack. Furthermore, during the attack, the

legitimate station was moved around the AP.

We observed that as soon as the MAC spoofing

attack has been launched, WISE GUARD generated

NEW ALERT, which indicates MAC address

spoofing in progress.

WISE GUARD - MAC Address Spoofing Detection System for Wireless LANs

145

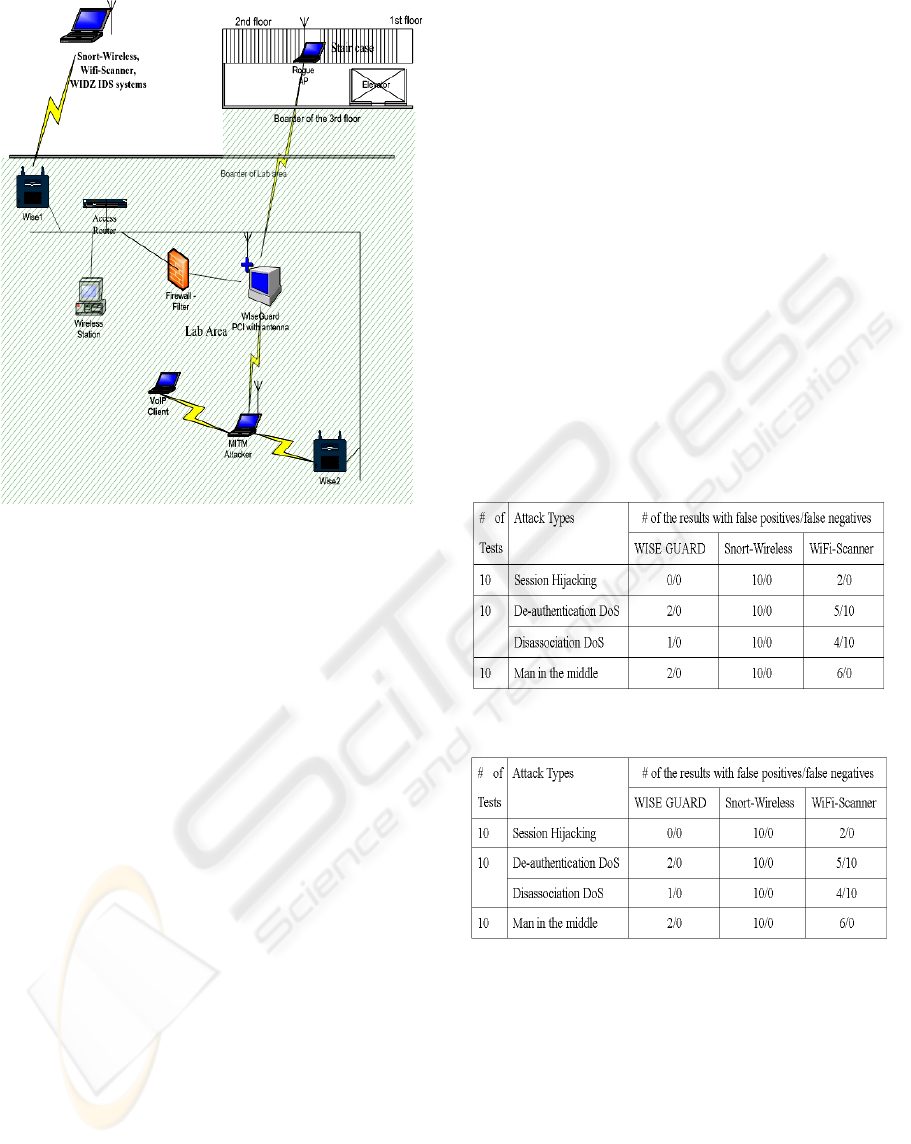

Figure 4: Test bed set up.

The output from WISE GUARD indicates the

detection result of three techniques, the MAC

address that is under attack, the time of launch of the

attack, the level of alert and the percentage

Indicator. It also indicates that two or more APs with

same BSSID exist and have an abnormal gap in

sequence numbers and signal strengths. The alert

also displays two values in Capacity Info, TIM, and

Tag Info, which were coming from the legitimate

AP and the rogue AP, respectively. WISE GUARD

generates alert with an increasing percentage

indicator, till it reaches 100%. This is because SN

and RSS tracking technique have a delay, while OS

tracking does not. The increasing indicator shows a

high probability of attacks in progress.

Table 3 summarizes the results based on the

experiments that we performed using three types of

attacks. Each attack was performed ten times, with a

duration of 5 minutes each time. A false positive

indicates that a legitimate MAC address was

reported as being spoofed. A false negative indicates

that the spoofed address is not reported. For

example, 5/10 means we test the attack 10 times, the

tested IDS has not detected the attacks, but during

the attack time, it has reported a legitimate MAC

address five times. Table 4 gives a summary of the

comparisons with Snort-Wireless and WiFi-Scanner

and other open source wireless IDS on detecting the

three main MAC address spoofing attacks.

5 CONCLUSIONS

We proposed a novel wireless IDS, namely, WISE

GUARD, to detect MAC address spoofing in

wireless LANs. WISE GUARD integrates three

detection techniques – SN tracking, OS

fingerprinting and tracking and RSS fingerprinting

and tracking. It also includes the fingerprinting of

AP parameters as an extension to OS fingerprinting

for detection of AP address spoofing. We

implemented our system on a test bed using off-the

shelf wireless devices and open source drivers. We

tested our system and two other existing open source

wireless IDSs for detecting session hijacking DoS,

management frame DoS and man in the middle

attacks. Experimental results show that our system

performs better, especially in the effectiveness of

detecting MAC address spoofing with less false

positives.

Table 3: Summary of Results.

Table 4: Comparison with other IDSs.

REFERENCES

IEEE Wireless LAN Standards (n.d.), accessed March

2007, from http://standards.ieee.org/

Wright, J., 2003. Detecting Wireless LAN MAC Address

Spoofing. Accessed March 2007 from

http://home.jwu.edu/jwright/papers.htm

Haidong, X., Brustoloni, J., Mitrou, N., Kontovasilis, K.,

Rouskas, G., Iliadis, I., Merakos, L., 2004. Detecting

and blocking unauthorized access in Wi-Fi networks

in Proceedings of the International Networking

Conference, Greece, May 2004, pp. 795-806.

SECRYPT 2007 - International Conference on Security and Cryptography

146

Arkin, O., 2000. ICMP Usage in Scanning, Sys-Security

Group Pub, July 2000, accessed March 2007 from

http://www.syssecurity.com/archive/papers/ICMP_Scanni

ng_v1.0.pdf

Zalewski, M., (n.d.) Passive OS fingerprinting tool”,

accessed March 2007 from

http://www.networkintrusion.co.uk/osfp.htm.

Bahl, P., and Padmanabhan, V.N., 2000. Radar: An in-

building rf-based user location and tracking system. In

Proceedings of the IEEE Infocom 2000, Tel-Aviv,

Israel, vol. 2, Mar. 2000, pp. 775--784.

Interlink Networks, 2002. A Practical Approach to

Identifying and Tracking Unauthorized 802.11 cards

and Access Points, White Paper, Interlink Networks,

Inc., April 2002.

Bardwell, J., (n.d.) “WiFi Radio Characteristics and the

Cost of WLAN implementation”, White Paper,

Connect802, accessed March 2007 from

http://www.connect802.com/white_papers.htm.

Airopeek (n.d.), accessed March 2007, from

http://www.wildpackets.com

Snort-wireless (n.d.), accessed March 2007, from

http://snort-wireless.org

WiFi Scanner, (n.d.). Accessed March 2007 from

http://wifiscanner.sourceforge.net.

Air Defense Enterprise, (n.d.), Accessed March 2007 from

http://www.airdefense.net.

Aruba Networks, (n.d.). Accessed March 2007 from

http://www.arubanetworks.com.

Bahl, P., Padmanabhan, V.N., and Balachandran, A.,

2000. A Software System for Locating Mobile Users:

Design, Evaluation, and Lessons, Technical report

MSR-TR-2000-12, Feb 2000. Accessed March 2007

from http://citeseer.ist.psu.edu/bahl00software.html.

Malinen, J., and contributors (n.d.). Host AP driver for

Intersil Prism2/2.5/3, hostapd, and WPA Supplicant.

Accessed March 2007 from http://hostap.epitest.fi/.

WISE GUARD - MAC Address Spoofing Detection System for Wireless LANs

147
