MODIFIED TEMPORAL KEY INTEGRITY PROTOCOL FOR

EFFICIENT WIRELESS NETWORK SECURITY

M. Razvi Doomun* and K. M. Sunjiv Soyjaudah

Faculty of Engineering, University of Mauritius, Reduit

Keywords: TKIP, Wireless Security, Key Mixing, Security Overhead.

Abstract: Temporal Key Integrity Protocol (TKIP) is the IEEE TaskGroupi’s solution for the security loop holes

present in the already widely deployed 802.11 hardware. It is a set of algorithms that wrap WEP to give the

best possible solution given design constraints such as paucity of the CPU cycles, hardwiring of the WEP

encryption algorithm and software upgrade dependent. Thus, TKIP is significantly more difficult and

challenging to implement and optimise than WEP. The objective of this research is to examine the

cost/benefit of TKIP security mechanisms and optimise its implementation to reduce security overhead for

better performance. We propose a modified TKIP (MoTKIP) with improved packet encapsulation and

decapsulation procedure that reduces computation and packet overhead in classic TKIP substantially and

optimises total wireless network throughput rates.

1 INTRODUCTION

Most current wireless networks are based on widely

adopted IEEE 802.11 standard (

Stallings, 2003).

Unfortunately the initial security specification,

called Wired Equivalent Privacy (WEP), in this

standard has been proved insecure and is thus

inadequate for protecting a wireless network from

eavesdropping and other attacks (Borisov, Goldberg,

& Wagner, 2001). TKIP mechanism is a transition

method used to strengthen security of IEEE 802.11

WLAN and is implemented through software

upgrades using RC4 of WEP as its core, but

introduces changes in the areas of message integrity,

IV creation, and key management. However, the

additional computation complexity and overhead

that TKIP key mixing and encapsulation process

impose have received little research attention. Even

so, cryptographic review thus far suggests it

achieves its fundamental design goals (Al Naamany,

Shidhani & Bourdoucen, 2006).

The TKIP encapsulation process and message

integrity check increase the size of the transmitted

packets, which in turn lower the effective bandwidth

and increase the communication cost also.

Consequently, reducing security overhead and

power consumption are current research challenges

to wireless security designers so as to extend the

operating lifetime of battery powered mobile

devices. The aim of this work is to study TKIP and

optimally trade between security overhead and

power consumption to design a modified TKIP

(MoTKIP) with low packet encapsulation and

decapsulation overhead. The rest of the paper is

organized as follows: Section 2 gives a succinct

account of literature and related work in the field of

wireless security optimization. We present a brief

overview of the TKIP algorithm in Section 3. The

MoTKIP packets and optimised TKIP key mixing

are described in Section 4. Then, in section 5 a

security overhead comparison is performed. This is

followed by concluding remarks in Section 6.

2 RELATED WORK

In the literature (Prasithsangaree & Krishnamurthy,

2004), most efficient wireless security algorithms

are designed based on models which do not take into

account the security performance together with the

computational overhead. Research by Jones et al.

(

Jones, Sivalingam, Agrawal, & Chen. 2001) and Lettieri

et al. (

Lettieri & Srivastava, 1999) have shown that one

of the main causes of unnecessary energy

consumption is overhead of security and

communication protocol over a wireless channel.

Two basic principles that have been suggested to

achieving an energy efficient system are to avoid

unnecessary actions and reduce the amount of data

151

Razvi Doomun M. and M. Sunjiv Soyjaudah K. (2007).

MODIFIED TEMPORAL KEY INTEGRITY PROTOCOL FOR EFFICIENT WIRELESS NETWORK SECURITY.

In Proceedings of the Second International Conference on Security and Cryptography, pages 151-156

DOI: 10.5220/0002125601510156

 SciTePress

traffic (

Havinga & Smit, 2001). However, most

existing wireless security protocols use resources

avidly and limit the efficient use of wireless node

resources in several ways. Wireless security

protocols significantly increase the amount of

overhead required to secure the network, thereby

decreasing the data rates of wireless links because

additional traffic is usually needed for authentication

or verification services (Thomas, Al-Begain &

Hughes, 2005). Another prior work from Ganesan et

al. (Ganesan, Venugopalan, Peddabachagari, Dean,

Mueller & Sichitiu, 2003) assesses the feasibility of

different encryption schemes for a range of

embedded architectures using execution time

overhead measurements. Potlapally et al.

(Potlapally, Ravi, Raghunathan & Jha, 2003.)

investigated energy consumption of different ciphers

on the Secure Sockets Layer. Consequently, our

work consolidates all earlier work on 802.11

wireless securities and adds to those research works

to fill this void of, investigating and answering the

question of designing low overhead TKIP

encryption for existing 802.11 hardware

3 OVERVIEW OF TKIP

TKIP increases the size of the initialisation vector

(IV) used in the encapsulation process to an

effective 48 bits. This significantly decreases the

probability of an IV reuse by increasing the size of

possible IVs to 2

as opposed to 2

possible WEP

IV values. Increasing the IV length also addresses

WEP’s weak key vulnerability. It achieves this by

implementing a very innovative way of splitting the

IV into two parts. The first 16 bits of the least

significant part of the IV are padded to create a 24-

bit IV in a way that avoids the use of weak keys.

This process is called per-packet key mixing. This

IV is joined to a mixed key that is calculated using

the remaining most significant 32 bits of the TKIP

IV as well as the MAC-address of the wireless LAN

card to generate the key. It ensures that every packet

has a different set of IVs. Thus, one of the main

problems of the WEP algorithm is solved, namely

that every station belonging to the network is using

the same key for encrypting data.

TKIP uses a temporal key (TK) and the packet

sequence number to arrive at a per-packet key and

IV. The temporal key is a 128-bit shared secret

between transmitter and receiver that has a fixed

lifetime. TKIP uses a two-phase key mixing

operation to derive the unique per-packet key

stream, and each phase fixes one particular flaw in

WEP. Phase 1 eliminates the same key from use by

all links and Phase 2 de-correlates the public IV

from known per-packet key.

Phase 1 mixes 128-bit Temporal Key (TK) with the

first 4 bytes of IV and the sender’s 48-bit MAC

address, and generates an intermediate key P1K. In

this step, the 48-bit MAC address of the transmitter

is iteratively XORed with the 128-bit TK. Each byte

of the result is used to index an S-box, an invertible

non- linear substitution table, to produce the 80-bit

intermediate key P1K. This intermediate key is

computed once every 2

packets and is likely to be

cached. For performance optimization, intermediate

key P1K is computed only when the temporal key is

changed/updated and most of the time its value is

saved on memory. By mixing the MAC address into

the temporal key, Phase 1 ensures that various

stations using the same temporal key generate

different key streams. Hence, this prevents key

stream reuse due to cross-station IV collision.

Phase 2 takes input P1K [80 bits] with TK (128 bits)

and the last 2 bytes of IV to generate a unique 128-

bit RC4 key, also known as WEP seed. It employs

S-box substitution, rotate operation and addition

operation to generate the 128-bit per-packet RC4

key. This decouples the known association between

IV and the key, thus preventing exploiting weak

keys to recover TK. However, the RC4 key has an

internal structure that must conform to the WEP

specification for compatibility. That is, the first 24-

bits are used to convey the WEP IV and the last 104

bits convey the WEP base key, as the existing WEP

hardware expects to concatenate a base key and IV.

This is accomplished by assigning the 8 most

significant bits of the packet sequence number to the

first and second bytes of the WEP IV, and the least

significant sequence number bits to the third IV

byte. The first 3 bytes of Phase 2 output correspond

exactly to the WEP IV and the last 13 bytes to the

WEP base key. Precisely, the first and third byte of

RC4 per packet key comes from the lower 16-bit of

the IV. The second byte is a repeat of the first byte,

except that bit 5 is forced to 1 and bit 4 is forced to

0. Phase 2 applies this masking off specific bits of

the second IV byte to prevent the WEP per-packet

key concatenation from producing the known RC4

weak keys (

Paul & Preneel, 2004.). Finally, the RC4

key is used to generate the key stream, which is then

XORed with the plaintext for encryption.

TKIP security mechanism takes active

countermeasures when two MIC failures are

detected in less than one minute. The

SECRYPT 2007 - International Conference on Security and Cryptography

152

countermeasures generally consist of re-keying the

connection and notifying the network administrator.

When the receiver encounters two packets with

invalid MICs within one minute, it believes to be

under an attack, and disassociates its clients and

waits for a minute before continuing operation. MIC

is checked last in the TKIP decapsulation process.

Any frame that does not have a valid ICV and TSC

are discarded before the MIC is verified. The ICV

ensures that noise and transmission errors do not

erroneously trigger the countermeasures. In order to

minimize the risk of false alarms, the rule is that the

MIC shall be verified after the CRC, IV and other

checks have been performed (IEEE Standard for

Information Technology, 2004). Another

countermeasure is that, if a new temporal key cannot

be established before the full 16-bit space TSC is

exhausted, then TKIP protected communications

will cease. For key refresh failure, the

implementation halts further data traffic until

rekeying succeeds, or disassociates.

In short, TKIP is designed in such a way that

security completely relies on the secrecy of all the

packet keys (

Moen, Raddum & Hole, 2004). Even if

one packet key is lost to the attacker, it is easily

possible to find the MIC key. Similarly, if two

packets with same IV are disclosed, an attacker can

do anything for the duration of the current temporal

key. To avoid replay attacks, the sequence counter is

simply implemented such that no IV value, which

once has been received, will be allowed. The only

problem of this approach is introduced by the fact

that IEEE 802.11 allows burst-acknowledgements,

which indicates that up to 16 packets could be sent

at once and then be acknowledged by just a single

packet. Consequently the sequence counter has to

remember the last 16 IV values to guarantee that all

packets have been correctly received.

4 MODIFIED TKIP

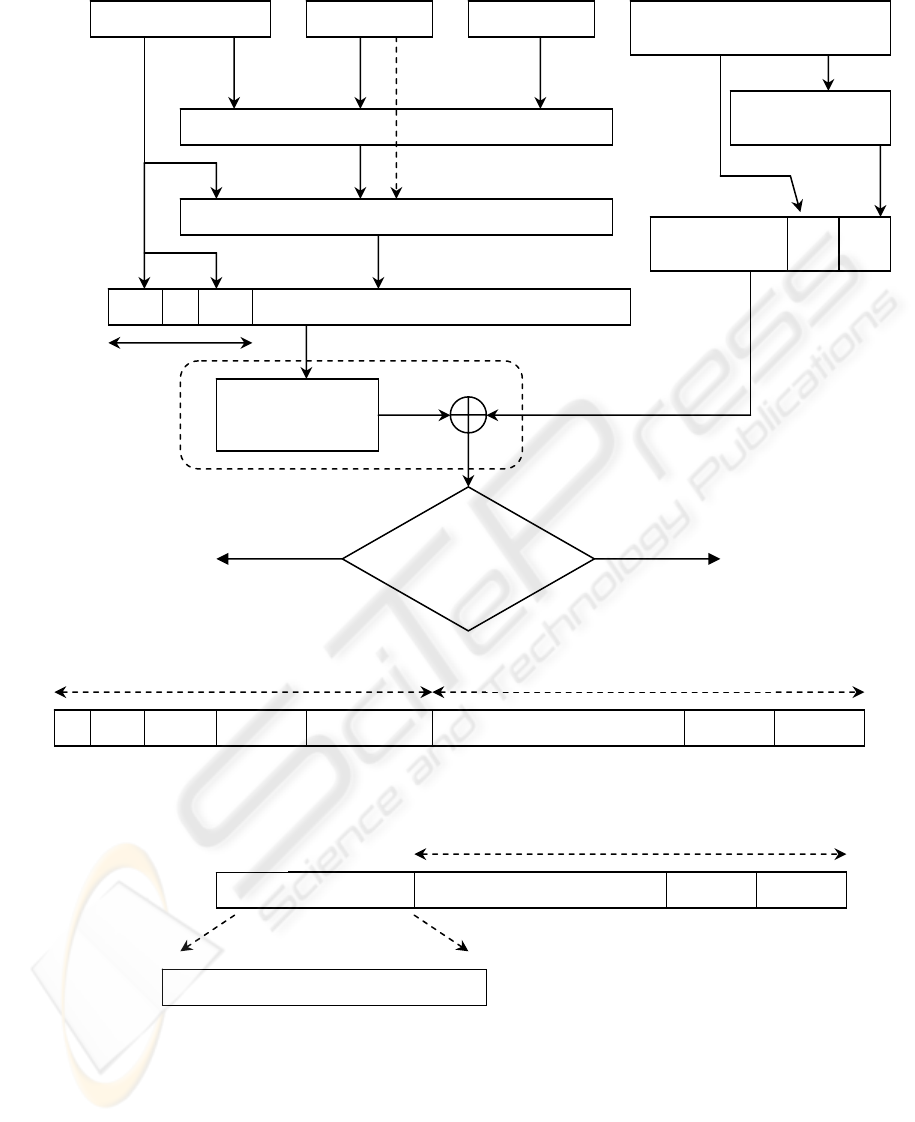

As shown in Figure 1, the second phase of TKIP key

mixing function reuses the 80-bit TKIP-mixed

Transmit Address and Key (TTAK) or phase 1 key

(P1K) with MAC Protocol Data Units (MPDUs)

associated with the same 32-bits upper IV part,

Temporal Key (TK) and Transmitter Address (TA)

for the next consecutive 2

packets. Hence, the 32-

bit high IV becomes known to the receiver when the

first encrypted packet is transmitted and this part is

cached since it is static for the subsequent 2

packets.

The second phase mixes the output of the first

phase with the TK and monotonically increments

16-bit low IV part counter (i.e. 0x0000-0xFFFF) to

produce the final WEP seed, also called the per-

packet key. Since the knowledge of 32-bit high IV

and the future sequence of 16-bit low IV is also

known to the receiver, it is not necessary to send the

full 48-bit extended IV as redundancy again in each

packet. Thus, the cached 80-bits TTAK derived from

the IV in the first packet at the transmitter will also

be that same input to the second phase mixing of the

receiver and automatically the next 16-bit IV counter

it is just a unit increment of the previous one. Since

the IV counter is predictable, phase 2 can be

computed in advance while waiting for the next

packet(s) to arrive at the receiver. Therefore, in the

new Modified TKIP (MoTKIP) frame format, the

redundant 4-bytes extended IV is removed from the

packet load for packets ranging from the 2

to the

)

packet. We use the standard code algorithm

in (IEEE Standard for Information Technology,

2004) to optimised TKIP key mixing phase.

The function MK16 constructs a 16-bit value

from two 8-bit inputs as MK16(X,Y) = (256*X) +

Y. The phase 1 output stays the same for 2

(i.e. 65,

536) consecutive frames from the same TK and TA.

Cheap CPU operations common on 802.11 devices,

such as the exclusive-OR operation (

⊕), the addition

operation (+), the AND operation (&), the OR

operation ( | ), the right bit shift operation (>>),

rotate and table look-ups are used in phase 1 and

phase 2 key mixing.

Figure 1 also illustrates the general procedure for

MoTKIP. For MoTKIP encapsulation process,

another major change in TKIP frame format is

implemented by calculating the MIC over IV also;

and only for first packet transmission the Extended

IV XORed with session key is concatenated and sent

in the packet. In addition, the MoTKIP

encapsulation uses special flag bits for specific

control purpose. At the start of secure

communication, the transmitter or sender computes a

keyed cryptographic message integrity code, or the

MIC, over the MSDU source and destination

addresses, the priority bits, the MSDU plaintext data

and the 48-bit Extended IV also. MoTKIP appends

the computed MIC to the MSDU data prior to

fragmentation into MPDUs. The receiver obviously

has to verify the MIC after decryption with

Extended IV, ICV checking, and reassembly of the

MPDUs into an MSDU. Invalid MIC naturally leads

to discarding of corresponding MSDUs, and this

defends against forgery attacks and replay attacks.

MODIFIED TEMPORAL KEY INTEGRITY PROTOCOL FOR EFFICIENT WIRELESS NETWORK SECURITY

153

Figure 1: Modified TKIP (MoTKIP) procedure with low overhead MPDU.

XORed with Session Key

3 bytes 5 bits 1 bit 2 bits 4 bytes 0 – 2312 bits 8 bytes 4 bytes

IV Rsvd Ext IV Ke

ID Extended IV Data MIC ICV

Encrypted with per-packet key

24 bits

RC4 – legacy WEP engine

WEP seed

32 bits

64 bits

tag

MIC = Michael (TMK + SA +

DA + priority + plaintext + IV

)

ICV = CRC (plaintext

|| MIC)

Plaintext MPDU MIC ICV

Key Stream

Generator

Construct

MPDU Type B

Construct

MPDU Type A

1st MPDU with

the Ext IV

uence?

Yes No

Increment

0xFFFF –

0x0000

TTAK

80 bits

16 bits IV

(lower)

32 bits IV

(upper)

Ext IV

(

48 bits

)

(

128 bits

)

(

48 bits

)

Phase 1 Ke

Mixin

Phase 2 Ke

Mixin

IV d IV Per-Packet Ke

(

104 bits

)

Encrypted with per-packet key

Status b

te Data MIC ICV

: Indicate Ext IV absent/present

: Indicate same IV

for phase 1 key mixing

: Indicate IV

for current packet decapsulation is unit increment of previous IV

: Indicate if MSDU fragmented

: Indicate if MPDU belongs to same MSDU

: Rsvd

First MoTKIP packet :

and Subsequent

MoTKIP packet :

SECRYPT 2007 - International Conference on Security and Cryptography

154

MoTKIP uses the cryptographic key mixing function

to combine a temporal key (TK), transmitter address

(TA), and the extended IV into the WEP seed

similar to the classic TKIP. At the start of the

session, for the first data packet, the 48-bit extended

IV XORed with a session key is appended to the

encrypted data.

However, the new MIC for each MoTKIP packet is

calculated using the IV, source and destination

addresses and data payload at the transmitter, and

the same is recalculated at the receiver to detect

replay attacks.

In the traditional approach, the key reason why

the IV is transmitted in the clear is because the

802.11 standard assumes that an adversary does not

gain any useful information from its knowledge. The

IV is meant to introduce randomness to the key, and

appending the clear IV in the transmitted packet

helps the receiver to decrypt the information sent

from the transmitter station. However, it has been

proved that various types of attacks are possible

using the IV knowledge as described in the literature

(

Walker, 2004; Borisov, Goldberg & Wagner, 2001).

In our new approach to strengthen the TKIP

security, for the first packet transmitted when a

session starts between STA and AP, the extended IV

is encrypted with a session key. Hence, first

MoTKIP packet sent with encrypted IV uses C = [

Ks ⊕ IV, P ⊕ RC4 ( IV, TK, SA) ]. The MoTKIP

MIC is computed over: the MSDU destination

address (DA); the MSDU source address (SA); the

MSDU priority (Reserved for future use); the entire

unencrypted MSDU data (payload) and the

unencrypted entire IV also. The DA, SA, clear

extended IV, 3 octets reserved to 0 and a one octet

priority field are used for calculating the MIC and

are not transmitted. The TKIP decapsulation

mechanism is composed of several sub processes all

working continuously to provide the decrypted

packets. The process of decapsulating the first

MoTKIP packet is the opposite of the encapsulation

process of the first packet with the addition of the

integrity checks. The MoTKIP decapsulation is

designed to be the least computationally intensive.

Since the predictable rule for sequencing the

Extended IV for subsequent TKIP packets (from 2

to 65536

packet) is to increment the low 16-bit IV

part monotonically from 0xFFFF to 0x0000, the 48-

bits Ext IV is not included in these MoTKIP packets.

Instead, a status byte is appended as shown in Figure

5 PERFORMANCE

The experimental test setup consisted of establishing

and testing secure communication performance via

802.11b wireless network cards and an access point.

The nominal data rates were 11Mbps. Encrypted

files are transmitted from clients to server. As the

server is receiving data packets, it checks for the

status byte header to identify the proper MoTKIP

algorithm for decryption. Several statistical

experiments were performed to verify the MoTKIP

operation and WLAN performance throughput.

Table 1 shows the relative security overhead

imposed by WEP, classic TKIP and MoTKIP when

applied to all traffic types and also includes the open

security reference benchmark. Wireless device

battery may experience reduced efficiency when

several intensive operations (power hungry), such as

key mixing, MIC calculation and RC4 processing,

occur simultaneously. As expected, 128-bit WEP

encryption imposes the least overhead whilst TKIP

demands significant use of the available wireless

bandwidth because of extended IV and MIC, placing

substantial burden on WLAN performance. While

classic TKIP is predictably more intensive than

WEP, the processing overhead of MoTKIP is

substantially less than classic TKIP. MoTKIP

outperforms TKIP in terms of percentage

computational overhead and energy consumption

efficient by 25–35%. The throughput of MoTKIP

measured in the simulation tests clearly shows

MoTKIP to be less bandwidth intensive. In terms of

overhead percentages associated with each

encryption schemes compared to no encryption:

128-bit WEP incurs 1.0 – 1.4% throughput

degradation; 128-bit classic TKIP brings 2.4 – 2.6%

overhead increase; while MoTKIP incurs only 1.9-

2.1% overhead that lowers actual data throughput

rate.

Table 1: 802.11 WLAN throughput v/s encryption

scheme.

Encryption

schemes

Average throughput

(Kbps)

No encryption 8695

WEP-128 bits 8580

TKIP-128 bits 8254

MoTKIP – 128

bits

8472

MODIFIED TEMPORAL KEY INTEGRITY PROTOCOL FOR EFFICIENT WIRELESS NETWORK SECURITY

155

Table 2: Processing Time by encryption schemes without

transmission.

Encryption

schemes

Processing Time (ms)

No encryption 194

WEP-128 bits 298

TKIP-128 bits 625

MoTKIP – 128

bits

501

Table 2 shows the time consumed for iteration

over a 5MB file. The time consumed is proportional

to the complexity of encryption operations and the

amount of data transmission. From these results it

can be concluded that MoTKIP should be used

wherever implementable due to its lower overhead

and enhanced security in comparison with classic

TKIP.

6 CONCLUSION

In this paper, we study the performance overhead

caused by TKIP compared to our proposed

MoTKIP. The latter is a better optimised

intermediate solution than TKIP and it also discards

all known attacks from WEP architecture while

preserving the RC4 algorithm to ensure

compatibility. Lightweight MoTKIP security scheme

is used to minimize the impact of overhead on

network and energy resources. Simulation results

demonstrate the effectiveness of our approach with

higher network throughput gain for embedding

minimal information into the MoTKIP encapsulated

packets. It considerably decreases key mixing

complexity of the encryption while making it

securely more robust and efficient.

REFERENCES

Al Naamany A. M. , Shidhani A. and Bourdoucen H.

2006. IEEE 802.11 Wireless LAN Security Overview.

IJCSNS International Journal of Computer Science

and Network Security, VOL.6 No.5B.

Borisov N., Goldberg I., and Wagner D. 2001.

Intercepting mobile communications: the insecurity of

802.11. In 7th Annual International Conference on

Mobile Computing and Networking, Rome, Italy.

Ganesan P., Venugopalan R., Peddabachagari P., Dean A.,

Mueller F., and Sichitiu M. 2003. Analyzing and

Modeling Encryption Overhead for Sensor Network

Nodes. In Proeeding. 2nd ACM International

Conference on Wireless Sensor Networks and

Applications, 2003, pp. 151-159.

Havinga P. J. M. and Smit G. J. M. 2001. Energy-

Efficient Wireless Networking for Multimedia

Applications. Wiley Wireless Communications and

Mobile Computing, vol. 1, no. 2, pp. 165-184.

IEEE Standard for Information Technology. 2004. –

Telecommunications and Information Exchange

between systems – Local and metropolitan networks –

Specific requirements, Part II, Amendment 6: Medium

Access Control (MAC) Security Enhancements, IEEE

Std 802.11i – 2004.

Jones C. E., Sivalingam K. M., Agrawal P., and Chen J.-C.

2001. A Survey of Energy Efficient Network

Protocols for Wireless Networks. Wireless Networks,

vol. 7, no. 4, pp. 343-358.

Lettieri P. and Srivastava M. B. 1999. Advances in

Wireless Terminals. IEEE Personal Communications,

vol. 6, no. 1, pp. 6-19.

Moen V., Raddum H., and Hole K. J. 2004. Weaknesses in

the Temporal Key Hash of WPA. Mobile Computing

and Communications Review, pp. 76–83.

Paul S. and Preneel B. 2004. A new weakness in the RC4

keystream generator and an approach to improve the

security of the cipher. Fast Software Encryption, FSE

2004, Lecture notes in Computer Science, Springer-

Verlag, pp. 245-259.

Potlapally N. R., Ravi S., Raghunathan A., and Jha N. K.

2003. Analyzing the Energy Consumption of Security

Protocols. In Proeeding. International Symposium on

Low Power Electronics and Design, 2003, pp. 30-35.

Prasithsangaree P. and Krishnamurthy P. 2004. Analysis

of trade-offs between security strength and energy

savings in security protocols for WLANs. In IEEE

Fall Semi-Annual vehicular technology conference

(VTC), Los Angeles, CA.

Stallings W. 2003. Cryptography and network security:

Principles and practice. Prentice Hall, Upper Saddle

River, New Jersey.

Thomas P., Al-Begain K. and Hughes J. 2005. The impact

of security measures on the performance of IEEE

802.11 networks. In Proceedings 3rd International

workshop in wireless security technologies, IWWST

’05, London, UK, pp. 82-92.

Walker J. 2004. 802.11 Security Series. Part I: The Wired

Equivalent Privacy (WEP). Intel Technical Report.

Walker J. 2004. 802.11 Security Series. Part II: The

Temporal Key Integrity Protocol(TKIP).

Intel

Technical Report.

SECRYPT 2007 - International Conference on Security and Cryptography

156
