PRIVATE COMPUTING WITH BEEHIVE ORGANIZED AGENTS

Bartek Gedrojc, Jan C.A. van der Lubbe

Delft University of Technology, Mekelweg 4, 2628 CD, Delft, The Netherlands

Martin van Hensbergen

Fox-IT Forensic IT Experts, Delft, The Netherlands

Keywords:

Mobile Agents, Secret Sharing, Threshold Signature, Hash Chaining, Untrustworthy Hosts, Private Comput-

ing.

Abstract:

Consider the problem of using mobile agents within an e-commerce setting where the goal is to purchase a

desired item for a user. The problem is that the mobile agents visit a collection of hosts which are untrustworthy

and therefore could tamper with the correct execution of the agents. Our approach to the e-commerce problem

prevents the hosts to retrieve the price the user is willing to pay for a desired item, it prevents the hosts to

retrieve the offers given by other hosts (conﬁdentiality) and it ensures the integrity of the agents’ code, the

query and itinerary. The key to our approach is the use of multiple agents for our goal; to purchase a desired

item for a user. Analogous to a beehive, the user creates Drone agents that can collect data but which do not

have the capability to process this data. Also, one Queen agent is deployed which uses the outputs of the

Drone agents and makes a decision on that data. Simpliﬁed, we let the Drone agents do the work, while the

Queen computes the result.

1 INTRODUCTION

Searching, comparing and buying e.g. airline tickets

on the Internet is still a major problem, especially if

this task has to be done on a mobile device. It takes

time to query various websites and to compare the

vast amount of offers of various e.g. airline compa-

nies. Also, due to the limited computational powers

of mobile devices and the limited bandwith of mobile

networks, it would be desireable to shift the compu-

tation cost from the mobile device to the server side

and to limit the communications between the mobile

device and the server.

Mobile software agents are based on mobile code

which performs a task for the owner of the agents.

Mobile code is code which can be transfered from

one computer (sender) to another (recipient) over a

network and which is executed on the recipient’s

side. Using techniques from artiﬁcial intelligence,

mobile code can be programmed to execute tasks au-

tonomously in behalf of his owner. A simple but clear

deﬁnition of agents has been given by Ted Selker of

the IBM Almaden Research Centre, “An agent is a

software thing that knows how to do things that you

could probably do yourself if you had the time”.

E-commerce scenarios, like buying airline tick-

ets on the Internet using a mobile device, could be

improved by using mobile software agents. Mobile

agents can be deployed on mobile devices with a task

given by its owner, the mobile device user, and sent

to various servers on the Internet. Because the mo-

bile agents are autonomous they require no interaction

with their owner, consequently, the owner can discon-

nect the mobile device from the network and go online

again to obtain the information collected by his agent.

The mobile software agent collects information

from various sources on the Internet and compares

this with the preferences of his owner. This prefer-

ence can contain, in the case of buying online airline

tickets, the maximum price the owner is willing to

pay, a list of prefered airline companies, destination,

et cetera. Which is private and sensitive information.

After processing all collected data and matching it

with the owners preference, the agents returns to his

owner where he presents the result of his comparison.

Execution of code on the recipient’s computer

poseses a number of security issues. From the re-

cipient point of view, the execution of untrustworthy

code can harm the recipients computer e.g. mobile

code can be a virus, a worm or a Trojan. A number

289

Gedrojc B., C.A. van der Lubbe J. and van Hensbergen M. (2007).

PRIVATE COMPUTING WITH BEEHIVE ORGANIZED AGENTS.

In Proceedings of the Second International Conference on Security and Cr yptography, pages 289-294

DOI: 10.5220/0002127402890294

 SciTePress

of techniques have been suggested, and used, to alle-

viate some of these issues, like sandboxing (Lai et al.,

1999) and the use of certiﬁcates (Tan and Moreau,

2002). From the sender of the agents point of view,

the execution of the mobile code on the recipients

computer can be manipulated or spied on because the

recipient has full control over the mobile code. The

latter issue is also called Private computing, where

the goal is to let a recipient compare private data of

the sender without learning any relevant information

about this private data of the sender which could in-

ﬂuence the outcome of the comparison.

Literature on mobile software agents in e-

commerce settings provides a variety of solutions e.g.

sequential execution of a single agent or parallel dis-

tribution of multiple agents. E-commerce scenarios

with mobile devices should not be based on multi-

ple agents due to the computational and communica-

tional limitations of the mobile devices i.e. the more

agents that are deployed, the more agents that need

to be managed. Therefore, it is desirable to deploy

a single agent per owner which is able to query vari-

ous servers, compare this with the preferences of his

owner and return with his result to that owner. The

main problem with this latter approach is the exe-

cution of mobile code on untrustworthy computers

(Sander and Tschudin, 1998a; Sander and Tschudin,

1998b; Cachin et al., 2000; Algesheimer et al., 2001).

When a single agent is deployed on the Internet

to persue a task given by its owner, then this agent

is vulnerable and likely to be attacked by malicious

hosts e.g. with the replay attack, where an agent is

used as an oracle to extract private information from

it by executing it numerous times with different inputs

and observing the outputs.

In this paper, a number of issues are addressed in

an e-commerce setting where the mobile users has to

execute his mobile code on untrustworthy computers

(hosts). The focus of this paper lies on minimizing

the risk of losing private data of the owner, making

sure replay attacks are not worthwile and protecting

the pre-deﬁned path the agents is willing to travel

(itinerary). In section 2 the problem is described to-

gether with the assumptions and requirements of the

solution. Section 3 explains the approach that was

chosen to solve the problem together with a brief

description of the main techniques that where used.

While section 4 explains the complete protocol, sec-

tion ?? makes a security analysis of the protocol. Fi-

nally this paper concludes with a conclusion in sec-

tion 6.

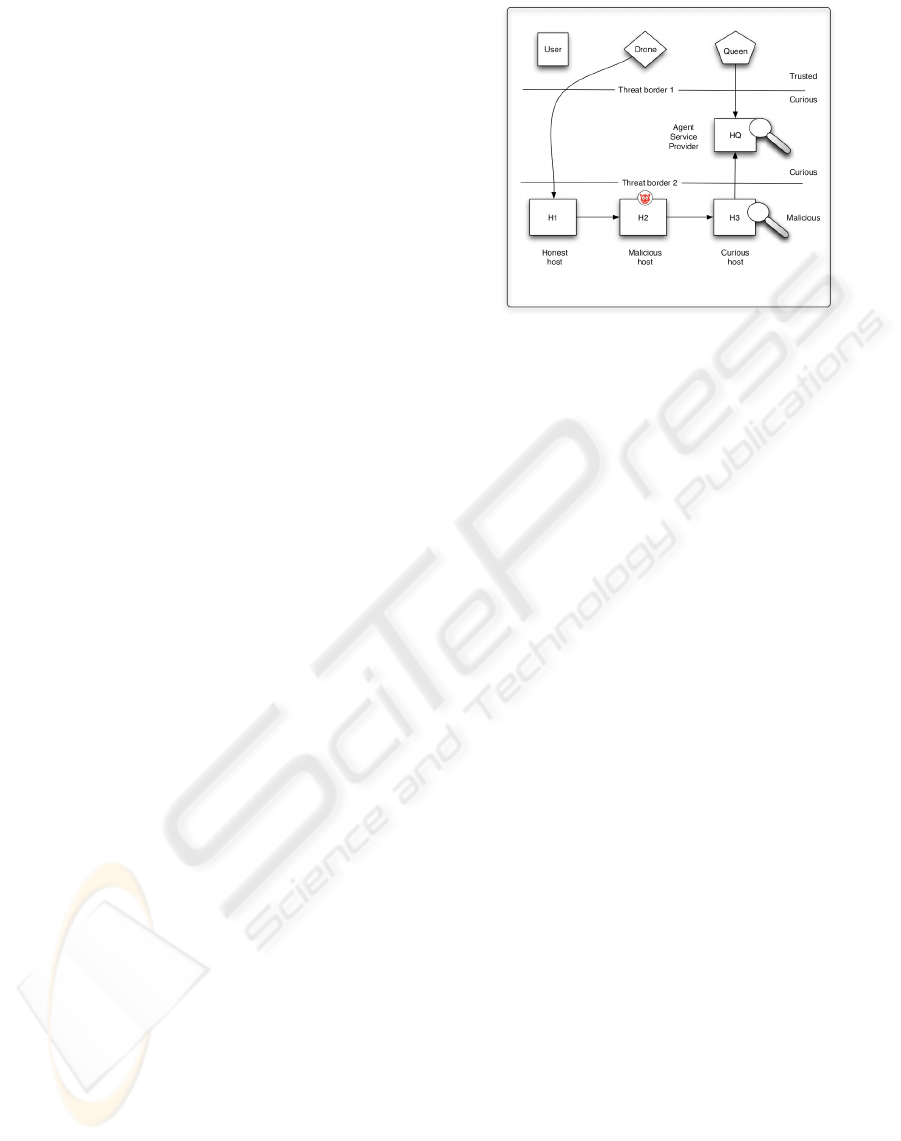

Figure 1: Agent model.

2 PROBLEM STATEMENT AND

ASSUMPTIONS

This paper addresses the problem of using mobile

agents within an e-commerce setting where the goal

is to purchase a desired item for a user. The issue

is that the mobile agents visit a collection of envi-

ronments (merchants) which are untrustworthy and

therefore could tamper with the correct execution of

the agents.

Figure 1 shows a schematic overview of the agent

model which is used in this paper. The model is di-

vided into three parts and shows the various environ-

ments an agent can operate, trusted, curious and ma-

licious. The user of an agent is located at an trusted

environment where he is able to create mobile agents

securely and where he is able to hide his private infor-

mation.

The curious environment will execute agents cor-

rectly and therefore will not tamper with the agents,

but it is interested in the agents’ code and memory in

order to ﬁnd secrets. This environment can be com-

pared with an Internet Service Provider (ISP) which

is able to read all Internet trafﬁc of his clients but it is

not in his interest to misuse this information (reputa-

tion or for a fee). Therefore, this curious environment

can also be named Agent Service Provider (ASP).

Malicious environments cannot only read the

agents’ code and memory, but are also able to alter

the agents code, clone it, or only partially execute

it. Agents that are executed by these environments

should not leak any private information. It is impos-

sible to prevent tampering of the agents by these en-

vironment but it should be possible to detect missuse.

It must be noted that merchants which are visited by

the agents are considered to be malicious.

SECRYPT 2007 - International Conference on Security and Cryptography

290

By assuming the use of mobile software agents the

scenario starts with the creation of the agent(s) by the

user. The user provides the agents the necessary infor-

mation which enables them to visit the prefered mer-

chants, be ability to collect information from those

merchients and make a decision on the collected in-

formation. After executing the agents they return to

the user with the computed result.

The solution to our agent model should fulﬁll the

following requirements. The collected information

from the merchants should be hidden for other mer-

chants. For example, in the case of collecting offers

from airline companies, these companies should not

be able to offer a price for a ticket based on already

collected offers from other companies. The goal is

therefore to have conﬁdentiality of the retrieved of-

fers.

Agents should also not reveal the full list of mer-

chients they are planning to visit (itinerary), conse-

quently the itinerary should be tamper-proof.

Also, the amount of network trafﬁc the agents gen-

erate should be minimized. Especially the interaction

with the users due to the use of a mobile device which

has minimum computational powers.

The ﬁnal requirement is related to the tampering

of the malicious merchants. As stated, one cannot

prevent tampering of the agent by the merchant, but

it should be the case that any merchant should be able

to detect malicious activity.

The assumptions of this agent model are that there

is a Public Key Infrastructure (PKI) available for the

distribution of the public keys of all participants. This

agent model does not consider a denial of service at-

tack and it also assumes that not all merchants collude

with each another.

3 APPROACH

An optimal solution to the problem described in sec-

tion 2, in the sense of minimal network trafﬁc, would

be to use a single mobile agent which hops from

one merchant to another without interacting with his

owner. The problem with this solution is that the

agent is carrying all private information of the user

and therefore it is likely to be reveal private infor-

mation if it is tampered with e.g. using a replay at-

tack. By deploying multiple agents and sending to

every merchant a different agent, tampering can be

deteceted and no private information will leak. The

downside to this solution is the increase in network

trafﬁc. Considering the above solutions, it would be

desirable to develop a trade-off between these solu-

tions. How many agents are there needed to meet the

requirements of section 2?

The approach of this paper is based on beehive

organization where there is one queen who makes the

decisions and multiple drones that do the actual work.

These two types of agents can shortly be characterized

as:

• Drone An agent that can only collect data but does

not have any decision making logic

• Queen An agent that takes the output of the

drone(s) and makes a decision based on that data

By splitting up the tasks of the agents and letting a

drone collect information from various merchants, the

private information of the owner cannot be revealed,

because the drone is not able to process collected data

e.g. match with previously collected offers and decid-

ing which of the offers is the maximum. This process

in only available with the queen. The gathering of

information is a rather neutral activity however and

sending only a drone to collect the information will

keep the decision logic well away from the malicious

environments.

The queen, which does carry the decision logic,

will not pass any malicious hosts. Rather, it is exe-

cuted on a ﬁxed host HQ and is quite immobile com-

pared to the drone. The queen will thus travel only to

a curious host where it waits for the drone’s arrival.

Once the drone and queen are together they will make

a decision on the best offer. See ﬁgure 1.

There is also a third agent involved, called the

helper-agent, which will be involved when the drone

cannot be sent to its next destination. This helper-

agent will also reside on a curious host (which can ei-

ther be the same or a different host as where the queen

resides) but will not move from there. The helper-

agent is only needed when a host H

in the drone’s

itinerary does not function, otherwise the helper-agent

will just shut down after a pre-determined time.

This paper is based on (Singel

ee and Preneel,

2004) which present a mobile agents scenario that

can securely collect information, protect the collected

information against untrusted hosts, and it can digi-

tally sign transactions in an untrusted environment. In

order to protect different aspects of the agent model

a variety of cryptographic techniques and concepts

is needed. None of the protocols are described

at algorithm level, which means that a suitable

algorithm can be chosen whenever a hash-function

or encryption algorithm is used. The encryption of a

value v with a symmetric encryption algorithm using

key K is denoted as E

(v), whereas the encryption of

the value using the public key of a particular host H

is denoted as E

(v) (or E

(v)). A digital signature

over a value v with host H

s private key will be

PRIVATE COMPUTING WITH BEEHIVE ORGANIZED AGENTS

291

denoted by Sig

(v).

Secret Sharing Scheme. For the storage of the secret

parameters in the queen a public key encryption

algorithm is used. Since this storage will need to be

decrypted once the drone has reached the queen, a

secret sharing algorithm is used to split the decryption

key in two parts; one which is given with the drone

and one which is given to the queen e.g. (Shamir,

1979; Blakely, 1979). Without the presence of the

drone, the host which executes the queen cannot

decrypt the secret data stored in the queen.

Threshold Signature Scheme. Since the agents need

to sign the best bid at the end of the journey, a signing

key must be stored by the agents. For obvious rea-

sons this key cannot be placed in the drone. Placing

the signing key in the encrypted storage of the queen,

while better suited, has the drawback that the signing

key will be reconstructed in its entirety on a curious

host.

To counter this a threshold signature scheme is

chosen e.g (Desmedt and Frankel, 1994). With a

threshold signature scheme, the signing key is split

into two parts. Each party in the signature process

can use its share to create a partial signature on a

message. These partial signatures can then later be

combined to create one complete signature. In our

model we let the merchants partially sign their bids

all with the same share and give that to the drone.

Once the queen ﬁnds the best offer, it creates a

partial signature of that same offer with its share and

combines the two partial signature to one complete

signature. This way, the complete signing key is

never reconstructed in one place.

Hash Chaining. Is a method of providing integrity

of data when this data is being augmented by mul-

tiple parties. The within this section described hash

chaining technique is taken from (Singel

ee and Pre-

neel, 2004). The protocol described here will need

some modiﬁcations for our agent model, but the prin-

ciples will remain the same. Each host H

that the

drone visits will add its offer o

to an encrypted stor-

age in the agent. By using hash chaining, host H

not

only adds its offer to the storage, but also makes a

commitment that he adds it to the proper storage, by

including a hash of the previous storage state. Each

host H

will follow the following protocol for storing

its offer o

to the storage.

• Encapsulated offer:

= Sig

),h

),0 ≤ i ≤ n (1)

• Chaining relation:

= h(o

) (2)

= h(O

i−1

i+1

),1 ≤ i ≤ n (3)

Here, o

is initial information (e.g. identitiy of the

agent), o

the offer of host H

, O

the encapsulated

offer from host H

, r

a random number generatated

by H

, E

(v) is the encryption of value v with the

public key of the queen and h(.) a cryptographic hash

function. The encrypted storage will consist of the

chain O

,...,O

The essence of the protocol is that a host H

signs

both its offer and a hash value taken over the last en-

capsulated offer and the next destination of the agent.

If a malicious host H

would like to delete, for exam-

ple, an offer O

(k < m), from the storage, then this

will be detected during veriﬁcation of the hash chain

because the committed value h

k+1

will not verify.

4 PROTOCOL

This section will describe the complete protocol. It

must be noted that the complete process of creating

agents, sending them out and gaining the results is

called a mission.

4.1 Instantiation of the Agents

For each mission, three agents will be constructed.

Let the itinerary of the drone be given by the hosts

,...,H

,HQ where H

(1 ≤ i ≤ n) are

merchants and HQ is the location of the host which

executes the queen. Let H

denote the location of

the host which hosts the helper-agent. Fix a security

parameter m ≤ 1 which denotes the maximum

amount of succeeding hosts that may fail so that the

drone can still continue its journey. The case m = 0

does not require a helper agent so we ignore this case.

Denote the parameters which describe the item(s)

that the agent seeks with Q and the secret decision

parameters or logic by F.

Mission instantiation.

• Generate a public key P

, which will be used

to encrypt the Queen’s data, and split the corre-

sponding private key in two parts S

and S

us-

ing a secret sharing scheme.

• Generate a secret signing key S, which will be

used to sign the best offer by the merchants, and

split the signing key in two parts s

and s

using a

threshold signature scheme.

SECRYPT 2007 - International Conference on Security and Cryptography

292

Drone instantiation. In this protocol, h is a strong

cryptographic hash function which generates d bit

hashes (with d sufﬁciently large) and r|

means the

ﬁrst k bits of the bit-string r.

1. Choose a k such that 2

= |{H

}| and k < d/2.

2. For each host H

to visit, generate a symmetric

encryption key K

and a (small) random nonce r

(1 ≤ i ≤ n), such that r

6= r

for j < i and a

random nonce n

3. Calculate iteratively the itinerary as

= HQ (4)

= [E

),E

i+1

)]

with i = n − 1,...,n − m

(5)

= [E

),E

i+1

)]

with i = n − m − 1, . . . , 1

(6)

Store I

, P

, S

and the location of the helper-agent

in the drone and send it to H

Queen instantiation protocol.

• Calculate the encrypted storage:

,...,H

,F,s

)

• Store the encrypted storage together with S

the queen

Helper agent instantiation protocol. Calculate and

store the following lookup-table:

Table 1: Helper agent lookup-table.

look-up

key

value veriﬁcation

i+t

))

i,t

h(r

||H

i+t

)

with t = 1,...,m and i = 1,...,n − 1.

4.2 Execution of the Agents

When the agents are initialized, the queen and

helper-agent are sent to their respective agent service

providers. The helper-agent awaits instantiations

of the helper protocol and is deactivated after a

pre-determined period, so helper agents will not

leave the ASP once they are there. The queen awaits

the coming of the drone or gets deactivated after a

pre-determined period whichever comes ﬁrst. The

drone is sent to H

and continues its journey from

there.

Offer collection protocol - drone at merchant.

When a drone is executed on a host H

, the follow-

ing protocol is executed

1. Host H

uses its private key to decrypt the ﬁrst el-

ement of I

, as given in (5) and (6), to obtain K

which can be used to decrypt the second element

of I

to obtain H

i+1

and the rest of the (encrypted)

itinerary.

2. Host H

creates an offer o

and uses s

to partially

sign its offer, denoted by c

i,2

3. Host H

calculates using PQ the encapsulated

offer using the following hash chaining relations:

If help-protool was not needed:

= Sig

, ˆr

i,2

),h

),0 ≤ i ≤ n (7)

= h(O

i−1

) (8)

If help-protocol was needed to skip t hosts:

= Sig

, ˆr

i,2

),n

i+1

i+2

,...

...,n

i+t

),h

)

(9)

= h(O

i−1

i+t+1

) (10)

4. The hash chain, I

i+1

and agent are sent to the next

destination.

In case step 4 fails, the help of the helper-agent is

called and the following help-protocol is used:

Help protocol - drone at merchant communicating

with helper-agent.

1. H

sends a help request to the helper agent con-

sisting of the tuple r

,...,

where r

the value included in I

and

,...,

are the

hosts it wishes to skip

2. P checks if 1 ≤ s ≤ m and if r

is part of its

lookup table. If not, it aborts.

3. For each k = 1, . . . , s execute step 4

4. P veriﬁes if h(r

) = h

i,k

5. P returns E

i+s

)) to H

Decision protocol - drone and queen at HQ. Once

the drone reaches the queen, they will together decide

on the best offer. For this to work, the following steps

must be undertaken:

1. S

from the drone and S

from the queen are

combined to obtain S

2. The queens encrypted storage is decrypted using

, thereby obtaining the decision logic, the other

half of the signing key s

and the itinerary that the

drone should have followed

3. For each encapsulated offer that the drone has col-

lected execute steps 4 - 6

4. Decrypt O

to get actual offer o

PRIVATE COMPUTING WITH BEEHIVE ORGANIZED AGENTS

293

5. Verify if signed by a host which was included in

itinerary, if veriﬁcation fails: abort

6. Verify if each signer is only represented once

7. For each host H

∈ I

that did not do an offer, ver-

ify if n

is present in encrypted storage. If veriﬁ-

cation fails: abort.

8. Input the offers o

,...,o

into F to determine

b offer o

9. Use s

to partially sign o

and combine with c

b,1

to make the signature complete.

5 SECURITY ANALYSIS

With the construction of the itinerary a host H

has

sufﬁcient information to be able to determine the next

host in the agent’s itinerary but cannot get any hosts

beyond that without execution of the help-protocol.

Property 1 (Correctness). Suppose all the hosts H

are available and execute offer collection protocol

correctly. Then

i) each host H

is able to obtain the next destination

i+1

ii) each host H

cannot get destinations H

with j >

i + 1

Proof. i) The case i = n are trivial. Take 0 < i < n: at

host H

the itinerary consists of the tuple

),E

i+1

)]

Since host H

has access to its private key, it can

decrypt the ﬁrst part of the tuple to obtain K

. With

this K

it can decrypt the second part of the tuple to

get H

i+1

and I

i+1

. Sending the latter to host H

i+1

, the

process can be repeated by H

i+1

to obtain the location

of H

i+2

, et cetera.

ii) In order for a host H

to get knowledge of H

with j > i + 1, it will need to decrypt the second en-

tries of the tuples I

i+1

,...,I

j−1

. But, for any k, in or-

der to be able to decrypt the second entry of I

one

will need K

, which in turn is only available by de-

crypting E

). But only H

k+1

(k = i, . . . , j − 2)

can decrypt these values.



6 CONCLUSION

This paper introduces a practical mobile agent sce-

nario which could be used as a basis for an e-

commerce setting. By deﬁning strict tasks for each

agent, we prevent sensitive data from being exposed

to the possibly malicious merchants during the bid-

ding process. Even though we use a multi-hop agent

with ﬁxed itinerary to travel to the different mer-

chants, merchants see only a very small part of the

agent’s itinerary. In case of failures in the agent’s

itinerary, a help protocol can be executed to overcome

this difﬁculty. If all of the hosts function properly

this help protocol is not needed. Protocols are de-

scribed in a general so that different algorithms could

be used depending on other (performance and stor-

age) factors.
