SECURE LICENSE MANAGEMENT

Management of Digital Object Licenses in a DRM Environment

Carlos Serrão, Miguel Dias

ISCTE/DCTI/ADETTI, Ed. ISCTE, Av. Das Forças Armadas, 1600-082 Lisboa, Portugal

Jaime Delgado

UPC/DAC/DMAG, Campus Nord Mòdul D6, E-08034 Barcelona, Spain

Keywords: License, DRM, Security, rights expression language, content encryption key.

Abstract: In the digital world protecting digital intellectual property is proving to be a hard task. Not only it is

complex to provide robust and reliable mechanisms to prevent unauthorized content copying and utilization,

but also it is complex to provide a mechanism for specifying and enforcing how content can and will be

used. Rights expression languages allow content providers and distributors to syntactically and semantically

to express a set of rights that are associated to a digital object. In this paper we will provide the definition

and description of the digital object license granting rights life cycle management and processes necessary

to secure the license throughout this entire life cycle.

1 INTRODUCTION

Digital Rights Management (DRM) involves the

description, layering, analysis, valuation, trading and

monitoring of the rights over an individual or

organization’s assets; in digital forma. Managing the

way users/actors can interact with digital objects is

one of the major functions of a digital rights

management solution (Serrão, Kudumakis, et al,

2005). Modern DRM solutions allow the definition

of a set of conditions and rights (REL), under which

a specific actor can use a governed digital object.

These REL can syntactically bound a digital object

identifier, an actor identifier, a content encryption

key and set of conditions, together. The goals and

purpose of RELs can be characterized as the

expression of copyright, expression of contract or

license agreements and control over access and/or

use.

Two of the used RELs on today’s DRM

panorama are ISO MPEG REL (a derivative from

XrML and ODRL (Open Digital Rights Language)

(Xin et al, 2005). Although RELs are a very

powerful mechanism for rights expression they have

little use if a system is not capable of interpret them

and if the system is not capable of imposing the

restrictions (if any) presented on the license (Safavi-

Naini, 2006). Two main processes may occur while

dealing with digital objects licenses: the creation of

licenses and the usage and enforcing of the licenses.

The license creation process involves the

enumeration and specification of the conditions that

will have to be enforced over the digital object and

the necessary digital object encryption keys

necessary to access the digital object. The second

process is the license usage and enforcement and is

responsible for the compliance of digital object

usage to the rights declared within the license, which

can be enforced by the existence of content

encryption or scrambling keys that might exist or not

inside the license. It is therefore important for the

license to be protected and managed properly. It is

central to the digital object rights management that

licenses, which express the way digital objects, can

be used need to be managed throughout its entire life

cycle.

251

Serrão C., Dias M. and Delgado J. (2007).

SECURE LICENSE MANAGEMENT - Management of Digital Object Licenses in a DRM Environment.

In Proceedings of the Second International Conference on Security and Cryptography, pages 251-256

DOI: 10.5220/0002129902510256

 SciTePress

2 THE LICENSE MANAGEMENT

LIFE CYCLE

In the curse of the digital objects rights management

development, the existence of a mechanism to

specify how that digital object could be used has

always been important. Today’s digital rights

expression languages have a lot to thank to the early

work developed by Xerox, giving origin to DPRL

(Digital Property Rights Language) that was

posterior evolved to XrML by ContentGuard

(ContentGuard, 2001).

2.1 The Different Types of Rights

Management

DRM systems depend on license creation and

enforcement to express how digital objects can be

used. This functionality is present in DRM systems

in many different ways, through combinations

between the existence of a formal rights expression

and the content encryption keys (CEK). Several

different combinations and scenarios result in the

following typology identification: 1) Using REL,

CEK inside REL, REL inside the digital object: in

this case, a formal rights expression language is used

to express the digital object rights, and the content

encryption key is placed inside the REL as part of

the license. The license is also placed inside the

digital object and is part of it – the license is

obtained at the same time than the digital object; 2)

Using REL, CEK inside REL, REL outside the

digital object: in this case, a formal rights expression

language is used to express the digital object rights,

and the content encryption key is placed inside the

REL as part of the license. In this case the license is

not part of the digital object and therefore it may be

obtained at a different moment than the digital

object; 3) Using REL, CEK outside REL, CEK

inside the digital object: in this specific case a rights

expression language is used and the content

encryption key is not part of the license, however

this key is part of the digital object; 4) Using REL,

CEK outside REL, CEK outside the digital object: in

this case a rights expression language is also used,

however the content encryption key is not part of the

license or the digital object. This means that both the

license and the CEK need to be obtained in different

moments apart from the digital object; 5) Not using

REL, CEK inside the digital object: in this case a

rights expression language is not used but the

content encryption key is place inside the digital

object; and 6) Not using REL, CEK outside the

digital object: in this final case, no rights expression

language is used and the content encryption key

needs to be obtained to access the digital object. All

the presented cases can be implemented in DRM

solutions and scenarios although the most active and

representative are those who use a rights expression

language to represent licenses, that contain the

content encryption key, like for instance the

Windows Media DRM. There are different cases in

which the license is contained or not inside the

digital object himself. There are also some cases

where a REL is not used to express the content

access rights and everything is left to the rendering

software or device – this is for instance the Apple

iTunes FairPlay DRM (Serrão, Dias et al, 2006).

2.2 License Management Life Cycle

The creation and usage of rights expression language

based licenses are involved in a cycle that goes from

the digital object creation to the digital object usage.

The enumeration and description of such cycle is

quite important because it provides the mean to

identify which are the basic procedures in the cycle

and which are the crucial security mechanisms that

need to be implemented to make the system robust

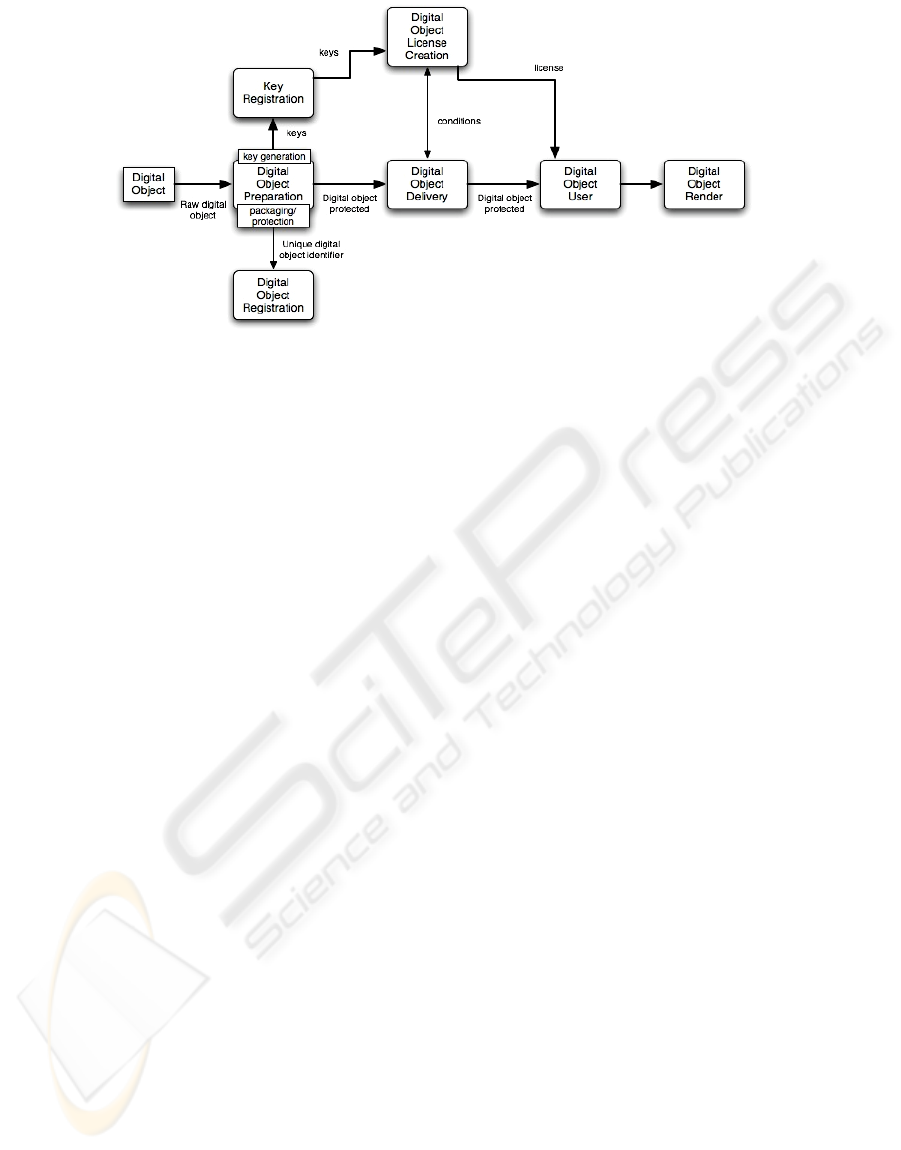

(Figure 1). The process starts with the object capture

and its encoding into a digital form, giving origin to

a digital object. This process involves the choice of

the appropriate encoding mechanisms taking into

account where and how the digital object is going to

be used (Serrão, Serra et al, 2006). The appropriate

protection and packaging mechanisms are also

selected and the content encryption keys are selected

and applied during the protection of the digital

object (Nutzel et al, 2006). Depending on the digital

object protection strategy, a single encryption key

can be used to protect entirely the object, or several

keys may be used to cipher different parts of that

same object. The digital object is also uniquely

registered and assigned with a proper identifier that

will be used to identify uniquely the digital object in

the digital world. The keys used to cipher the

content are registered on the system, and assigned to

the unique digital object identifier generated on the

previous step of the life cycle. These keys should be

stored on a secure digital container and will be used

on the future to allow the access to the digital object.

This concludes the digital object preparation and

the different digital assets are made available to final

users using different distribution channels. When

distributing the digital object to final users the

conditions for its distribution are set-up and an

optional negotiation process with the end user may

SECRYPT 2007 - International Conference on Security and Cryptography

252

actually occur. Usage conditions can be expressed

using rights expression languages that bound the

digital object usage conditions, the content

encryption key and the user or device identifier. In

previous section we have identified the different

types of relations between the rights expressions

languages, the content encryption keys and the

digital objects. In this case, we would like to

simplify the process by stating that the licence

contains the content encryption keys, the license is

not part of the digital object and that it obtained in a

different moment than the digital object itself. When

the user receives the digital object and the license,

this content encryption key and the inherent usage

conditions need to be extracted from the license and

used on the user digital object handling system to

allow fair access to it, while upholding the

conditions defined by the copyright holders and the

specific conditions acquired by the users.

3 SECURITY IN THE LICENSE

MANAGEMENT LIFE CYCLE

We have introduced in the previous section the

description of the license management life cycle

(Figure 1).

The process to generate keys is always a

complex problem. The generation of keying material

should follow a set of standards to have the

necessary random data to be generated securely.

Therefore the keys (C

EK[1]

, C

EK[2]

,… C

EK[n]

) used to

cipher the digital objects need to be generated,

stored and handled securely. The generated keys are

dependent of the type of object and of the protection

that is going to be used on the digital object (Figure

1). These digital object protection keys need to be

stored securely to be used in the future. This is

necessary to avoid the compromise of these keys and

to allow its posterior secure usage on the production

of licenses. The key generation mechanism

(Encryption Key Creation Service - EKCS) should

possess a key-pair (EKCS

pubk

, EKCS

prvk

) and a

digital certificate issued by a trusted entity (a

certification authority) (Cert

EKCS

). During this

stage the digital object is also registered on the

Digital Object Registration Service (DORS). Also

the DORS holds a key-pair (DORS

pubk

, DORS

prvk

)

and a certificate issued by a trusted entity

(Cert

DORS

). The DORS issues a Digital Object

Unique Identifier (DOUI) that is digitally signed to

prevent further alterations during the digital object

lifetime: DORS

prvk

[DOUI]. The format of the DOUI

could follow one of the available standards (Figure

1).If the EKCS is not responsible for the long-term

storage of digital object keys, then a Secure Key

Storage Service (SKSS) needs to be used. This

SKSS holds a key pair (SKSS

pubk

, SKSS

prvk

) and a

certificate issued by a trusted entity (Cert

SKSS

The EKCS after creating the keys sends them

encrypted to the SKSS ciphering this information

with SKSS public-key, contained in Cert

SKSS

Additionally this information is combined with the

DOUI: SKSS

pubk

{ C

EK[1]

, C

EK[2]

,… C

EK[n]

DORS

prvk

[DOUI]}. During this process the

conditions for the digital object. The CO has also a

key pair (CO

pubk

, CO

prvk

) and a digital certificate

(Cert

), and will digitally sign the conditions,

expressed using a rights expression language under

which the digital object can be used:

prvk

[conditions]. These conditions will be

securely stored by the Secure License Service (SLS),

and will be indexed by the DOUI. Whenever an end-

user (U) desires to obtain a protected digital object it

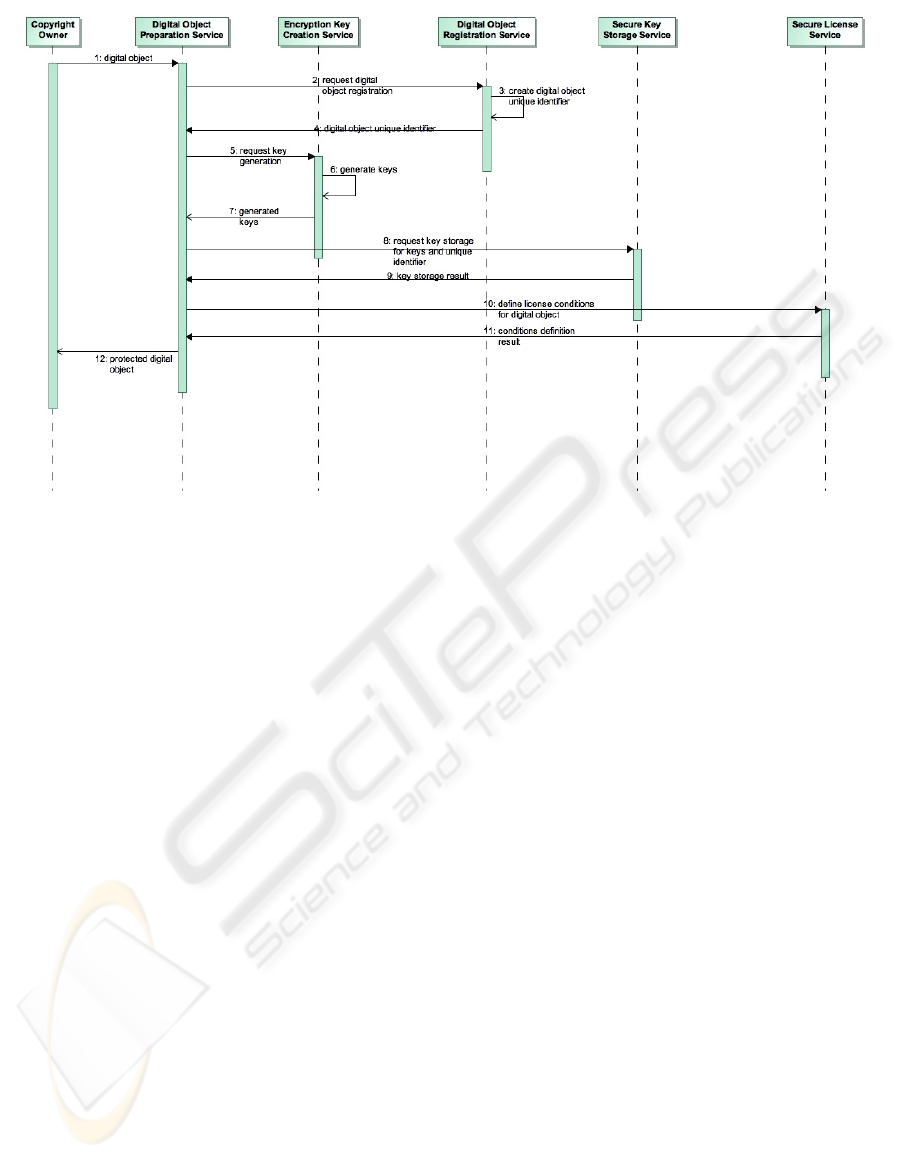

Figure 1: The digital object license life cycle. This life cycle starts with the creation of the digital object and the

specification of the conditions under which the digital object can be used.

SECURE LICENSE MANAGEMENT - Management of Digital Object Licenses in a DRM Environment

253

has to be authenticated by the rights management

system that governs the digital object. To do this the

user has a key pair (U

pubk

, U

prvk

) and a digital

credential (Cert

). The U will use this credential

to authenticate and start the digital object acquisition

process. The U uses its credential to establish a

secure session with the Digital Object Distributor

(DOD) and the SLS, through the Digital Object

Rendering Device (DORD). The DORD, in this

scenario represents a general-purpose device

(hardware or software based) capable of performing

some functions over a digital object. During this

process, the DOD loads the specific licensing

conditions for the digital object that were previously

established by the copyright owner. There are two

possibilities in this step: either the copyright owner

allows the negotiation of some conditions or the

terms and conditions, or the license is closed and

final. If the second situation occurs the end-user will

have only the same type of usage defined for that

specific governed digital object (Figure 2).

The U uses its credential to establish a secure

session with the Digital Object Distributor (DOD)

and the SLS, through the Digital Object Rendering

Device (DORD). The DORD, in this scenario

represents a general-purpose device (hardware or

software based) capable of performing some

functions over a digital object. During this process,

the DOD loads the specific licensing conditions for

the digital object that were previously established by

the copyright owner. There are two possibilities in

this step: either the copyright owner allows the

negotiation of some conditions or the terms and

conditions, or the license is closed and final. If the

second situation occurs the end-user will have only

the same type of usage defined for that specific

governed digital object (Figure 3). After the

definition of the specific conditions between the U

and the DOD, the DOD instructs the SLS to produce

a license for a given digital object (using the signed

DOUI (DORS

prvk

[DOUI])), the U identification

(Cert

) and the conditions signed by the DOD

(DOD

prvk

[conditions])). The SLS receives this

information and validates this by the verification of

the digital signature of the U, the DORS and DOD.

This provides the warranty do the SLS that the

request has not been tampered by some external and

malicious entity. After these validations have been

performed, the SLS verifies if the conditions present

on the DOD request are valid and allowable by

comparing them with the previous agreement with

the CO. If they are, the license can be produced and

the keys necessary to access the digital item can be

provided to the U. With this information the SLS

can obtain the CEK from the SKSS. The SLS

authenticates to the SKSS using Cert

SKSS

, and uses

the DOUI (DORS

prvk

[DOUI]) to retrieve the

appropriate keys to the digital object. These keys are

ciphered with the SLS public key to avoid its

compromise: SLS

pubk

{ C

EK[1]

, C

EK[2]

,… C

EK[n]

These keys will be placed inside the license for

further usage, and will be given to the entity trying

to access the digital object. During the license

Figure 2: Definition of the digital object license conditions.

SECRYPT 2007 - International Conference on Security and Cryptography

254

production phase it is extremely important that the

key (or keys) contained are protected from peeking

eyes. Therefore the SLS ciphers these keys with the

receptor (user or device) public keys, avoiding

therefore that some unauthorized entity may obtain

the keys and use the digital object: U

pubk

{ C

EK[1]

EK[2]

,… C

EK[n]

}. These keys are placed together

with the end-user entity identity, the digital object

unique identifier, the licensing conditions and a time

validity: U

pubk

{ C

EK[1]

, C

EK[2]

,… C

EK[n]

DORS

prvk

[DOUI], conditions, timedate. This bundle

is digitally signed by the SLS to avoid unauthorized

modifications of it: SLS

prvk

pubk

EK[1]

, C

EK[2]

,…

EK[n]

}, DORS

prvk

[DOUI], conditions, timedate].

After the license (LIC) is produced a notification

is returned to the DOD and optionally to the digital

object-rendering device (DORD). Whenever the

DORD tries to access the digital object, it verifies if

it is protected or not. If it is, the DORD checks for

the existence of a valid license on the system. If the

license can be found, it is verified to check if the

DORD is allowed to perform the requested action

over the digital object or not. This validation process

involves not only the verification of the license on

the system, but also the verification of the license

content, such as the acquired conditions and the time

validity. The DORD should implement also some

security mechanisms that will allow not only the

secure storage of the licenses but also the

mechanisms to handle the secure persistent storage

of state information (such as render counters and

others). This is still one of the major security

breaches on software-only based DRM systems

(Shapiro et al, 2002). If a license for the digital

object is not yet available on the system, the DORD

contacts the SLS (the information about the proper

SLS to contact can be placed inside the digital

object, or in a more interoperable manner DORD

can contact any SLS without any concern if the

requested license was or not produced by the same

SLS), requesting a license for that digital object

(using the DOUI) and the U identification:

DORS

prvk

[DOUI], Cert

. The information

contained on this request will be signed by the U:

prvk

[DORS

prvk

[DOUI], Cert

]. This will avoid the

modification of the request by some man in the

middle attack. This information is received by the

SLS, verified and checked against the information

on the data storage, and if a matching license is

found it is returned to the DORD. The license

conforms to the format previously described and is

signed by the SLS. When the license is on the

DORD, it is securely stored and any state

information (such as play counters will have to be

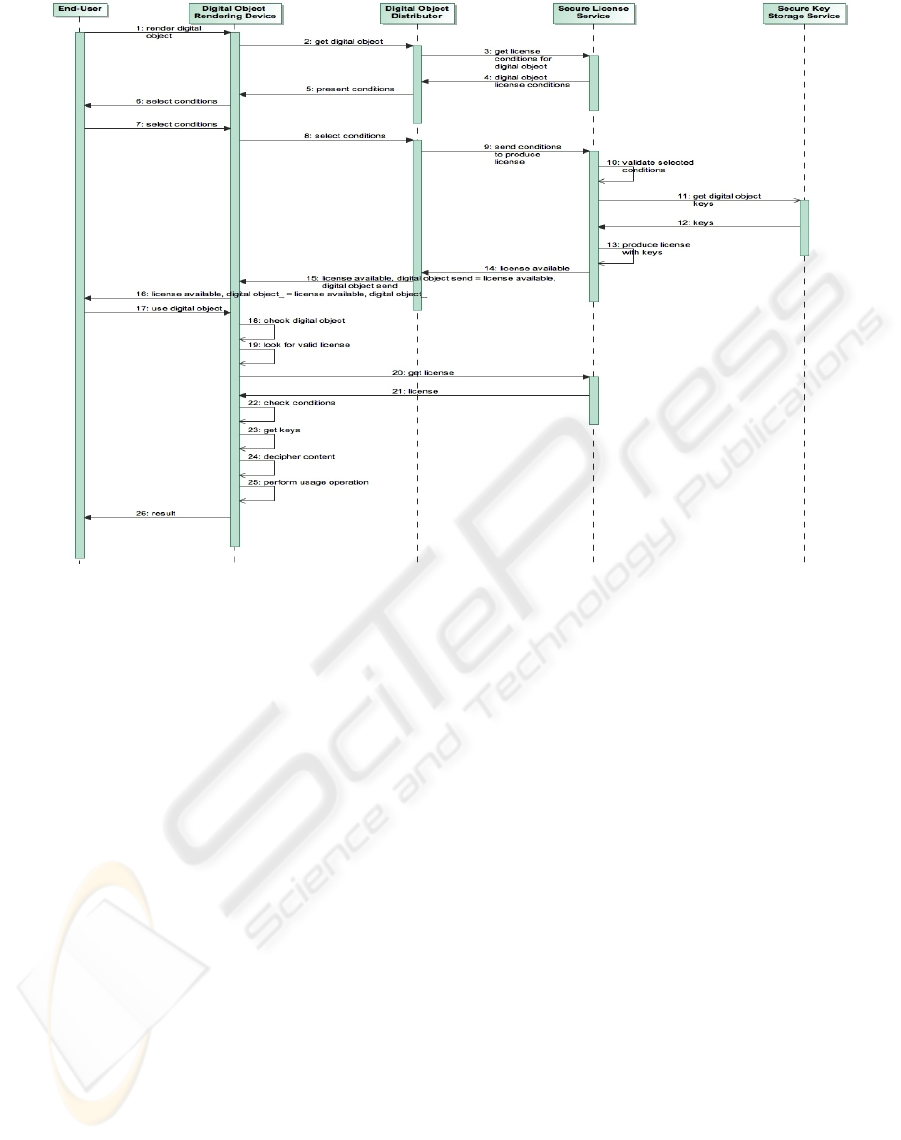

Figure 3: The digital object license acquisition process.

SECURE LICENSE MANAGEMENT - Management of Digital Object Licenses in a DRM Environment

255

instantiated). While accessing the digital object the

DORD securely retrieves the digital object

protection keys from the license, and using them to

render the decipher the content and allow the

execution of the request operation over the digital

object. The described process corresponds only to

one of the many possible scenarios that were

identified, in which the combination of rights

expression languages, content encryption keys and

digital objects may coexist (Zeng, 2006).

4 CONCLUSIONS AND FUTURE

WORK

The authors of this paper have focused their work on

the presentation of the way most digital object rights

management solutions handle with the management

of the digital representation of rights. We have also

identified and briefly described a set of different

scenarios, about the usage of digital rights

expression languages for expressing digital object

licenses, the presence of the content encryption key

inside the licenses and the presence of such licenses

inside the digital objects. This identification has

resulted in six different scenarios, and the most

relevant one (implemented in the most significant

rights management solutions today) has been

selected and the license management life cycle was

described. After the identification and description of

the major processes in the selected scenario of

license management life cycle model, the authors

have identified the basic security procedures that

make the license management processes effective on

the digital objects rights management. Crucial

aspects such as confidentiality, integrity and

authentication are of extreme importance and

therefore need to be used with care to offer trust

across the entire license management life cycle. This

represents work in progress, and as a future work,

the authors of this paper will extend the proposed

license management life cycle model and analyse it

in terms of the different scenarios identified and

proposed in the paper. We will also try to identify

from real existing rights management solutions how

they handle license management, and how it can be

mapped to an identified scenario and to the general

life cycle model. The final goal for this would be to

provide a generic license management framework

that can be easily interoperable between the different

rights governing solutions.

REFERENCES

Xin Wang, T. DeMartini, B. Wragg, M. Paramasivam, and

C. Barlas. 2005. The MPEG-21 rights expression

language and rights data dictionary. Multimedia, IEEE

Transactions on 7, no. 3: 408- 417.

Nützel, Jürgen, and Anja Beyer. 2006. How to Increase

the Security of Digital Rights Management Systems

Without Affecting Consumer’s Security. In :

Emerging Trends in Information and Communication

Security, 368-380.

Safavi-Naini, Reihaneh, and Moti Yung. 2006. Digital

Rights Management: Technologies, Issues, Challenges

and Systems. Springer.

Shapiro, William, and Radek Vingralek. 2002. How to

Manage Persistent State in DRM Systems. In :

Security and Privacy in Digital Rights Management :

ACM CCS-8 Workshop DRM 2001, Philadelphia, PA,

USA, November 5, 2001.

Zeng, Wenjun, Heather Yu, and Ching-Yung Lin. 2006.

Multimedia Security Technologies for Digital Rights

Management. Academic Press.

Serrão C., Torres V., Delgado J., Dias M., 2006,

“Interoperability Mechanisms for registration and

authentication on different open DRM platforms”, in

International Journal of Computer Science and

Network Security, Vol. 6, Number 12, Pages 291-303.

Serrão C., Dias M., Delgado J., 2006, “Using Service-

oriented Architectures towards Rights Management

interoperability”, in Proceedings of the International

Joint Conferences on computer, Information and

Systems Sciences and Engineering (CISSE06),

University of Bridgeport, USA.

Serrão C., Dias M., Kudumakis P., 2005, “From OPIMA

to MPEG IPMP-X - A standard’s history across R&D

projects”, in Special Issue on European Projects in

Visual Representation Systems and Services, Image

Communications, Volume 20, Issue 9-10, Pages 972-

994, Elsevier.

Serrão C., Serra A., Dias M., Delgado J., 2006, Protection

of MP3 Music Files Using Digital Rights Management

and Symmetric Ciphering, Proceedings of the 2nd

International Conference on Automated Production of

Cross Media Content for Multi-channel Distribution

(AXMEDIS2006), Leeds, UK.

SECRYPT 2007 - International Conference on Security and Cryptography

256
