CHANGE DETECTION AND BACKGROUND UPDATE

THROUGH STATISTIC SEGMENTATION FOR TRAFFIC

MONITORING

T. Alexandropoulos, V. Loumos and E. Kayafas

Multimedia Technology Laboratory, National Technical University of Athens, 9 Heroon Polytechneiou, Athens, Greece

Keywords: Highway Surveillance, Traffic Monitoring, Background Update, Change Detection.

Abstract: Recent advances in computer imaging have led to the emergence of video-based surveillance as a

monitoring solution in Intelligent Transportation Systems (ITS). The deployment of CCTV infrastructure in

highway scenes facilitates the evaluation of traffic conditions. However, the majority of video-based ITS

are restricted to manual assessment and lack the ability to support automatic event notification. This is due

to the fact that, the effective operation of intelligent traffic management relies strongly on the performance

of an image processing front end, which performs change detection and background update. Each one of

these tasks needs to cope with specific challenges. Change detection is required to perform the effective

isolation of content changes from noise-level fluctuations, while background update needs to adapt to time-

varying lighting variations, without incorporating stationary occlusions to the background. This paper

presents the operation principle of a video-based ITS front end. A block-based statistic segmentation

method for feature extraction in highway scenes is analyzed. The presented segmentation algorithm focuses

on the estimation of the noise model. The extracted noise model is utilized in change detection in order to

separate content changes from noise fluctuations. Additionally, a statistic background estimation method,

which adapts to gradual illumination variations, is presented.

1 INTRODUCTION

The continuous development in computer imaging

technology has resulted in the adoption of video-

based surveillance as a monitoring solution in

Intelligent Transportation Systems. The video-based

approach to traffic monitoring suggests the

utilization of CCTV infrastructure for the

surveillance of highway scenes by human operators.

Video monitoring, as a non-intrusive approach,

allows the easy and secure installation of monitoring

infrastructure and facilitates the repositioning of the

equipment when needed.

A video-based ITS provides visual information

to a human operator, who is responsible for traffic

condition assessment. Depending on the observed

conditions, the operator selects an appropriate course

of action. Some decision examples include the

adjustment of top speed limits, depending on the

present traffic congestion, or the notification of

emergency medical services, in the case on an

accident.

Most installed video-based highway surveillance

systems restrict to visualization purposes, that is,

traffic conditions and events are assessed manually

by the operator. However, the ongoing advances in

computer processing speed have increased the

interest for the expansion of video surveillance

capabilities to the level where intelligent event

detection and notification features are supported.

The operation of an ITS as an autonomous

decision support system relies strongly on the

effective operation of a front end which executes

machine vision algorithms, in order to perform

feature extraction. In video-based ITS, the term

“feature extraction” refers to the detection of the

regions, which are likely to generate traffic events.

Apparently, in a traffic surveillance scene, these

regions consist of virtually every present target,

including vehicles and pedestrians.

In the present problem, it is convenient to

assume a static background and compare it against

successive frames, in order to track the emergence of

targets of interest. Therefore, feature extraction is

treated as a change detection problem. The

261

Alexandropoulos T., Loumos V. and Kayafas E. (2007).

CHANGE DETECTION AND BACKGROUND UPDATE THROUGH STATISTIC SEGMENTATION FOR TRAFFIC MONITORING.

In Proceedings of the Second International Conference on Signal Processing and Multimedia Applications, pages 257-264

DOI: 10.5220/0002134802570264

 SciTePress

performance of a video-based ITS front end depends

on the joint operation of two operations: change

detection and background update.

All imaging devices introduce inter-frame

variations due to sensor noise. Thus, direct frame

differencing fails to provide accurate results as a

change detection method. In general, change

detection demands the utilization of methods which

separate optimally content changes from noise-level

fluctuations.

In addition, although a static background is

assumed, its appearance exhibits intensity variations

due to gradual changes in lighting conditions. In

highway scenes, an apparent factor that causes

alterations in the background scene is the influence

of daylight variations. This fact dictates the use of a

background update method, which adapts to the

present lighting conditions, without incorporating

occlusions to the background model.

The present paper analyzes the operation of a

video-based ITS front end which performs feature

extraction in the image domain. In detail, the paper

is structured as follows. In Section 2, a block-based

clustering procedure, which performs noise model

estimation, is presented. In Section 3, a statistic

change detection method which takes into account

the noise model information is analyzed. In Section

4, an algorithm which performs background model

adaptation to gradual illumination variations is

presented. In the end, a short discussion analyzes

further development plans on the architecture of the

proposed system.

2 NOISE MODEL ESTIMATION

Feature extraction in traffic surveillance is feasible

through the application of change detection. A

highway frame, which is free of occlusions, can be

selected as reference. The change detection method

is responsible for the detection of occlusions on the

surveyed scene. This is performed through

comparison of subsequent frames against the

reference frame. The operator can restrict the feature

extraction process by specifying a region of interest

or even multiple regions of interest. The latter case

applies when the operator is interested in the

inspection of each highway lane individually.

Since change detection requires the existence of

a reference frame, there is the need to ensure its

availability. The background frame may either be

selected manually or be created by applying

temporal median to a training video sequence

(Massey, 1996). In the latter case, manual

verification is suggested, in order to ensure that no

static occlusions have been erroneously incorporated

to the background model.

An algorithm which performs change detection

needs to cope with the noise effect. Noise is an

inherent characteristic which is present in every

image acquisition sensor and introduces inter-frame

variations even in “unchanged” scenes. This fact

precludes direct differencing and requires the use of

a technique that separates content changes from

noise-level fluctuations. Obviously, content changes

and noise variations are not always separable. Thus,

change detection algorithms focus on the estimation

of the optimum “threshold of perception” and the

formulation of an optimized classification rule.

Change detection methods encountered in the

literature (Radke, 2005) are based on statistic

criteria, in order to decide whether a pixel or a block

of pixels corresponds to a changed or an unchanged

region. A statistic approach proposed in (Aach,

1993), (Cavallaro, 2001) applies a statistic

significance test over a rectangular window which is

centred in the pixel of interest. The approach

assumes a Gaussian noise model and introduces a

probability distribution function in the

formulation of the classification rule. However, the

utilized significance test relies on prior knowledge

of the noise model and therefore requires the

availability of statistic noise information in order to

operate reliably.

The method which is analyzed in the present

paper aims to estimate the noise model - that is, the

noise mean value

m and standard deviation

from the image blocks of the absolute difference. Let

and

denote the observed mean value and

standard deviation in each block

B of the absolute

difference. In order to achieve an accurate noise

model approximation, it is sufficient to restrict the

noise-model calculations to the block subset which

exhibits noise-level fluctuations. Therefore, the goal

of the proposed procedure is to group blocks of the

absolute difference to clusters, according to their

statistic similarity (Alexandropoulos, 2005).

In order to perform the clustering operation, each

cluster

C is described by two statistic parameters:

the averaged mean value

and the averaged

standard deviation of its member blocks. Thus, for a

cluster with

N member blocks, we define:

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

262

∑

(1)

∑

(2)

Obviously, equations (1) and (2) define the centroid

of cluster

C .

The proposed block clustering procedure is

performed in the following steps.

i) Cluster

C is initialized:

(3)

(4)

ii) For each block

B of the absolute difference and

for each existing cluster

),...,2,1( nk =

, their mean

value distance

kij

is estimated.

Cijkij

mmd −=

(5)

Ckij

≤

, cluster

C is added to the list of

candidates.

iii) If candidate clusters have been found, block

is classified to the cluster which yields the minimum

mean value distance and the centroid of the “winner

cluster” is updated, as indicated by equations (1) and

(2). If no candidate clusters have been found, a new

cluster

1+n

C is initialized and block

is added to

it. Therefore:

ijC

(6)

ijC

(7)

The flowchart of the clustering procedure is

presented in Figure 1.

Upon completion of the clustering algorithm, a

segmentation map of the absolute difference is

obtained. In this representation, blocks which have

been grouped into the same cluster are displayed

with the same intensity value. When the algorithm is

applied on colour images, a segmentation map is

extracted for each colour component. In the present

work, the segmentation technique is used in the HSL

colour space. Specifically, it is applied on the hue

and saturation components of the absolute

difference.

The segmentation maps are used as a qualitative

criterion and indicate the effectiveness of the

procedure in the noise model estimation. In an

effective segmentation, the majority of unchanged

regions – and only unchanged regions - is grouped in

a single cluster.

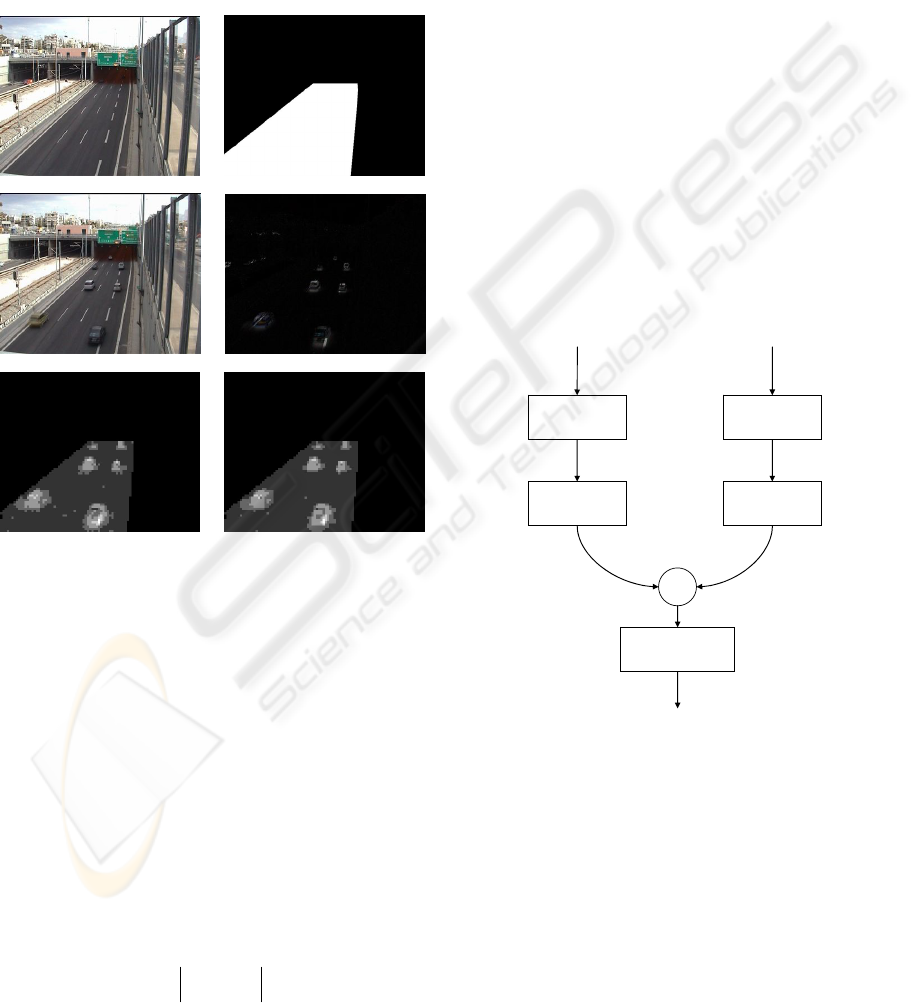

An example which shows the results of the

segmentation method is displayed in Figure 2.

Figure 2a presents a background frame which is

used as reference. The inspected region of interest is

shown in Figure 2b. Figure 2c shows an occluded

frame. The absolute difference of the reference and

the occluded frame is displayed in Figure 2d.

Figures 2e and 2f present the segmentation maps

which are produced when the statistic segmentation

algorithm is applied on the hue and saturation

components of the absolute difference. It is evident

that the majority of background blocks have been

grouped in a single cluster. Thus, the segmentation

procedure allows accurate noise model estimation,

by taking into account the properties of the block

subset which is grouped in the “background cluster”.

, CCij

≤

, CCij

≤

CCij

≤

…

Add cluster C

to candidate list

Add cluster C

to candidate list

Add cluster C

to candidate list

Candidate clusters

found

Classify block to cluster

: d

ij,Ck

= min

Initialize cluster C

n+1

Cn+1

, σ

Cn+1

=σ

YES

(

)

ijijij

, CCij

≤

, CCij

≤

CCij

≤

…

Add cluster C

to candidate list

Add cluster C

to candidate list

Add cluster C

to candidate list

Candidate clusters

found

Classify block to cluster

: d

ij,Ck

= min

Initialize cluster C

n+1

Cn+1

, σ

Cn+1

=σ

YES

(

)

ijijij

Figure 1: Flowchart of the proposed block-based statistic

segmentation algorithm.

The noise model estimation is based on the

assumption that the largest cluster carries noise

model information. This assumption is considered

safe when the occlusions occupy up to half of the

surveyed scene. This fact allows the application of

the noise model estimation method without the strict

CHANGE DETECTION AND BACKGROUND UPDATE THROUGH STATISTIC SEGMENT FOR TRAFFIC

MONITORING

263

necessity to ensure complete absence of occlusions

in the training video sequence.

Let

m and

denote noise mean value and

standard deviation respectively. In order to utilize

the statistic properties of the background cluster, we

define:

max

mm =

(8)

}max{

max

ijn

∈=

(9)

a) b)

c) d)

e) f)

Figure 2: Block-based segmentation results: a) Reference

background, b) The inspected region of interest c) A

frame with occlusions d) Absolute difference, e)

Segmentation map extracted fron the the hue component

of the absolute difference f) Segmentation map extracted

from the saturation component of the absolute difference.

3 CHANGE MASK EXTRACTION

In change detection, the noise model, which is

obtained by the segmentation procedure, is used in

order to establish a noise-dependent decision rule

and separate content changes from noise-level

fluctuations. For each block

of the absolute

difference, the mean value distance

nij

estimated.

nijnij

mmd −=

(10)

The mean value distance

nij

is then compared

against the noise standard deviation

i) If

nnij

then block

B is classified as

changed.

ii) If

nnij

≤

block

B is unchanged.

This decision rule produces a binary change

mask which is applied on the present frame, in order

to isolate content changes. When change detection is

performed on colour images, a binary change mask

is produced for each colour component. The partial

masks are then merged into a single change mask

through the application of an OR operator. In the last

stage, block-level median filtering is applied on the

change mask for the suppression of inconsistencies.

In the present work the algorithm is applied on

the HSL colour space and produces change masks

which correspond to the hue and saturation

components of the absolute difference. The

respective algorithm flowchart is shown in Figure 3.

Absolute difference

(Hue component)

Absolute difference

(Saturation component)

Block-based

segmentation

Change mask

extraction

Block-level

median filtering

Block-based

segmentation

Change mask

extraction

Binary change mask

Figure 3: Flowchart of binary change mask extraction in

colour images.

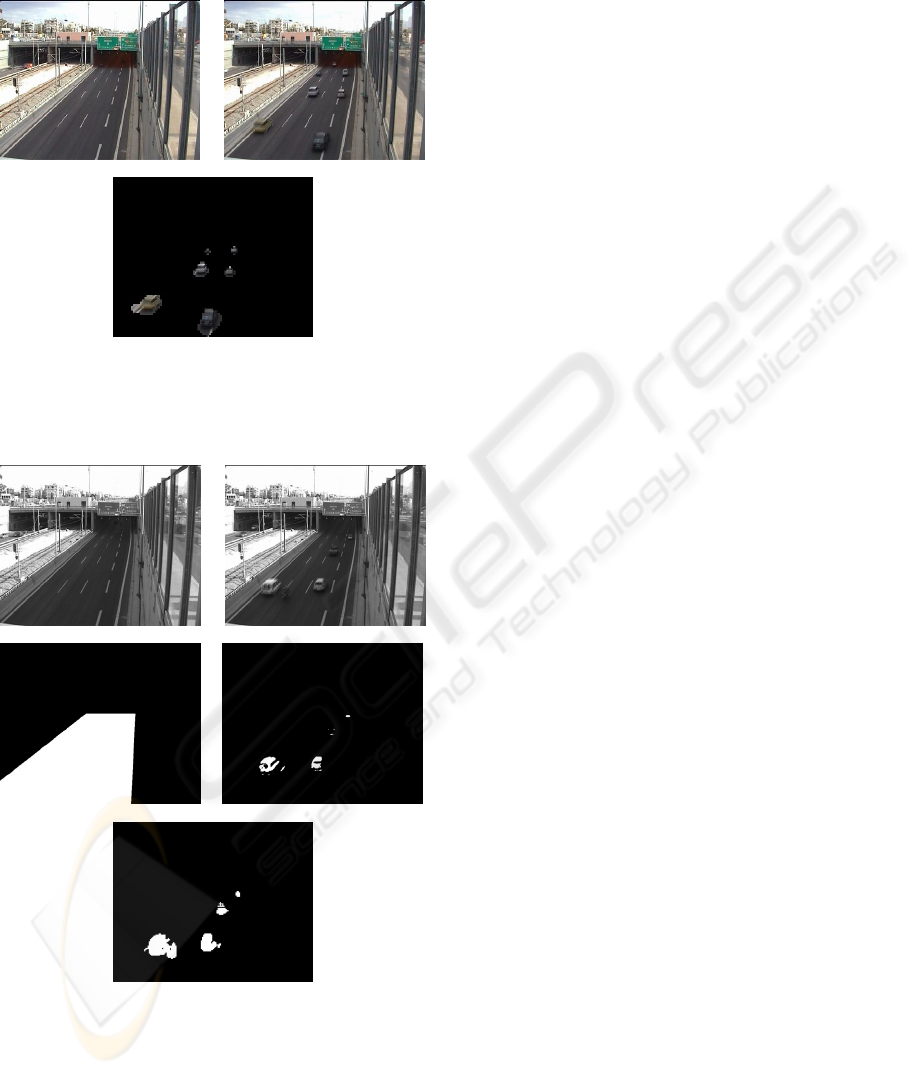

The results of the change detection algorithm are

presented in Fig 4. Figure 4a shows the reference

background and Figure 4b presents a frame with

occlusions. Figure 4c displays the changes which are

detected through the employment of the proposed

statistic segmentation and change detection criteria.

It is clear that the inclusion of the extracted noise

model to the change detection decision rule achieves

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

264

the detection of content alterations and the

concurrent suppression of noise-level fluctuations.

a) b)

Figure 4: a) Reference background, b) A highway frame

with occlusions, c) Changes detected through the

application of the proposed block-based change detection

method.

a) b)

c) d)

Figure 5: a) Reference frame b) Occluded frame c) Region

of interest d) Binary mask extracted by the significance

test presented in (Aach,1993) e) Binary change mask

extracted by the proposed segmentation procedure.

In the example shown in Figure 5, the results of

the proposed technique are compared to the

respective results extracted by the algorithm

proposed in (Aach, 1993). Both algorithms have

been tested on grayscale images. Figures 5a and 5b

display the reference frame and an occluded frame

respectively. The change detection algorithms are

applied on the region of interest displayed in Figure

6c. Figure 6d presents the binary change mask which

is obtained through the application of the

significance test proposed in (Aach, 1993). The

change mask displayed in Figure 5e is obtained

through application of the proposed algorithm. In the

latter case, one can notice that the utilization of the

statistic segmentation criterion has resulted in an

increased detection rate of occluded regions.

4 BACKGROUND UPDATE

Video-based ITS operate continuously under time

varying lighting condition. Thus, the surveyed

scenes inevitably exhibit gradual illumination

variations. These are caused by changes in daylight

intensity and colour temperature. Moreover, the

time-varying positioning of the light sources results

in the shifting of cast shadows. These factors affect

the appearance of the background and introduce the

necessity to update the reference frame when

performing change detection.

Background estimation methods which are found

in the literature attempt to separate foreground from

background regions based on pixel-wise temporal

measurements. Linear prediction methods, such as

Weiner and Kalman filtering, (Toyama, 1999)

(Ridder, 1995) take into account the history of the

observed intensity values at each pixel. Haritaoglu et

al. (2000) track the intensity fluctuations which are

observed between the frames of a background video

sequence and use them as a training parameter in a

thresholding criterion. Statistical methods track the

temporal intensity variations at each pixel, in order

to approximate a noise probability function

distribution. Early approaches model background

pixel intensities with a Gaussian pdf (Cavallaro,

2001). In most recent approaches, a mixture of

Gaussians is estimated for the expression of both

background and foreground models (Lee, 2005),

(Harville, 2001), (Stauffer, 1999).

The aforementioned techniques share a common

characteristic: Persistent static occlusions are

eventually incorporated in the background model.

Consequently, these methods are oriented towards

motion detection rather than change detection.

However, in the present case, the addition of still

targets to the updated background is considered as

an undesirable effect. In traffic monitoring, the

CHANGE DETECTION AND BACKGROUND UPDATE THROUGH STATISTIC SEGMENT FOR TRAFFIC

MONITORING

265

existence of a static occlusion is likely to indicate

significant events. For example, a static target may

indicate the presence of an immobilized vehicle or

an accident scene.

Toyama et al. (1999) assume discrete

illumination states and select the appropriate

background model based on k-means clustering.

This approach addresses background update in

indoor scenes with finite illumination states.

However, outdoor scenes are characterized by

complex illumination variation. Thus, the utilization

of this algorithm would require a very large number

of illumination profiles.

In the present work, a block-based statistic

background update method, which adapts to gradual

illumination alterations, is implemented. The

algorithm is based on successive comparisons of the

background against each observed frame. It utilizes

the noise model which is extracted by the statistic

segmentation method and produces a “foreground

mask”.

The decision rule which is used for the

classification of image blocks into foreground and

background blocks is similar to the one used for

change detection. In this case, the averaged mean

value

max

m and averaged standard deviation

max

of the dominant cluster

max

C are introduced in the

criterion.

Initially, the mean value of each block of the

absolute difference is compared against the averaged

mean value of the dominant cluster.

maxmax

, CijCij

mmd −=

(11)

i) If

maxmax

, CCij

> block

B is added to the

foreground mask.

ii) If

maxmax

, CCij

≤

block

B denotes a background

region

In colour images, this decision rule extracts a

foreground mask for the absolute difference of each

colour component.

In the next stage of the procedure, the foreground

mask of each colour component is subjected to

block-level median filtering, in order to suppress

inconsistencies. The foreground masks are then

merged into a single mask through an OR operation.

Image blocks which lie in occlusion boundaries

frequently exhibit statistic characteristics which are

similar to the ones of unoccluded regions, because a

percentage of their member pixels display

background regions. The incorporation of these

blocks to the background model would cause the

appearance of edge traces and the overall

degradation of the background scene. In order to

cope with this issue, the foreground mask is

subjected to block-level dilation and the occlusion

boundaries are added into it.

The flowchart of the foreground mask extraction

is presented on Figure 6.

Background frame

(t=t

)

Present frame

(t=t

)

Absolute difference

Hue

component

Saturation

component

Block-based

segmentation

Block-based

segmentation

Median filter

Block-level dilation

Median filter

Foreground mask

Foreground

extraction

Foreground

extraction

Figure 6: Flowchart of the foreground mask extraction

algorithm.

After the extraction of each blocks

F of the binary

foreground mask, the background model is updated

as follows:

i) If

F , the background frame is updated in

the respective block.

ii) If

, the background model maintains its

previous state in the specific block.

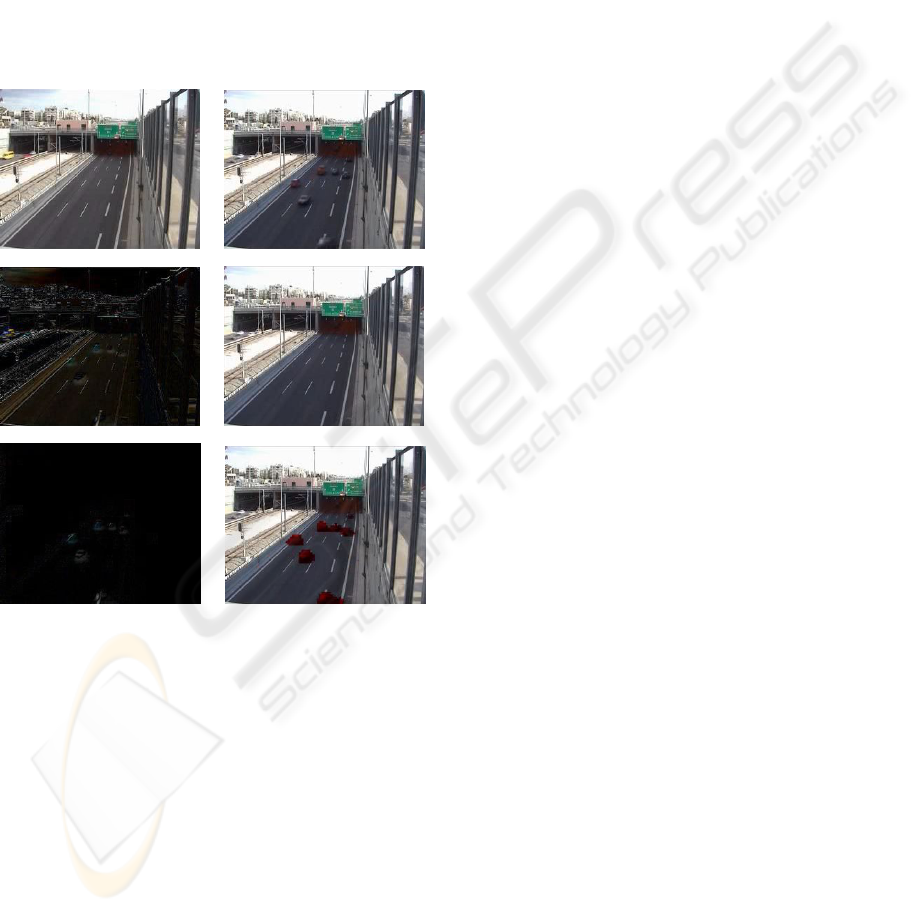

The proposed algorithm has been applied on

highway video sequences, in order to demonstrate its

capability to adapt to time-varying illumination

conditions. An example is presented in Figure 7.

Figure 7a shows the background frame at the

initialization of the algorithm. Figure 7b shows an

occluded frame, in which ambient light variations

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

266

have been introduced. Figure 7c displays the

differences between frames 7a and 7b. One can

observe the chrominance variations which have

emerged on the highway surface. If the noise model

estimation is performed offline - during an initial

training stage - a direct comparison between frames

7a and 7b would result in the misclassification of all

image blocks as changed. If inter-frame noise is

estimated continuously, direct differencing of these

frames would result in the estimation of an

exaggerated noise model and the formulation of a

conservative decision rule.

a) b)

c) d)

e) f)

Figure 7: Background update example a) Reference frame

b) Changed frame c) Differences between the initial

background model and the changed frame, d) Updated

background e) Differences between the updated

background and the changed frame f) Detected features.

The utilization of the proposed background

update procedure produces the background model

which is shown in Figure 7d. Figure 7e displays the

differences between the present frame and the

updated model. It is evident that the update process

managed the incorporation of gradual illumination

changes to the background model without the

addition of occlusions. The change detection results

are highlighted in Figure 7f.

5 FURTHER DEVELOPMENT

This paper has presented a combination of image

processing algorithms, which can be included in the

front end of a video-based ITS for target tracking in

highway scenes. The presented approach addresses

the problem through the combination of change

detection and background update algorithms.

The analysis in the present work has focused

exclusively on the description of early vision

algorithms for feature extraction. Further

development on the implementation of an integrated

ITS solution demands the cooperation of machine

vision algorithms with content interpretation

algorithms. This integration is necessary for the

assessment of the temporal behaviour of each

detected feature and the extraction of high-level

attributes. In traffic surveillance, high-level

attributes are mostly related to motion characteristics

and are considered useful for the estimation of

vehicle properties, such as vehicle speed and

trajectory patterns, or the detection of significant

events, such as traffic jam conditions or accidents.

The estimation of high-level attributes requires

the inter-frame correlation of the extracted features

and can be addressed through the employment of

MPEG-7 visual descriptors. The use of visual

description schemas establishes a framework which

offers the capability to formulate event

representations. This approach attempts to enable the

ITS to interpret the behaviour of each feature by

matching it with the appropriate event profile.

Therefore, it is expected that the ITS decision

support capabilities will be enhanced.

REFERENCES

Massey, M., and Bender, W., 1996. Salient Stills: Process

and Practice, In IBM Systems Journal, Vol. 35, No 3

& 4, pp. 557-573.

Radke, R. J., Andra, S., Al-Kofahi, O., and Roysam, B.,

2005. Image Change detection Algorithms: a

systematic survey, In IEEE Transactions on Image

Processing, Vol. 14, Issue 3, pp. 294-307.

Aach, T., Kaup, A., and Mester, R., 1993. Statistical

model based change detection in moving video, In

Signal Processing, Vol. 31, Issue 2, pp. 165-180.

Cavallaro, A., and Ebrahimi, T., 2001. Video object

extraction based on adaptive background and

statistical change detection, In Proc. SPIE Visual

Communications and Image Processing, pp. 465-475.

Alexandropoulos, T., Boutas, S., Loumos, V., and

Kayafas, E., 2005. Real-time change detection for

surveillance in public transportation, In IEEE

CHANGE DETECTION AND BACKGROUND UPDATE THROUGH STATISTIC SEGMENT FOR TRAFFIC

MONITORING

267

International Conference on Advanced Video and

Signal-Based Surveillance, pp. 58-63.

Toyama, K., Krumm, J., Brummit, B., and Meyers, B.,

1999. Wallflower: Principles and Practice of

Background Maintenance, In 7th IEEE International

Conference on Computer Vision, pp. 255-261.

Ridder, C., Munkelt, O., and Kirchner, H., 1995. Adaptive

background estimation and foreground detection using

Kalman filtering, In International Conference on

Recent Advances in Mechatronics, pp.193-199.

Haritaoglu, I., Harwood, D., and Davis, L. S., 2000. W4:

Real-time surveillance of people and their activities, In

IEEE Transactions on Pattern Analysis and Machine

Intelligence, Vol. 22, No. 8, pp. 809-830.

Lee, D. S., 2005. Effective Gaussian Mixture Learning for

Video Background Subtraction, In IEEE Transactions

on Pattern Analysis and Machine Intelligence, Vol.

27, No. 5, pp. 827-832.

Harville, M., Gordon, G., and Woodfill, J., 2001.

Foreground Segmentation Using Adaptive Mixture

Models in Color and Depth, In Proc. IEEE Workshop

Detection and Recognition of Events in Video, pp. 3-11.

Stauffer, C., and Grimson, W.E.L., 1999. Adaptive

Background Mixture Models for Real-Time Tracking,

Proc. Conf. Computer Vision and Pattern Recognition,

Vol. 2, pp. 246-252.

SIGMAP 2007 - International Conference on Signal Processing and Multimedia Applications

268
